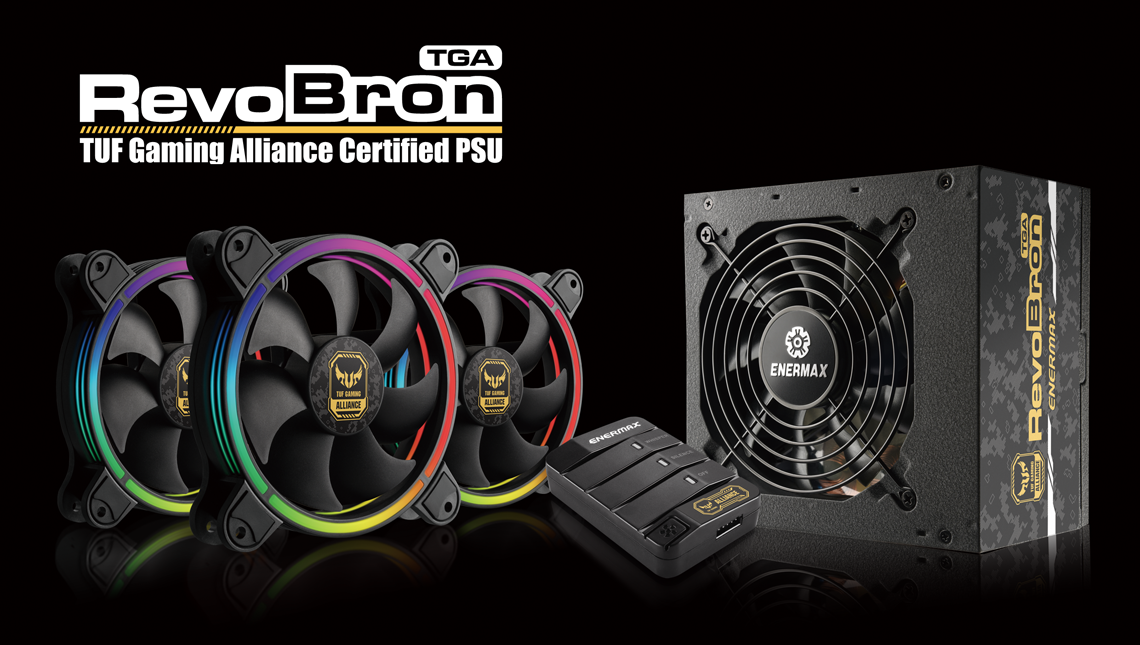

超靜銅魔 RevoBronTGA 特仕版 500W

‧ 80+銅牌效率、半模組設計
‧ 專利啟動逆轉彈塵技術
‧ 採用100%日系105°C電解電容,DC-DC
‧ 附贈散熱精靈及三顆RGB風扇

$3,190 $3,290

加入比較清單 查看比較清單 (0)



80 PLUS®銅牌效率

90%高效率表現(於230V 50%負載),通過80 PLUS®銅牌節能認證




專利逆轉彈塵技術

風扇專利逆轉彈塵技術,可有效避免電源進風口灰塵堆積,進一步延長風扇與電源壽命




全日系105°C 電解電容

高品質用料,確保最佳穩定性與耐用度




零負載穩壓設計

DC-DC (直流轉直流)設計,確保輸出電壓穩定及增加主機相容性

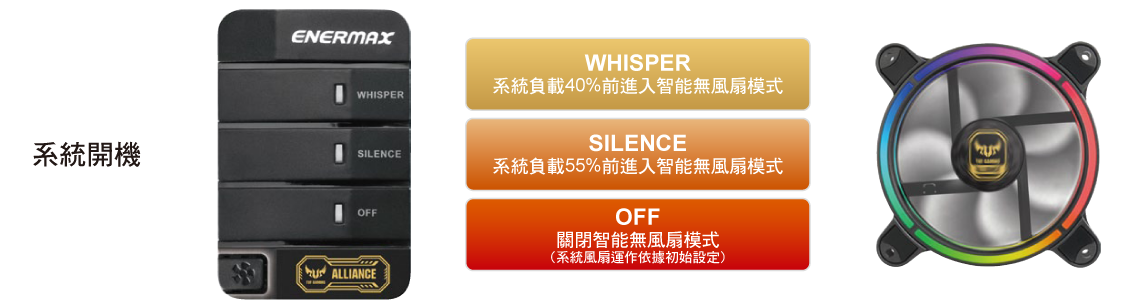

  散熱精靈(內附)

智能二合一的系統風扇控制盒




3段無風扇模式兼固系統靜音及散熱表現

兼固系統靜音及散熱表現

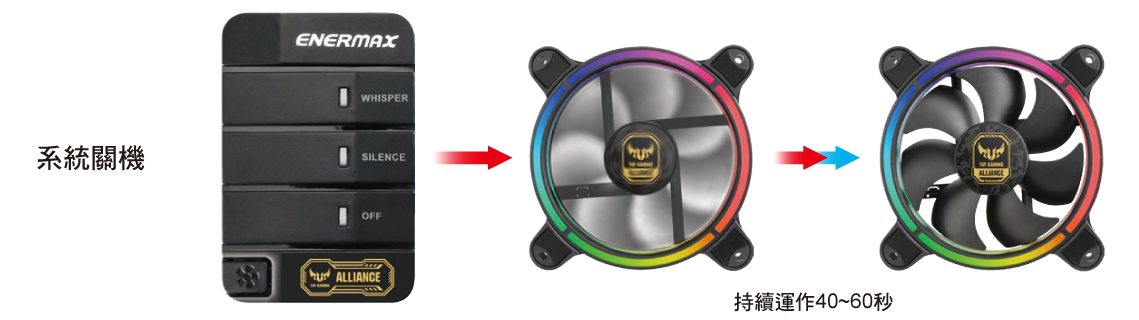

風扇延遲技術

協助系統排除餘熱,延長系統耐用度




  RGB機殼風扇(內附)

絢麗RGB燈效




獨特的鏤空弧形邊框展示出華麗的視覺燈光效果




ENERMAX LED LIGHTING技術提供無比均勻的燈效

金彩蝠 (UCTBRGB12-TUF)

燈光明亮均勻,無光點

其它

燈光不均勻,光點明顯




產品介紹

ERB500AWT TR
Mainboard 24 Pin 1
[ 1x 60cm ]
CPU 4+4 Pin 1
[ 1x 70cm ]
PCI-E 6+2 Pin (8 Pin) 2
[ 1x 50/ 15cm ]
SATA 6
[ 2x 45/ 15/ 15cm ]
4x4 Pin Molex + 1x FDD 4 + 1
[ 1 x 45/ 15/ 15/ 15/ 10cm ]

Notice:
Your Enermax power supply is designed for enthusiast and high demand graphic professional that is looking at working with system that requires multiple GPU. However, configuring multi-GPU system requires proper planning to make sure you are not driving all currents through the same cable source that might overload both your motherboard and your power supply. Driving your GPUs on separate 12V rail is a good practice that most tech savvy user already aware of. Do you realize that your motherboard might be pulling too much current from your 24Pin power source and cause system damage?

For those elite user that is looking to put in 2 or more high end, power demanding GPU card, please choose the motherboard that comes with extra 4P Molex/ 4P FDD / 6P PCI-E power socket on board and connect them with your Enermax power supply. This will prevent motherboard overloading and possibly cause damage to your system including your Enermax power supply. Once this occur, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under Enermax manufacturer¡¦s warranty. Please refer to your motherboard¡¦s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply.

Info for DC connector’s rated current:The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

型號 ERB500AWT
80 PLUS® 銅牌
模組化 半模組
線材 黑扁線
總瓦數 (W) 500
輸入電壓 (V) 100-240
輸入電流 (A) 8-4
輸入頻率 (Hz) 47-63
風扇尺寸 (mm) 120
工作溫度 (°C) 40
平均故障間隔 (小時) > 100k
安全保護 OCP, OVP, UVP, OPP, SCP & SIP
產品尺寸 (長 x 寬 x 高), (mm) 140x150x86
+3.3V(A) 22
+5V(A) 18
+12V1(A) 25
+12V2(A) 25
-12V(A) 0.3
+5Vsb(A) 2.5
Combined Wattage 12V (W) 498
Combined Wattage 3.3V + 5V(W) 110
產品型號 UCTBRGB12-TUF
轉速 (RPM) 1000 (±10%)
風量 (CFM) 31.59 (max)
風量 (m3/h) 53.67 (max)
風壓 (mm-H2O) 0.84 (max)
最大噪音 (dBA) 19
額定電流-風扇 (A) 0.15
額定電流-RGB燈 (A) 0.3
電壓 (V) 12
平均壽命 (hours) ≧160,000 hours @ 25oC
端子 3-PIN (Power cable) / 4-PIN (RGB cable)
配件 RGB sync cable x 1, Screw x 12
尺寸 (mm) 120x120x25
產品型號 EFP01
材質 Plastic
直流輸出 (A) 2.0
延遲散熱 (sec.) 40-60
智能無風扇模式 Whisper:0 RPM before 40% system load
Silence:0 RPM before 55% system load
Off:Disable the fanless function
尺寸 (mm) 57.5x85x16
EAN code 4713157723550
UPC code 819315023556
彩盒尺寸 (長 x 寬 x 高), (mm) 330x217x98.5
毛重/彩盒(kg) 2.8
