鈦金冰核 MaxTytan 1050W

‧ 電源業界最高-鈦金轉換效率94%
‧ 智能無風扇模式,負載低於60%~70%風扇停轉
‧ 逆轉彈塵技術
‧ 全模組設計、晶鑽編織網管線材
‧ 多重安全線路設計、DC-DC
‧ 附贈散熱精靈CoolerGenie

$11,090 $11,390

加入比較清單 查看比較清單 (0)

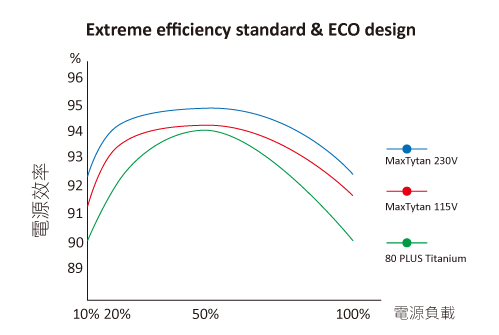

80 PLUS® 鈦金效率

90~94%極高效率表現(於10~100%負載範圍),通過80 PLUS®鈦金牌節能認證




瓦數顯示器

數位面板即時呈現系統實際功耗




專利逆轉彈塵設計

風扇專利逆轉彈塵技術,可有效避免電源進風口灰塵堆積,進一步延長風扇與電源壽命




專利磁力氣旋軸承

13.9公分專利磁力氣旋軸承風扇,確保靜音且長效的運作(160,000小時MTBF)




智能無風扇模式

系統負載低於60%~70%時,電源會進入無風扇模式以確保靜音運作。當系統負載超過定義值或內部溫度提高時,風扇會自行啟動並依據系統條件自動調整風扇轉速




全模組線材設計

出線為全模組線材,方便使用者安裝與理線




晶鑽全獨立網管

時尚典雅獨立編織網管線材,選用特殊披覆材質,手感與質感俱佳

*MB / CPU / PCI-E=16AWG (53 strands*0.176mm) *SATA / 4P Molex=18AWG (34 strands*0.176mm)




全日系105°C電解電容

高品質用料,確保最佳穩定性與耐用度

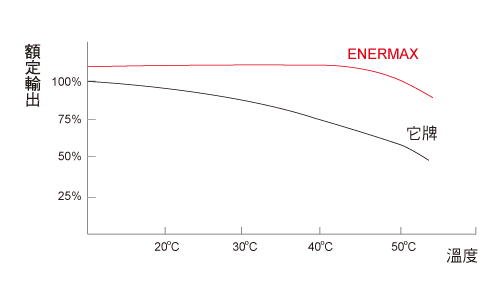

24/7 @ 50°C ready!

工業級強悍耐久設計用料,環溫50°C仍足瓦穩定輸出




零負載穩壓設計

DC-DC(直流轉直流)設計,確保輸出電壓穩定及增加主機相容性




安全警衛

多重安全線路設計,包含:過電流保護(OCP)、過電壓保護(OVP)、低電壓保護(UVP)、過溫度保護(OTP)、過負載保護(OPP)、短路保護(SCP)與防突波&湧浪保護(SIP)等,提供系統多重的保護




全區域自動電壓調整

主動式PFC設計,PF值高達0.99,能有效降低電力損耗。100-240VAC自動電壓調整,全球各地電壓輸入皆可使用




符合2014 & 2013 ErP節能規範

待機模式低於0.5W (需搭配支援2013 ErP Lot 6之主機板)。符合2013 ErP Lot 6及2014 ErP Lot 3節能規範




散熱精靈 (內附)

風扇延時技術協助系統排除餘熱,延長系統耐用度

3段無風扇模式,兼固系統靜音及散熱表現




產品介紹



COOLERGENIE產品安裝介紹

EDT1050EWT
Mainboard 24 Pin 1
[ 1x 60cm ]
CPU 4+4 Pin 1
[ 1x 60cm ]
CPU 8 Pin 1
[ 1x 60cm ]
PCI-E 6+2 Pin (8 Pin) 8
[ 4x 60cm ]
SATA 16
[ 4x 50/ 15/ 15/ 15cm ]
4x4 Pin Molex 8
[ 2x 50/ 15/ 15/ 15cm ]
FDD 1
[ 1x 10cm ]

Notice:
Your Enermax power supply is designed for enthusiast and high demand graphic professional that is looking at working with a system that requires multiple GPU. However, configuring a multi-GPU system requires proper planning to make sure you are not driving all currents through the same cable source that might overload both your motherboard and your power supply. Driving your GPUs on separate 12V rail is a good practice that most tech-savvy users already aware of. Do you realize that your motherboard might be pulling too much current from your 24Pin power source and cause system damage?

For those elite users that is looking to put in 2 or more high end, power demanding GPU card, please choose the motherboard that comes with extra 4P Molex/ 4P FDD / 6P PCI-E power socket on board and connect them with your Enermax power supply. This will prevent motherboard overloading and possibly cause damage to your system including your Enermax power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under Enermax manufacturer¡¦s warranty. Please refer to your motherboard¡¦s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

型號 EDT1050EWT
80 PLUS® 鈦金
模組化 全模組
線材 獨立編織網管
總瓦數 (W) 1050
輸入電壓 (V) 100-240
輸入電流 (A) 13-6
輸入頻率 (Hz) 47-63
風扇尺寸 (mm) 139
工作溫度 (°C) 50
平均故障間隔 (小時) > 100K
安全保護 OCP, OVP, UVP, OTP, OPP, SCP, SIP
產品尺寸 (長 x 寬 x 高), (mm) 200x150x86
+3.3V(A) 20
+5V(A) 20
+12V1(A) 87.5
-12V(A) 0.3
+5Vsb(A) 3
Combined Wattage 12V (W) 1050
Combined Wattage 3.3V + 5V(W) 100
EAN code 4713157722713
UPC code 816163008933
彩盒尺寸 (長 x 寬 x 高), (mm) 351x263x158
毛重/彩盒(kg) 5.2
