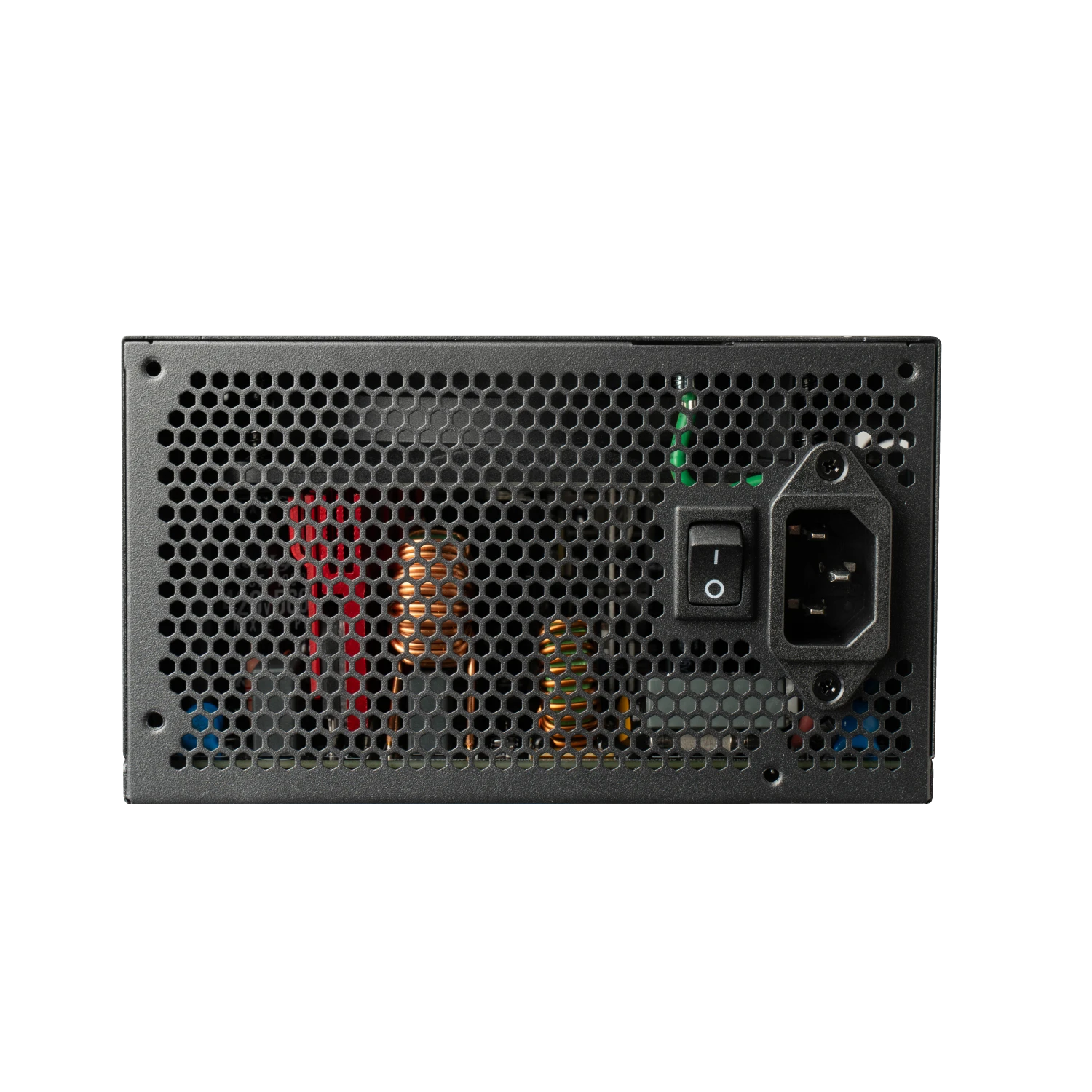

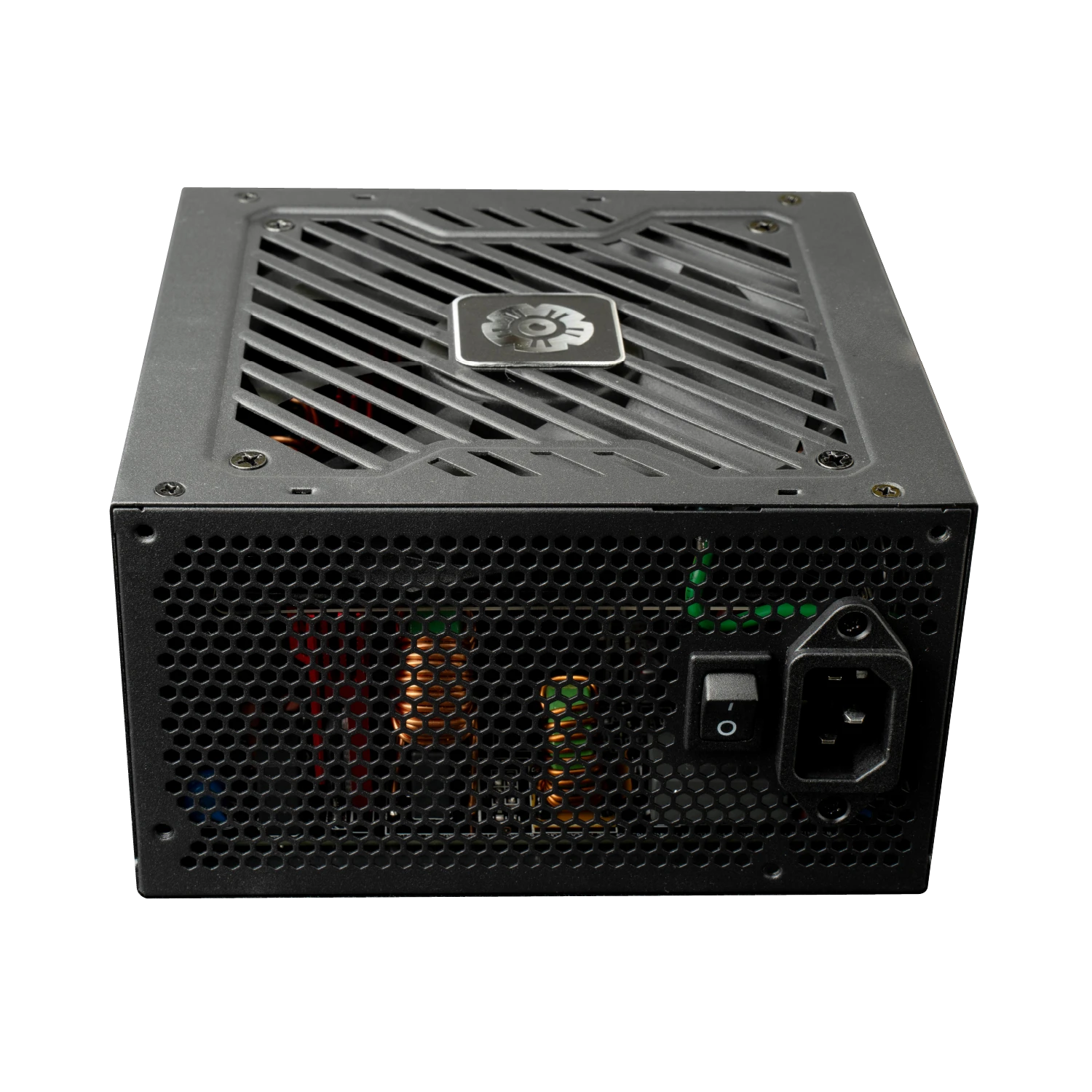

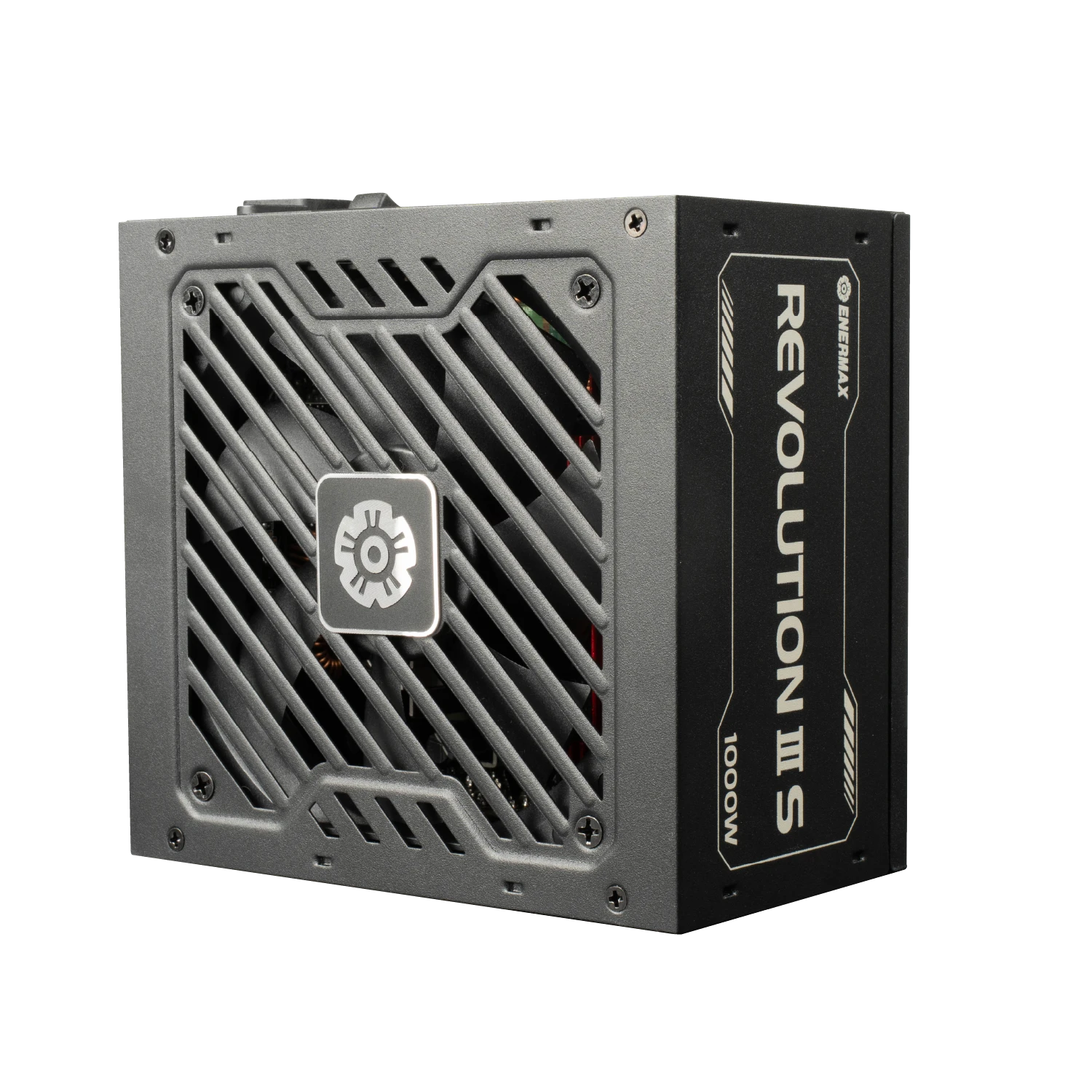

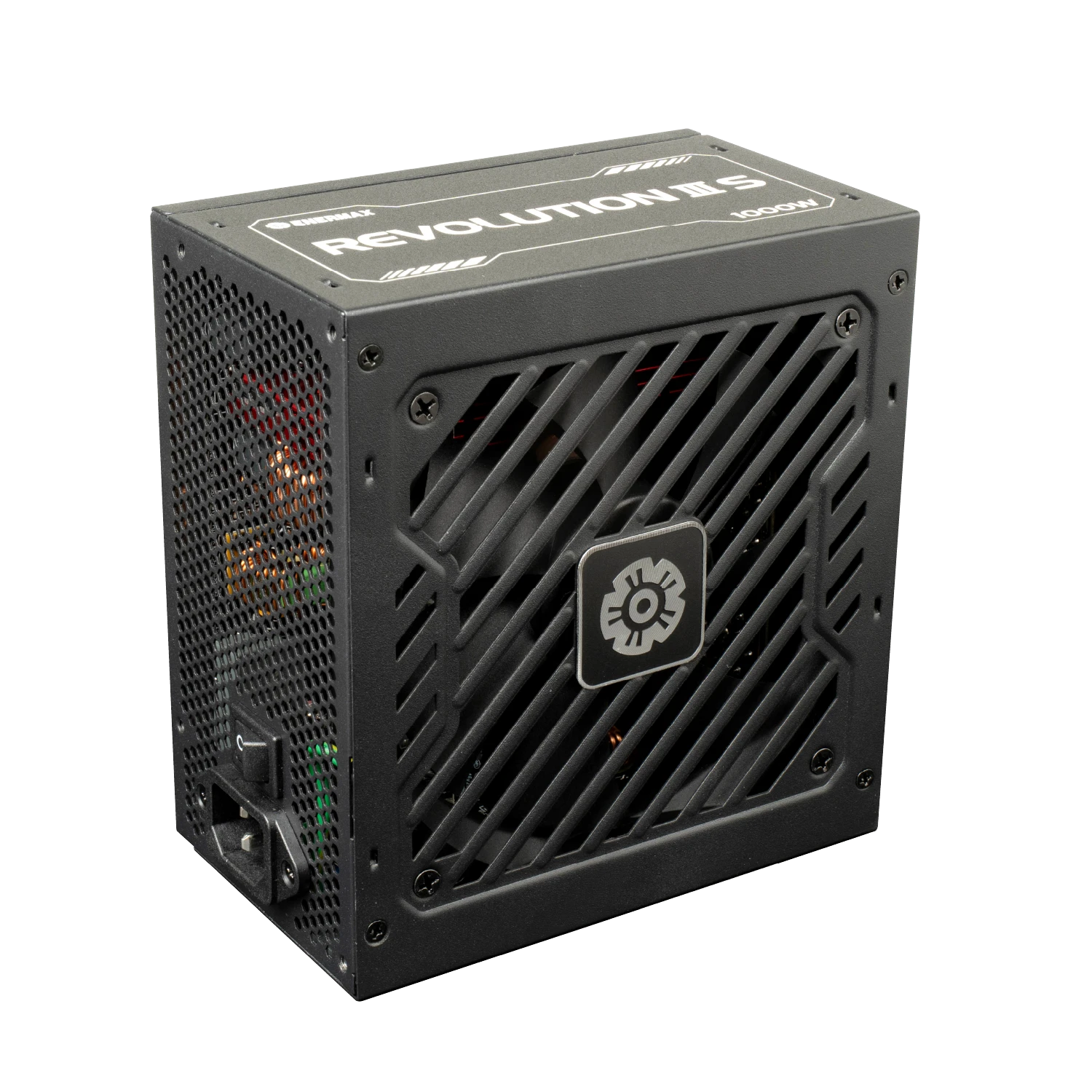

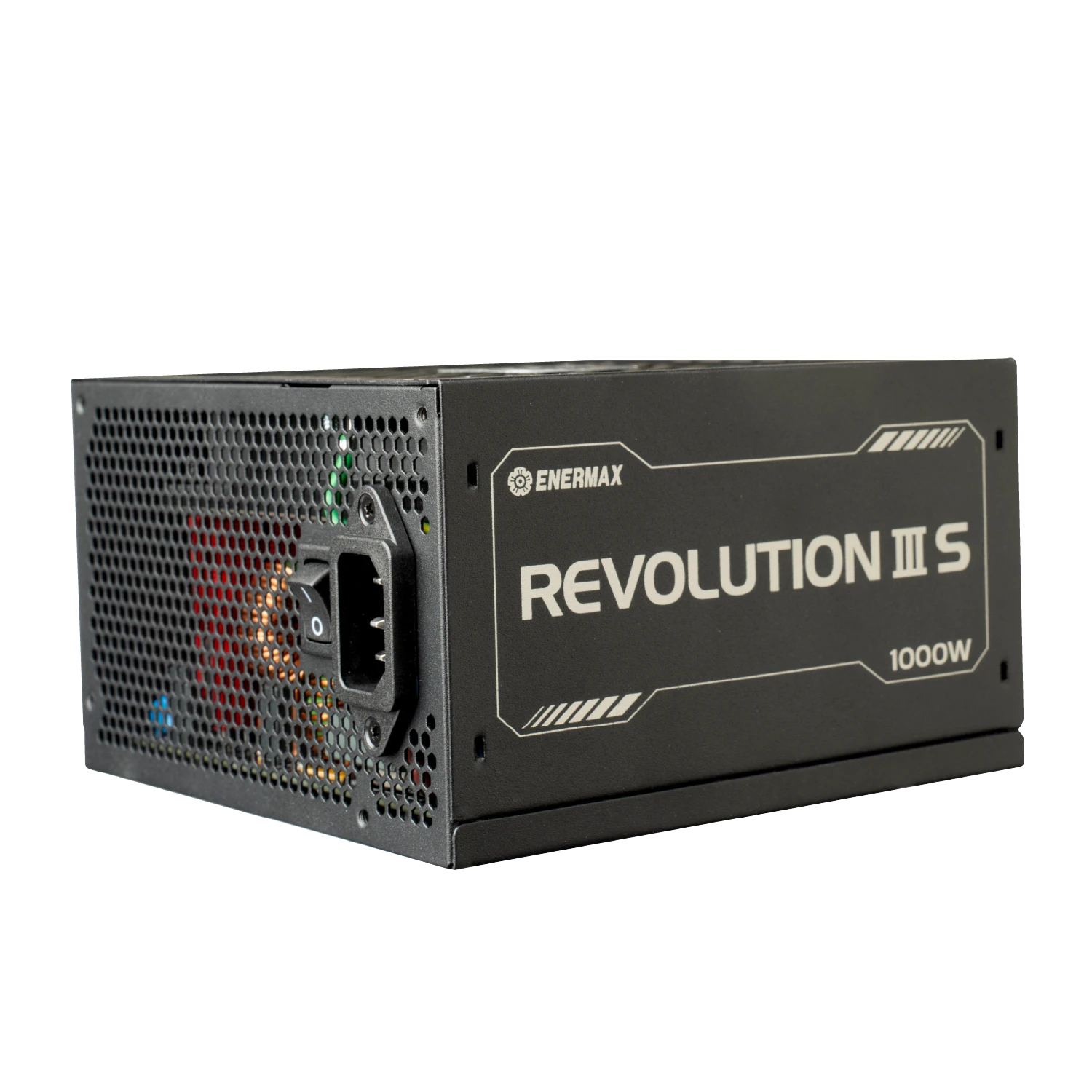

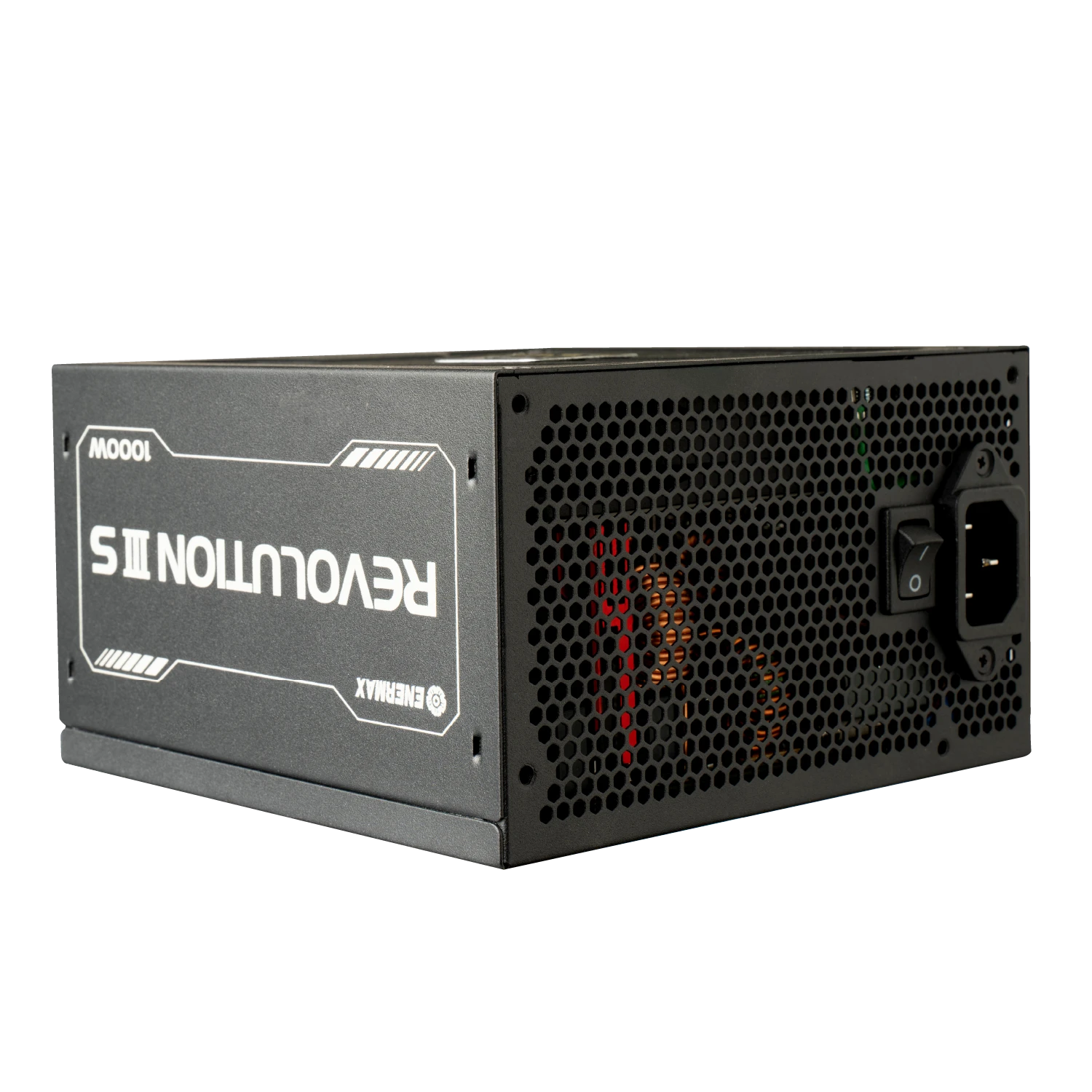

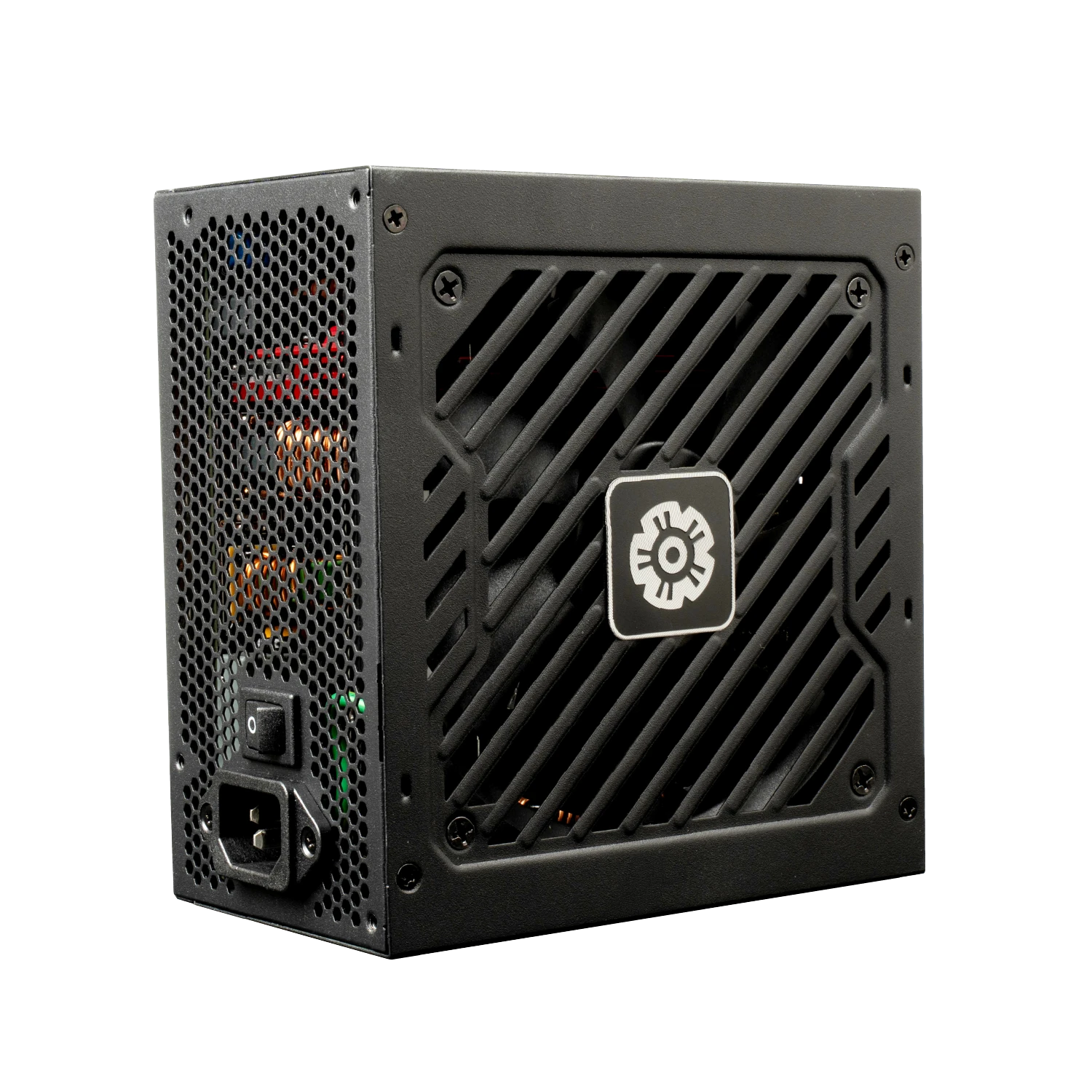

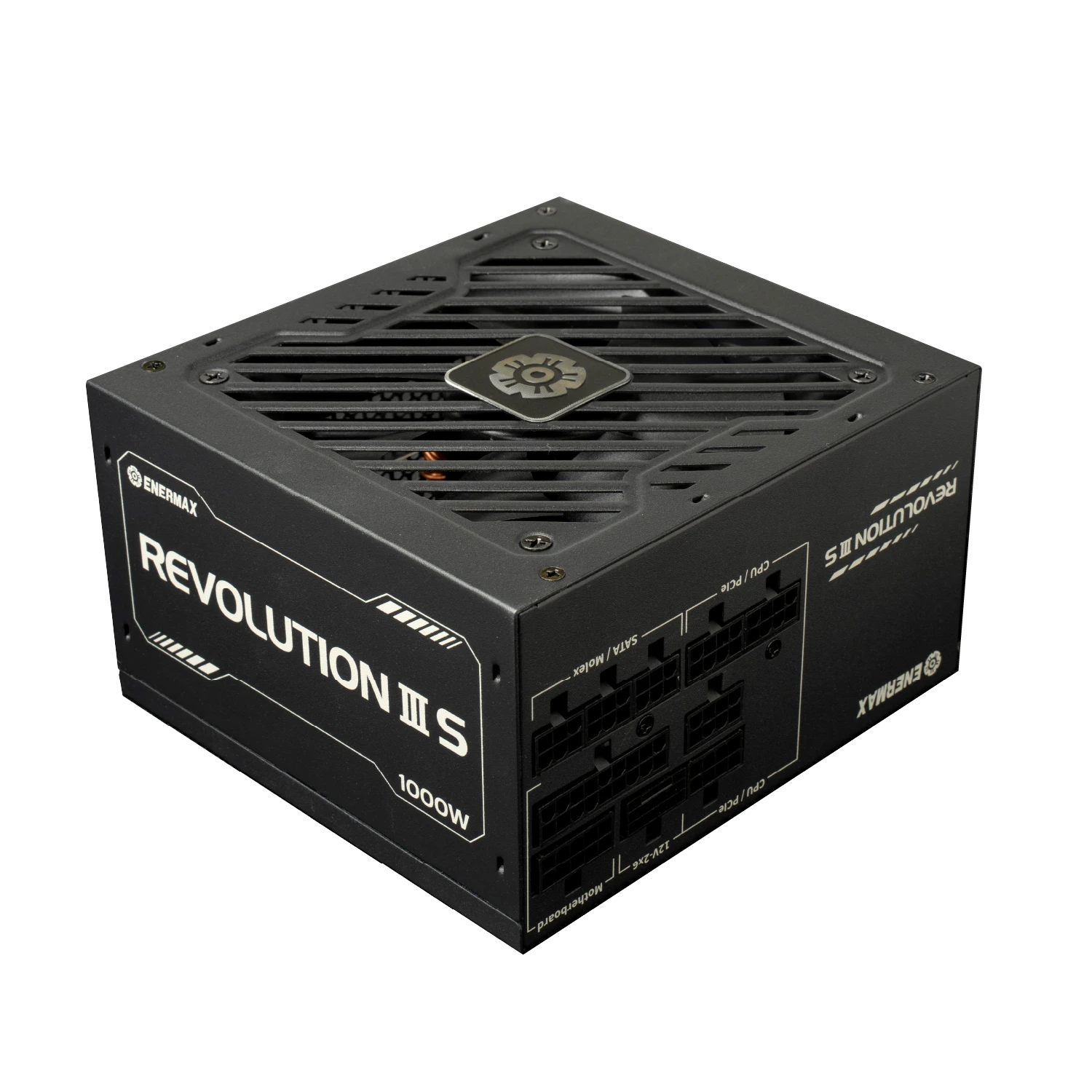

REVOLUTION III S 1000W
全模組 ATX 3.1 電源供應器
REVOLUTION III S 1000W ATX 3.1電源供應器
▪ 80 PLUS白金級能效認證
▪ 完美相容ATX 3.1標準
▪ 原生12V-2x6 接頭，為PCIe 5.1顯卡提供高達600W輸出
▪ 全日系高品質電容

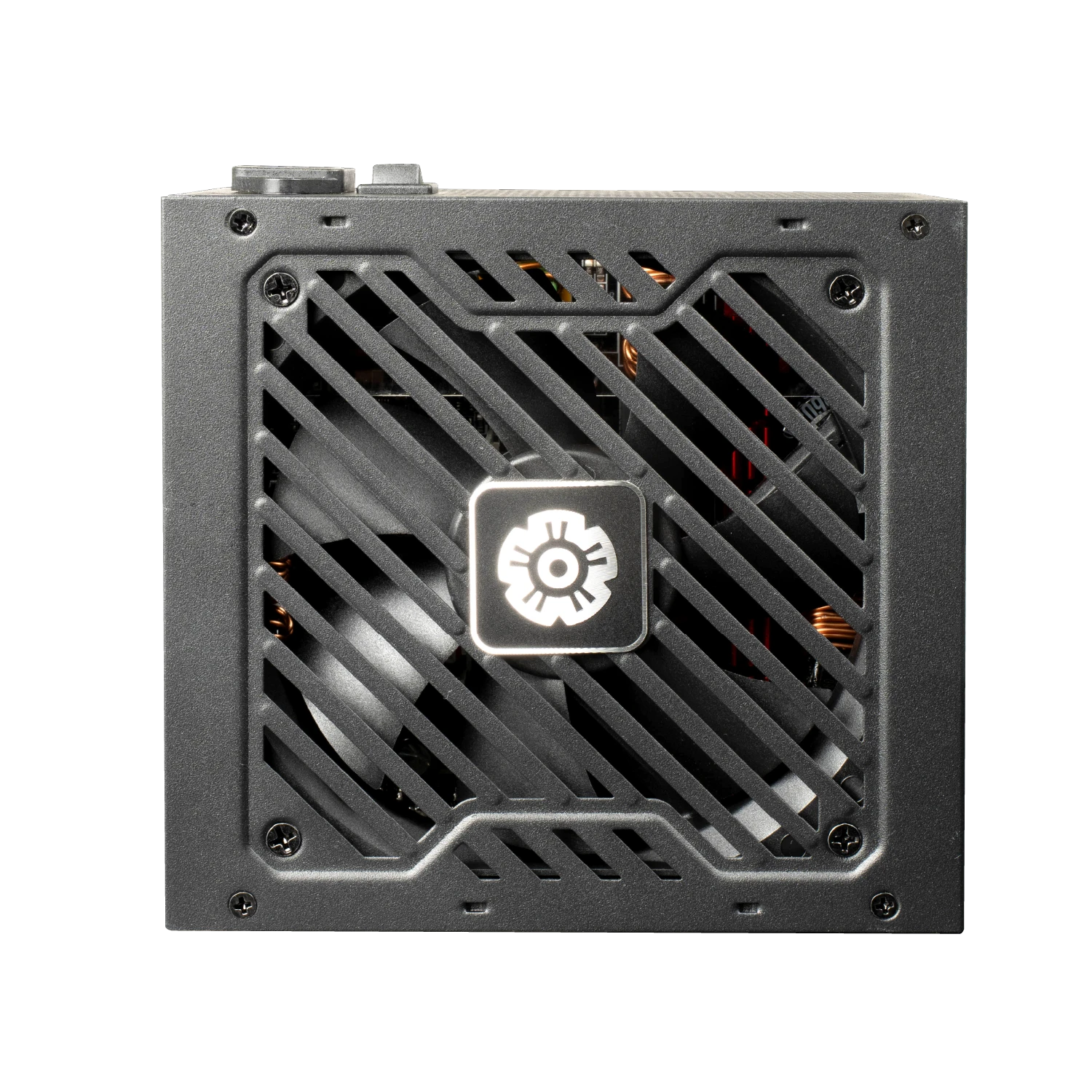

▪ 靜音120mm FDB風扇
|

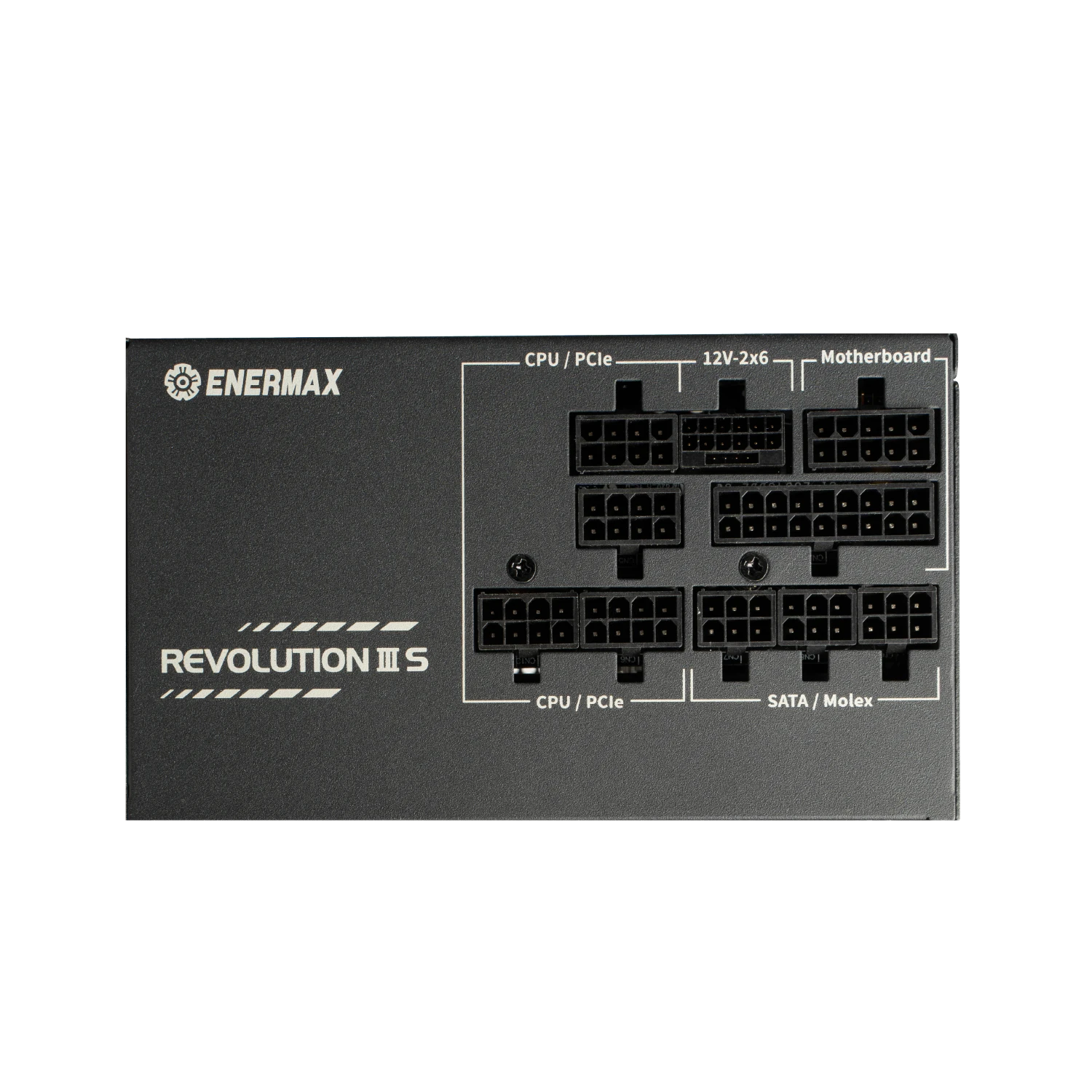

ERV1000P-AHP ERV1000P-AHP-W |
|
|
Motherboard 24 pin |
1 |
|
CPU 4+4 pin |
2 |
|
12V-2x6 12+4 pin |
1 [ 1 x 60cm ] |
|
12V-2x6 to PCIe 6+2 pin (2 connectors) |
1 [ 1 x 60cm ] |
|
PCIe 6+2 pin |
2 |
|
SATA (3 connectors) + 4P Molex (1 connector) |
3 |
Notice:
For users looking to put in high-end, power-demanding GPU card, please correctly connect the 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply. This will prevent motherboard overloading and possibly cause damage to your system, including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration, and any damage to the power supply due to it will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.
Either sleeved or flat-type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.
Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please note that overloading could cause the connector or wire to melt down and void the warranty.
| North America |    |
| Europe | |
| Taiwan |  |
| Worldwide |  |
| 效率 | 白金 |
|---|---|
| 模組化 | 全模組 |
| 線材 | 壓紋線材 |
| 總瓦數 (W) | 1000 |
| 輸入電壓 (V) | 100-240 200-240 (for China only) |
| 輸入電流 (A) | 15-8 8 (for China only) |
| 輸入頻率 (Hz) | 50-60 |
| 風扇尺寸 (mm) | 120 |
| 工作溫度 (°C) | 40 |
| 平均故障間隔 (小時) | >100K |
| 安全保護 | OVP, OPP, OCP, SCP, OTP, UVP |
| 產品尺寸 (長 x 寬 x 高), (mm) | 140 x 150 x 86 |
| +3.3V(A) | 20 |
|---|---|
| +5V(A) | 20 |
| +12V1(A) | 83.3 |
| -12V(A) | 0.4 |
| +5Vsb(A) | 3.0 |
| Combined Wattage 12V (W) | 999.6W |
| Combined Wattage 3.3V + 5V(W) | 100 |
| EAN code | 4713157729507 |
|---|---|
| UPC code | 819315029503 |
| 彩盒尺寸 (長 x 寬 x 高), (mm) | 290 x 210 x 111 |
| 毛重/彩盒(kg) | 2.7 |
