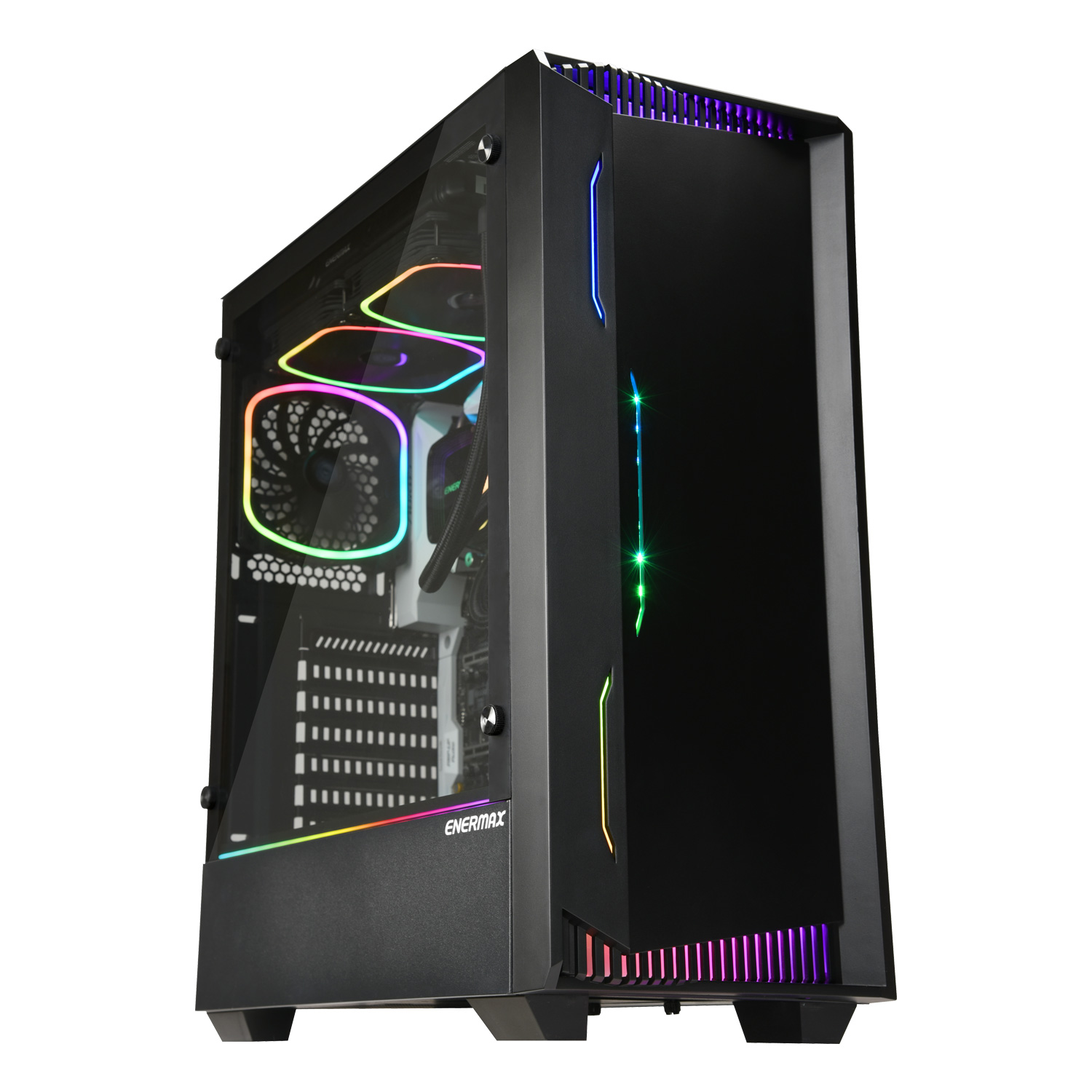

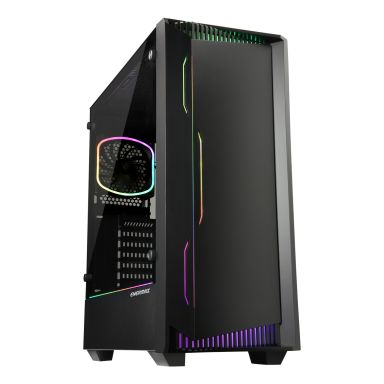

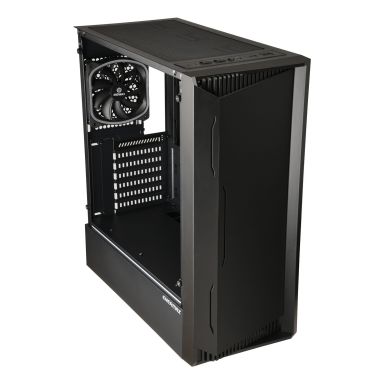

LIBLLUSION LL30 ARGB Tempered Glass Mid-Tower PC Case

▪ Simple and Elegant Front Panel Design with LED Strip
▪ Support Addressable RGB Lighting Synchronization
▪ Integrated Hub for 6x Addressable RGB Devices

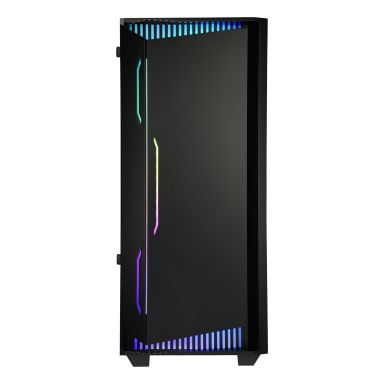

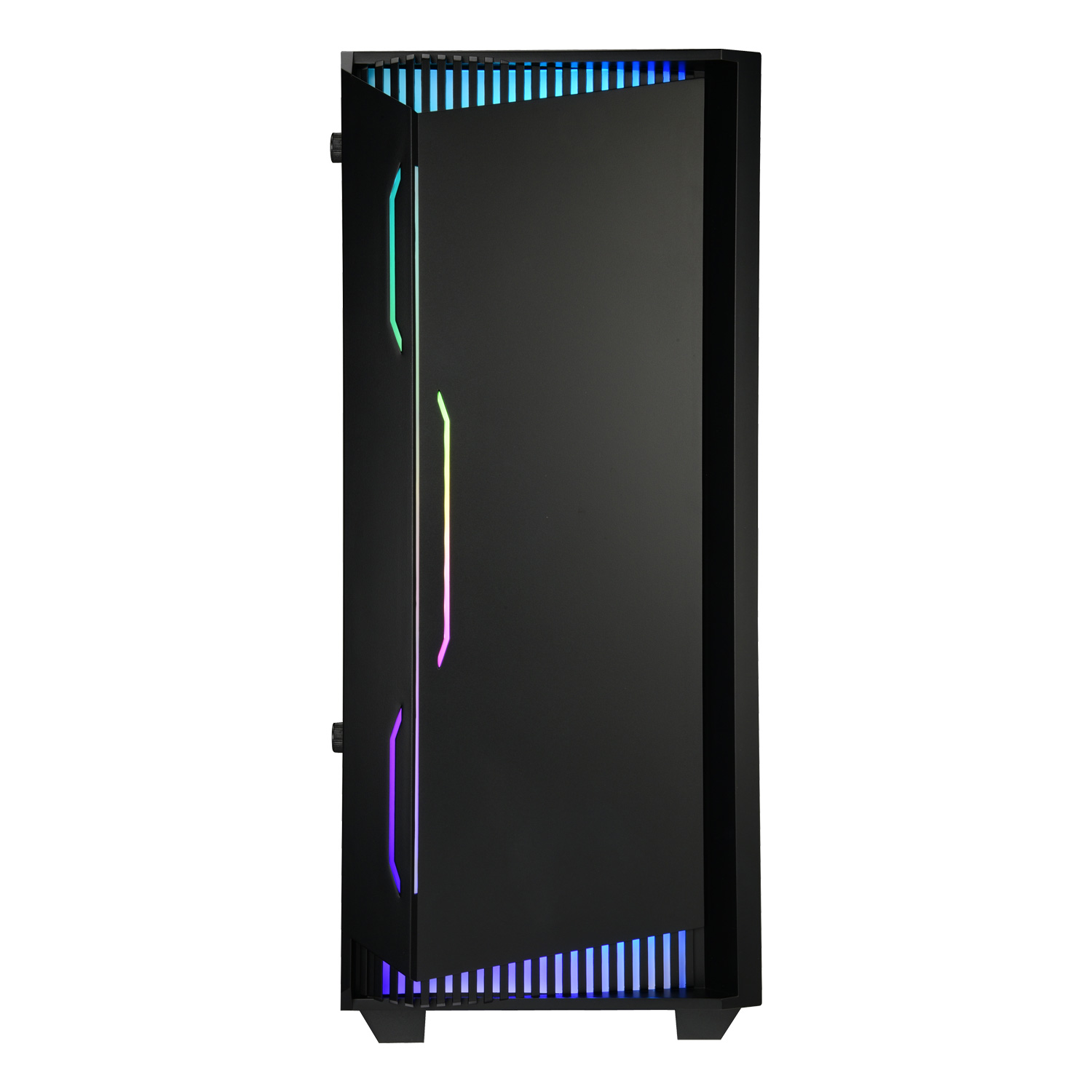

Minimalist front panel design

LIBLLUSION LL30 features a black front panel with multiple special RGB lighting strips to deliver an elegant style




Addressable RGB lighting

The front and side lighting strips are designed to synchronize with addressable RGB-ready motherboards to provide 16.8 million color options




SquA RGB fan

SquA RGB fan offers an incredible visual experience with square-shaped lighting and the gleam through holes around the back of frame. In addition to brilliant RGB lighting, SquA RGB’s Air Inlet design and Vortex frame help generate more airflow and stronger air pressure for superior cooling efficiency




2 ways to control addressable RGB lighting effects

Through Motherboard Software

Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G)

Through Computer Case

Users can use the *lighting control button to adjust preferred lighting effects (13 pre-set lighting effects: Rainbow, Snake, Peach & Green scroll, Colors breathe, Colors scroll, Bilateral colors scroll, Red, Green, Blue, White, Yellow, Azure, and Peach.)

  • Long press the lighting control button for 2~3 seconds to switch the RGB sync controlled by M/B or case

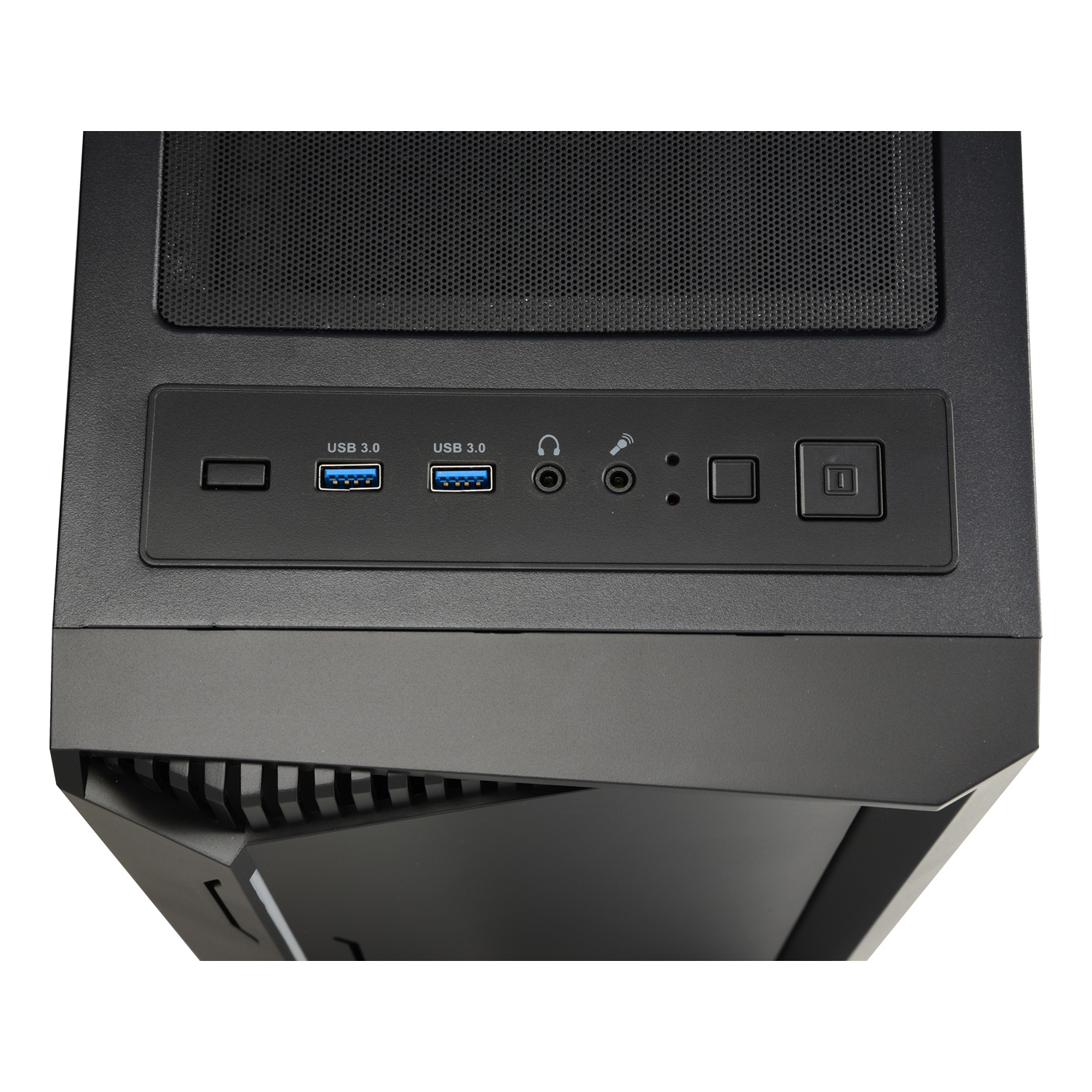

  • The reset button located on the front I/O panel is replaced by the lighting control button

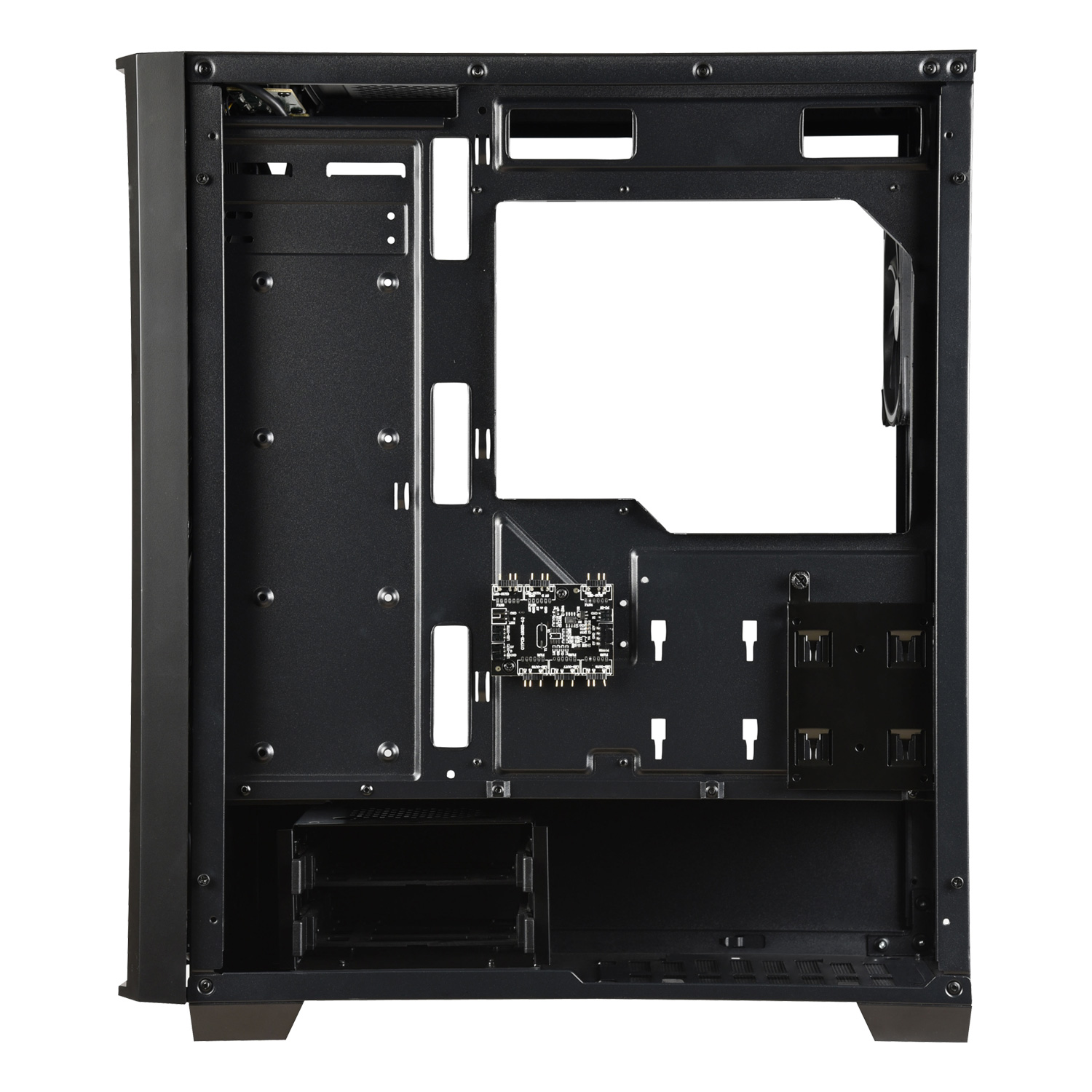

Integrated hub

For those who do not use the RGB-sync motherboards, the integrated hub allows users to keep 6x addressable RGB devices’ lighting in sync




Versatile water cooling options

Flexible cooling system configuration supports 3x designated areas for liquid cooler installation

Liquid Cooler Compatibility Chart
Radiator size (mm) 360 280 240 140 120
Front
Top
Rear



Advanced cooling system

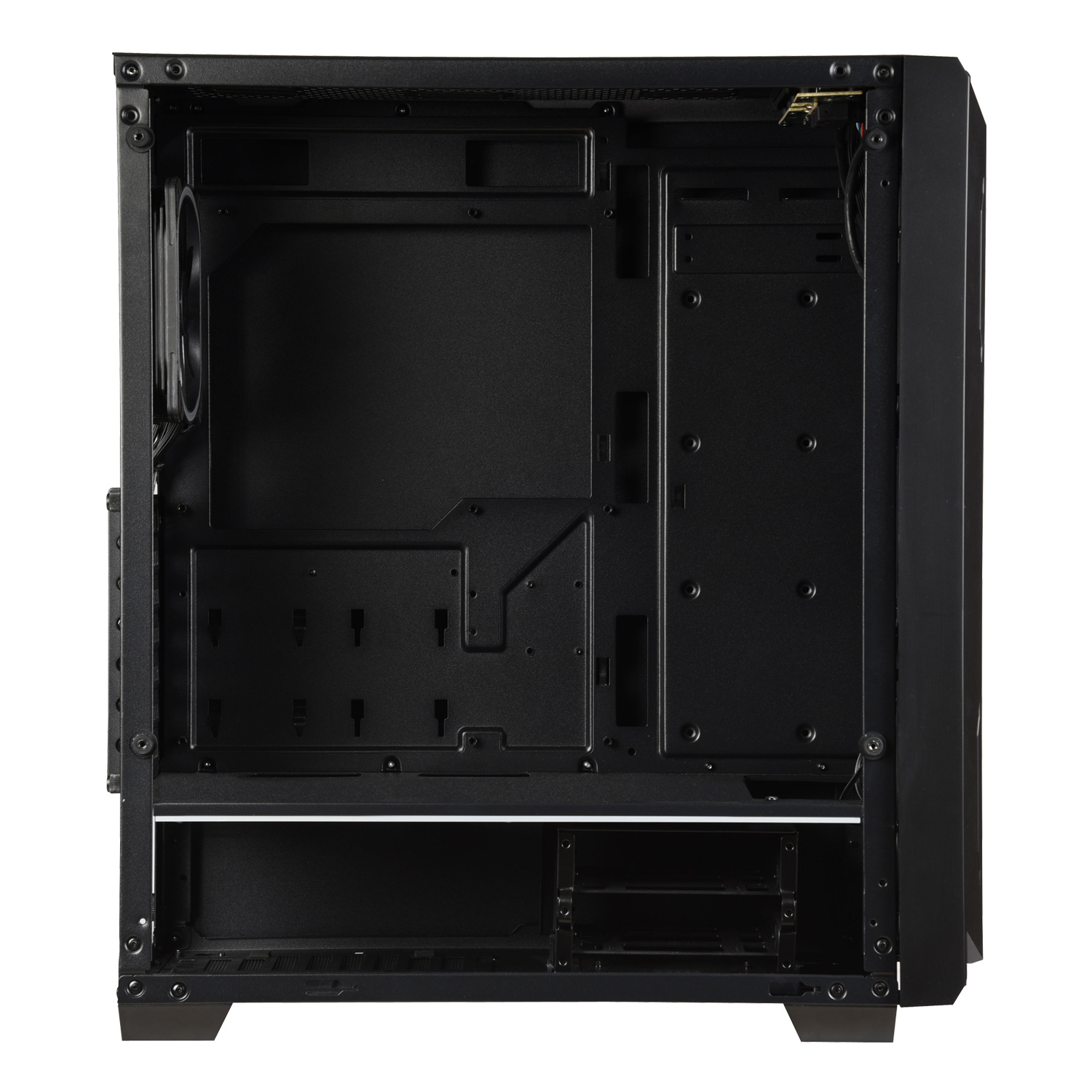

Removable HDD cage

Removable HDD cage creates the flexible space for PSU cable routing




Flexible system configuration

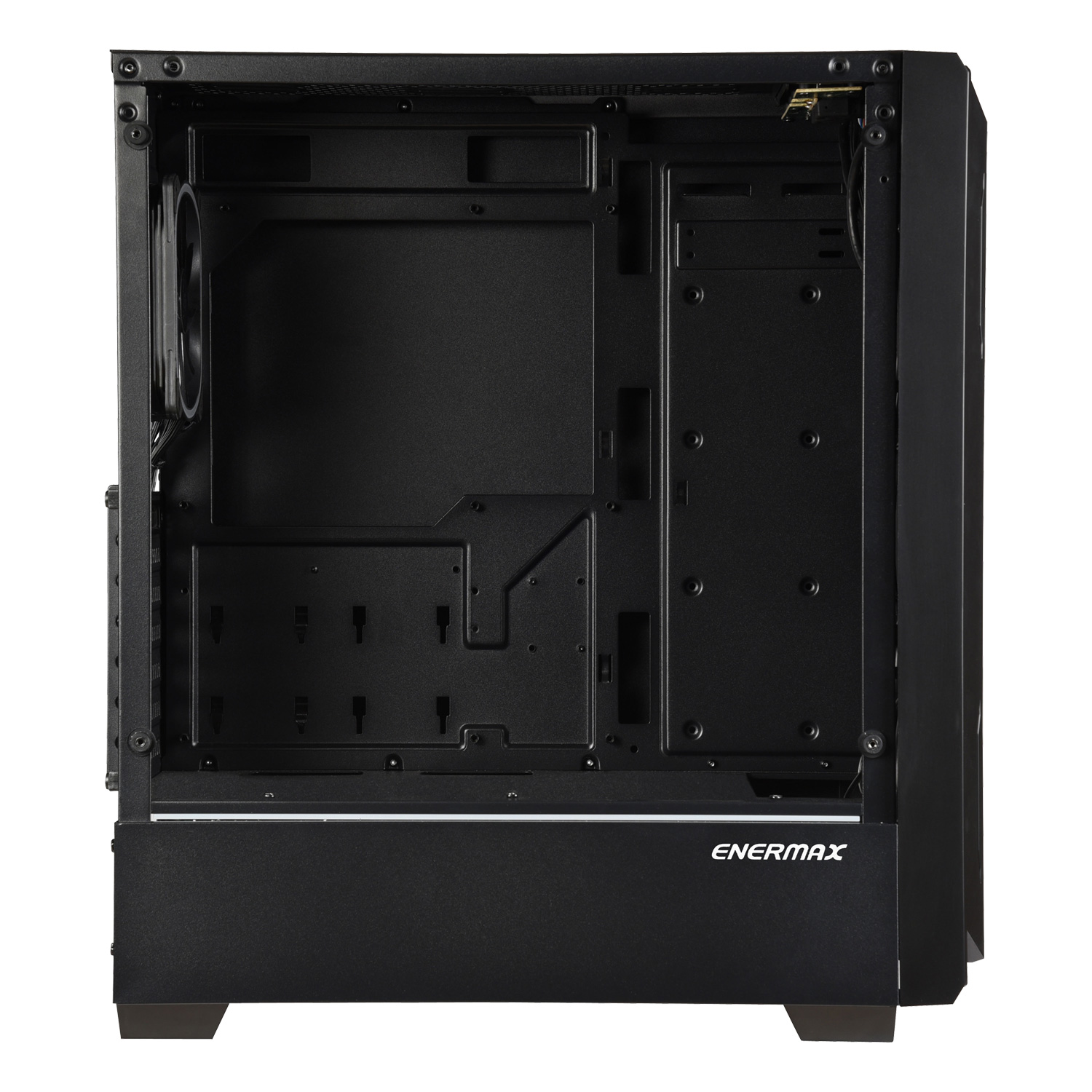

Detachable PSU side cover

PSU-Tunnel design with detachable PSU side cover not only provides easy installation but also makes the system clean and neat




4mm panoramic tempered glass window

4mm full-view tempered glass side panel allows you to show off your rigs




Anti-dust rubber plugs




Dimension

unit:mm




Product Introduction

Model Name ECA-LL30-M1BB-ARGB
Dimensions (D x W x H) 424 x 205 x 480 mm
Material 0.6mm SPCC
M/B Type ATX, Micro ATX, Mini ITX
I/O USB 3.0 x 2, HD Audio
3.5'' Drive Bays 2
2.5'' Drive Bays 5 (2x converted from 3.5” Tray)
Expansion Slots 7
Fan Slots - Front 2 x 140mm or 3 x 120mm
(1 x 120mm fan pre-installed)
Fan Slots - Top 2 x 140mm or 2 x 120mm
Fan Slots - Rear 1 x 120mm
(1 x 120mm SquA RGB fan pre-installed)
Radiator Support - Front 360mm / 280mm / 240mm
Radiator Support - Top 280mm / 240mm
Radiator Support - Rear 120mm
PSU Support Standard ATX Type
Clearance - VGA card 375mm
Clearance - CPU Cooler 157mm
EAN code 4713157724298
UPC code 819315024294
Carton dimensions (D x W x H), (mm) D520 x W250 x H485 mm
Gross Weight (kg) 6.53kg
Net Weight (kg) 5.69kg
