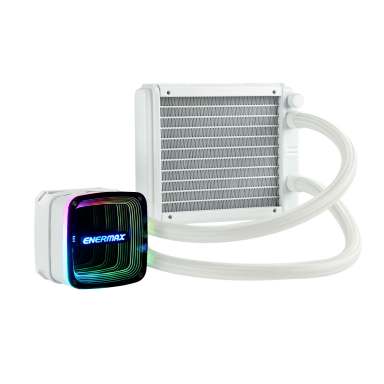

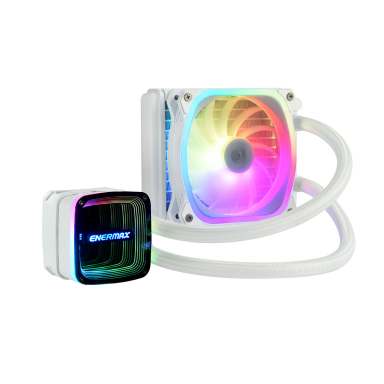

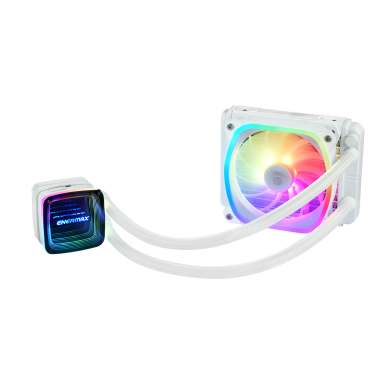

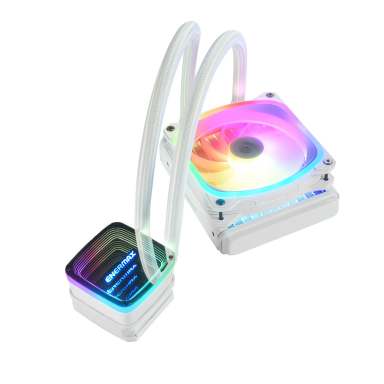

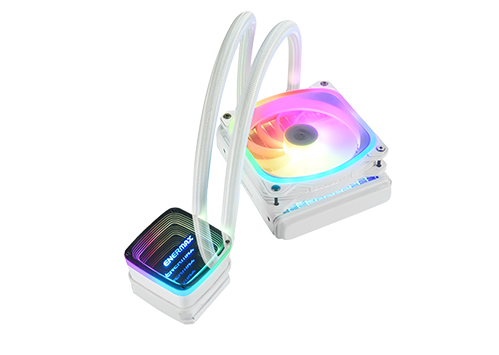

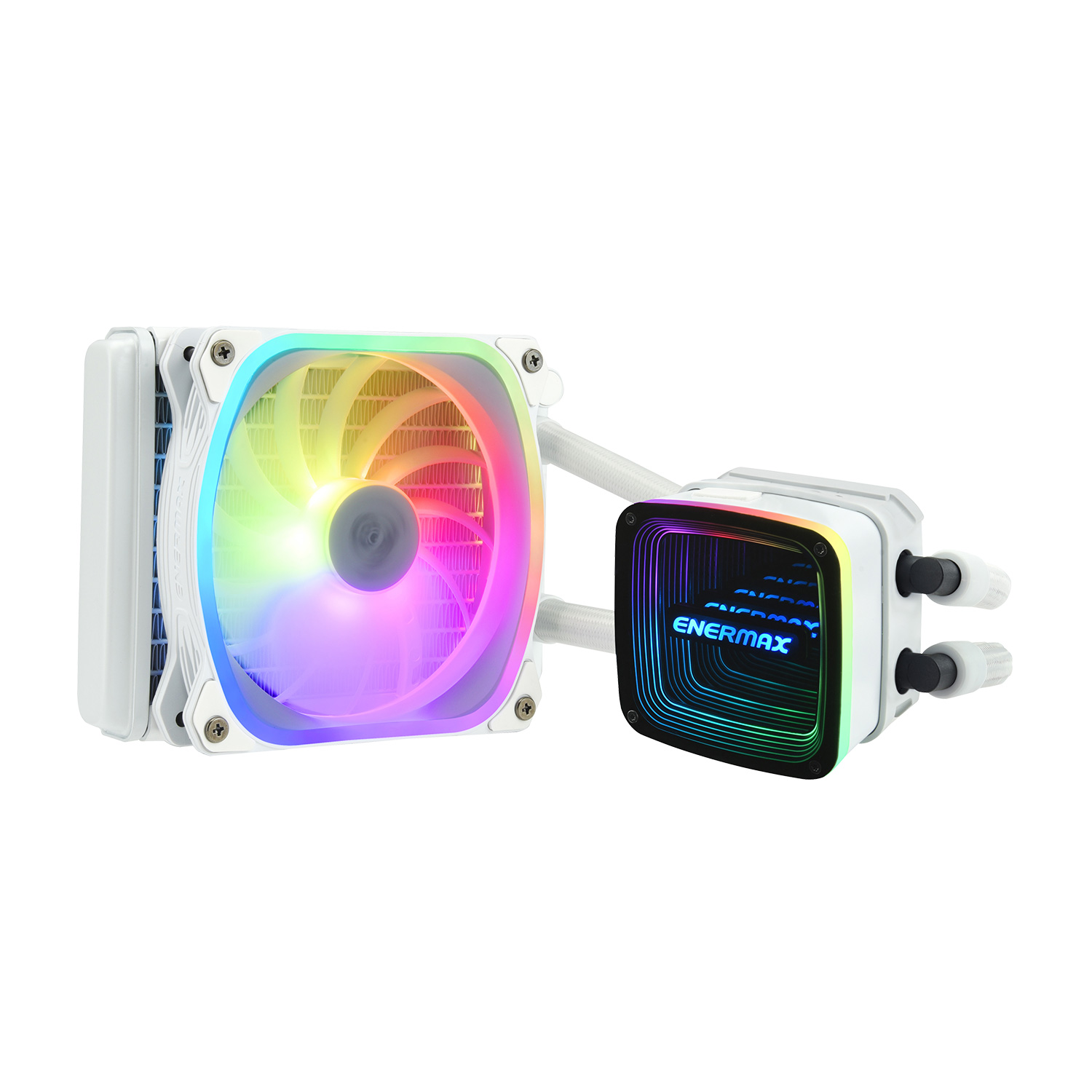

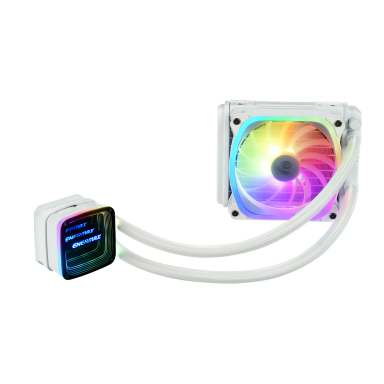

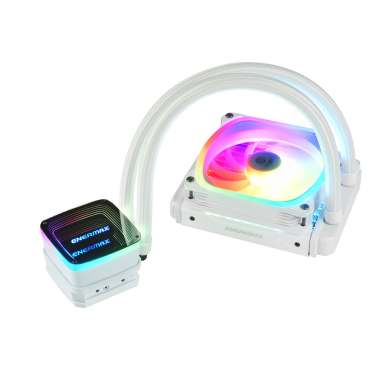

AQUAFUSION ADV Series 120mm Liquid CPU Cooler, White

‧ Luminous Aurabelt™ and Infinite RGB Reflection
‧ ENERMAX SquA RGB ADV Fans included
‧ Supports addressable RGB M/B sync
‧ Patented Dual Chamber Water block design
‧ Patented Shunt Channel Technology

COMPARE Compare List (0)

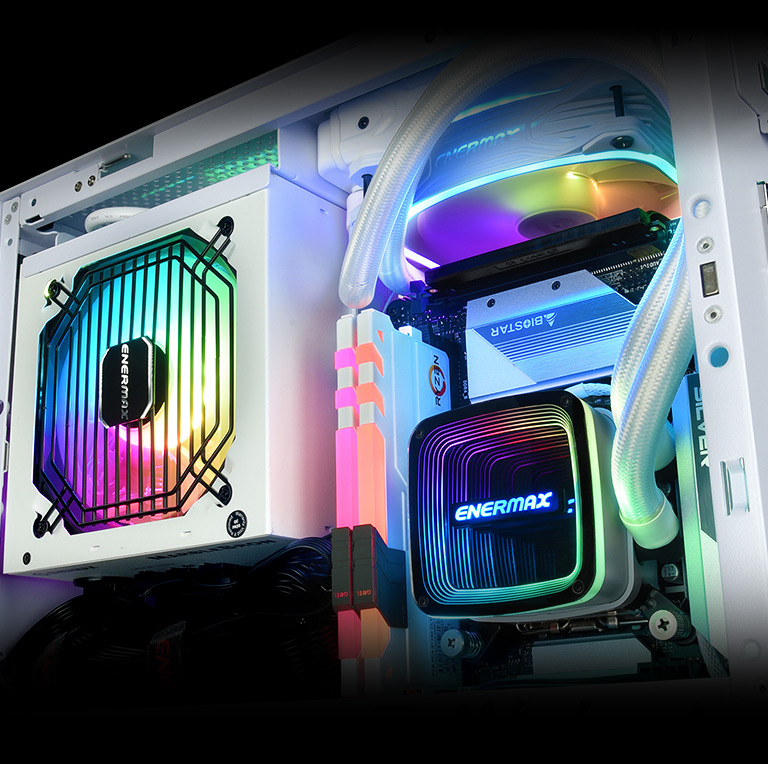

Luminous Aurebelt™ and Infinite RGB Reflection

Premium water block equipped with Luminous Aurabelt™ technology and unique Infinite RGB Reflection for a visually stunning experience

ENERMAX SquA RGB ADV Fans

  • Designed for aesthetics with incredible stunning RGB hub lighting effect
  • Optimal cooling performance with Vortex Frame Technology and a downsized hub design

Patented Dual Chamber Water Block Design

Patented Dual-chamber Mechanism that isolates the pump from the heat, significantly increases the cooler’s lifespan without compromising efficiency

Patented CCI + SCT Technology

  • Central Coolant Inlet (CCI) technology injects the coolant at the hottest spot to prevent heat surges
  • Shunt-channel Technology (SCT) design shortens the coolant flow path, resulting in faster heat transfer

Addressable RGB Lighting Synchronization

AQUAFUSION ADV is designed to synchronize to addressable RGB motherboards (3 pin assignment is 5V/D/G) which users can program preferred lighting effects via motherboard software

2 Ways to Control RGB Lighting Effects

Motherboard Synchronization

Coordinate your visual effects through supported RGB software and motherboard synchronization to access control for customized lighting effects

ENERMAX RGB Control Box

Preset 10 lighting effects; use the attached ENERMAX RGB control box to select your preferred lighting mode, brightness and speed

Robust Weaved Tubing

Premium 400mm weaved tubing is perfect for mainstream system builds

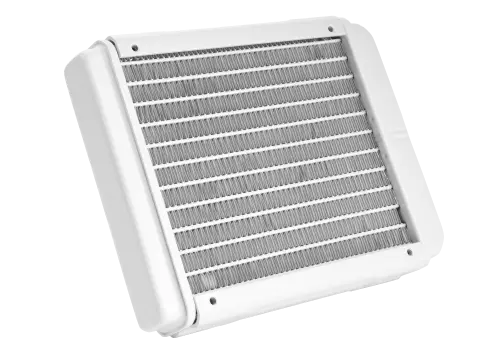

Premium Aluminum Radiator Channels

The channels on the radiator are meticulously designed, combined with thin aluminum fins to deliver high heat exchange capacity

Dimension

unit: mm



Product Introduction

North America
Europe
Taiwan
Worldwide
Model ELC-AQFA120-SQA-W
CPU Socket Intel® LGA 1700/1200/115x/2066/2011/2011-3/1366
AMD® AM5/AM4/AM3+/FM2+/FM1
TDP 300 W
Cold Plate Material Copper
Radiator Material Aluminum
Radiator Dimension 154 x 120 x 27 mm
Pump Bearing Ceramic Bearing
Pump MTBF ≧ 50,000 hrs
Pump Rated Voltage 12 V
Pump Rated Current 0.7 A
Pump Rated Current - RGB LED 0.42 A
Fan Dimension (Radiator) 120 x 120 x 26 mm
Fan MTTF ≧ 100,000 hrs
Fan Speed 500~2000 RPM ±10%
Fan Rated Voltage 12 V
Fan Rated Current 0.38 A
Fan Rated Current RGB LED 1.08 A
Fan Air Flow 39~79.8 CFM
Fan Static Pressure 0.67~3.6 mm-H2O
Fan Connector 4 Pin PWM + 3 Pin RGB (W/ extension adapter)
Fan Maximum Noise 15~32.6 dBA
Thermal Grease Dow Corning® TC-5121C
Fan Screw M3.5
EAN 4713157727176
UPC 819315027172
Box Dimension 259 x 215 x 137 mm
Gross Weight / unit 1.5 kg
Carton Dimension 539 x 300 x 460 mm
Q'ty / carton 8 PCS
Gross Weight / Carton 13.25 kg
