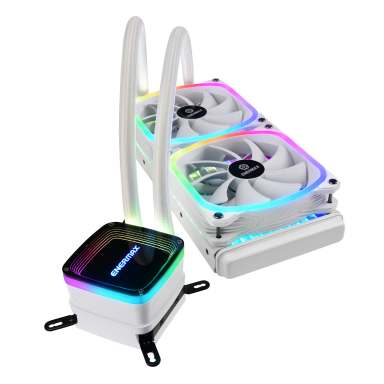

AQUAFUSION series 240mm CPU liquid cooler-white

‧ Glossy acrylic and Aurabelt™ water block for
vivid lighting effects
‧ Patented Dual Chamber water block design
‧ Patented Shunt Channel Technology
‧ ENERMAX SquA RGB fans included
‧ Supports addressable RGB M/B sync


Luminous Aurabelt™ for vivid lighting effects

The 3D Layer Design with Aurabelt™ provides unique rainbow effects with 16.8 million colors

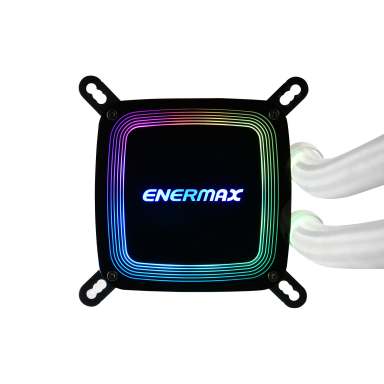

Patented Dual-Chamber Design water block

Patented Dual-Chamber Design isolate the pump from the heat to prolong the cooler’s lifetime


Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)

Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer

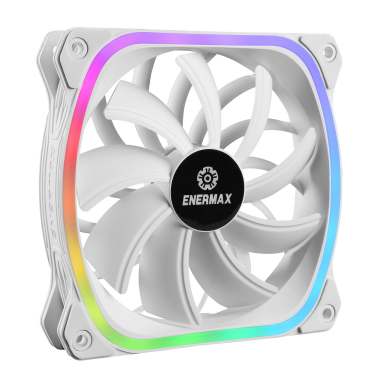

ENERMAX SquA RGB, square-shaped addressable RGB fans featuring vortex frame design can generate centered, stronger air pressure, especially perfect for radiator


Addressable RGB lighting synchronization

AQUAFUSION is designed to synchronize with addressable RGB motherboards (3 pin assignment is 5V/D/G) which users can program preferred lighting effects via motherboard software


2 ways to control RGB lighting effects

Through Motherboard Software

Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G)

Through ENERMAX RGB Control Box

Users can use the included control box to adjust preferred lighting effects (10 pre-set effects), brightness and speed


Premium 400mm weaved tubing is perfect for mainstream system builds

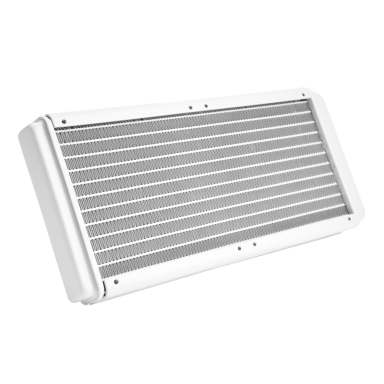

The channels on radiator are meticulously design, combined with thin aluminum fins to deliver high heat exchange capacity. AQUAFUSION WHITE comes in 2 sizes:compact 120mm radiator and standard 240mm radiator




Product Introduction


Installation Guide

Model ELC-AQF240-SQA-W
CPU Socket Intel® LGA 1200/2066/2011-3/2011/1366/1156/1155/1151/1150/775
AMD® AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
TDP (W) 360W
Cold Plate Material Copper
Radiator Material Aluminum
Radiator Dimension 274 x 120 x 27 mm
Pump Bearing Ceramic Bearing
Pump MTBF 50,000 hrs
Pump Rated Voltage (V) 12V
Pump Rated Current (A) 0.7A
Pump Rated Current - RGB LED (A) 0.42A (5V)
Fan Dimension (mm) 120 x 120 x 26 mm
Fan Speed (RPM) 500-2000 rpm
Fan Rated Voltage (V) 12V
Fan Air Flow (CFM) 39~79.8 CFM
Fan Static Pressure (mm-H2O) 0.67~3.6 mm-H2O
Fan Rated Current (A) 0.38A
Fan Rated Current RGB LED (A) 0.68A (5V)
Fan Maximum Noise (dBA) 17~32.6 dBA
Fan MTTF (hours) ≧ 100,000 hr
Fan Connector 4 Pin PWM + 3 Pin RGB (W/ extension adapter)
Fan Screw M3.5
Thermal Grease Dow Corning® TC-5121C
EAN 4713157724281
UPC 819315024287
Box Dimension 322 x 205 x 137 mm
Gross Weight / unit 1.89 kg
Carton Dimension 435 x 338 x 440 mm
Q'ty / carton 6 PCS
Gross Weight / Carton 12.3 kg
  • Ginjfo - AQUAFUSION White 240
