Becite (OEM)

  • Model : ECB3080BB-03/ECB3080BI-03
  • Tag :

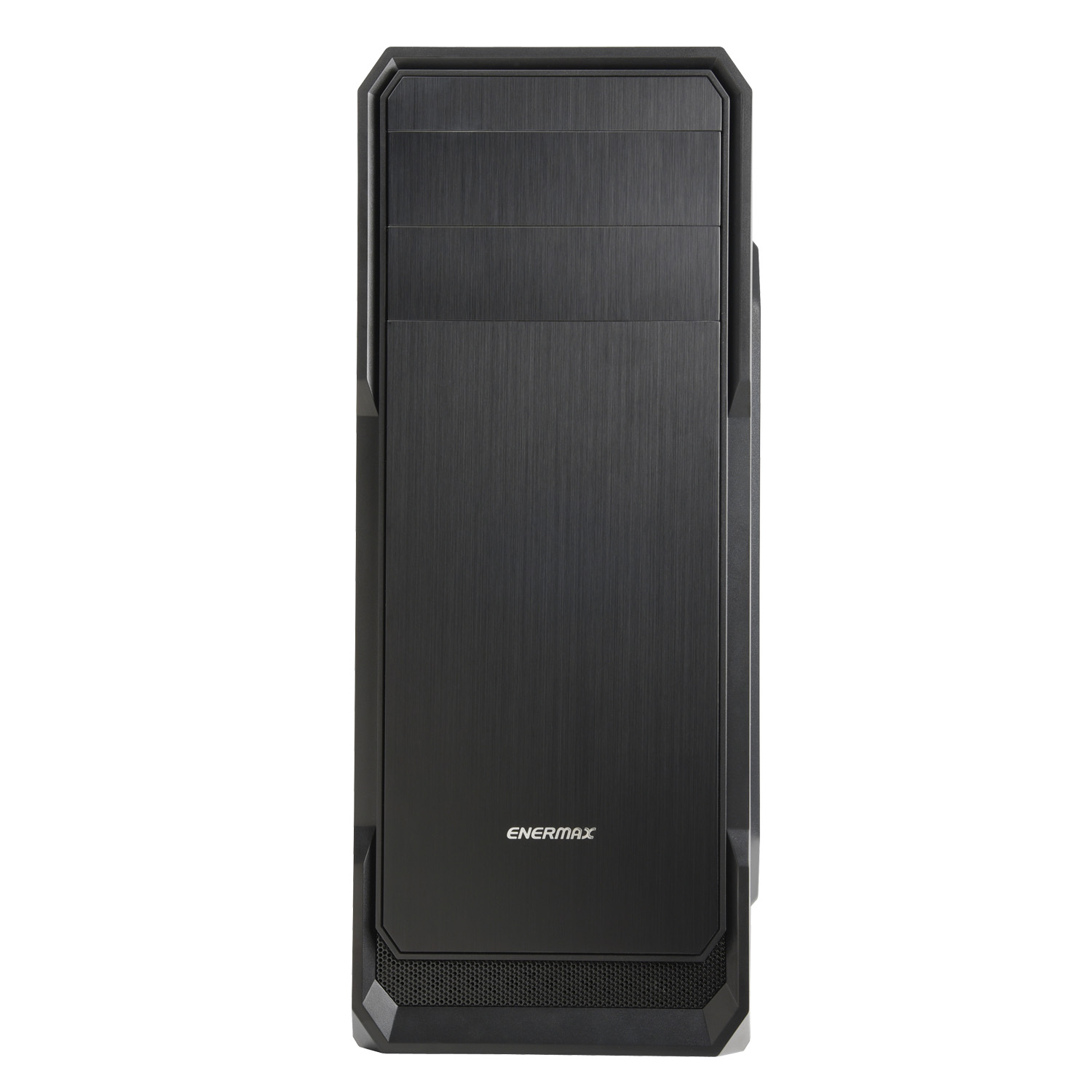

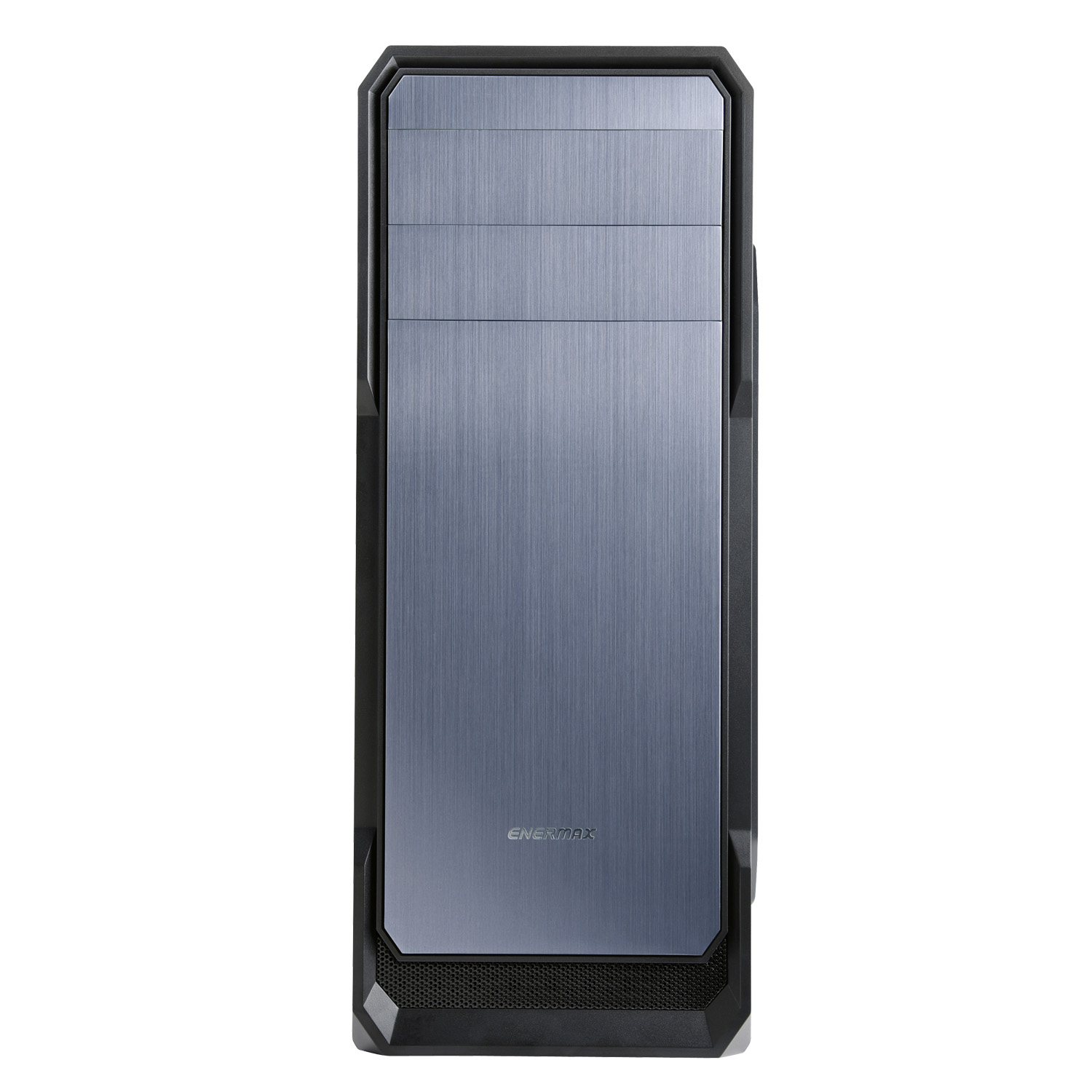

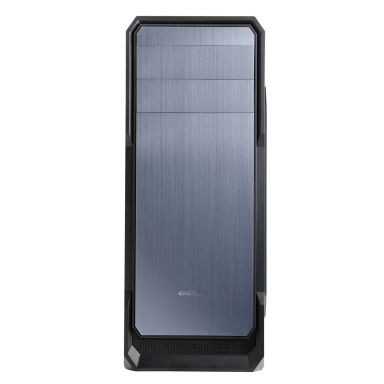

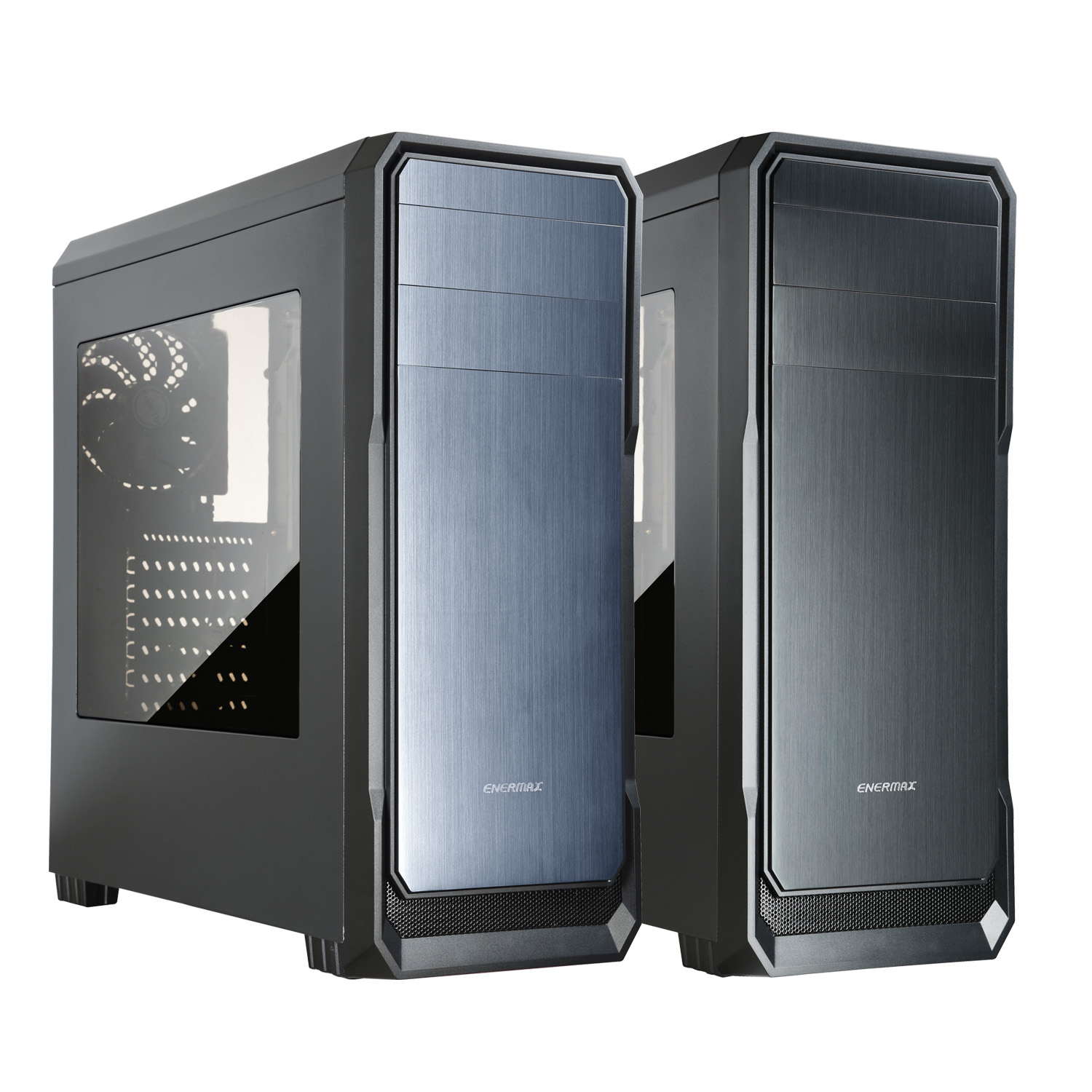

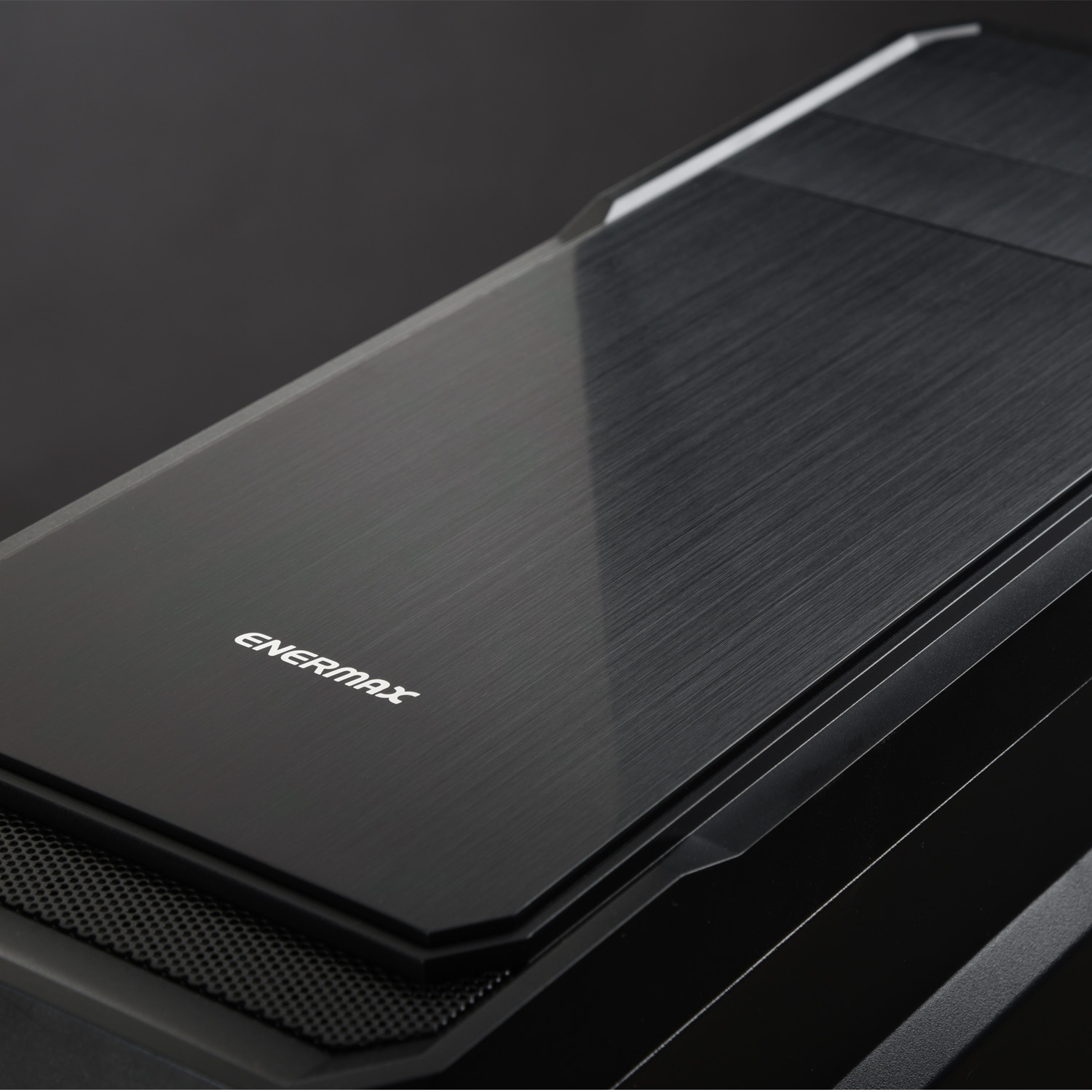

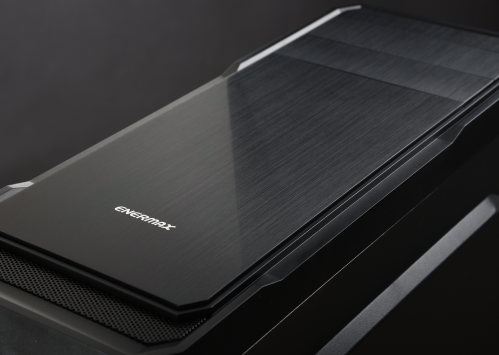

Hairline surface front panel for premium looks

Simple yet premium low profile design

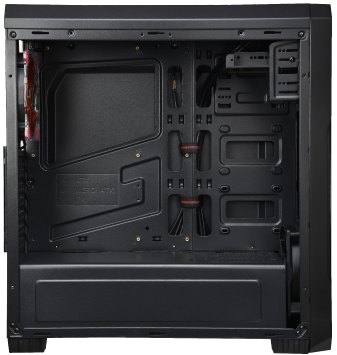

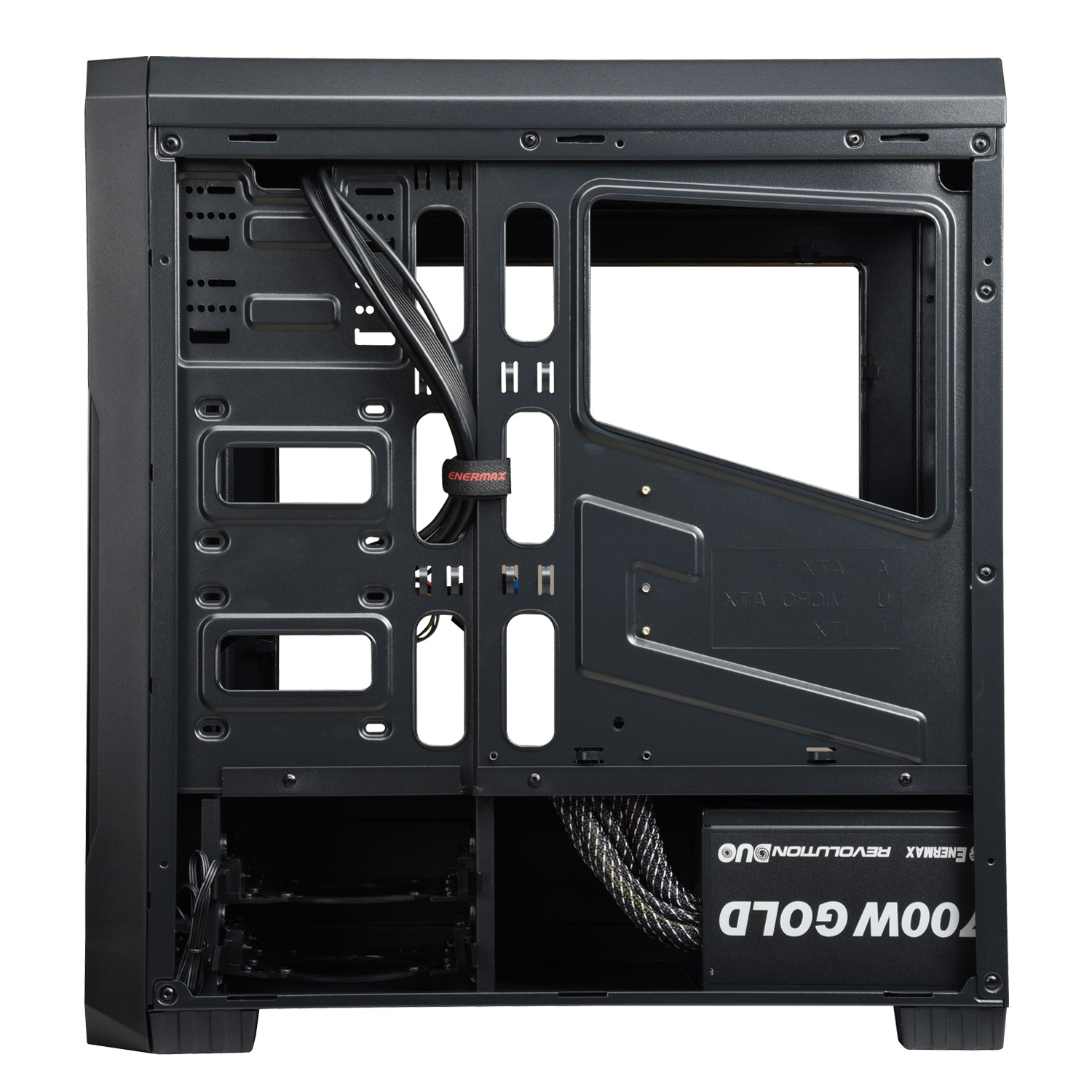

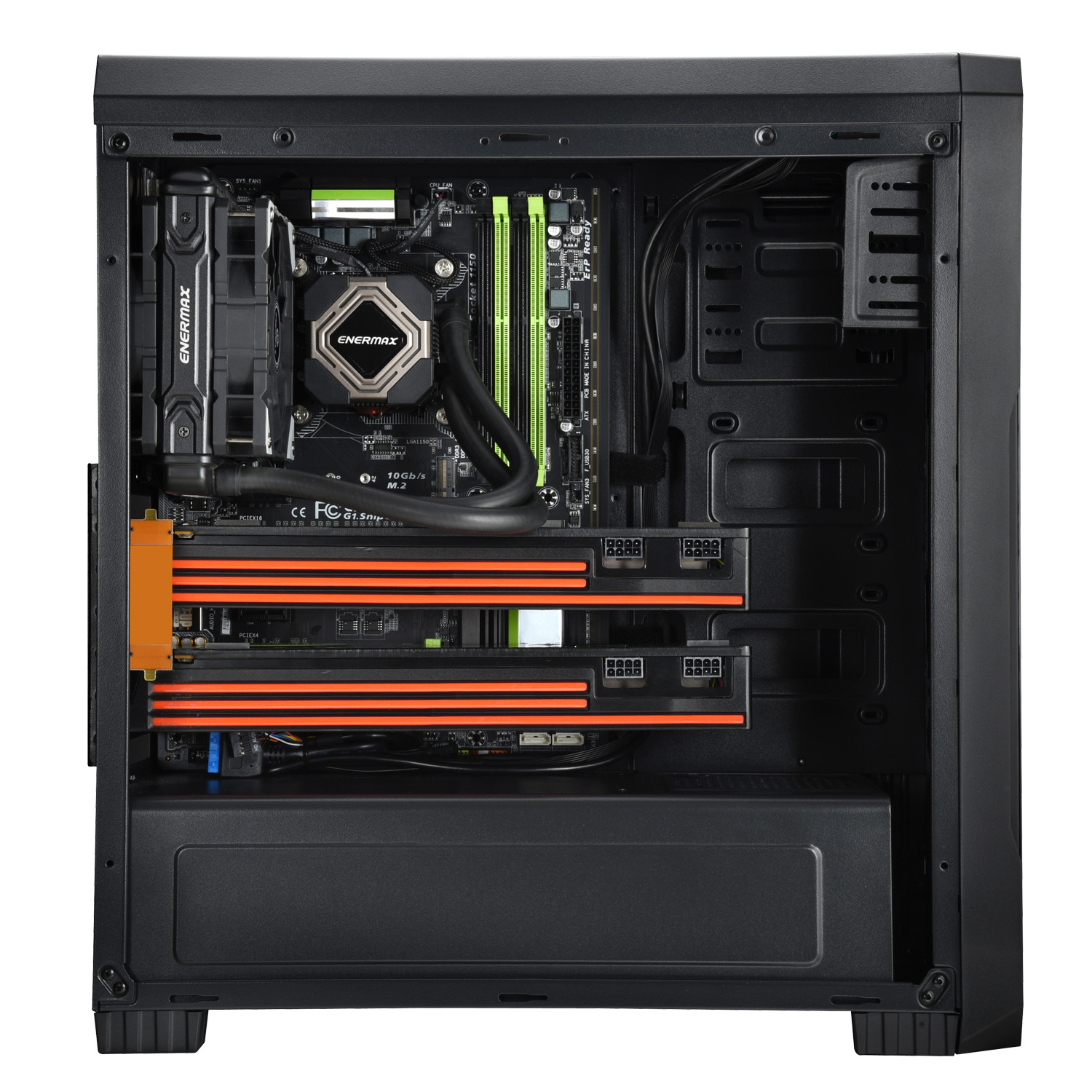

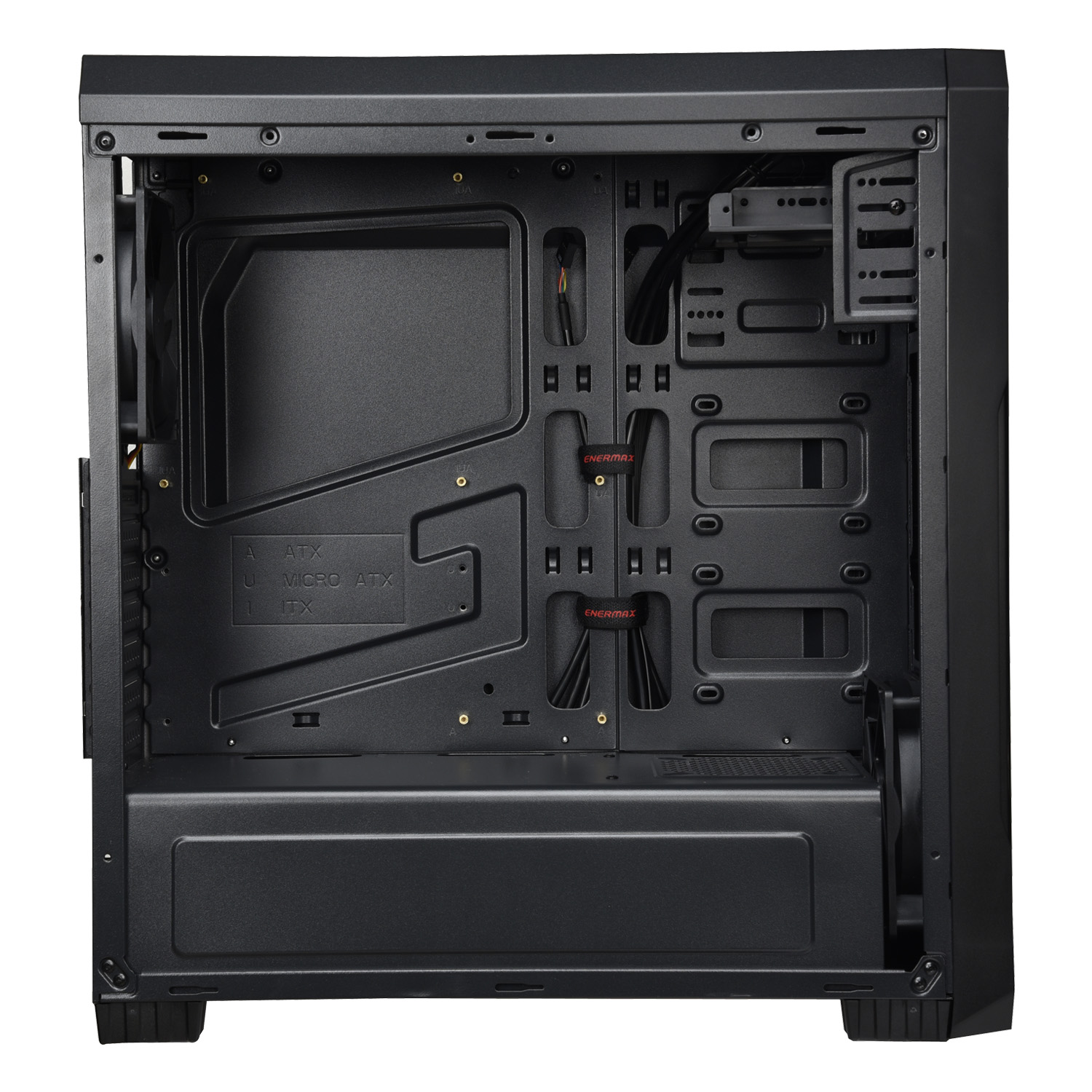

PSU-Tunnel Design

For a neat and clean build

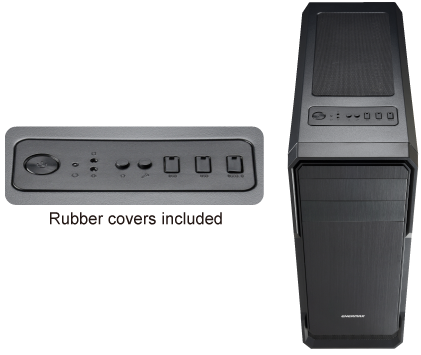

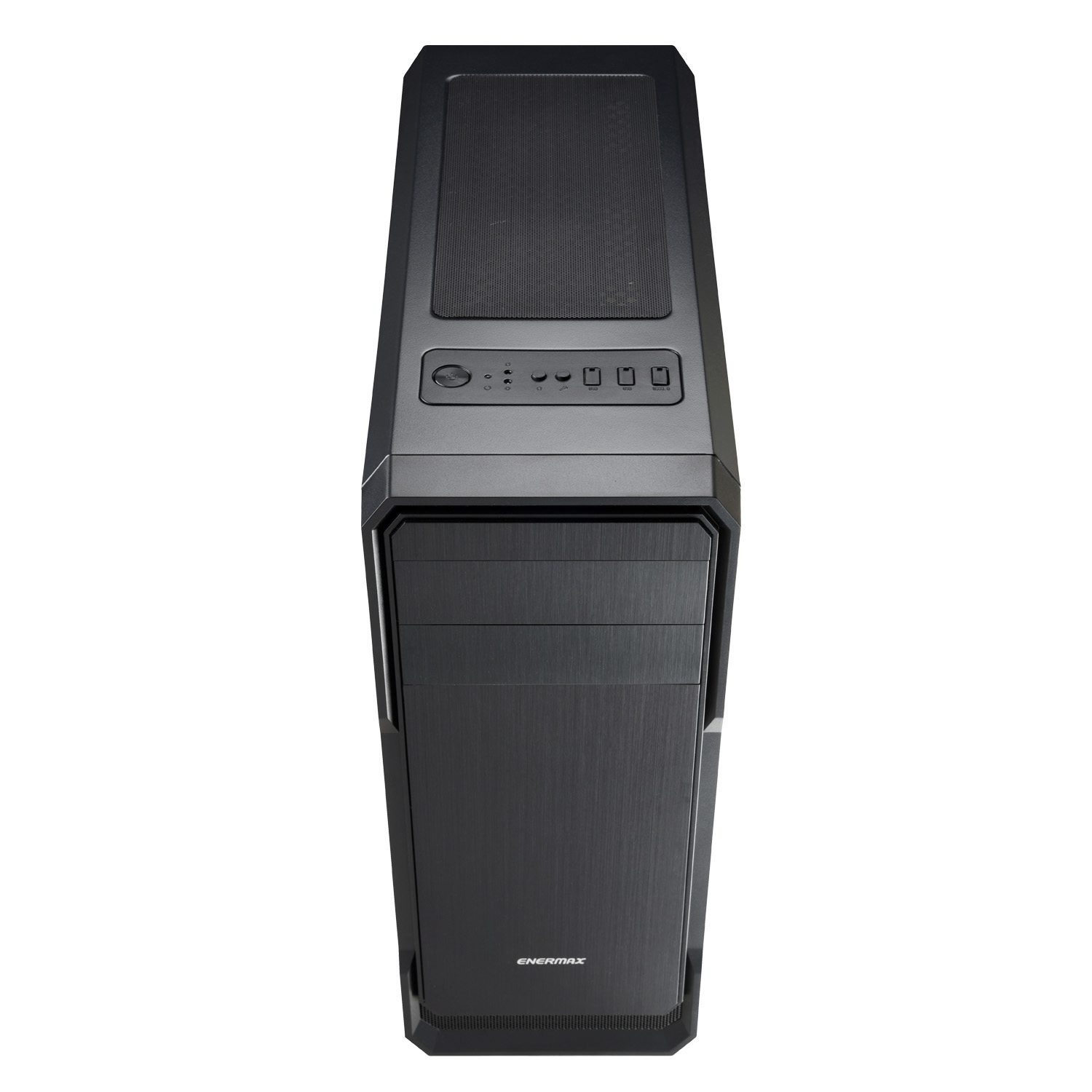

Easy access top I/O panel

BECITE includes 1 x USB 3.0 and 2 x USB 2.0 with HD audio on the top to conveniently satisfy your peripheral needs

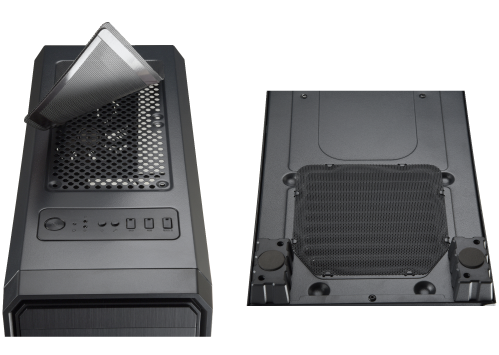

Removable filters for easy cleaning

Removable magnetic top filter plus bottom filter prevent dust from entering the system and decrease dust buildup inside the case

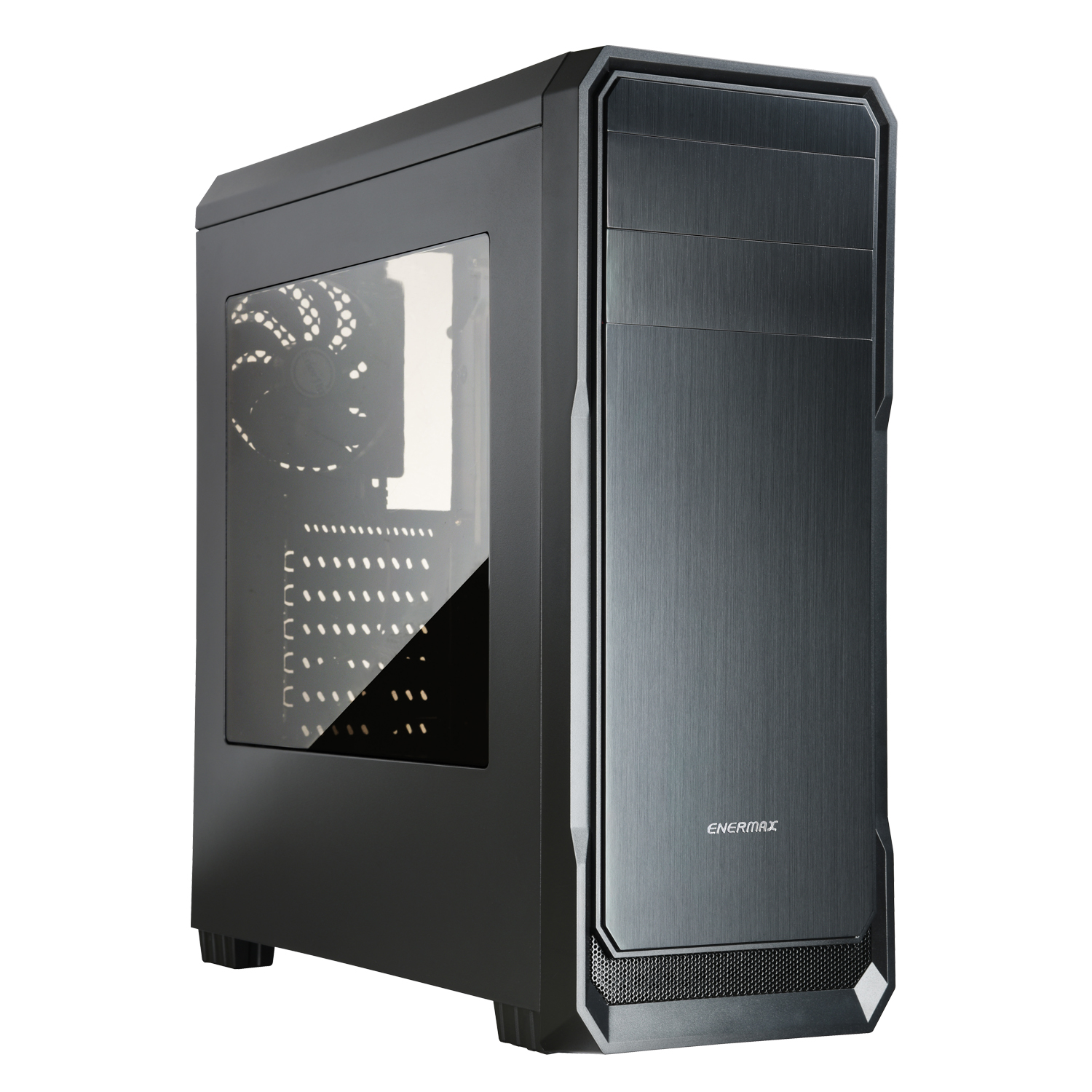

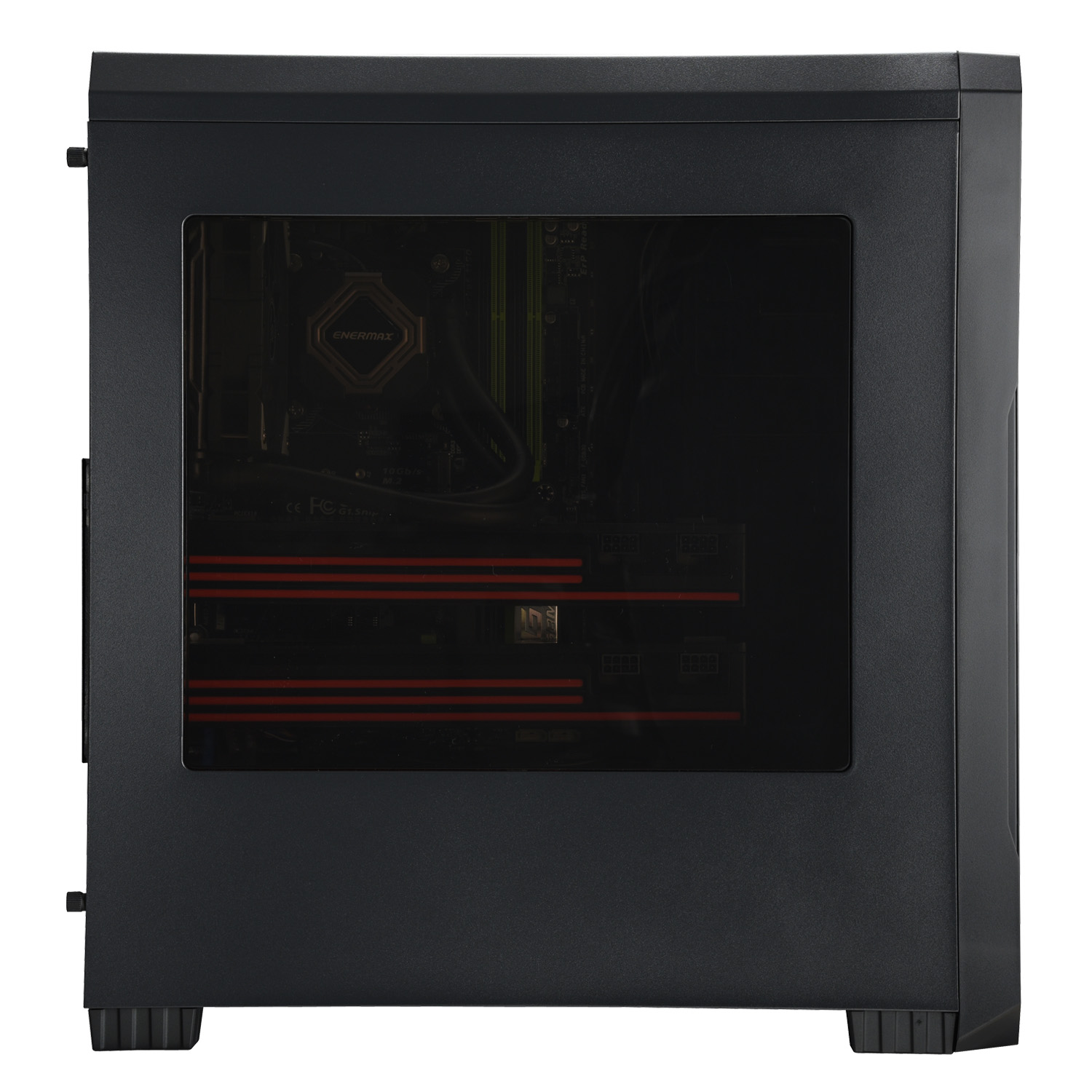

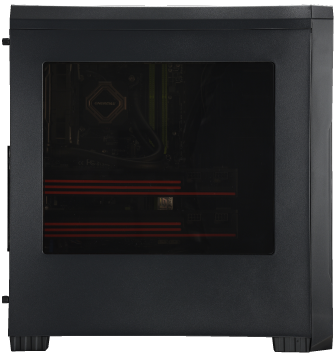

Tinted acrylic side panel

Provides low profile mysterious look for your interior rigs

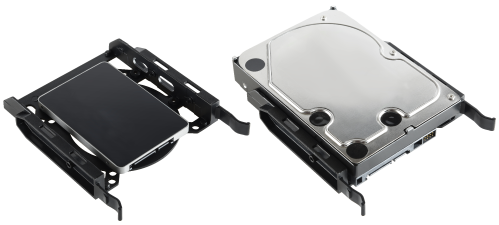

Complete support for SSD/HDD drives

Up to 3 x 3.5” HDD and 4 x 2.5” SSD supported for flexible installation (1 x 5.25” to 3.5” converter included)

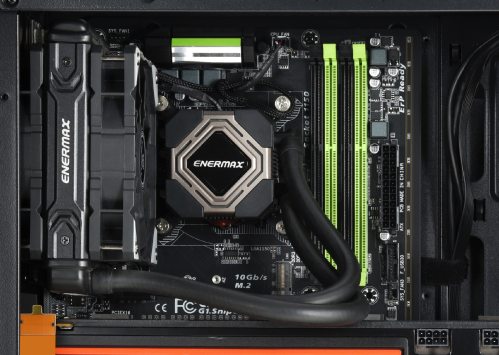

Support 120mm radiators

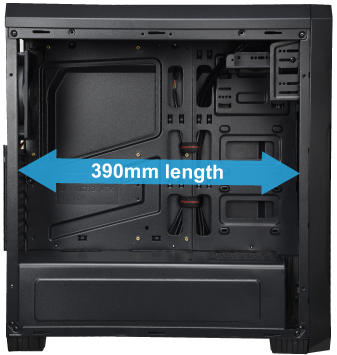

Support the latest long VGA card (390mm Max.)

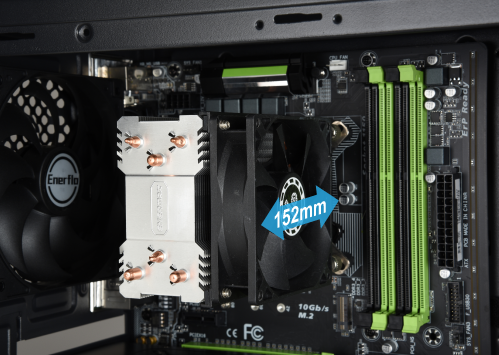

CPU cooler installation support up to 152mm in height

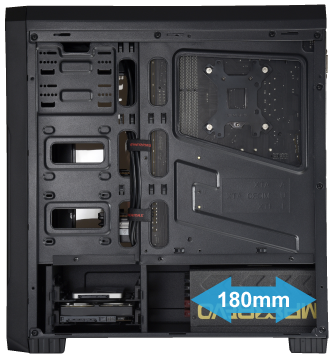

Support for high-end power supplies (Approx. 180mm Max. length)

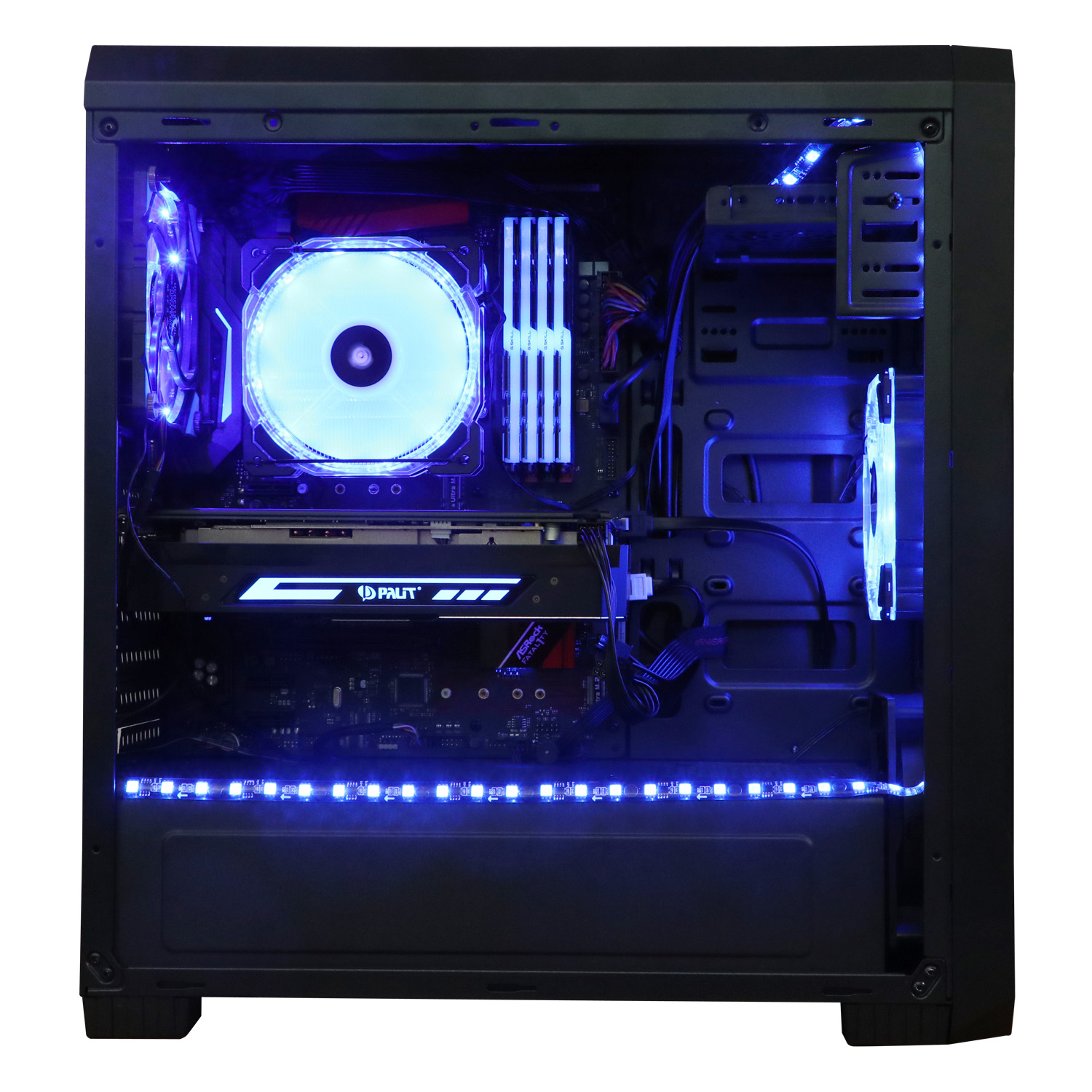

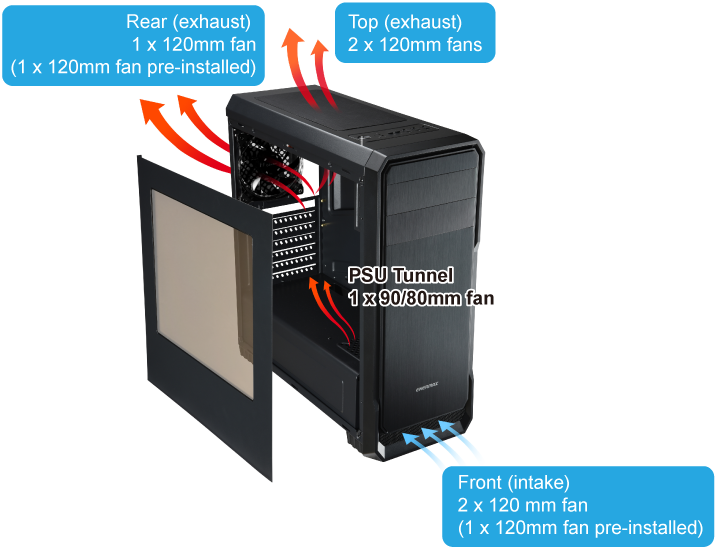

Advanced cooling system



Model Name ECB3080BB-03/ECB3080BI-03
Dimensions (D x W x H) D440 x W194 x H460mm
Material 0.5mm SPCC
M/B Type ATX, Micro ATX, Mini ITX
I/O USB 3.0 x 1, USB 2.0 x 2, HD Audio
5.25'' Drive Bays 2
3.5'' Drive Bays 3 (1 x Converted from 5.25" bay)
2.5'' Drive Bays 3 (2 x Converted from 3.5” HDD trays)
Expansion Slots 7
Fan Slots - Front 2 x 120mm (1 x 120mm fan pre-installed)
Fan Slots - Top 2 x 120mm
Fan Slots - Rear 1 x 120mm (1 x 120mm fan pre-installed)
Fan Slots - Tunnel 1 x 90/80mm (With 1 HDD tray removed)
Radiator Support - Rear 120mm Radiator (Rear)
PSU Support ATX 12V (Optional)
Clearance - VGA card VGA Card Length: 390mm
Clearance - CPU Cooler CPU Cooler Height: 152mm
EAN code 4713157722805/4713157722812
UPC code 816163009022/816163009039
Carton dimensions (D x W x H), (mm) D510 x W247 x H500mm
Gross Weight (kg) 4.65 kg
Net Weight (kg) 5.58 kg
