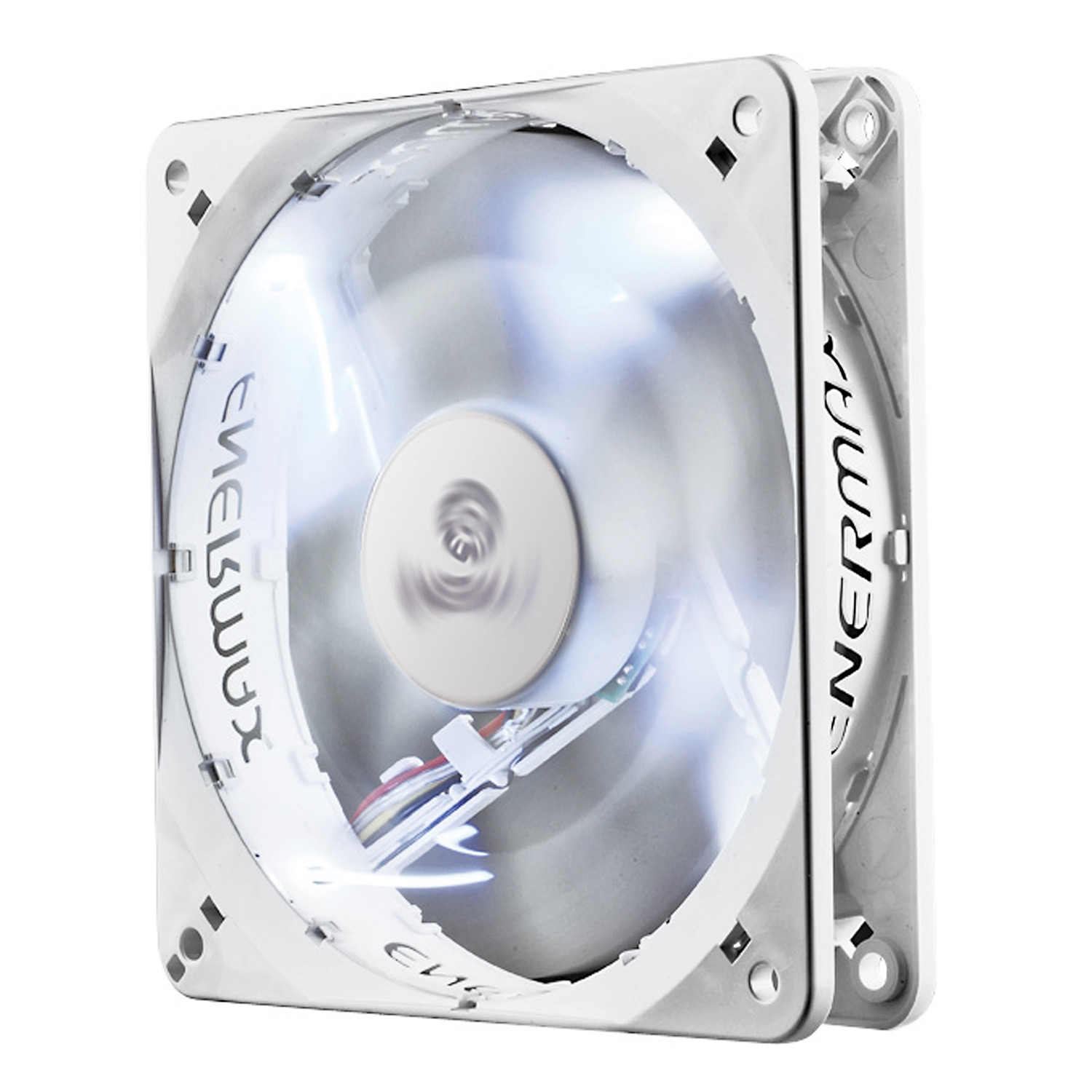

CLUSTER ADVANCE

CLUSTER ADVANCE (14cm)

- Patented Twister Bearing for longer life span and lower noise operation
- Batwing blades and carved Halo frame provide extra 20%~30% airflow
- PWM speed control with 3 peak speed APS (Adjustable Peak Speed) control to keep system stay cool and silent
- Detachable fan blades for easy cleaning

COMPARE Compare List (0)

Features

  • PWM speed control to keep your system cool and silent all the time
  • Smart APS (Adjustable Peak Speed) control providing 3 peak rpm options
  • Twister Bearing technology for long lifetime and low noise
  • Batwing Blades design and Carved Halo Frame for extra 20%~30% airflow
  • Detachable fan blades for easy cleaning
  • Isolator-mounts for shockproof and easy installation
  • White lightning LED on/off


Model UCCLA14P
Fans/Model 1
Dimension (mm) 139 x 139 x 25
Speed (RPM) 600 ~ 900/1200/1500 rpm
Air Flow (CFM) 600 ~ 900 rpm：39.48~55.26 CFM
600 ~ 1200 rpm：39.48~69.04 CFM
600 ~ 1500 rpm：39.48~92.21 CFM
Air Flow (m³/h) 600 ~ 900 rpm：67.08~93.89 m3/h
600 ~ 1200 rpm：67.08~117.30 m3/h
600 ~ 1500 rpm：67.08~156.66 m3/h
Static Pressure (mm-H2O) 600 ~ 900 rpm：0.691~0.961 mm-H2O
600 ~ 1200 rpm：0.691~1.131 mm-H2O
600 ~ 1500 rpm：0.691~1.765 mm-H2O
Fan Maximum Noise (dBA) 9 dBA
Rated Voltage Fan (V) 12V
Rated Current Fan (A) 600 ~ 900 rpm：0.2 A
600 ~ 1200 rpm：0.25 A
600 ~ 1500 rpm：0.30 A
MTTF (hours) ≧ 160,000
Connector 1 x 4 pin PWM connector ; 1 x 4 pin fan power adaptor
