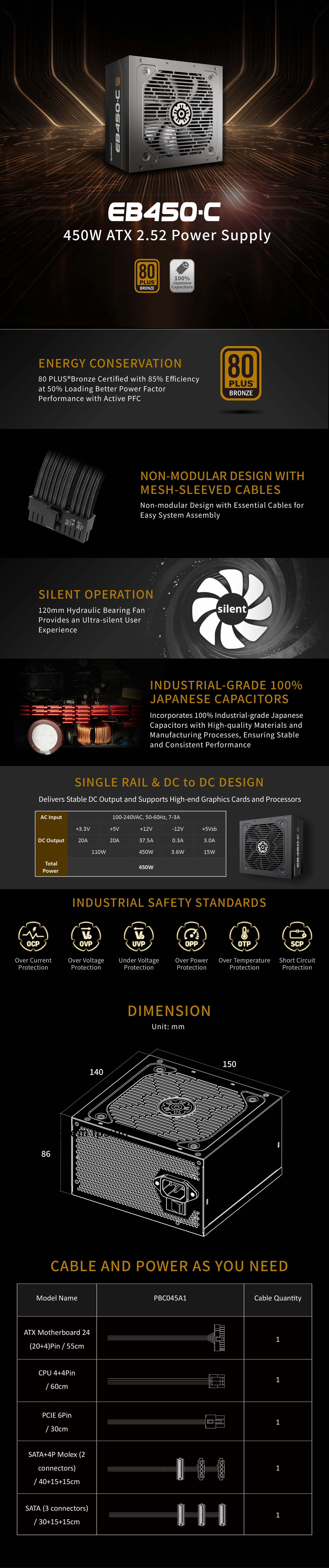

EB450-C 450W ATX 2.52 Power Supply
▪ 80 PLUS Bronze Certified
▪ Industrial-Grade 100% Japanese Capacitors
▪ Ultra Quiet 120mm Hydraulic Bearing Fan
▪ Single +12V Rail& DC to DC Design
| PBC045A1 | |
|
Motherboard 24 pin |
1 [ 1 x 55cm ] |
|
CPU 4+4 pin |
1 [ 1 x 60 cm ] |
|
PCIe 6 pin |
1 [ 1 x 30 cm ] |
|
SATA+4P Molex (2 connectors) |
3 [ 1 x 40 / 15 / 15cm ] |
|
SATA (3 connectors) |
3 [ 1 x 30 / 15 / 15cm ] |
Notice:
For users looking to put in high-end, power-demanding GPU card, please correctly connect the 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply. This will prevent motherboard overloading and possibly cause damage to your system, including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration, and any damage to the power supply due to it will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.
Either sleeved or flat-type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.
Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please note that overloading could cause the connector or wire to melt down and void the warranty.
| Taiwan |    |
| 80 PLUS Efficiency | Bronze |
|---|---|
| Modular | Cabled |
| Cable type | Mesh-Sleeved Cables |
| Total power (W) | 450 |
| Input Voltage (V) | 100-240 |
| Input Current (A) | 7-3 |
| Input Frequency (Hz) | 50-60 |
| Fan size (mm) | 120 |
| Operating temperature (°C) | 40 |
| MTBF (hours) | >100K |
| Protection | OCP, OVP, UVP, OPP, OTP, SCP |
| Dimension (D x W x H), (mm) | 140 x 150 x 86 |
| +3.3V(A) | 20 |
|---|---|
| +5V(A) | 20 |
| +12V1(A) | 37.5 |
| -12V(A) | 0.3 |
| +5Vsb(A) | 3.0 |
| Combined Wattage 12V (W) | 450 |
| Combined Wattage 3.3V + 5V(W) | 110 |
| EAN code | 4713157734051 |
|---|---|
| UPC code | 819315020050 |
