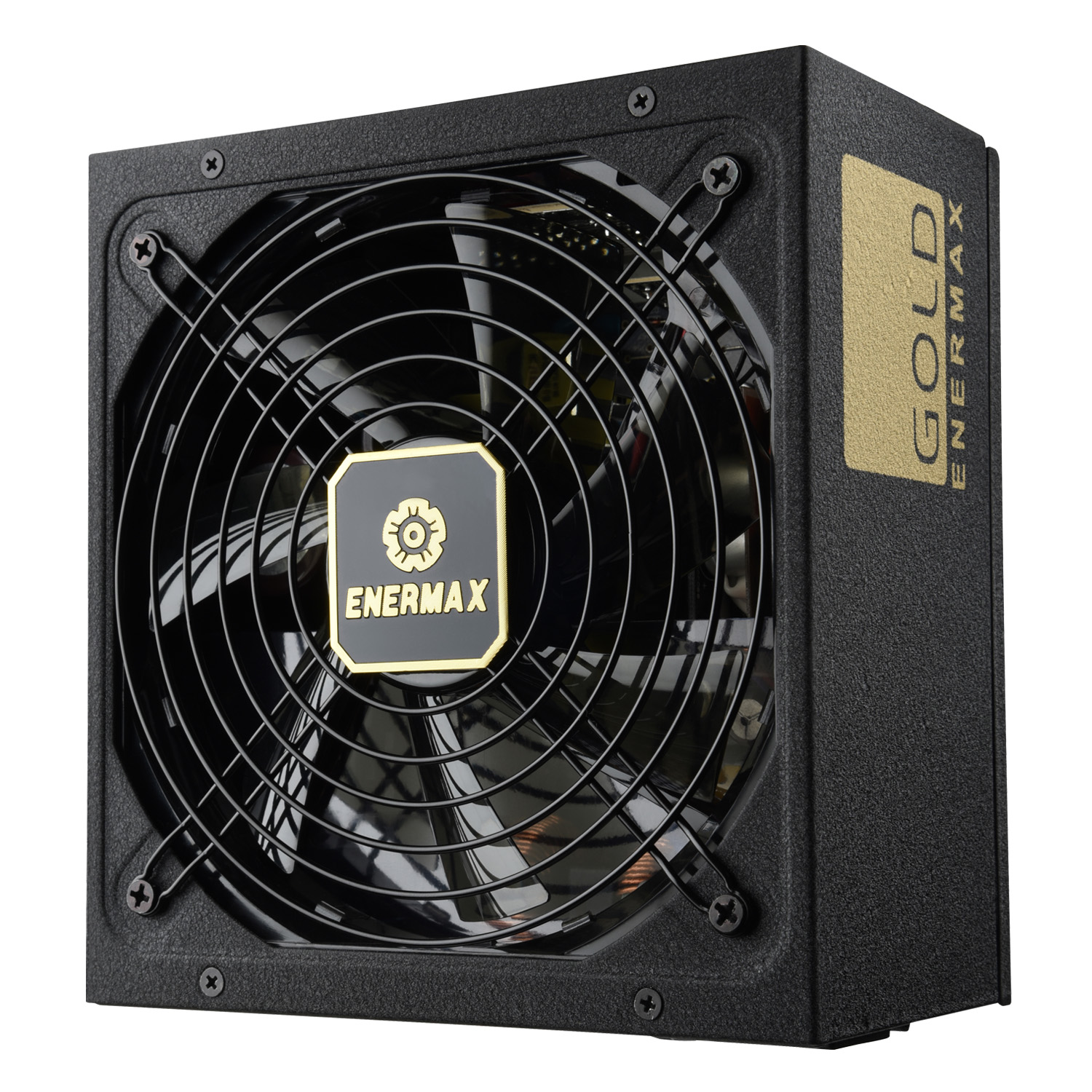

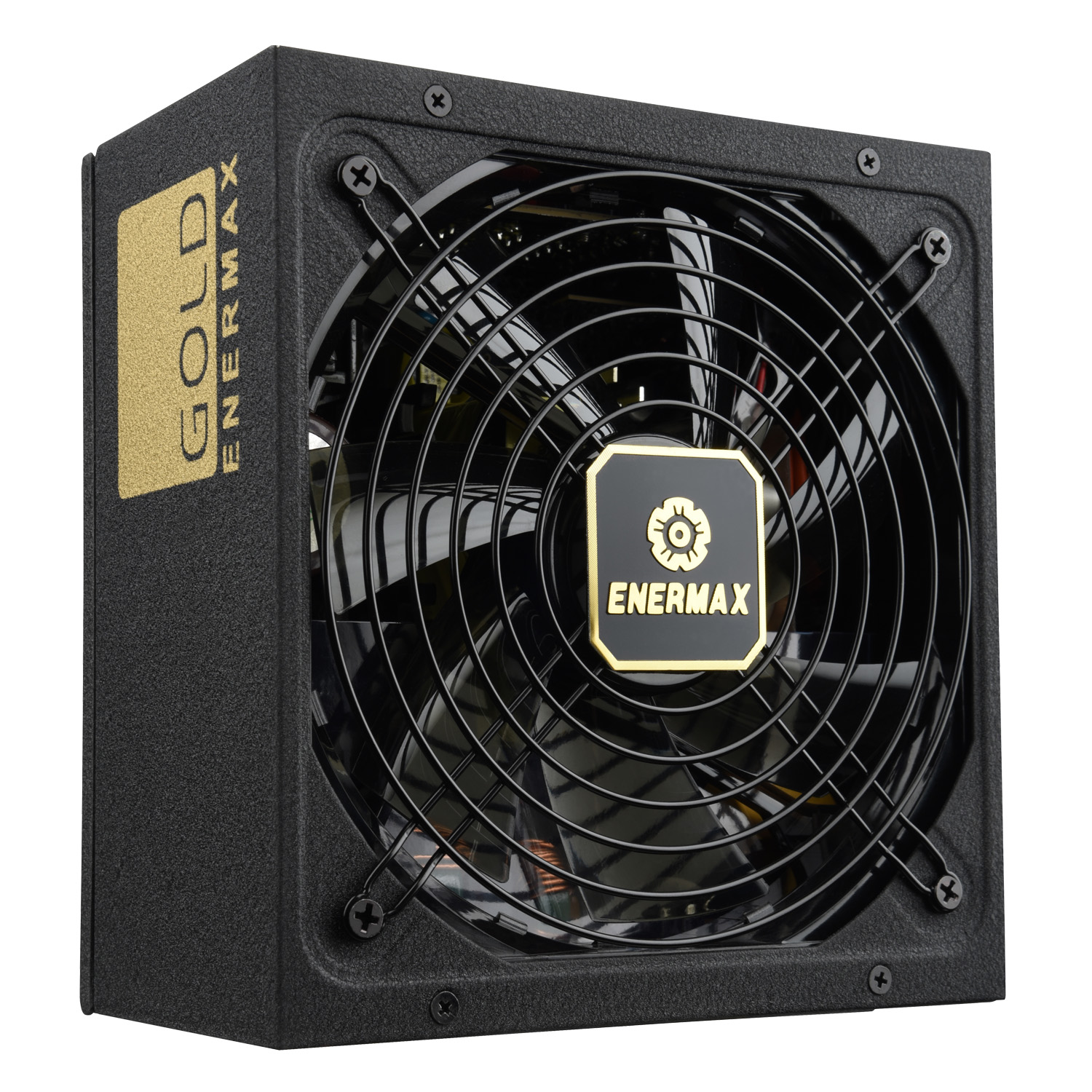

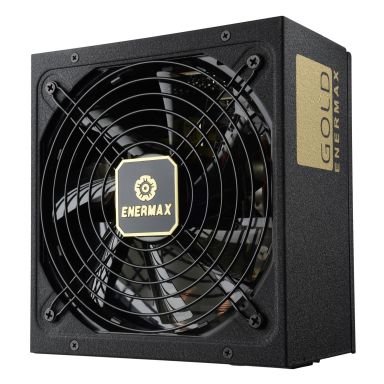

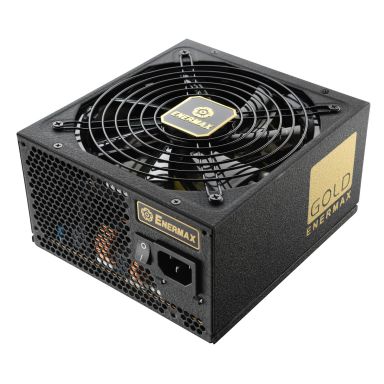

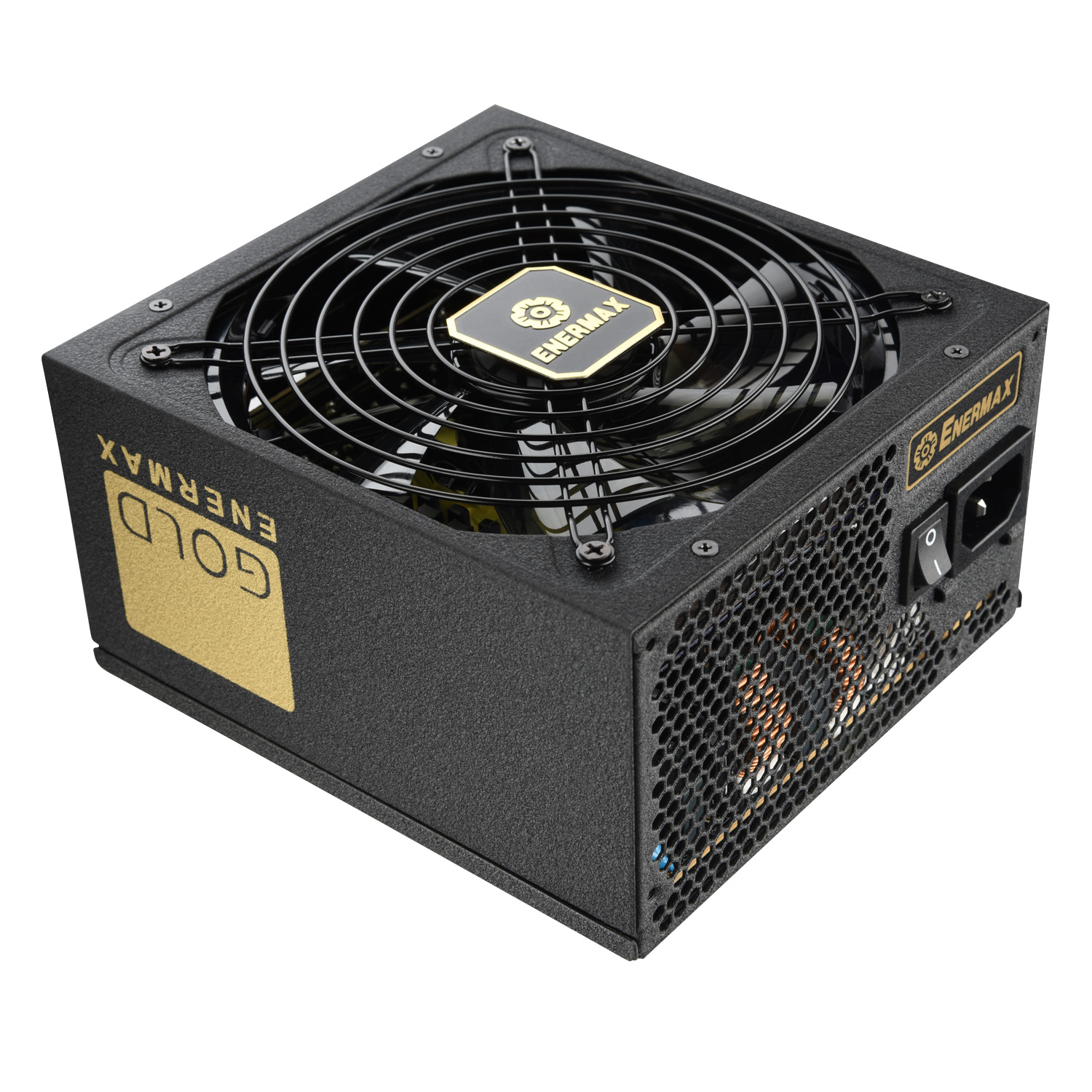

ENERMAX Gold 550W

ENERMAX Gold 550W (OEM)

‧105°C Japanese electrolytic capacitors
‧Patented Twister Bearing fan for noiseless operation and long product life
‧Patented Dust Free Rotation (DFRTM) technology for the PSU fan

COMPARE Compare List (0)

87 PLUS ready!

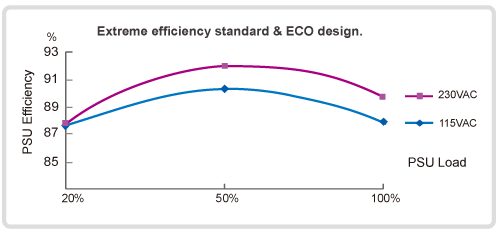

Extreme efficiency PSU series with 87-92 efficiency @ 20-100% load. Certified to meet 80 PLUS® GOLD requirements




Dust Free Rotation Tech. (patented)

Dust Free Rotation technology enables the fan to instantly blow away the dust to prolong the lifespan




Twister Bearing fan (patented)

13.9cm fan with patented Twister Bearing Technology ensures ultra silent cooling and long lifetime of fan (160,000 hours MTBF)




105°C Japanese electrolytic capacitors

Highest component standards for maximum durability and stability




Zero load ready!

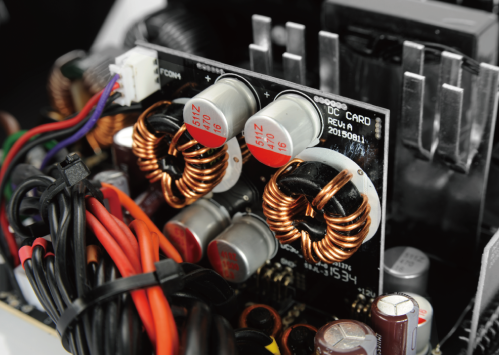

DC to DC circuit ensures tight DC output regulation to support latest CPU and GPU peak power & zero load energy saving mode

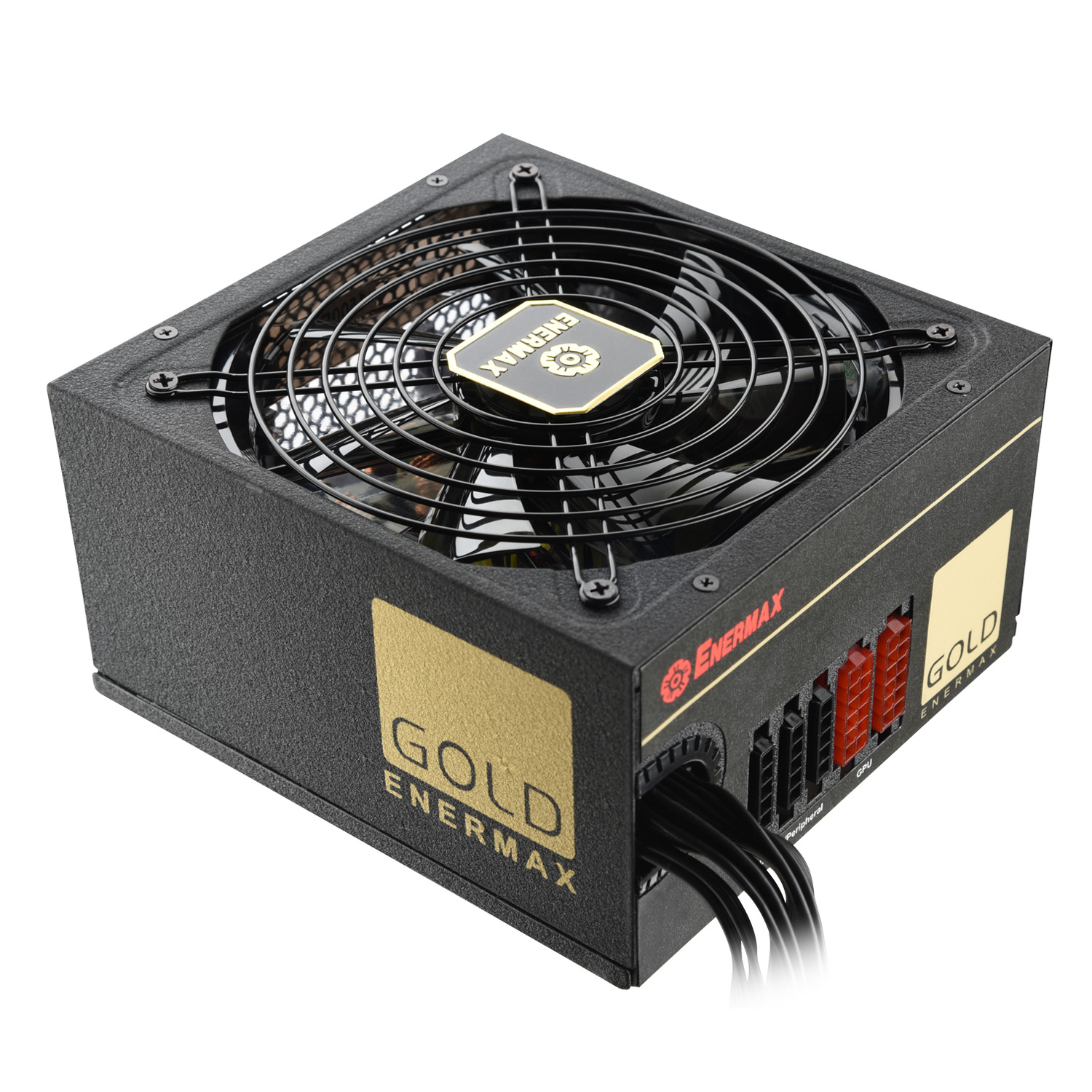

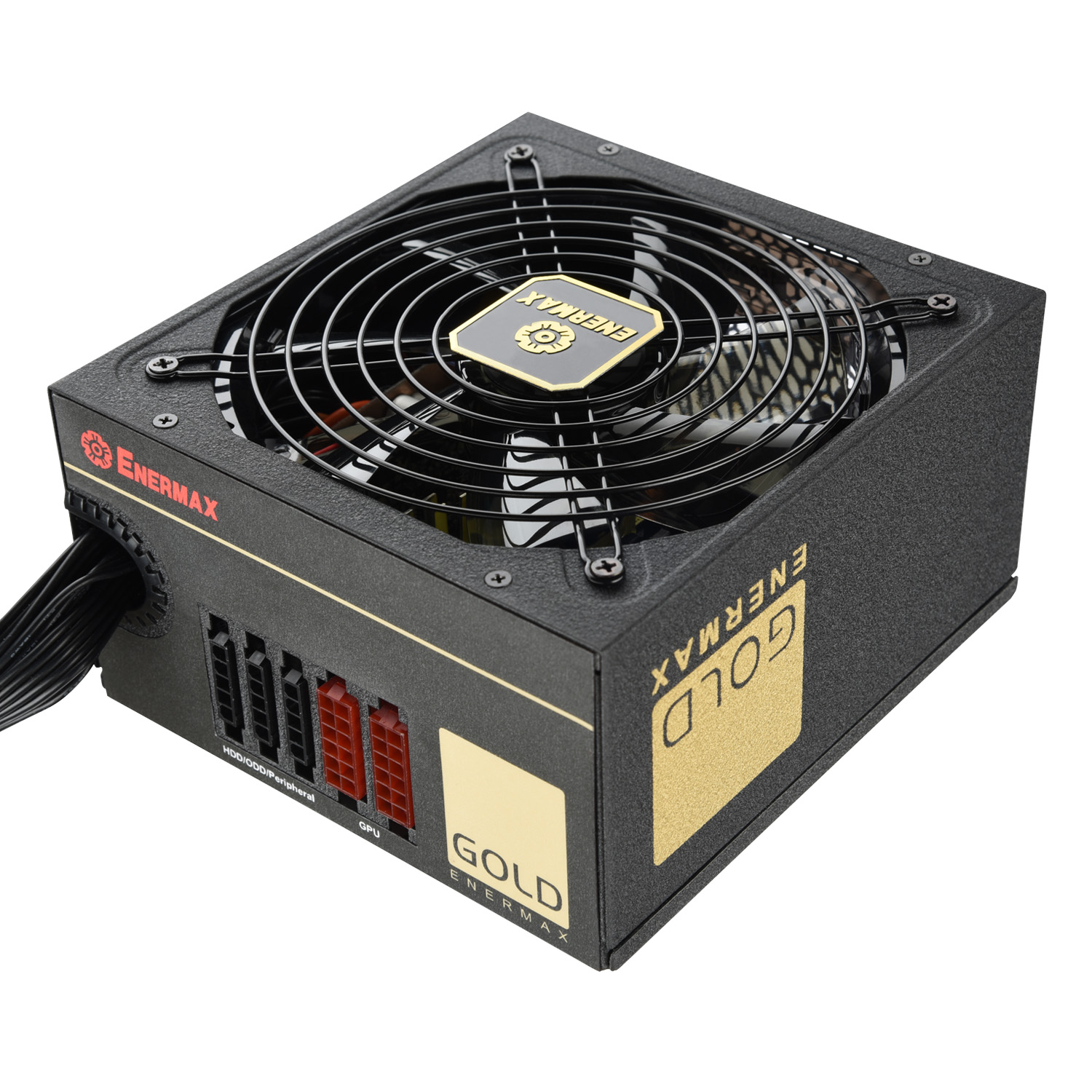

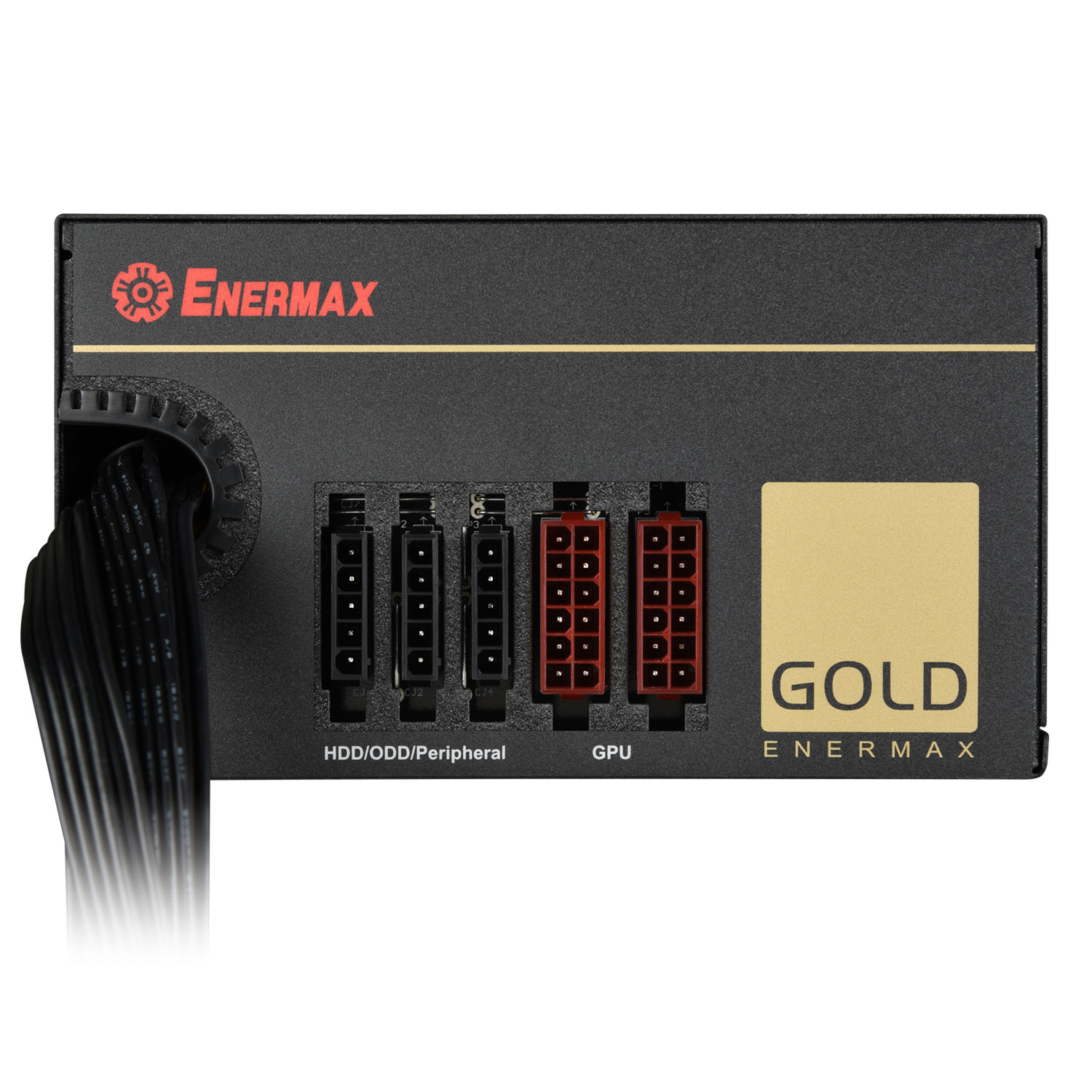

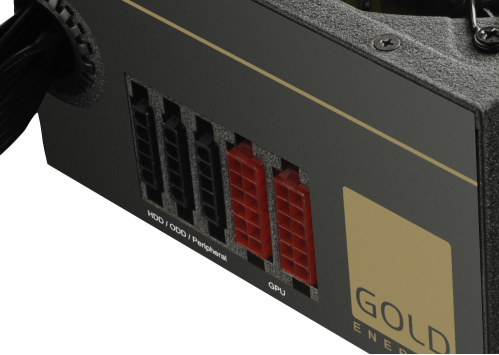

Hybrid modular & 100% flexible flat cable design

Facilitate system installation, reduce cable clutter, enhance internal airflow and cooling performance




SafeGuard

Multiple protection circuitry of OCP (3.3V/5V), OVP, UVP, OPP, SCP, and SIP protects your system




CordGuard

Fix the AC cord tightly to avoid accidental shutdown of your PC




2014 & 2013 ErP ready!






World ready!

100-240VAC auto-adjustment input for universal use. Active PFC with PF value up to 0.99, reducing the reactive power loss to the minimum

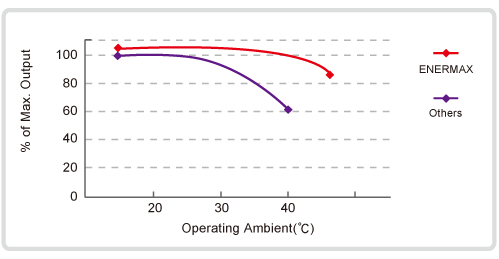

24/7 @ 40°C ready!

ENERMAX GOLD high-end components and advance layout ensure non-stop operation



ERX550AWT-DP
Mainboard 24 Pin 1x
[ 60cm ]
CPU 4+4 Pin 1x
[ 60cm ]
PCI-E 6+2 Pin (8 Pin) 2x
[ 1x 50/ 65cm ]
SATA 8x
[ 2x 45/ 60/ 75/ 90cm ]
4 Pin Molex 4x
[ 1x 45/ 60/ 75/ 90cm ]
FDD 1x
[ 15cm ]

Notice:
Your Enermax power supply is designed for enthusiast and high demand graphic professional that is looking at working with system that requires multiple GPU. However, configuring multi-GPU system requires proper planning to make sure you are not driving all currents through the same cable source that might overload both your motherboard and your power supply. Driving your GPUs on separate 12V rail is a good practice that most tech savvy user already aware of. Do you realize that your motherboard might be pulling too much current from your 24Pin power source and cause system damage?

For those elite user that is looking to put in 2 or more high end, power demanding GPU card, please choose the motherboard that comes with extra 4P Molex/ 4P FDD / 6P PCI-E power socket on board and connect them with your Enermax power supply. This will prevent motherboard overloading and possibly cause damage to your system including your Enermax power supply. Once this occur, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under Enermax manufacturer¡¦s warranty. Please refer to your motherboard¡¦s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply.

Info for DC connector’s rated current:The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

Total power (W) 550W
Input Voltage (V) 100-240VAC
Input Current (A) 8-4A
Input Frequency (Hz) 47-63Hz
Protection OCP (3.3V/5V), OVP, UVP, OPP, SCP, and SIP
Dimension (D x W x H), (mm) 150(W) x 86(H) x 160(D) mm
+3.3V(A) 20A
+5V(A) 20A
+12V1(A) 45A
-12V(A) 0.3A
+5Vsb(A) 2.5A
Combined Wattage 12V (W) 540W
Combined Wattage 3.3V + 5V(W) 110W
EAN code 4713157723192
Box dimensions (D x W x H), (mm) 290(W) x 210(D) x 130(H) mm
Gross Weight / unit (kg) 2.6KG
