ETS-F40-FS series ARGB 140mm CPU air cooler-White

▪ Addressable RGB sync ready
▪ Superior cooling capacity (200W TDP)
▪ Silent operation with starting fan speed 300rpm
▪ Compact size design to fit in most computer chassis
▪ Included fan clips for the 2nd fan installation





Superior Cooling Capacity, 200W TDP

Thanks to ENERMAX patented Vortex Generation Flow(VGF) design and unique Vacuum Effect Flow(VEF) design, ETS-F40 Addressable RGB version can increase air convection around the heat pipe and centralize airflow in the heatsink to provide optimal cooling performance


Patented Vortex Generation Flow (VGF) design


Vacuum Effect Flow (VEF) design




The enlarged 140mm heat sink fin design provides a larger cooling surface for efficient heat dissipation. The additional fan clips allow users to install the 2nd fan on ETS-F40 Addressable RGB version for better cooling performance


Enlarged 140mm fin design


Additional fan clips design




High Efficient Heat Transfer

ETS-F40 Addressable RGB version is equipped with 4 x ø6 heatpipes with heat-pipe direct touch (HDT) technology to improve thermal conductivity and eliminate CPU hot spots quickly





Silent Operation

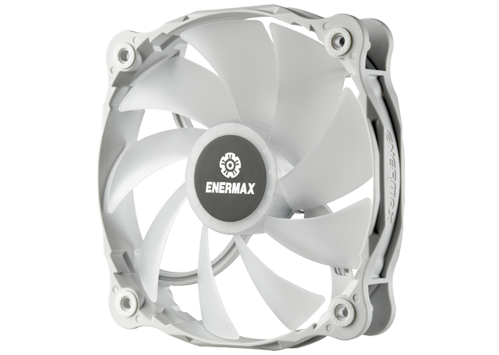

The 140mm fan, featuring smart PWM speed control function (speed range is 300 to 1200rpm), provides the balance between silence and performance








Addressable RGB Sync Ready!

ETS-F40 Addressable RGB version is designed to synchronize with addressable RGB motherboards (3 pin assignment is 5V/D/G), providing 16.8 million colors to light up your rigs

Compact Size Design to Fit into Mainstream Chassis

ETS-F40 Addressable RGB version is characterized by asymmetric heat-pipe design that creates more space for RAM installation, and its compact 158mm height heatsink size can fit into many popular chassis





Product Introduction



Installation Guide

Model ETS-F40-W-ARGB
CPU Socket Intel® 2066/2011-3/2011/1366/1200/1156/1155/1151/1150/775
AMD® AM2/AM2+/AM3/AM3+/AM4/FM1/FM2/FM2+
Overall Dimension 140 x 93 x 158 mm
Weight 800g (W/ fan)
TDP (W) 200W
Heat Pipe 4 x Ø6 mm
Material Copper Heat Pipes / Aluminum Fins
Thermal Grease Dow Corning® TC-5121C
Fan Dimension 140 x 140 x 25.5 mm
Fan Speed 300 ~ 1200 ±10%
Fan Air Flow (CFM) 18.11 ~ 74.33 CFM (Max.)
Air Flow (m3/h) 30.75 ~ 126.21 m3/h
Fan Static Pressure (mm-H2O) 0.13 ~ 2.17 mmH2O
Fan Noise (dBA) 10 ~ 23 dBA
Fan Rated Voltage (V) 12V
Fan Rated Current (A) 0.15A
Rated Voltage - RGB LED 5V
Rated Current - RGB LED total 0.89A (Fan ARGB 0.42A, Top Cover 0.47A)
MTTF (FAN) ≧100,000
Connector 4 pin PWM, 3pin (5VDG) ARGB
EAN 4713157725363
UPC 819315025369
Box Dimension 145 x 124 x 182 mm
Gross Weight / unit 0.9 kg
Carton Dimension 388 x 305 x 394 mm
Q'ty / carton 12pcs
Gross Weight / Carton 12.3 kg
