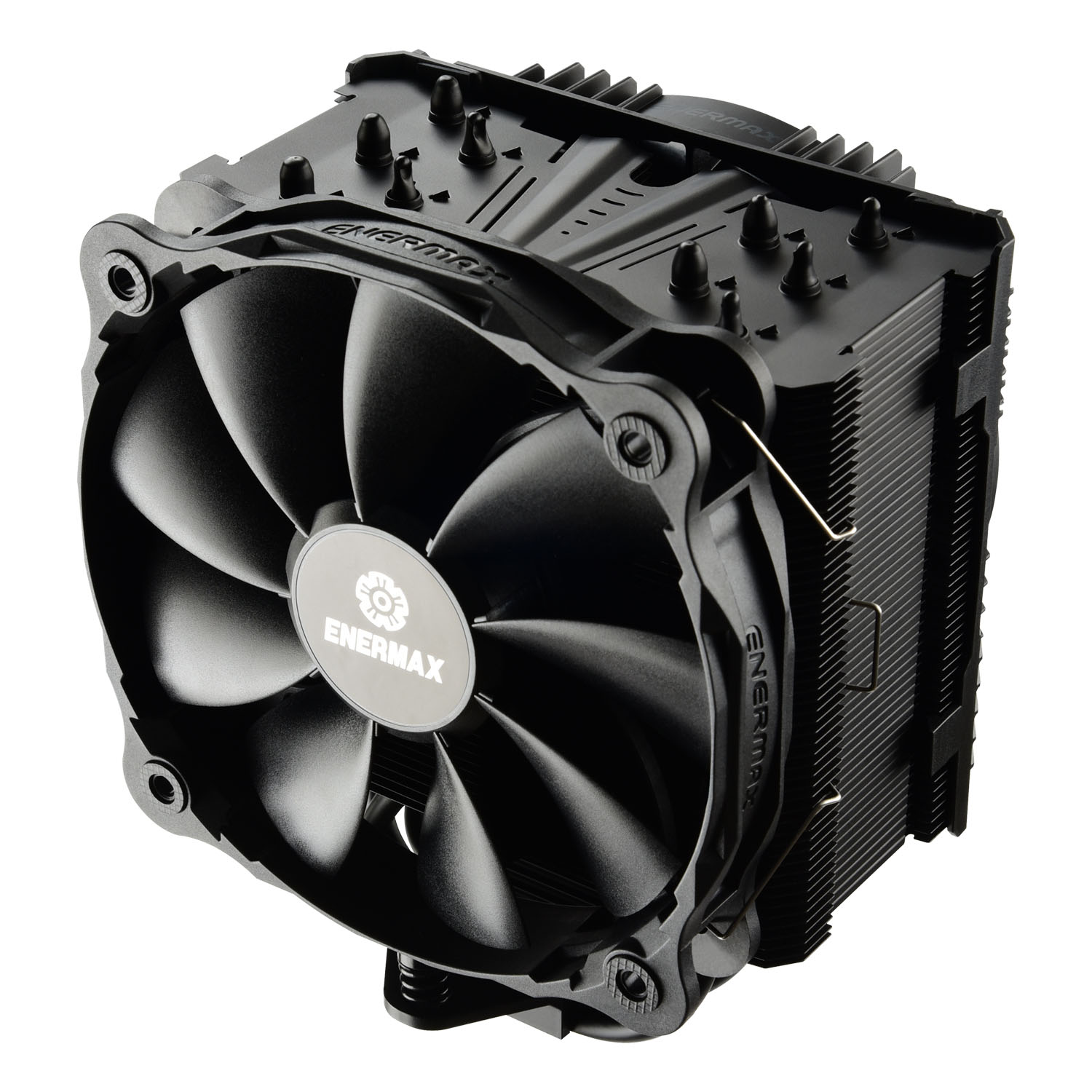

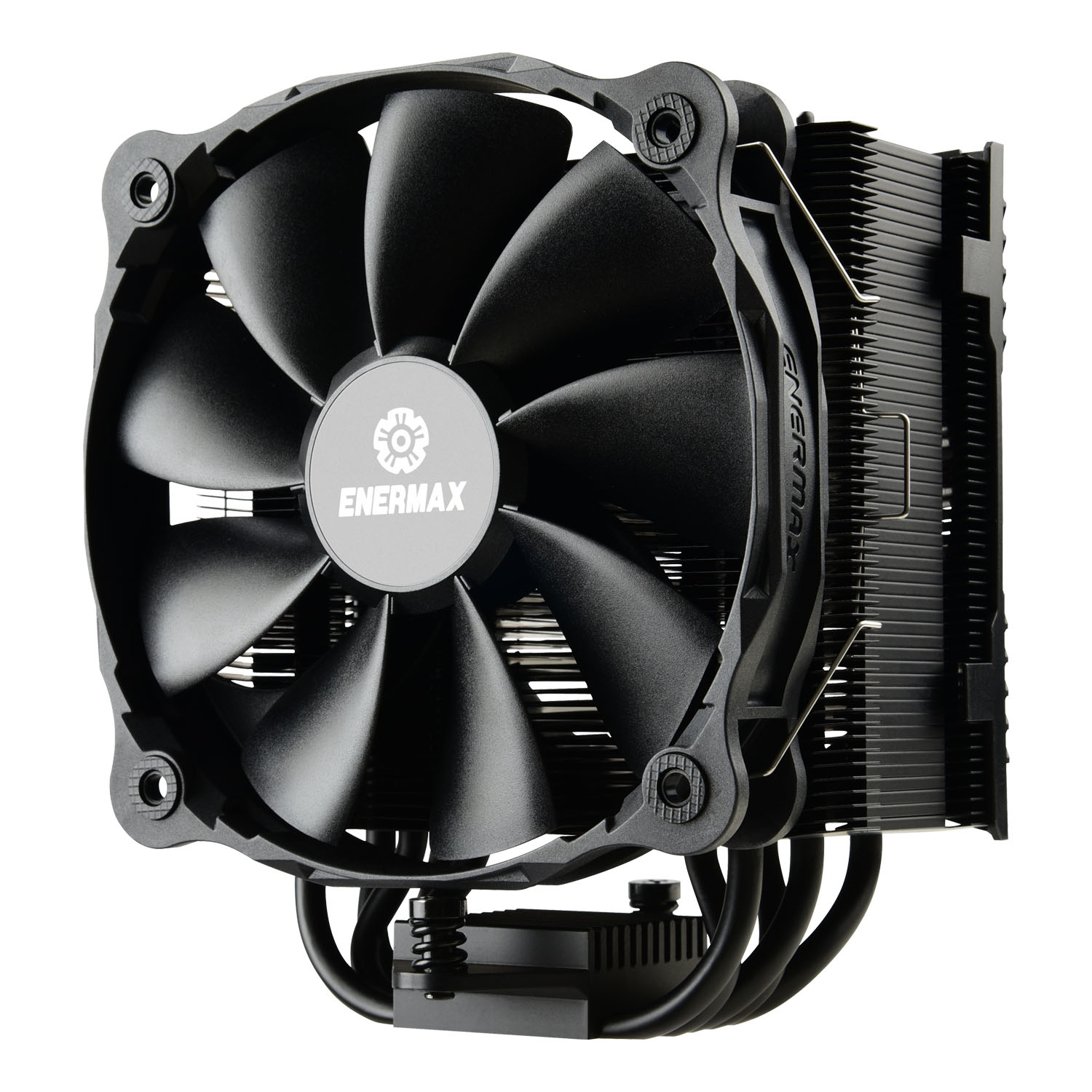

ETS-T50 AXE Series 140mm Air CPU Cooler, FSS

‧Support up to 230W+ TDP
‧14cm silent fan with huge airflow design
‧Patented Air Guide
‧Patented Pressure Differential Flow (PDF) design

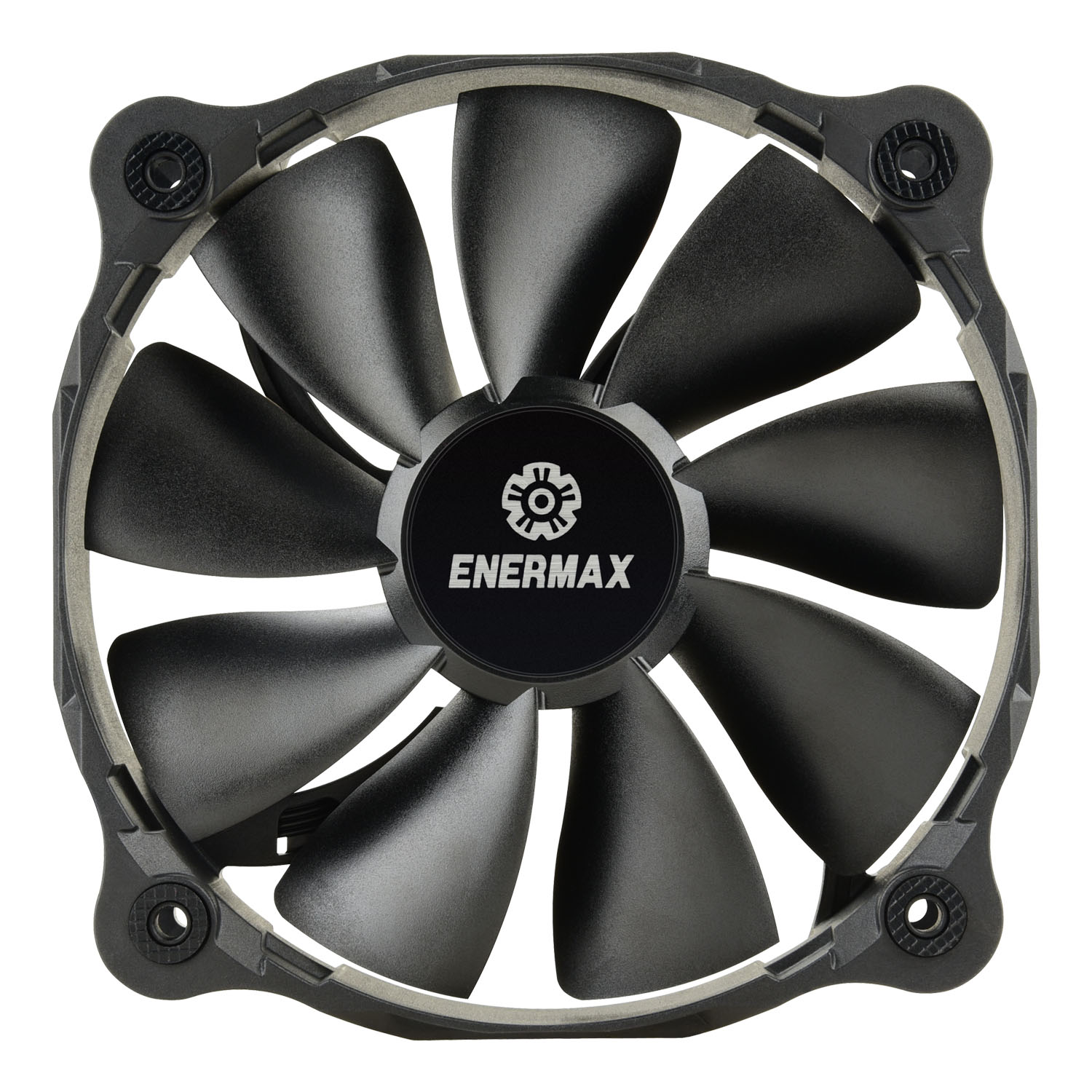

Included 14cm silent fan aims to reach the perfect balance between silence and performance

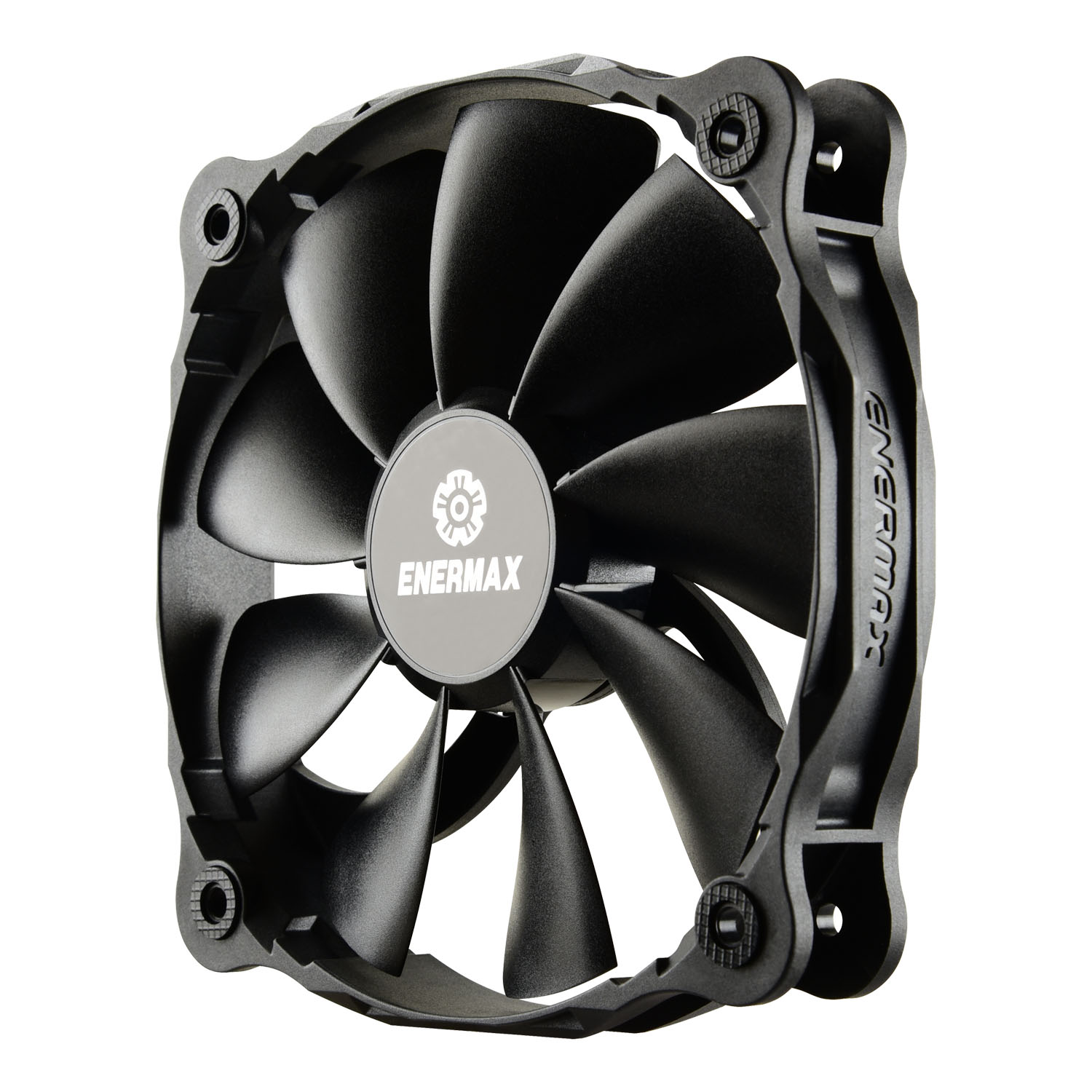

Innovative High Pressure Blades design enhances the cooling performance

ETS-T50A-FSS

Other cooler – Normal fan

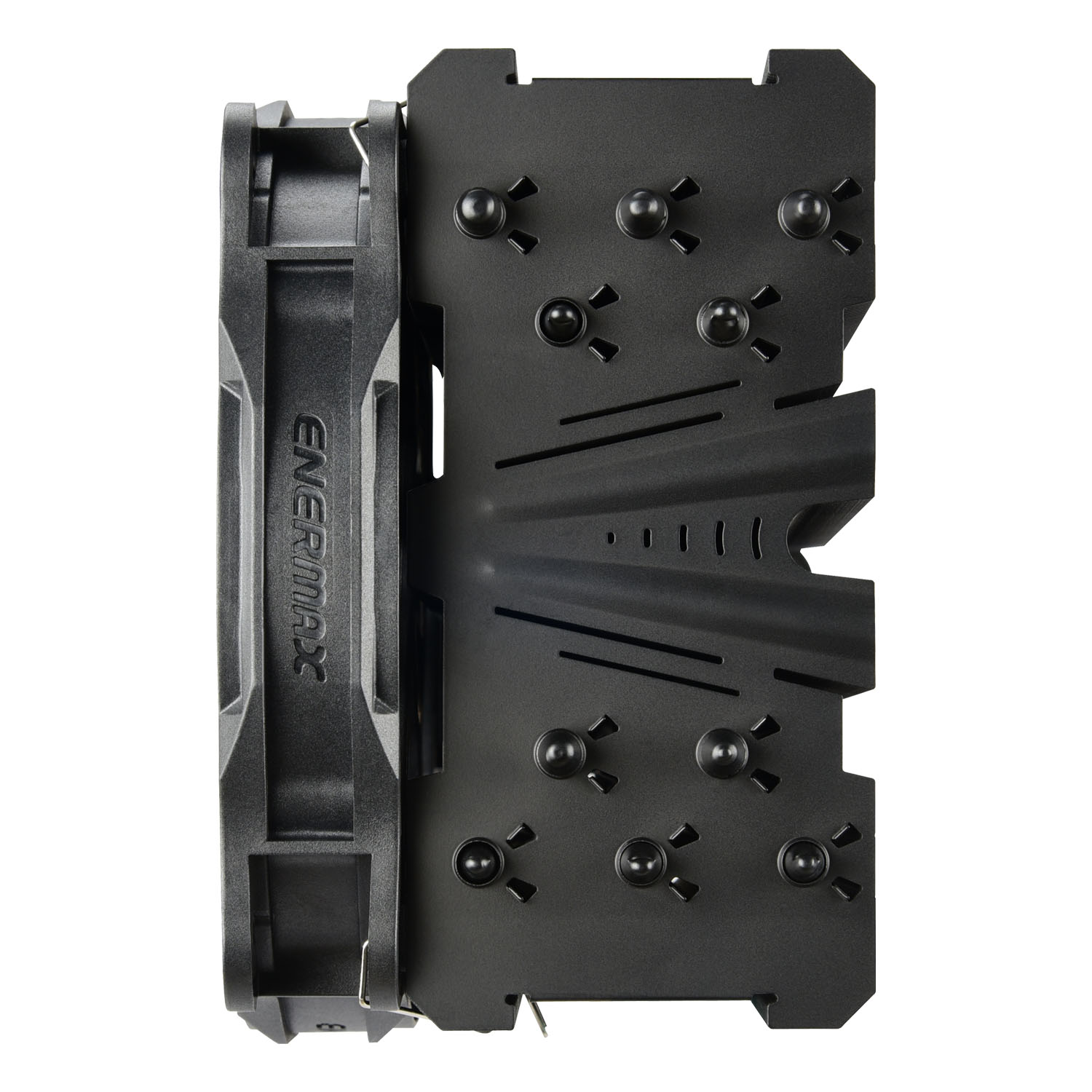

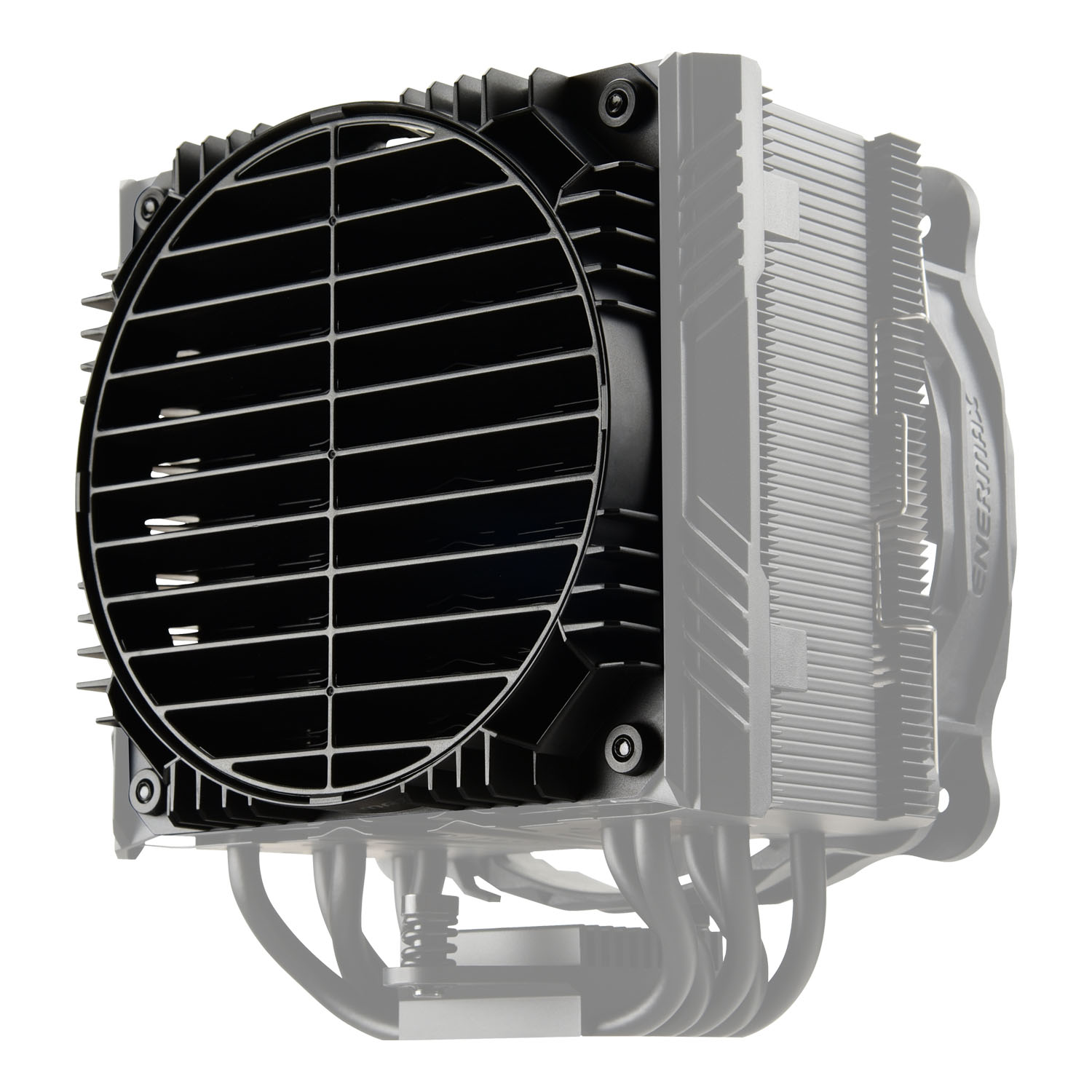

Patented Air Guide with rotatable grill for preferred airflow direction adjustment directly toward the rear case fan area




Patented PDF (Pressure Differential Flow) design uses differential wind pressure to increase 15% more airflow

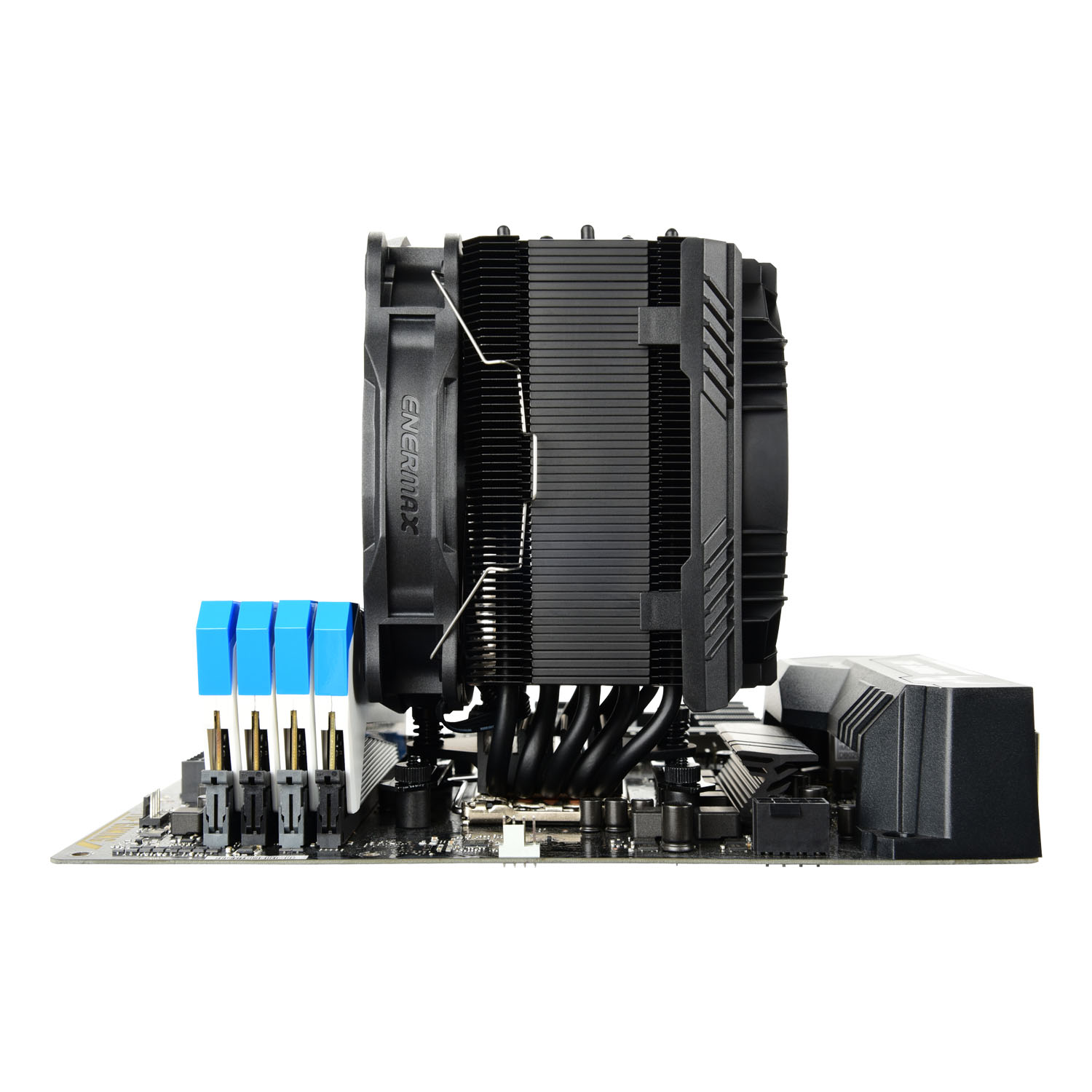

Asymmetric heat pipe design allows extra space for ideal RAM compatibility




Unique air path creating high VEF (Vacuum Effect) to optimize the airflow

ETS-T50 AXE – no air leaks from sides

Other cooler - air leaks from sides




Patented VGF (Vortex Generation Flow) to increase air convection around the heat pipe

ETS-T50 AXE



Other cooler




Patented Twister Bearing technology

Long life and low noise

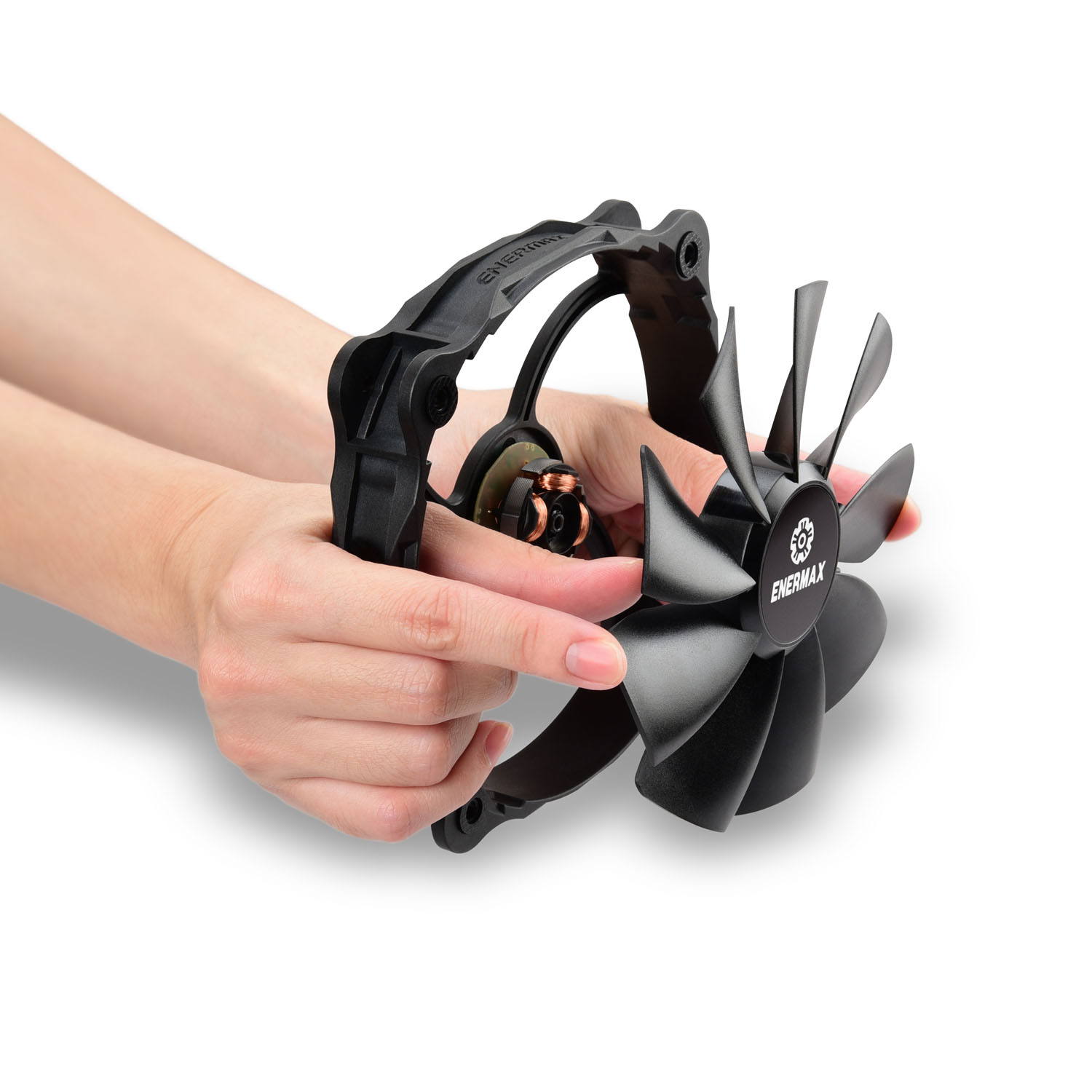

Detachable blade for easy cleaning



Model ETS-T50A-FSS
CPU Socket Intel® LGA 1700/1200/115x/2066/2011/2011-3/1366
AMD® AM5/AM4/AM3+/FM2+/FM1
Overall Dimension 144.2(L) x 109.5(W) x 163(H) mm
Heat Sink Dimension 135.2(L) x 65(W) x 160(H) mm
Weight 864g (w/ fan)
TDP (W) 230W
Heat Pipe 5 x Ø6 mm
Material Copper Heat Pipes / Aluminum Fins
Thermal Grease Dow Corning® TC-5121
Fan Dimension 140 x 140 x 25.5 mm
Fan Speed 500 ~ 1000 ±10% rpm
Fan Air Flow (CFM) 29.78~ 55.45 CFM
Air Flow (m3/h) 50.59 ~ 94.21 m3/h
Fan Static Pressure (mm-H2O) 0.57 ~ 2.13 mm-H2O
Fan Noise (dBA) 13 ~ 22 dBA
Fan Rated Voltage (V) 12V
Bearing Type Twister Bearing
MTTF (FAN) ≧160,000 hours @ 25°C
Connector 4 pin PWM
EAN 4713157723376
UPC 819315023372
Box Dimension 222 x 175 x 130 mm
Gross Weight / unit 1390 g
Carton Dimension 460 x 370 x 295 mm
Q'ty / carton 8 PCS
Gross Weight / Carton 12.5 kgs
