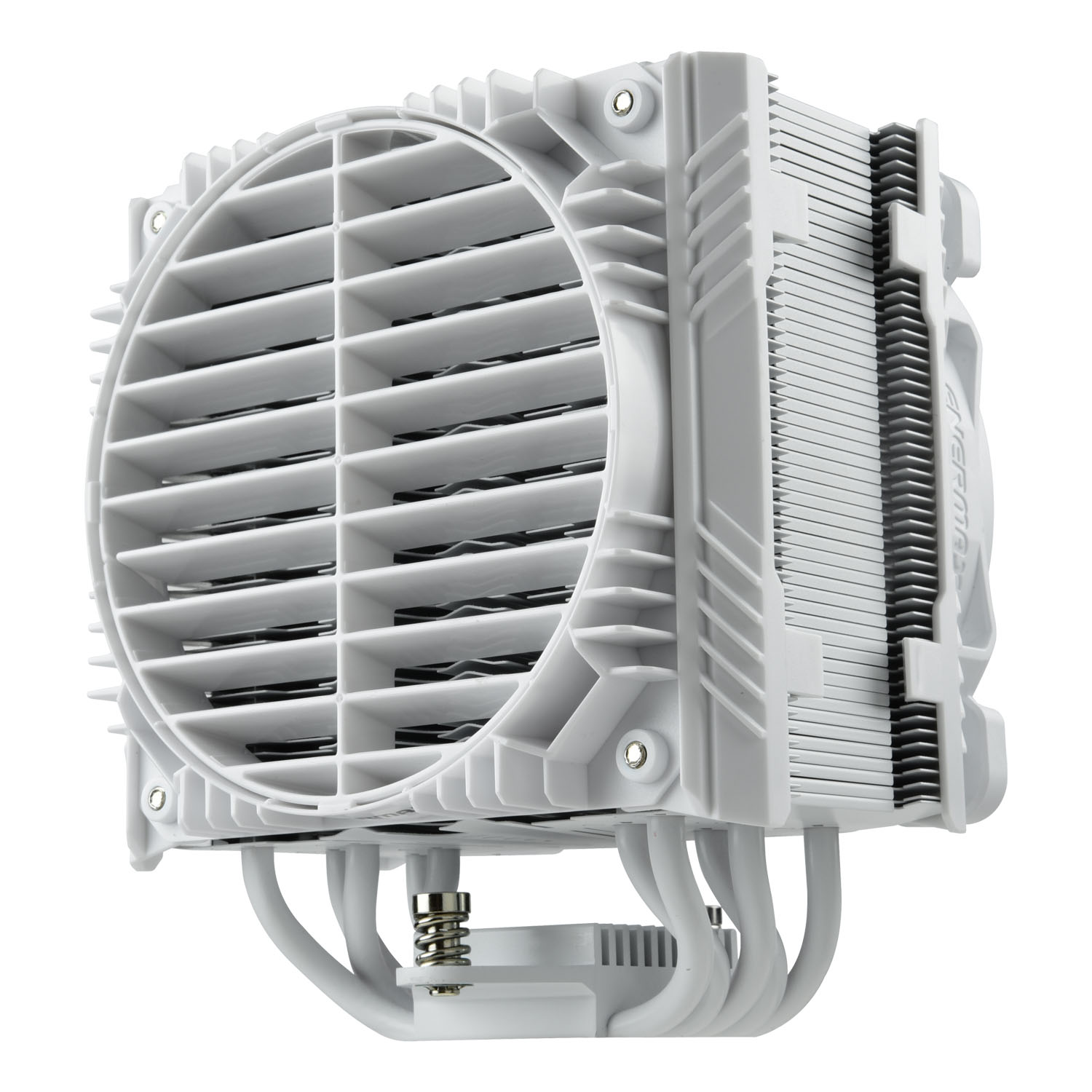

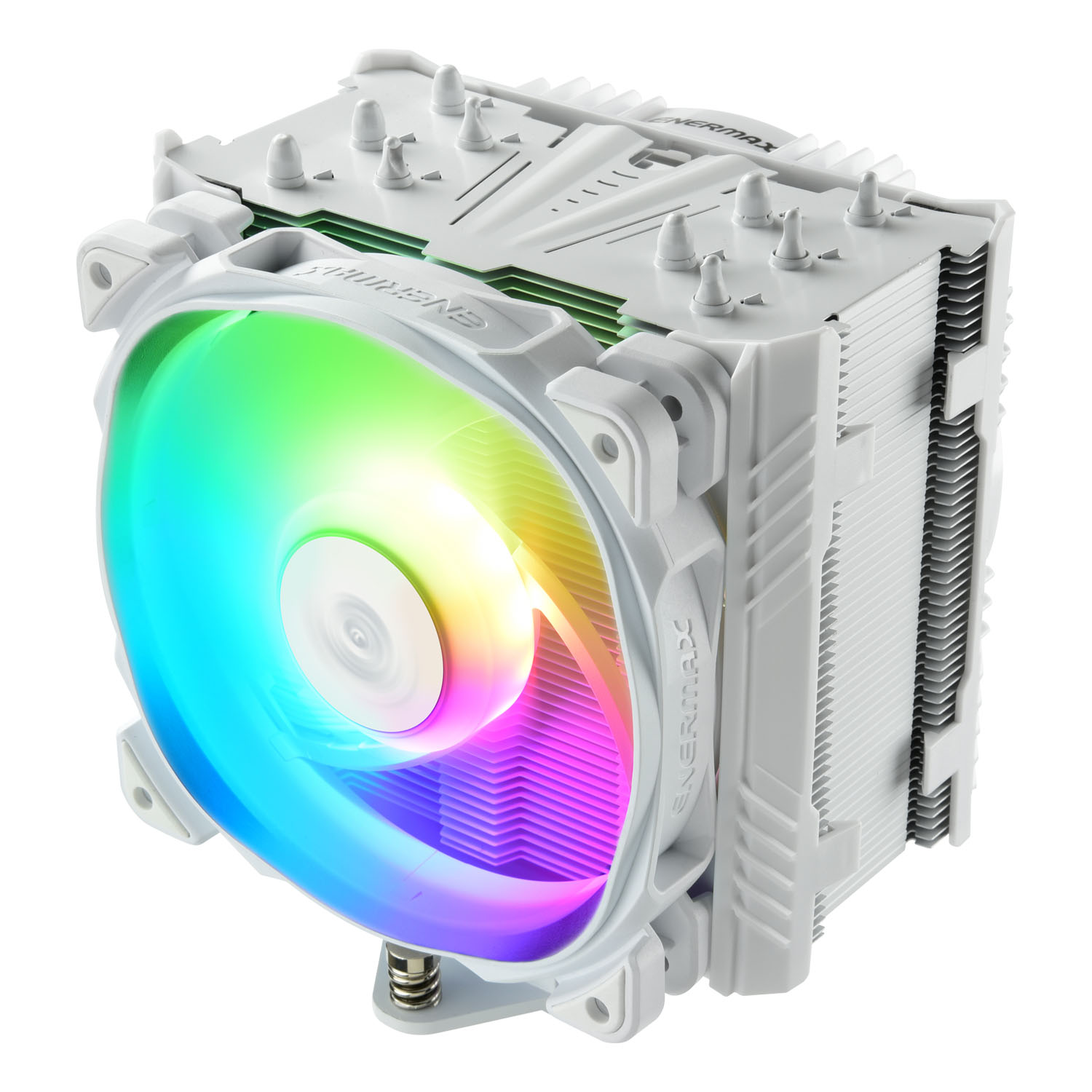

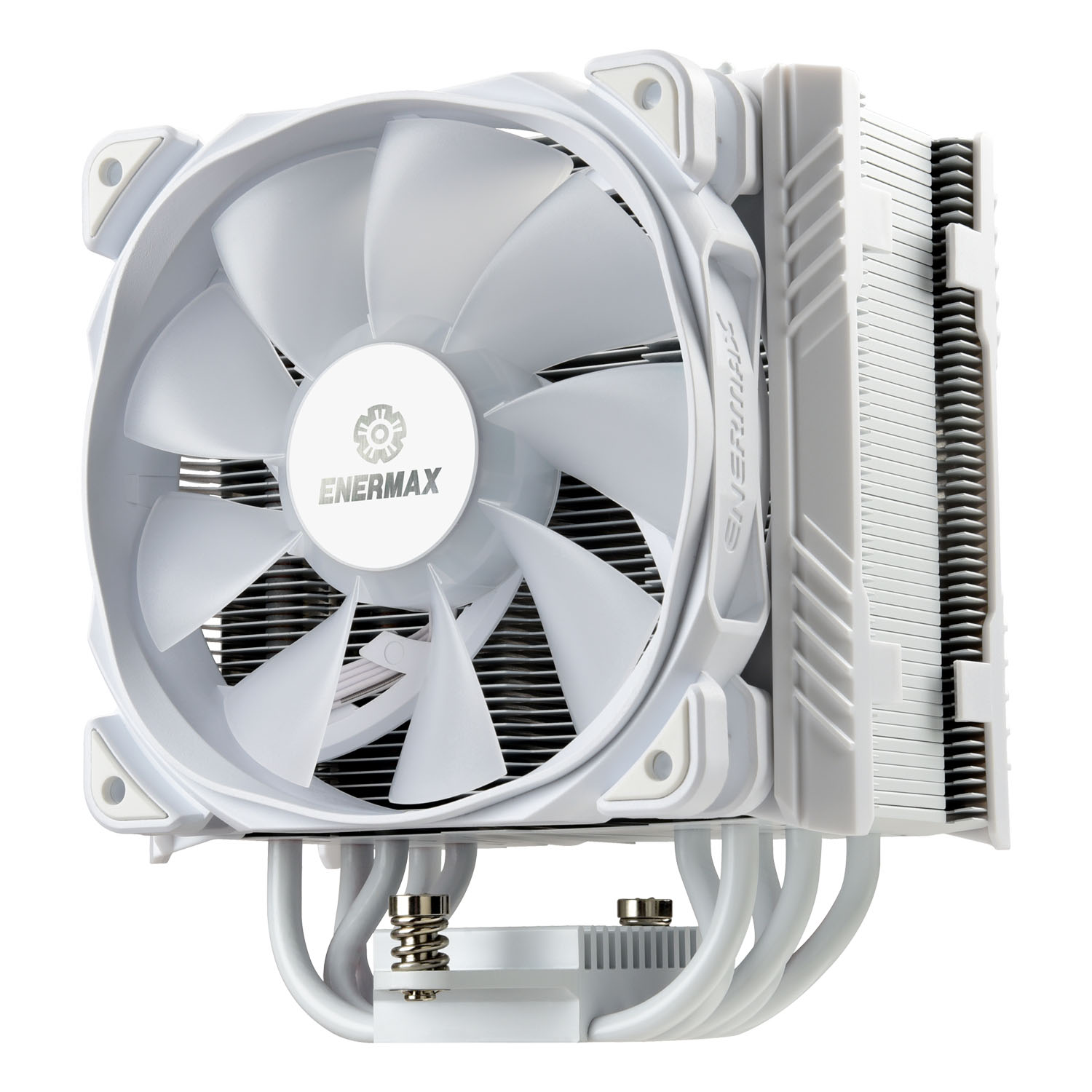

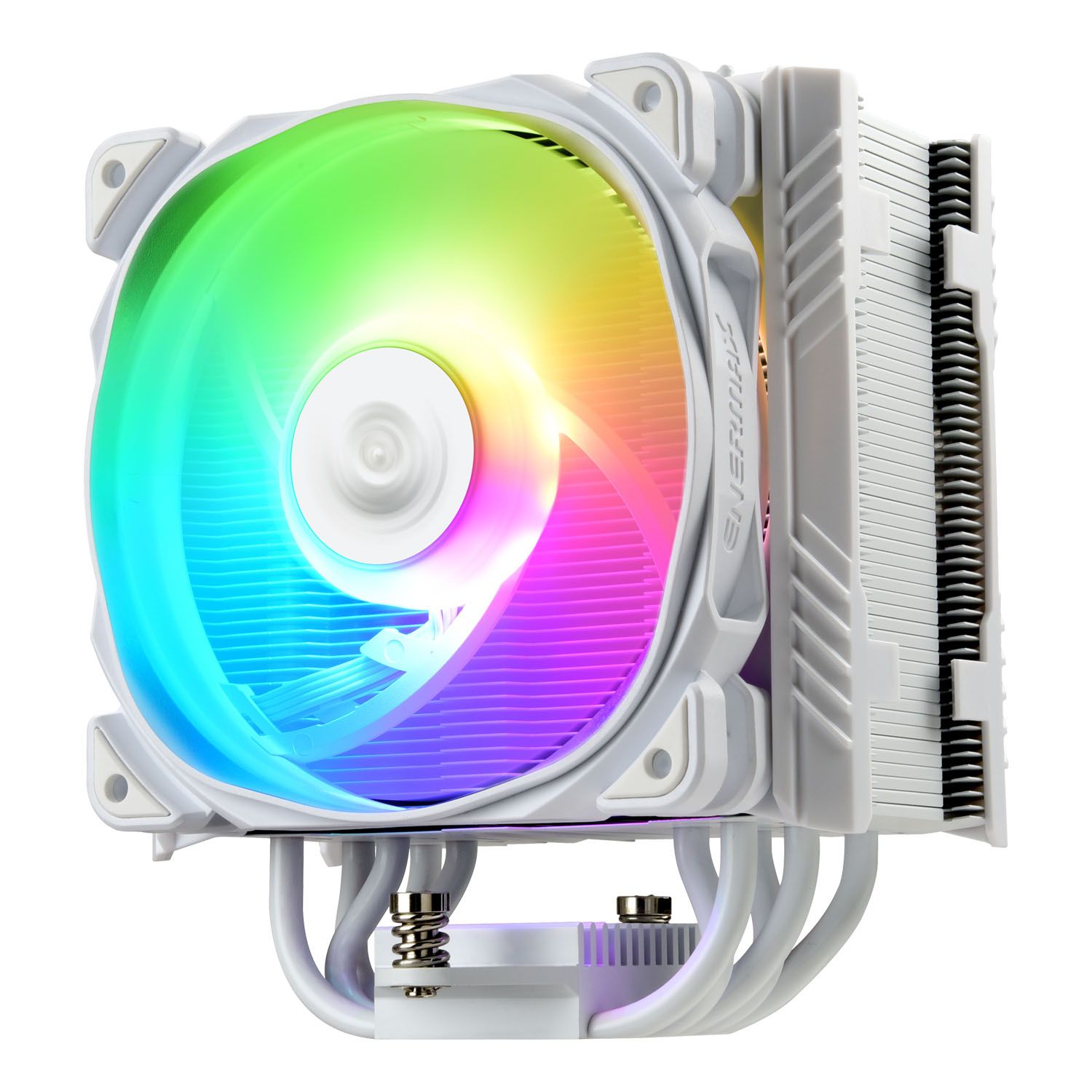

ETS-T50 AXE Series High Performance ARGB 120mm Air CPU Cooler, White

‧ Support up to 230W+ TDP
‧ High pressure blade design (max. 3.07 mm-H2O)
‧ Patented Rotatable Air Guide
‧ Support addressable RGB motherboard sync
‧ Plug & Play to display the rainbow RGB lighting effect,
no software or adaptor needed

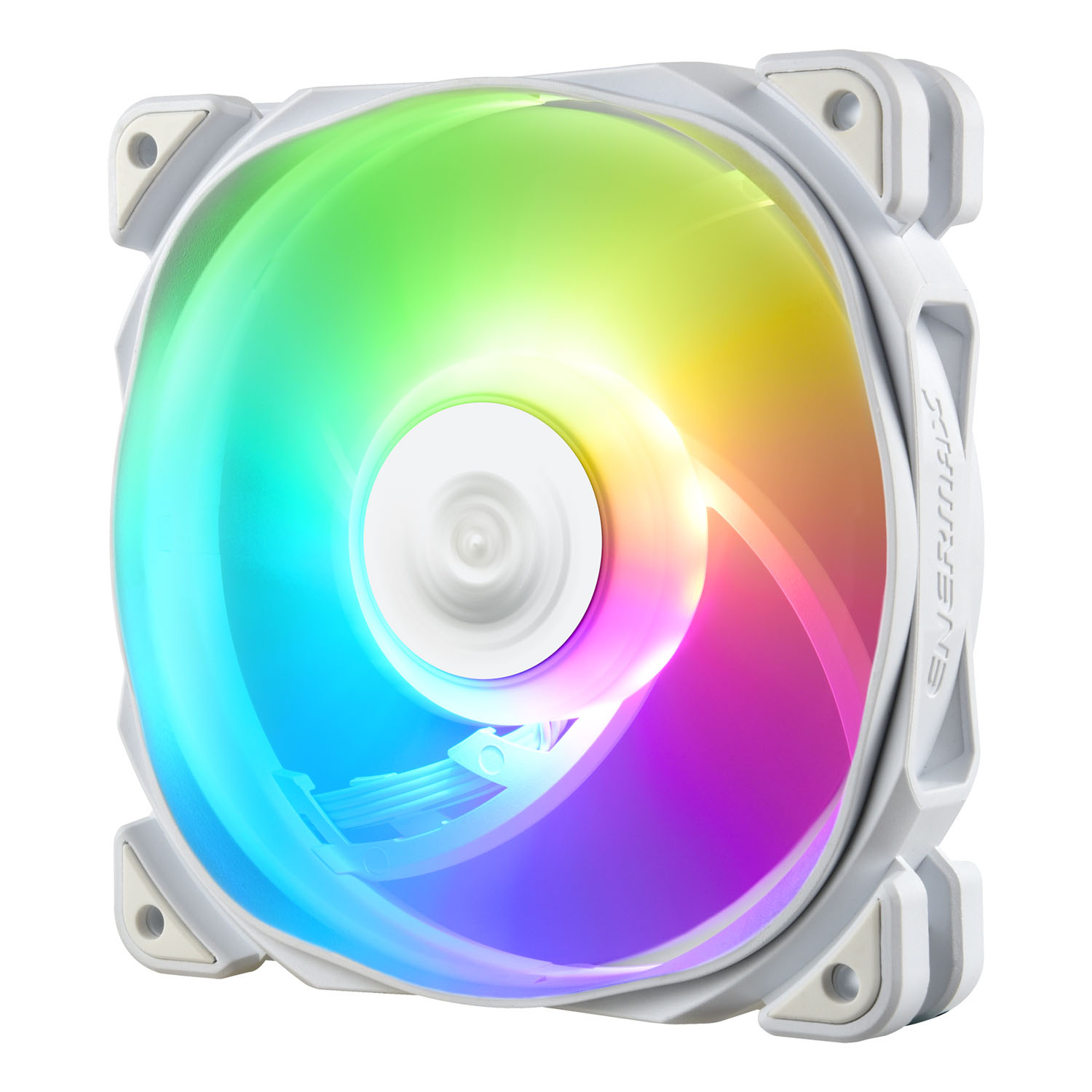

Luminous addressable RGB fan delivers 16.8 million colors with dynamic lighting effects




Support Addressable RGB lighting synchronization via motherboard

Users can sync the RGB lighting with motherboards featuring Addressable RGB header (3 pin assignment is 5V/D/G) and control lighting effects directly from ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome




Plug & Play to display rainbow RGB lighting effects

Users can use the PWM power cable to connect the fan to create constant rainbow RGB lighting effects, no software or adaptor needed




High Pressure Technology

High pressure blade design is a precision engineering of the blade angle and shape calculation. The blades centralize dispersed airflow to the center of the fan and create extremely high air pressure high airflow while maintaining outstanding quietness




Patented Air Guide with rotatable grill

Patented Air Guide with rotatable grill for preferred airflow direction




Patented Pressure Differential Flow (PDF) design

Patented Pressure Differential Flow (PDF) design uses differential wind pressure to increase 15% more airflow




Patented Vortex Generation Flow (VGF) design

Patented Vortex Generation Flow (VGF) design to increase air convection around the heat pipe

ETS-T50 AXE

Other cooler




Unique air path creating high Vacuum Effect (VEF) to optimize airflow

ETS-T50 AXE – no air leaks from sides

Other cooler - air leaks from sides




Heat-pipe Direct Touch (HDT) technology to ensure rapid thermal conduction and eliminate CPU hot spots




Asymmetric heat pipe design allows extra space for ideal RAM compatibility




Product Introduction




Installation Guide

Model ETS-T50A-W-ARGB
CPU Socket Intel® LGA 1700/1200/115x/2066/2011/2011-3/1366
AMD® AM5/AM4/AM3+/FM2+/FM1
Overall Dimension 138.7(L) x 112.5(W) x 160(H) mm
Heat Sink Dimension 135.2(L) x 65(W) x 160(H) mm
Weight 860 g (w/ fan)
TDP (W) 230W
Heat Pipe 5 x Ø6 mm
Material Copper Heat Pipes / Aluminum Fins
Thermal Grease Dow Corning® TC-5121C
Fan Dimension 120 x 120 x 25 mm
Fan Speed 500 ~ 1600 (±10%) RPM
Fan Air Flow (CFM) 23.81 ~ 71.32 CFM
Air Flow (m3/h) 40.45 ~ 121.17 m3/h
Fan Static Pressure (mm-H2O) 0.673 ~ 3.07 mm-H2O
Fan Noise (dBA) 14 ~ 24 dBA
Fan Rated Voltage (V) 12V
Fan Rated Current (A) 0.16 A
(or 0.39A when connecting to the PWM header only)
Rated Voltage - RGB LED 5 V
Rated Current - RGB LED 0.36 A
Bearing Type Twister Bearing
MTTF (FAN) ≧160,000 hours @ 25°C
Connector 4 pin PWM connector
3 pin ARGB connector (5V/D/G)
EAN 4713157724199
UPC 819315024195
Box Dimension 222 x 175 x 130 mm
Gross Weight / unit 1.438 kg
Carton Dimension 460 x 370 x 295 mm
Q'ty / carton 8 PCS
Gross Weight / Carton 12 kg
