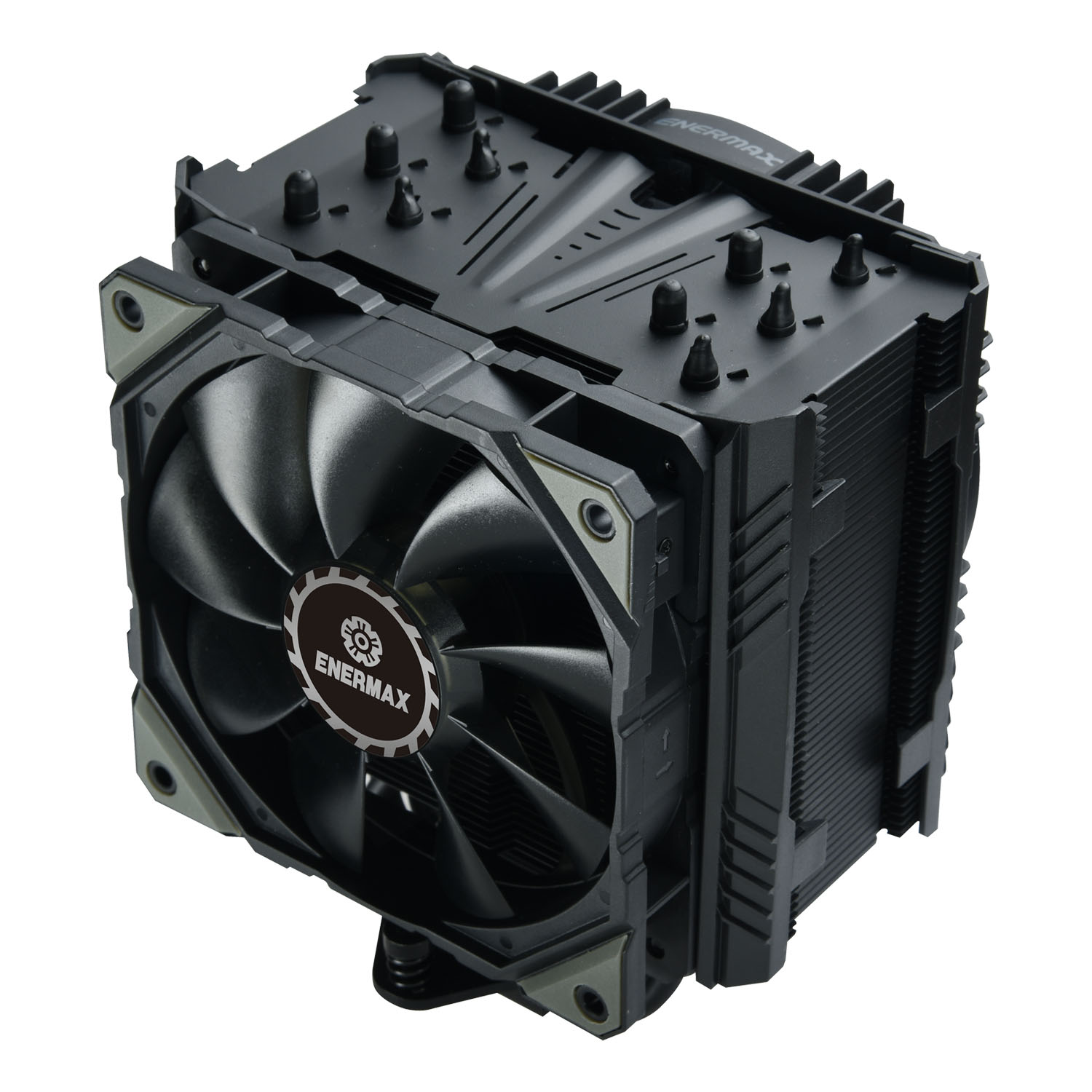

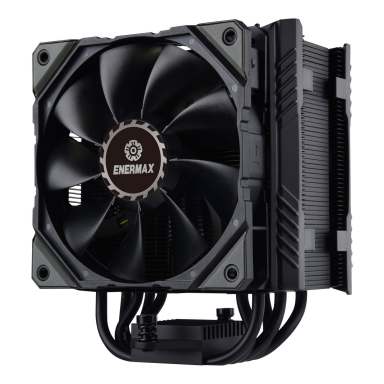

ETS-T50A-DFP

‧Powerful 250W+ TDP support
‧Super high static pressure fan
‧Patented Dust Free Rotation (DFRTM) technology fan
‧Patented Pressure Differential Flow (PDF) design
‧Patented Rotatable Air Guide

Patented PDF (Pressure Differential Flow) design

By using differential wind pressure, the PDF design is to squeeze the air flow to pass through the cone-shaped tunnel rapidly. This patented design can help increase 15% more airflow and enhance the cooling performance.

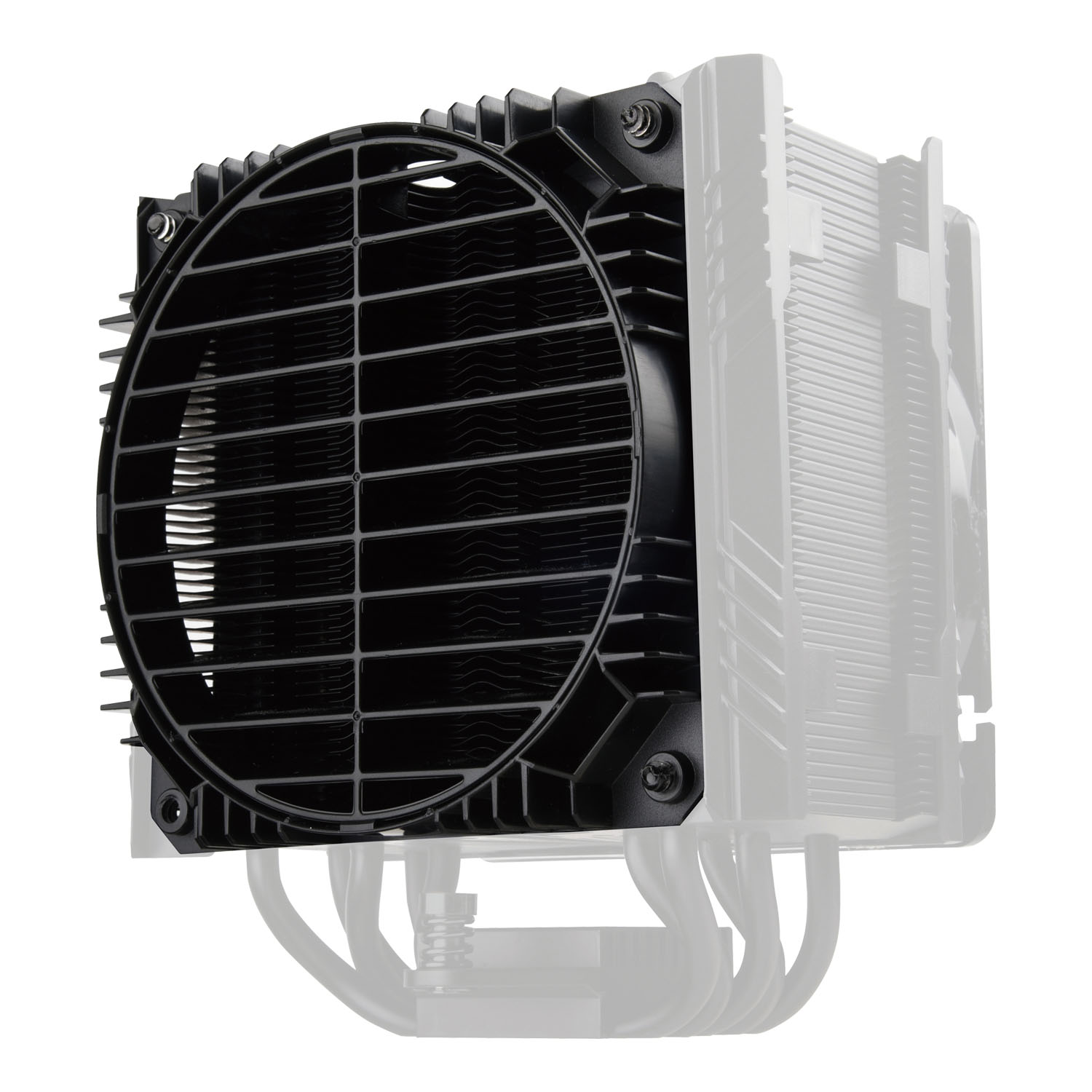

Patented Air Guide with rotatable grill for preferred airflow direction adjustment directly toward the rear case fan area

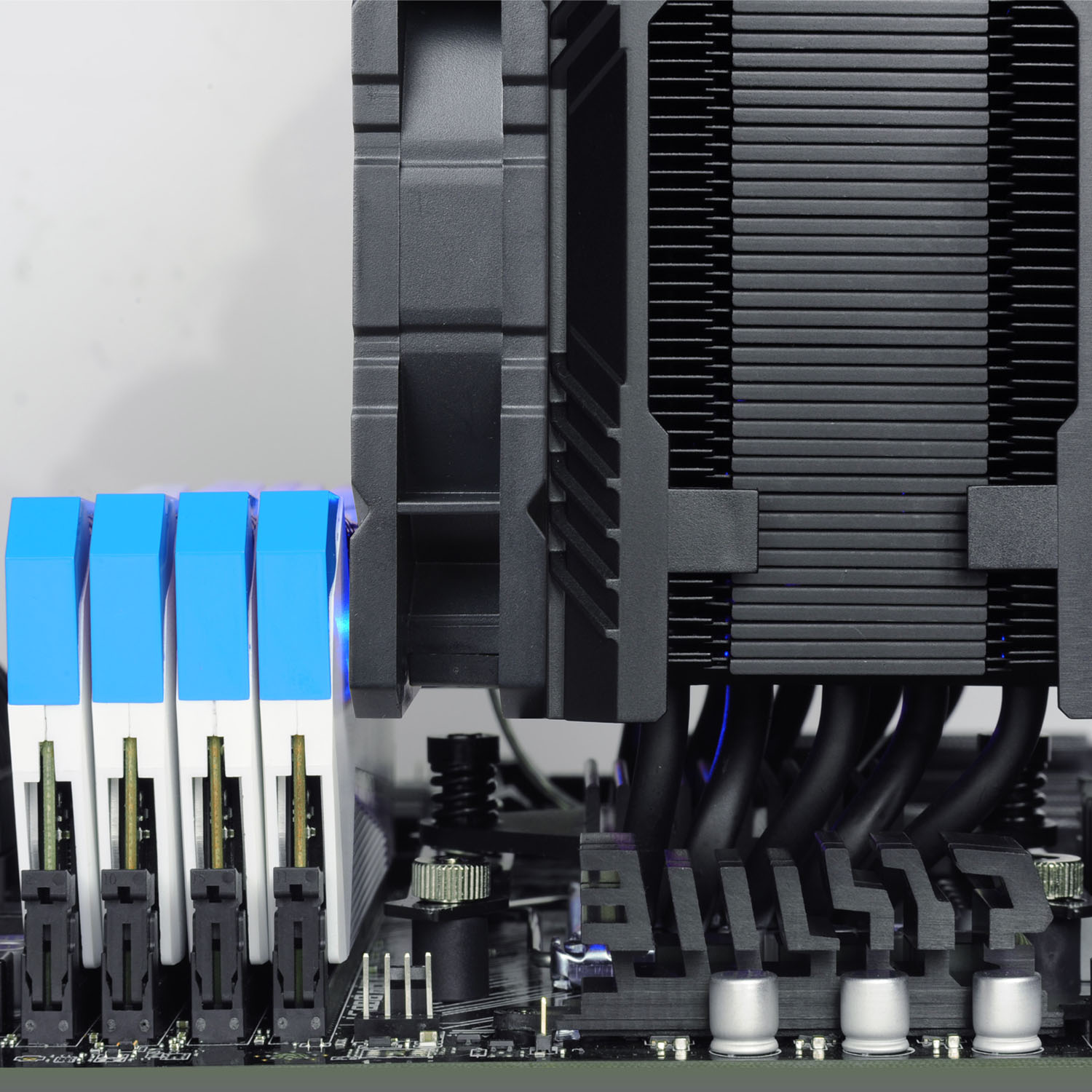

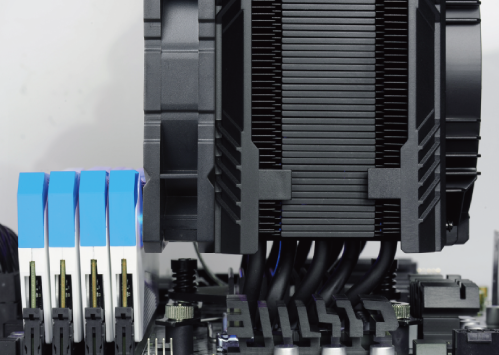

Asymmetric heat pipe design allows extra space for ideal RAM compatibility




Patented DFRTM (Dust Free Rotation) technology instantly blows away the dust to prolong the lifespan

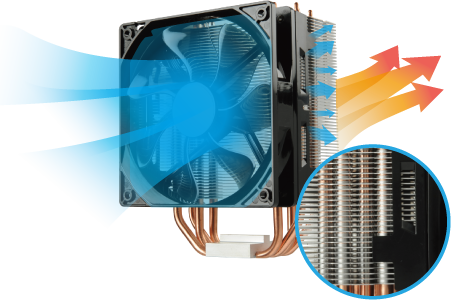

Unique air path creating high VEF (Vacuum Effect) to optimize the airflow

ETS-T50 AXE – no air leaks from sides

Other cooler- air leaks from sides




Patented VGF (Vortex Generation Flow) to increase air convection around the heat pipe

ETS-T50 AXE

Other cooler




High Pressure Technology

High pressure blade design is a precision engineering of the blade angle and shape calculation. The blades centralize dispersed air flow to the center of the fan and create extremely high air pressure high airflow while maintaining outstanding quietness.

ETS-T50 AXE – D.F Pressure

Other cooler- Normal fan




Patented APS (Adjustable Peak Speed) control providing 3 peak rpm options




HDT (Heat-pipe Direct Touch) technology to ensure rapid thermal conduction and eliminate CPU hot spots




Gen. 2 TCC (Thermal Conductive Coating) creates better velocity of thermal transferring and prevents oxidation

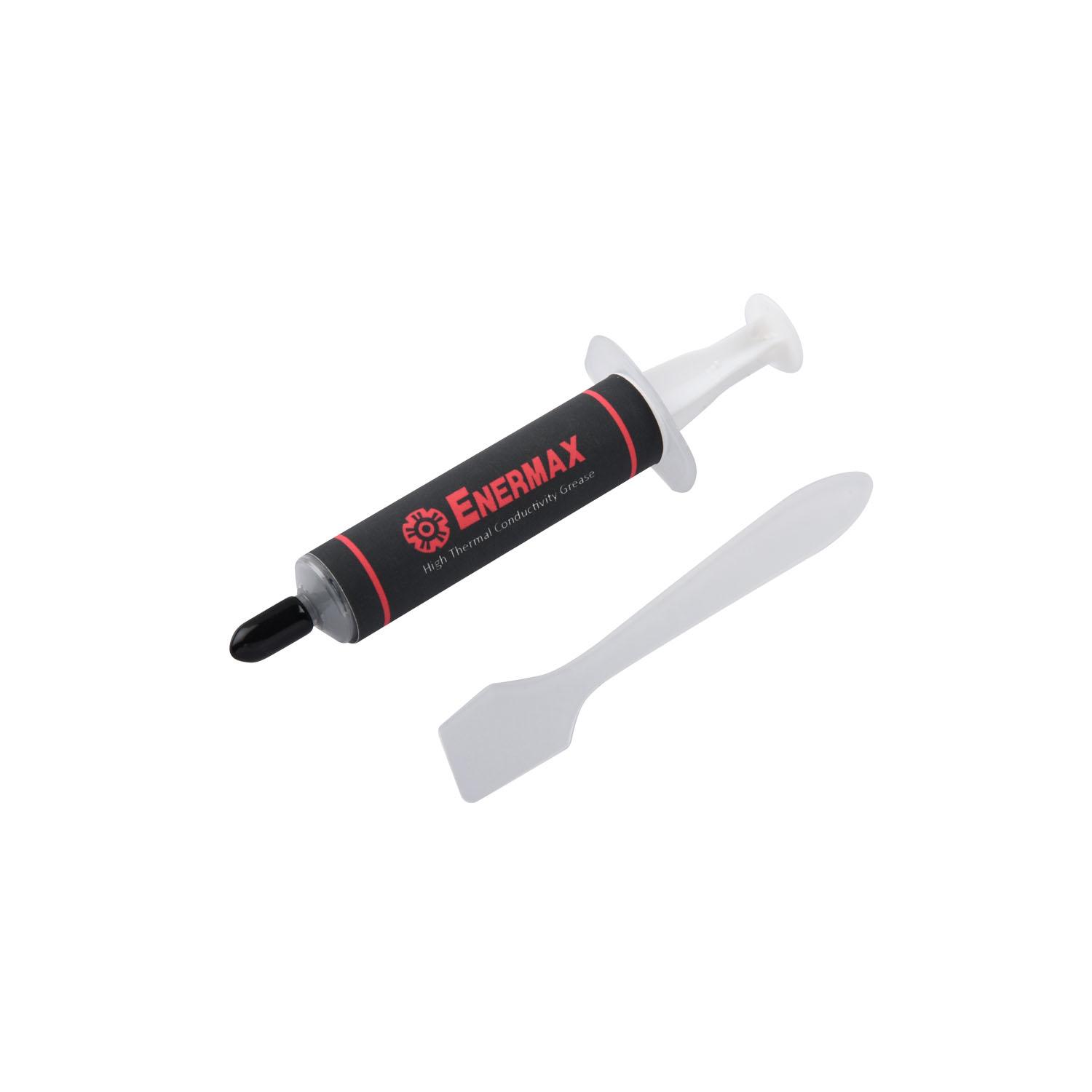

Dow Corning® TC-5121 (3g) thermal grease for perfect thermal conduction between CPU and the heat sink




Durable metal installation kits offer universal AMD & Intel desktop CPU compatibility with durable metal brackets

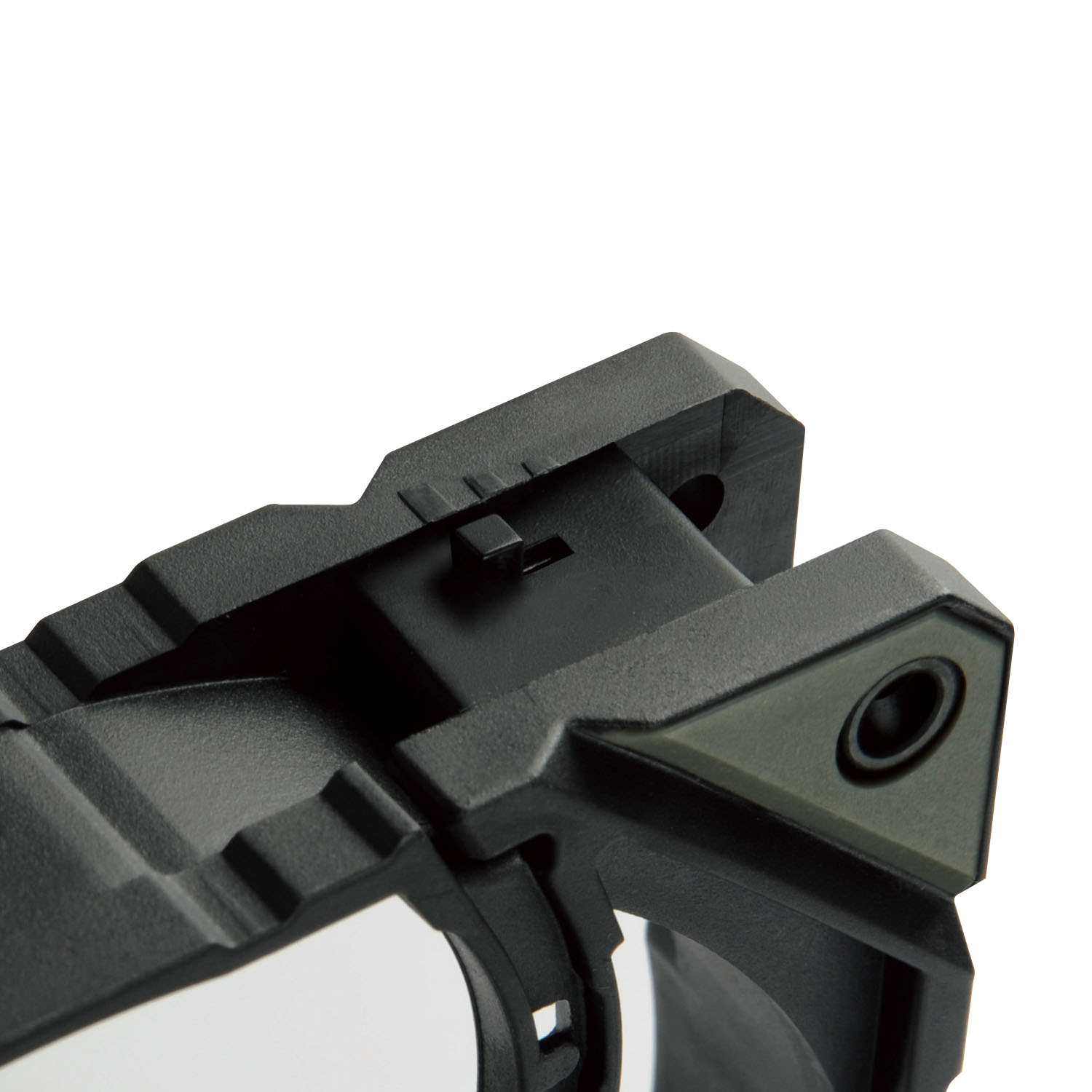

“1-clip” fan bracket design for user-friendly installation



Model ETS-T50A-DFP
CPU Socket Intel® LGA 1200/2066/2011-3/2011/1366/1156/1155/1151/1150/775
AMD®AM4/AM3/AM3+/AM2/AM2+/FM1/FM2/FM2+
Overall Dimension 138.7(L) x 112.5(W) x 160(H) mm
Heat Sink Dimension 135.2(L) x 65(W) x 160(H) mm
Weight 860g (w/ fan)
TDP (W) 250W
Heat Pipe 5
Material Copper Heat Pipes / Aluminum Fins
Thermal Grease TC5121C
Fan Dimension 120 x 120 x 25 mm
Fan Speed 800 ~ 1000/1500/2000 rpm
Fan Air Flow (CFM) 33.69 ~ 42.30 / 66.87 / 85.43 CFM
Air Flow (m3/h) 57.24 ~ 71.87 / 113.61 / 145.15 m3/h
Fan Static Pressure (mm-H2O) 0.819 ~ 1.358 / 2.701 / 4.812 mm-H2O
Fan Noise (dBA) 16 ~ 18 / 23 / 27 dBA
Fan Rated Voltage (V) 12V
Bearing Type Twister Bearing
MTTF (FAN) ≥160,000 hours
Connector 4 pin PWM connector
EAN 4713157722720
UPC 816163008940
Box Dimension 222 x 175 x 130 mm
Gross Weight / unit 1390g
Carton Dimension 460 x 370 x 295 mm
Q'ty / carton 8 pcs
Gross Weight / Carton 12.5kg
