- Patented Twister Bearing for longer life span and lower noise operation
- Batwing blades and carved Halo frame provide extra 20%~30% airflow

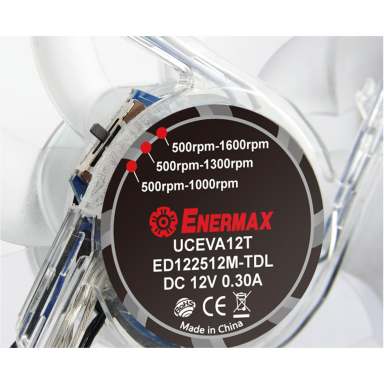

- 3 peak speed APS (Adjustable Peak Speed) control to keep system stay cool and silent

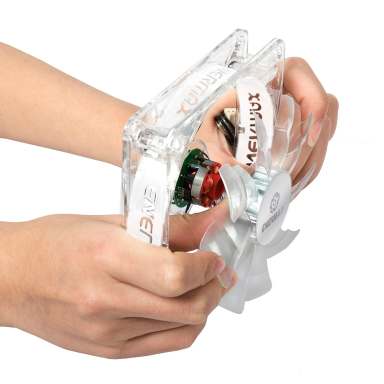

- Detachable fan blades for easy cleaning
| Model | UCEVA12T |
|---|---|
| Fans/Model | 1 |
| Dimension (mm) | 120 x 120 x 25 |
| Speed (RPM) | 500 ~ 1000 rpm 500 ~ 1300 rpm 500 ~ 1600 rpm |
| Air Flow (CFM) | 500 ~ 1000 rpm：26.51~46.10 CFM 500 ~ 1300 rpm：26.51~60.11 CFM 500 ~ 1600 rpm：26.51~76.00 CFM |
| Air Flow (m³/h) | 500 ~ 1000 rpm：45.04~78.32 m3/h 500 ~ 1300 rpm：45.04~102.13 m3/h 500 ~ 1600 rpm：45.04~129.12 m3/h |
| Static Pressure (mm-H2O) | 500 ~ 1000 rpm：0.483~0.933 mm-H2O 500 ~ 1300 rpm：0.483~1.268 mm-H2O 500 ~ 1600 rpm：0.483~1.907 mm-H2O |
| Fan Maximum Noise (dBA) | 8 dBA |
| Rated Voltage Fan (V) | 12V |
| Rated Current Fan (A) | 500 ~ 1000 rpm：0.15 A 500 ~ 1300 rpm：0.20 A 500 ~ 1600 rpm：0.30 A |
| MTTF (hours) | 160,000 |
| Connector | 1 x 3 pin connector ; 1 x 4 pin fan power adaptor |
