Fulmo Q (OEM)

‧Modular HDD cages for flexible configuration
‧Screwless design, tool-free installation

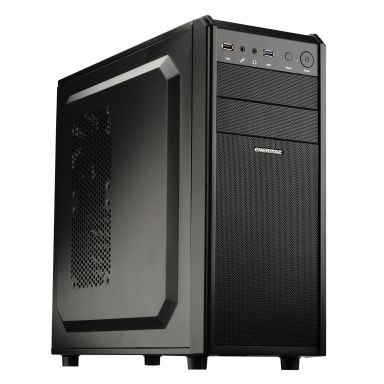

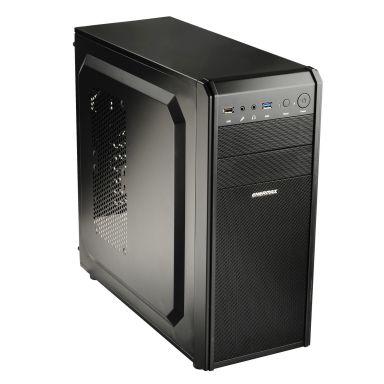

  • Model : ECA3360B-BT(U3)
  • Tag :

Features

  • Cutting edge with two linear extruded stripes and massive mesh
    Suitable for office workstations; large front mesh for extreme cooling performance
  • Spacious interior supports micro ATX, ATX size of motherboard

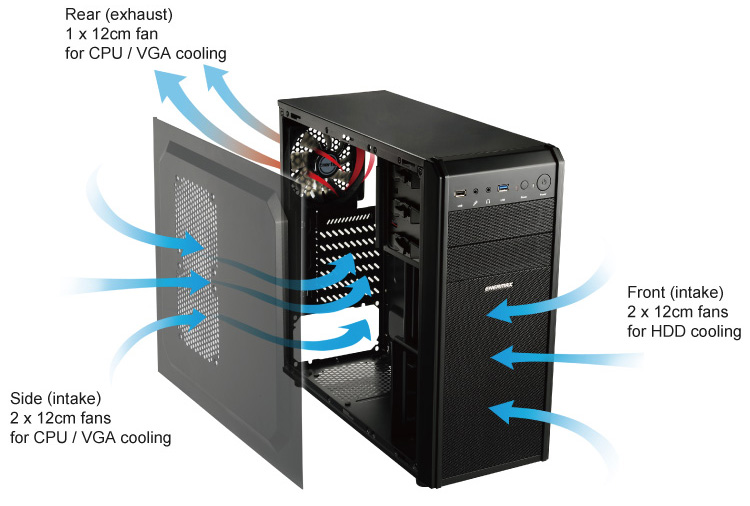

  • Supreme cooling performance with 6 fans support
    (*Depending on the models)
    ‧2 x 12cm front fans
    ‧1 x 12cm top fan
    ‧1 x 12cm rear fan
    ‧2 x 12cm side fans

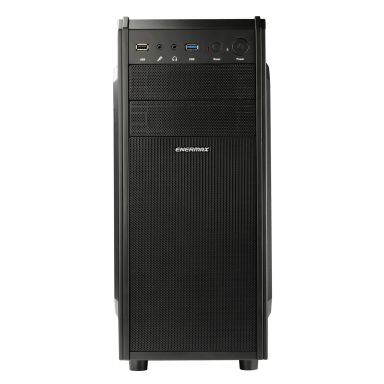

  • Easy Access Front Interfaces
    With up to 2 x USB 3.0 or up to 2 x USB 2.0 and HD audio I/O (*Depending on the models)

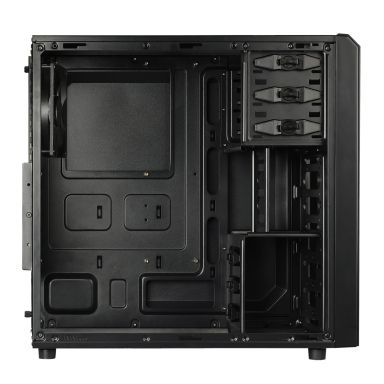

  • Utmost Expandability
    ‧Removable 2.5” HDD bracket allows long VGA card installation (up to 390 mm / 15.35 inch)
    ‧Supports up to 2 x 5.25” ODDs, 3 x 3.5” HDDs and 4 x 2.5” SSDs
  • User Friendly Installation
    ‧Cut-out on M/B tray for easy CPU cooler montage
    ‧Removable dust filter at bottom for easy cleaning
    ‧16mm clearance behind M/B tray for easy cable routing

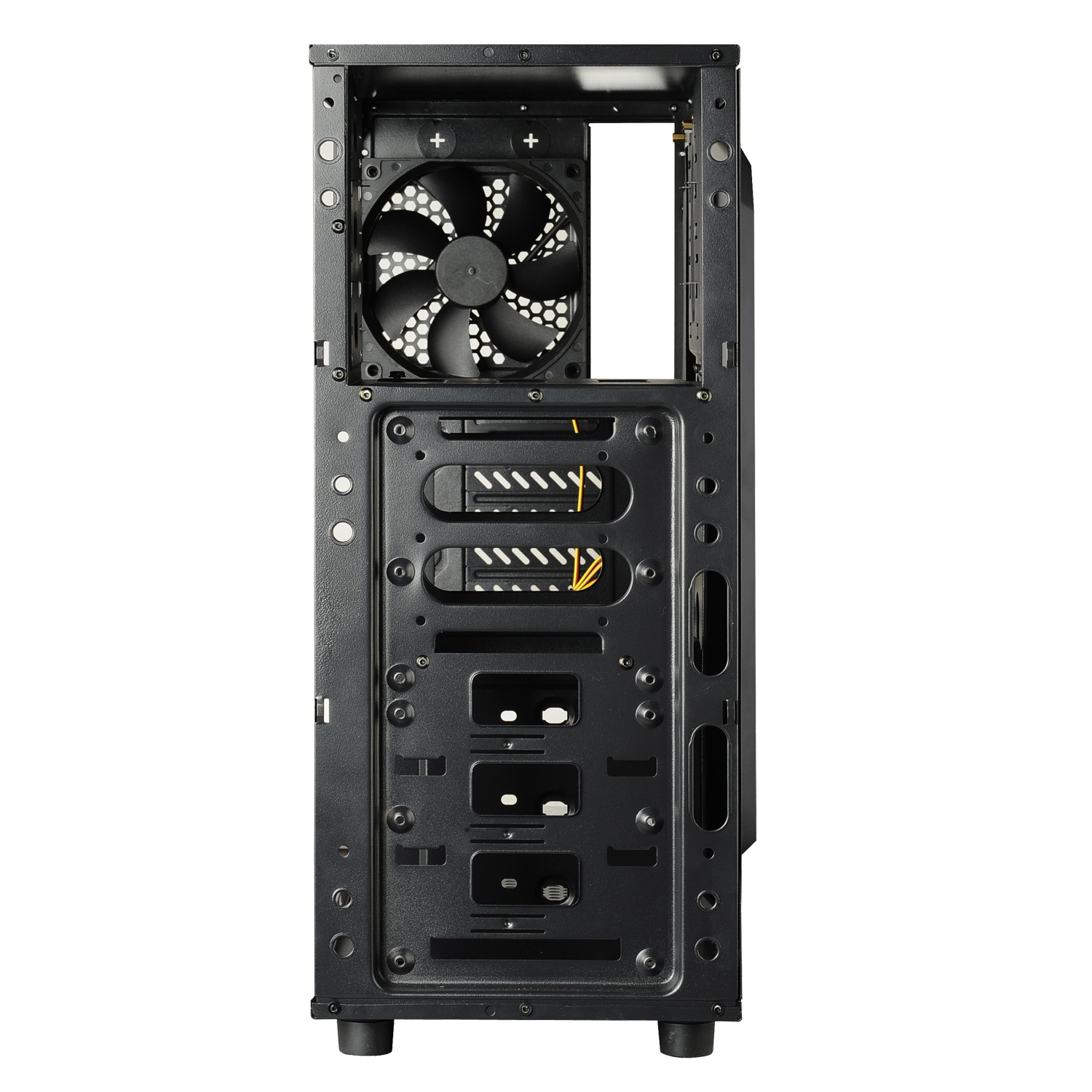

    ‧Direct access bays: ideal and user-friendly structures

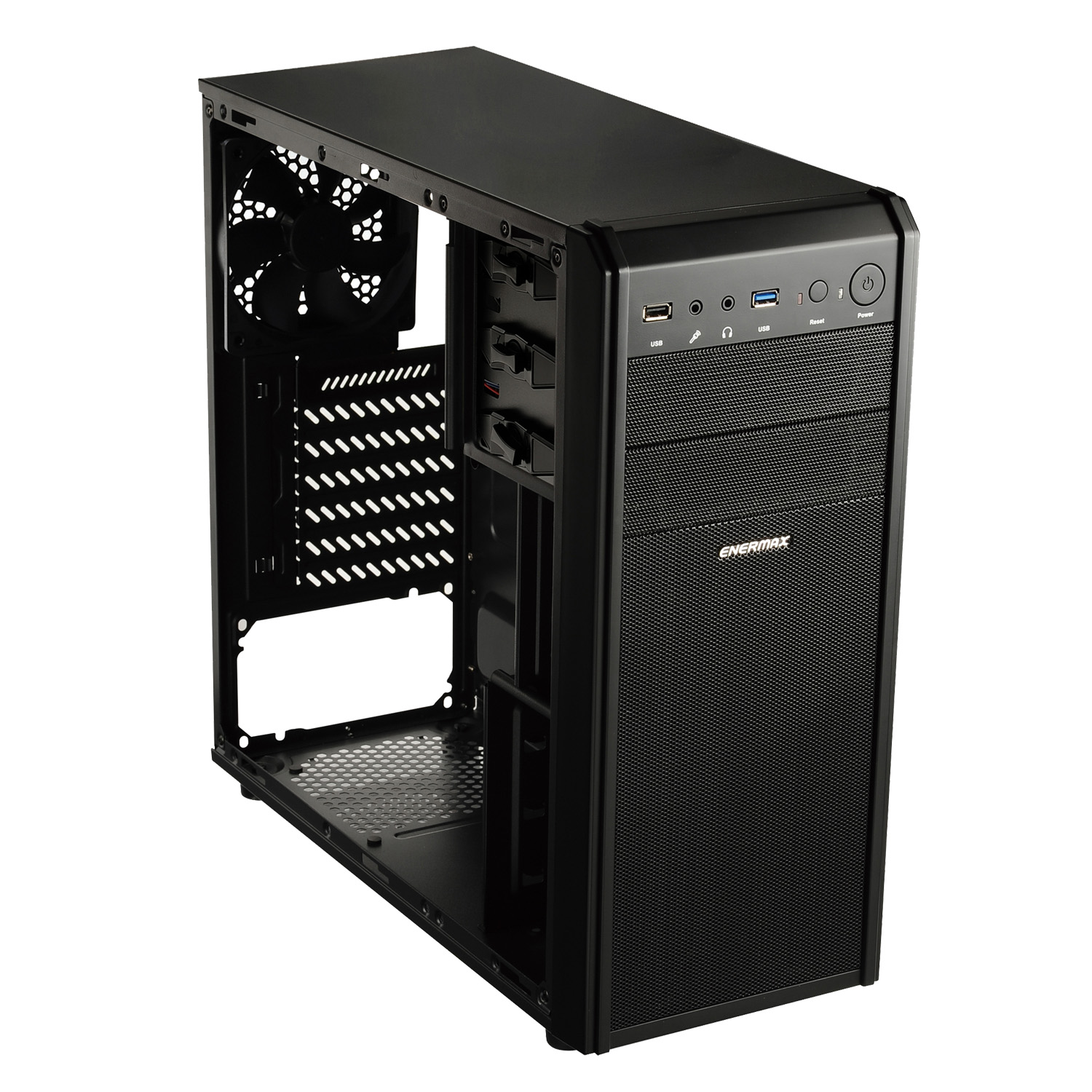

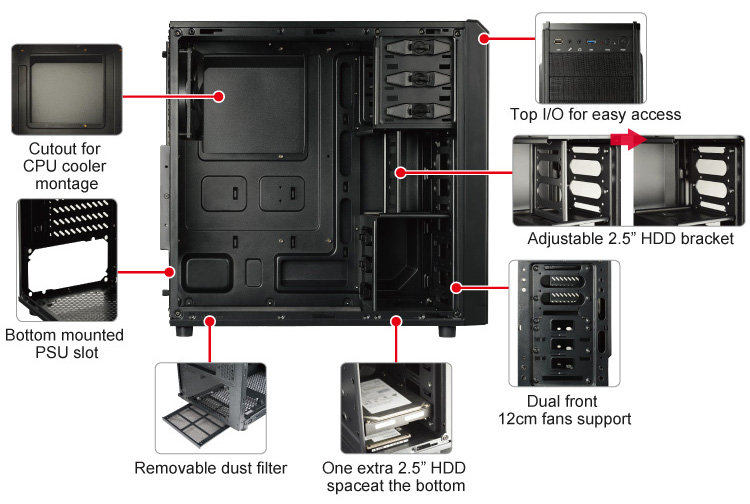

• Close-up for features



• Advanced cooling system

Model Name ECA3360B-BT(U3)
Dimensions (D x W x H) D453 x W203 x H427mm
M/B Type ATX / MicroATX
I/O 1 x USB 3.0, 1 x USB 2.0, HD Audio
5.25'' Drive Bays 2
3.5'' Drive Bays 3
2.5'' Drive Bays 4
Expansion Slots 6
Fan Slots - Front 1x 120mm (Optional)
Fan Slots - Rear 1 x 120mm (1 x 12cm fan included)
Fan Slots - Side 2x 120mm (Optional)
PSU Support ATX 12V (Optional)
Clearance - VGA card 390mm (2.5" HDD bracket removed)
Clearance - CPU Cooler 165mm
Carton dimensions (D x W x H), (mm) D466 x W227 x H499mm
