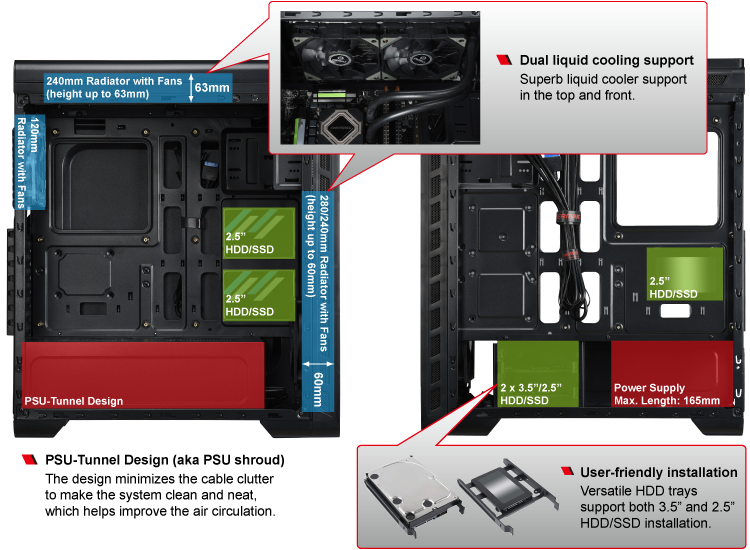

Flexible System Configuration

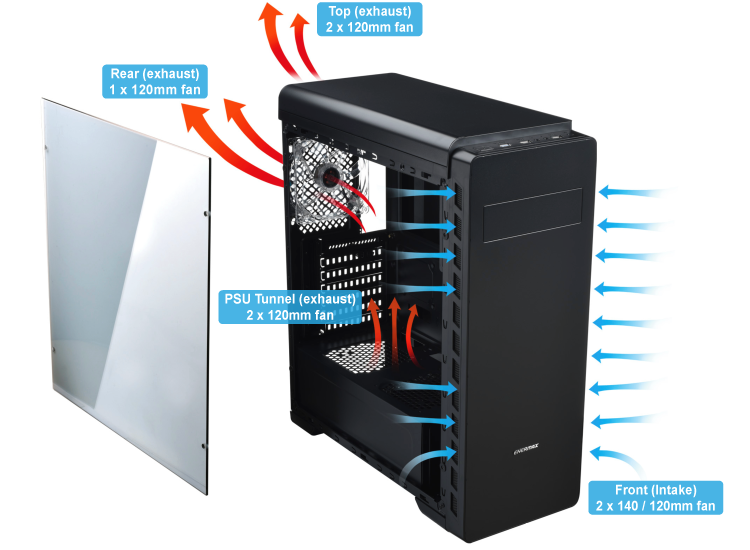

Advanced Cooling System

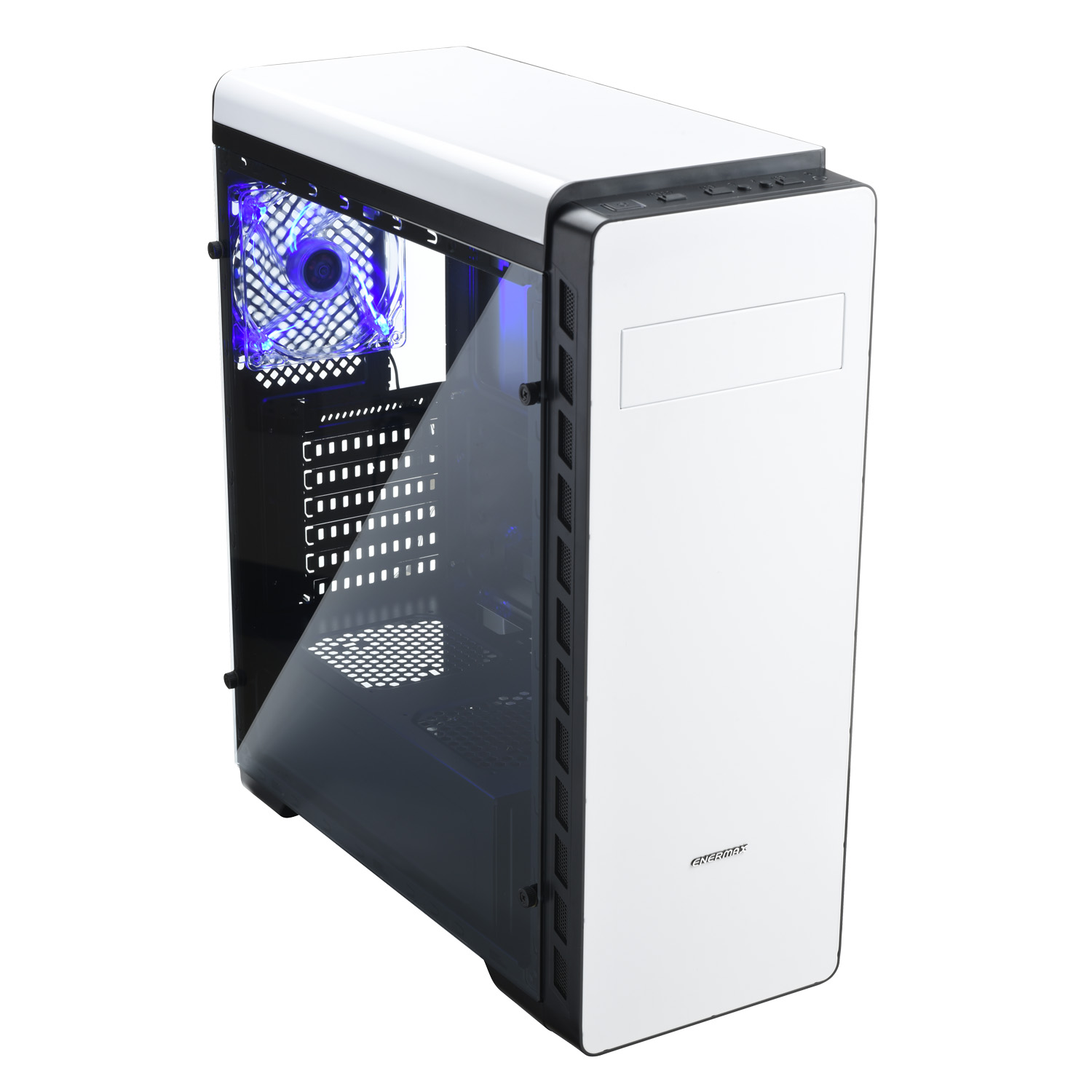

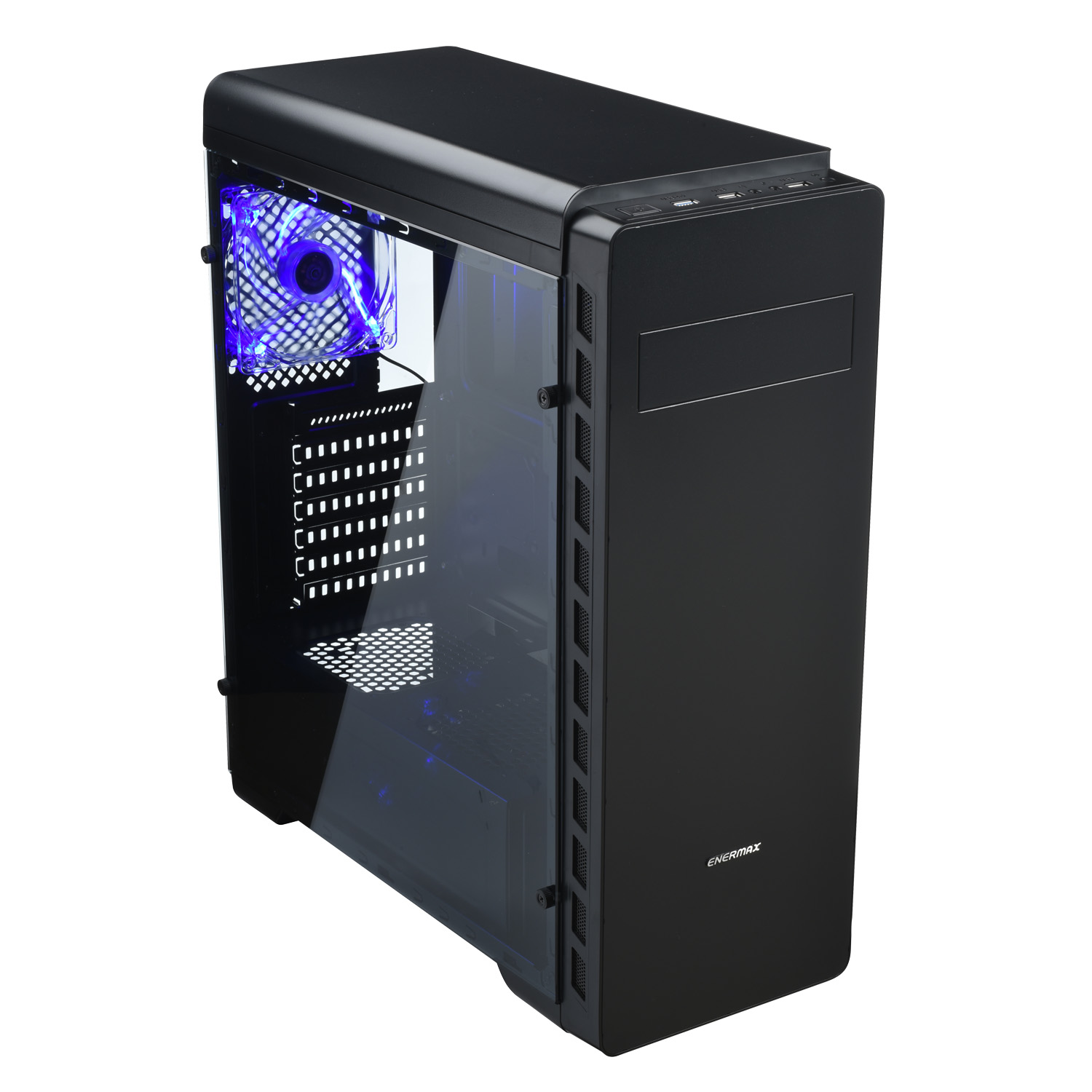

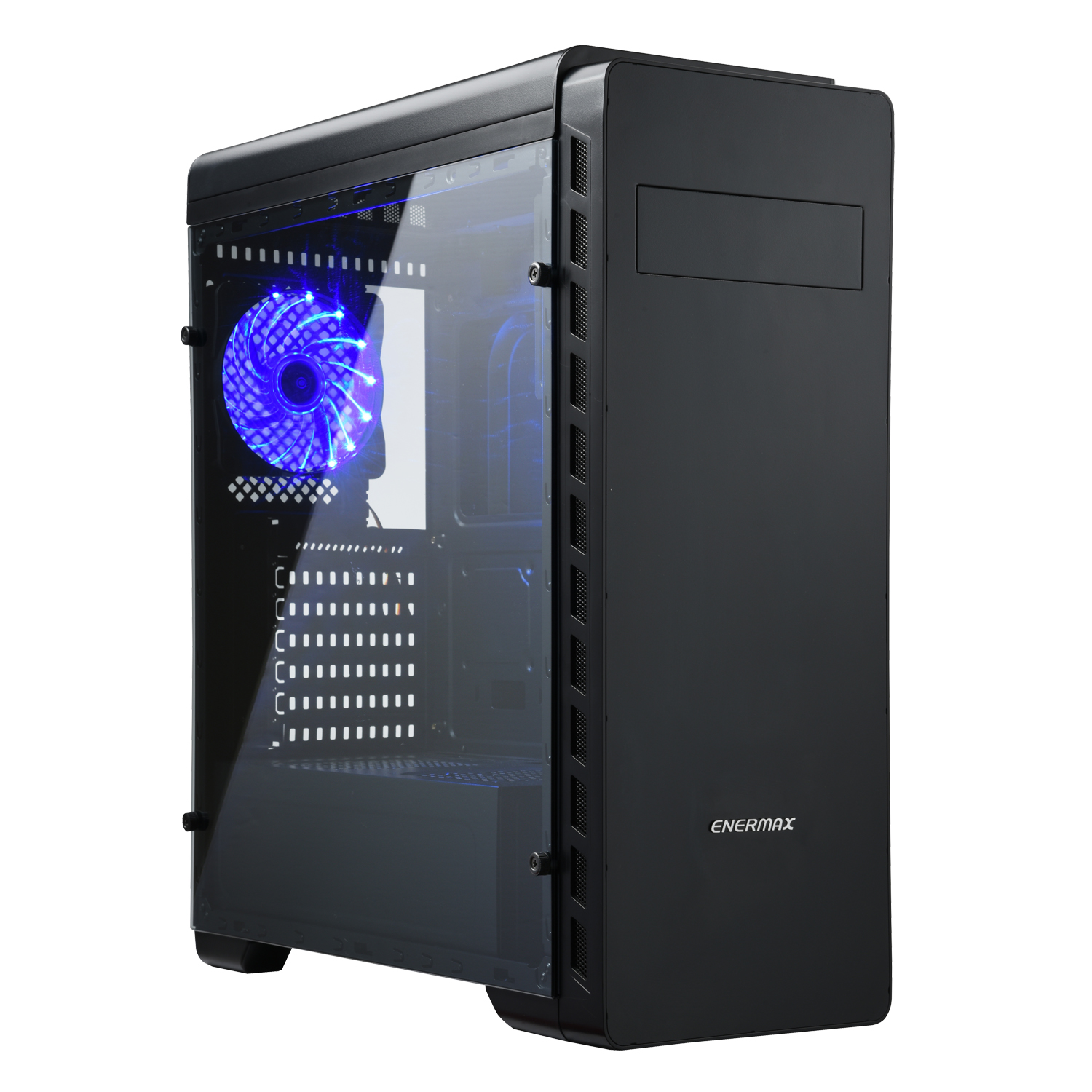

GraceFun (OEM)
| Model Name | ECB3090BM-01/ECB3090WG-01/ECB3090BM-03 |
|---|---|
| Dimensions (D x W x H) | D450 x W208 x H520 mm |
| Material | 0.6mm SPCC |
| M/B Type | ATX, Micro ATX, Mini ITX |

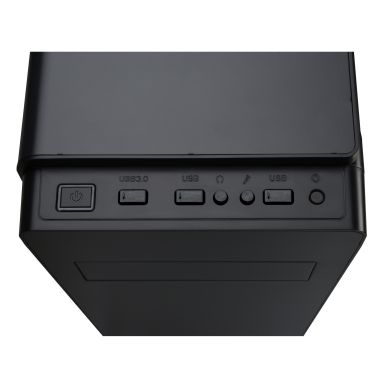

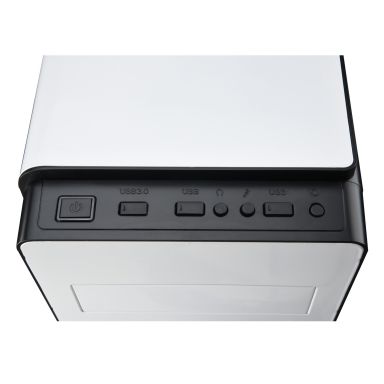

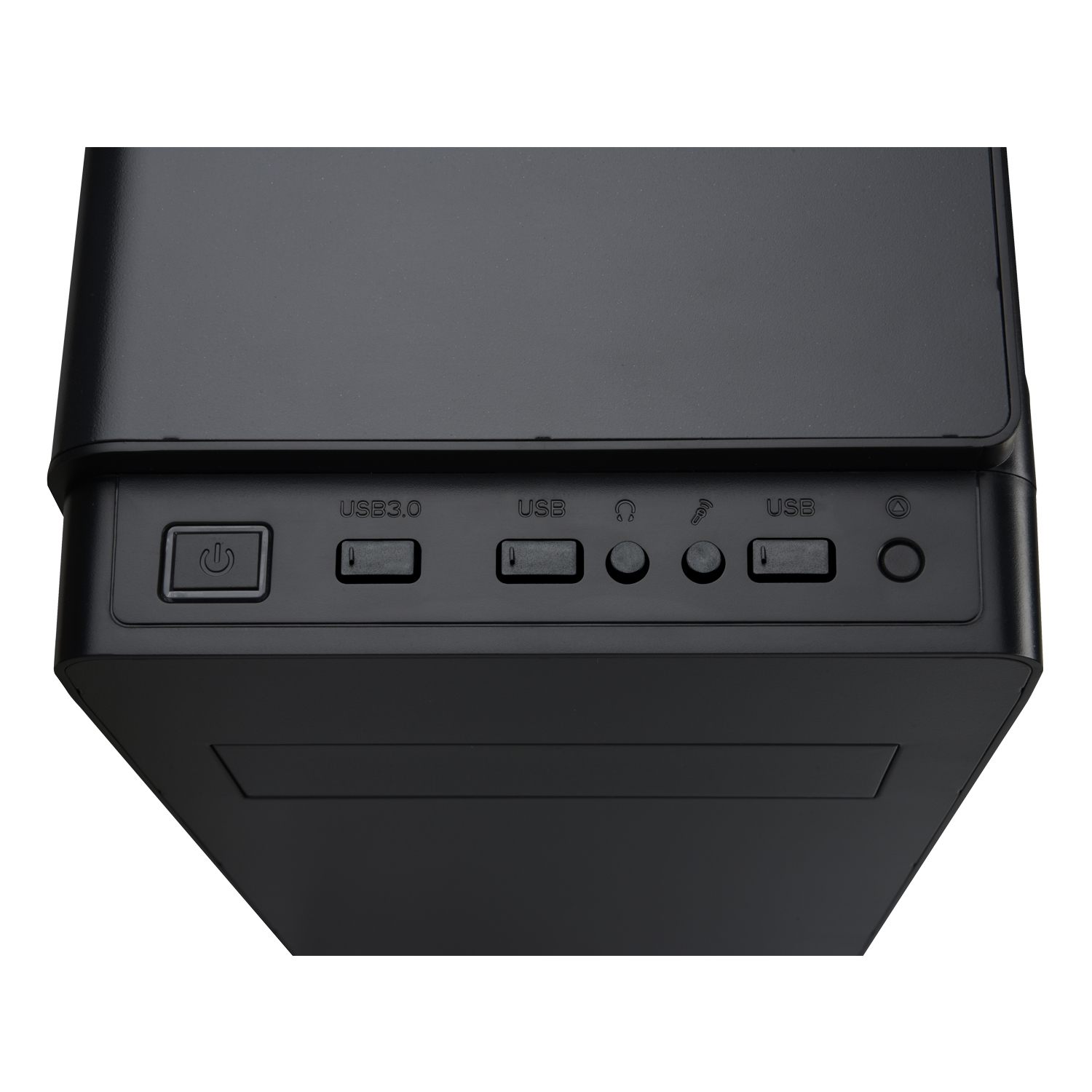

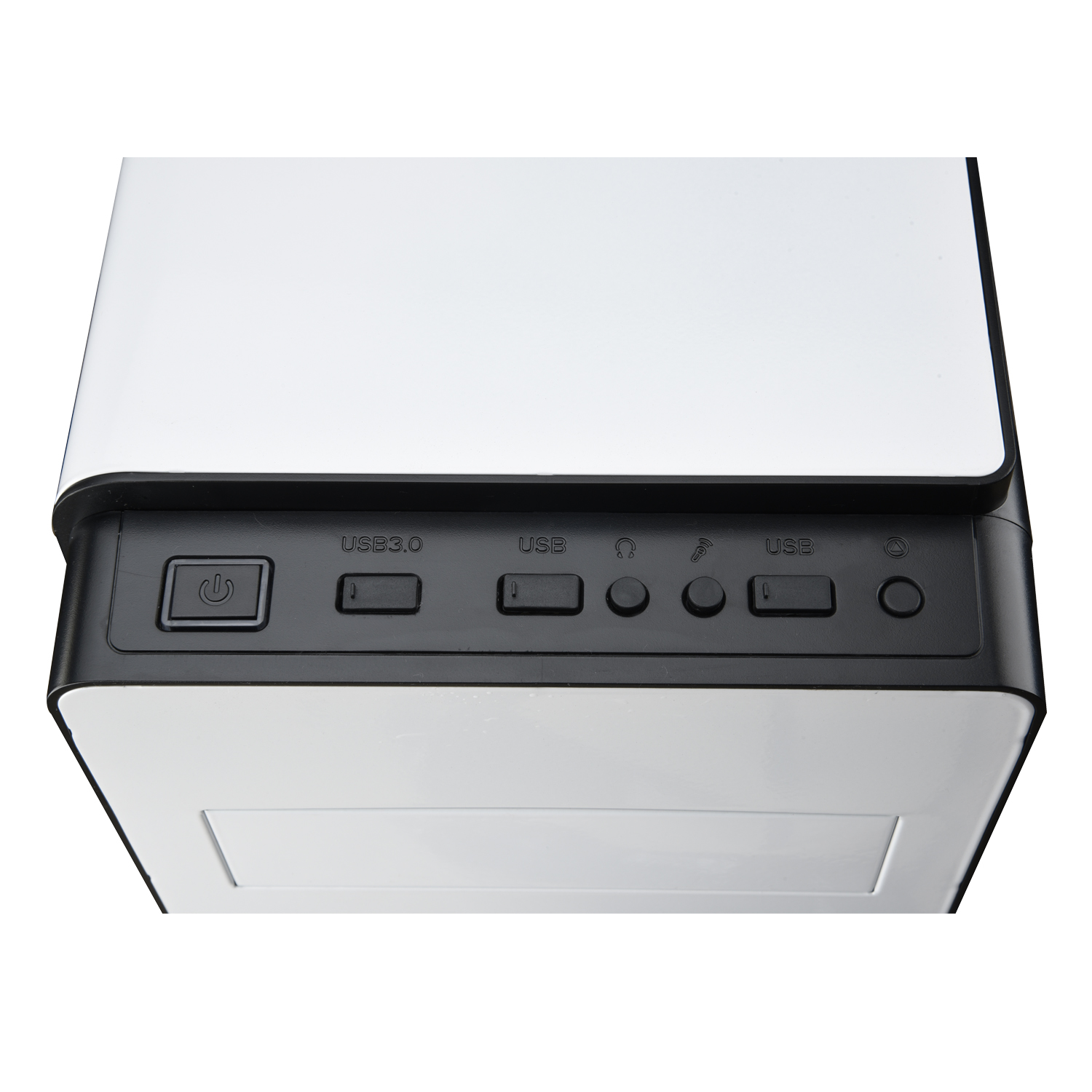

| I/O | USB 3.0 x 1, USB 2.0 x 2, HD Audio |
| 5.25'' Drive Bays | 1 |
| 3.5'' Drive Bays | 2 |
| 2.5'' Drive Bays | 5 (2 converted from 3.5" Trays) |
| Expansion Slots | 7 |
| Fan Slots - Front | 2 x 140/120mm (1 x 120mm fan pre-installed) |
| Fan Slots - Top | 2 x 120mm |
| Fan Slots - Rear | 1 x 120mm (1 x 120mm LED fan pre-installed)/1 x 120mm (1 x 120mm LED fan pre-installed)/1 x 120mm(1 x 120mm Circular LED fan pre-installed) |
| Fan Slots - Tunnel | 2 x 120mm |
| Radiator Support - Front | 280/240mm (60mm clearance) |
| Radiator Support - Top | 240mm (63mm clearance) |
| Radiator Support - Rear | 120mm |
| PSU Support | Standard ATX Type |

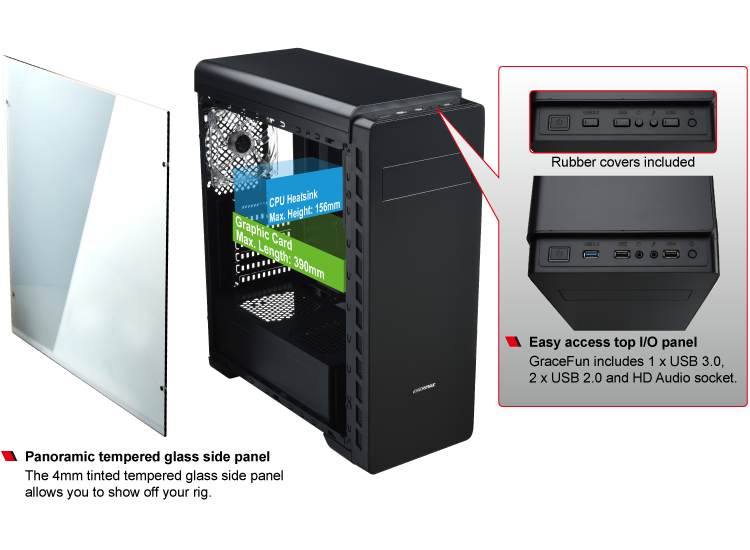

| Clearance - VGA card | VGA Card Length: 390mm |
| Clearance - CPU Cooler | CPU Cooler Height: 156mm |
| EAN code | 4713157722850/4713157722867/4713157723116 |
|---|---|
| UPC code | 816163009077/816163009084/816163009848 |
| Carton dimensions (D x W x H), (mm) | 565 x 270 x 517mm |
| Gross Weight (kg) | 5.9kg |
| Net Weight (kg) | 7.0kg |
