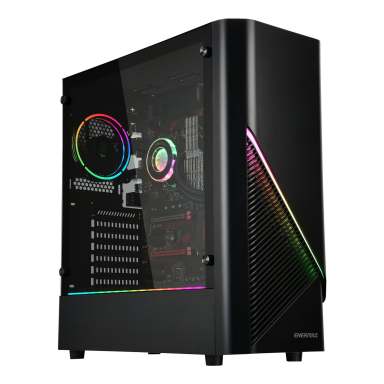

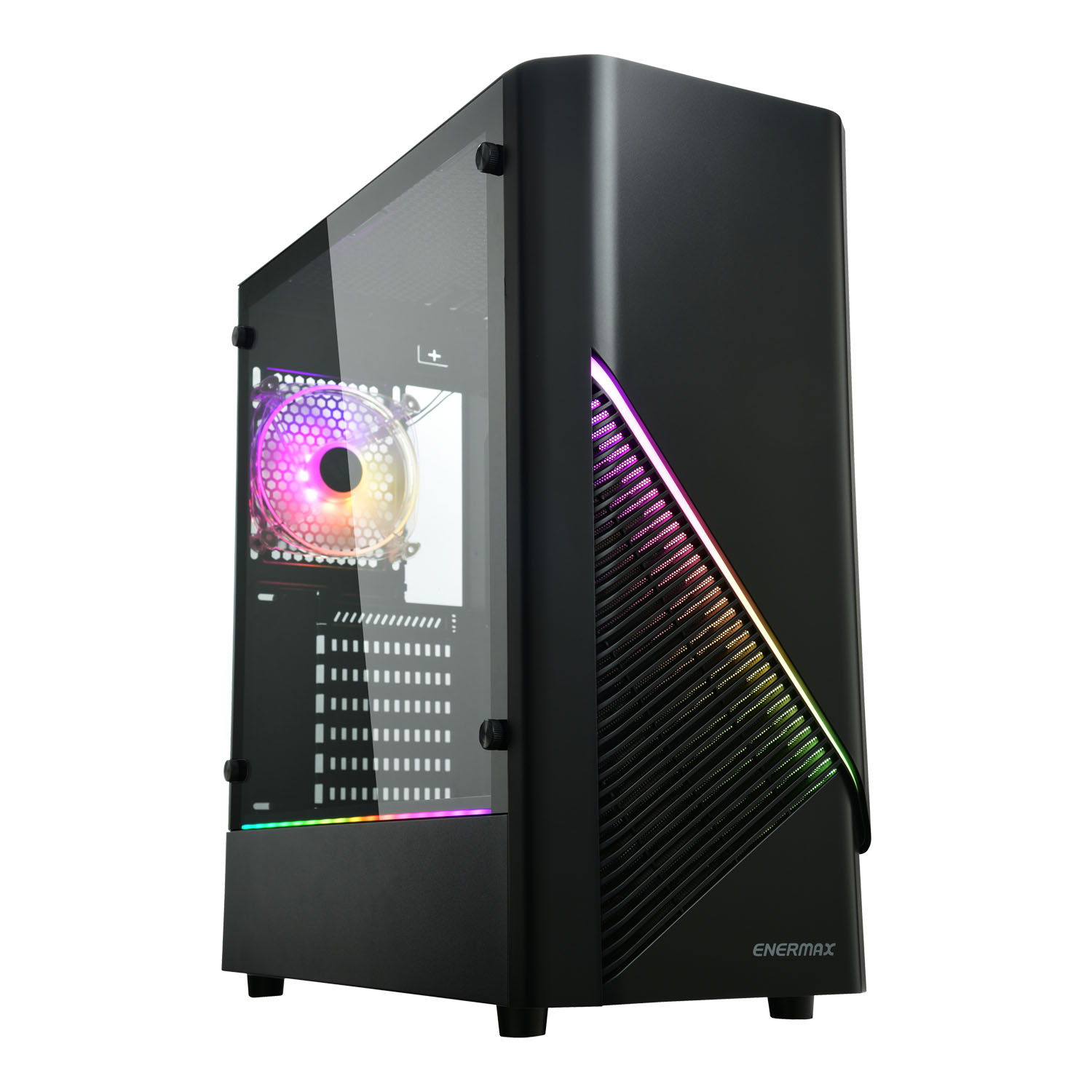

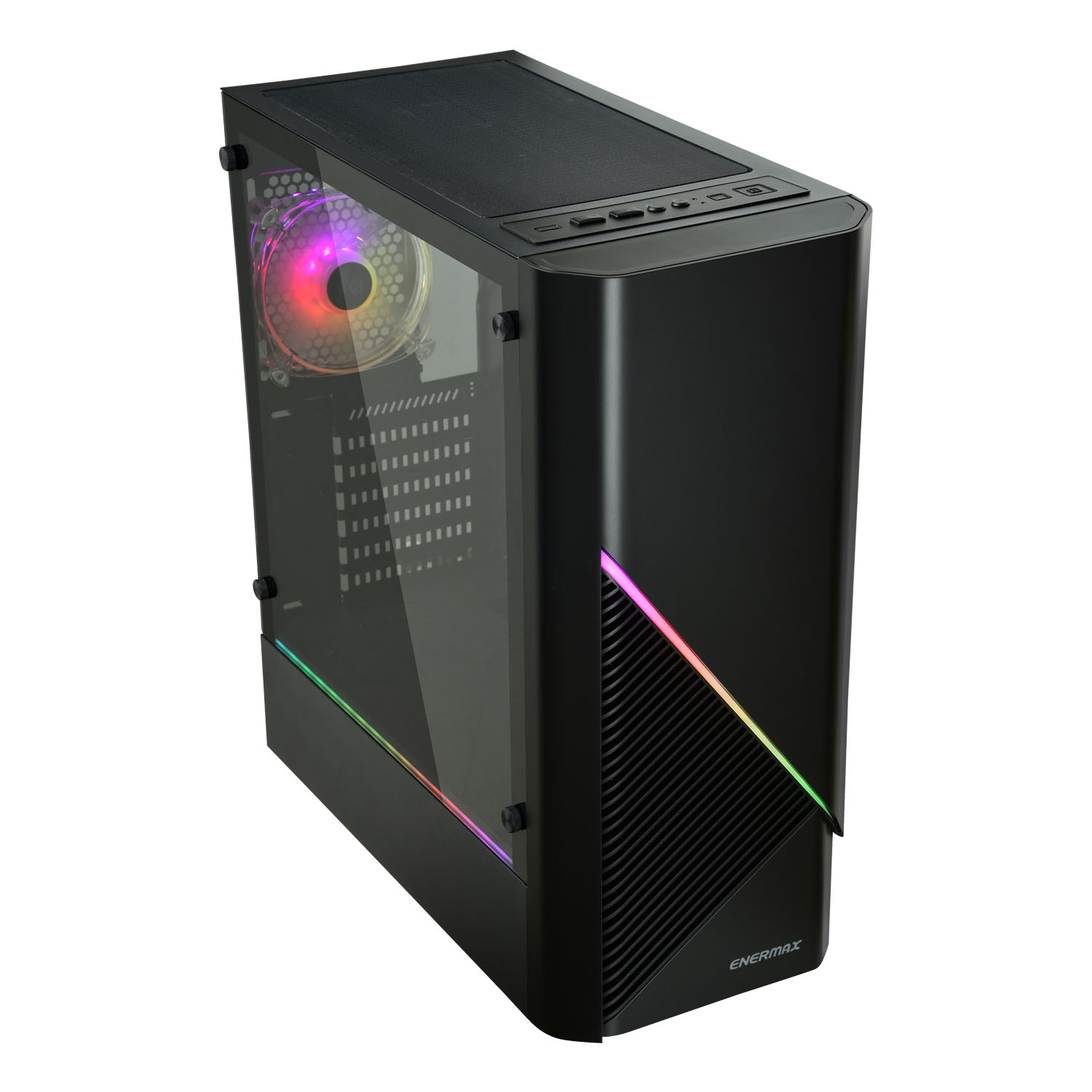

Leonids LN30 ARGB Tempered Glass Mid-Tower PC Case

▪ Mysterious Galaxy Front Panel Design with Addressable RGB Strips
▪ Support Addressable RGB Lighting Synchronization
▪ Integrated Hub for 6x Addressable RGB Devices

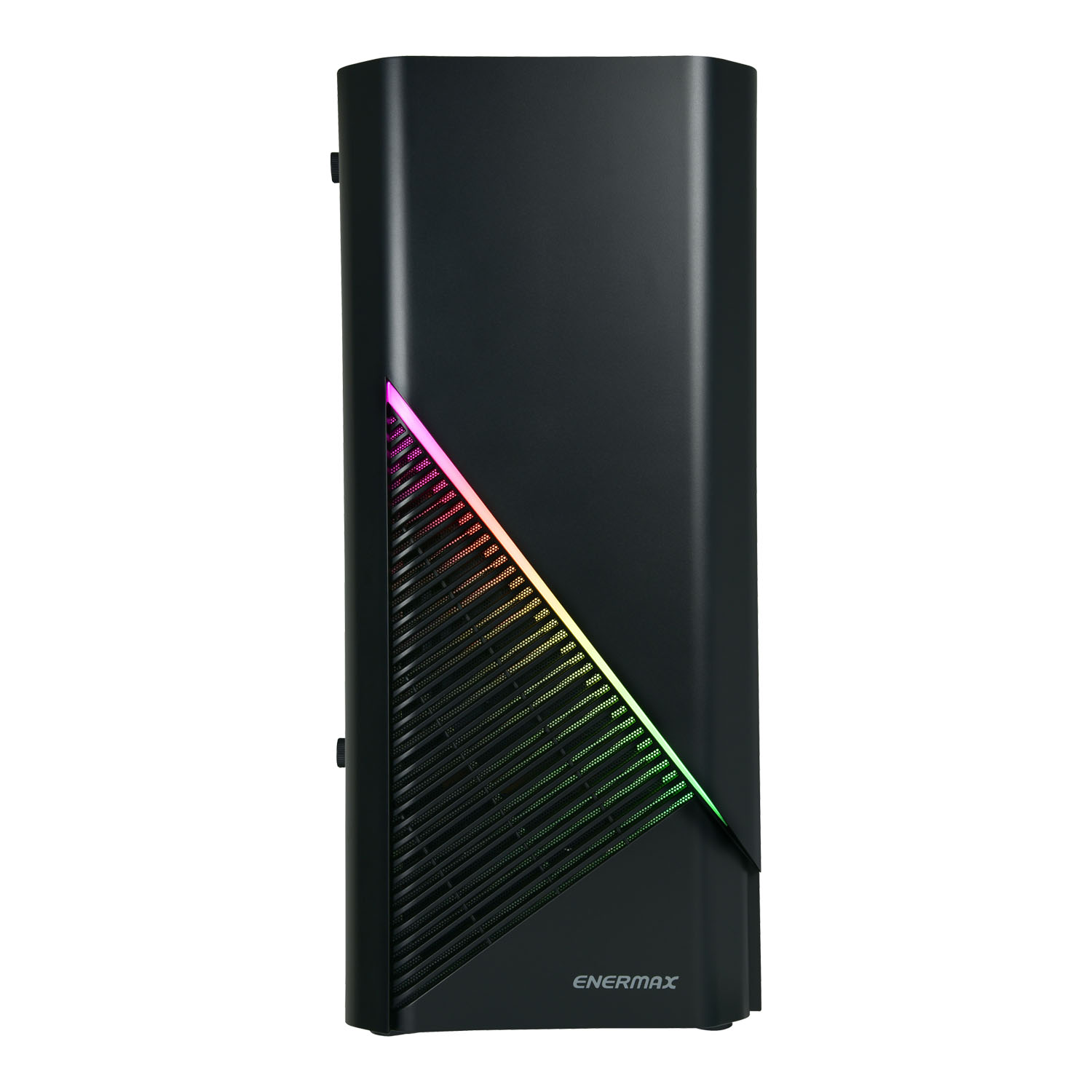

Addressable RGB lighting

Leonids LN30 features a unique lighting strip in the front panel to deliver meteoric lighting effects with 16.8 million color options.It also comes with 1x lighting strip at the side and 1x hub-lighting addressable RGB fan at the rear to light up your rig




2 ways to control addressable RGB lighting effects

Through Motherboard Software

Users can sync the RGB lighting with motherboards featuring addressable RGB headers(3 pin assignment is 5V/D/G)

Through Computer Case

Users can use the *lighting control button to adjust preferred lighting effects (13 pre-set lighting effects: Rainbow, Snake, Peach & Green scroll, Colors breathe, Colors scroll, Bilateral colors scroll, Red, Green, Blue, White, Yellow, Azure, and Peach.)

  • Long press the lighting control button for 2~3 seconds to switch the RGB sync controlled by M/B or case

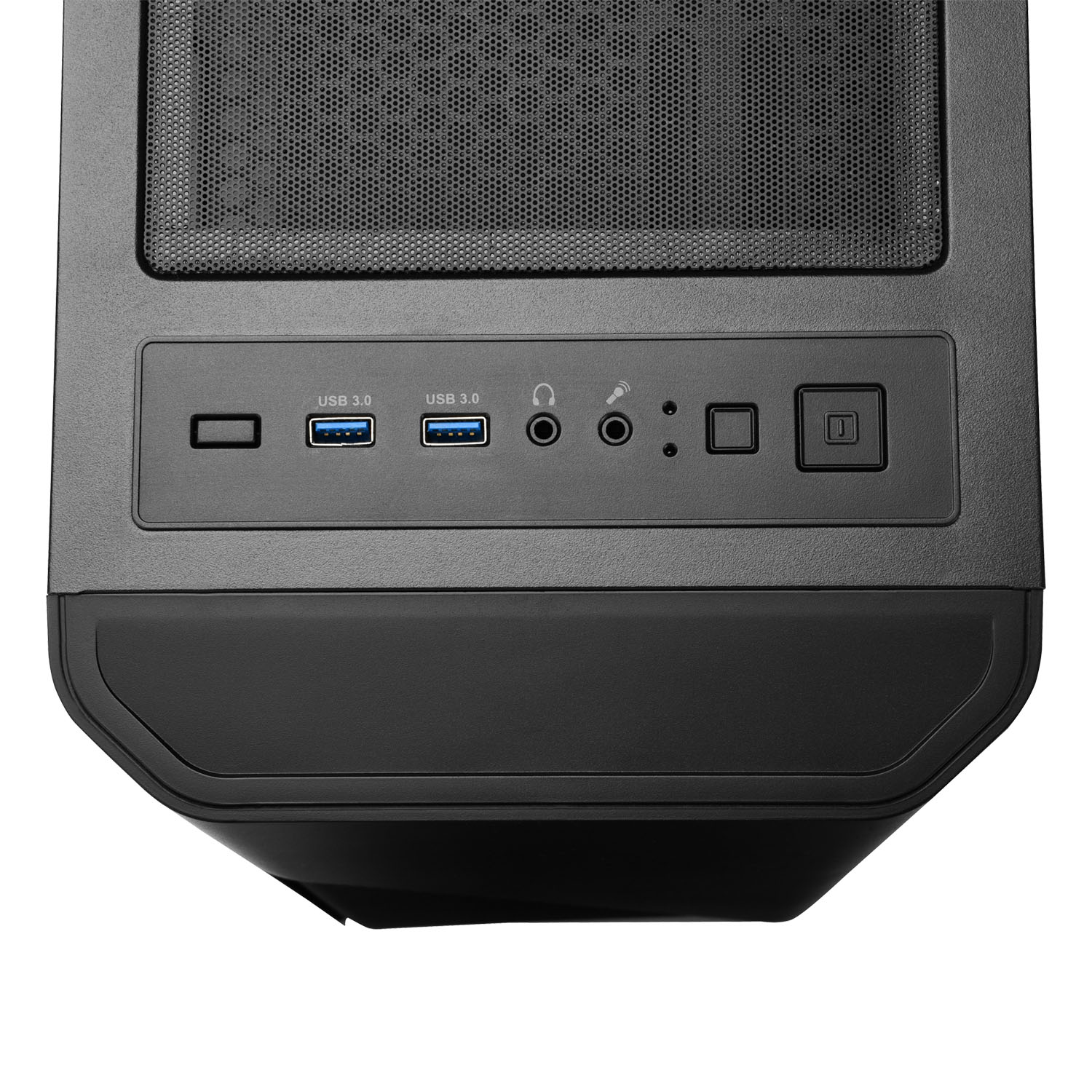

  • The reset button located on the front I/O panel is replaced by the lighting control button

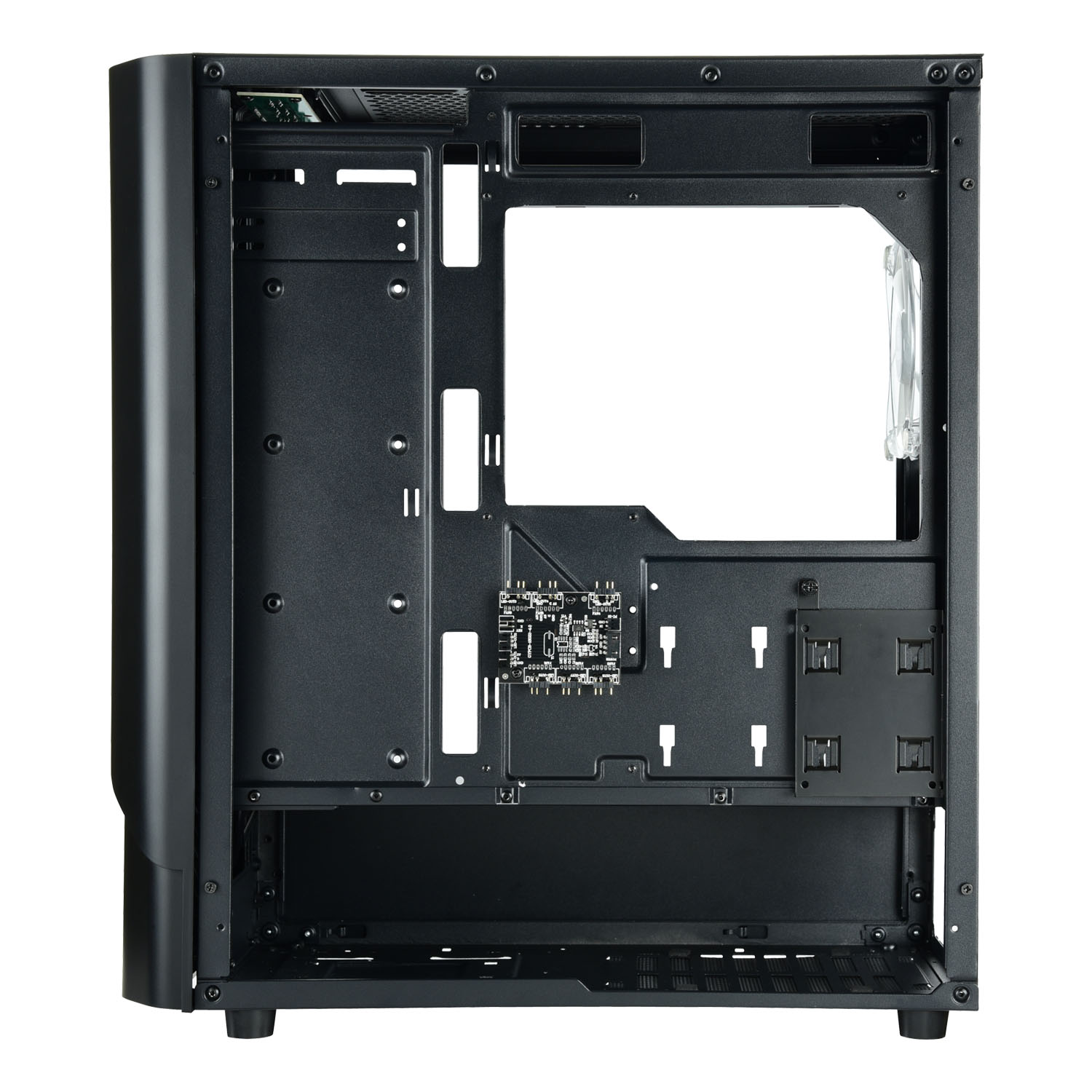

Integrated hub

For those who do not use the RGB-sync motherboards, the integrated hub allows users to keep 6x addressable RGB devices’ lighting in sync




Versatile water cooling options

Flexible cooling system configuration supports 3x designated areas for liquid cooler installation

Liquid Cooler Compatibility Chart
Radiator size (mm) 360 280 240 140 120
Front
Top
Rear

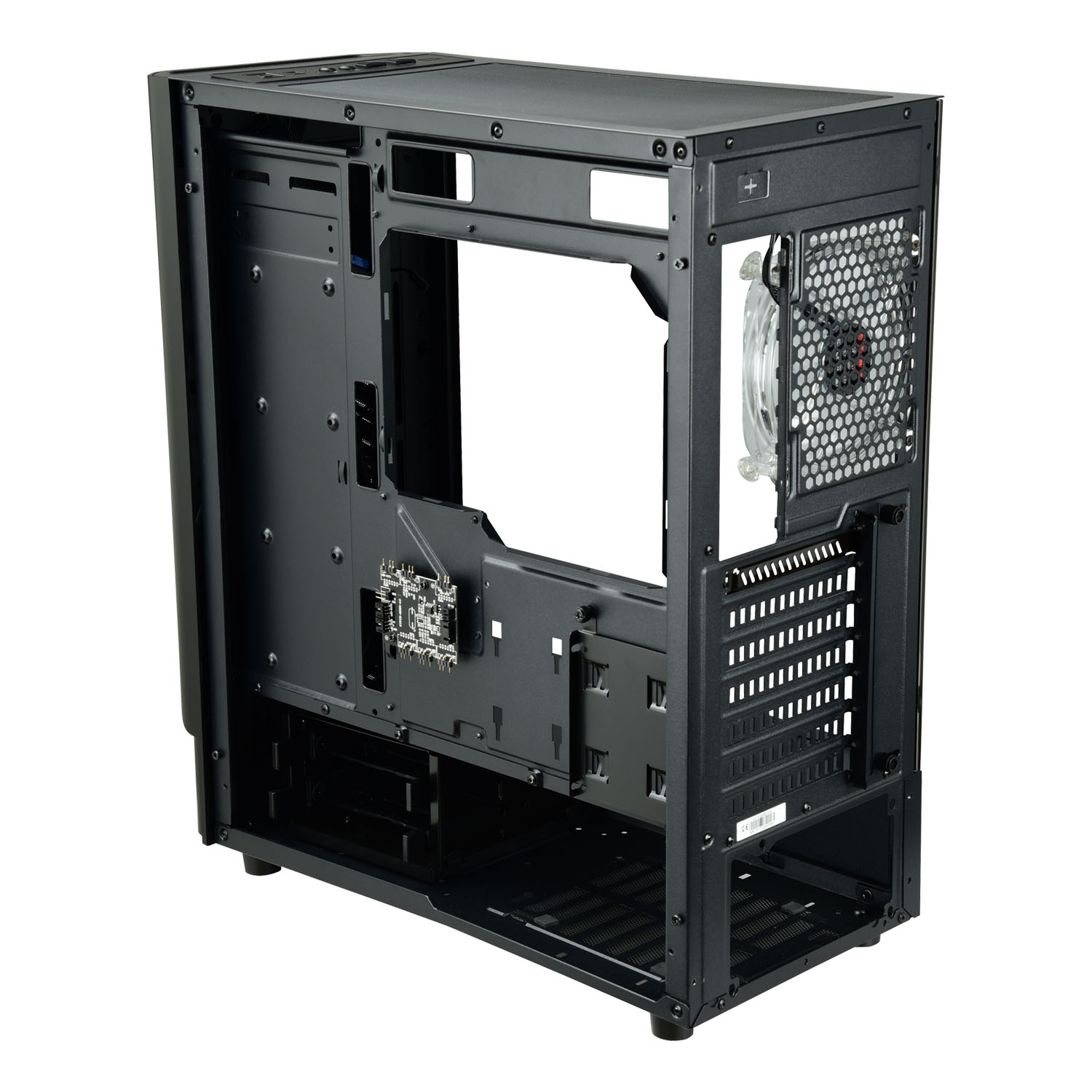

Removable HDD cage

Removable HDD cage creates the flexible space for PSU cable routing




Advanced cooling system

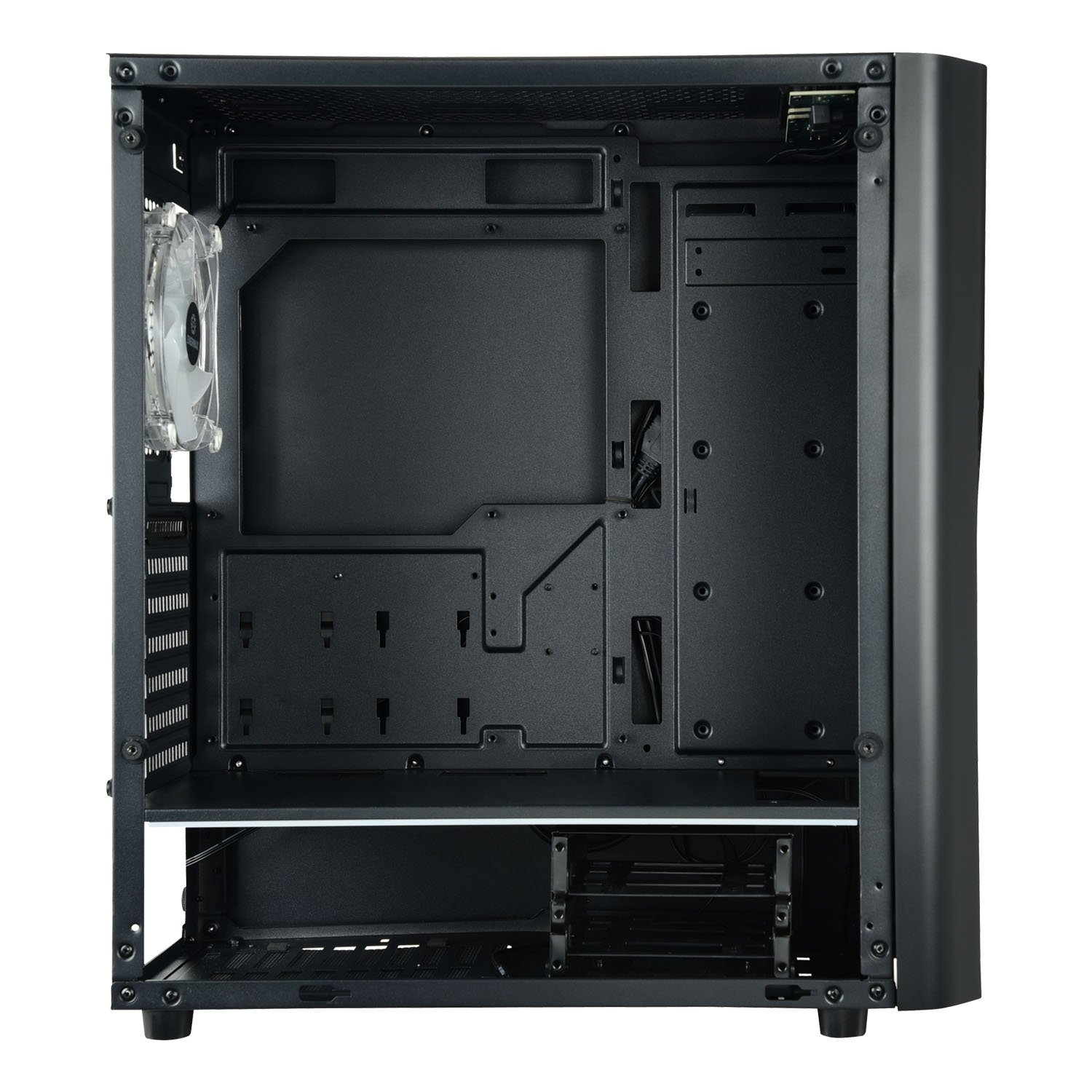

Flexible system configuration




Detachable PSU side cover

PSU-Tunnel design with detachable PSU side cover not only provides easy installation but also makes the system clean and neat

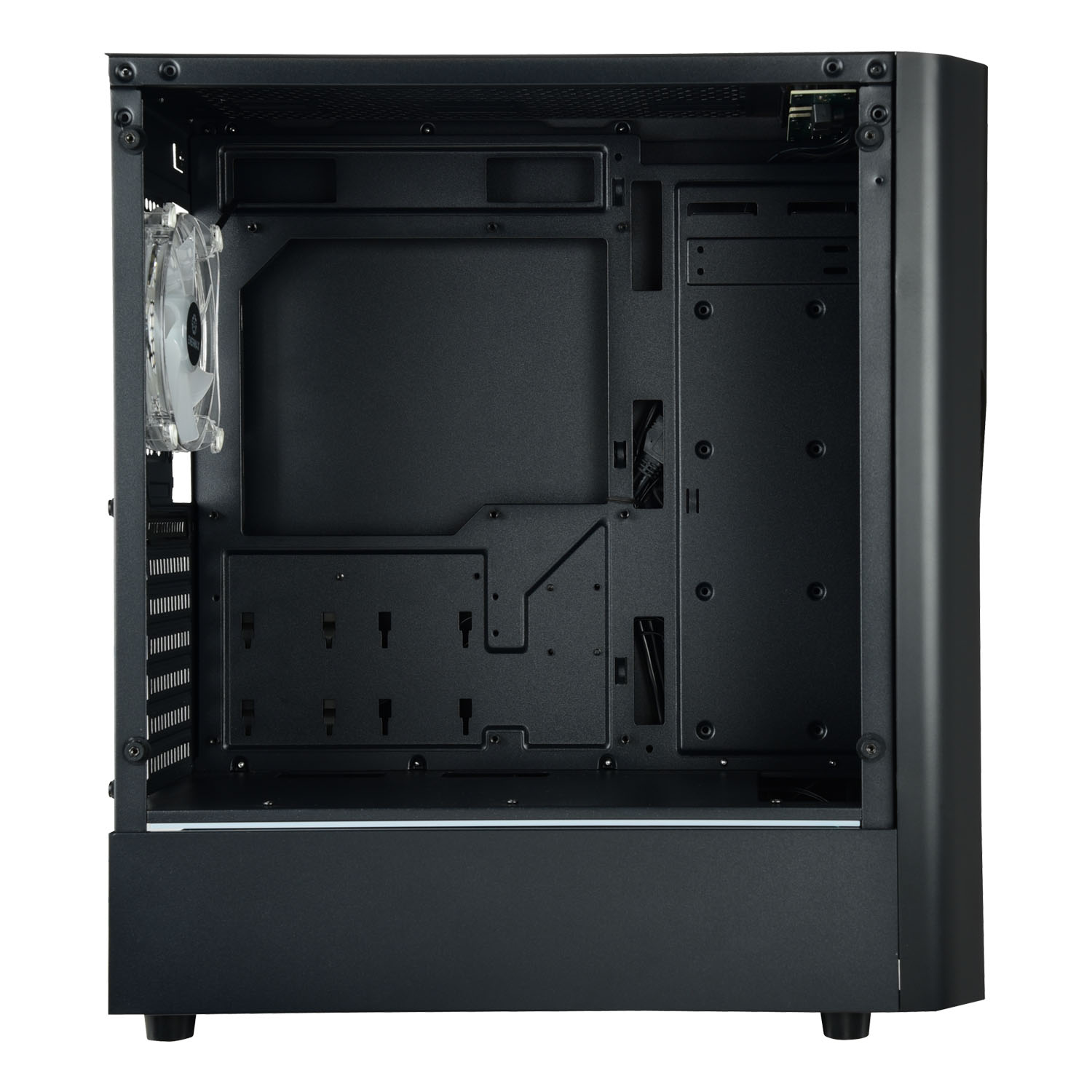

4mm panoramic tempered glass window

4mm full-view tempered glass side panel allows you to show off your rigs




Anti-dust rubber plugs




Dimension

unit:mm



Model Name ECA-LN30-M1BB-ARGB
Dimensions (D x W x H) 427 x 205x 475 mm
Material 0.6mm SPCC
M/B Type ATX, Micro ATX, Mini ITX
I/O USB 3.0 x 2, HD Audio
3.5'' Drive Bays 2
2.5'' Drive Bays 5 (2 x converted from 3.5"tray)
Expansion Slots 7
Fan Slots - Front 2 x 140mm or 3 x 120mm
Fan Slots - Top 2 x 140mm or 2 x 120mm
Fan Slots - Rear 1 x 120mm
(1 x 120mm hub-lighting addressable RGB fans pre-installed
Radiator Support - Front 360mm / 280mm / 240mm
Radiator Support - Top 280mm / 240mm
Radiator Support - Rear 120mm
PSU Support Standard ATX Type
Clearance - VGA card 375mm
Clearance - CPU Cooler 157mm
EAN code 4713157723901
UPC code 819315023907
Carton dimensions (D x W x H), (mm) D520 x W250 x H485 mm
Gross Weight (kg) 6.78kgs
Net Weight (kg) 5.52kgs
