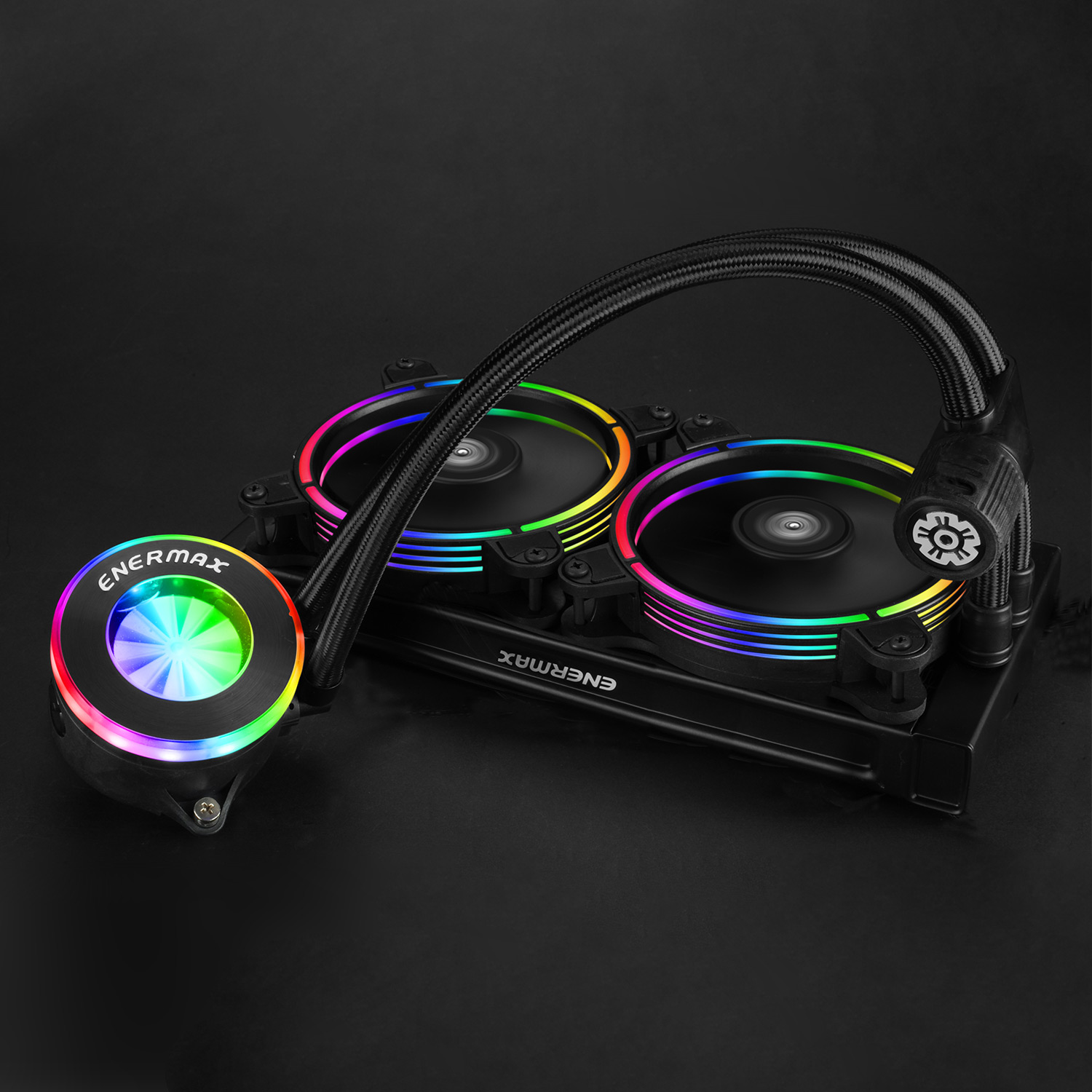

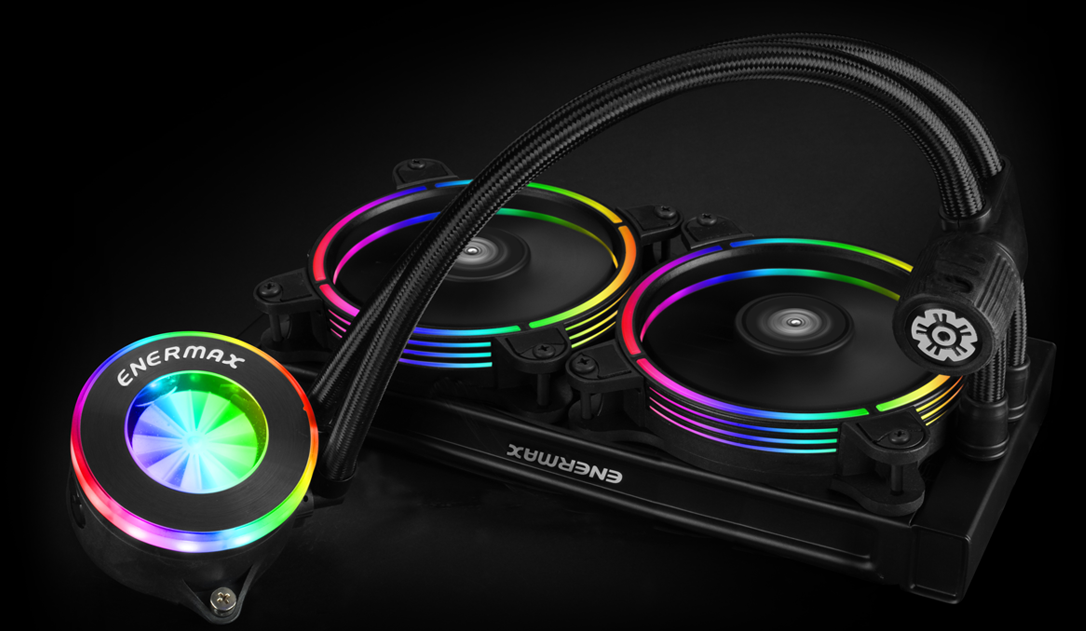

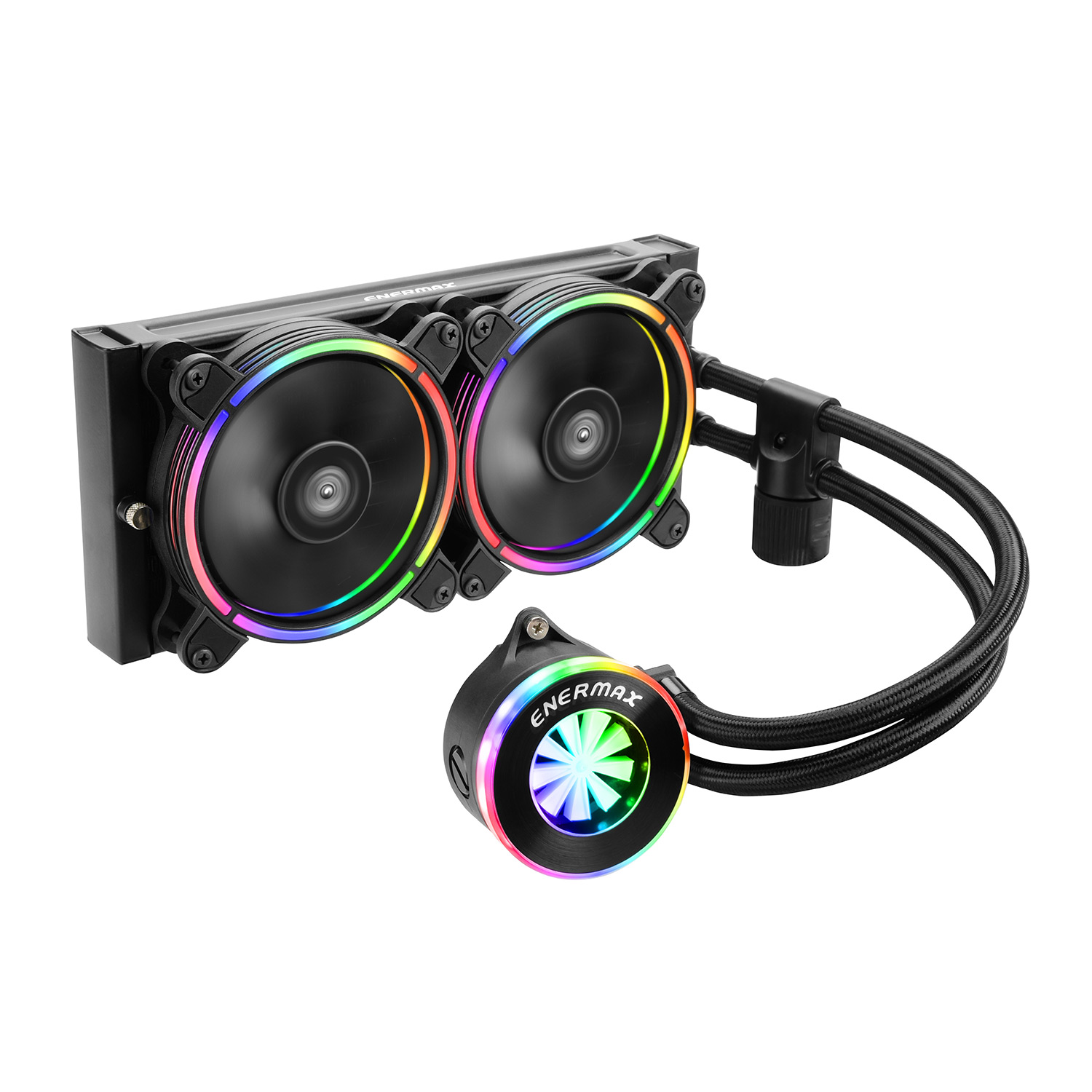

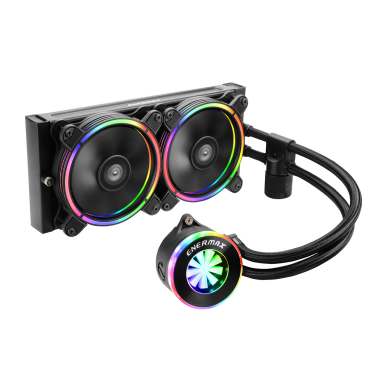

LIQFUSION Series 240mm Liquid CPU Cooler

‧ Exclusive RGB-sync waterblock with patented
flow indicator design
‧ Support the latest addressable RGB M/B sync
‧ Integrated RGB control box
‧ High-efficiency ceramic bearing pump for
exceptional durability and noiseless operation

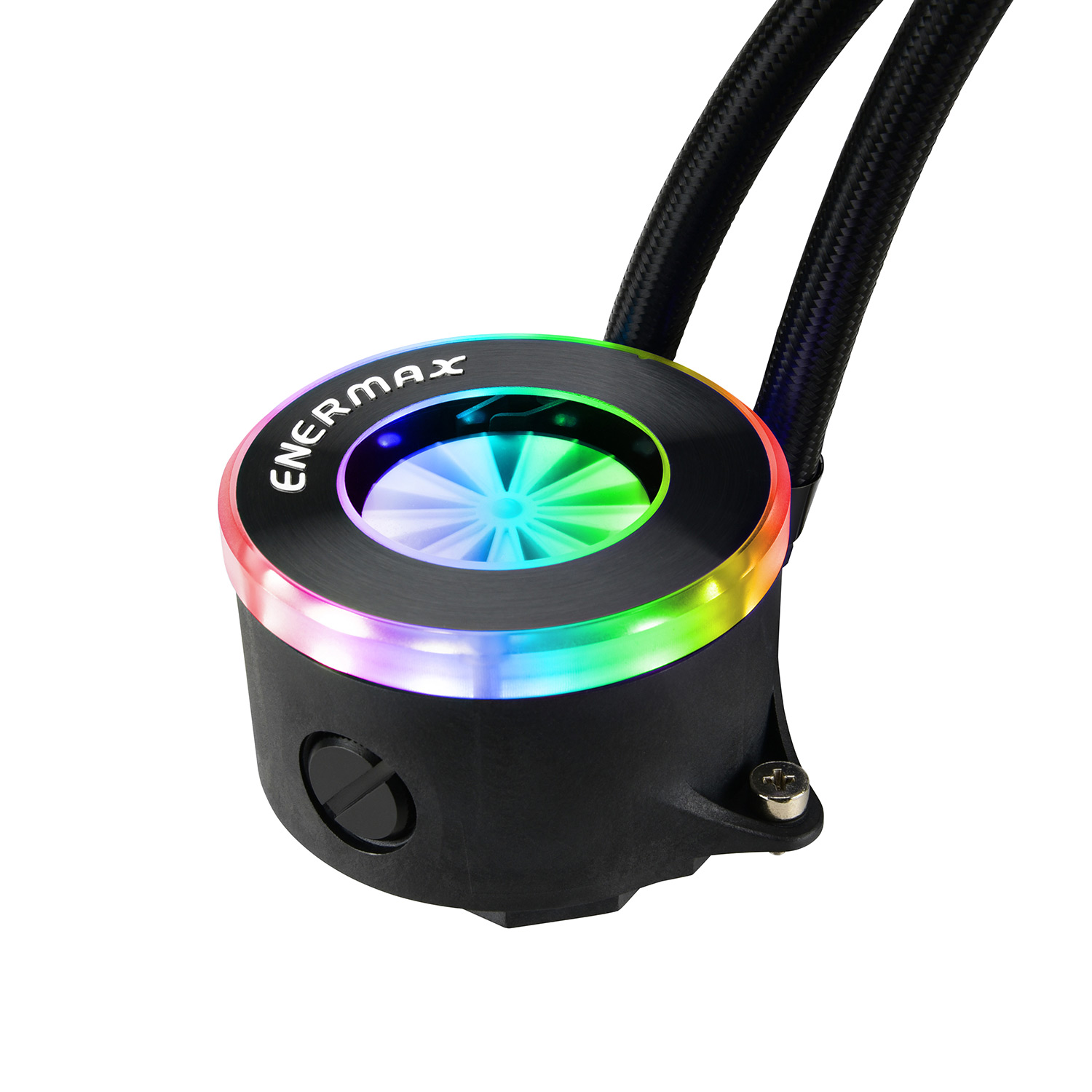

Patented flow indicator design

Patented flow indicator allows users to visually monitor cooling loop operation and coolant level

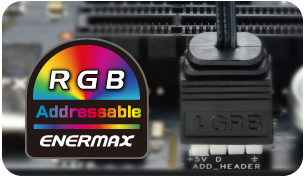

Addressable RGB lighting synchronization

Synchronizable RGB Lighting via the latest addressable RGB header of motherboards (3 pin assignment is 5V/D/G)

ENERMAX integrated RGB control box

ENERMAX integrated RGB control box enables users to adjust preferred lighting effects (10 pre-set effects), colors and speed

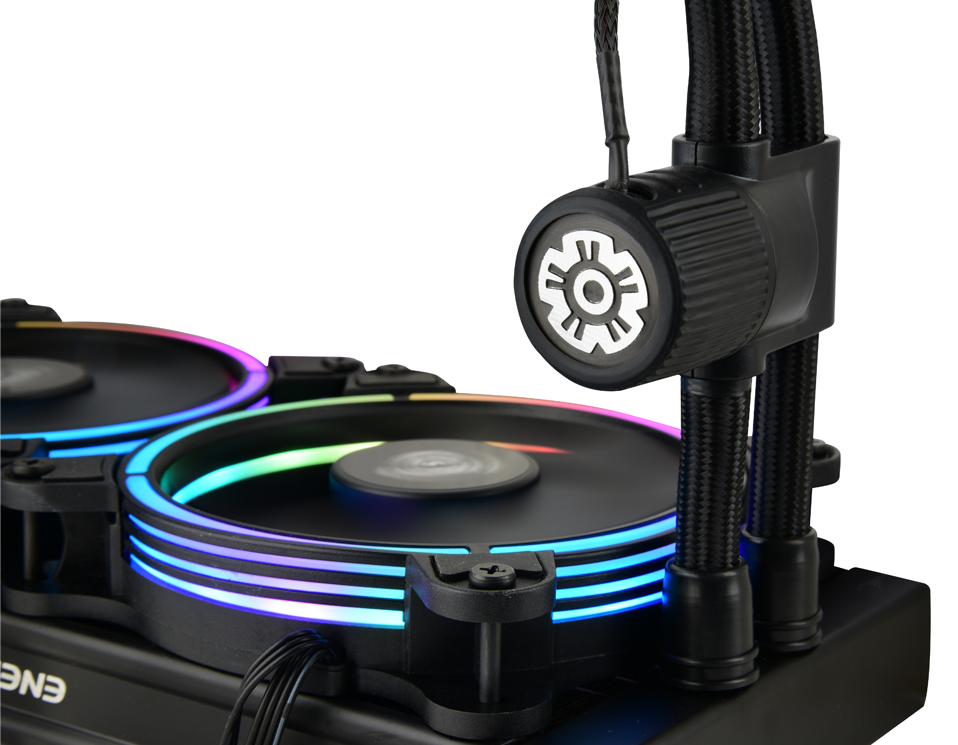

High-efficiency ceramic pump with rubber cover

The pump is attached to the rubber tubes for optimum vibration damping and silent operation

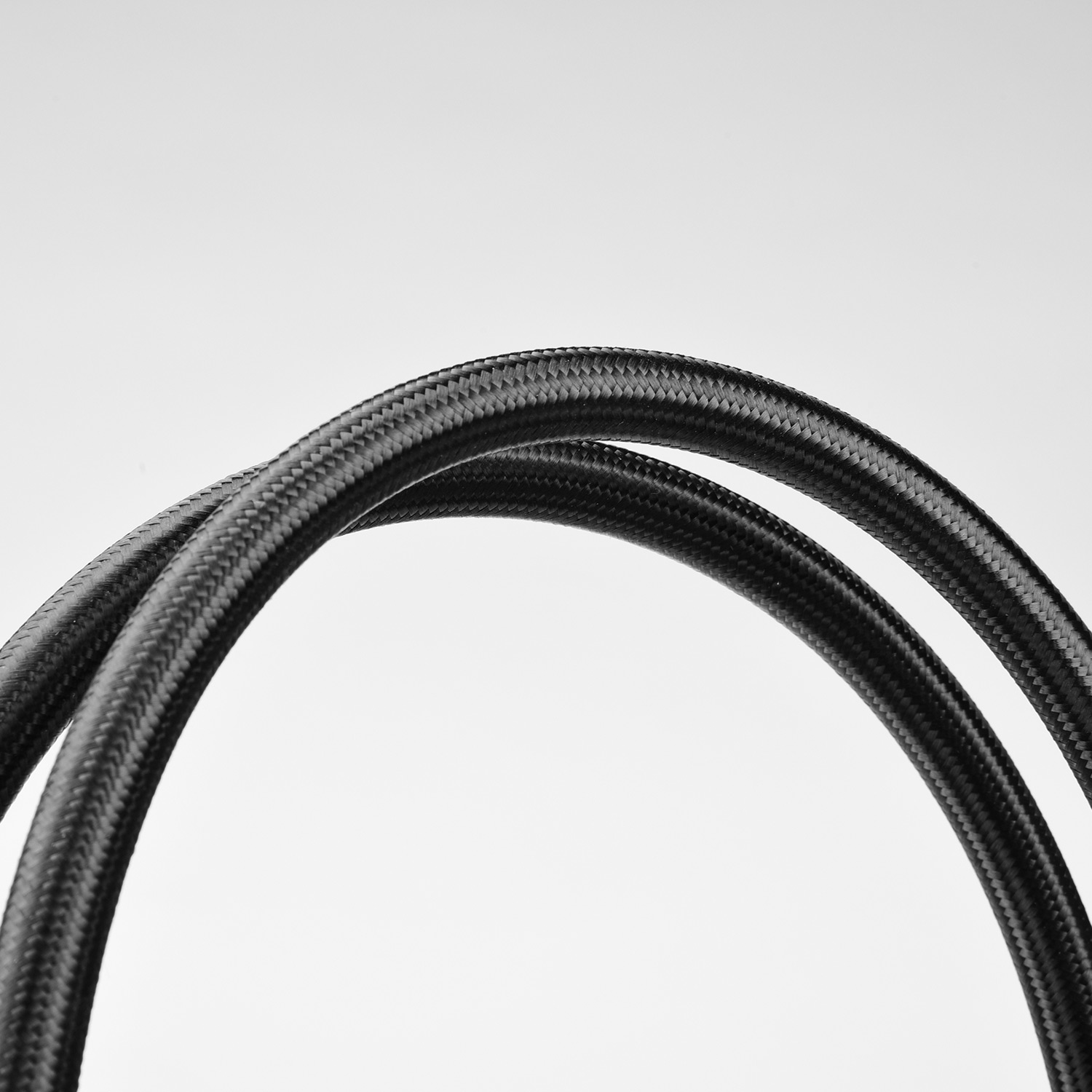

Premium 400mm weaved tubing is perfect for mainstream system builds

240mm radiator

Micro fiber channels and large cooling surface for high performance with up to 320W TDP

Universal metal mounting kits

Support the latest Intel® and AMD® sockets for easy and solid installation (excluding TR4/SP3 socket)





Product Introduction

Installation Guide

Model ELC-LF240-RGB
CPU Socket Intel®LGA 1200/2066/2011-3/2011/1366/1156/1155/1151/1150
AMD® AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
TDP (W) 320W
Cold Plate Material Copper
Radiator Material Aluminum
Radiator Dimension 277 x 120 x 27 mm
Pump Bearing Ceramic bearing
Pump MTBF 50,000 hrs
Pump Rated Voltage (V) 12V
Pump Rated Current (A) 0.18A
Pump Rated Current - RGB LED (A) 0.57A
Fan Dimension (mm) 120 x 120 x 25 mm
Fan MTTF (hours) ≧160000 hrs
Fan Speed (RPM) 500 - 2000 RPM (±10%)
Fan Rated Voltage (V) 12V
Fan Rated Current (A) 0.15A
Fan Rated Current RGB LED (A) 0.8A (5V)
Fan Air Flow (CFM) 13.71 ~ 62.1 CFM
Fan Static Pressure (mm-H2O) 0.19 ~ 2.95 mm-H2O
Fan Maximum Noise (dBA) 14 ~ 28 dBA
Fan Connector 4 Pin PWM + 3 Pin RGB (W/ extension adapter)
Fan Screw 6#32
Thermal Grease Dow Corning® TC-5121C

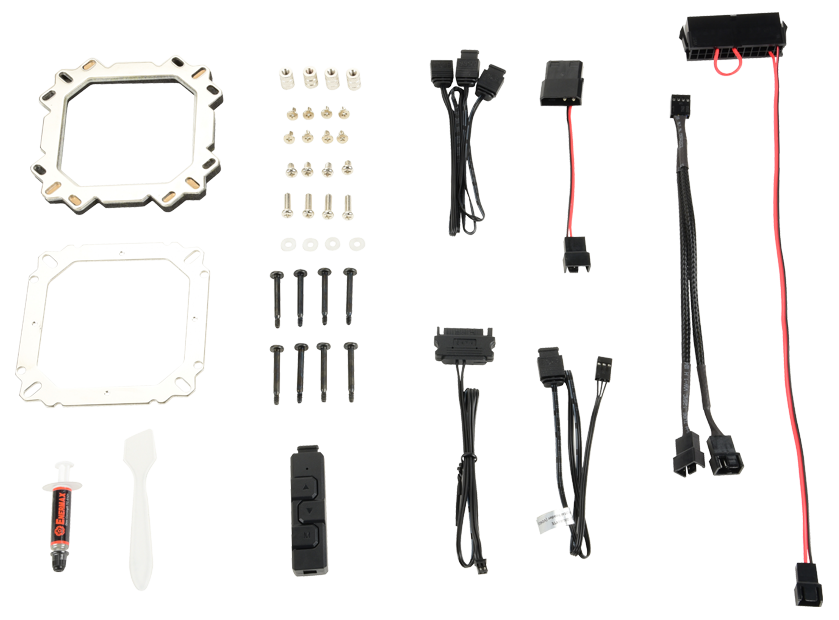

Accessory 100ml coolant, 1g thermal grease
EAN 4713157723383
UPC 819315023389
Box Dimension 315 x 235 x 135 mm
Gross Weight / unit 2.35 kg
Carton Dimension 582 x 496 x 347 mm
Q'ty / carton 8 PCS
Gross Weight / Carton 18.8 kg
