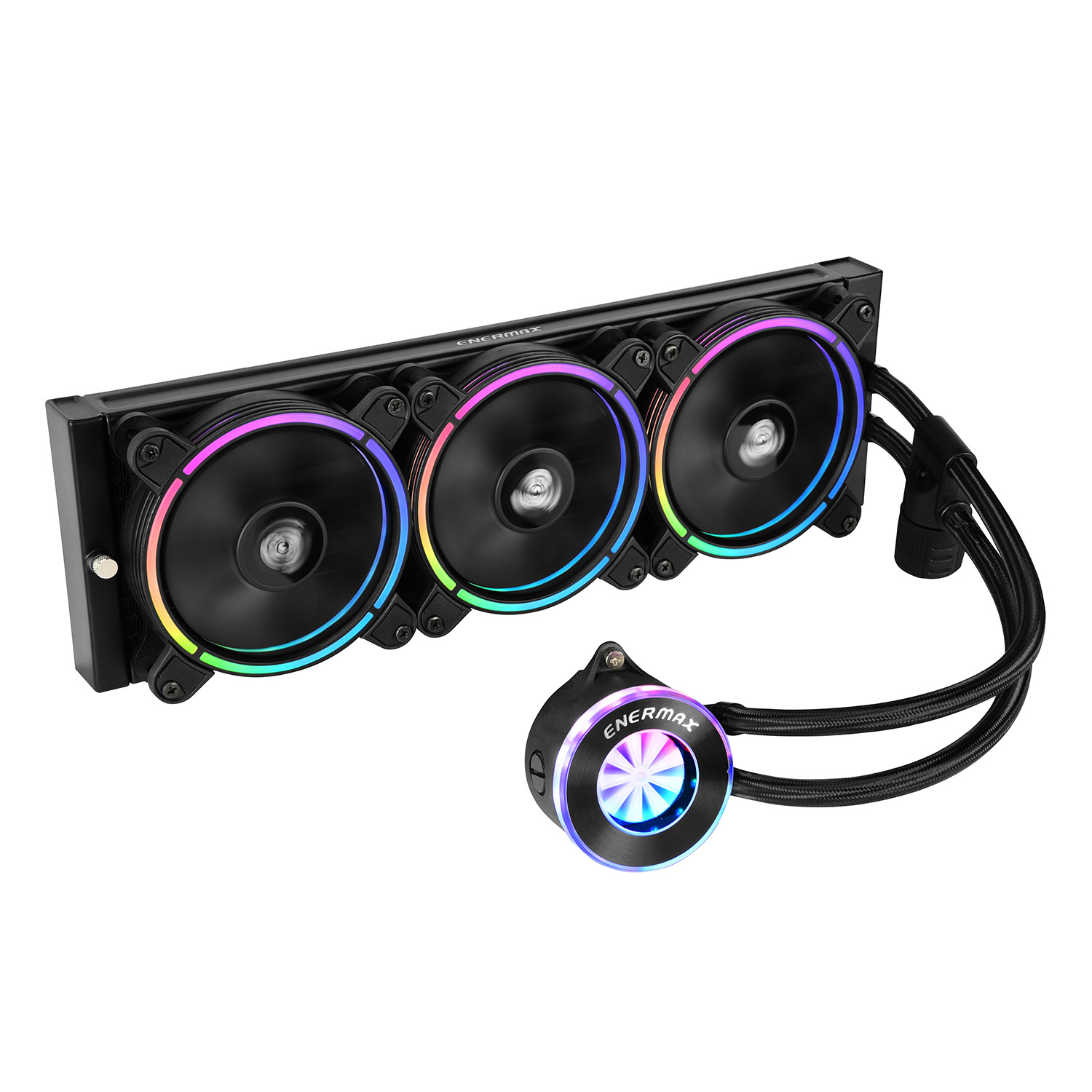

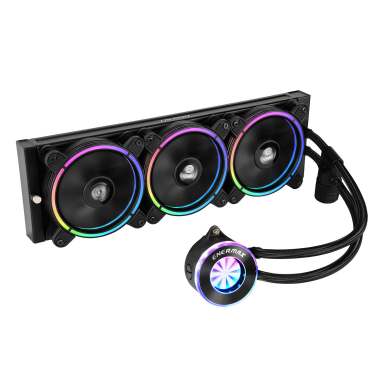

LIQFUSION Series 360mm Liquid CPU Cooler

‧ Exclusive RGB-sync waterblock with patented flow
indicator design
‧ Support the latest addressable RGB M/B sync
‧ ENERMAX integrated RGB control box
‧ High-efficiency ceramic bearing pump for exceptional
durability and noiseless operation

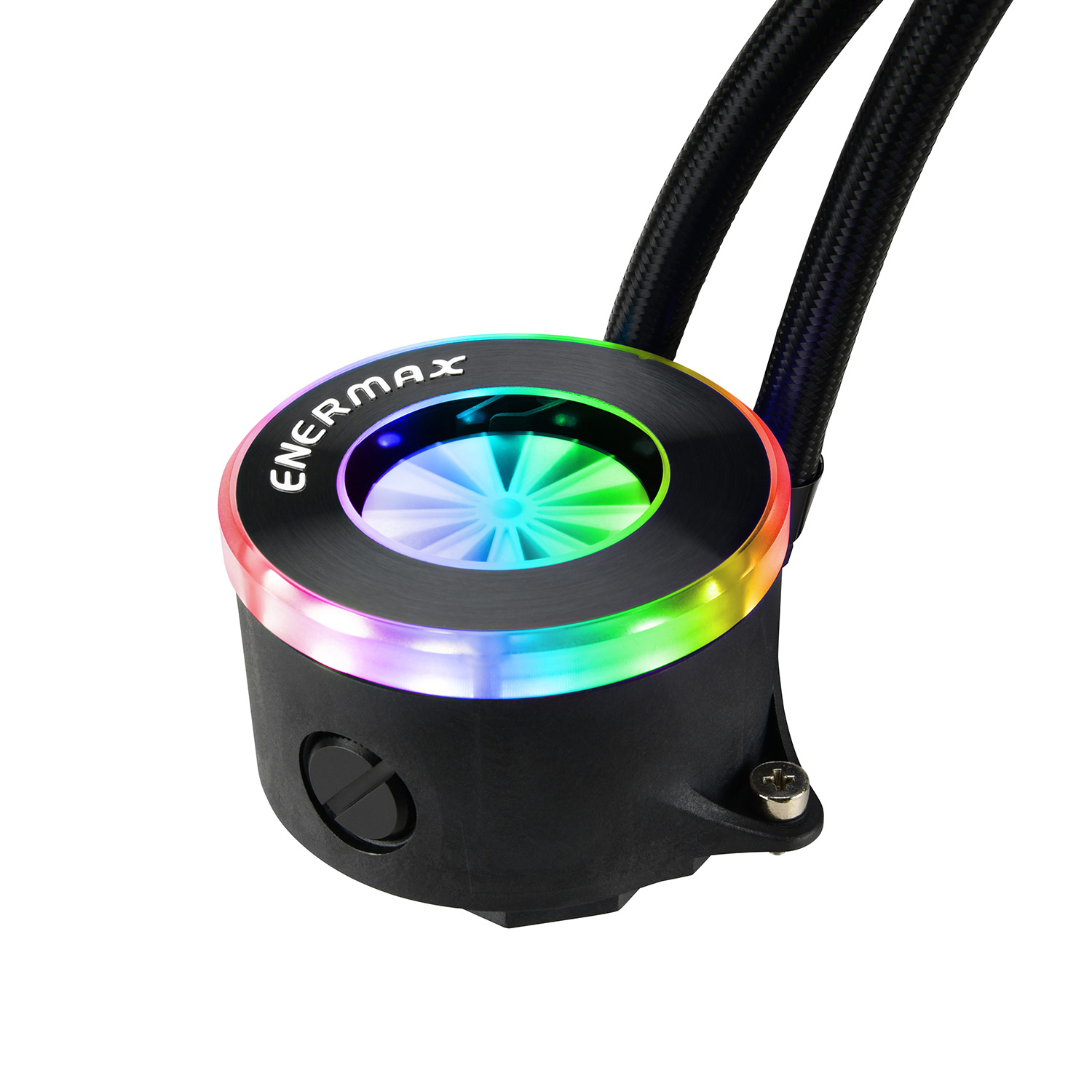

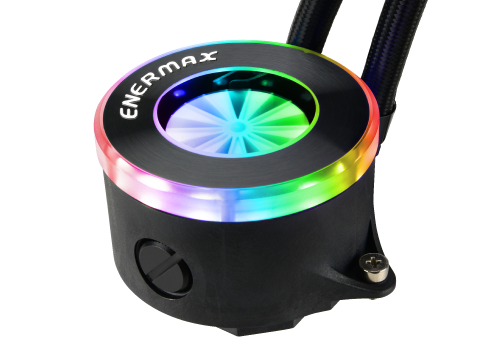

Patented flow indicator design

Patented flow indicator allows users to visually monitor cooling loop operation and coolant level

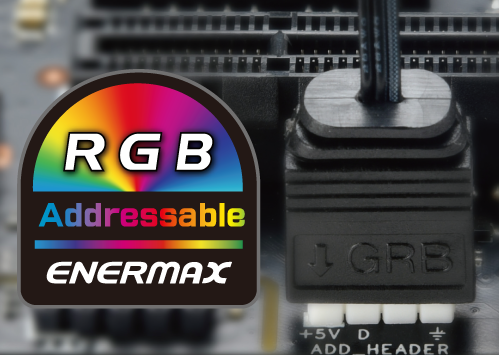

Addressable RGB lighting synchronization

Synchronizable RGB Lighting via the latest addressable RGB header of motherboards (3 pin assignment is 5V/D/G)

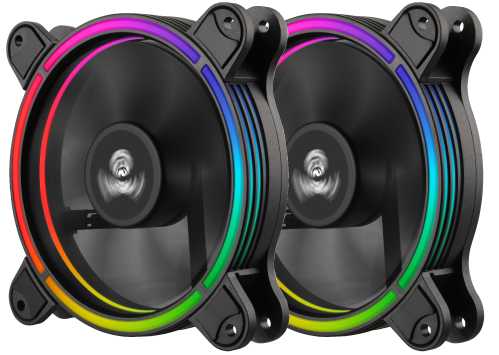

ENERMAX T.B. RGB AD. fans support

ENERMAX T.B. RGB AD. fans support the latest addressable RGB-sync function to provide an incredible RGB lighting experience


2 ways to control RGB lighting effects

Through Motherboard Software

Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G)

Through ENERMAX RGB Control Box

Users can use the included control box to adjust preferred lighting effects (10 pre-set effects), brightness and speed

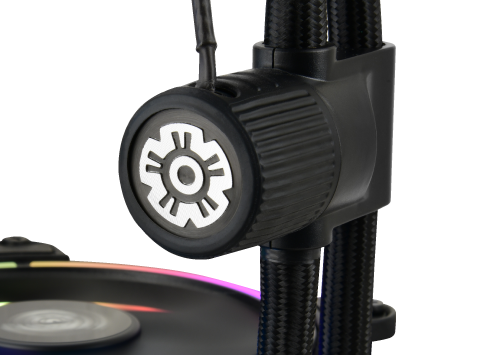

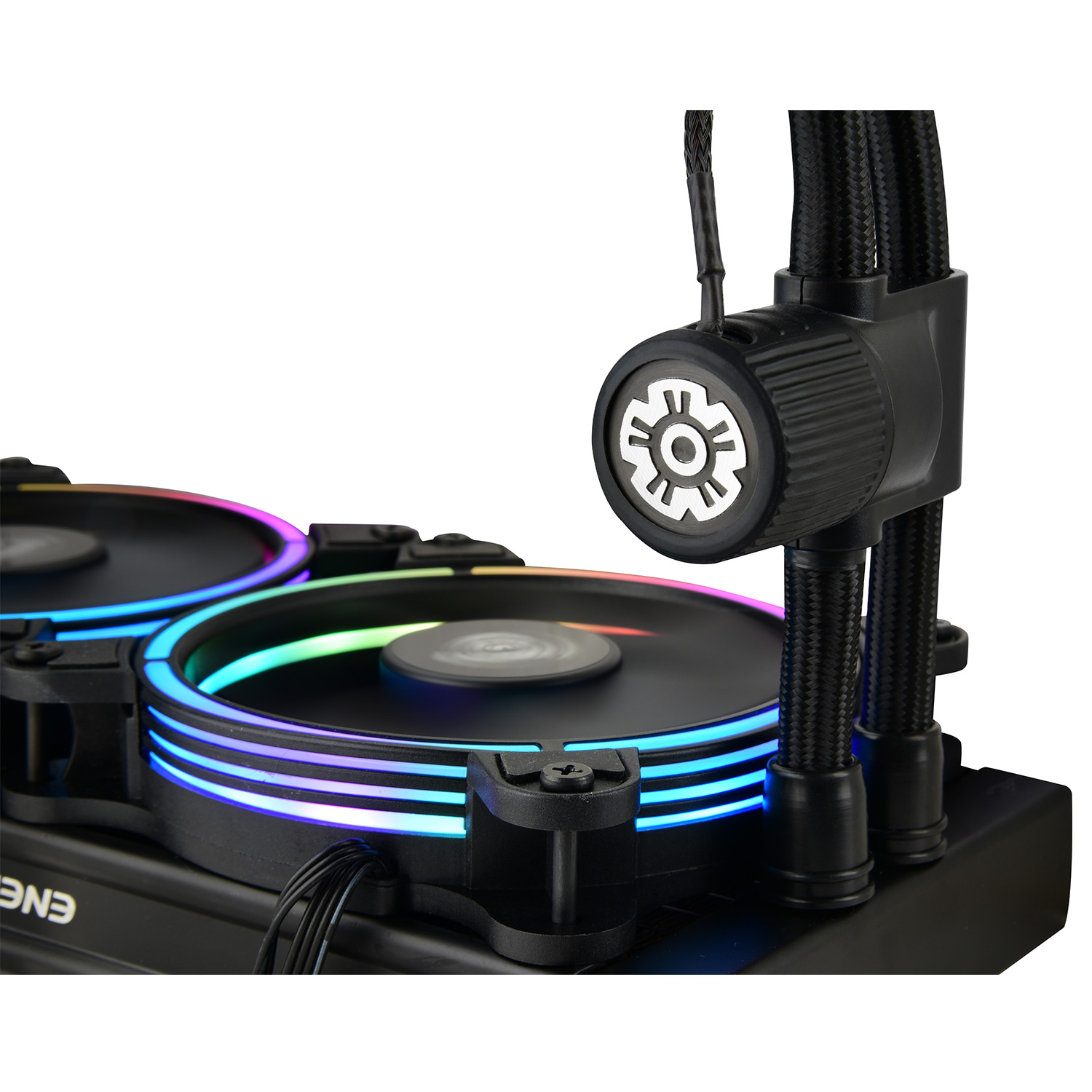

High-efficiency ceramic pump with rubber cover

The pump is attached to the rubber tubes for optimum vibration damping and silent operation

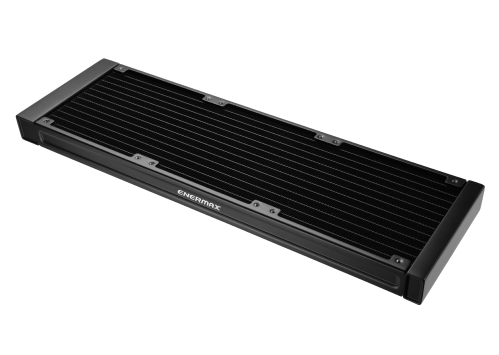

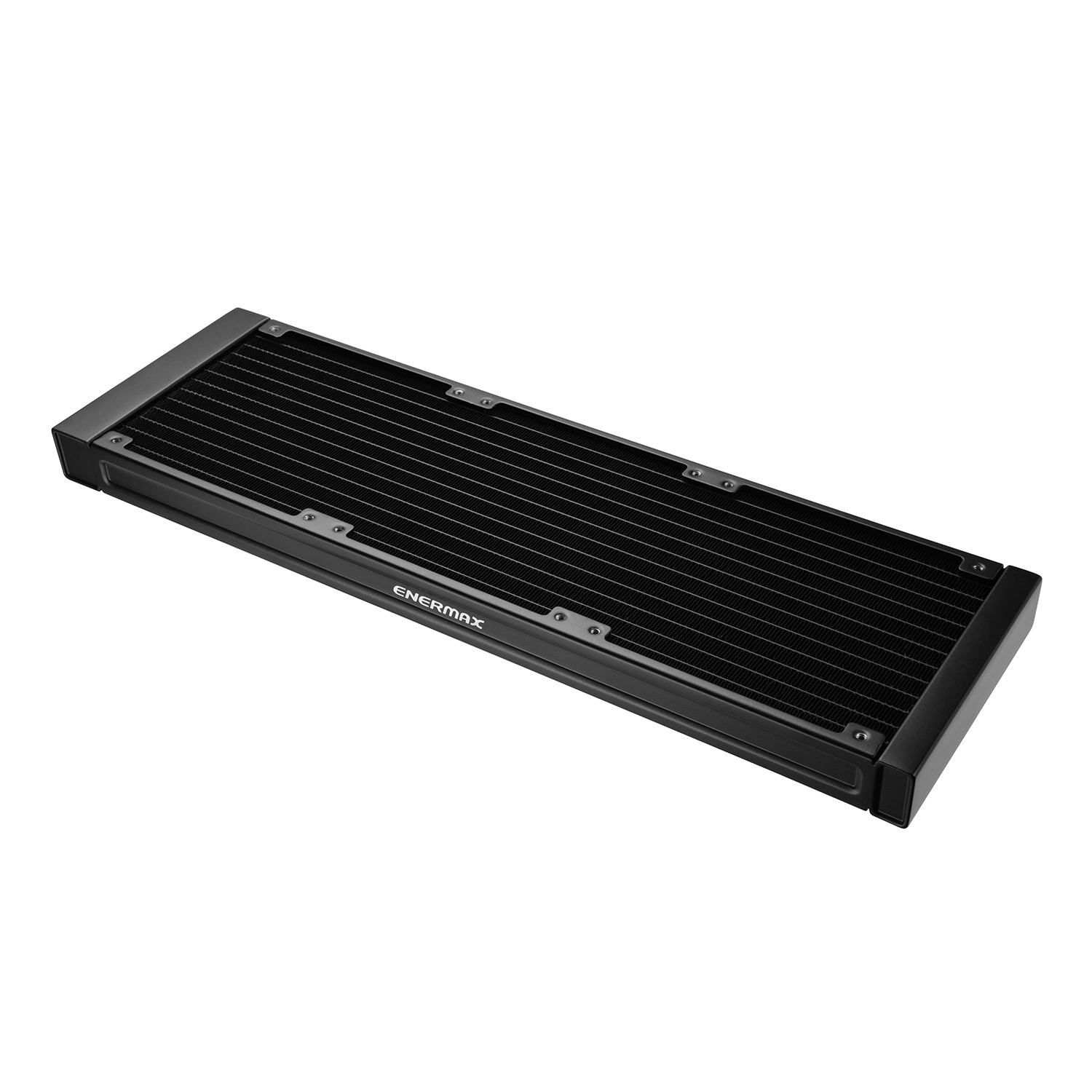

360mm radiator

Micro fiber channels and large cooling surface for high performance with up to 350W TDP

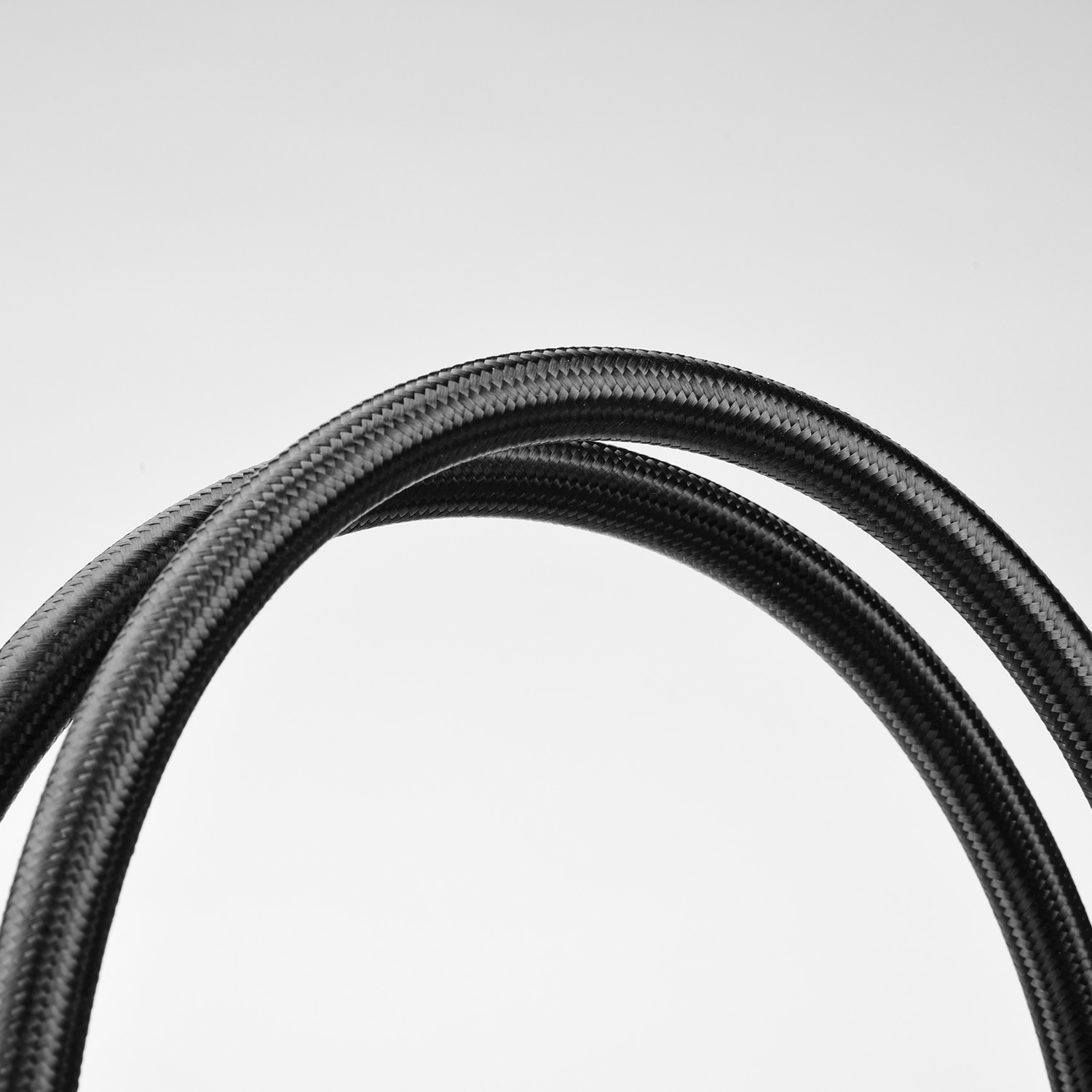

Premium 400mm weaved tubing is perfect for mainstream system builds

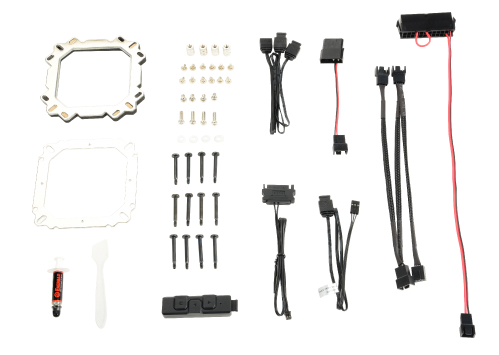

Universal metal mounting kits

Support the latest Intel® and AMD® sockets for easy and solid installation (excluding TR4/SP3 socket)

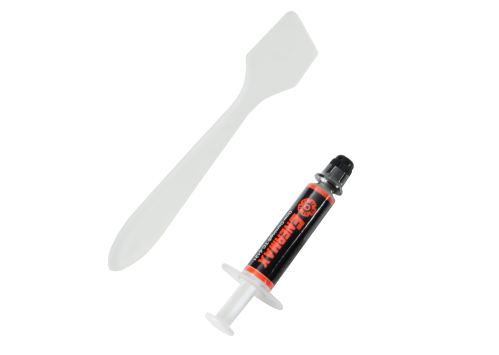

Dow corning® TC5121C thermal grease




Product Introduction

Model ELC-LF360-RGB
CPU Socket Intel® LGA 1200/2066/2011-3/2011/1366/1156/1155/1151/1150
AMD® AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
TDP 350W
Cold Plate Material Copper
Radiator Material Aluminum
Radiator Dimension 394 x 120 x 27 mm
Pump Bearing Ceramic bearing
Pump MTBF 50,000 hrs
Pump Rated Voltage 12V
Pump Rated Current 0.18A
Pump Rated Current - RGB LED 0.57A (5V)
Fan Dimension (Radiator) 120 x 120 x 25 mm
Fan MTTF ≧160000 hrs
Fan Speed 500 - 2000 RPM (±10%)
Fan Rated Voltage 12V
Fan Rated Current 0.15A
Fan Rated Current RGB LED 0.8A (5V)
Fan Air Flow 13.71 ~ 62.1 CFM
Fan Static Pressure 0.19 ~ 2.95 mm-H2O
Fan Connector 4 Pin PWM + 3 Pin RGB (W/ extension adapter)
Fan Maximum Noise 14 ~ 28 dBA

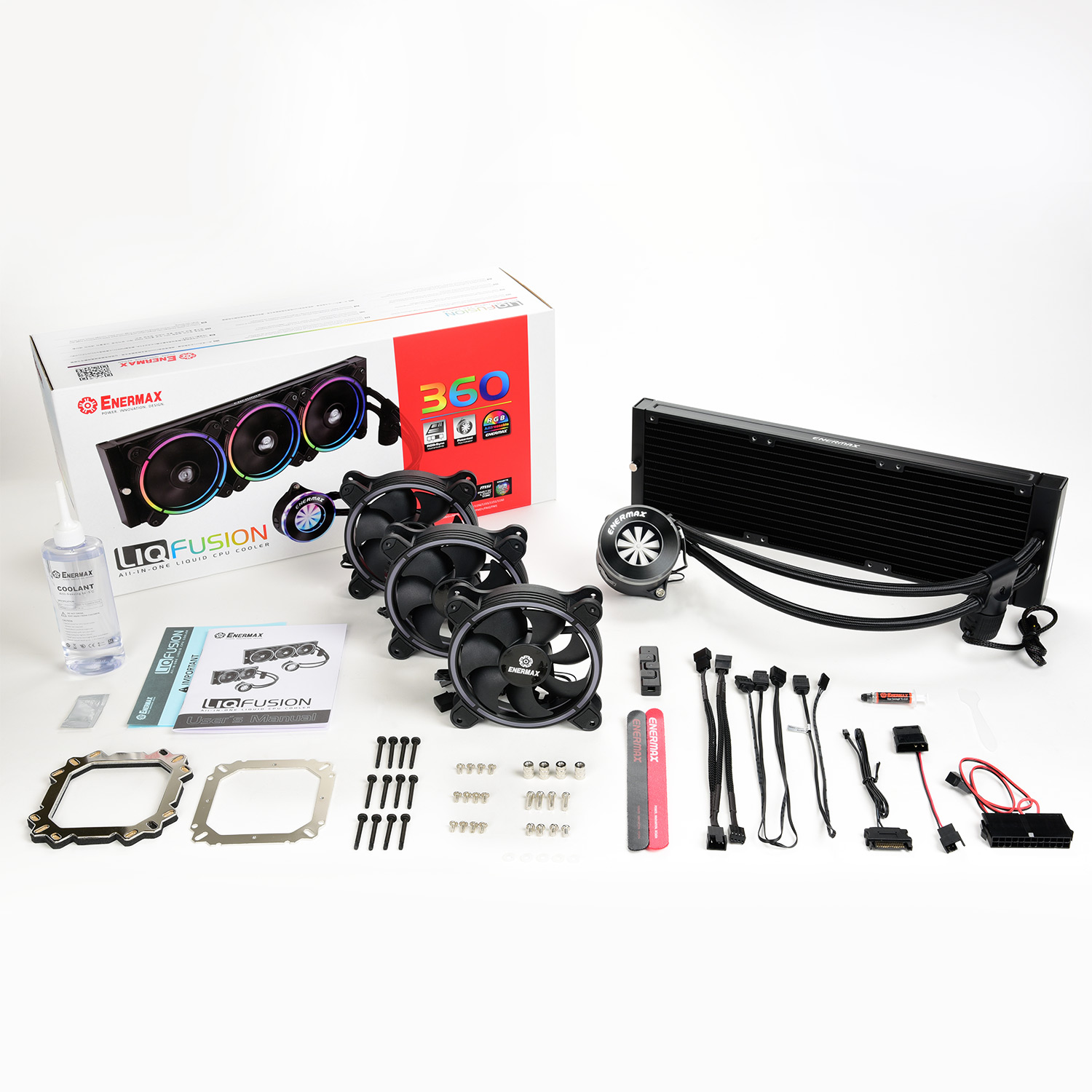

Accessory 100ml coolant, 1g thermal grease
Thermal Grease Dow Corning® TC-5121C
Fan Screw 6#32
EAN 4713157723864
UPC 819315023860
Box Dimension 461 x 206 x 138 mm
Gross Weight / unit 2.95 kg
Carton Dimension 476 x 430 x 306 mm
Q'ty / carton 4 PCS
Gross Weight / Carton 12.2 kg
