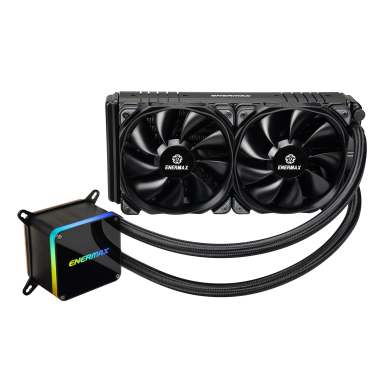

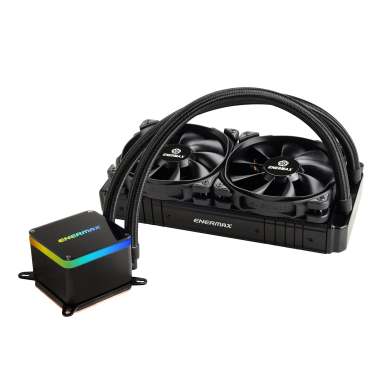

LIQTECH II Series 240mm Liquid CPU Cooler

‧Universal socket compatibility
‧Support 500W+ TDP
‧Powerful EF1 pump design with flow rate up to 450 L/h
‧Patented Dual Chamber Design structure pump
‧Patented Shunt Channel Technology
‧Aurabelt™ addressable RGB water block

COMPARE Compare List (0)


EF1 Pump Design (ceramic nano PI bearing pump)

Robust EF1 pump with precision engineering delivers extremely high flow rate up to 450 L/h for superior cooling performance


Patented Dual-Chamber Design water block

Patented Dual-Chamber Design isolate the pump from the heat to prolong the cooler’s lifetime


Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)

Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer


Aurabelt™ water block featuring addressable RGB lighting

Premium RGB water block with glossy acrylic cover and luminous Aurabelt™ for vivid lighting effects


2 ways to control RGB lighting effects

Through Motherboard Software

Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G)

Through ENERMAX RGB Control Box

Users can use the included control box to adjust preferred lighting effects (10 pre-set effects), brightness and speed


Innovative high pressure fan blades

Hi-pressure blade design enhances the cooling performance


Anti-vibration rubber pads provide noiseless stable operation


Premium 400mm weaved tubing is perfect for mainstream system builds

Flexible polyamide (PA) rubber tubes ensure zero permeability





Product Introduction


Installation Guide

CPU Socket Intel® LGA 1700/1200/2066/2011-3/2011/1366/1156/1155/1151/1150
AMD® AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
TDP 500W
Cold Plate Material Copper
Radiator Material Aluminum
Radiator Dimension 274 x 120 x 39 mm
Pump Bearing Ceramic nano PI bearing
Pump MTBF 100,000 hours
Pump Rated Voltage 12 V
Pump Rated Current 0.4 A
Pump Rated Current - RGB LED 0.5 A
Fan Dimension (Radiator) 120 x 120 x 25 mm
Fan MTTF ≧160,000 hrs
Fan Speed 500-2300 RPM
Fan Rated Voltage 12V
Fan Rated Current 0.3A
Fan Air Flow 23.81 ~ 102.17 CFM
Fan Static Pressure 0.673 ~ 6.28 mm-H2O
Fan Connector 4 Pin PWM
Fan Maximum Noise 14 ~ 28 dBA
Thermal Grease Dow Corning® TC-5121C
Fan Screw M3.5
EAN 4713157723581
UPC 819315023587
Box Dimension 317 x 205 x 137mm
Gross Weight / unit 2.13 kg
Carton Dimension 435 x 342 x 440 mm
Q'ty / carton 6
Gross Weight / Carton 14.8 kg
