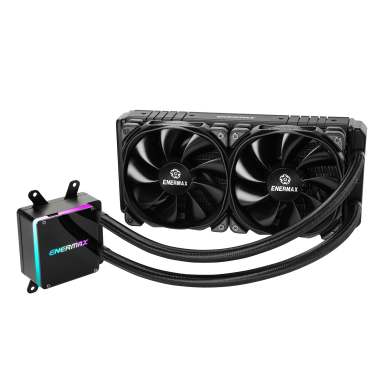

LIQTECH TR4 II Series 240mm Liquid CPU Cooler

‧100% sTRX4 / TR4 IHS Coverage
‧Exclusive for AMD Threadripper Platform
‧Support 500W+ TDP
‧Patented Shunt Channel Technology
‧Ultra-premium Water Block Featuring Addressable RGB Lighting


AMD Socket sTRX4 / TR4 Ready!

Quick & user-friendly mounting system for top-end AMD Threadripper CPUs (sTRX4 / TR4)


100% sTRX4 / TR4 IHS Coverage

Tailored to 100% cover AMD Threadripper’s integrated heat spreader (IHS) for uncompromised cooling performance


Central Coolant Inlet (CCI) design and patented Sunt-Channel Technology (SCT)

Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer


EF1 Pump Design

Robust pump with precision engineering delivers extremely high flow rate up to 450 L/h for superior cooling performance

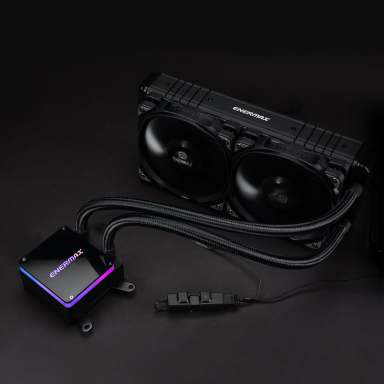

Ultra-premium Water Block Featuring Addressable RGB Lighting

Unique RGB water block provides synchronizable RGB lighting via the latest addressable RGB header of motherboards for vivid rainbow lighting effects


Innovative High Pressure Blades

Hi-pressure blade design enhances the cooling performance


Anti-vibration rubber pads provide noiseless stable operation


2 ways to control RGB lighting effects

Through Motherboard Software

Users can sync the RGB lighting with motherboards featuring addressable RGB headers (3 pin assignment is 5V/D/G)

Addressable RGB lighting synchronization


Through ENERMAX RGB Control Box

Users can use the included control box to adjust preferred lighting effects (10 pre-set effects) brightness and speed

  • Premium 400mm weaved tubing is perfect for mainstream system builds
  • Flexible polyamide (PA) rubber tubes ensure zero permeability




Product Introduction


Installation Guide

CPU Socket sTRX4 / sTR4 / SWRX8 / SP3
TDP 500W
Cold Plate Material Copper
Radiator Material Aluminum
Radiator Dimension 274 x 120 x 39 mm
Pump Bearing Ceramic Nano PI Bearing
Pump MTBF 100,000 hours
Pump Rated Voltage 12 V
Pump Rated Current 0.4 A
Pump Rated Current - RGB LED 0.2 A (5V)
Fan Dimension (Radiator) 120 x 120 x 25 mm
Fan MTTF ≧160,000 hours
Fan Speed 500 - 2300 RPM ± 10%
Fan Rated Voltage 12 V
Fan Rated Current 0.3 A
Fan Air Flow 23.81 ~ 102.17 CFM
Fan Static Pressure 0.673 ~ 6.28 mm-H2O
Fan Connector 4 pin PWM
Fan Maximum Noise 14 ~ 28 dBA
Thermal Grease Dow Corning® TC-5121C
Fan Screw M3.5
EAN 4713157723642
UPC 819315023648
Box Dimension 317 x 205 x 137mm
Gross Weight / unit 2.38 kg
Carton Dimension 435 x 332x 440mm
Q'ty / carton 6
Gross Weight / Carton 15.38 kg
