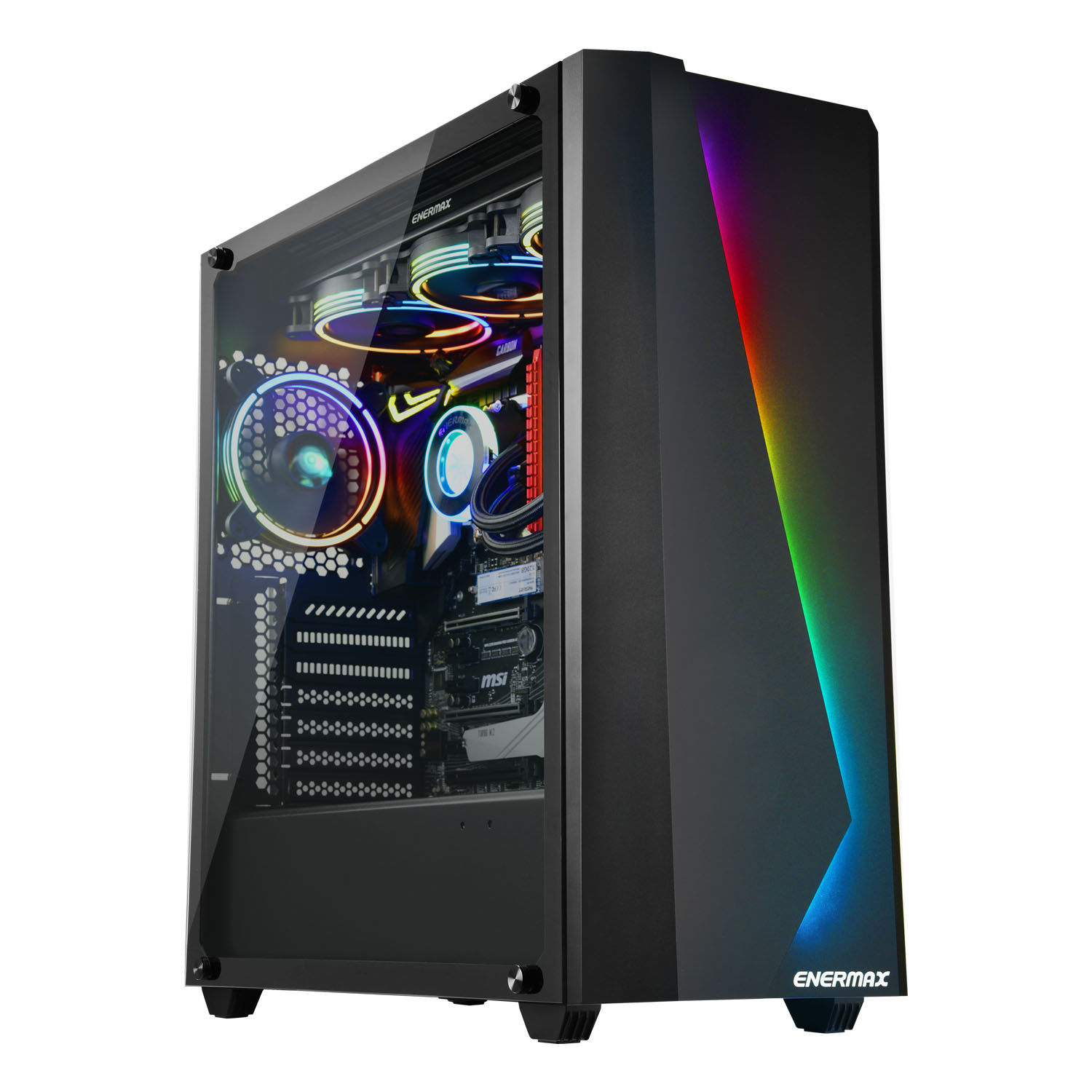

MAKASHI MK50 RGB Tempered Glass Full-Tower ATX PC Case

▪ Support Addressable RGB Lighting Synchronization
▪ Spacious Interior Supports E-ATX Motherboard
▪ Movable HDD Cage for 20cm PSU Installation




Simple and decent exterior design

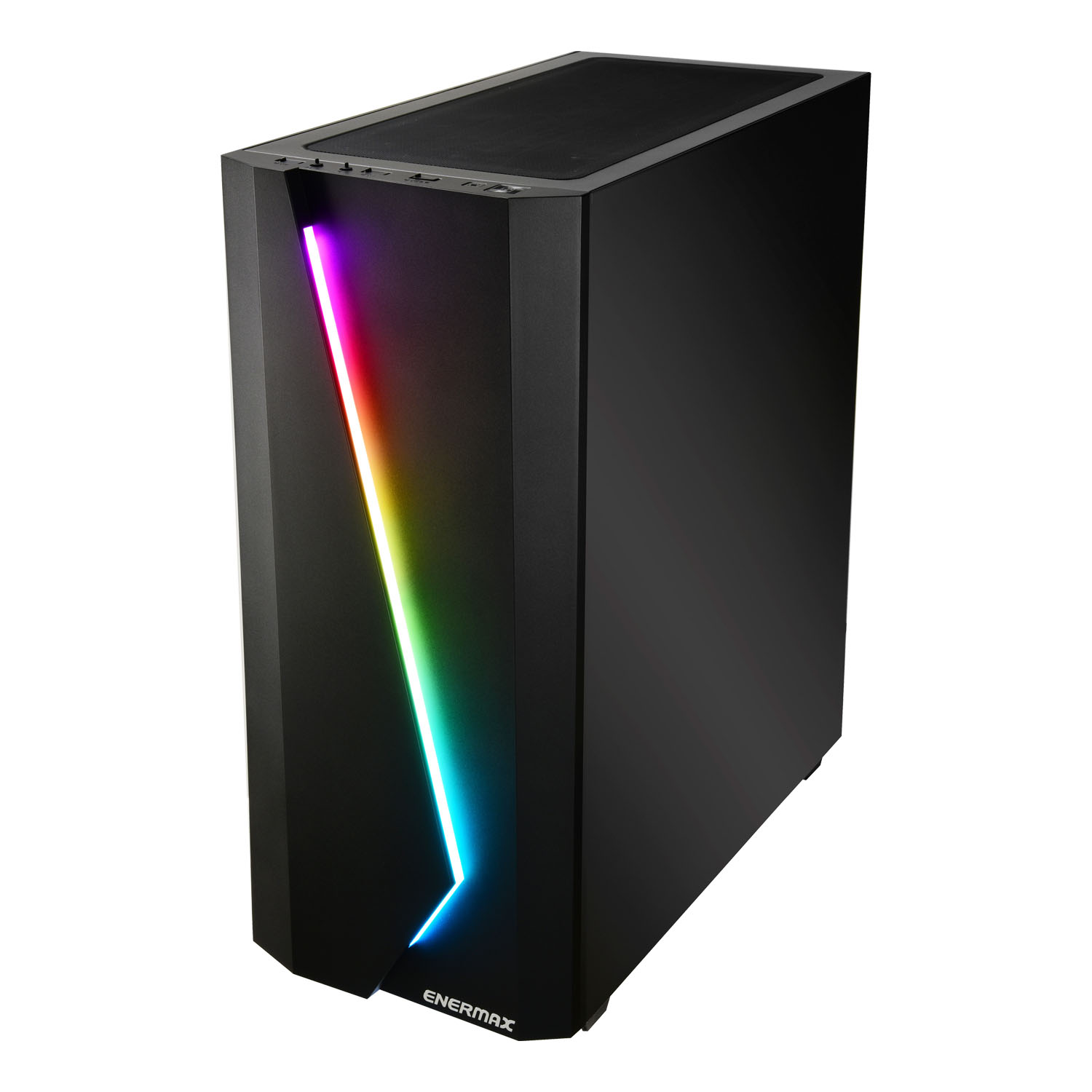

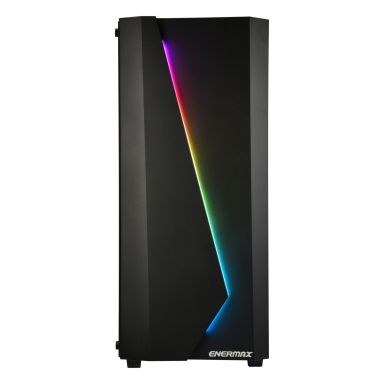

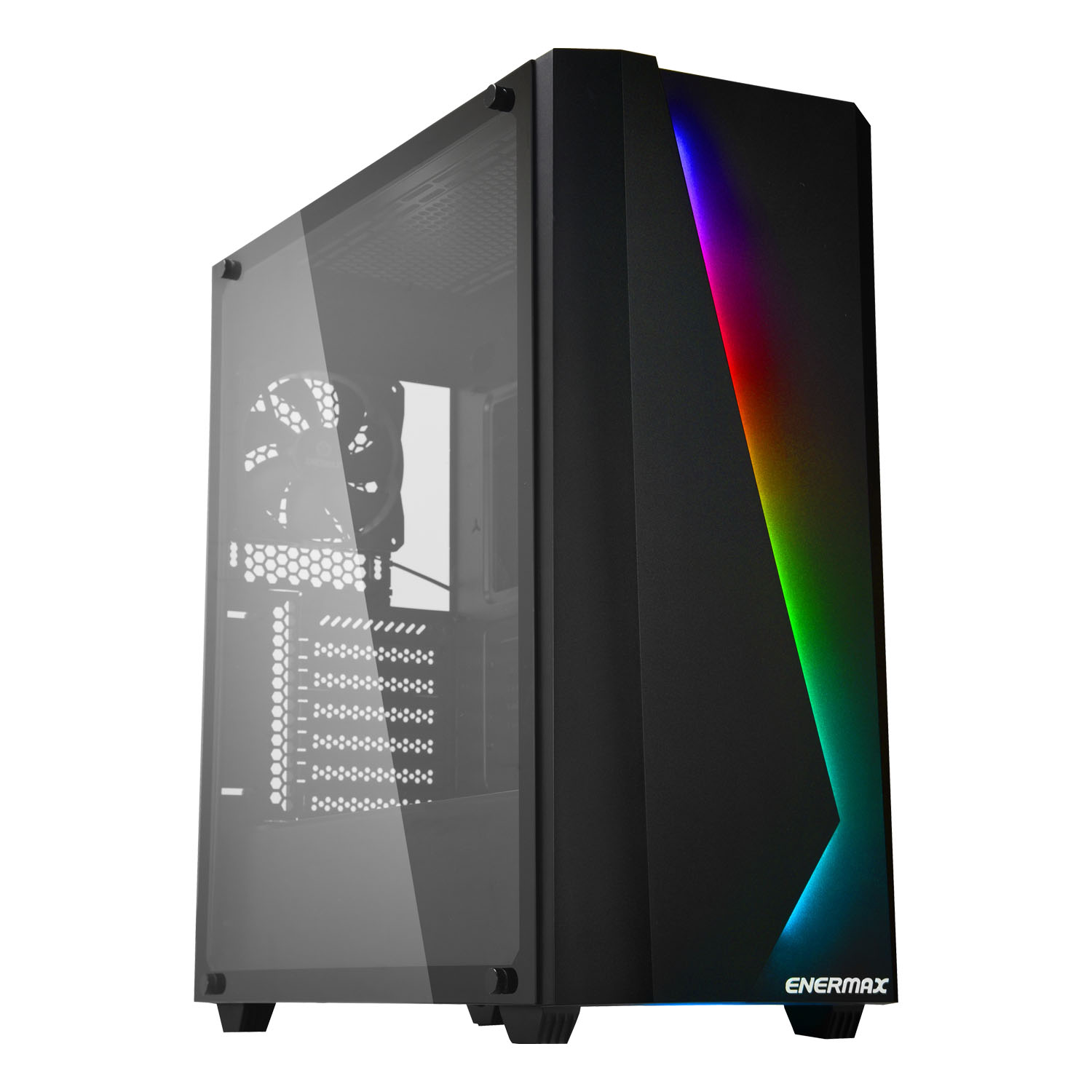

Unique lightning-shaped RGB strip in the front panel creates a visually appealing look; the lighting of the strip can be easily controlled via a button on I/O (13 pre-set effects)




Addressable RGB lighting synchronization

Support synchronizable RGB Lighting via motherboards with header (3 pin assignment is 5V/D/G). Users can program preferred lighting effects via the motherboard software with 16.8 million color options

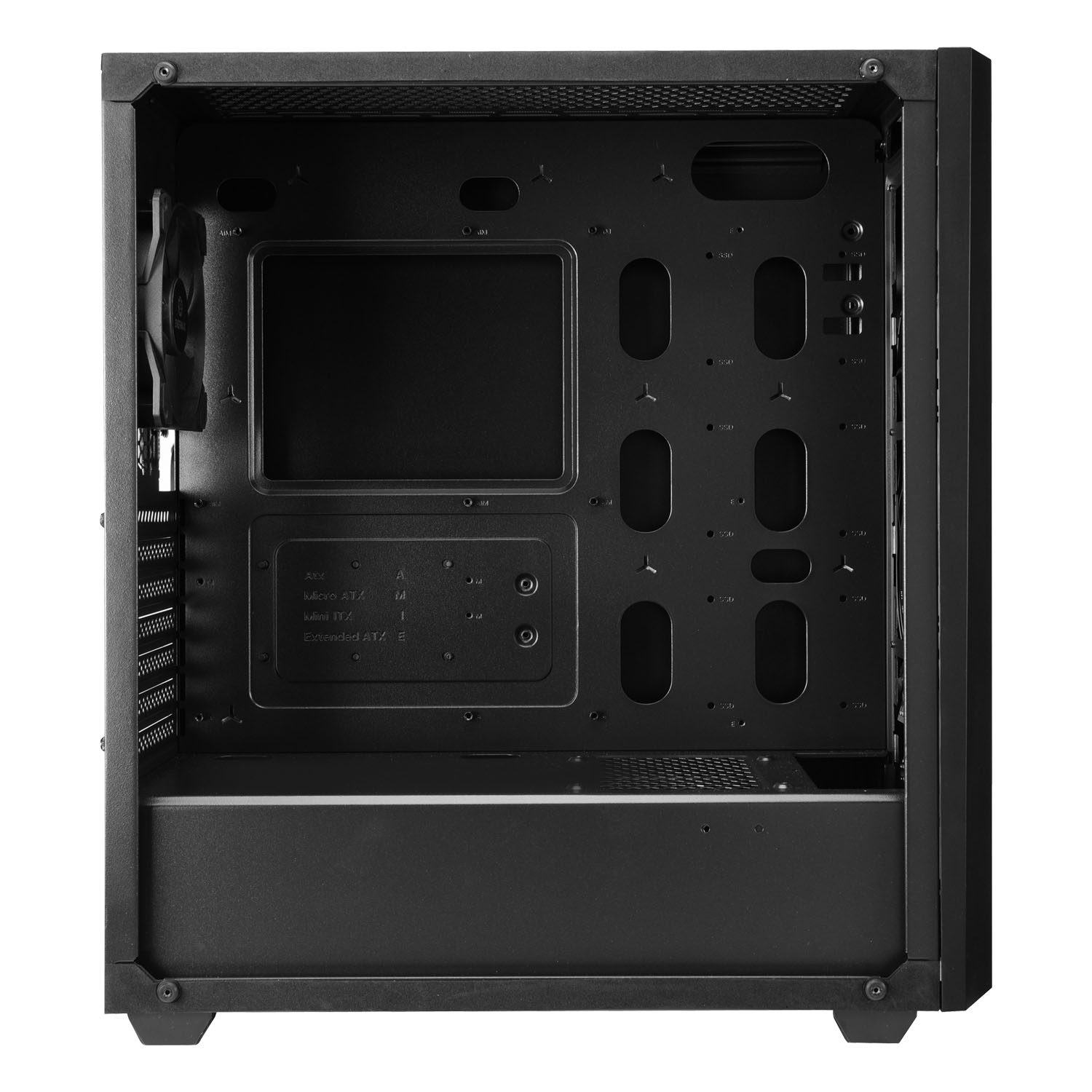

Support E-ATX motherboard

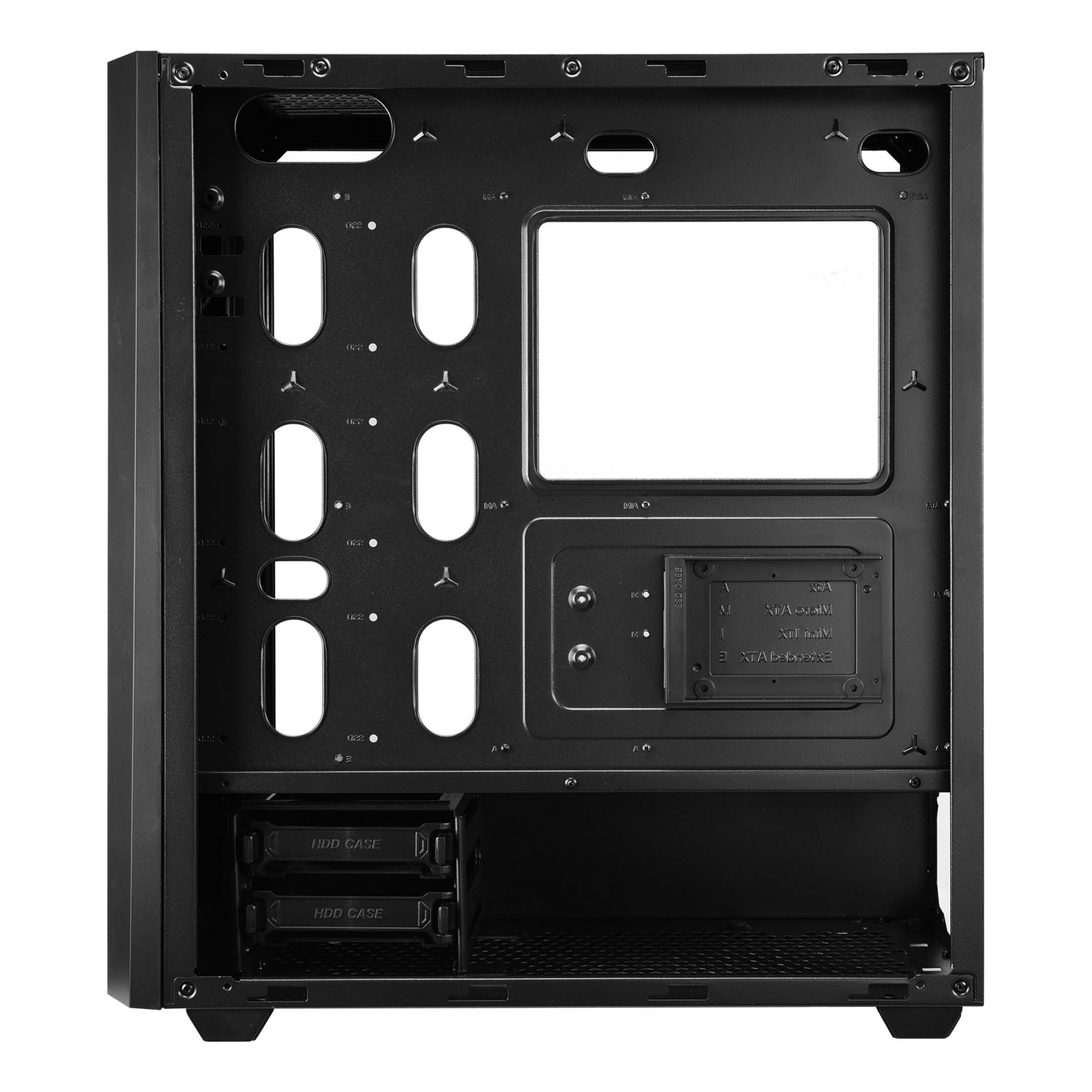

Spacious interior supports E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards




Movable HDD cage

Movable HDD cage can create extra space for longer PSU (max. 20cm) installation




Versatile water cooling options

Flexible cooling system configuration supports 3 x designated areas for liquid cooler installation

Liquid Cooler Compatibility Chart
Radiator size (mm) 360 280 240 140 120
Front
Top

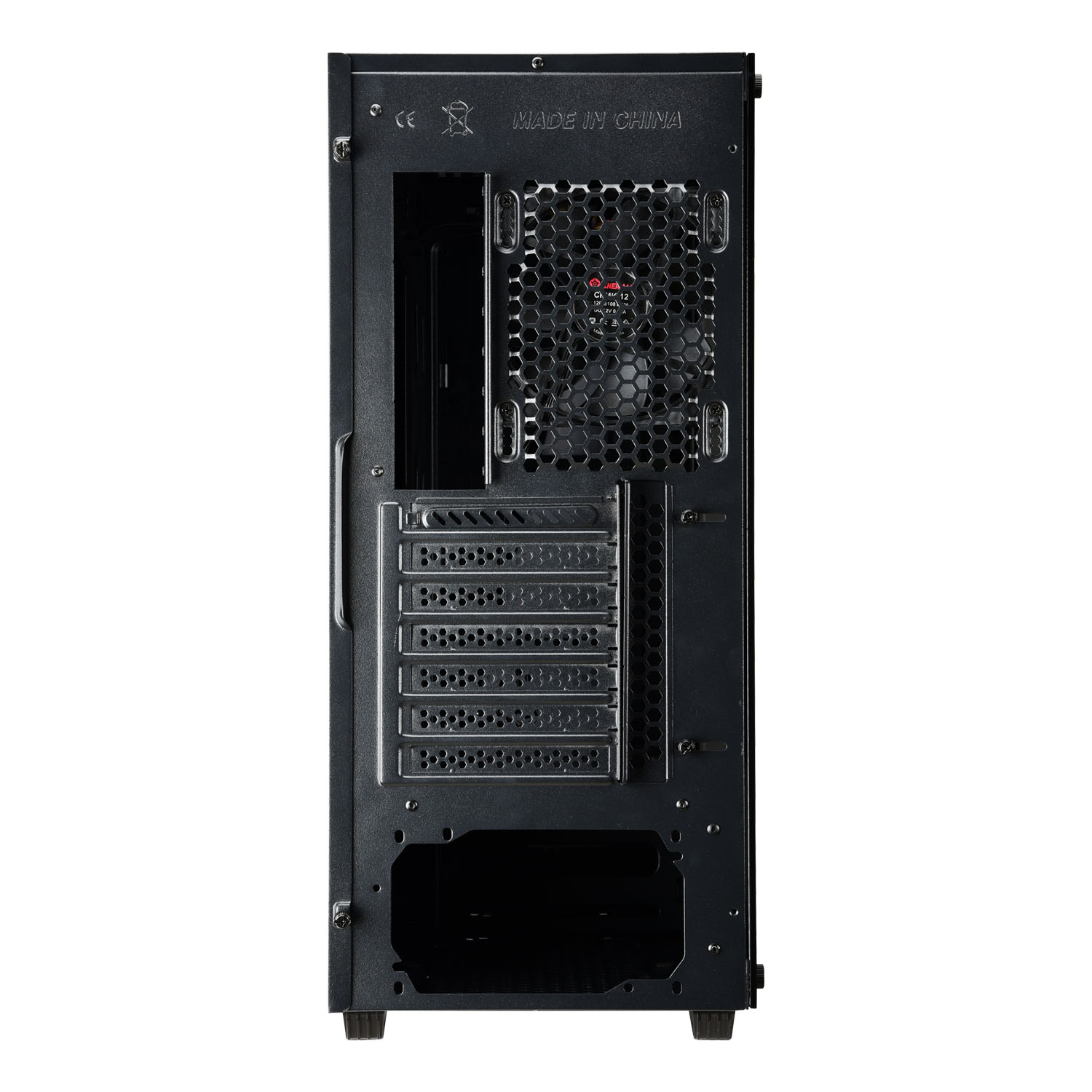

Rear



Advanced ventilation system to support up to 8x fans




Flexible system configuration

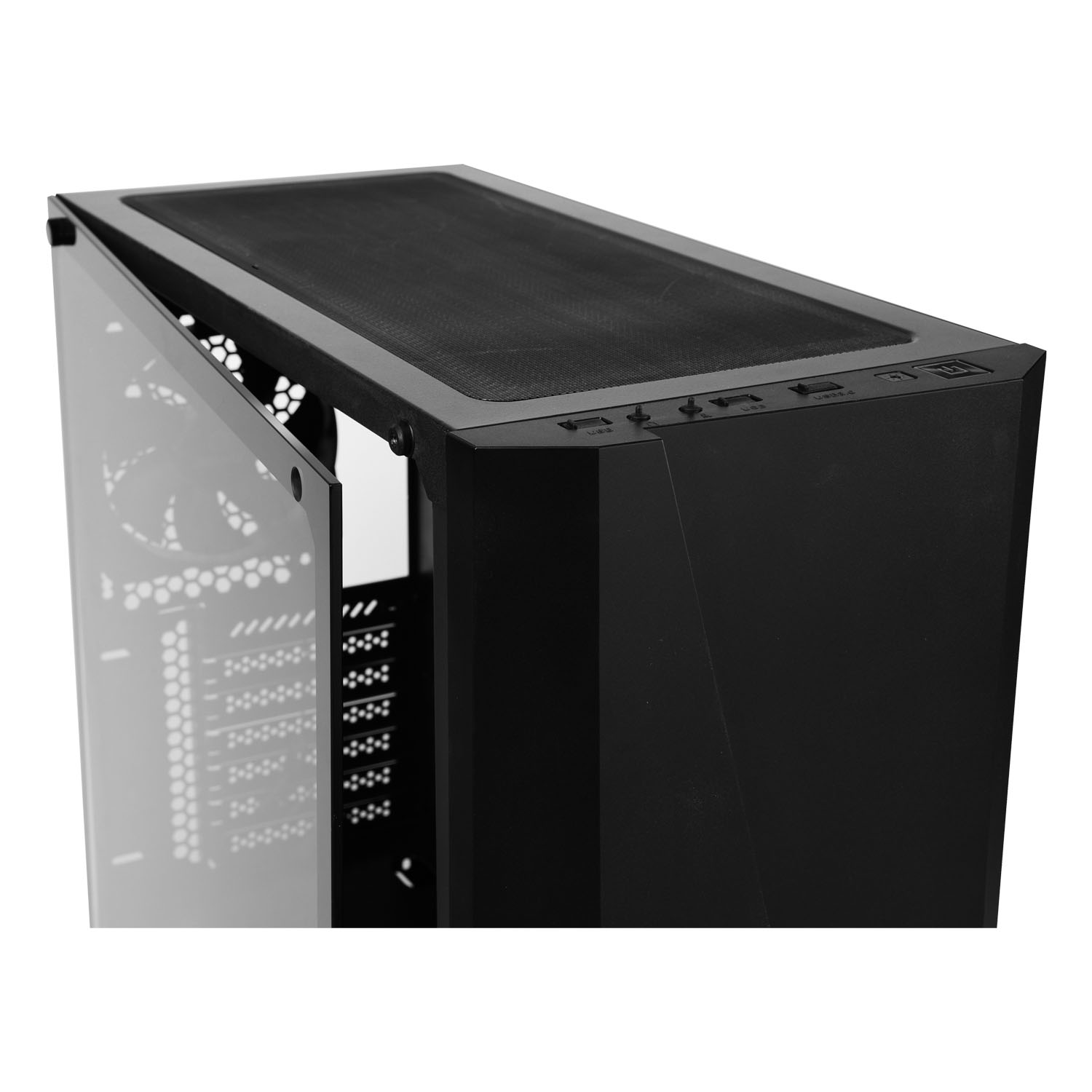

4mm panoramic tempered glass window

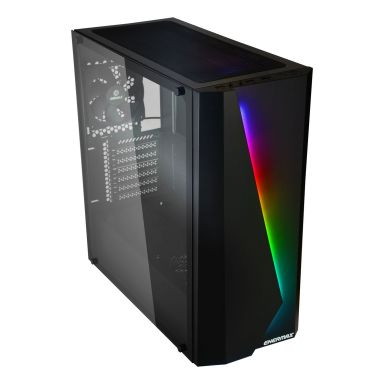

4mm full-view tempered glass side panel allows you to show off your rigs




Anti-dust rubber plugs




PSU-Tunnel design (aka PSU shroud)

The design minimizes the cable clutter, which makes the system clean and neat, and helps improve the air circulation




Dimension

unit:mm




Product Introduction

Model Name ECA-MK50-BB-ARGB
Dimensions (D x W x H) 452 x 212 x 495 mm
Material SPCC, T=0.6mm
M/B Type E-ATX, ATX, Micro ATX, Mini ITX

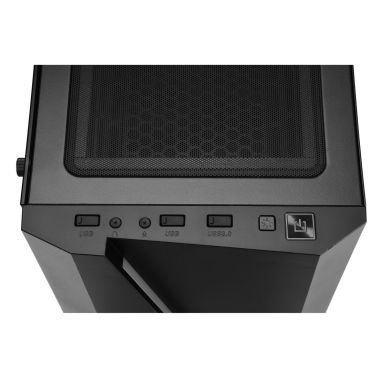

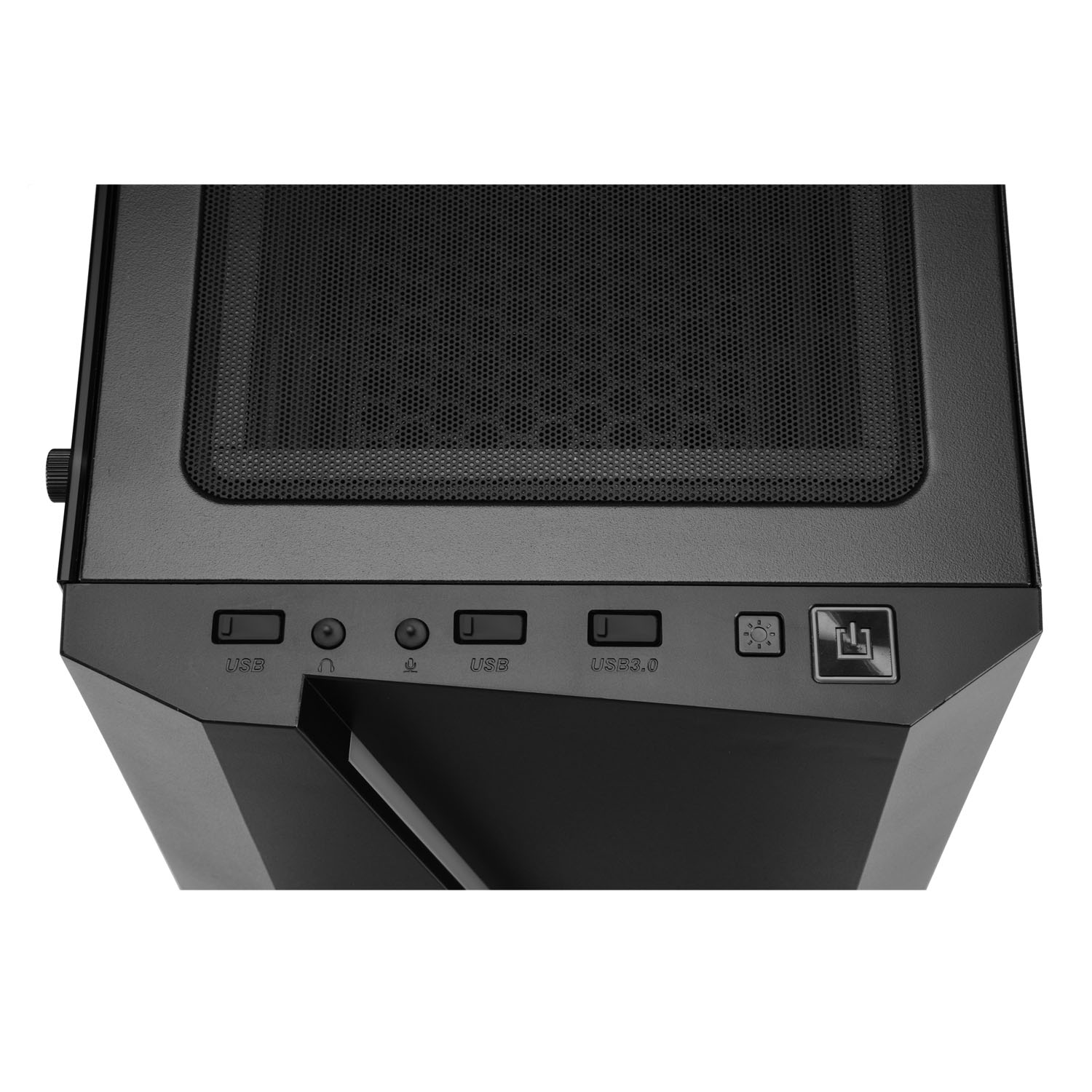

I/O USB3.0 x 1, USB2.0 x 2, HD Audio, Lighting control
3.5'' Drive Bays 2
2.5'' Drive Bays 6 (2 x Converted from 3.5”HDD tray)
Expansion Slots 7
Fan Slots - Front 3 x 120mm
Fan Slots - Top 2 x 140mm or 3 x 120mm
Fan Slots - Rear 1 x 120mm (1 x 120mm fan pre-installed )
Fan Slots - Tunnel 1 x 120mm
Radiator Support - Front 360mm / 240mm
Radiator Support - Top 360mm / 280mm / 240mm
Radiator Support - Rear 120mm
PSU Support 180mm / 200mm (Moving HDD cage forward)
Clearance - VGA card 410mm
Clearance - CPU Cooler 160mm
EAN code 4713157724014
UPC code 819315024010
Carton dimensions (D x W x H), (mm) D535 x W270 x H520mm
Gross Weight (kg) 8kgs
Net Weight (kg) 6.8kgs
