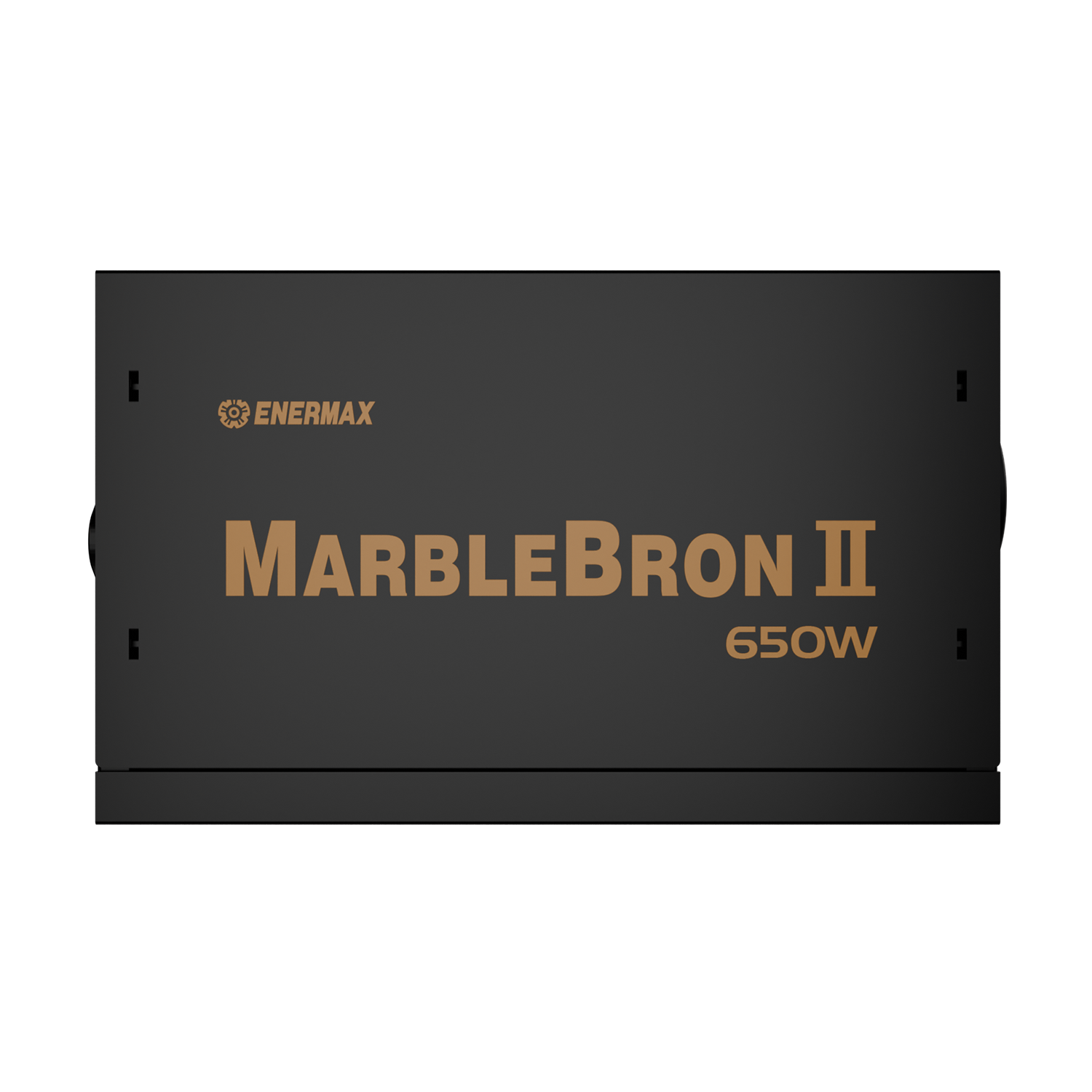

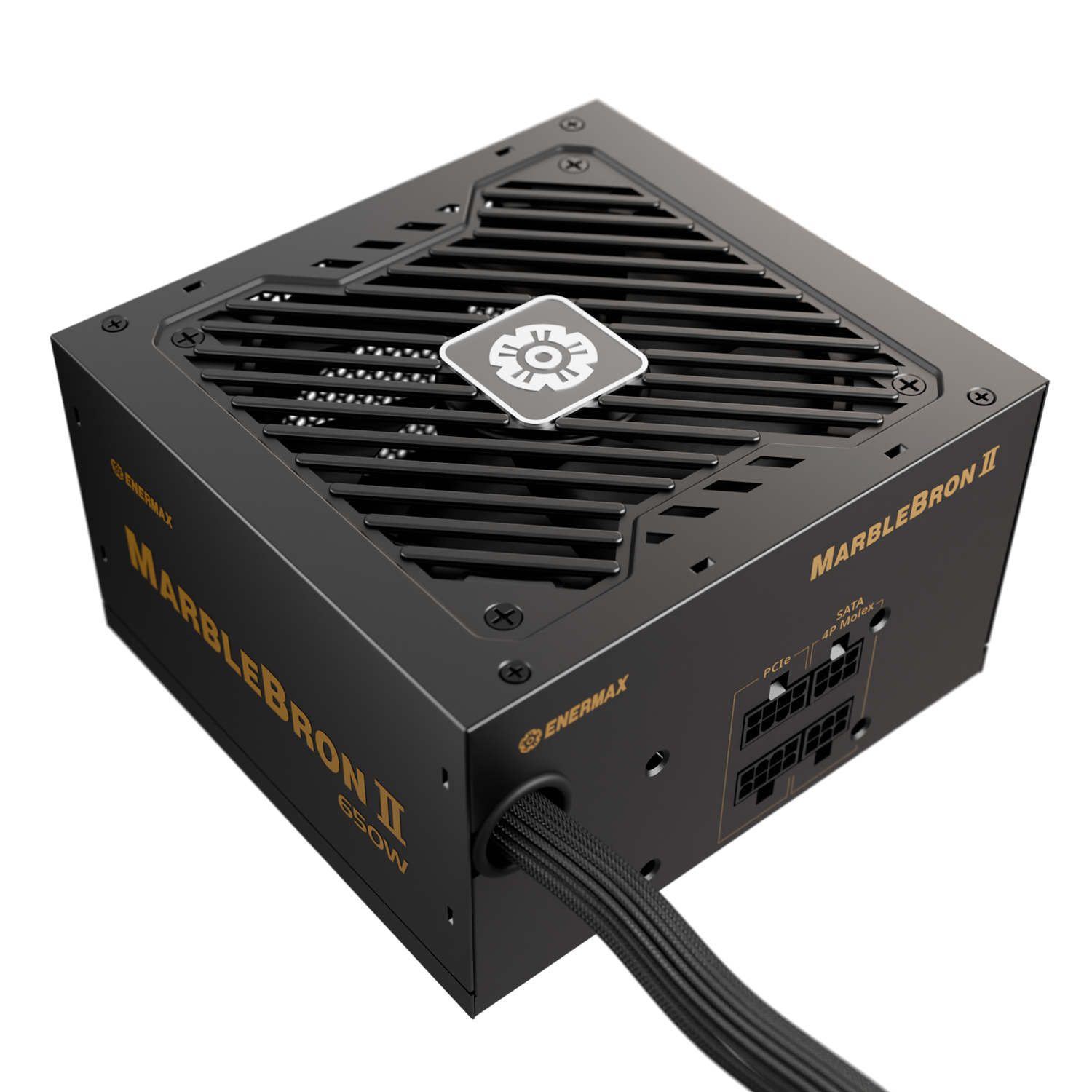

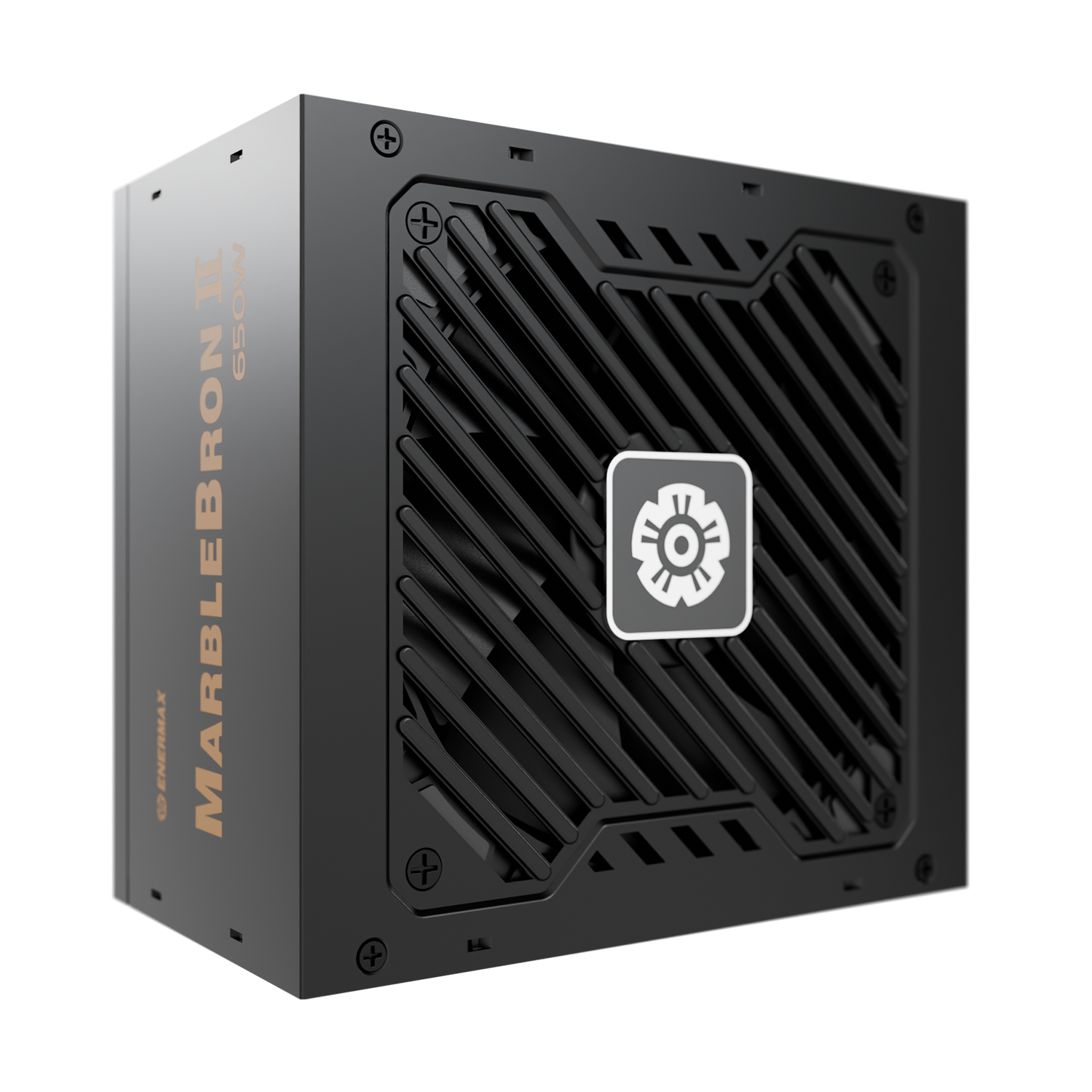

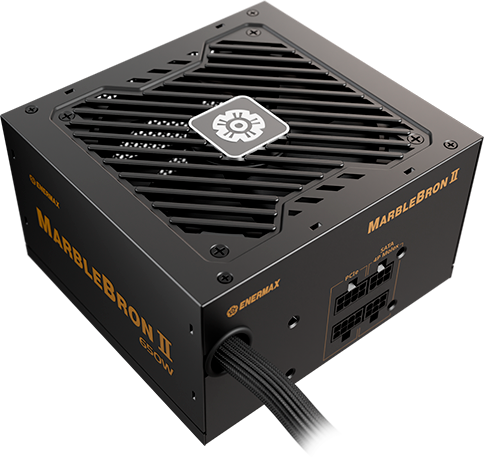

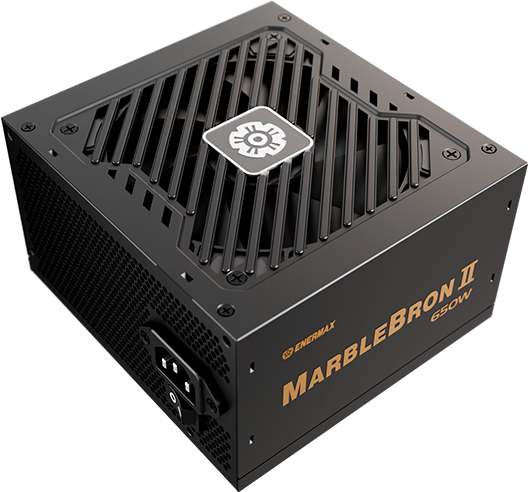

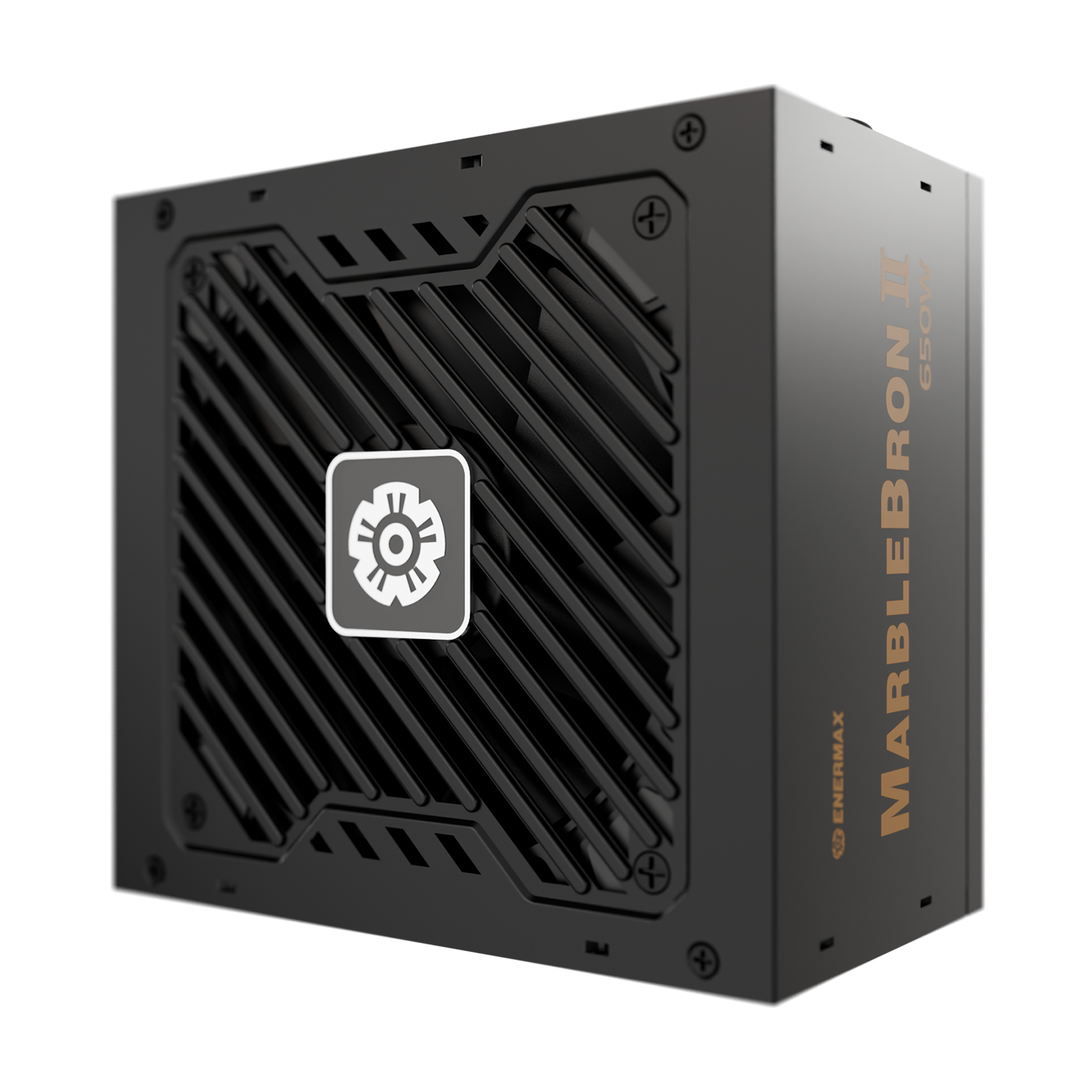

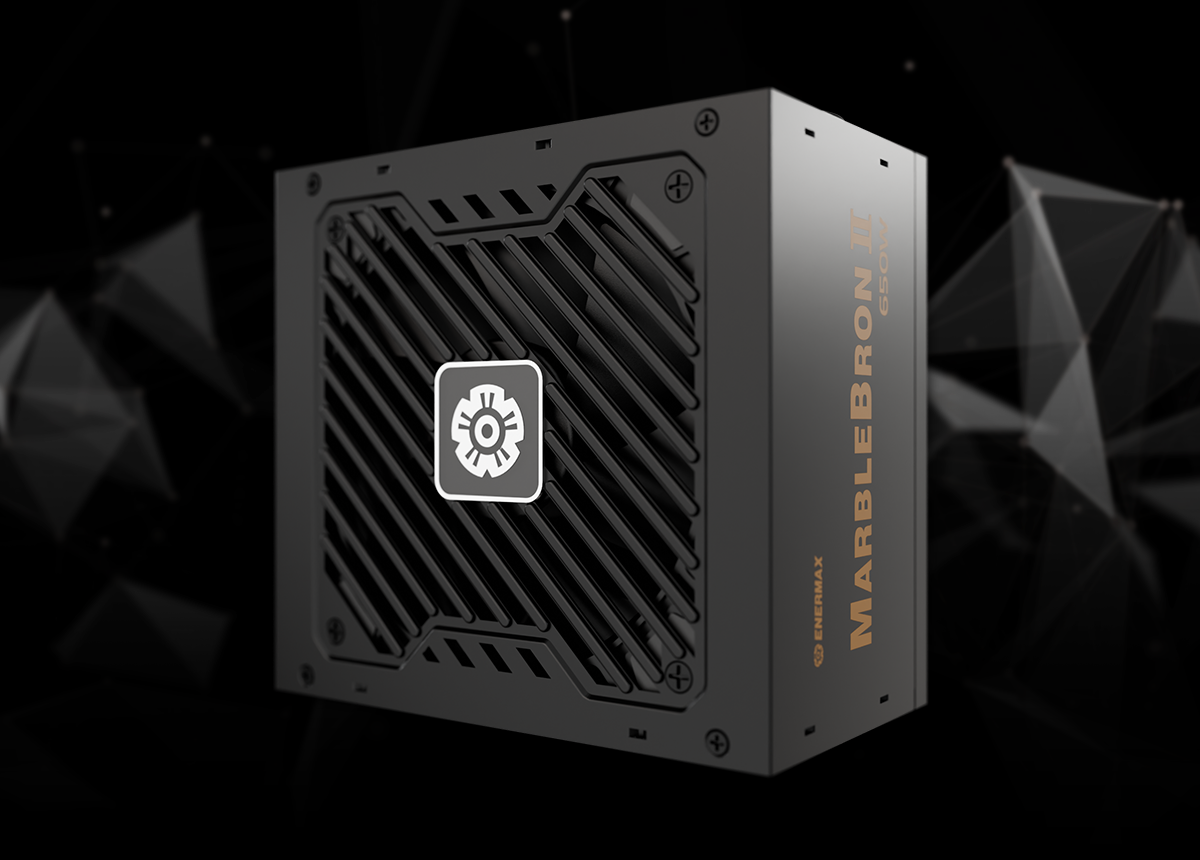

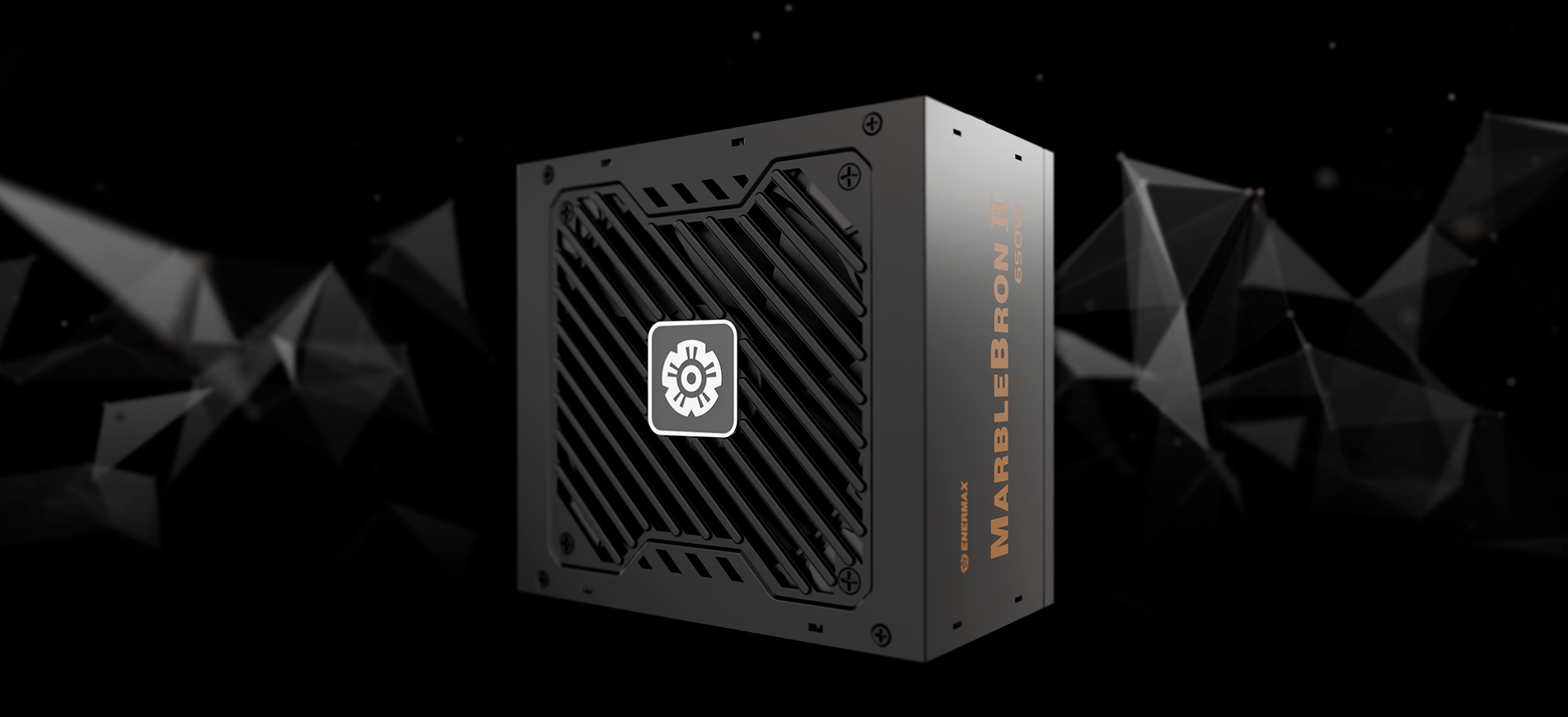

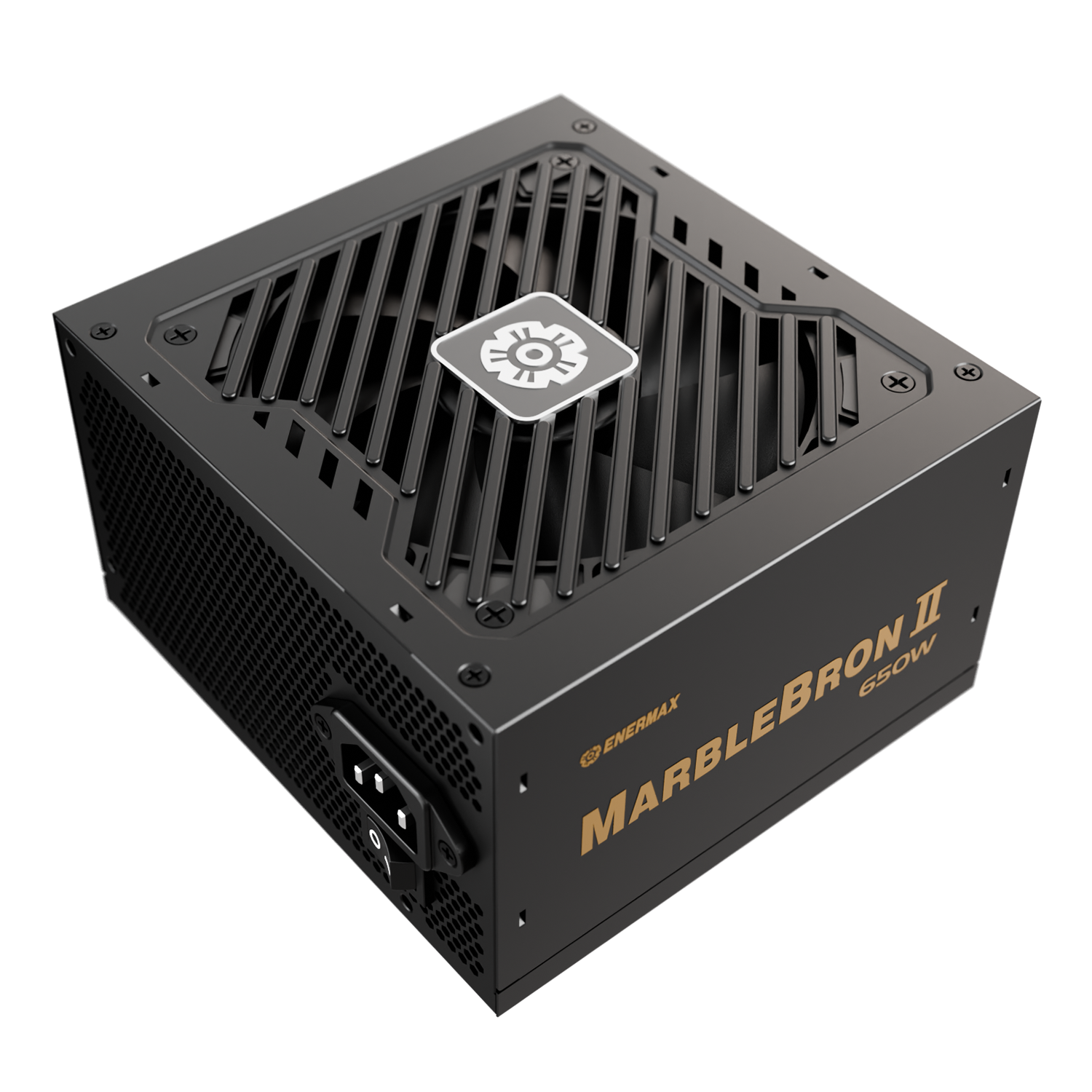

MARBLEBRON II 650 Watt 80 PLUS Bronze Semi-Modular Power Supply

▪ 80 PLUS® Bronze Certified Power Supply
▪ Integrated with ATX 3.1
▪ Japanese Primary Capacitors
▪ DC to DC Circuit
▪ 120mm FDB Fan
▪ Semi-Modular Design

ATX 3.1 SEMI-MODULAR POWER SUPPLY

ENERGY CONSERVATION

80 PLUS^® Bronze certified with 88% efficiency at 50% loading
Better power factor performance with active PFC design

ATX 3.1 READY

MARBLEBRON II series meets the Intel ATX 3.1 standards, reaches 60% low load efficiency and complies with required power supply timing standards.

2X Total Power Excursion

3X GPU Power Excursion

SILENT OPERATION

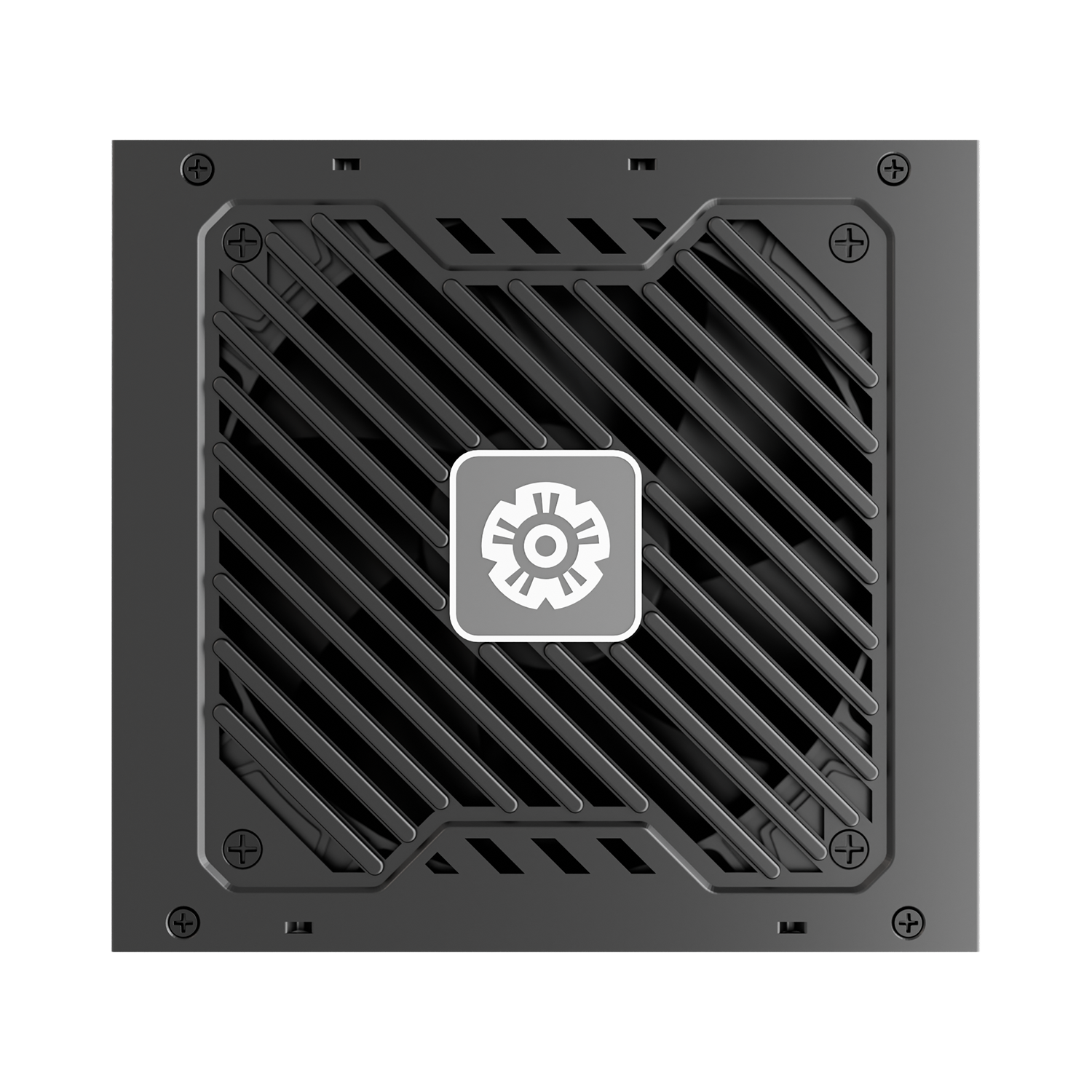

120mm FDB fan provides an ultra-silent user experience

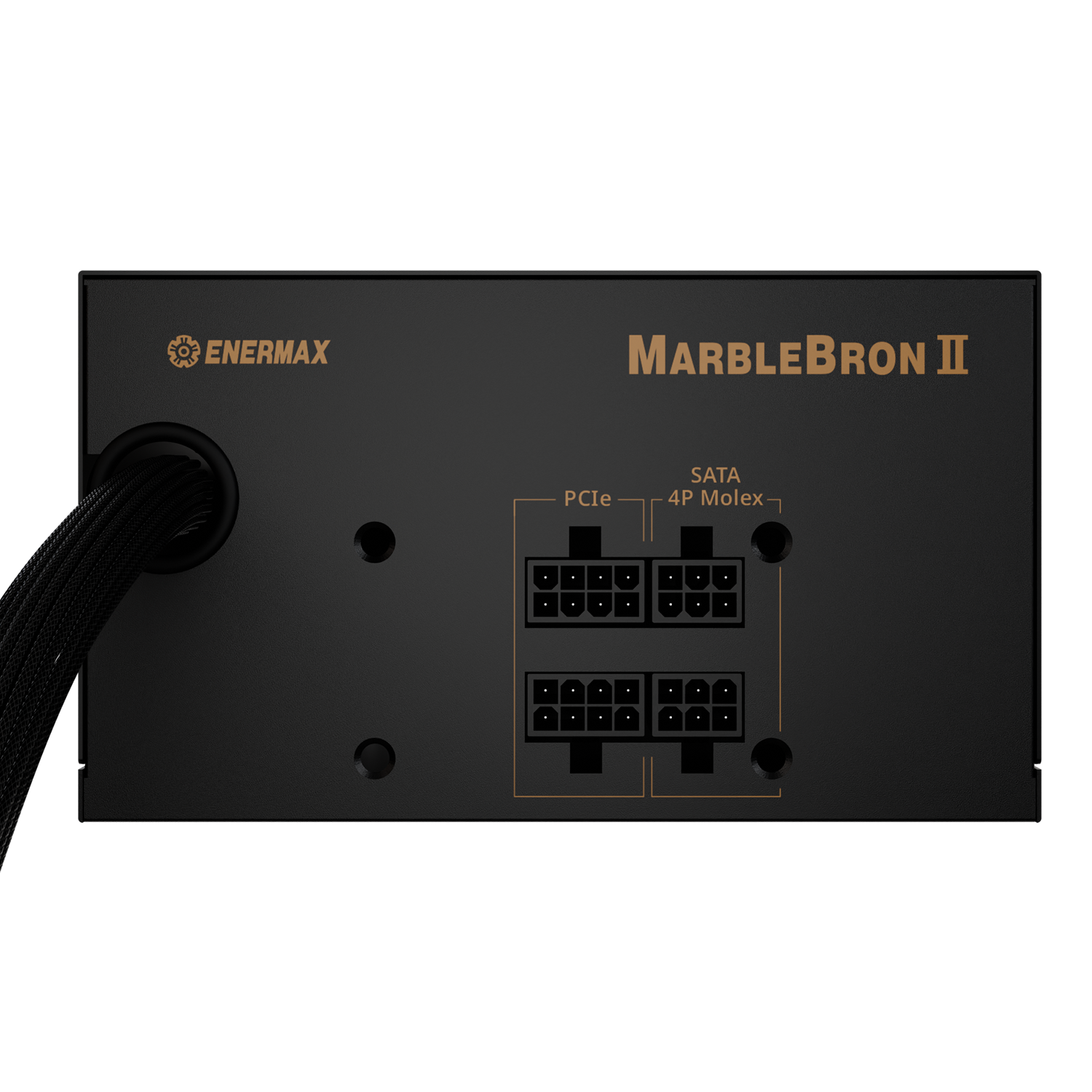

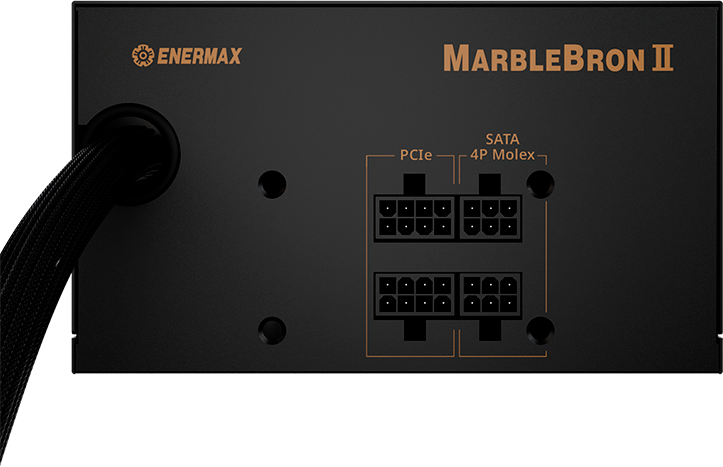

SEMI-MODULAR DESIGN WITH MESH-SLEEVED CABLES

Semi-modular design with flexible, easy-to-assemble cables.

JAPANESE PRIMARY CAPACITORS

High-quality Japanese primary capacitors provide the power supply's durability and ensure the MARBLEBRON II series is stable and reliable.

SINGLE RAIL & DC TO DC DESIGN

Delivers stable DC output and supports high-end graphics cards and processors.

Total Power	650W
AC Input	100-240VAC, 50-60Hz, 10-5A
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
	20A	20A	54A	0.3A	2.5A
	120W		648W	3.6W	12.5W

MARBLEBRON II SINGLE RAIL & DC TO DC DESIGN - 2

INDUSTRIAL SAFETY STANDARDS

Over Current
Protection
Over Voltage
Protection
Under Voltage
Protection
Over Power
Protection
Over Temperature
Protection
Short Circuit
Protection

DIMENSIONS

Unit: mm

Connect Type	Connector Quantity		Cable Quantity	Cable Length
Motherboard 24 (20+4)pin	1		1	55cm
CPU(4+4)Pin + (4+4)Pin	2		1	60+15cm
PCIe (6+2) pin + (6+2) pin	2		1	50+15cm
2 x SATA + 4P Molex	SATA: 4 4P Molex: 2	SATA Molex	2	40+15+15cm

EMB650AWT-MAC
Mainboard 24 Pin	1 [ 55cm ]
CPU(4+4)Pin+(4+4)Pin	2 [ 60+15cm ]
PCIe (6+2)Pin + (6+2)Pin	2 [ 50+15cm ]
SATA + 4P Molex	4 + 2 [ 40+15+15cm ]

Notice:
For users looking to put in high-end, power-demanding GPU card, please correctly connect the 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply. This will prevent motherboard overloading and possibly cause damage to your system, including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration, and any damage to the power supply due to it will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat-type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please note that overloading could cause the connector or wire to melt down and void the warranty.

General Data

80 PLUS Efficiency	BRONZE
Modular	Semi-modular
Cable type	Individual mesh-sleeved cables
Total power (W)	650
Input Voltage (V)	100-240
Input Current (A)	10-5
Input Frequency (Hz)	50-60
Fan size (mm)	120
Operating temperature (°C)	40
MTBF (hours)	>100K
Protection	OVP, UVP, OPP, OTP, SCP, OCP
Dimension (D x W x H), (mm)	140 x 150 x 86

Output

+3.3V(A)	20
+5V(A)	20
+12V1(A)	54
-12V(A)	0.3
+5Vsb(A)	2.5
Combined Wattage 12V (W)	648
Combined Wattage 3.3V + 5V(W)	120

Shipping Information

EAN code	4713157729187
UPC code	819315029183
