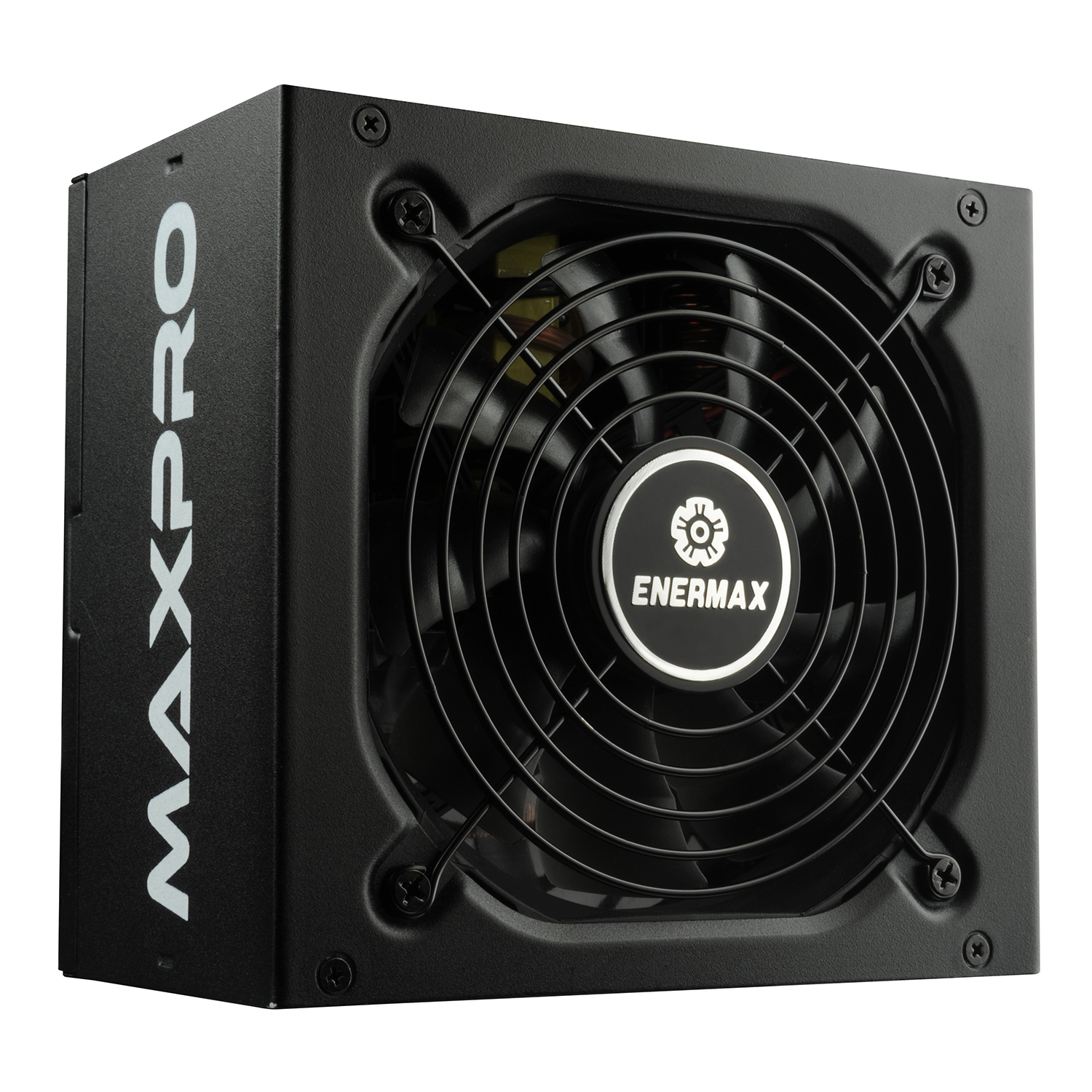

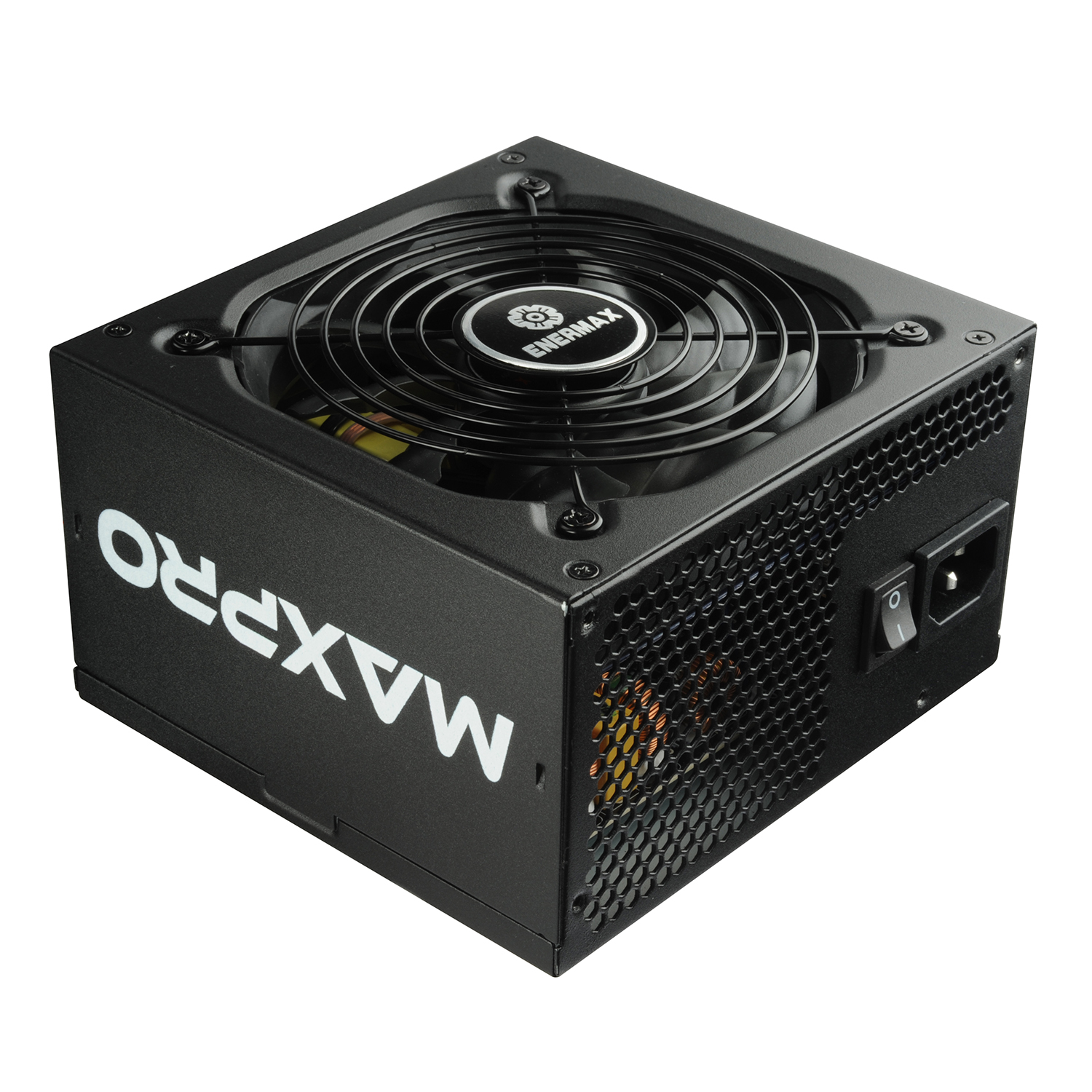

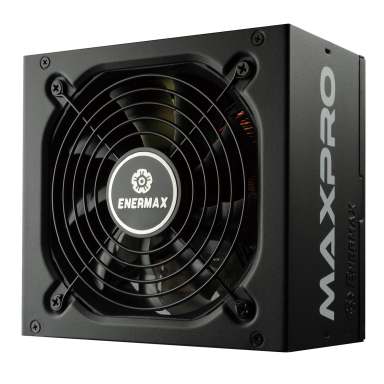

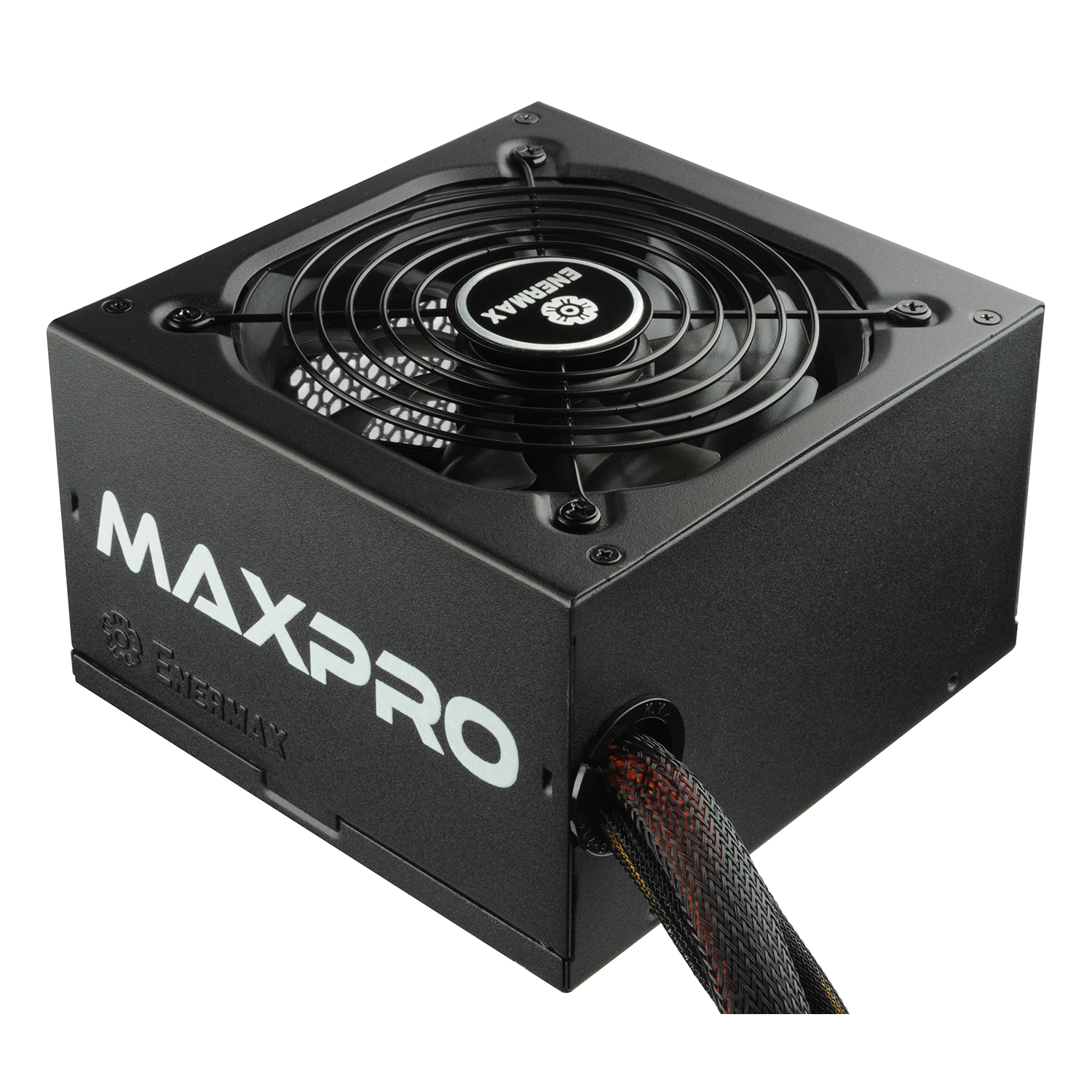

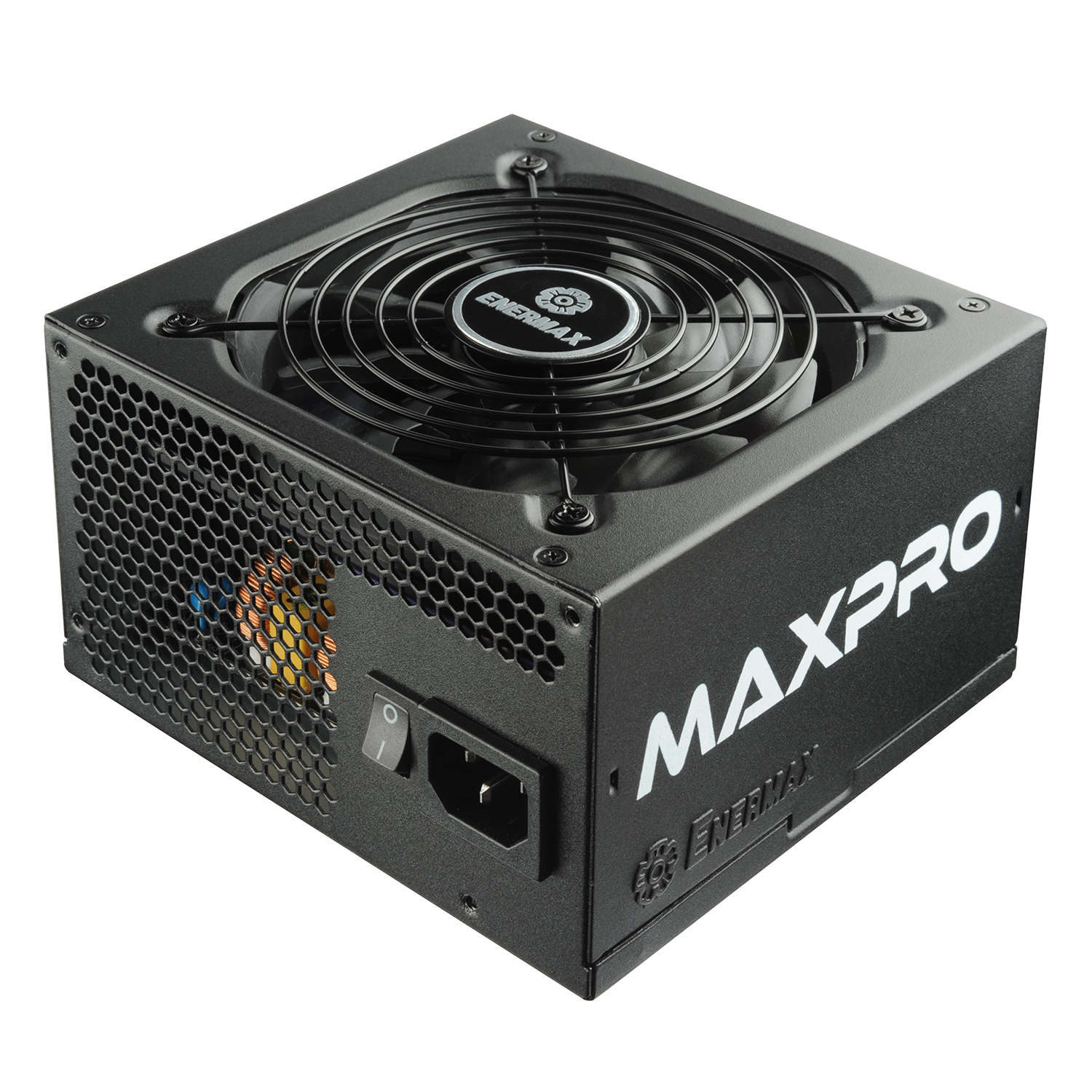

MAXPRO 700W

Features

  • > 87% efficiency
    Achieve >87% efficiency @ 50% load under 230Vac. Compliant with 80 PLUS 230V EU Standard efficiency requirements.
  • 2013 ErP Lot 6 ready!
    Help system meet 2013 ErP Lot 6 (<0.5W at standby mode) with high efficiency 5Vsb circuitry (With 2013 ErP Lot 6 enabled motherboard).
  • 2014 ErP Lot 3
    Best value 80 PLUS PSU helps your system to surpass 2014 ErP Lot 3 requirements.
  • Twister bearing fan
    Twister bearing fan with batwing blades provides low noise and long lifetime performance (160,000 hours MTBF, Patented)
  • AirGuard
    Patented air-inlet with optimal aero-dynamical design reduces noisy air turbulences.
  • HeatGuard
    Keep PSU fan running for 30-60 seconds after shutdown to dissipate the remaining system heat and prolong system lifetime.
  • 105°C Japanese main electrolytic capacitors
    Highest component standards for maximum durability and stability.
  • 24/7 @ 40°C ready!
    Non-Stop industrial class performance at 40°C/104°F ambient.
  • SafeGuard
    Industry-leading protection circuitry of OCP, OVP, OPP and SCP.



> 87% efficiency

Achieve > 87% efficiency @ 50% load under 230Vac.Compliant with 80 PLUS 230V EU Standard efficiency requirements.




Twister Bearing Fan

Twister bearing fan with batwing blades provides low noise and long lifetime performance

  1. Minimal contact area for effective noise reduction
  2. Rotor with integrated magnet for frictionless and smooth motion
  3. Self-lubricating bearing material abrasion protection for longer lifetime



Silent Performance




105°C Japanese main electrolytic capacitor

105°C Japanese main electrolytic capacitor Highest component standards for maximum durability and stability




2013 ErP Lot 6 ready!

Help system meet 2013 ErP Lot 6 (< 0.5W at standby mode) with high efficiency 5Vsb circuitry (With ErP Lot 6 enabled motherboard)




HeatGuard

Keep PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolong system lifetime



EMP700AGT
Mainboard 24 Pin 1
[ 1x 50cm ]
CPU 4+4 Pin 1
[ 1x 60cm ]
PCI-E 6+2 Pin (8 Pin) 2
[ 2x 45cm ]
SATA 9
[ 3x 45/15/15cm ]
4x4 Pin Molex + FDD 4+1
[ 1x 45/ 15/ 15/ 15/15cm ]

Notice:
Your Enermax power supply is designed for enthusiast and high demand graphic professional that is looking at working with system that requires multiple GPU. However, configuring multi-GPU system requires proper planning to make sure you are not driving all currents through the same cable source that might overload both your motherboard and your power supply. Driving your GPUs on separate 12V rail is a good practice that most tech savvy user already aware of. Do you realize that your motherboard might be pulling too much current from your 24Pin power source and cause system damage?

For those elite user that is looking to put in 2 or more high end, power demanding GPU card, please choose the motherboard that comes with extra 4P Molex/ 4P FDD / 6P PCI-E power socket on board and connect them with your Enermax power supply. This will prevent motherboard overloading and possibly cause damage to your system including your Enermax power supply. Once this occur, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under Enermax manufacturer¡¦s warranty. Please refer to your motherboard¡¦s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply.

Info for DC connector’s rated current:The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

Model EMP700AGT
Efficiency STANDARD
Modular Native
Cable type Black sleeve
Total power (W) 700
Input Voltage (V) 200-240
Input Current (A) 4
Input Frequency (Hz) 47-63
Fan size (mm) 120
Operating temperature (°C) 40
MTBF (hours) > 100k
Protection OCP, OVP, OPP, SCP, SIP
Dimension (D x W x H), (mm) 140 x 150 x 86
+3.3V(A) 22
+5V(A) 22
+12V1(A) 54
-12V(A) 0.3
+5Vsb(A) 2.5
Combined Wattage 12V (W) 648
Combined Wattage 3.3V + 5V(W) 130
