MAXPRO II 700 Watt 80 PLUS®230V EU White Non-Modular Power Supply

‧ 80 PLUS®230V EU White Certified
‧ ENERMAX high pressure fan
‧ SAC(Smart Airflow Control) to deliver operation
‧ Main Japanese electrolytic capacitors

230V 80 PLUS® White Certified

Achieves up to 87% efficiency @ 50% load under 230Vac. Compliant with 80 PLUS® 230V EU Standard efficiency requirements




Main Japanese electrolytic capacitors

The use of high quality Japanese capacitors ensure a maximum durability and stability

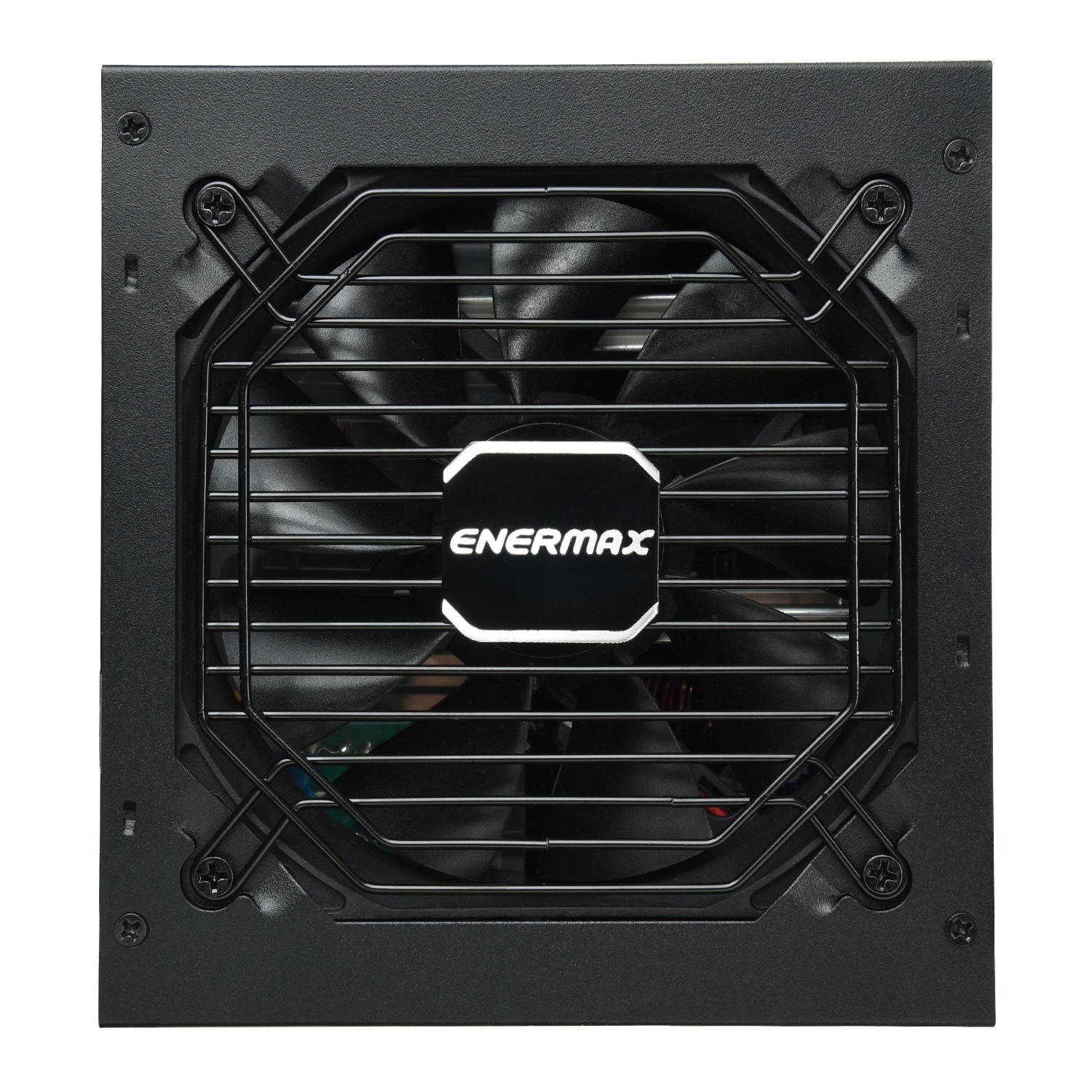

ENERMAX high pressure fan

The innovative 120mm high pressure fan generates a compressed airstream in order to cool down critical PSU components more rapidly.




SAC (Smart Airflow Control) design

The SAC design keeps the PSU fan spinning at almost inaudible 14dB(A), up to a system load of 40%, to provide a silent operation




100% flexible flat cables

The black flat cable design allows easy installation and clean cable management. Furthermore it helps to improve the airflow




2014 & 2013 ErP ready!

<0.5W power consumption at standby mode (with 2013 ErP Lot 6 enabled motherboard). Compliant with 2013 ErP Lot 6 & 2014 ErP Lot 3 standards




24/7 @ 40°C ready!

Non-Stop industrial class performance at 40°C/104°F ambient temperature




SafeGuard

The multiple protection circuitry protects your system with OVP, UVP, OPP, SCP and SIP




Product Introduction

EMP700AGT-C
Mainboard 24 Pin 1
[ 1 x 50cm ]
CPU 4+4 Pin 1
[ 1 x 60cm ]
PCI-E 6+2 Pin (8 Pin) 4
[ 2 x 45/15cm ]
2 x SATA + 2 x 4 Pin Molex 2 + 2
[ 1 x 35/15/15/15cm ]
2 x SATA + 1 x 4 Pin Molex 2 + 1
[ 1 x 45/15/15cm ]
SATA 2
[ 1 x 35/15cm ]

Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

Model EMP600AGT-C
Efficiency STANDARD
Modular Native
Cable type Black flat
Total power (W) 700
Input Voltage (V) 200-240
Input Current (A) 5
Input Frequency (Hz) 47-63
Fan size (mm) 120
Operating temperature (°C) 40
MTBF (hours) > 100k
Protection OVP, UVP, OPP, SCP, SIP
Dimension (D x W x H), (mm) 140 x 150 x 86
+3.3V(A) 20
+5V(A) 20
+12V1(A) 55
-12V(A) 0.3
+5Vsb(A) 2.5
Combined Wattage 12V (W) 660
Combined Wattage 3.3V + 5V(W) 130
EAN code 4713157724465
UPC code 819315024461
Box dimensions (D x W x H), (mm) 233 x 196 x 95
Gross Weight / unit (kg) 1.96
