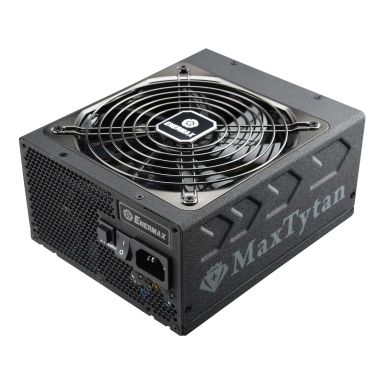

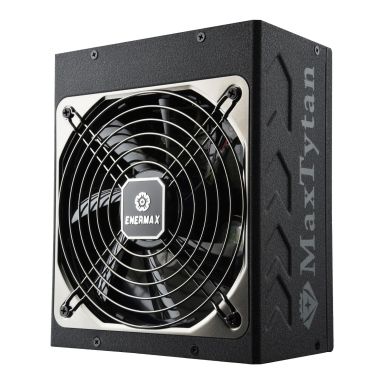

MaxTytan 800 Watt 80 PLUS Titanium Fully Modular Power Supply

‧ 80 PLUS® Titanium with over 94% efficiency
‧ D.F. switch for users to activate DFRTM tech.
anytime during operation
‧ Fanless mode before 55% of system load for
silent operation

COMPARE Compare List (0)

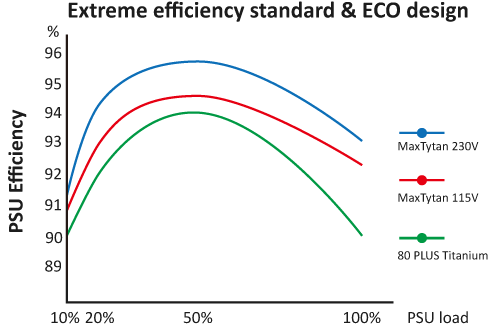

80 PLUS® Titanium certified

Meet 80 PLUS® Titanium standard with 90-94% superb efficiency @ 10-100% load


Dust Free Rotation Tech. (patented)

Dust Free Rotation technology enables the fan to instantly blow away the dust to prolong the lifespan

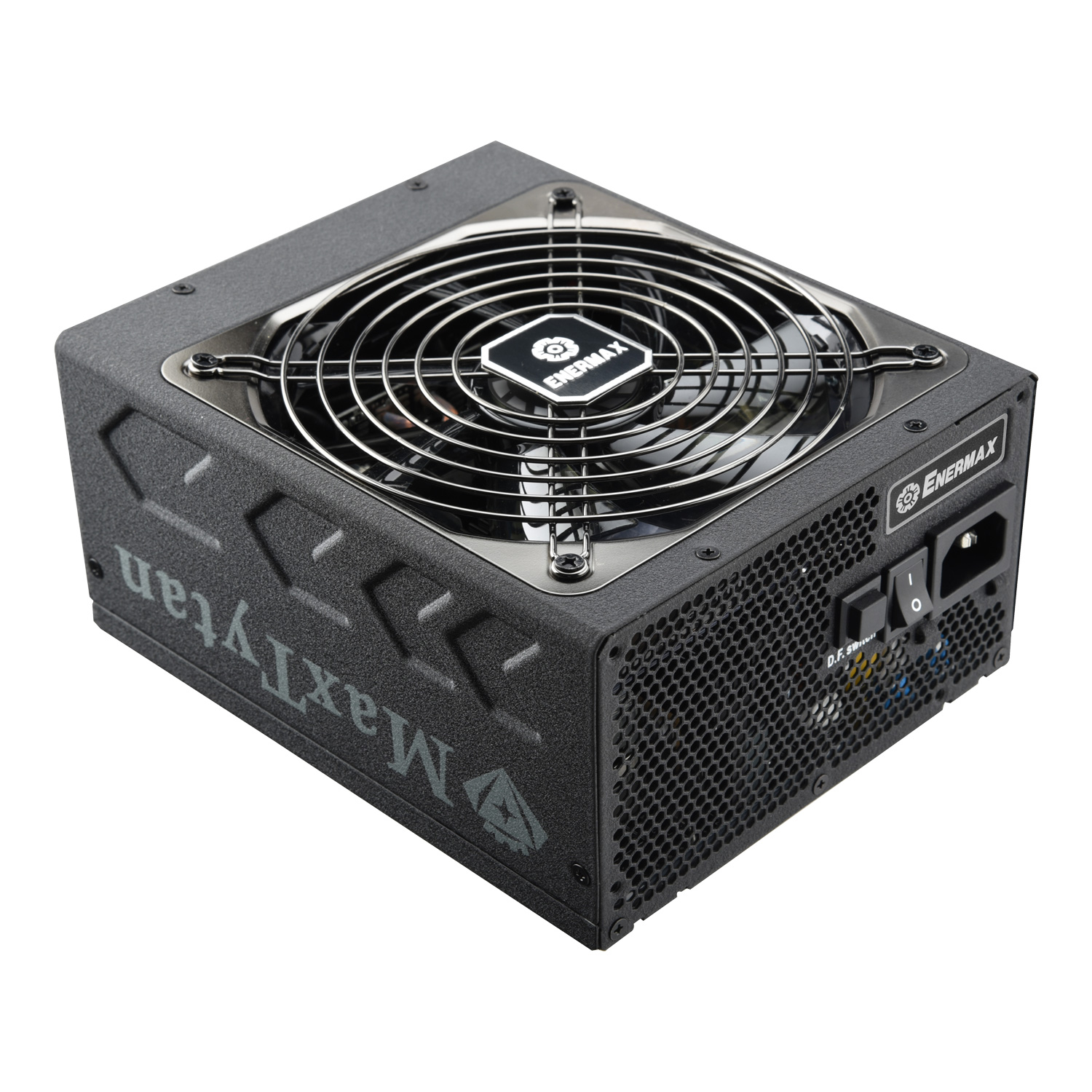

D.F. switch

The design enables users to activate DFR self-cleaning tech. at any time during operation

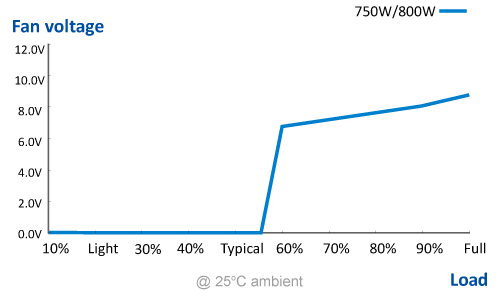

Smart semi-fanless control

Fanless mode before 55% of system load for silent operation. Once surpassing the pre-defined limit, the fan starts to spin and the fan RPM is automatically regulated according to the system load

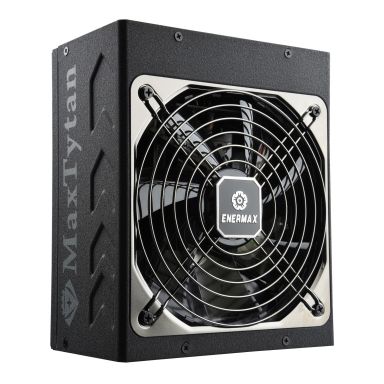

Twister Bearing fan (patented)

13.9cm fan with patented Twister Bearing Technology ensures ultra silent cooling and long lifetime of fan (160,000 hours MTBF)



All stylish individual sleeved cables, made with carefully selected fabric to achieve a smooth, soft texture

*MB / CPU / PCI-E=16AWG (53 strands*0.176mm) *SATA / 4P Molex=18AWG (34 strands*0.176mm)

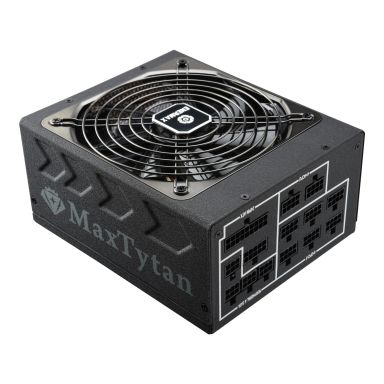

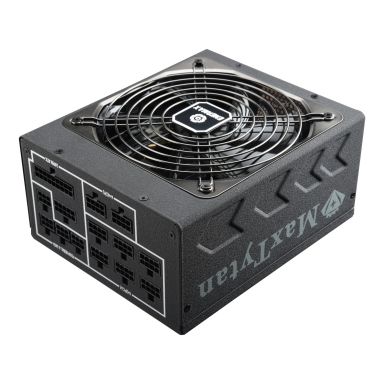

Full modular design

Full modular cable design facilitates flexible system installation and cable management


100% 105°C Japanese electrolytic capacitors

Highest component standards for maximum durability and stability


Zero load ready!

DC to DC converter circuit ensures stable output voltage and delivers higher efficiency


2014 & 2013 ErP ready!

<0.5W power consumption at standby mode (with 2013 ErP Lot 6 enabled motherboard). Compliant with 2013 ErP Lot 6 & 2014 ErP Lot 3 standards


World ready

100-240VAC auto-adjustment input for universal use. Active PFC with PF value up to 0.99, reducing the reactive power loss to the minimum



Multiple protection circuitry of OCP, OVP, UVP, OPP, OTP, SCP and SIP protects your system


Fully continuous output @ 50°C

Industrial class performance at 50°C ambient


Product Introduction

Dust Free Rotation (DFR) Tech Introduction

Mainboard 24 Pin 1
[ 1 x 60cm ]
CPU 4+4 Pin 1
[ 1 x 60cm ]
CPU 8 Pin 1
[ 1 x 60cm ]
2 x PCI-E 6+2 Pin (8 Pin) 6
[ 3 x 60cm ]
[ 3 x 50/15/15/15cm ]
4 Pin Molex 4
[ 1 x 50/15/15/15cm ]
[ 1 x 10cm ]

For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

80 PLUS Efficiency TITANIUM
Modular Full modular
Cable type SLEEMAX (Individual sleeved)
Total power (W) 800
Input Voltage (V) 100-240, Active PFC
Input Current (A) 12-6
Input Frequency (Hz) 47-63
Fan size (mm) 140
Operating temperature (°C) 50
MTBF (hours) >100K
Protection OCP, OVP, UVP, OPP, OTP, SCP, SIP
Dimension (D x W x H), (mm) 180 x 150 x 86
+3.3V(A) 20
+5V(A) 20
+12V1(A) 66.5
-12V(A) 0.3
+5Vsb(A) 3
Combined Wattage 12V (W) 798
Combined Wattage 3.3V + 5V(W) 100
EAN code 4713157722737
UPC code 816163008957
Box dimensions (D x W x H), (mm) 351 x 264 x 159
Gross Weight / unit (kg) 4.5
  • - MaxTytan 800
