NAXN 500W (Tomahawk II)

Features

  • ErP Lot 6 (EuP) 2010 ready!
    Help system to meet ErP Lot 6 2010 (<1W at standby mode) with high efficiency 5Vsb circuitry
  • AirGuard
    Patented air-inlet with optimal aero-dynamical design reduces noisy air turbulences.
  • MULTI ready
    Ready for next-gen MULTI CORE systems as INTEL® Core™ 2 Duo/Quad/Extreme/i7/i5 and AMD® Athlon™ 64X2, Phenom™ II.
  • SILENT ready!
    Ultra silent 12cm fan with intelligent RPM control guarantees cool performance and silent operation.
  • 24/7 ready!
    High-Quality components and dual 12V rails design enable non-stop usage with stable and reliable current.
  • Active PFC inside (ENP350/400/450/500AGT, ENP550AWT only)
    Active Power Factor correction improves PF value up to 0.99 and minimizes reactive power waste.

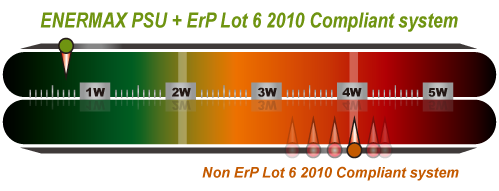

ErP Lot 6 (EuP) 2010 ready!

Help system to meet ErP Lot 6 2010 (<1W at standby mode) with high efficiency 5Vsb circuitry

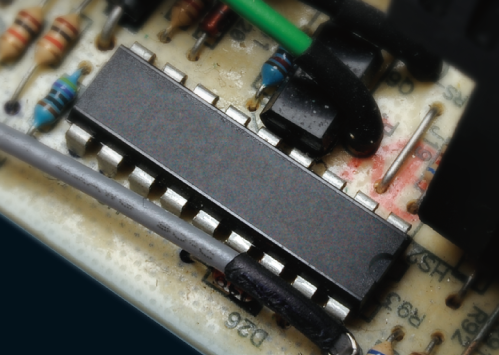

Advanced +5Vsb circuitry with up to 20% improved efficiency in comparison to generic designs helps your system meet ErP Lot 6 2010 (AC!a1W at standby) requirement.

*With ErP Lot 6 enabled motherboard.




SafeGuard

Industry-leading octuple protection circuitry of OVP, UVP, OPP, OTP, SCP & SIP.

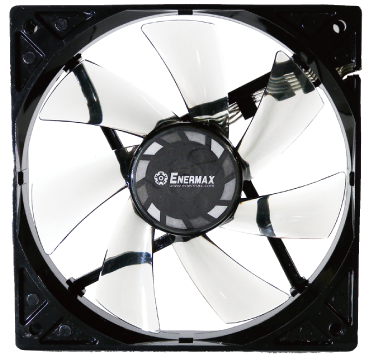

SILENT ready

Ultra silent 12cm fan with intelligent RPM control guarantees cool performance and silent operation.

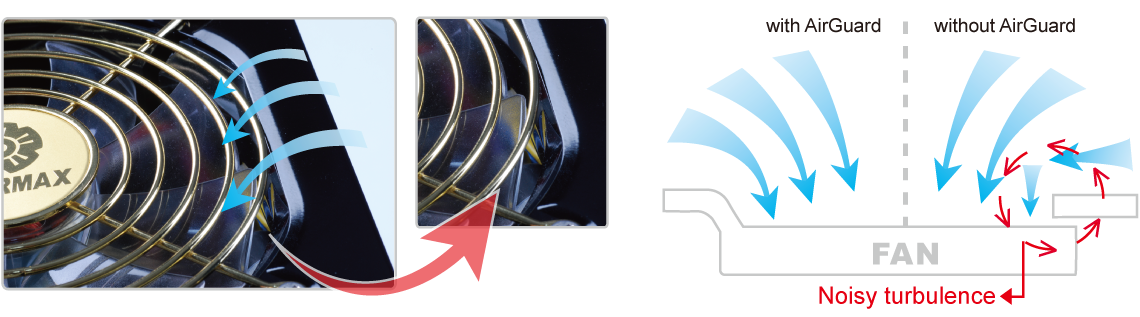

AirGuard

Patented air-inlet with optimal aero-dynamical design reducing noisy air turbulences.



ENP500AST
Mainboard 24 Pin 1
[ 1x 50cm ]
CPU 4+4 Pin 1
[ 1x 60cm ]
PCI-E 6+2 Pin (8 Pin) 1
[ 1x 50cm ]
PCI-E 6 Pin 1
[ 1x 50cm ]
2xSATA + 1x4 Pin Molex 2 + 1
[ 1x 45/15/15cm ]
3xSATA + 1x4 Pin Molex 3 + 1
[ 1x 45/15/15/15 cm ]
2x4 Pin Molex + FDD 2 + 1
[ 1x 45/15/15cm ]
2x4 Pin Molex + FDD 2 + 1
[ 1x 45/15/15cm ]

Notice:
Your Enermax power supply is designed for enthusiast and high demand graphic professional that is looking at working with system that requires multiple GPU. However, configuring multi-GPU system requires proper planning to make sure you are not driving all currents through the same cable source that might overload both your motherboard and your power supply. Driving your GPUs on separate 12V rail is a good practice that most tech savvy user already aware of. Do you realize that your motherboard might be pulling too much current from your 24Pin power source and cause system damage?

For those elite user that is looking to put in 2 or more high end, power demanding GPU card, please choose the motherboard that comes with extra 4P Molex/ 4P FDD / 6P PCI-E power socket on board and connect them with your Enermax power supply. This will prevent motherboard overloading and possibly cause damage to your system including your Enermax power supply. Once this occur, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under Enermax manufacturer¡¦s warranty. Please refer to your motherboard¡¦s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply.

Info for DC connector’s rated current:The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.
