Name: NAXN ADV 450W
Brand: ENERMAX Technology Corporation
SKU: ETL450AWT
Price: 10.00 TWD
Availability: InStock
Rating: 5 (1 reviews)

Features

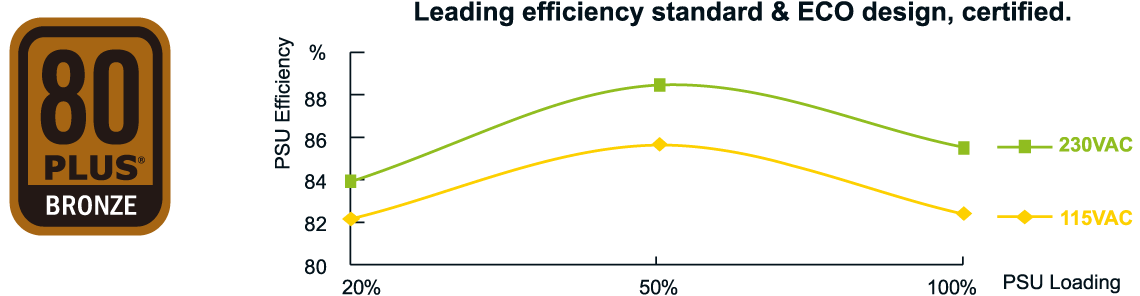

82PLUS ready!
82-88% efficiency @ 20-100% load. Compliant with 80PLUS BRONZE efficiency requirements.
ErP Lot 6 2013 ready!
Help system to meet ErP Lot 6 2013 (<0.5W at standby mode) with high efficiency +5Vsb circuitry*.
*With ErP Lot 6 2013 enabled motherboard.

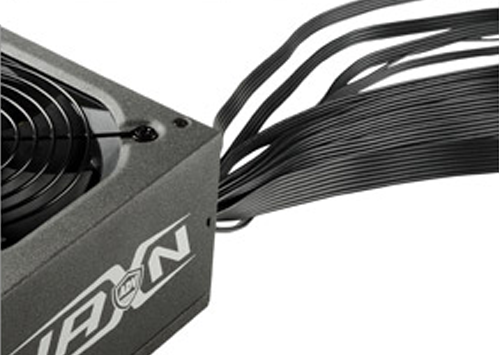

100% flexible flat cable design
Facilitate system installation, reduce cable clutter, and enhance internal airflow and cooling performance.

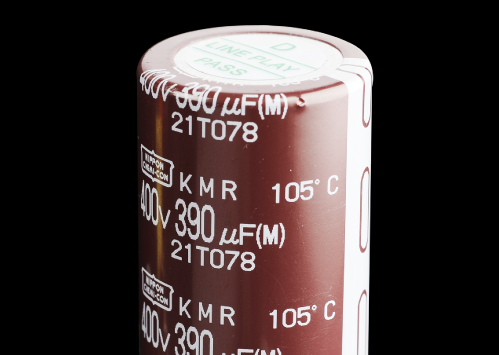

Japanese brand main electrolytic capacitor
Highest component standards for maximum durability and stability.

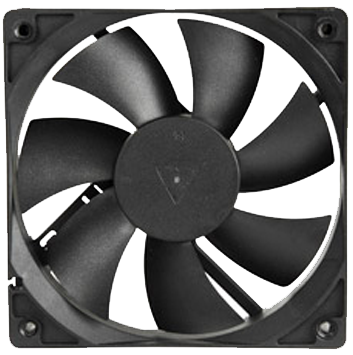

Durable two ball bearing fan
Durable two ball bearing fan with advanced fan speed control for optimal cooling, minimum noise, and longer lifetime.

24/7 @ 40°C ready!
Non-Stop industrial class performance at 40°C/104°F ambient.
WORLD ready!
100-240VAC in with automatic adjustment and active PFC for global usage.
SafeGuard
Multiple protection circuitry of OVP, UVP, OPP, SCP, and SIP protect your system.
SpeedGuard
Advanced fan speed control for optimal cooling and minimum noise.

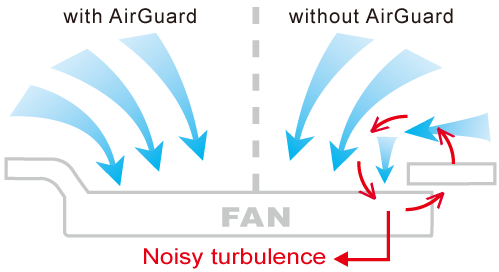

AirGuard
Patented air-inlet with optimal aero-dynamical design reduces noisy air turbulences.
CordGuard
Fixing the AC cord tightly to avoid accidental shutdowns of your PC.

82PLUS ready!

CordGuard

Fixing the AC cord tightly to avoid accidental shutdowns of your PC.

ErP Lot 6 2013 ready!

ErP Lot 6 2013 ready! Advanced +5Vsb circuitry with up to 20% improved efficiency in comparison to generic designs helps your system meet ErP Lot 6 2013 ( AC < 0.5W at standby) requirement.

*With ErP Lot 6 2013 enabled motherboard.

100% flexible flat cable design

Facilitate system installation, reduce cable clutter, and enhance internal airflow and cooling performance.

Japanese brand main electrolytic capacitor

Highest component standards for maximum durability and stability.

AirGuard

Optimal aero-dynamical design reducing noisy air turbulences.

Durable two ball bearing fan

Durable two ball bearing fan with advanced fan speed control for optimal cooling, minimum noise, and longer lifetime

Product Introduction

ETL450AWT
Mainboard 24 Pin	1 [ 1x 55cm ]
CPU 4+4 Pin	1 [ 1x 60cm ]
2xPCI-E 6+2 Pin (8 Pin)	2 [ 1x 50cm ]
SATA	7
3x4 Pin Molex + FDD	3 + 1

Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

General Data

Model	ETL450AWT
Efficiency	BRONZE
Modular	Native
Cable type	Black flat
Total power (W)	450
Input Voltage (V)	100-240
Input Current (A)	7-3.5
Input Frequency (Hz)	47-63
Fan size (mm)	120
Operating temperature (°C)	40
MTBF (hours)	> 100k
Protection	OVP, UVP, OPP, SCP, SIP
Dimension (D x W x H), (mm)	140 x 150 x 86

Output

+3.3V(A)	16
+5V(A)	15
+12V1(A)	34
-12V(A)	0.3
+5Vsb(A)	2.5
Combined Wattage 12V (W)	408
Combined Wattage 3.3V + 5V(W)	105

NAXN ADV 450W
