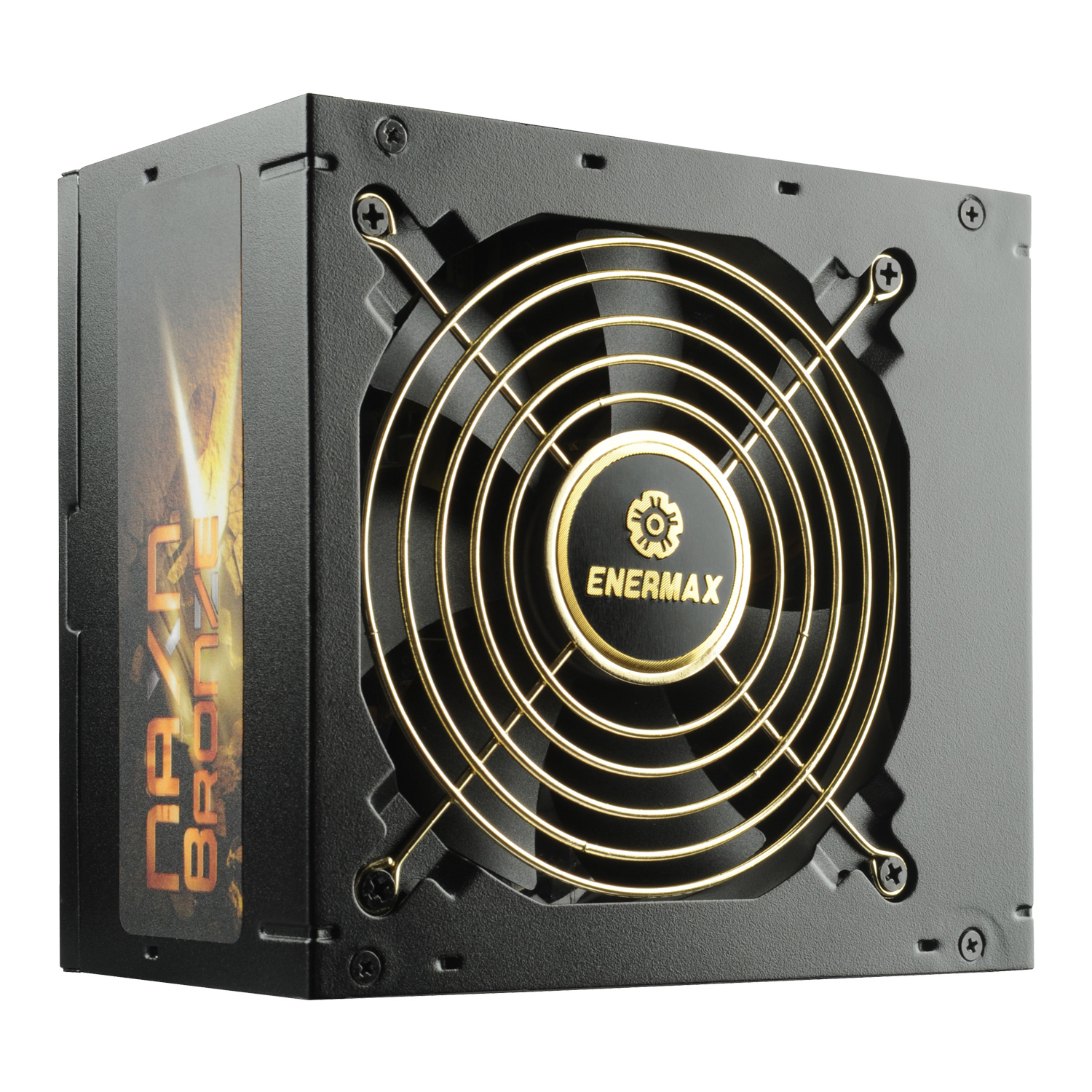

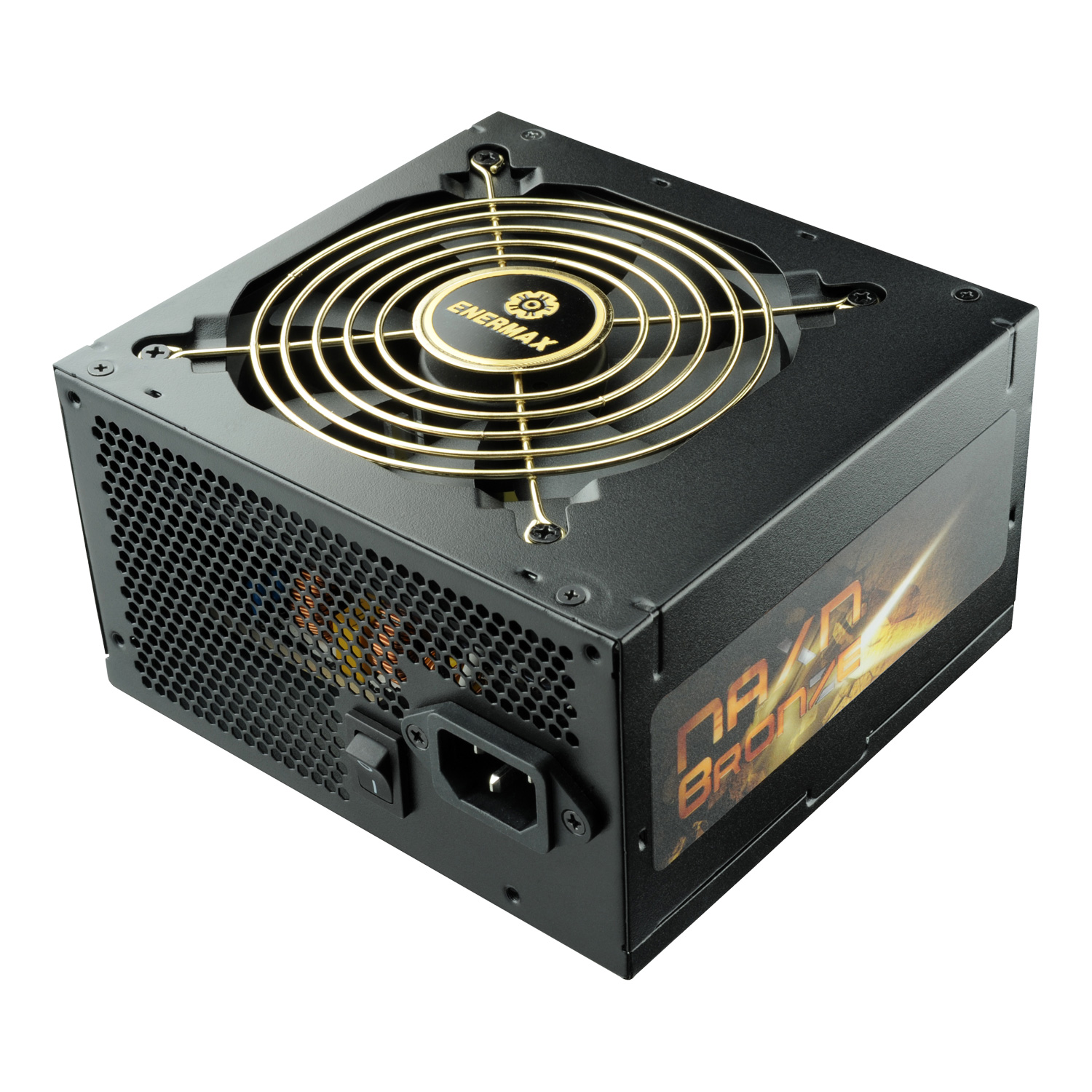

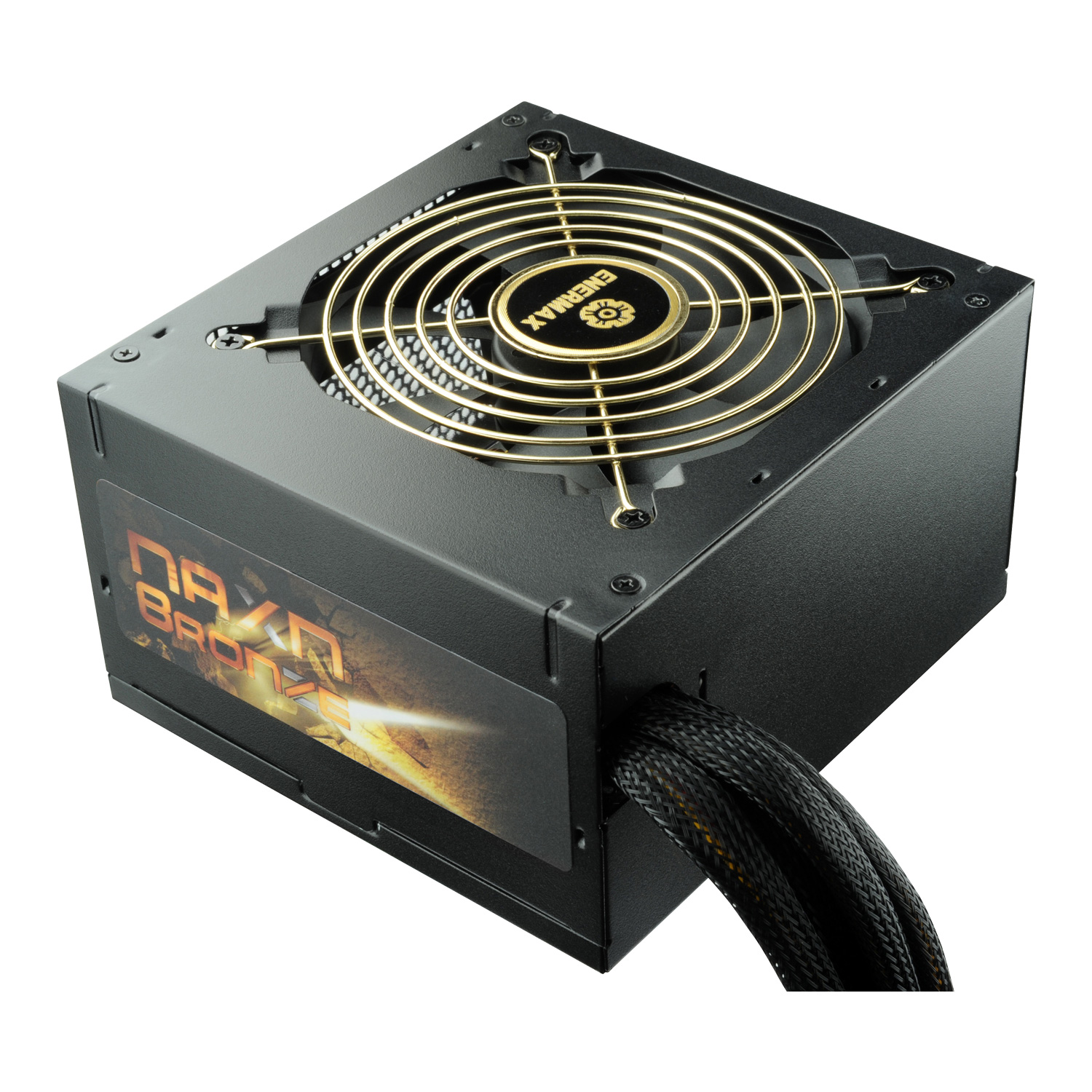

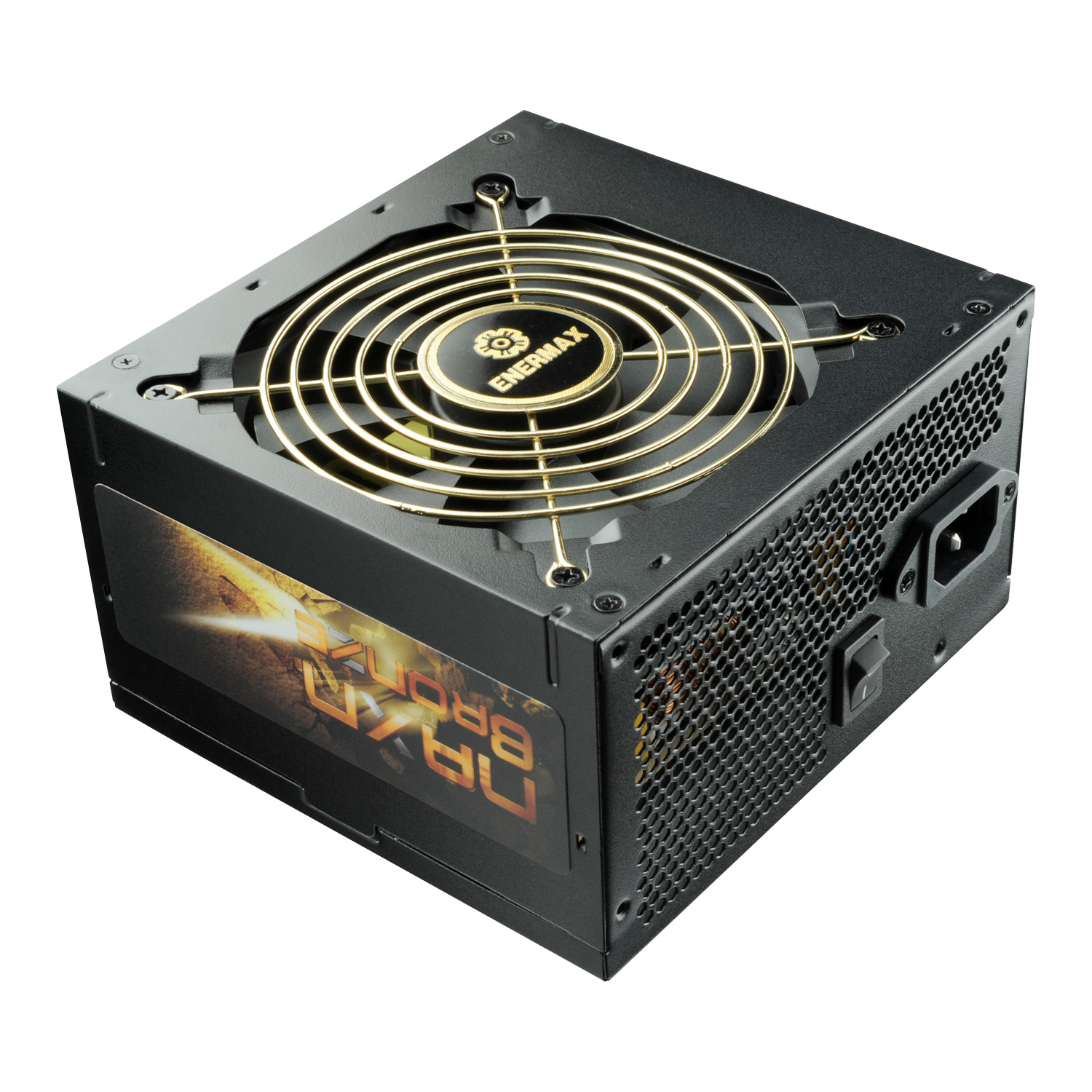

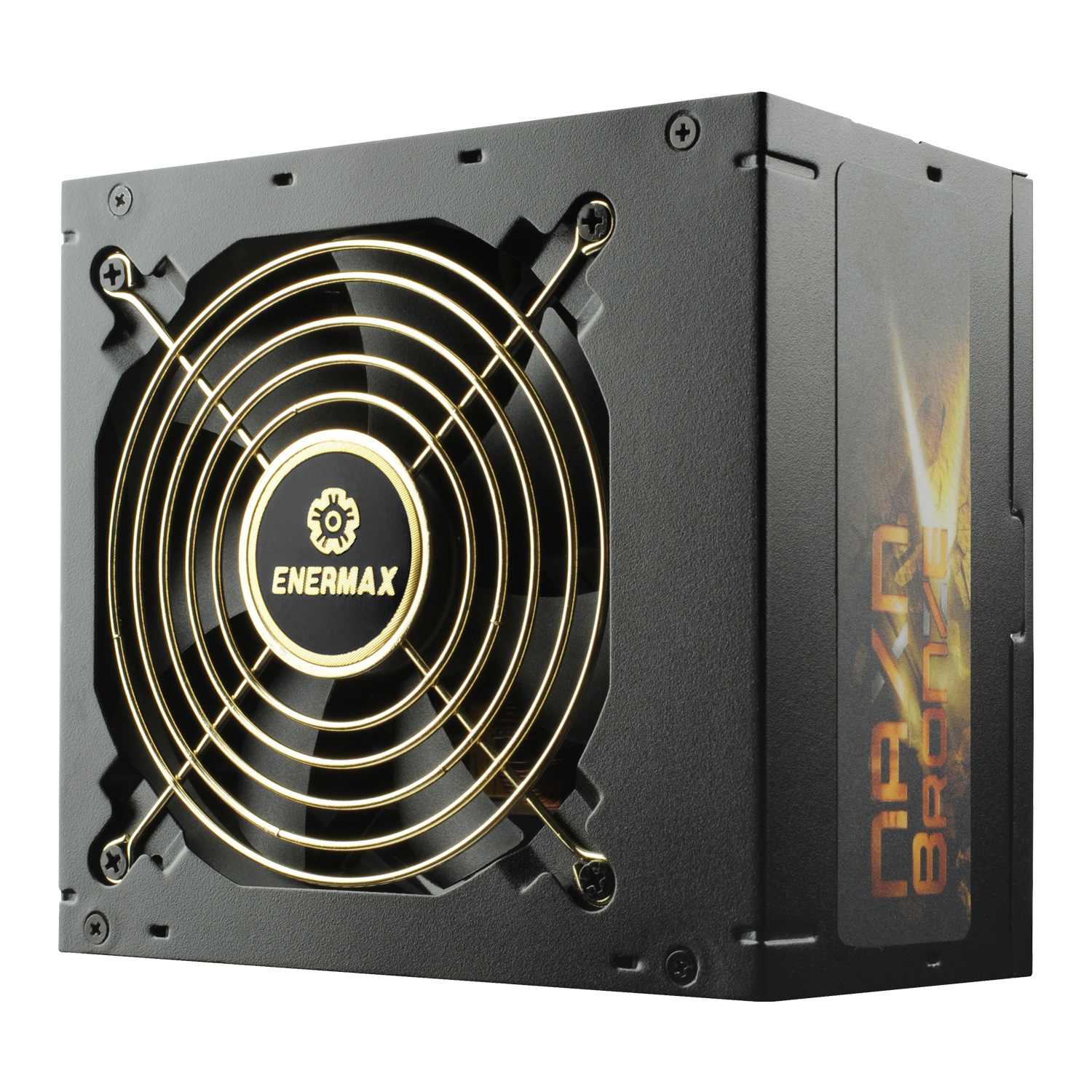

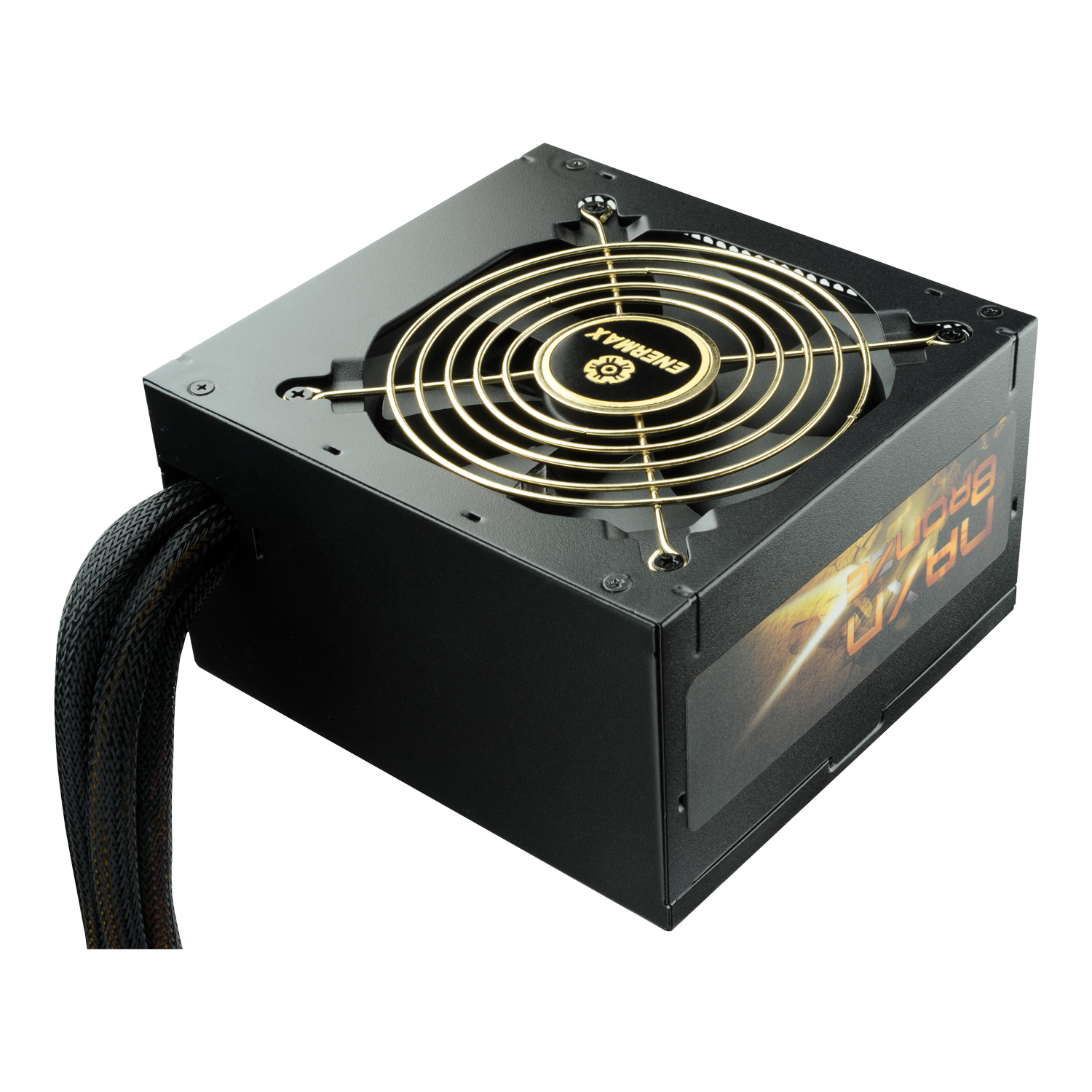

NAXN BRONZE 500W

NAXN BRONZE 500W(For Specific Regions Only)

‧ 80PLUS® Bronze certified
‧ 100% Japanese electrolytic capacitors
‧ 12cm temperature controlled silent fan

COMPARE Compare List (0)

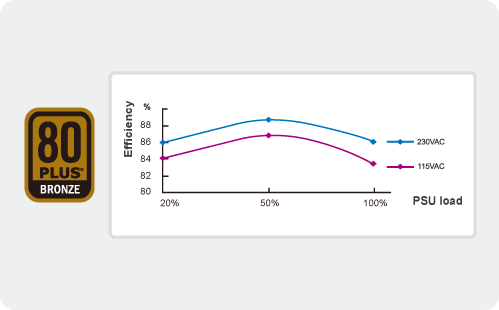

80 PLUS® Bronze certified

Meet 80 PLUS® Bronze standard with 83-88% efficiency @ 20-100% load

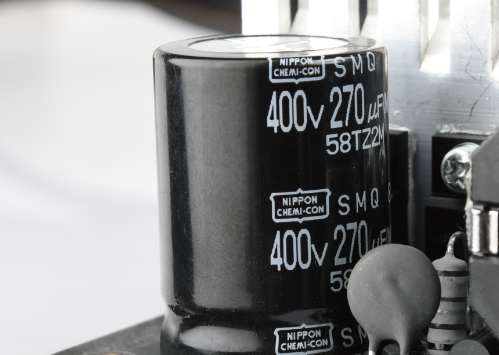

100% Japanese electrolytic capacitors

Highest component standards for maximum durability and stability

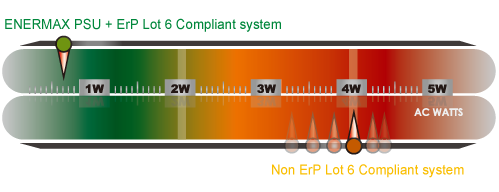

ErP Lot 6 ready

Help system meet ErP Lot 6 (<1W at standby mode) with high efficiency +5Vsb circuitry (with ErP Lot 6 enabled motherboard)

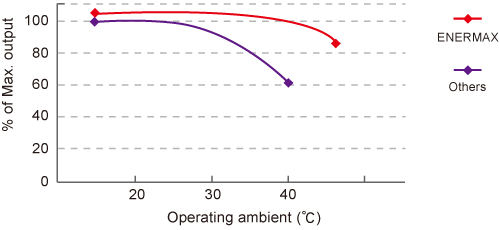

Fully continuous output @ 40°C

NAXN BRONZE’s high-end components and advanced layout ensure non-stop operation




World ready

115-230VAC auto-adjustment input for universal use. Active PFC with PF value up to 0.99, reducing the reactive power loss to the minimum




SafeGuard

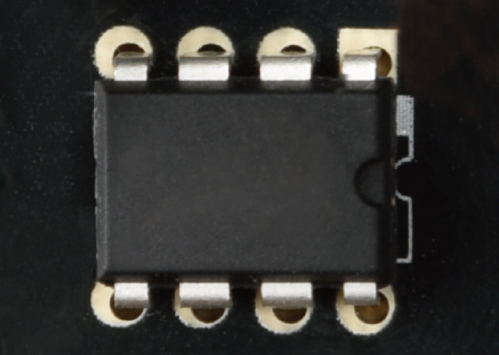

Multiple protection circuitry of OVP, UVP, OPP, SCP, and SIP protects your system



ETP500AWT
Mainboard 24 Pin 1
[ 50cm ]
CPU 4+4 Pin 1
[ 60cm ]
PCI-E 6+2 Pin (8 Pin) 2
[ 45/ 60cm ]
SATA 5
4x4 Pin Molex 4
FDD 1

Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

80 PLUS Efficiency BRONZE
Modular Native
Cable type Sleeve
Total power (W) 500
Input Voltage (V) 115-230
Input Current (A) 7
Input Frequency (Hz) 47-63
Fan size (mm) 120
Operating temperature (°C) 40
MTBF (hours) > 100k
Protection OVP, UVP, OPP, SCP, SIP
Dimension (D x W x H), (mm) 140 x 150 x 86
+3.3V(A) 18
+5V(A) 17
+12V1(A) 38
-12V(A) 0.3
+5Vsb(A) 2.5
Combined Wattage 12V (W) 456
Combined Wattage 3.3V + 5V(W) 110
EAN code 4713157722409
Box dimensions (D x W x H), (mm) 230 x 200 x 98
Gross Weight / unit (kg) 1.5
