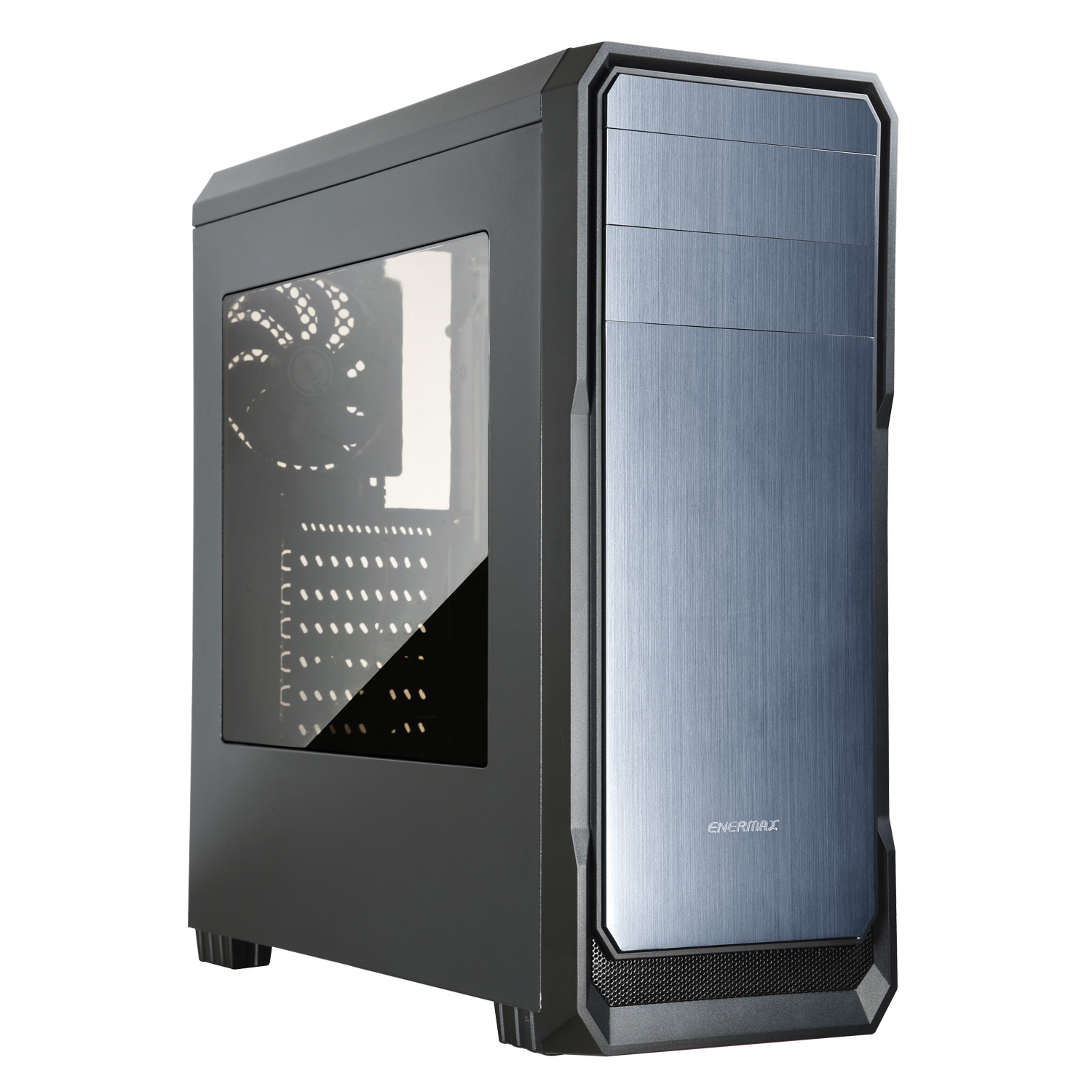

Ostrog Lite

‧ Hairline surface front panel for premium looks
‧ Latest PSU-Tunnel Design for a neat and clean build
‧ Removable filters for easy cleaning

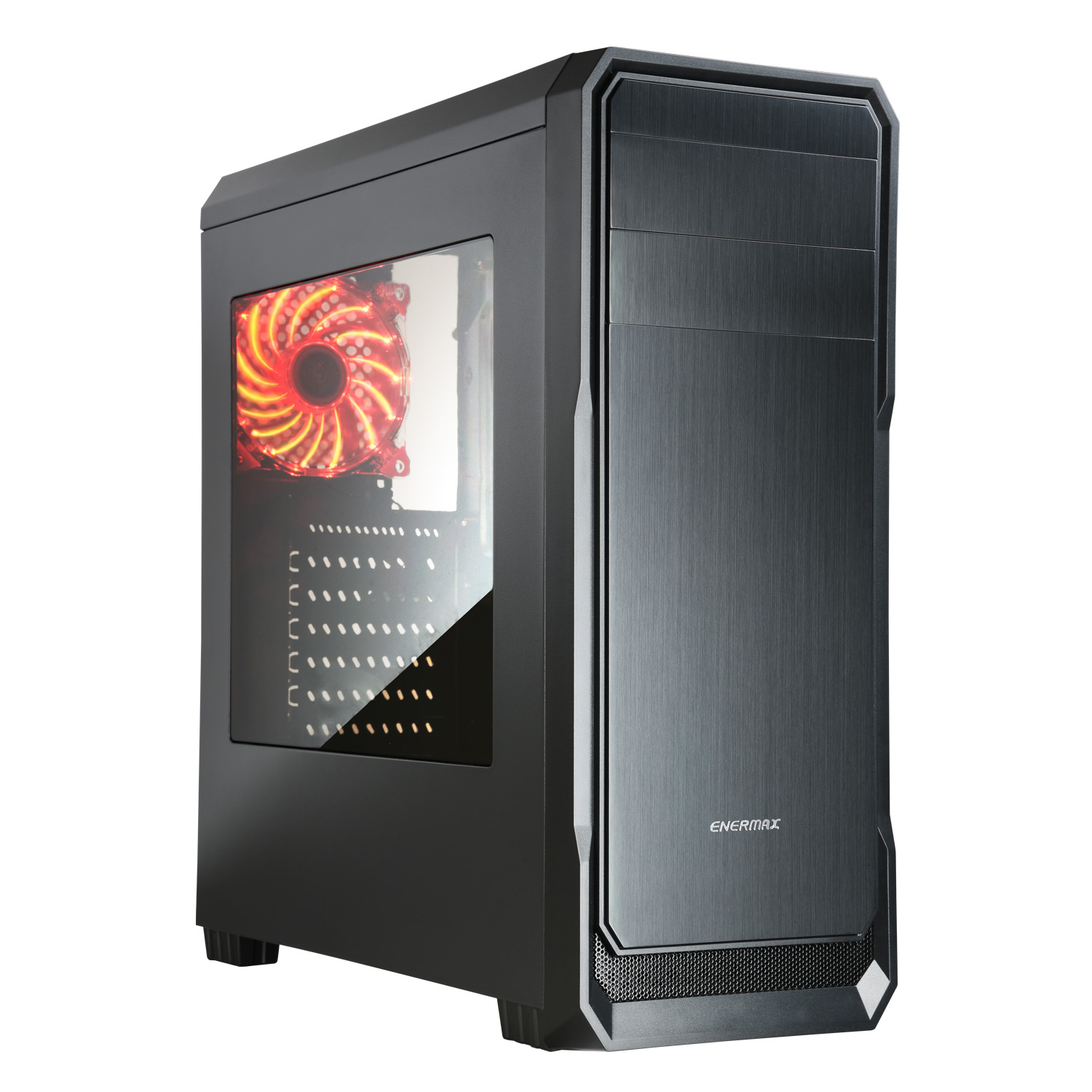

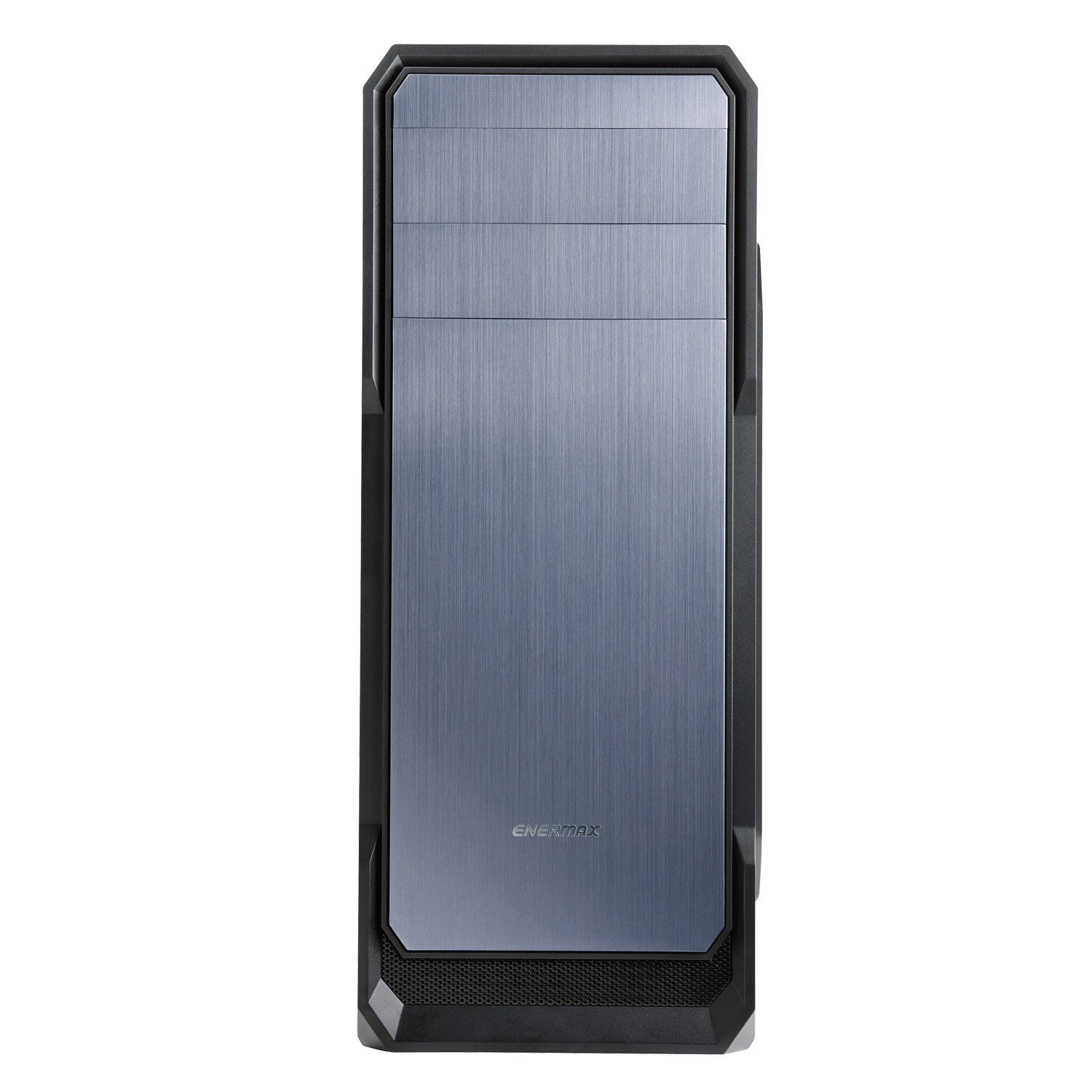

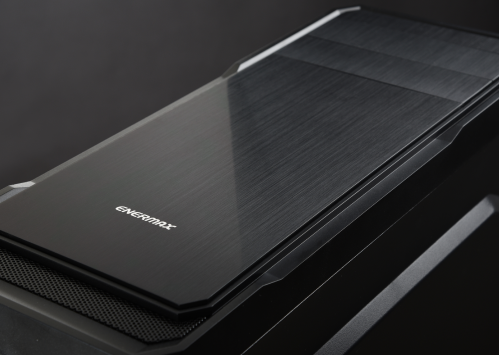

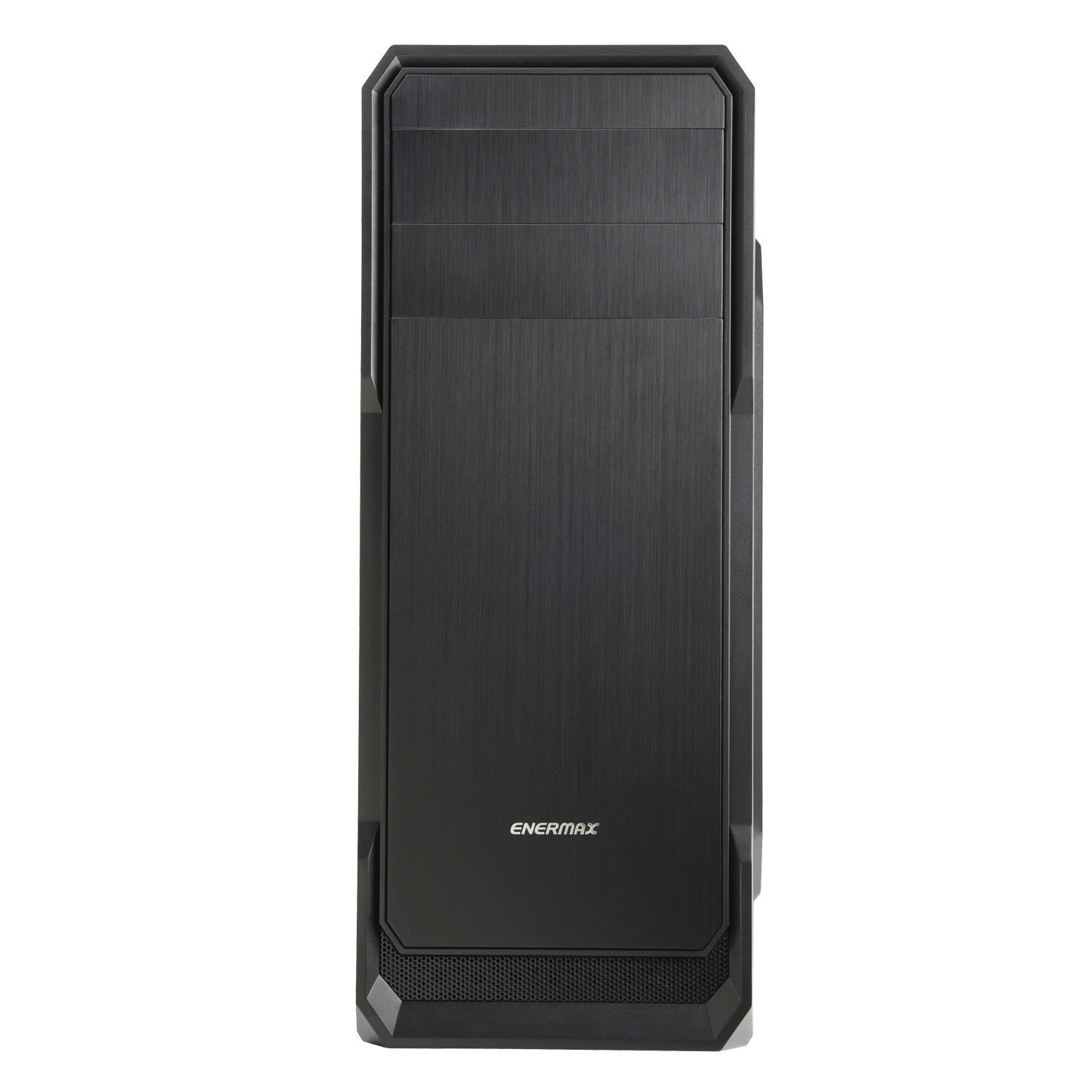

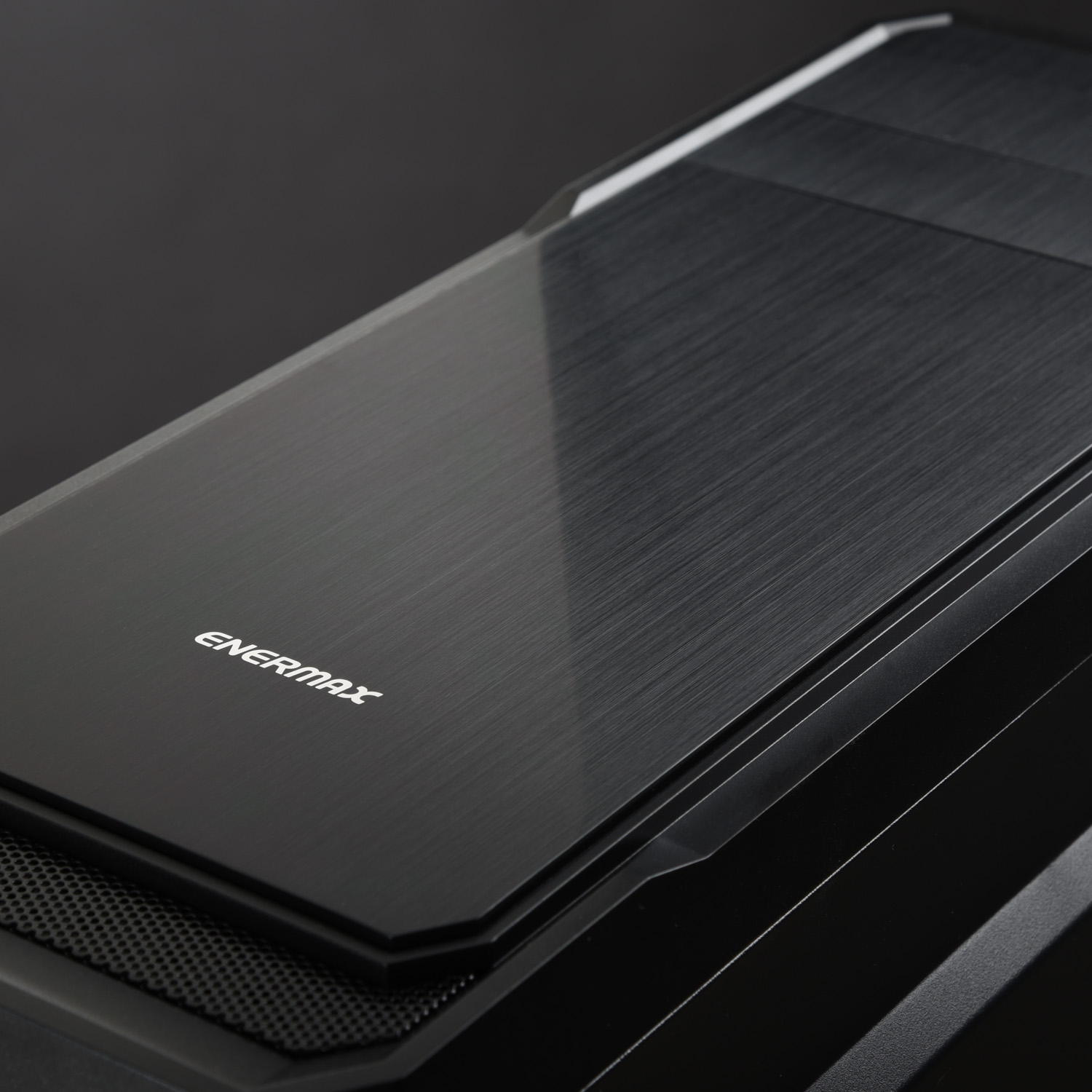

Hairline surface front panel for premium looks

Simple yet premium low profile design

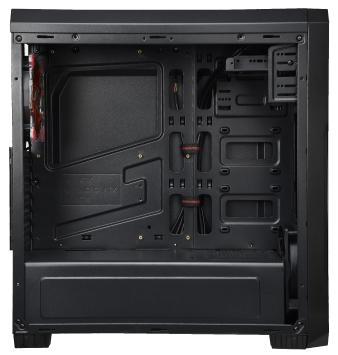

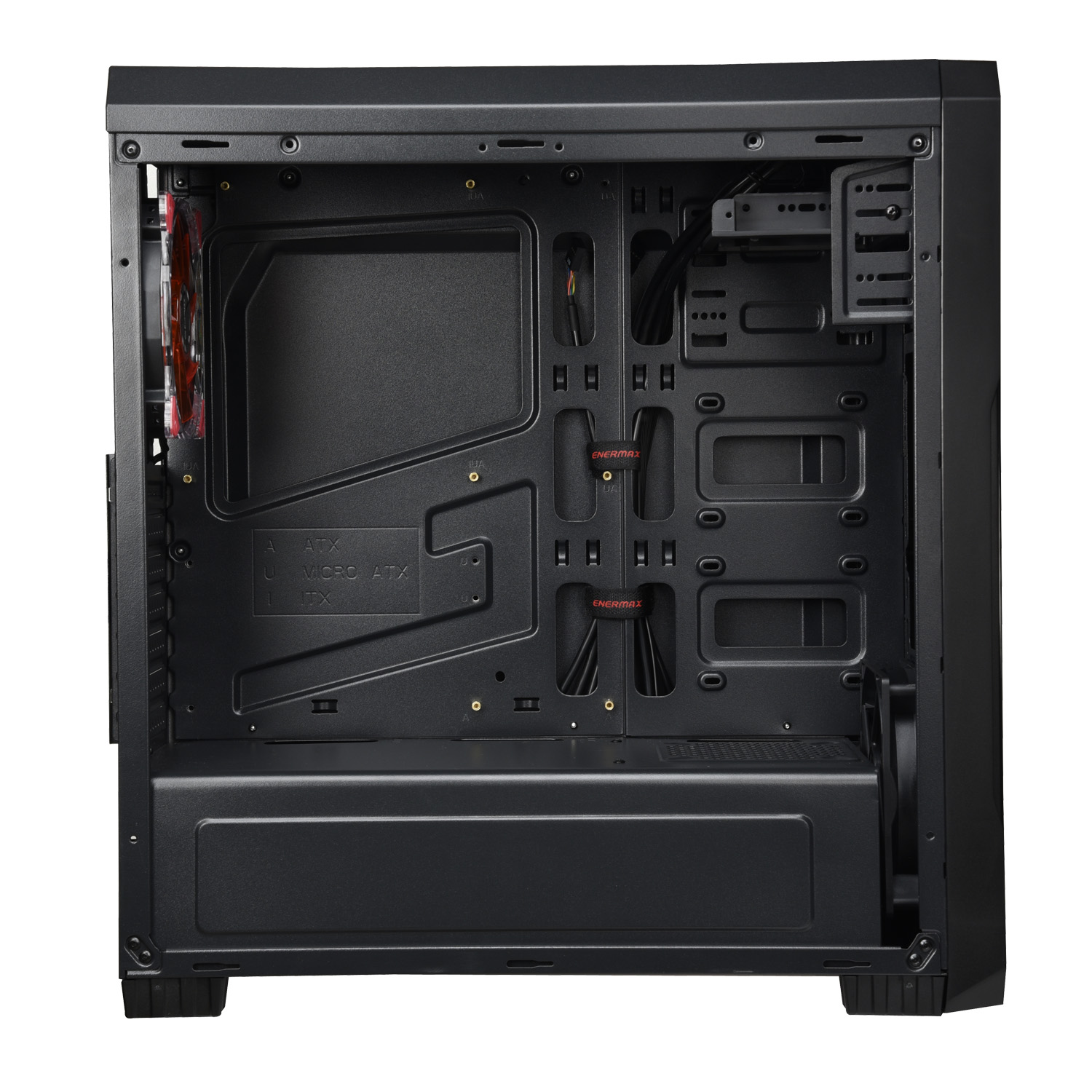

PSU-Tunnel Design

For a neat and clean build

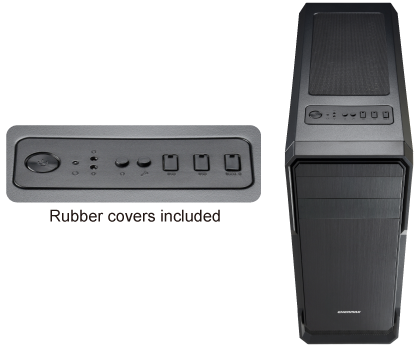

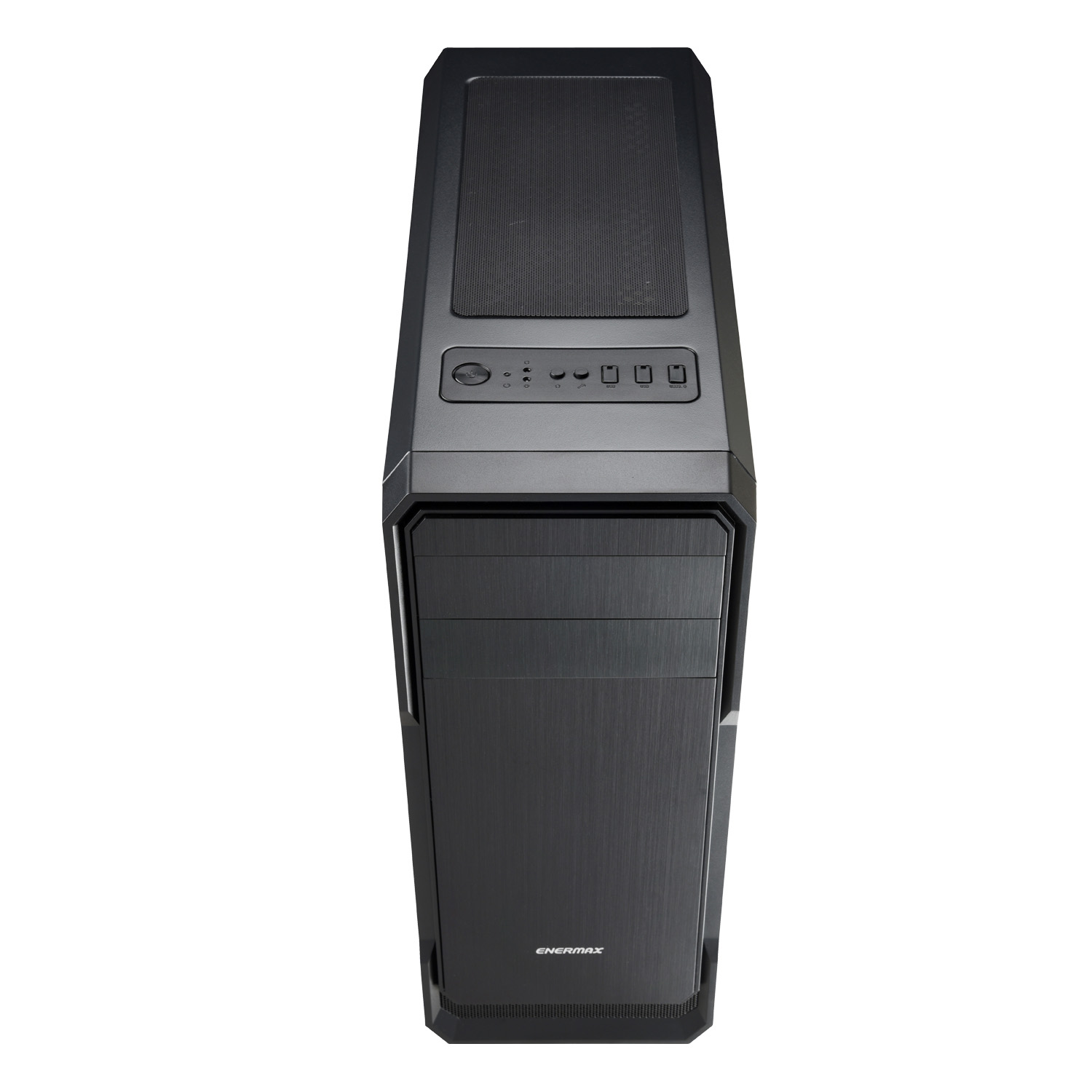

Easy access top I/O panel

Ostrog Lite includes 1 x USB 3.0 and 2 x USB 2.0 with HD audio on the top to conveniently satisfy your peripheral needs

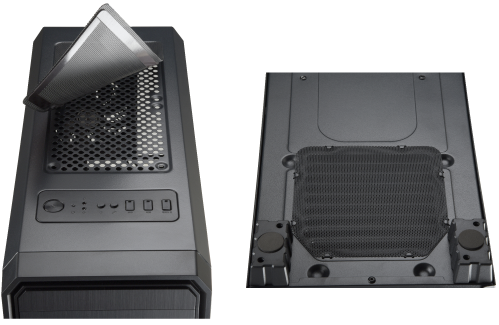

Removable filters for easy cleaning

Removable magnetic top filter plus bottom filter prevent dust from entering the system and decrease dust buildup inside the case

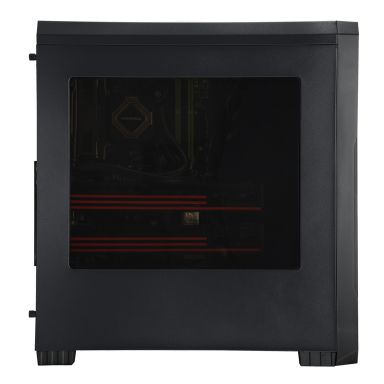

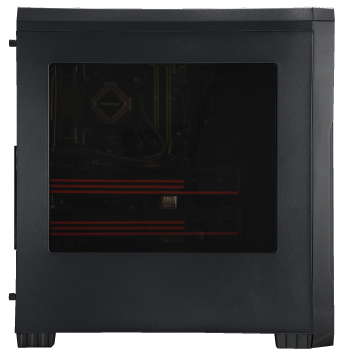

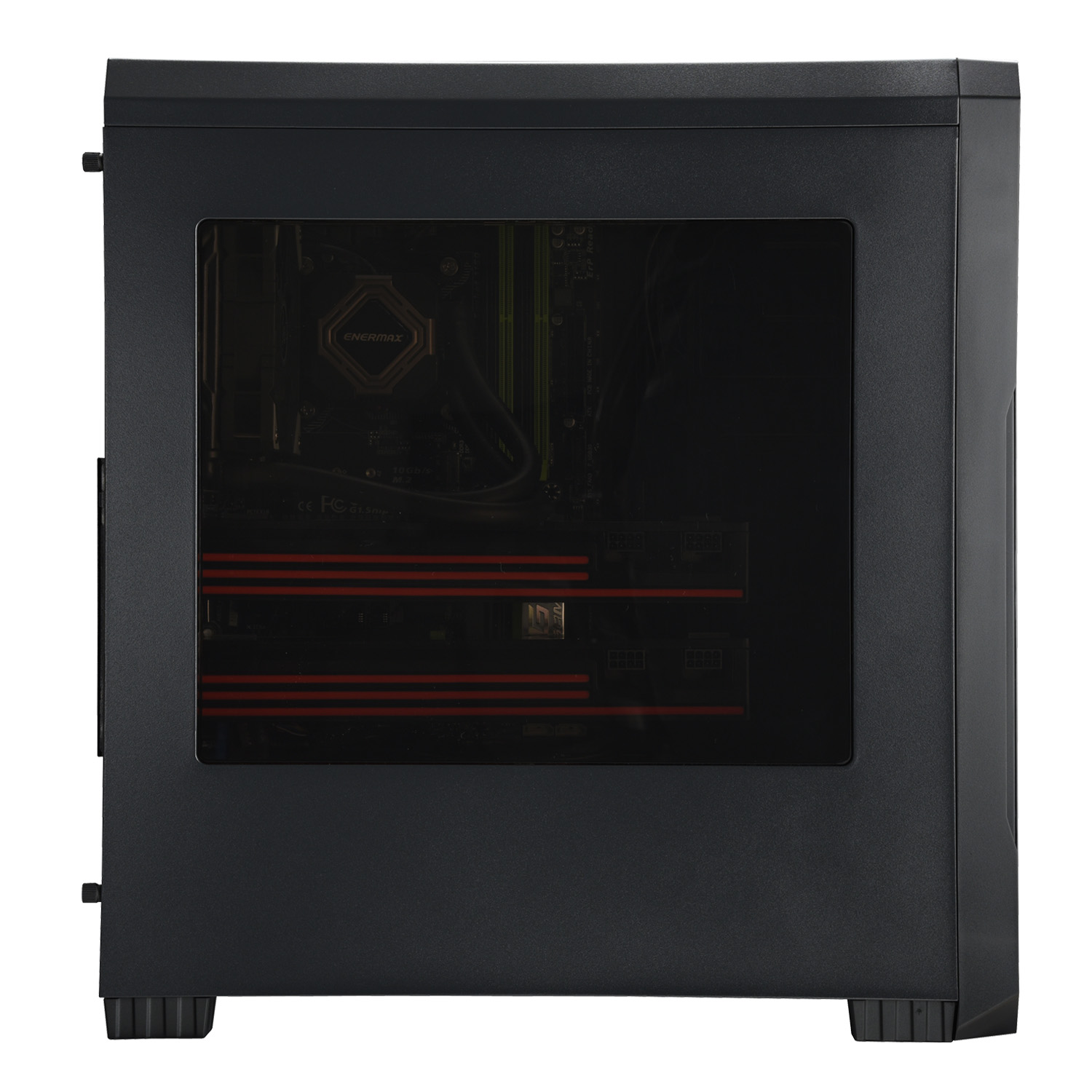

Tinted acrylic side panel

Provides low profile mysterious look for your interior rigs

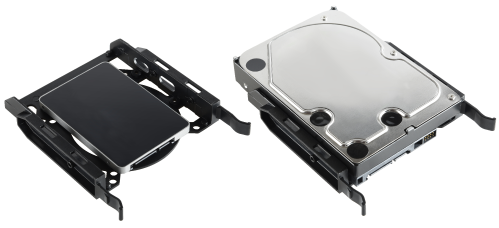

Complete support for SSD/HDD drives

Up to 3 x 3.5” HDD and 4 x 2.5” SSD supported for flexible installation (1 x 5.25” to 3.5” converter included)

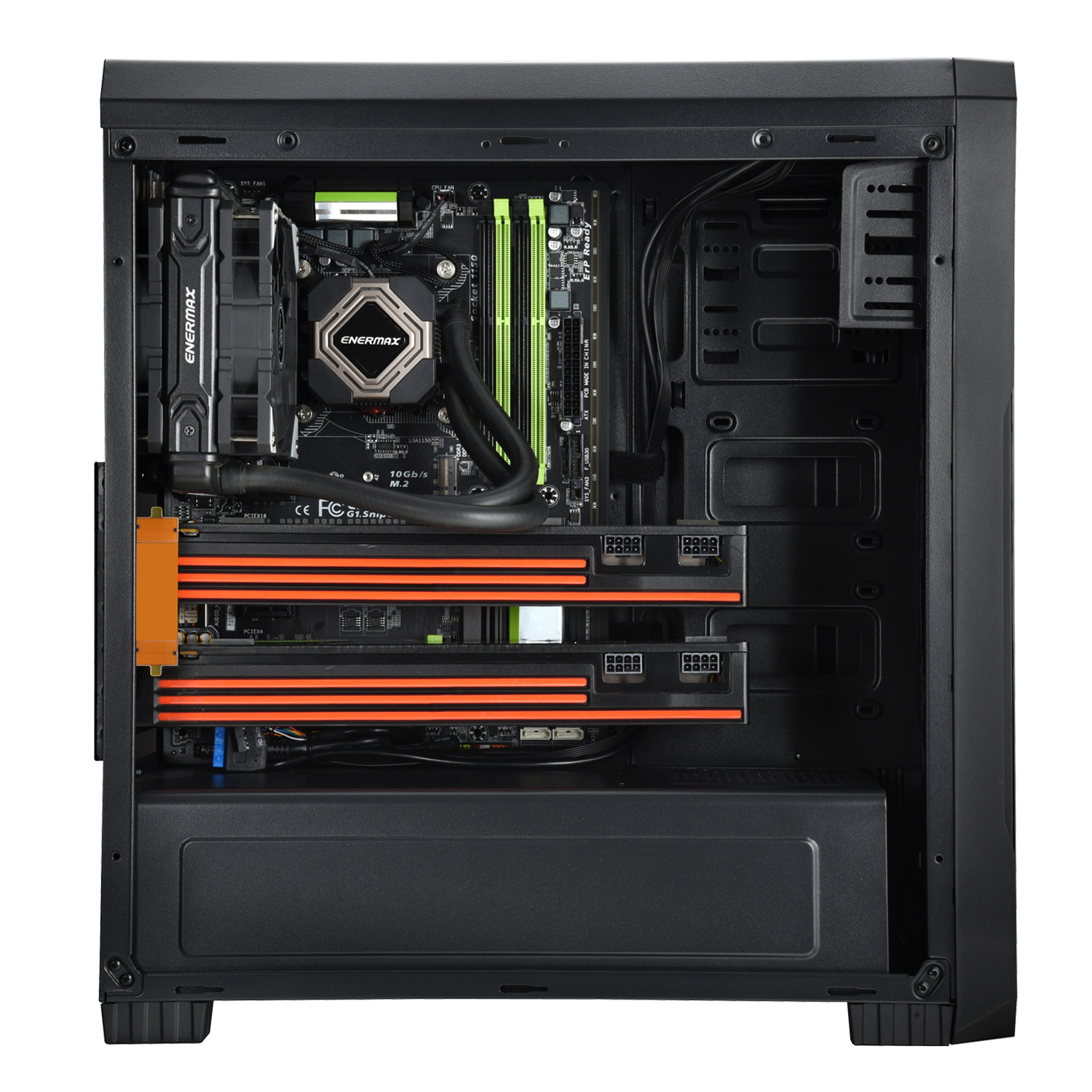

Support 120mm radiators

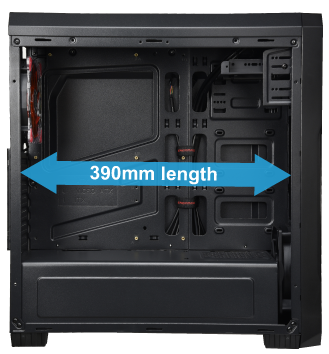

Support the latest long VGA card (390mm Max.)

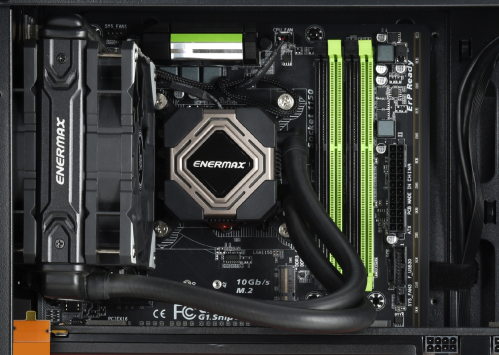

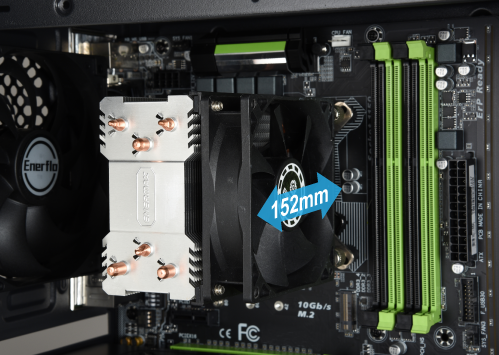

CPU cooler installation support up to 152mm in height

* The clearance from M/B to side panel is 162mm; the suggested height of CPU cooler is 152mm for better compatibility and easy installation




Support for high-end power supplies (Approx. 180mm Max. length)




Advanced Cooling System

Model Name ECB3080BB-01/ECB3080BI-02
Dimensions (D x W x H) D440 x W194 x H460mm
Material 0.5mm SPCC
M/B Type ATX, Micro ATX, Mini ITX
I/O USB 3.0 x 1, USB 2.0 x 2, HD Audio
5.25'' Drive Bays 2
3.5'' Drive Bays 3 (1 x Converted from 5.25" bay)
2.5'' Drive Bays 4 (2 x Converted from 3.5” HDD trays)
Expansion Slots 7
Fan Slots - Front 2 x 120mm (1 x 120mm fan pre-installed)
Fan Slots - Top 2 x 120mm
Fan Slots - Rear 1 x 120mm (1 x 120mm Red circular LED fan pre-installed)/1 x 120mm(1 x 120mm fan pre-installed)
Fan Slots - Tunnel 1 x 90/80mm (With 1 HDD tray removed)
Radiator Support - Rear 120mm Radiator (Rear)
PSU Support ATX 12V (Optional)
Clearance - VGA card VGA Card Length: 390mm
Clearance - CPU Cooler Maximum CPU Cooler Height (From M/B to side panel) : 162mm;
The Suggested CPU Cooler Height: 152mm
EAN code 471315772669/4713157722676
UPC code 816163008889/816163008896
Carton dimensions (D x W x H), (mm) 510 x 247 x 500mm
