PABYS PB30 (OEM)

‧Edge to edge tempered glass side panel
‧Support addressable RGB lighting sychronization
‧Pre-installed an exclusive Square-shaped lighting RGB fan
‧Removable HDD for cable management





Your own case

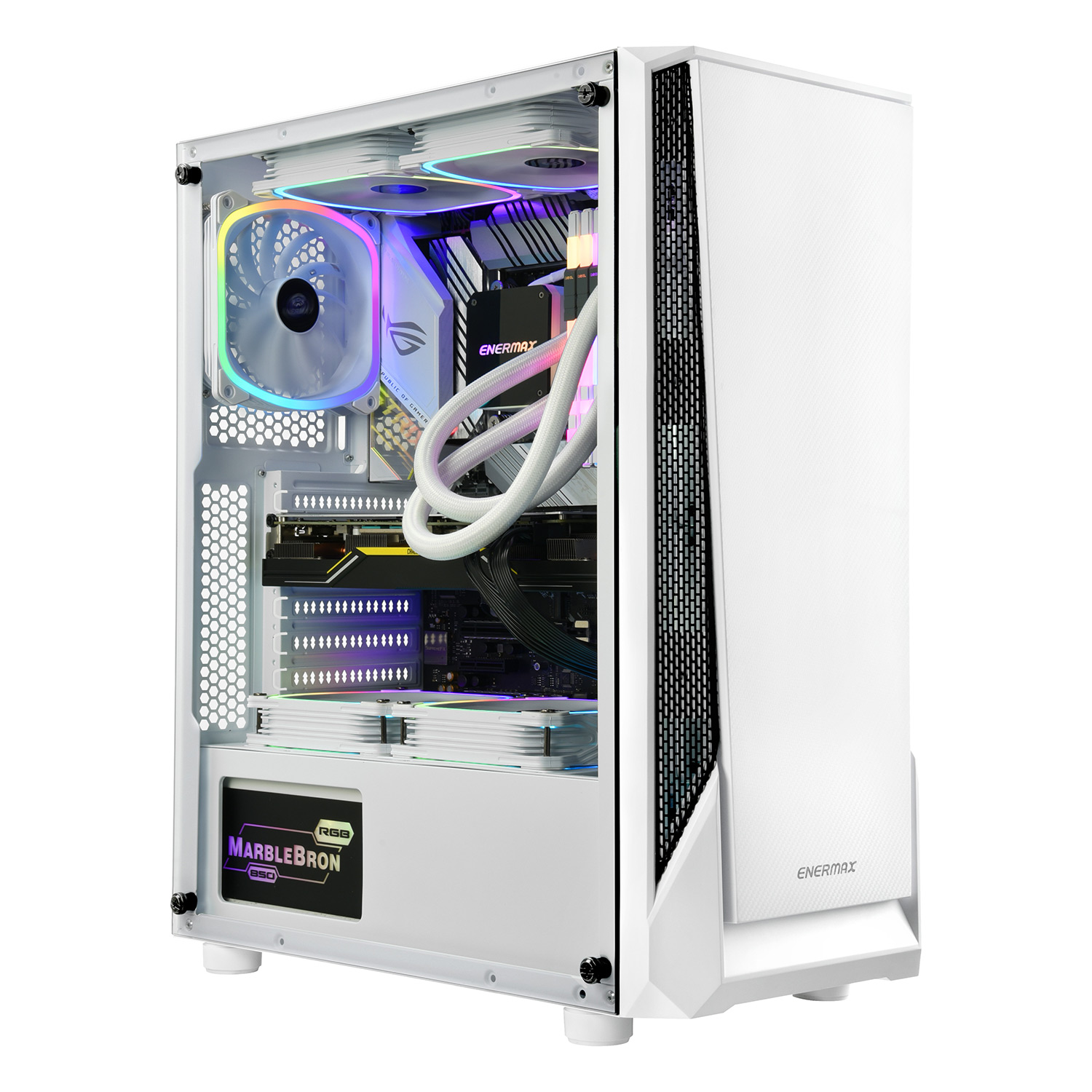

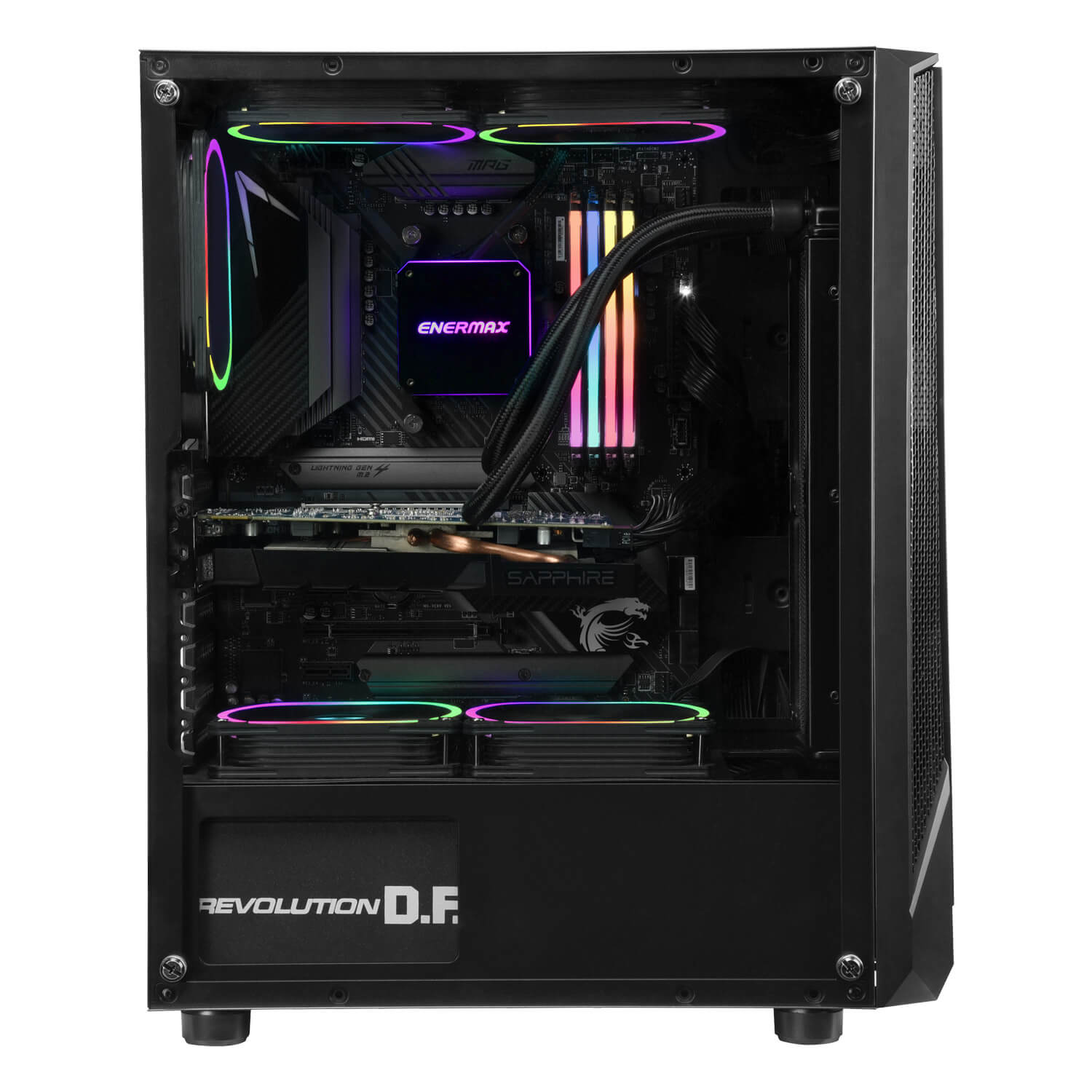

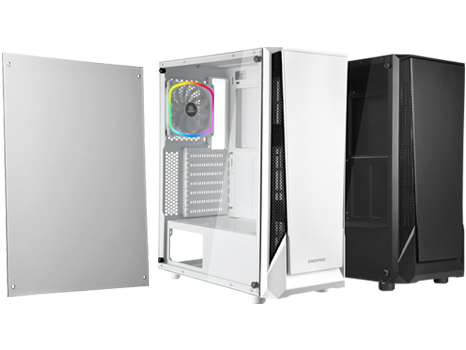

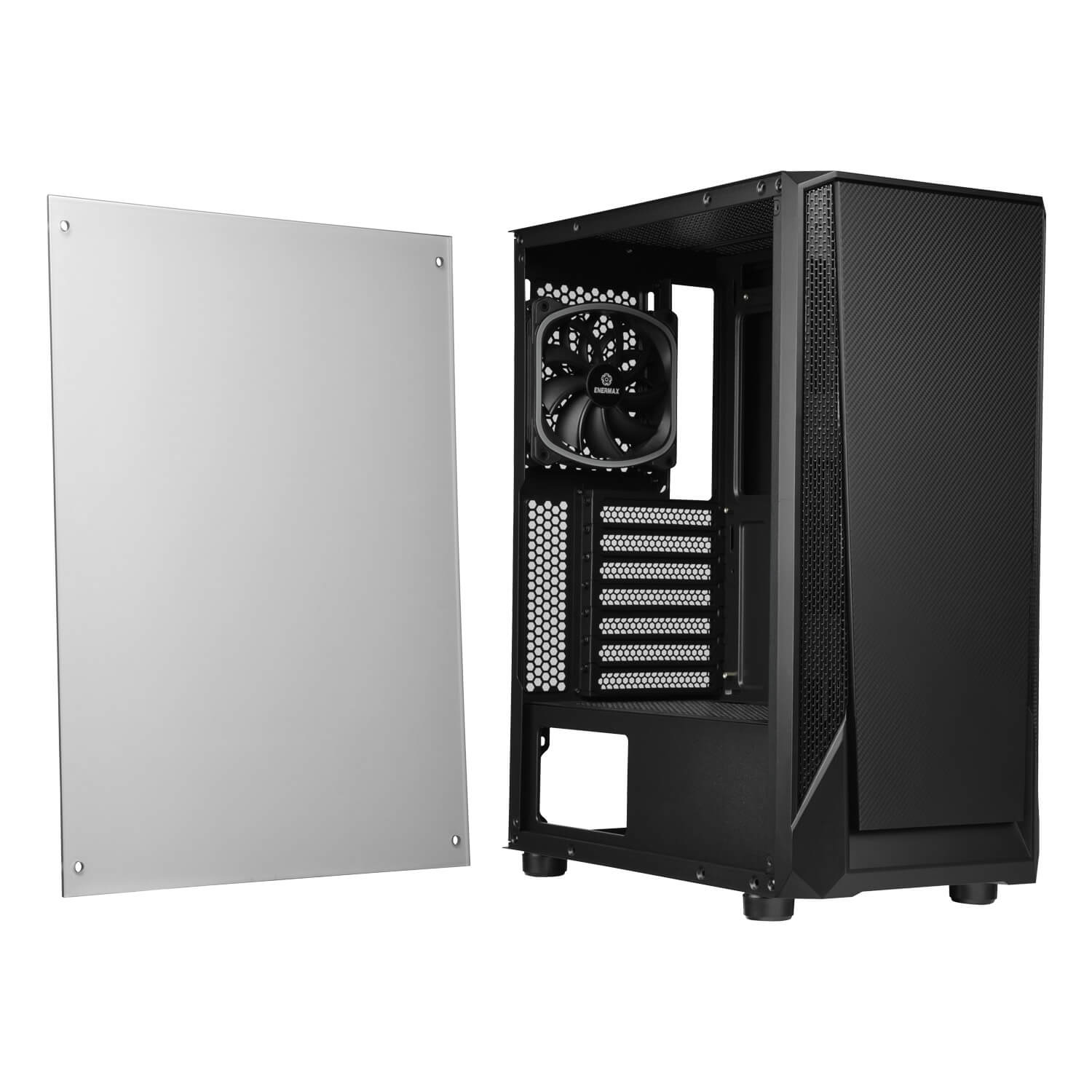

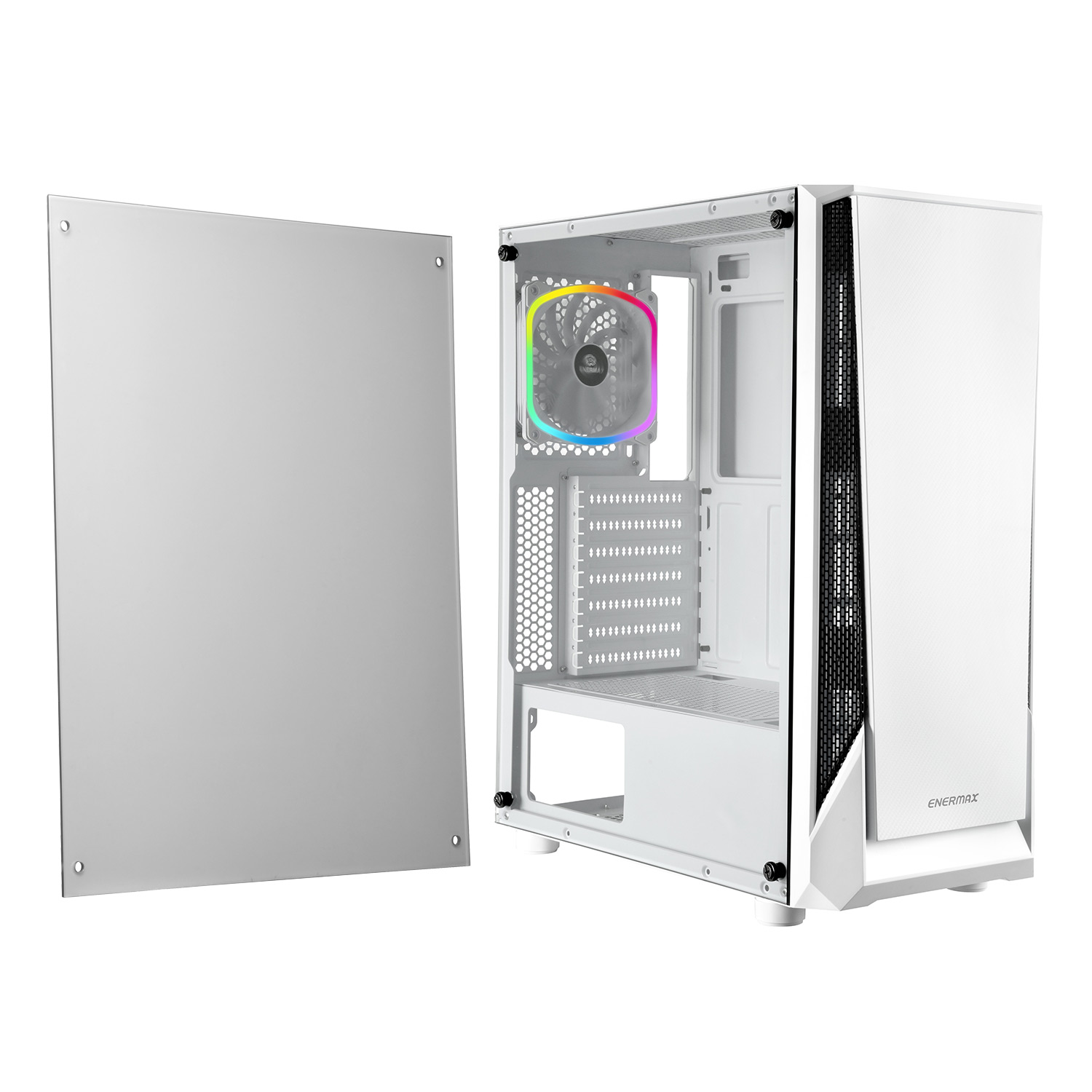

Edge to edge tempered glass side panel

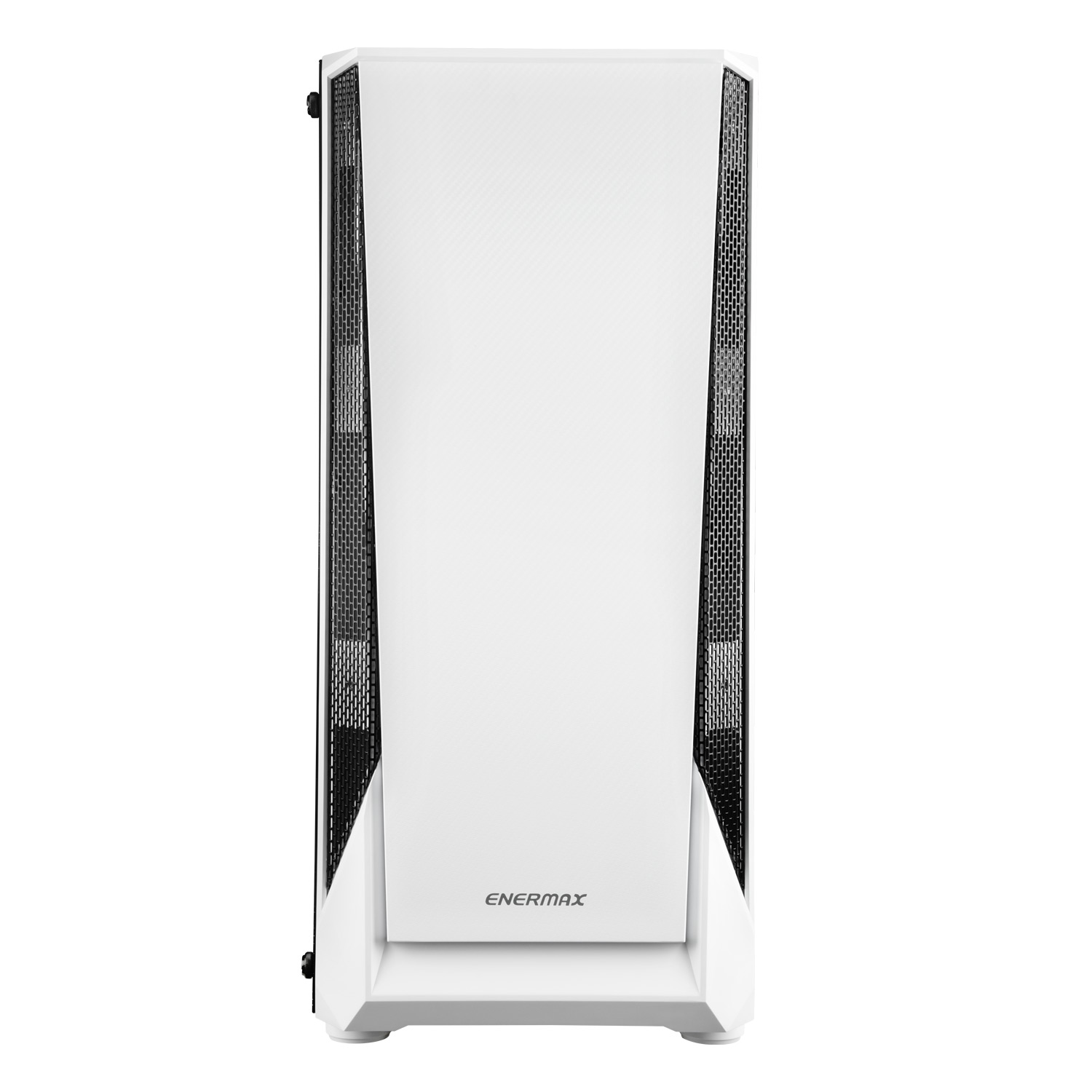

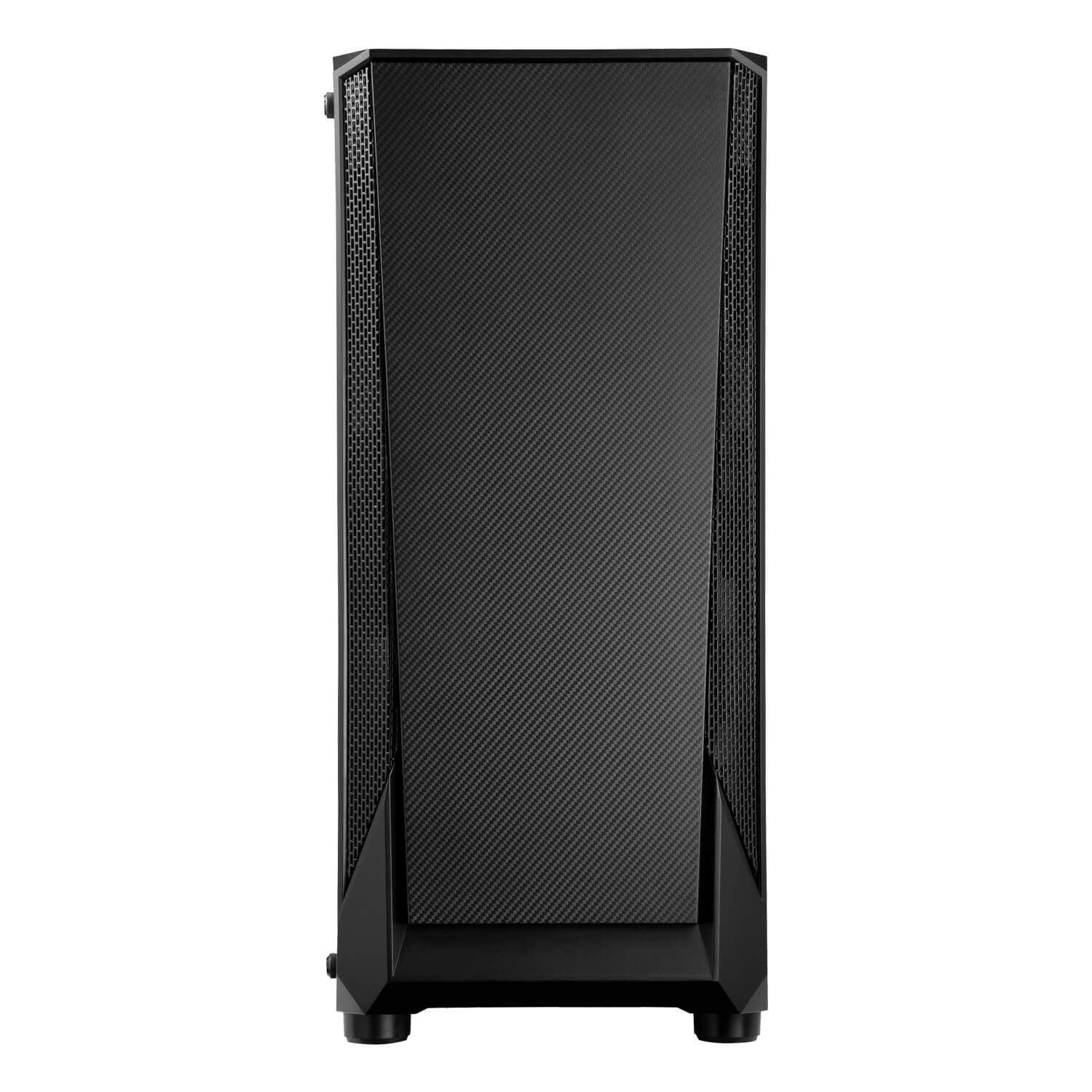

Unique appearance

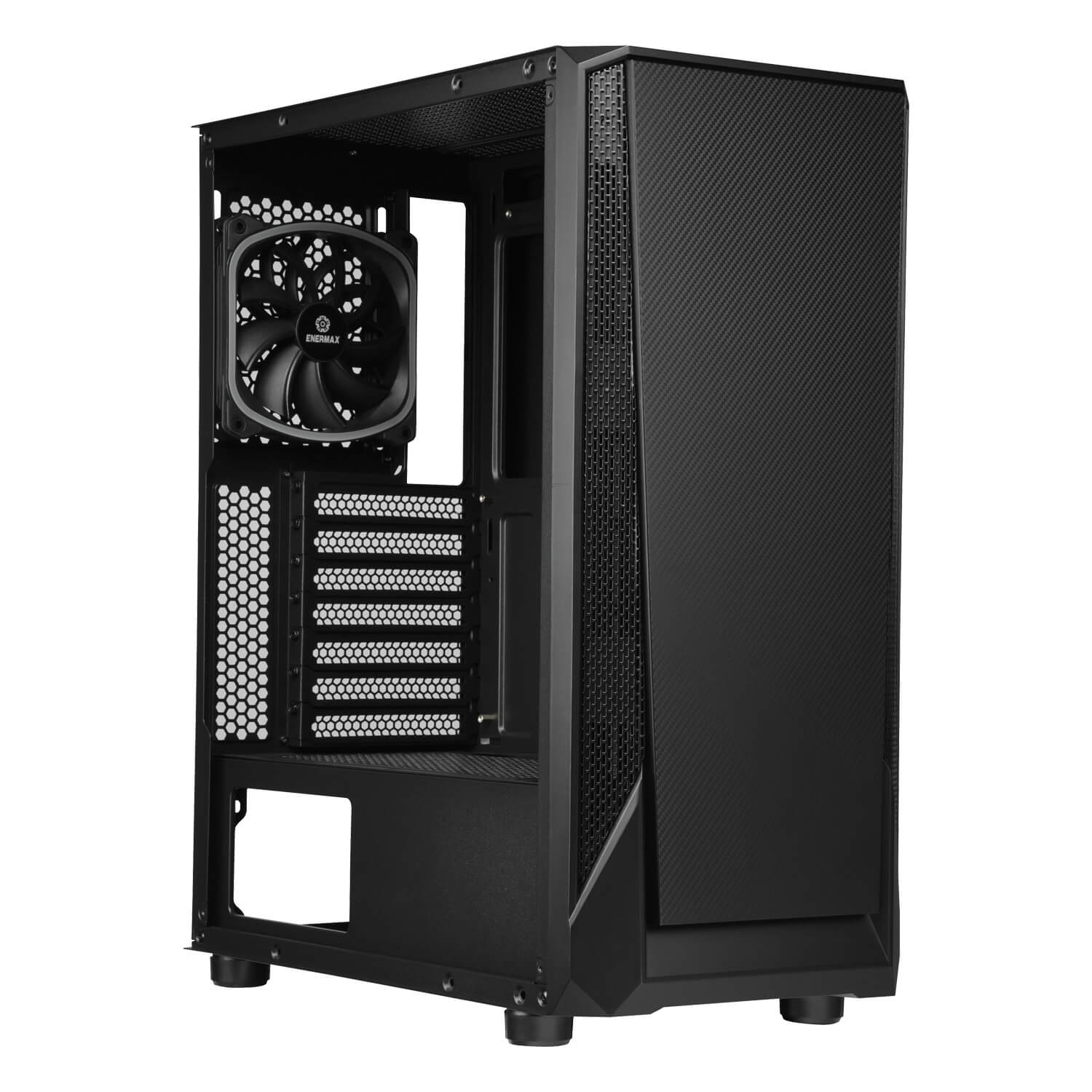

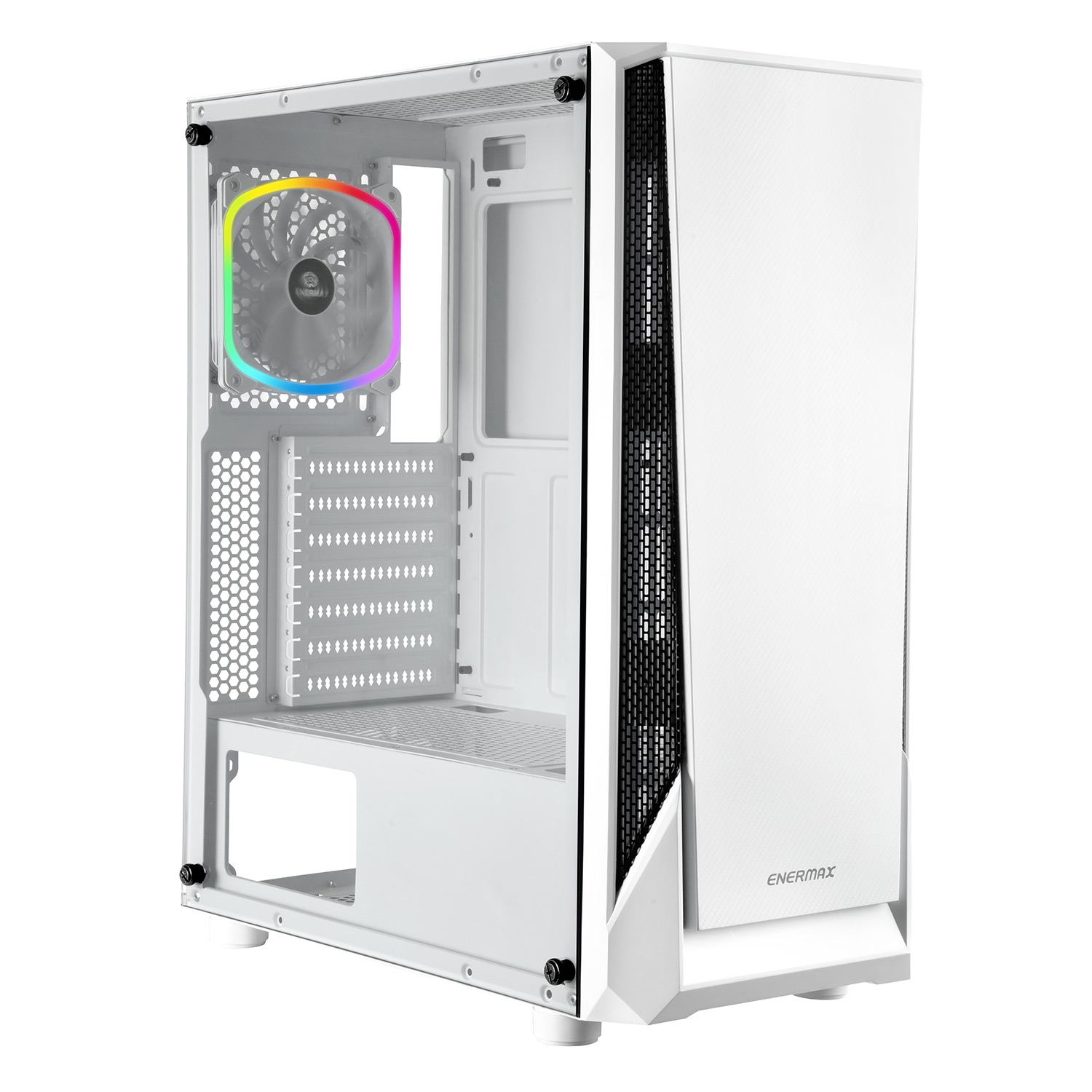

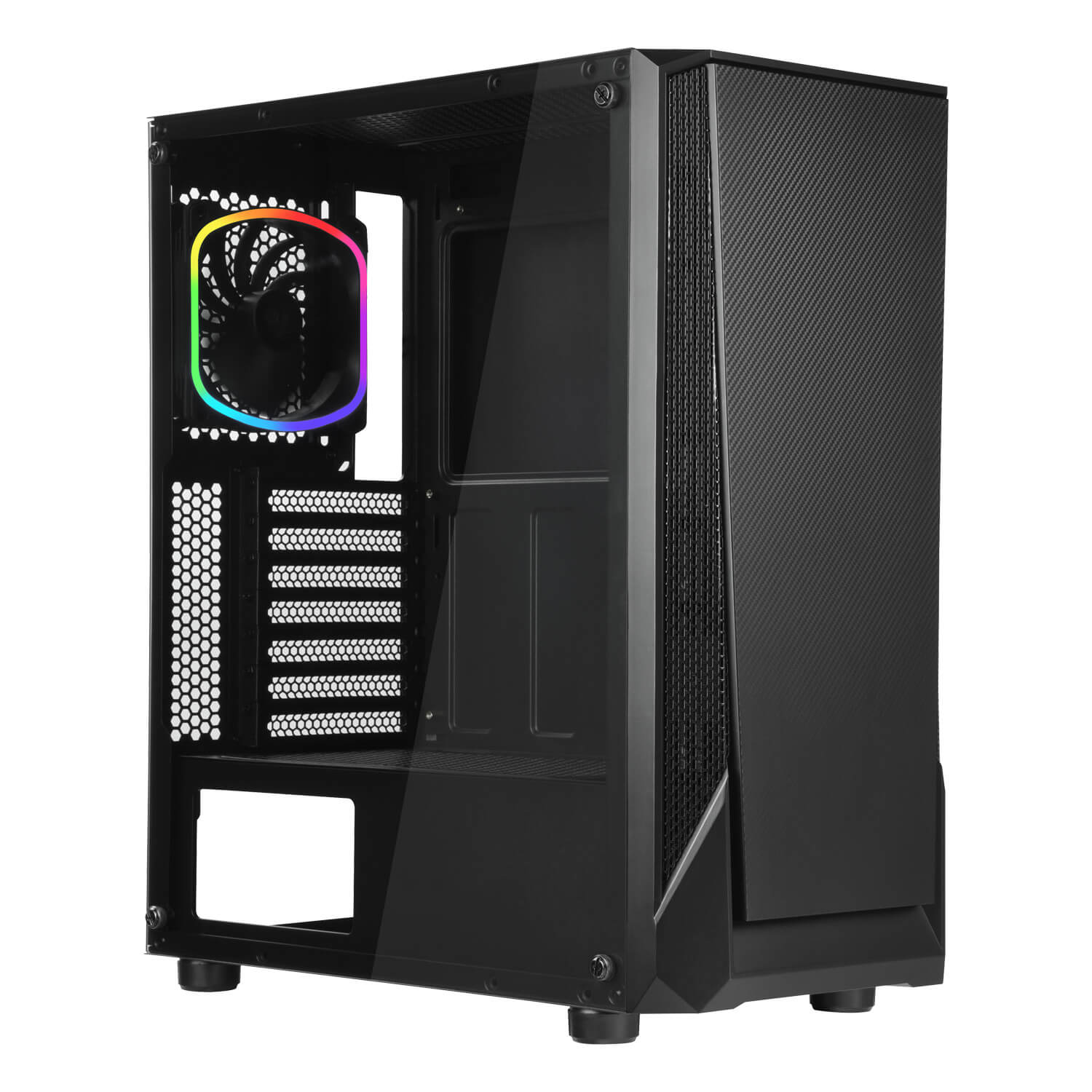

Pre-installed an exclusive Square-shaped lighting RGB fan

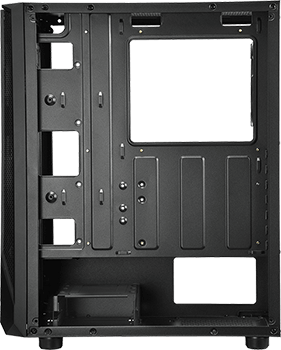

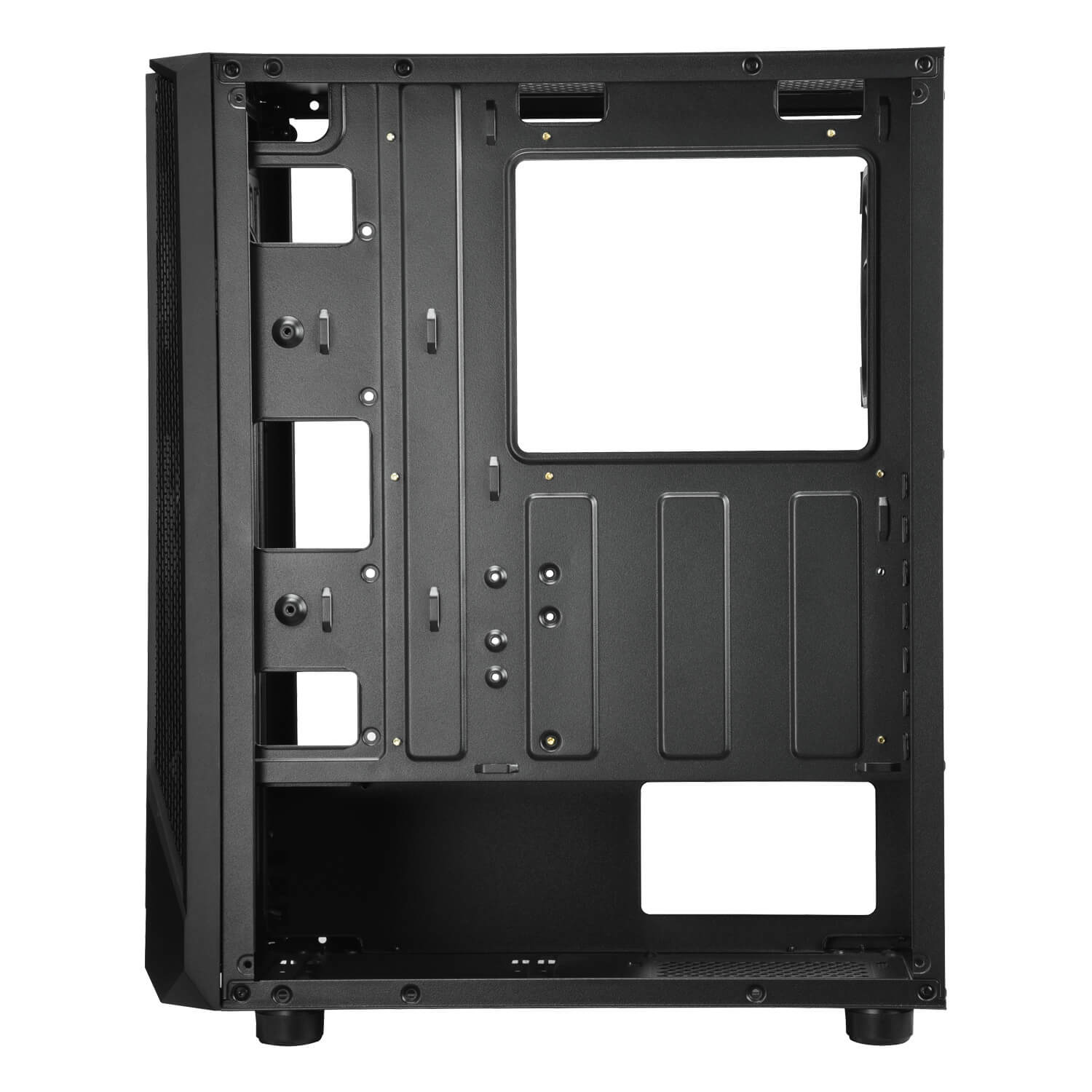

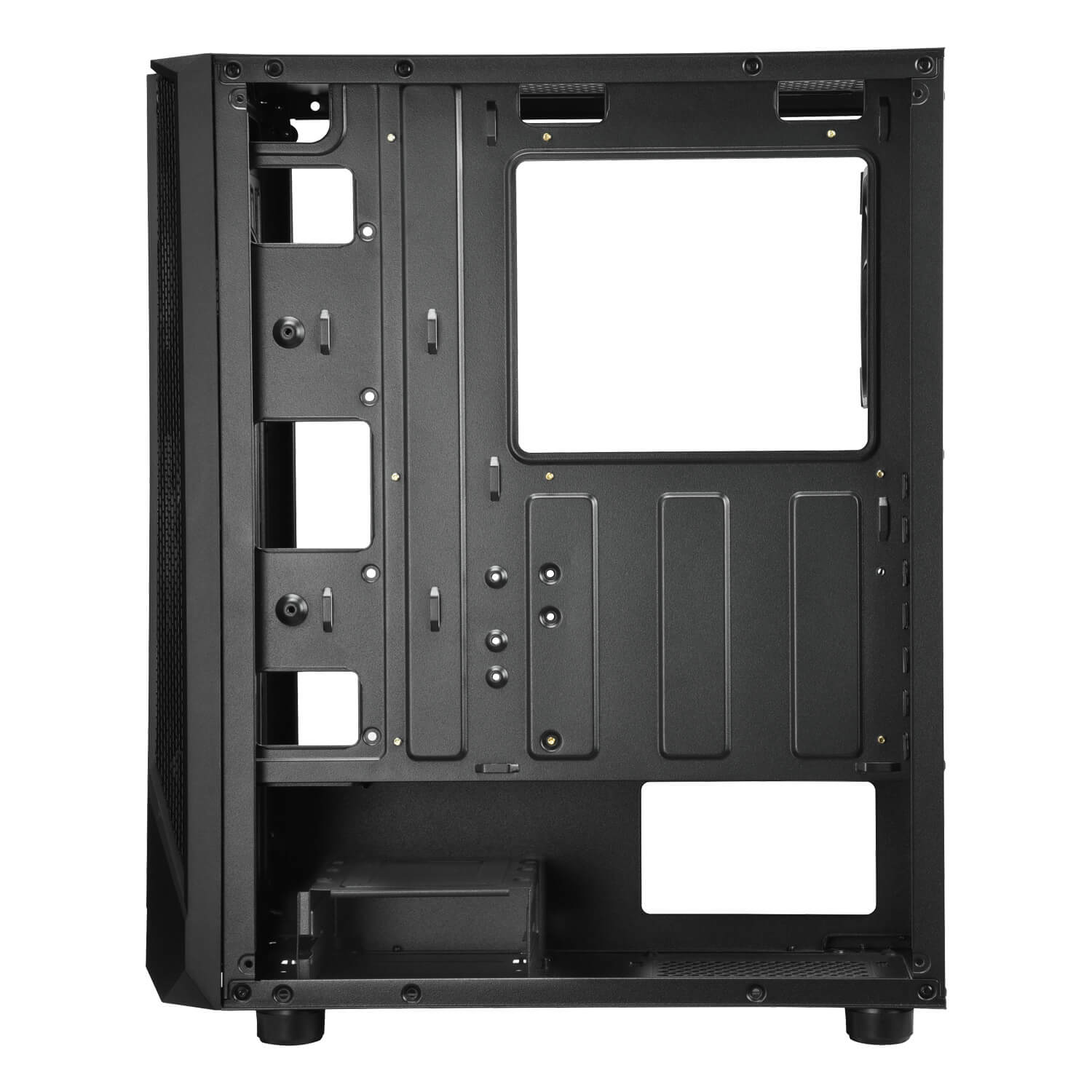

Flexible system configuration

Accommodate with ATX/ Micro-ATX/ Mini-ITX motherboards, graphic cards up to 300 mm in length, CPU cooler up to 156mm in height, and PSU up to 330mm in deep.

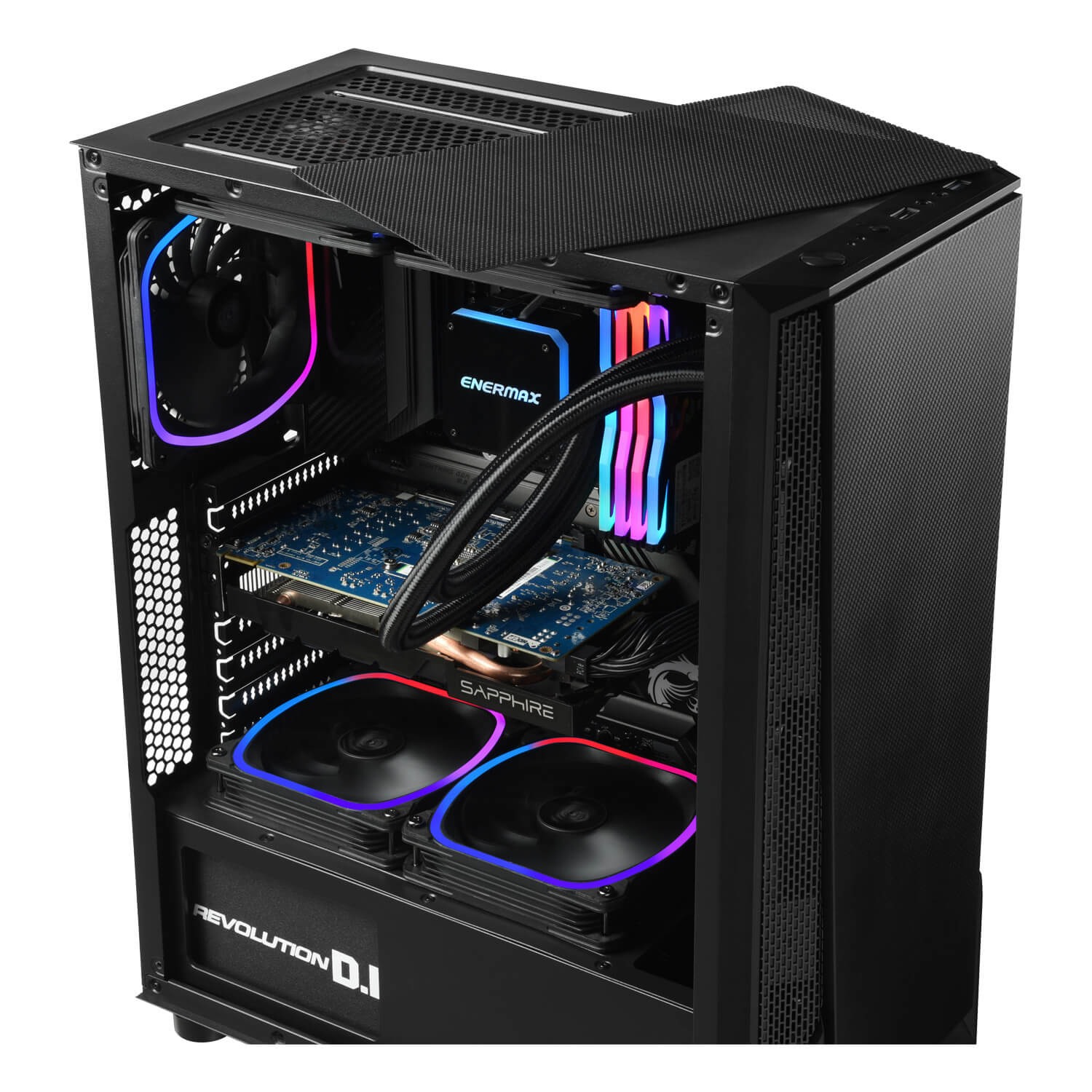

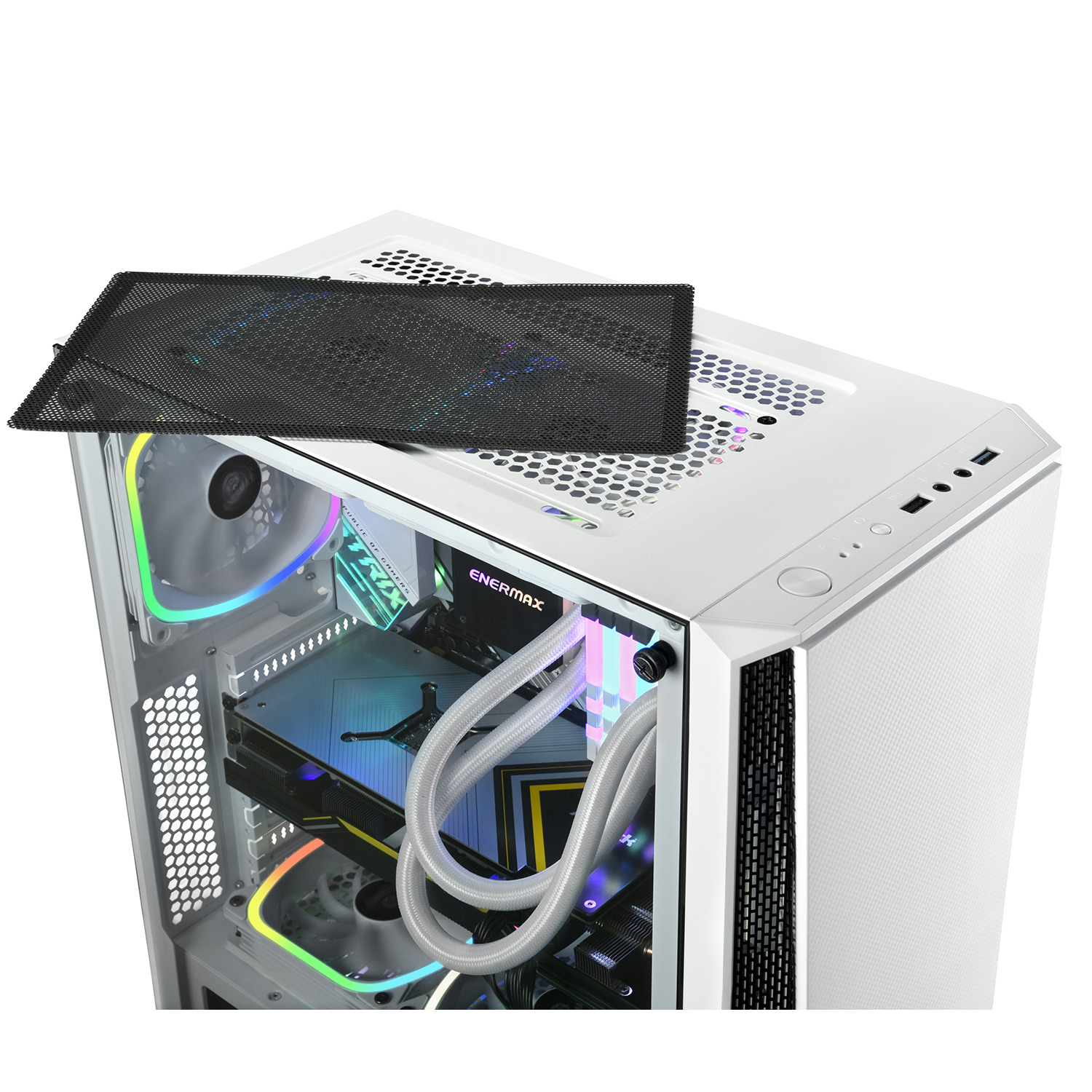

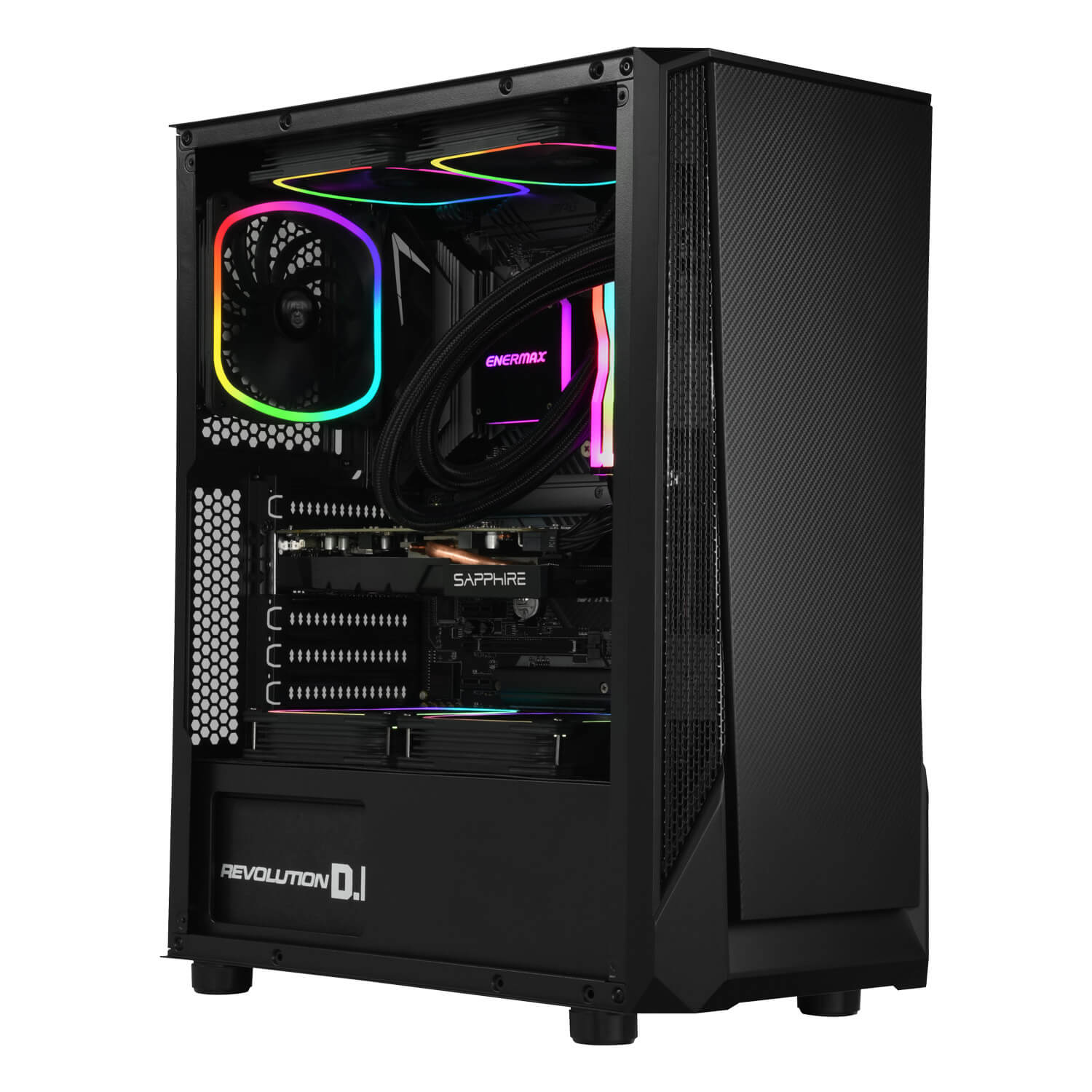

Strong cooling potential

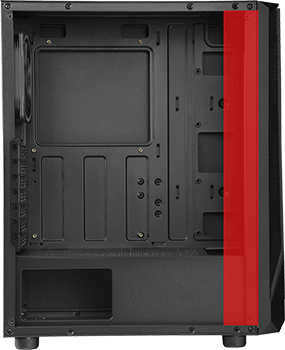

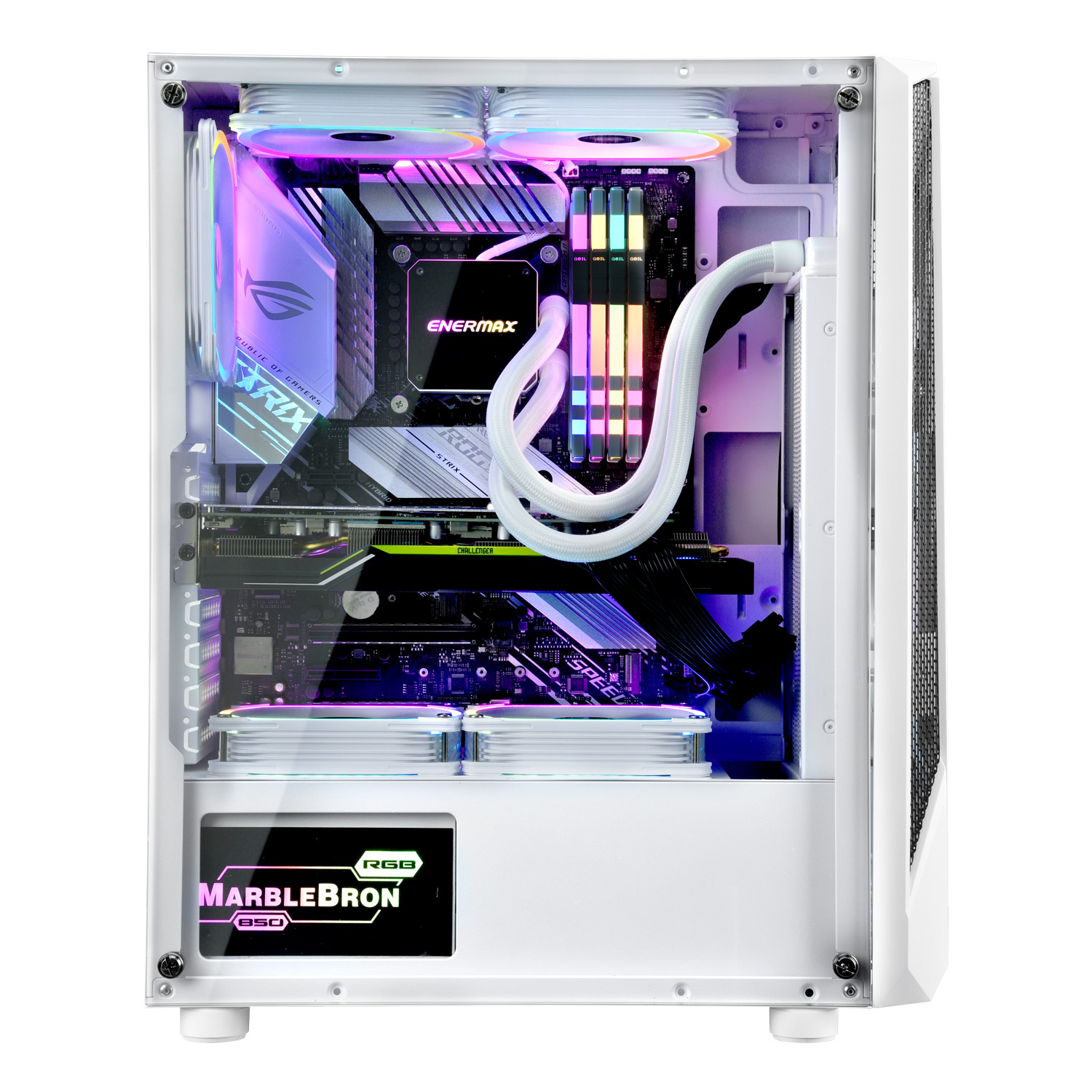

The front pannel supports up to 360 radiatior, and rear supports to 120 radiator.

* Maximum support up to 8 x120mm fans (including on PSU tunnel)

Liquid Cooler Compatibility Chart
Radiator size (mm) 360 240 120
Front



User friendly

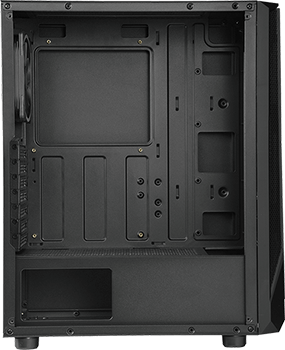

Removable HDD cage can make your cable management more tidy and neat

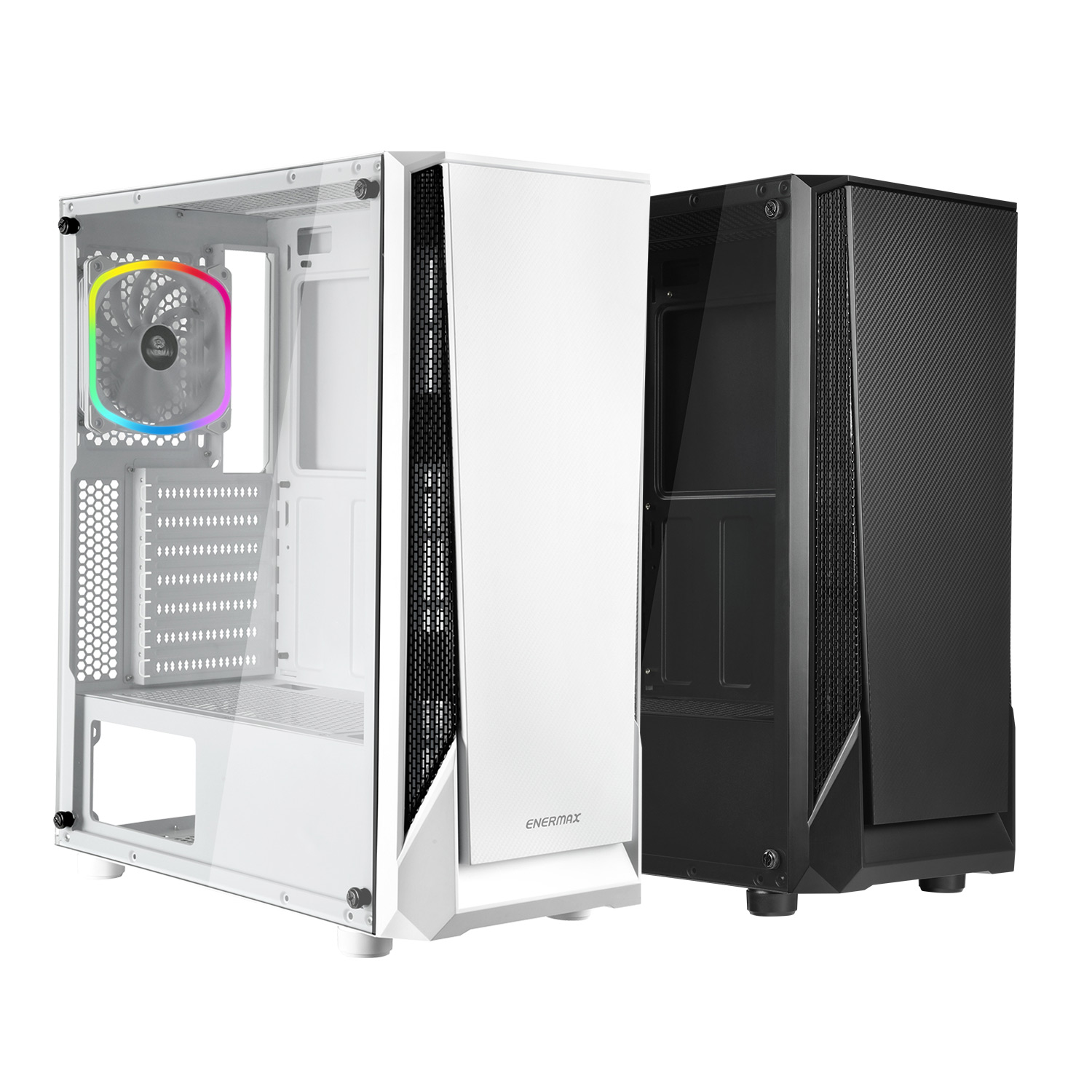

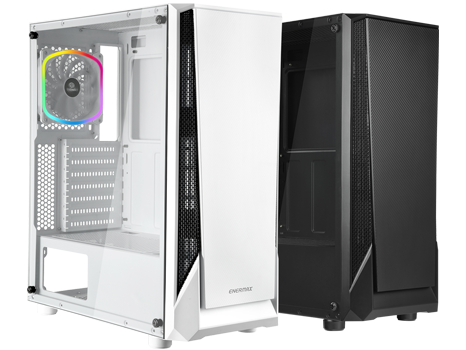

Model Name Black: ECB-PB30-BB-ARGB / White: ECB-PB30-WW-ARGB
Dimensions (D x W x H) D375 x W200 x H458mm
Material Tempered Glass, SPCC
M/B Type ATX, Micro-ATX, Mini-ITX

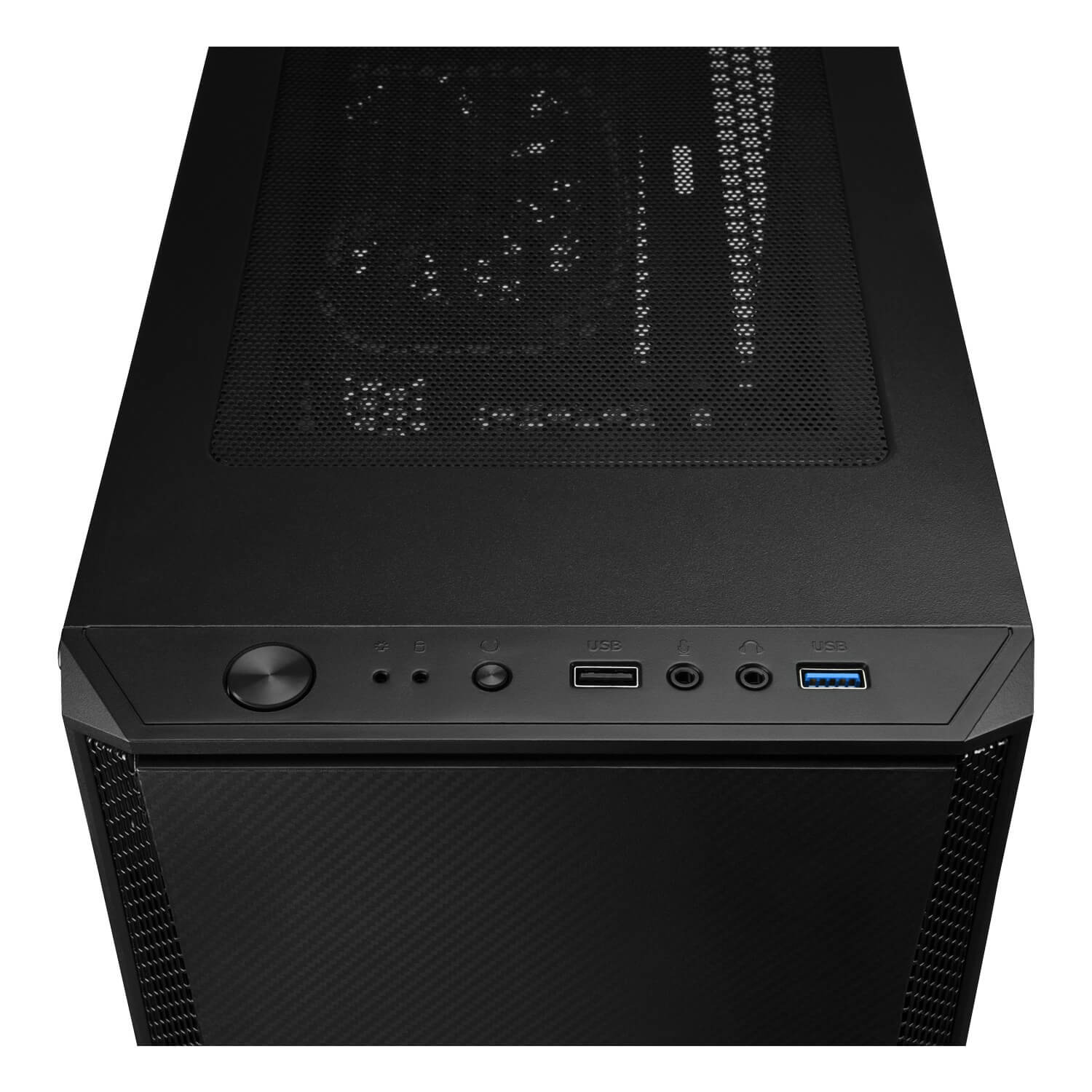

I/O USB3.2 Gen1 x1, USB2.0 x 1, HD Audio x 1
3.5'' Drive Bays 2
2.5'' Drive Bays 2

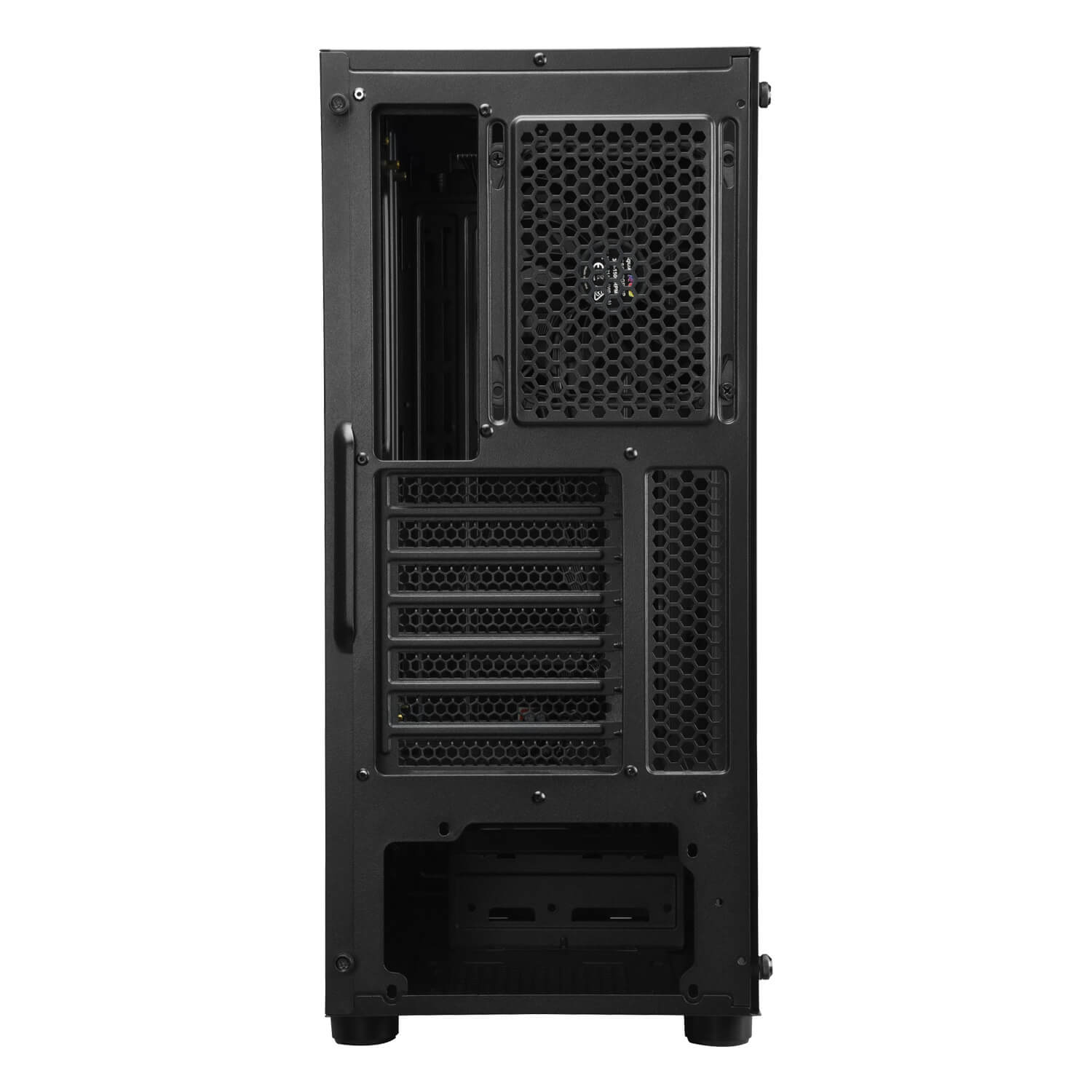

Expansion Slots 7
Fan Slots - Front 3 x 120mm / 2 x 140mm
Fan Slots - Top 2 x 120mm
Fan Slots - Rear 1 x 120mm
(1 x 120mm SquA RGB Fan Pre-installed)
Fan Slots - Tunnel 2 x 120mm
Radiator Support - Front 360/240/120mm
PSU Support 150mm (With HDD Cage)
330mm (Without HDD Cage)
Clearance - VGA card Suggested VGA Card Length Limitation: 300mm
Clearance - CPU Cooler Suggested CPU Cooler Height Limitation: 156mm
Cable Routing Space 18.6~21.0mm
EAN code Black: 4713157726049 / White: 4713157726179
UPC code Black: 819315026045 / White: 819315026175
Carton dimensions (D x W x H), (mm) D502 x W262 x H455mm
Gross Weight (kg) 5.2KGS
Net Weight (kg) 4.2KGS
