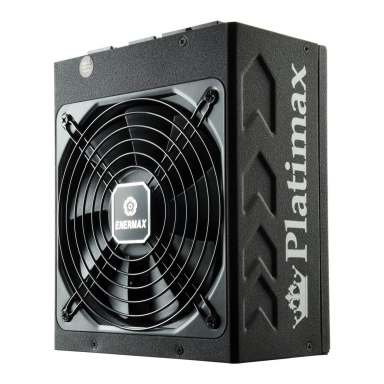

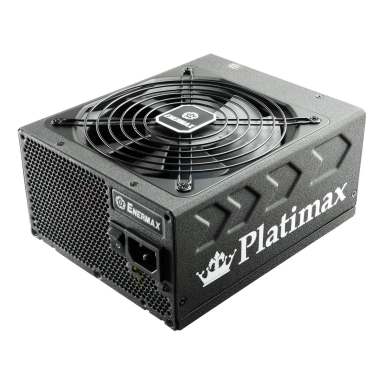

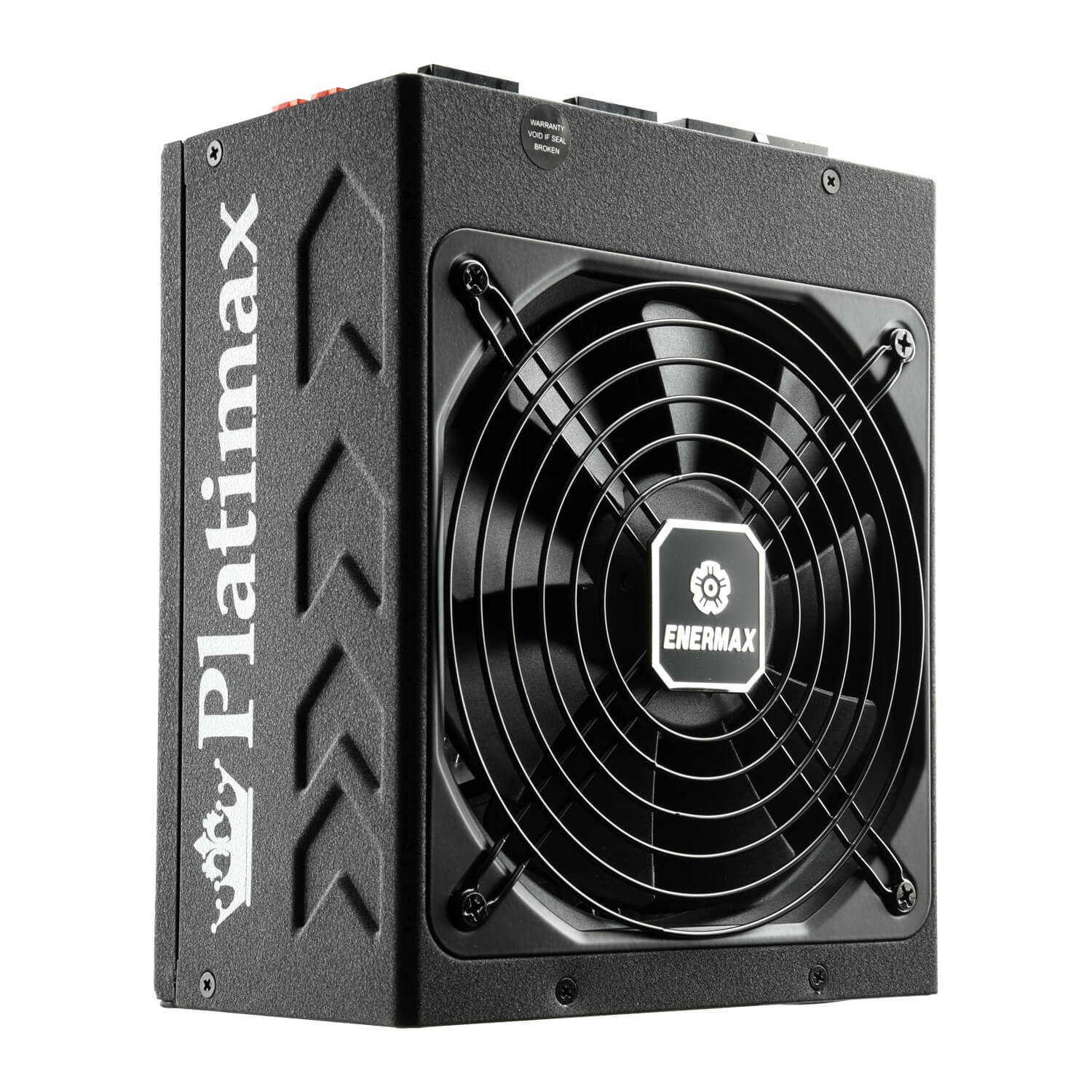

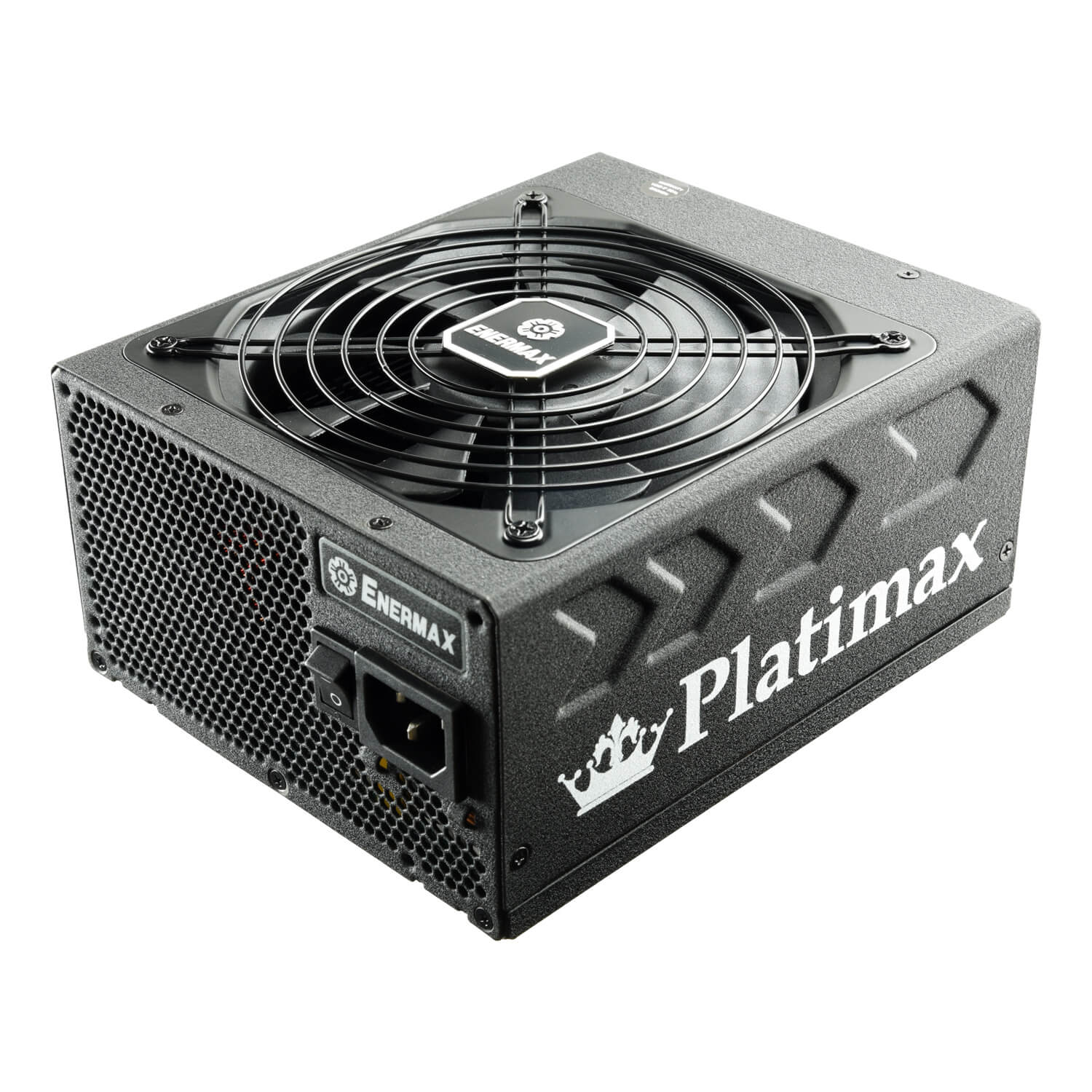

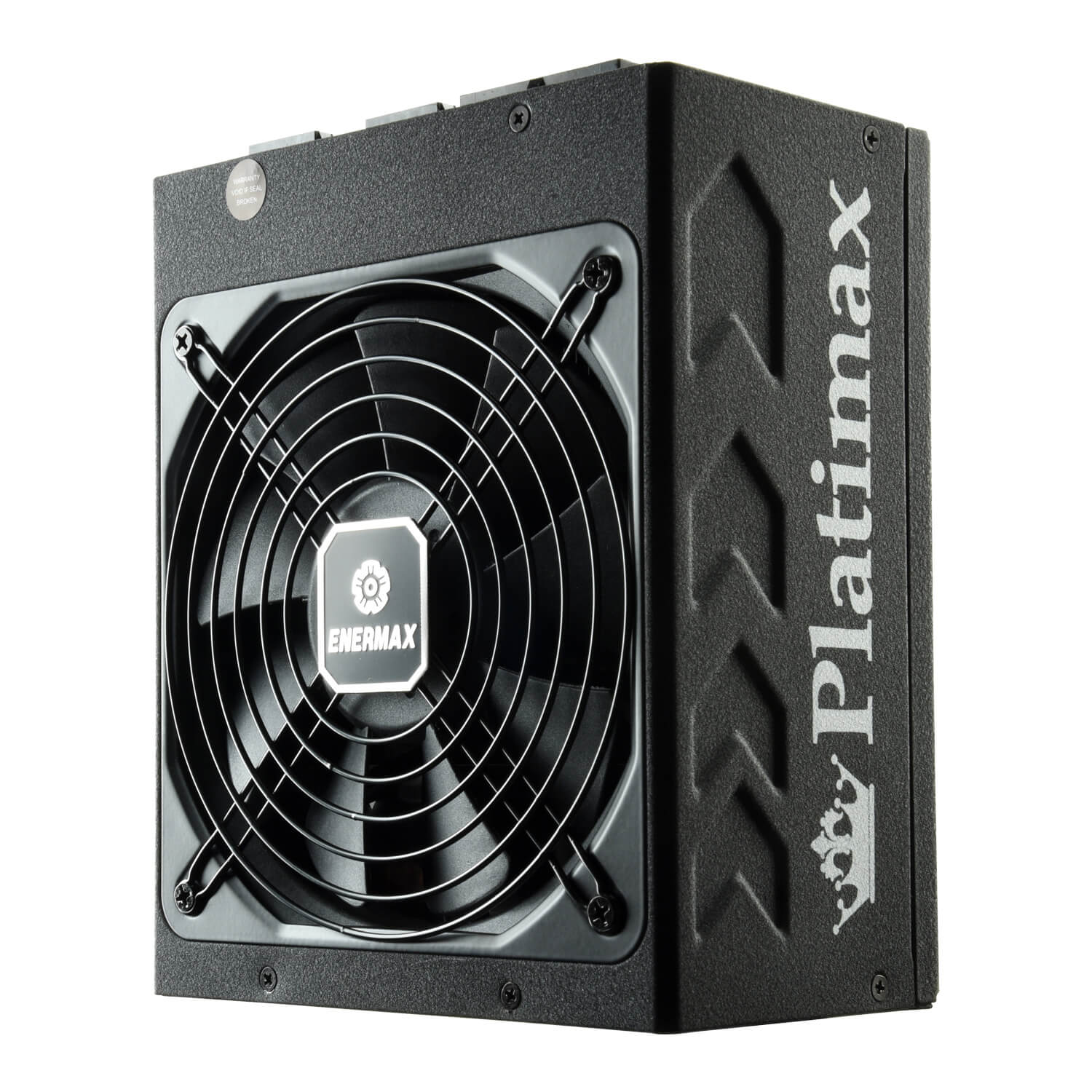

Platimax 1350 Watt 80 PLUS Platinum Full-Modular Power Supply

Features

  • SERVER ready!
    SSI PSDG support for latest Intel® Core™ Extreme/i7/i5/i3, Xeon™ and AMD® Opteron™ and SLI® or CrossFireX™ and downward compatible with EPS12V v2.92, v2.8.
  • World ready!
    100-240VAC in with automatic adjustment and active PFC for global usage.
  • EMC ready!
    Full-scale electromagnetic filtering protects your system against radiation interferences.
  • CordGuard
    Fixing the AC cord tightly to avoid accidental shutdowns of your PC.
  • HeatGuard
    Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime.
  • SafeGuard
    Industry-leading multiple protection circuitry of OCP, OVP, UVP, OPP, OTP, SCP & SIP.
  • SpeedGuard
    Advanced fuzzy logic fan speed control for optimal cooling and minimum noise. (Patented)
  • 100% 105℃ Japanese electrolytic capacitors
    Highest components standards for maximum durability and stability.
  • Ultimate Technology
    Clean and efficient layout and classic finish with decent black deco frame, Platimax considers both the aesthetics and technology of the overall design.
  • Enhanced Heatsink
    Unique one-piece shape design ensures uniform heat distribution and increases air flow.



89 PLUS ready!

World’s leading modular cable PSU series with 89-94% efficiency @ 20-100% load. Compliant with 80PLUS® PLATINUM efficiency requirement.

  Server System @ 1000W load Annual KWh*2 Annual KWh wasted Annual Money wasted*3 Annual CO2 wasted*4
Efficiency*1 AC Draw (W) *2
Platimax 1000W 92% 1467.4 12854.4 - - -
Other ~82% 1000W 82% 1646.3 14421.6 1567.2 $235.24 / €344.78 971.7kg
Other ~80% 1000W 80% 1687.5 14782.5 1928.1 $289.41 / €424.18 1195.4kg
  • *1:Based on 230VAC input power. Figures might vary by system configuration and loading.
  • *2:Annual KWh is estimated based on 24 hours a day, 365 days a year runtime. Formula: AC Draw(W) x 24(hrs) x 365(days) / 1000
  • *3:1KWh= $0.1501 (California) / €0.22(Germany)/ Fare might vary by countries and regional providers.
  • *4:Calculation based on 1KWh= 0.62kg CO2. Figures might vary by countries.



FMQ Design

Fully utilize transformer’s quad magnetic quadrants energy to provide maximum switching efficiency and outstanding stability




Copper-Bridge Array




Extreme Density Transformer

Innovative design boosts transformer core utilization rate and reduce overall dimension

  1. Extreme power density performance
  2. 50% space saving than conventional design
  3. Excellent heat dissipation
  4. Low air resistance and less air friction noise



ErP Lot 6 2013 ready!

Advanced +5Vsb circuitry with up to 20% improved efficiency in comparison to generic designs helps your system meet ErP Lot 6 2013 ( AC < 0.5W at standby) requirement.

*With ErP Lot 6 2013 enabled motherboard.

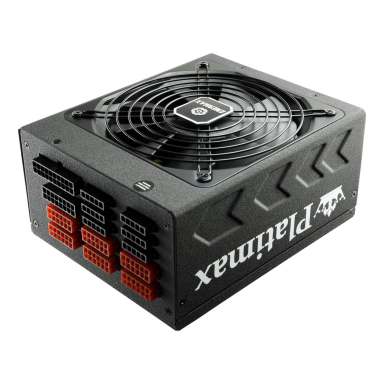

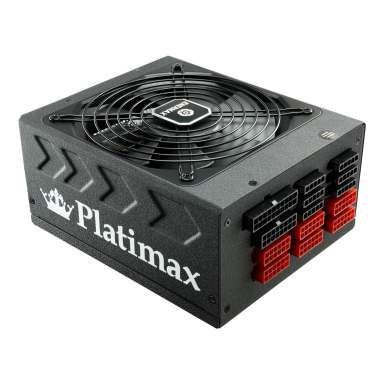

Modular ready!

Full modular cable design for easy customized support for various peripheral settings.




Enhanced Heatsink

Unique one-piece shape design ensures uniform heat distribution and increases air flow

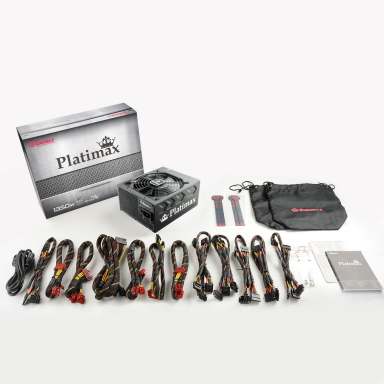

EPM1350EWT
Mainboard 24 Pin 1
[ 1 x 60cm ]
CPU 8 Pin 1
[ 1 x 65cm ]
2 x PCI-E 6+2 Pin (8 Pin) 8
[ 4 x 50cm ]
8P & 4P 12V CPU/RAM 1
[ 1 x 60cm ]
SATA 8
[ 2 x 45/15/15/15cm ]
2 x SATA + 2 x 4 Pin Molex 4 + 4
[ 2 x 45/15/15/15cm ]
4 x 4 Pin Molex + FDD 8 + 2
[ 1 x 45/15/15/15/15cm ]

Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

Model EPM1350EWT
Efficiency PLATINUM
Modular Full modular
Cable type Black flat
Total power (W) 1350
Input Voltage (V) 100-240
Input Current (A) 50
Input Frequency (Hz) 50-60
Fan size (mm) 135
Operating temperature (°C) 50
MTBF (hours) >100K
Protection OCP, OVP, UVP, OPP, OTP, SCP, SIP
Dimension (D x W x H), (mm) 180 x 150 x 86
+3.3V(A) 24
+5V(A) 24
+12V1(A) 30
+12V2(A) 30
+12V3(A) 30
+12V4(A) 30
+12V5(A) 30
+12V6(A) 30
-12V(A) 0.5
+5Vsb(A) 3
Combined Wattage 12V (W) 1350
Combined Wattage 3.3V + 5V(W) 120
