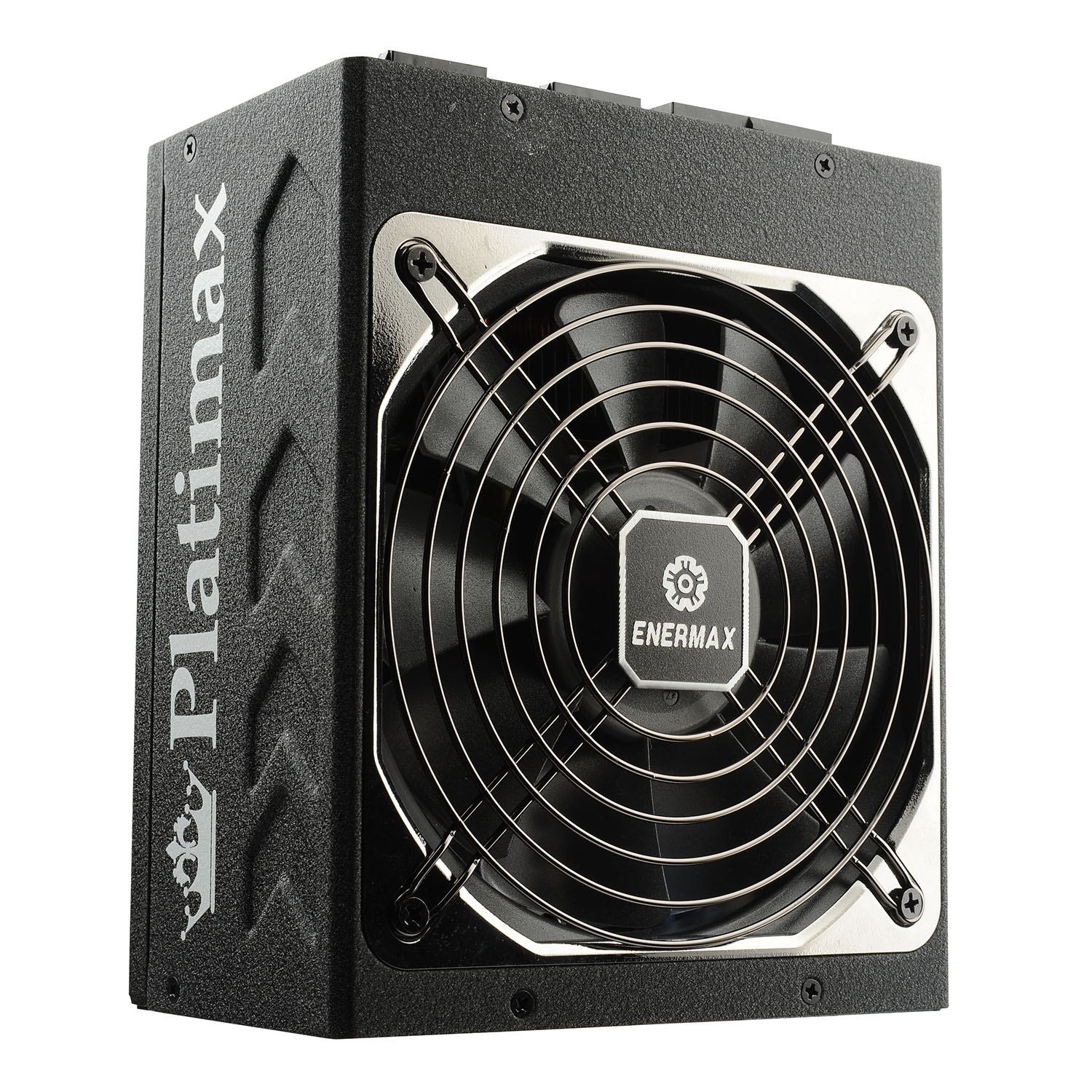

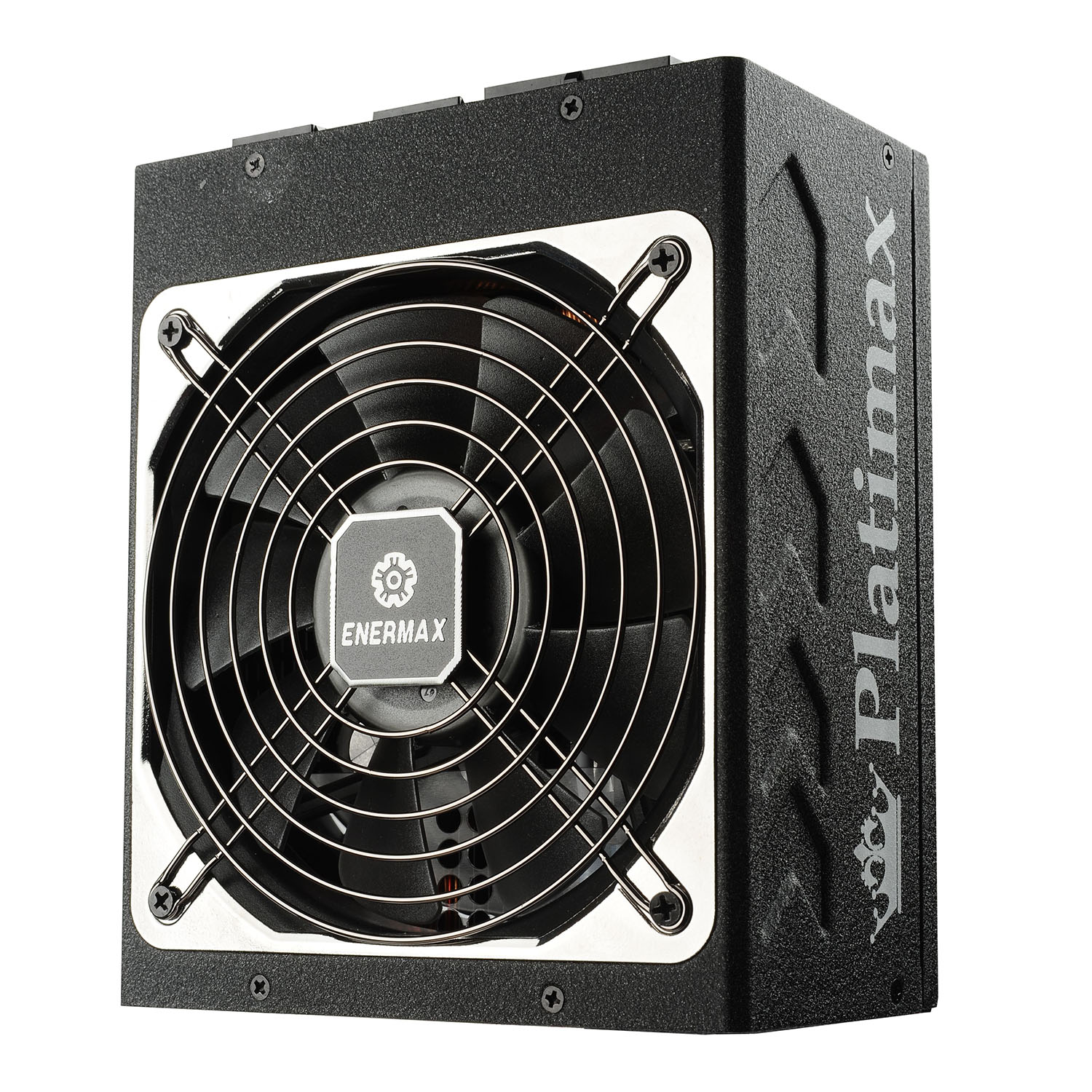

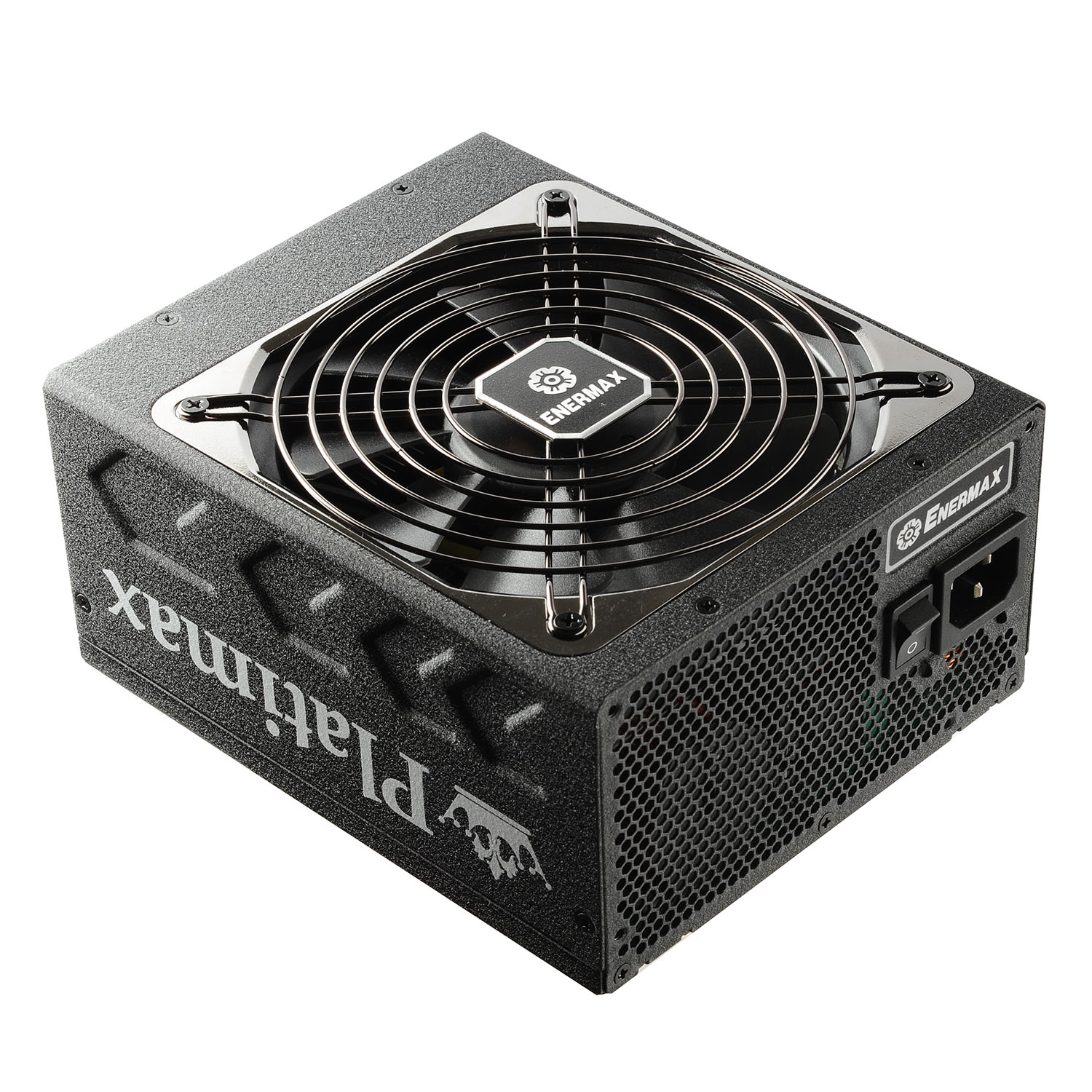

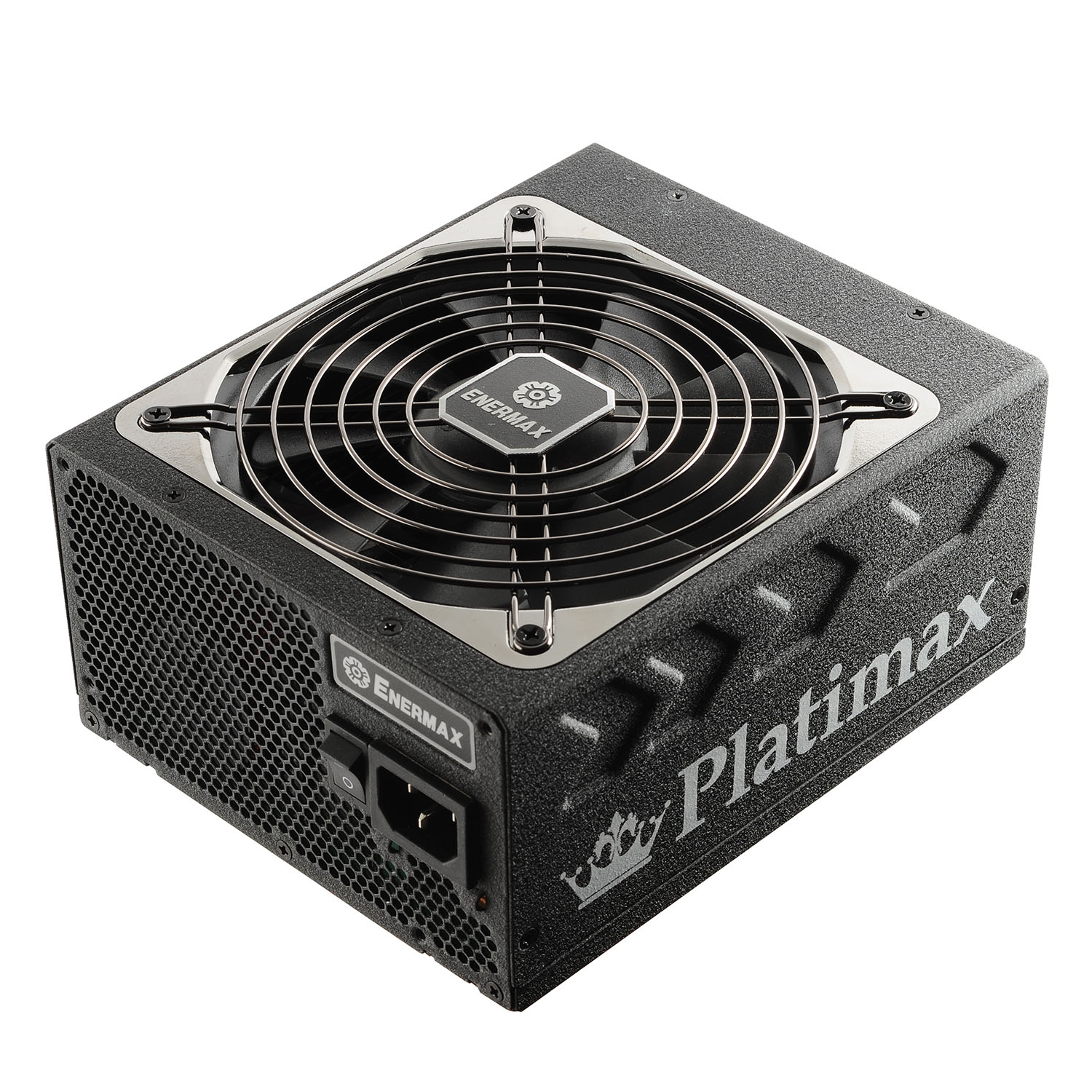

Platimax 1500W

Features

  • 90PLUS ready!
    World’s leading full modular PSU series with 90-95% efficiency at 20-100% load, achieving 80 PLUS Platinum efficiency.
  • ErP Lot 6 ready!
    ErP Lot 6 ready! Help system to meet ErP Lot 6 2013 (< 0.5W at standby mode) with high efficient +5Vsb circuitry.
    * With ErP Lot 6 enabled motherboard.
  • FMQ Design
    Fully utilize transformer’s quad magnetic quadrants energy to provide maximum switching efficiency and outstanding stability.
  • Copper-Bridge Array Transmission
    Unique Copper-Bridge Array creating wider conduction path greatly helps reduce airflow resistance, voltage drop and energy loss.
  • Enhanced Heatsink
    Unique one-piece shape design ensures uniform heat distribution and increases air flow.
  • Ultimate Technology
    Clean and efficient layout and classic finish with decent black deco frame, Platimax considers both the aesthetics and technology of the overall design.
  • DXXI ready!
    100% 6+2P (8P) PCI-E connector to support new generation DXXI graphic cards.
  • Future ready!
    12P modular design for possibly upcoming new CPU and GPU 10P and/or 12P connectors.
  • Modular ready!
    Full modular cable design for easy customized support for various peripheral settings.
  • SERVER ready!
    SSI PSDG support for latest Intel® Core™ Extreme/i7/i5/i3, Xeon™ and AMD® Opteron™ and SLI® or CrossFireX™ and downward compatible with EPS12V v2.92, v2.8.
  • EMC ready!
    Full-scale electromagnetic filtering protects your system against radiation interferences.
  • CordGuard
    Fixing the AC cord tightly to avoid accidental shutdowns of your PC.
  • HeatGuard
    Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat and prolonging system lifetime.
  • SafeGuard
    Industry-leading multiple protection circuitry of OCP, OVP, UVP, OPP, OTP, SCP & SIP.
  • SpeedGuard
    World’s leading patented fan control starting with unmatched 900RPM to a maximum of 2000RPM for optimal cooling and minimum noise.
  • Twister fan inside!
    13.9cm Twister-bearing fan with low noise and long lifetime. (100,000 hours MTBF, Patented)
  • 100% 105℃ Japanese electrolytic capacitors
    Highest components standards for maximum durability and stability.

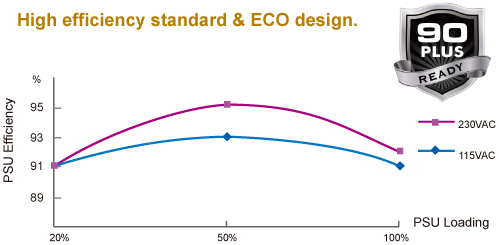

90PLUS ready!

World’s leading fully modular PSU series achieves 90-95% efficiency at 20-100% load, far better than 80 PLUS® PLATINUM efficiency standards.

  Server System @ 1500W load Annual KWh*2 Annual KWh wasted Annual Money wasted*3 Annual CO2 wasted*4
Efficiency*1 AC Draw (W) *2
Platimax 1500W 92% 1630 14278.8 - - -
Other ~82% 1500W 82% 1829 16022 1743.2 $261.7 / €383.5 1080.8kg
Other ~80% 1500W 80% 1875 16425 2146.2 $322.1 / €472.2 1330.6kg
  • *1:Based on 230VAC input power. Figures might vary by system configuration and loading.
  • *2:Annual KWh is estimated based on 24 hours a day, 365 days a year runtime. Formula: AC Draw(W) x 24(hrs) x 365(days) / 1000
  • *3:1KWh= $0.1501 (California) / €0.22(Germany)/ Fare might vary by countries and regional providers.
  • *4:Calculation based on 1KWh= 0.62kg CO2. Figures might vary by countries.

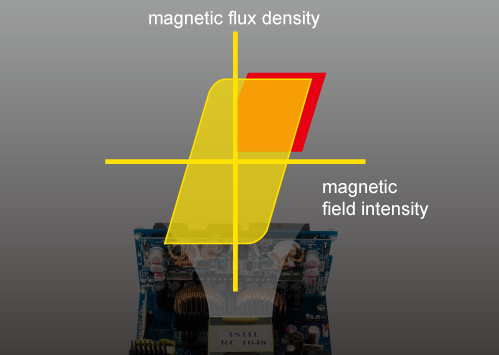

FMQ Design


Full-Zone Magnetic Quadrant Transformer Design

Fully utilize transformer’s quad magnetic quadrants energy to provide maximum switching efficiency and outstanding KW output stability.


Conventional Forward design

Ideal for 80PLUS Standard or Bronze PSU




Copper-Bridge Array




ErP Lot 6 2013 ready!

Advanced +5Vsb circuitry with up to 20% improved efficiency in comparison to generic designs helps your system meet ErP Lot 6 2013 ( AC < 0.5W at standby) requirement.

*With ErP Lot 6 2013 enabled motherboard.




Extreme Density Transformer

Innovative design boosts transformer core utilization rate and reduce overall dimension

  1. Extreme power density performance
  2. 50% space saving than conventional design
  3. Excellent heat dissipation
  4. Low air resistance and less air friction noise



Twister Bearing Fan

  1. Minimal contact area for effective noise reduction
  2. Rotor with integrated magnet for frictionless and smooth motion
  3. Self-lubricating bearing material abrasion protection for longer lifetime

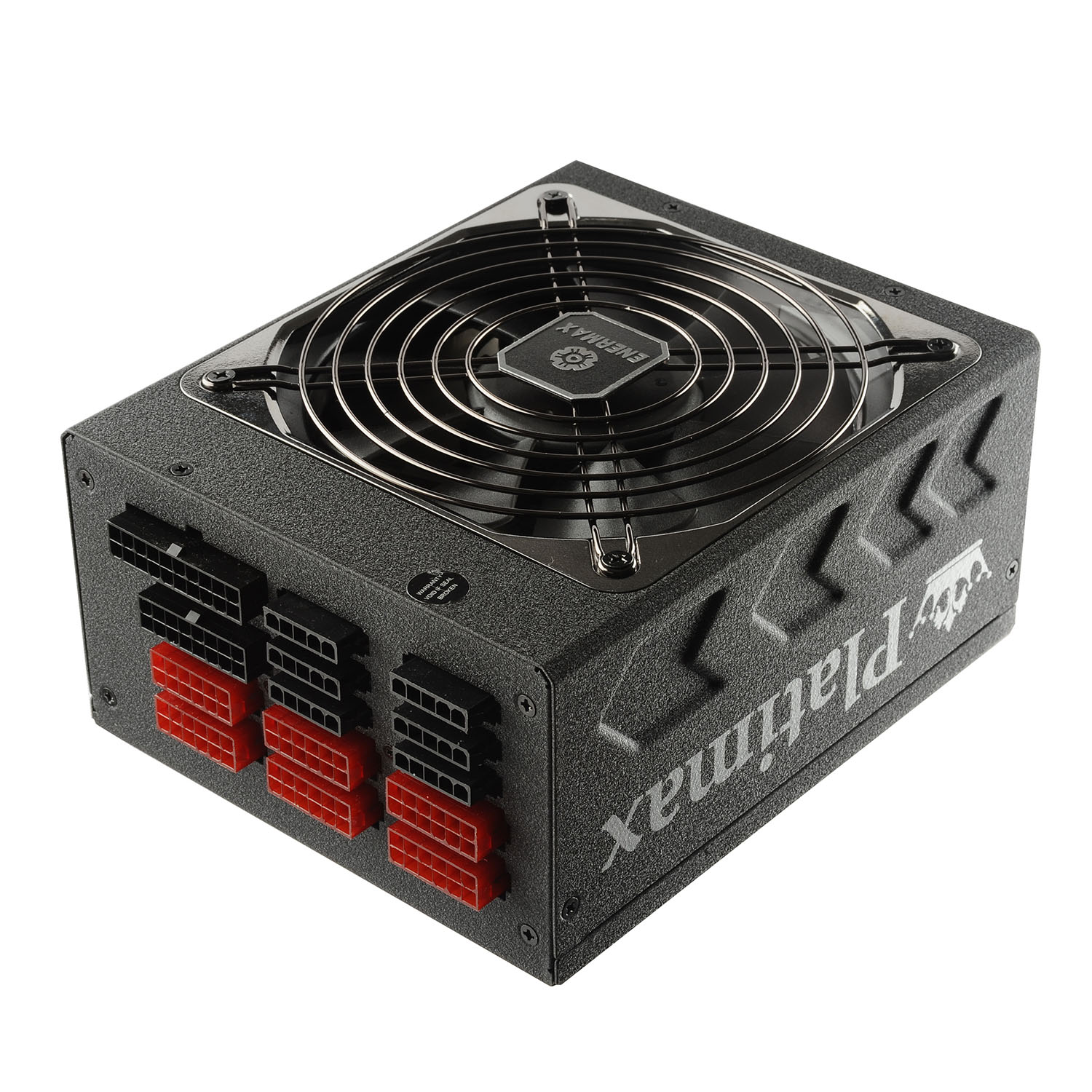

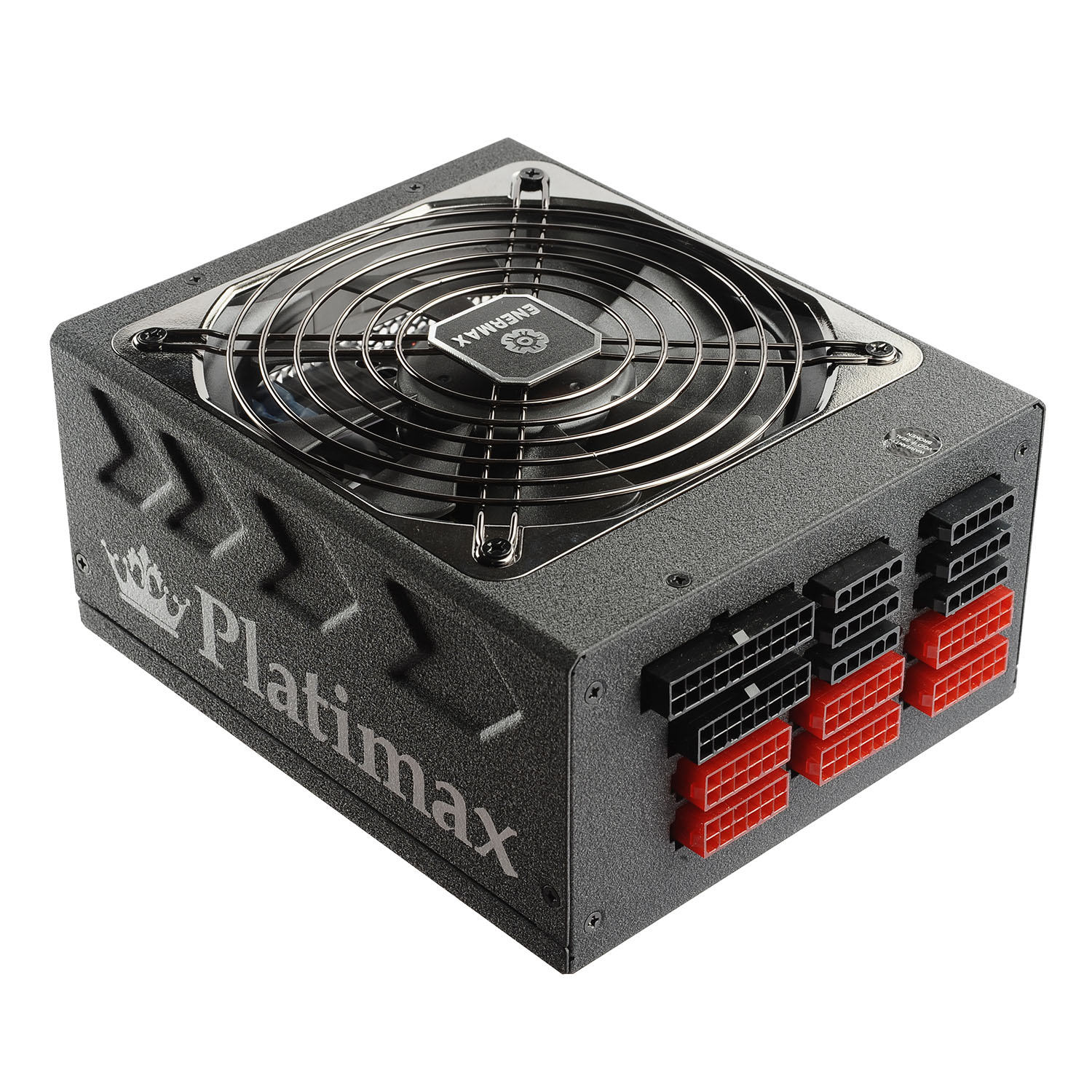

Modular ready!

Full modular cable design for easy customized support for various peripheral settings.




Enhanced Heatsink

Unique one-piece shape design ensures uniform heat distribution and increases air flow.



EPM1500EGT
CPU 4+4 Pin 1
[ 1x 60cm ]
MB24 Pin + CPU 8 Pin 1 + 1
[ 1x 60/ 5cm ]
2xPCI-E 6+2 Pin (8 Pin) 8
[ 4x 50cm ]
CPU 8 Pin + RAM 4 Pin 1
[ 60cm ]
SATA 12
[ 3x 45/15/15/15cm ]
2xSATA+2x4 Pin Molex 2 + 2
[ 45/15/15/15cm ]
4x4 Pin Molex +FDD 8 + 2
[ 2x 45/ 15/ 15/ 15/15cm ]

Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

Model EPM1500EGT
Efficiency PLATINUM
Modular Full modular
Cable type Black flat
Total power (W) 1500
Input Voltage (V) 220-240
Input Current (A) 15-7.5
Input Frequency (Hz) 50-60
Fan size (mm) 135
Operating temperature (°C) 5
MTBF (hours) >100K
Protection OCP, OVP, UVP, OPP, OTP, SCP, SIP
Dimension (D x W x H), (mm) 180 x 150 x 86
+3.3V(A) 24
+5V(A) 24
+12V1(A) 30
+12V2(A) 30
+12V3(A) 30
+12V4(A) 30
+12V5(A) 30
+12V6(A) 30
-12V(A) 0.5
+5Vsb(A) 3
Combined Wattage 12V (W) 1500
Combined Wattage 3.3V + 5V(W) 120
