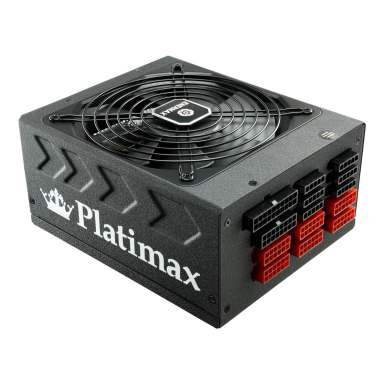

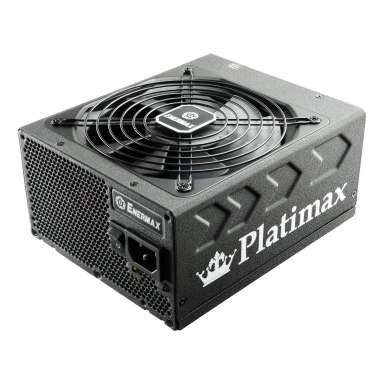

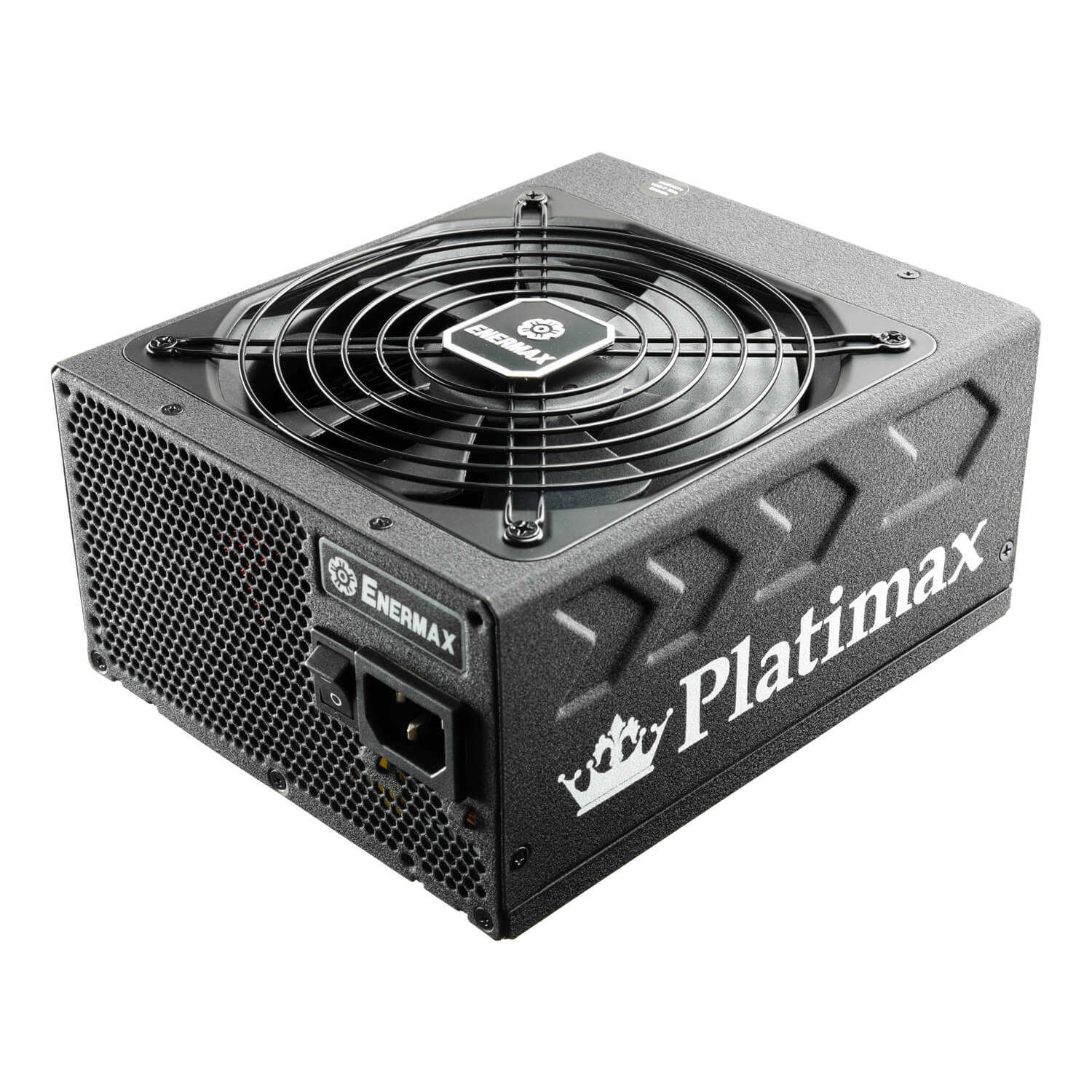

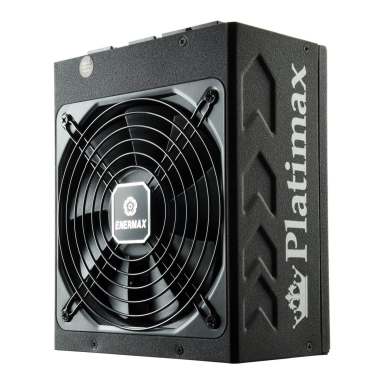

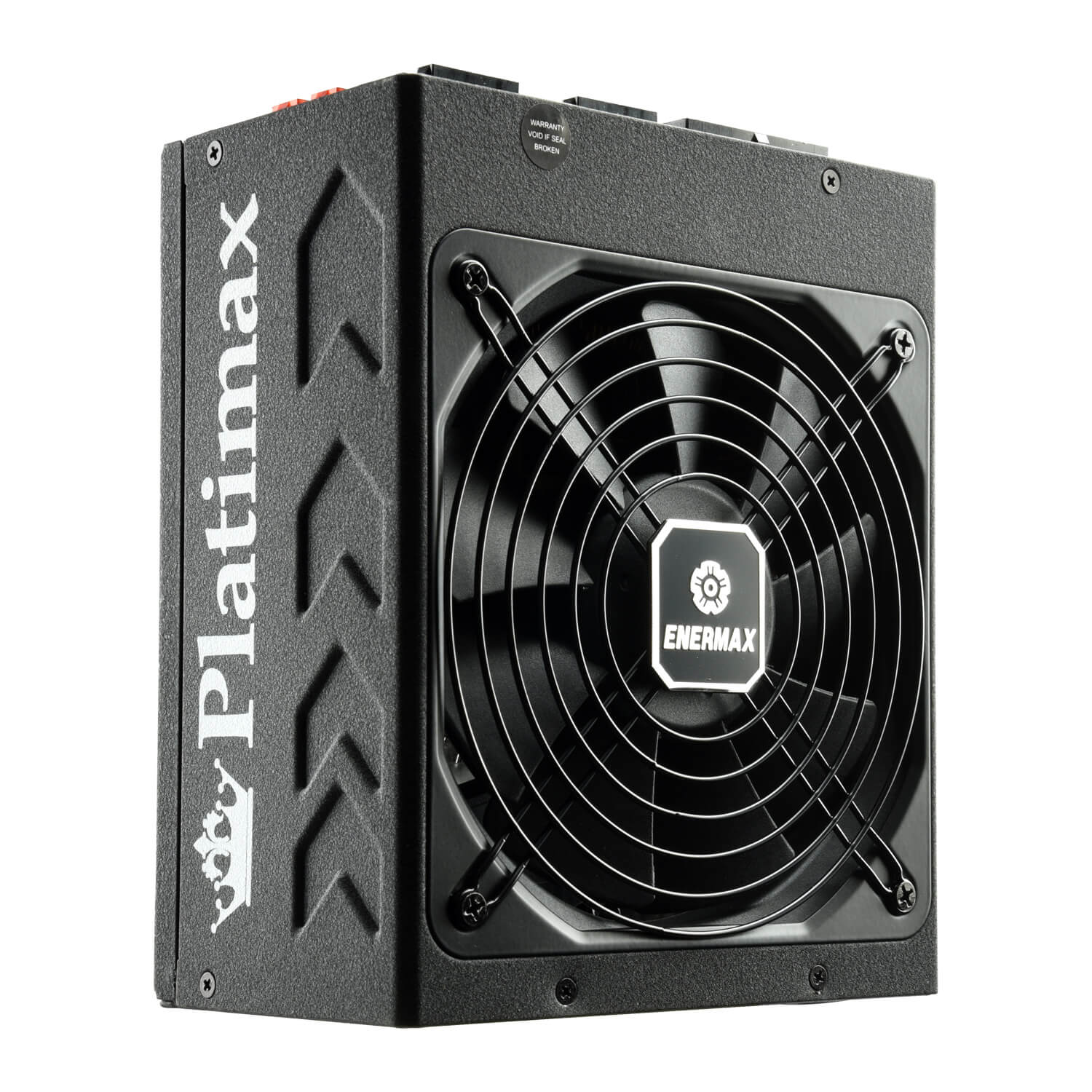

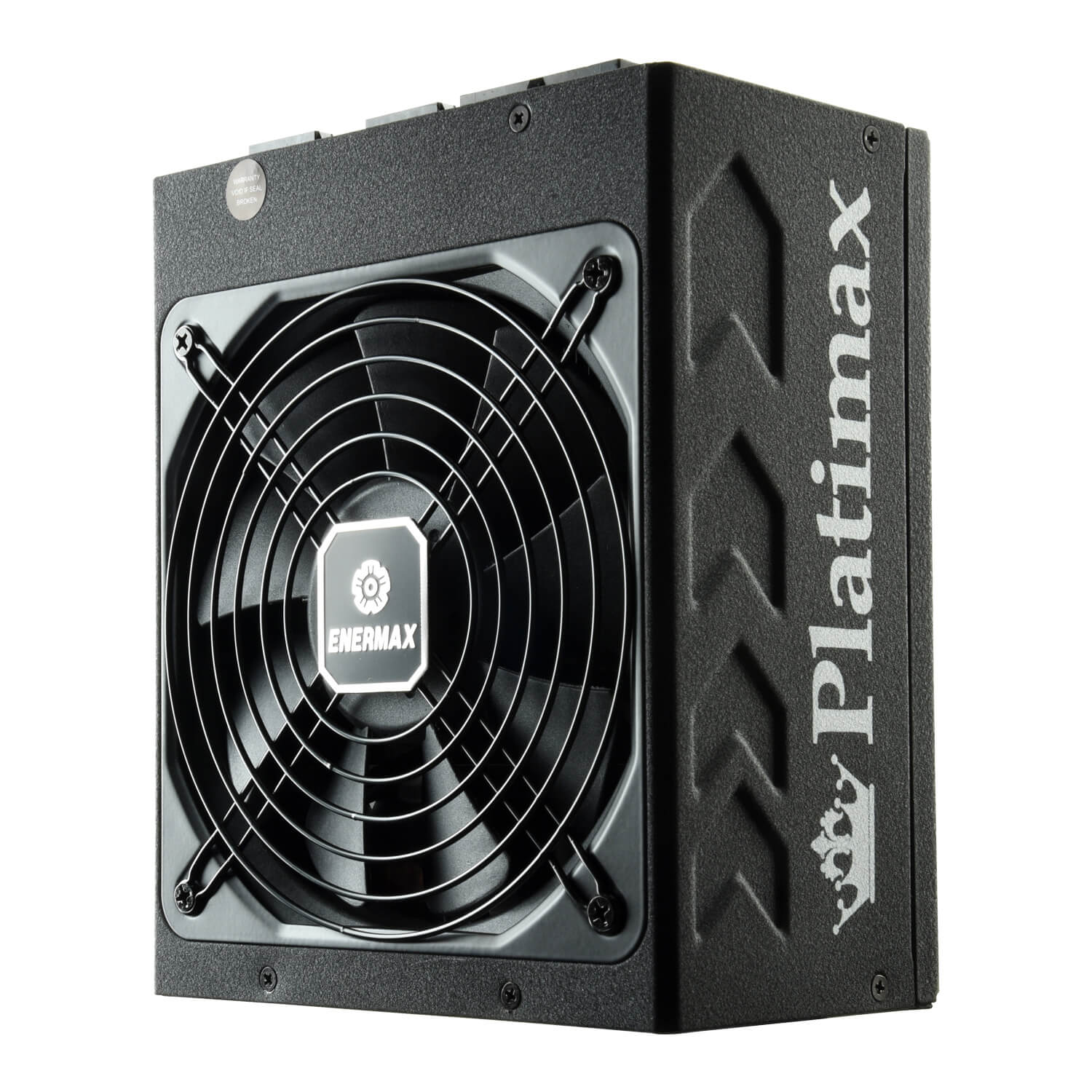

Platimax 1700 Watt Fully Modular Power Supply

‧ Peak power up to 1800W
‧ Highly efficient PSU with 90-94% efficiency
‧ Compact & Full modular cable design

COMPARE Compare List (0)

90 PLUS Ready

High efficiency PSU with 90-94% efficiency @ 20-100% load. Achieving 80 PLUS Platinum level


2013 ErP Lot 6 ready

Help system to meet 2013 ErP Lot 6 (<0.5W at standby mode) with high efficiency +5Vsb circuitry. (2013 ErP Lot 6 enabled motherboard)


FMQ Design

Fully utilize transformer’s quad magnetic quadrants energy to provide maximum switching efficiency and outstanding stability


Copper-Bridge Array Transmission

ENERMAX Copper-Bridge Array designs create wider conduction path greatly helps reduce airflow resistance, voltage drop and energy loss


Extreme Density Transformer

Innovative design boosts transformer core utilization rate and reduce overall dimension

  1. Extreme power density performance
  2. 50% space saving than conventional design
  3. Excellent heat dissipation
  4. Low air resistance and less air friction noise

Zero load ready!

DC to DC circuit ensures tight DC output regulation to support latest CPU and GPU peak power & zero load energy saving mode


100% 105°C Japanese electrolytic capacitors

Highest components standards for maximum durability and stability


100% 6+2P (8P) PCI-E Connector

New generation graphics cards supported with 100% 6+2P (8P) PCI-E connector. Best solution for setting up SLI or CrossFire gaming system

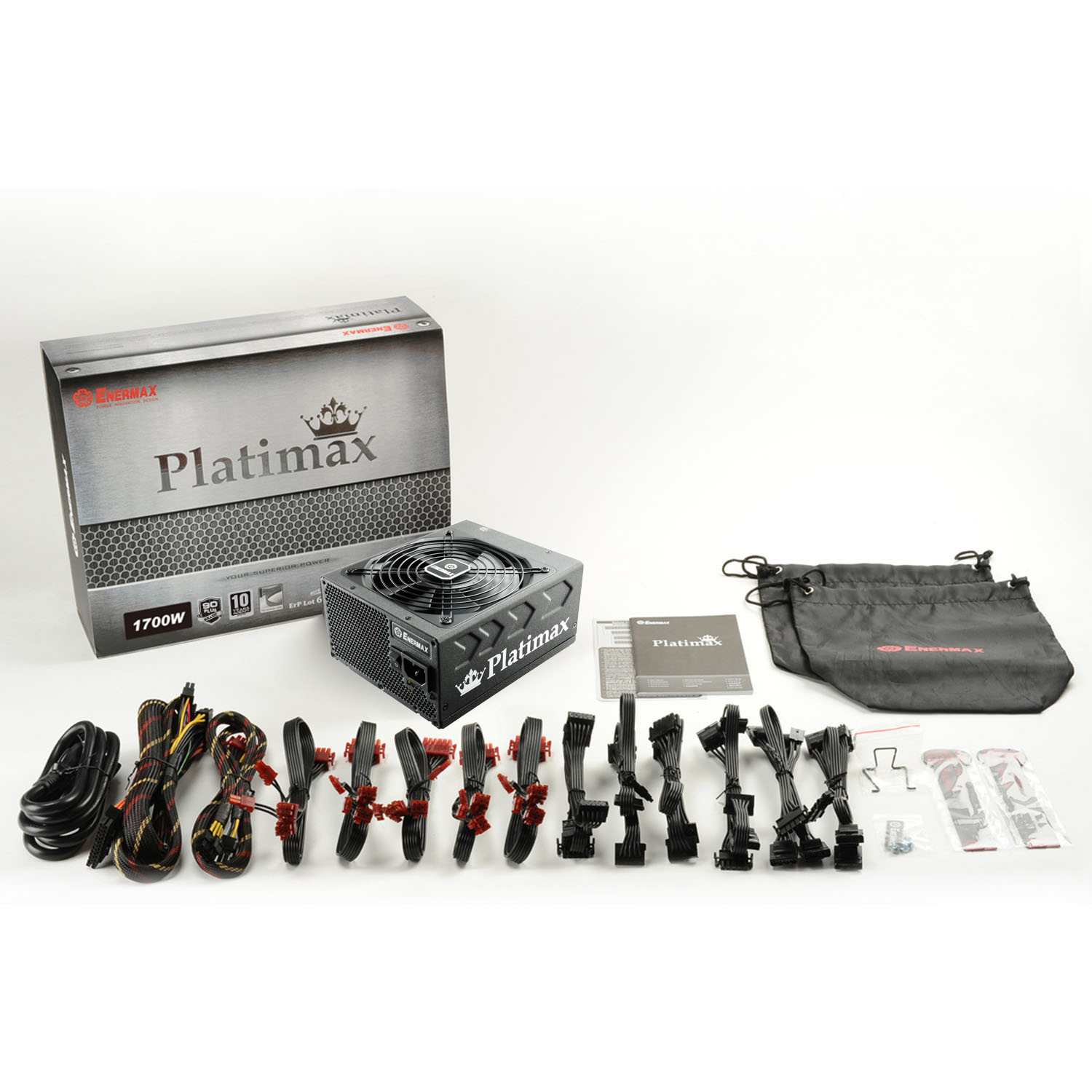

Full Modular & Flat Modular Cable Design

Full modular cable design for easy peripheral settings. Flat peripheral cables facilitate system installation, reduce cable clutter, and enhance internal airflow and cooling performance



Industry-leading multiple protection circuitry of OCP, OVP, UVP, OPP, OTP, SCP & SIP


Enhanced Heatsink

Unique one-piece shape design ensures uniform heat distribution and increases air flow

Mainboard 24 Pin 1
[ 1 x 60cm ]
CPU 8 Pin 1
[ 1 x 65cm ]
2 x PCI-E 6+2 Pin (8 Pin) 10
[ 5 x 50cm ]
8P & 4P 12V CPU/RAM 1
[ 1 x 60cm ]
[ 3 x 45/15/15/15cm ]
2 x SATA + 2 x 4 Pin Molex 2 + 2
[ 1 x 45/15/15/15cm ]
4 x 4 Pin Molex + FDD

4 + 2
[ 1 x 45/15/15/15/15cm ]

For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

80 PLUS Efficiency PLATINUM
Modular Full modular
Cable type Black flat
Total power (W) 1700W
Input Voltage (V) 220-240, Active PFC
Input Current (A) 9.0-8.0
Input Frequency (Hz) 50-60
Fan size (mm) 135
Operating temperature (°C) 50
MTBF (hours) >100K
Protection OCP, OVP, UVP, OPP, OTP, SCP, SIP
Dimension (D x W x H), (mm) 150 x 86 x 180
+3.3V(A) 25
+5V(A) 25
+12V1(A) 20
+12V2(A) 20
+12V3(A) 30
+12V4(A) 30
+12V5(A) 30
+12V6(A) 30
-12V(A) 0.5
+5Vsb(A) 4
Combined Wattage 12V (W) 1692
Combined Wattage 3.3V + 5V(W) 140
EAN code 4713157721150
Box dimensions (D x W x H), (mm) 357 x 281 x 108mm
Gross Weight / unit (kg) 4.95
