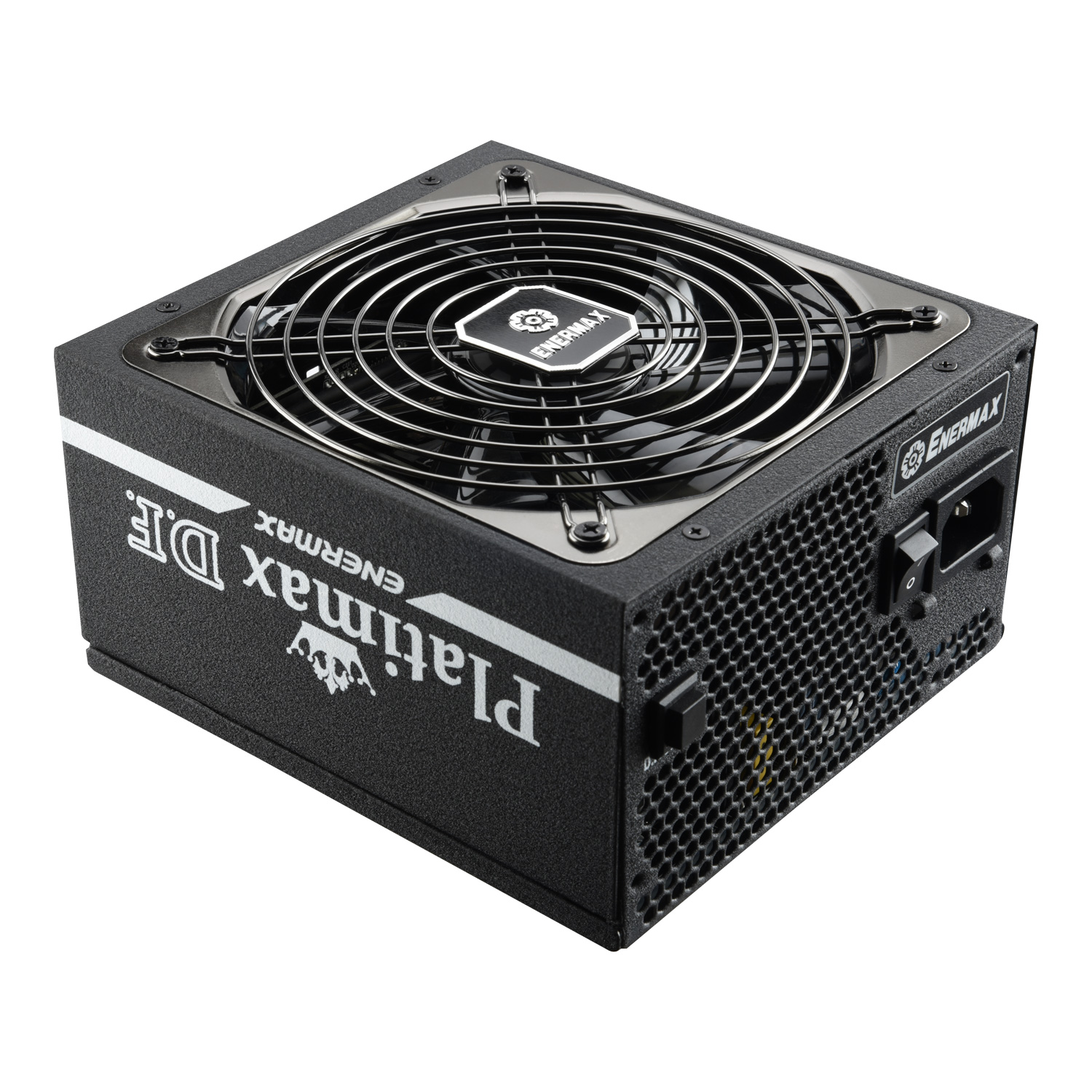

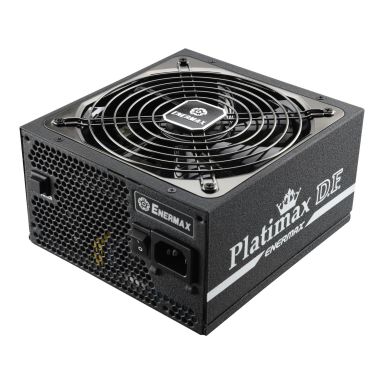

Platimax D.F. 1050 Watt 80 PLUS Platinum Fully Modular Power Supply

‧ Compact 160mm with up to 1200W (EPF1200EWT) powerful output
‧ Patented Dust Free Rotation (DFR) technology for
the PSU fan
‧ D.F. switch for users to activate DFR function
anytime during operation

COMPARE Compare List (0)

80 PLUS® Platinum Certified

Meet 80 PLUS®Platinum standard with 89-93% superb efficiency @ 20-100% load




Dust Free Rotation Tech. (patented)

Dust Free Rotation technology enables the fan to instantly blow away the dust to prolong the lifespan




Smart semi-fanless control

Fanless mode before 30%~40% of system load for silent operation. Once surpassing the pre-defined limit, the fan starts to spin and the fan RPM is automatically regulated according to the system load




D.F. switch

The design enables users to activate DFR self-cleaning function at any time during operation

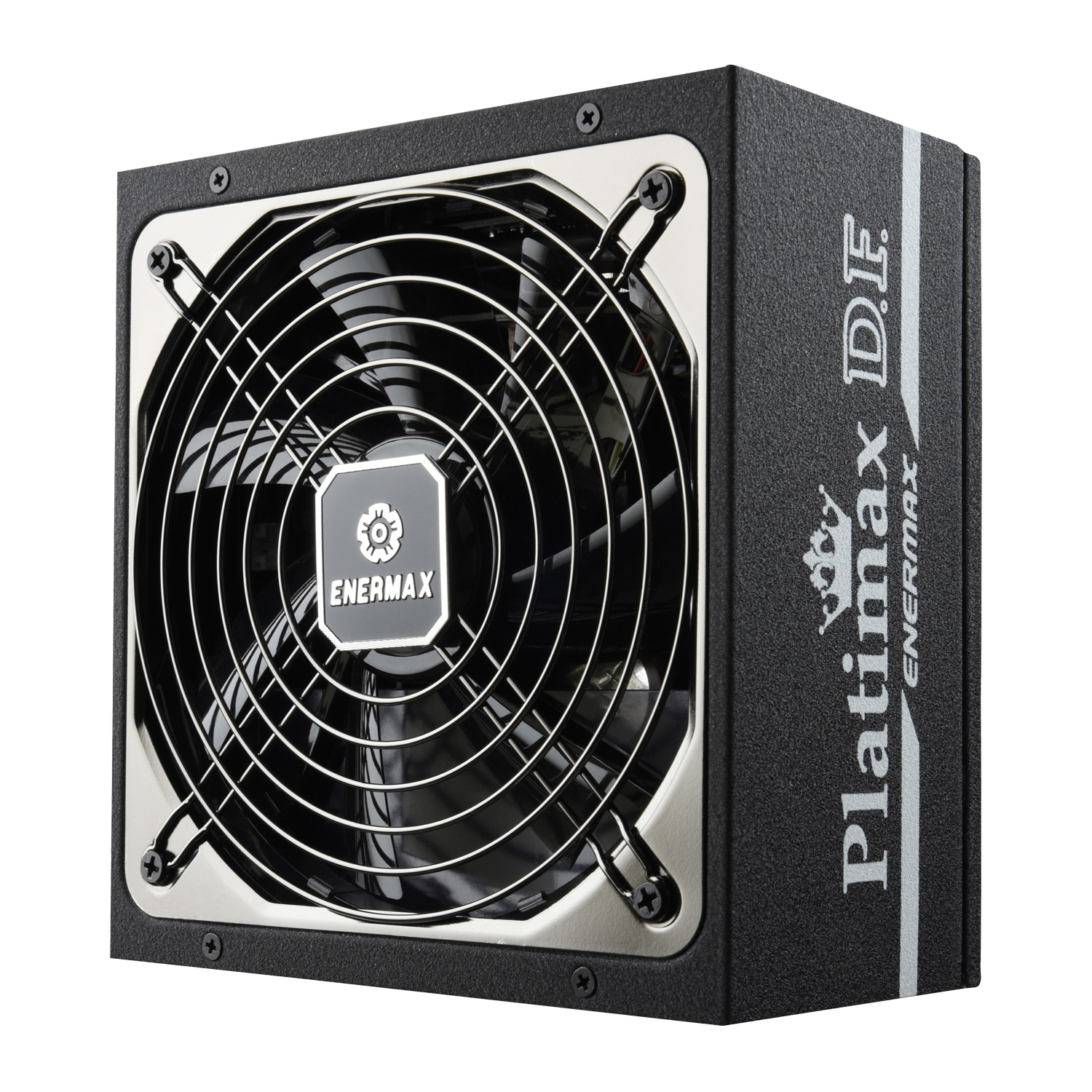

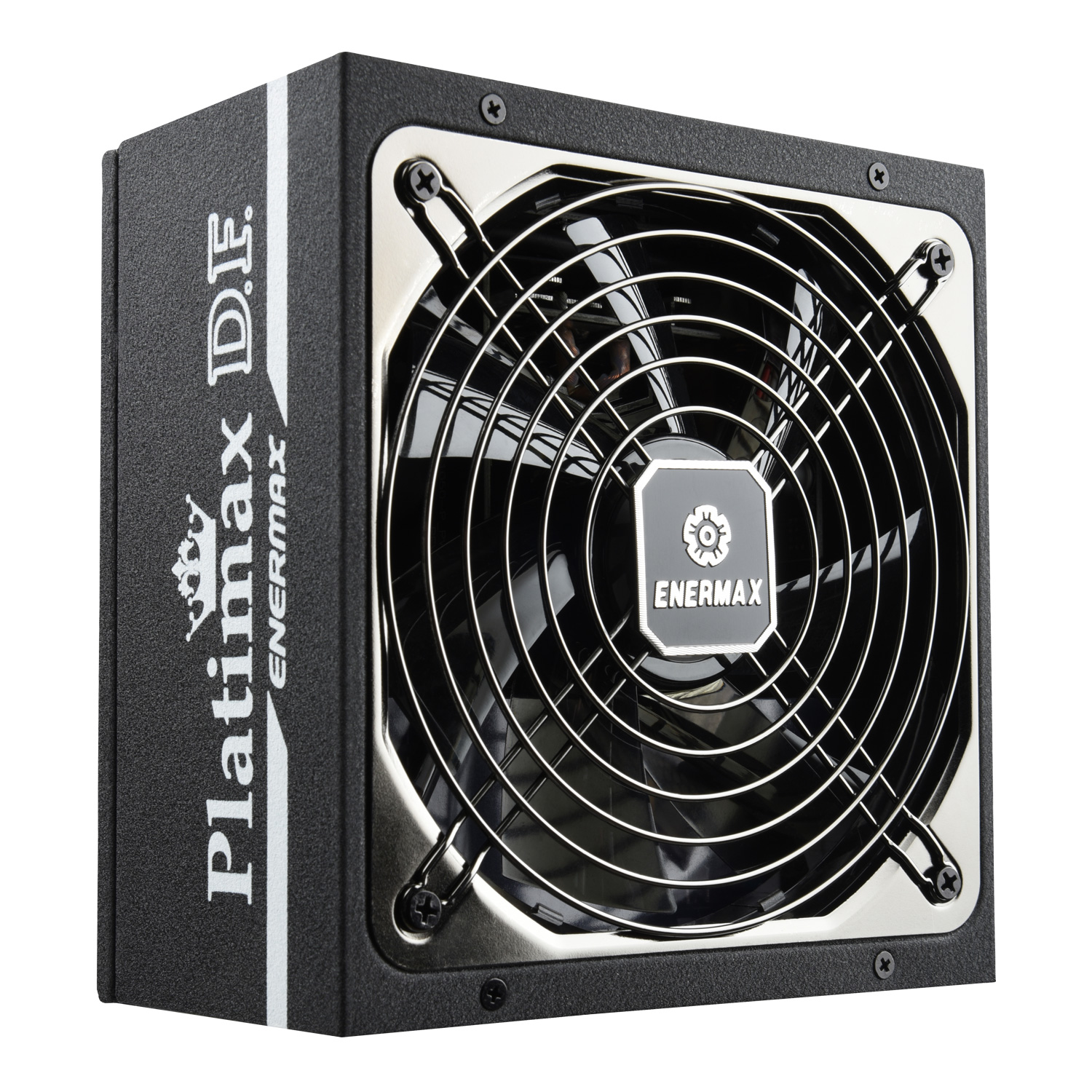

Twister Bearing fan (patented)

13.9cm fan with patented Twister Bearing Technology ensures ultra silent cooling and long lifetime of fan (160,000 hours MTBF)




SLEEMAX

Stylish individual sleeved cable, made with carefully selected fabric to achieve a smooth, soft texture

*MB / CPU / PCI-E=16AWG (53 strands*0.176mm) *SATA / 4P Molex=18AWG (34 strands*0.176mm)

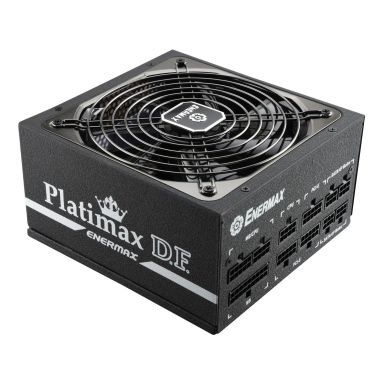

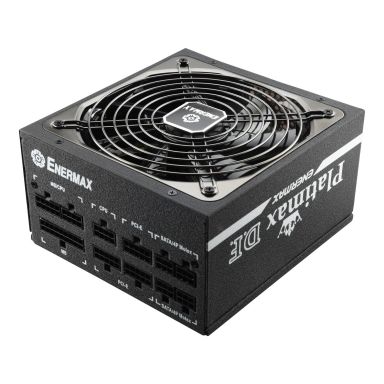

Full modular design & powerful output

Full modular cable design facilitates flexible system installation and cable management. Compact 160mm with up to 1200W (EPF1200EWT) powerful output




100% 105°C Japanese electrolytic capacitors

Highest component standards for maximum durability and stability




Zero load ready!

DC to DC converter circuit ensures stable output voltage and delivers higher efficiency




2014 & 2013 ErP ready!

<0.5W power consumption at standby mode (with 2013 ErP Lot 6 enabled motherboard). Compliant with 2013 ErP Lot 6 & 2014 ErP Lot 3 standards




World ready

100-240VAC auto-adjustment input for universal use. Active PFC with PF value up to 0.99, reducing the reactive power loss to the minimum




SafeGuard

Multiple protection circuitry of OCP, OVP, UVP, OPP, OTP, SCP and SIP protects your system




24/7 @ 50°C ready!

Non-Stop industrial class performance at 50°C ambient




12V Rails Distribution

  • Please do connect MB 18-pin and 10-pin connectors (12V1) into respective sockets to enable 24-pin MB.
  • This product incorporates multiple 12V rails over current protection. If you let many peripherals consume the power on only one 12V rail, it may trigger the over current protection and shut down the system. Please re-direct certain peripheral power cable to other 12V rail to share the current loading to ensure highest stability and safety.



Product Introduction



Dust Free Rotation (DFR) Tech Introduction

EPF1050EWT
Mainboard 24 Pin 1
[ 1 x 60cm ]
CPU 4+4 Pin 1
[ 1 x 70cm ]
CPU 8 Pin 1
[ 1 x 70cm ]
2 x PCI-E 6+2 Pin (8 Pin) 6
[ 3 x 60cm ]
SATA 12
[ 3 x 50/15/15/15cm ]
4 Pin Molex 4
[ 1 x 50/15/15/15cm ]
FDD 1
[1 x 10cm ]

Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

80 PLUS Efficiency PLATINUM
Modular Full modular
Cable type SLEEMAX (Individual sleeved)
Total power (W) 1050
Input Voltage (V) 100-240
Input Current (A) 13-6
Input Frequency (Hz) 47-63
Fan size (mm) 139
Operating temperature (°C) 50
MTBF (hours) > 100k
Protection OCP, OVP, UVP, OPP, OTP, SCP, SIP
Dimension (D x W x H), (mm) 160 x 150 x 86
+3.3V(A) 22
+5V(A) 22
+12V1(A) 25
+12V2(A) 25
+12V3(A) 40
+12V4(A) 40
-12V(A) 0.3
+5Vsb(A) 3
Combined Wattage 12V (W) 1044
Combined Wattage 3.3V + 5V(W) 120
EAN code 4713157722898
UPC code 816163009176
Box dimensions (D x W x H), (mm) 330 x 220 x 125
Gross Weight / unit (kg) 3.54
