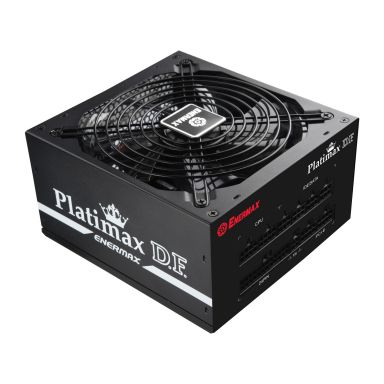

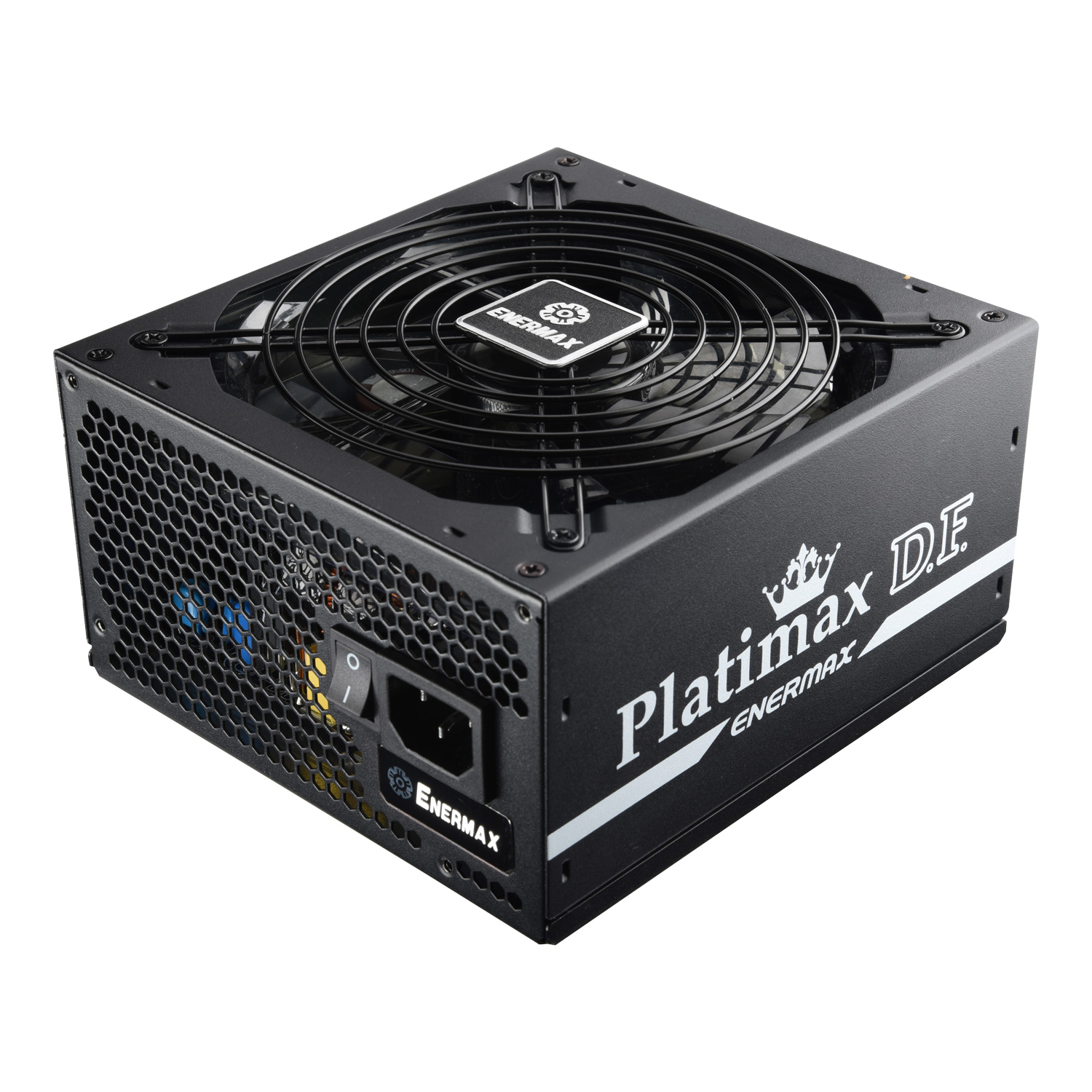

Platimax D.F. 500 Watt 80 PLUS Platinum Fully-Modular power supply

‧ Full modular cable design
‧ Patented Dust Free Rotation (DFRTM) fan technology
‧ SLEEMAX - new stylish individual sleeved cable

80 PLUS® Platinum Certified

Meet 80 PLUS®Platinum standard with 89-93% superb efficiency @ 20-100% load

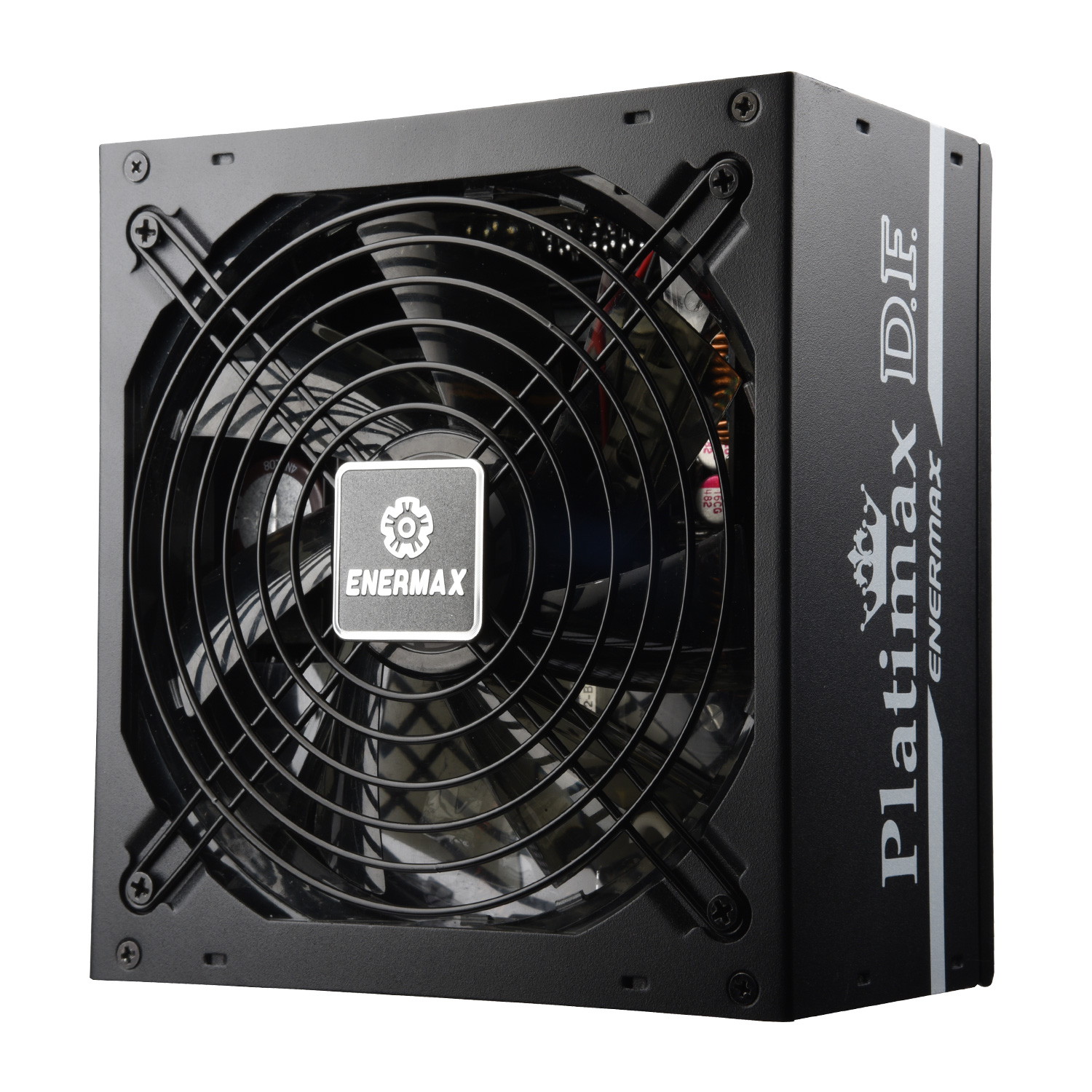

Dust Free Rotation Tech. (patented)

Dust Free Rotation technology enables the fan to instantly blow away the dust to prolong the lifespan

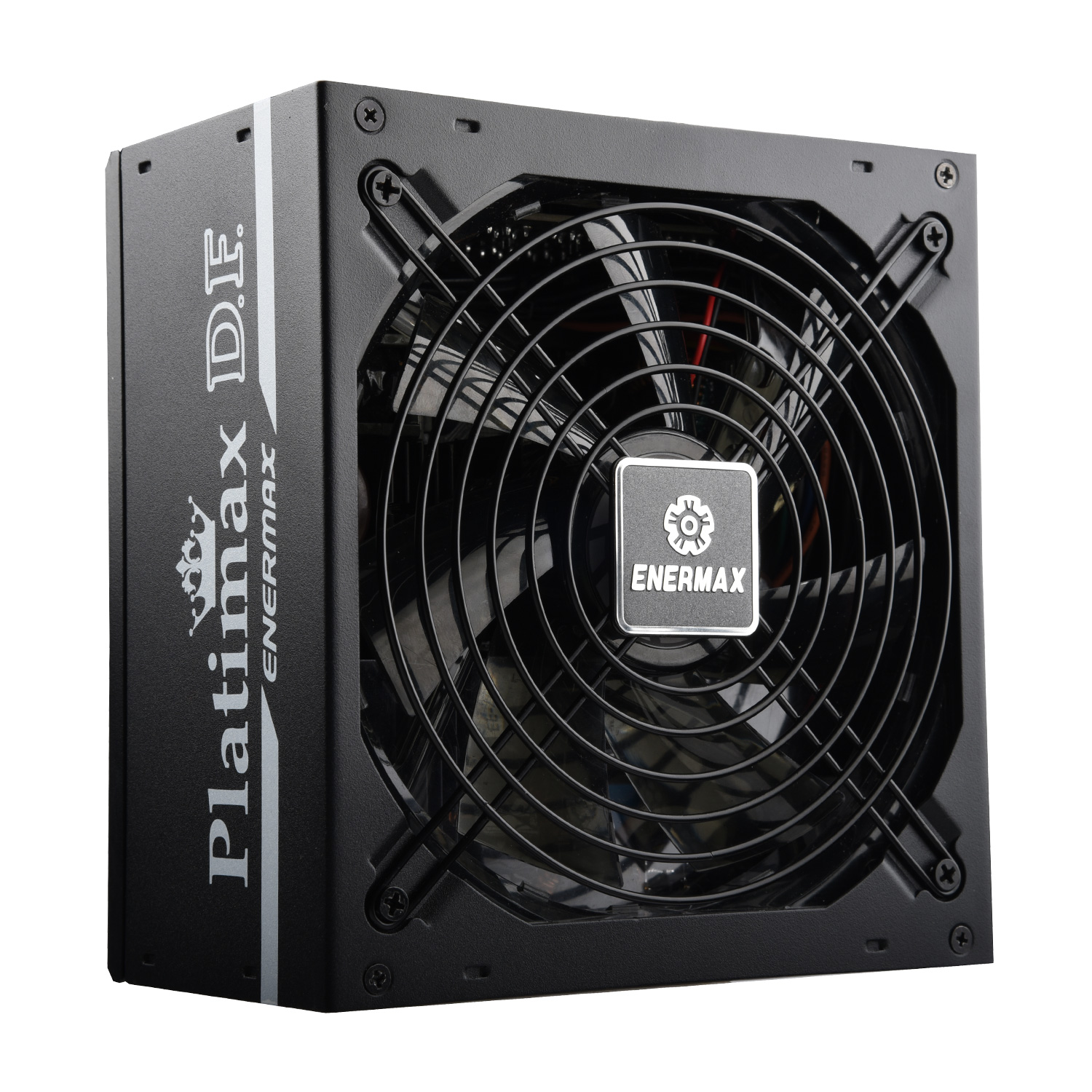

Twister Bearing fan (patented)

13.9cm fan with patented Twister Bearing Technology ensures ultra silent cooling and long lifetime of fan (160,000 hours MTBF)

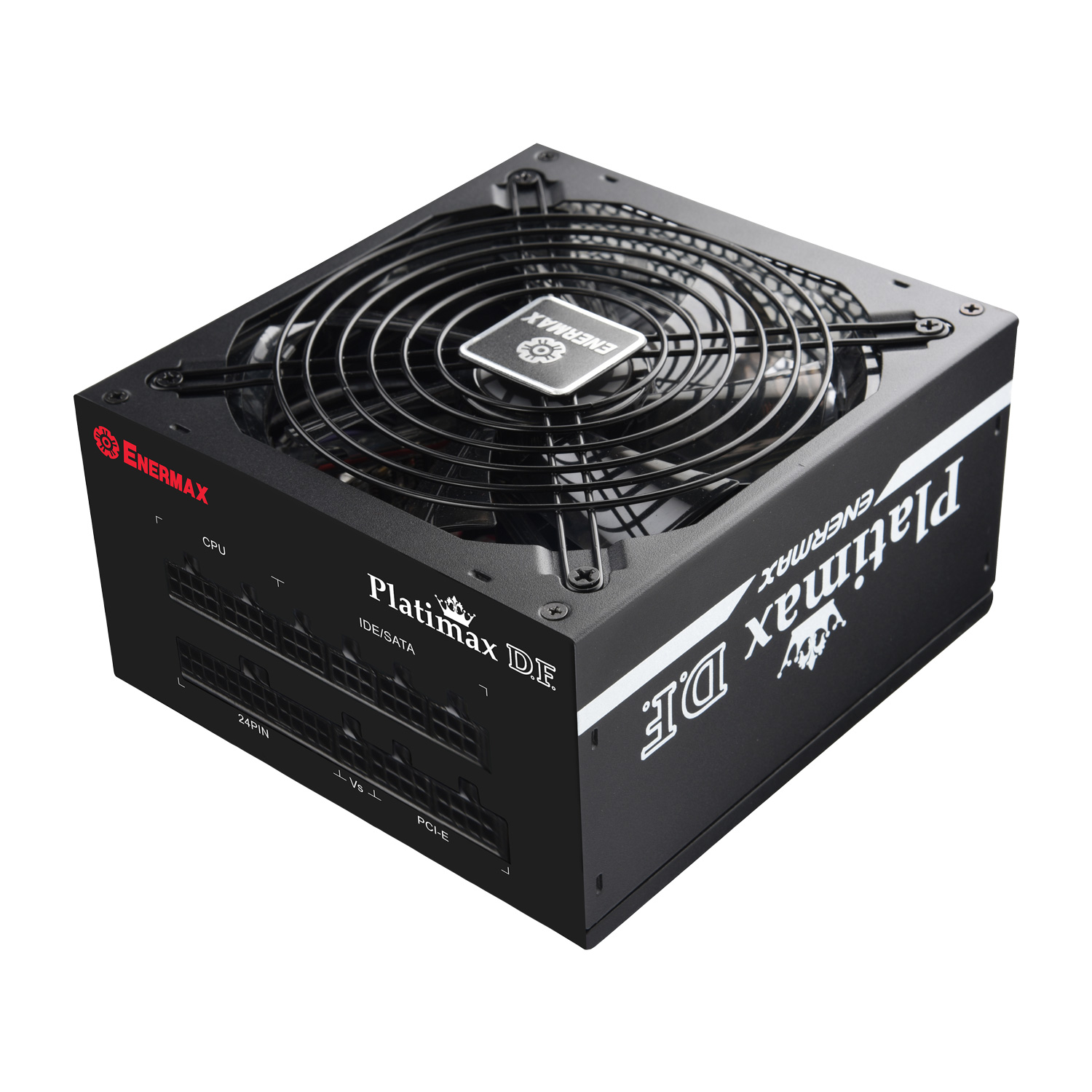

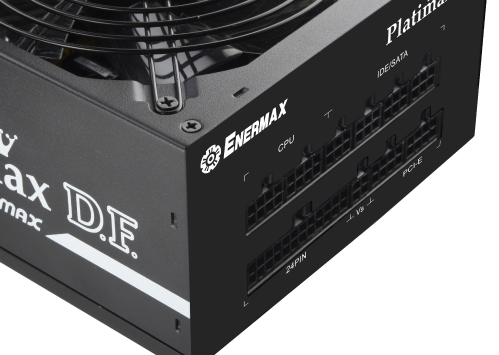

Full modular design

Full modular cable design facilitates flexible system installation and cable management

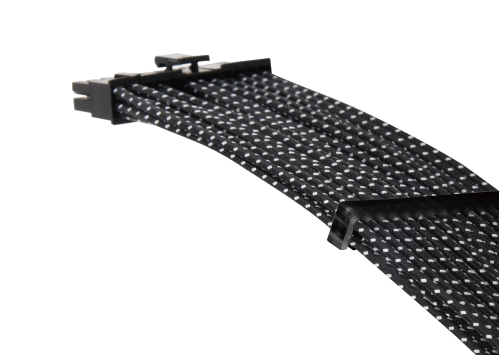

SLEEMAX

Stylish individual sleeved cable, made with carefully selected fabric to achieve a smooth, soft texture




100% 105°C Japanese electrolytic capacitors

Highest component standards for maximum durability and stability




Zero load ready!

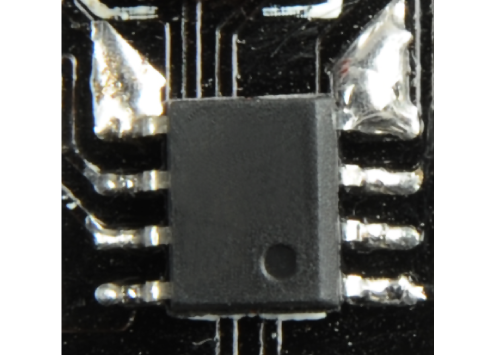

DC to DC converter circuit ensures stable output voltage and delivers higher efficiency




2013 ErP Lot 6 ready!

Help system meet 2013 ErP Lot 6 (<0.5W at standby mode) with high efficiency +5Vsb circuitry (2013 ErP Lot 6 enabled motherboard)




World ready

100-240VAC auto-adjustment input for universal use. Active PFC with PF value up to 0.99, minimizing reactive power loss




SafeGuard

Multiple protection circuitry of OCP, OVP, UVP, OPP, SCP, and SIP protects your system




Product Introduction

EPF500AWT
Mainboard 24 Pin 1
[ 1x 55cm ]
CPU 4+4 Pin 1
[ 1x 70cm ]
PCI-E 6+2 Pin (8 Pin) 4
[ 2x 55/ 15cm ]
SATA 8
[ 2x 45/ 15/ 15/ 15cm ]
4 Pin Molex 6
[ 2x 45/ 15/ 15cm ]
FDD 1
[ 1x 10cm ]

Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

Model EPF500AWT
Efficiency Platinum
Modular Full modular
Cable type SLEEMAX (Individual sleeved)
Total power (W) 500
Input Voltage (V) 100-240
Input Current (A) 10
Input Frequency (Hz) 47-63
Fan size (mm) 139
Operating temperature (°C) 50
MTBF (hours) > 100k
Protection OCP, OVP, UVP, OPP, SCP, SIP
Dimension (D x W x H), (mm) 160 x 150 x 86
+3.3V(A) 16
+5V(A) 15
+12V1(A) 41
-12V(A) 0.3
+5Vsb(A) 2.5
Combined Wattage 12V (W) 492
Combined Wattage 3.3V + 5V(W) 103
EAN code 4713157722294
UPC code 816163008513
Box dimensions (D x W x H), (mm) 360 x 200 x 125
Gross Weight / unit (kg) 1.8
