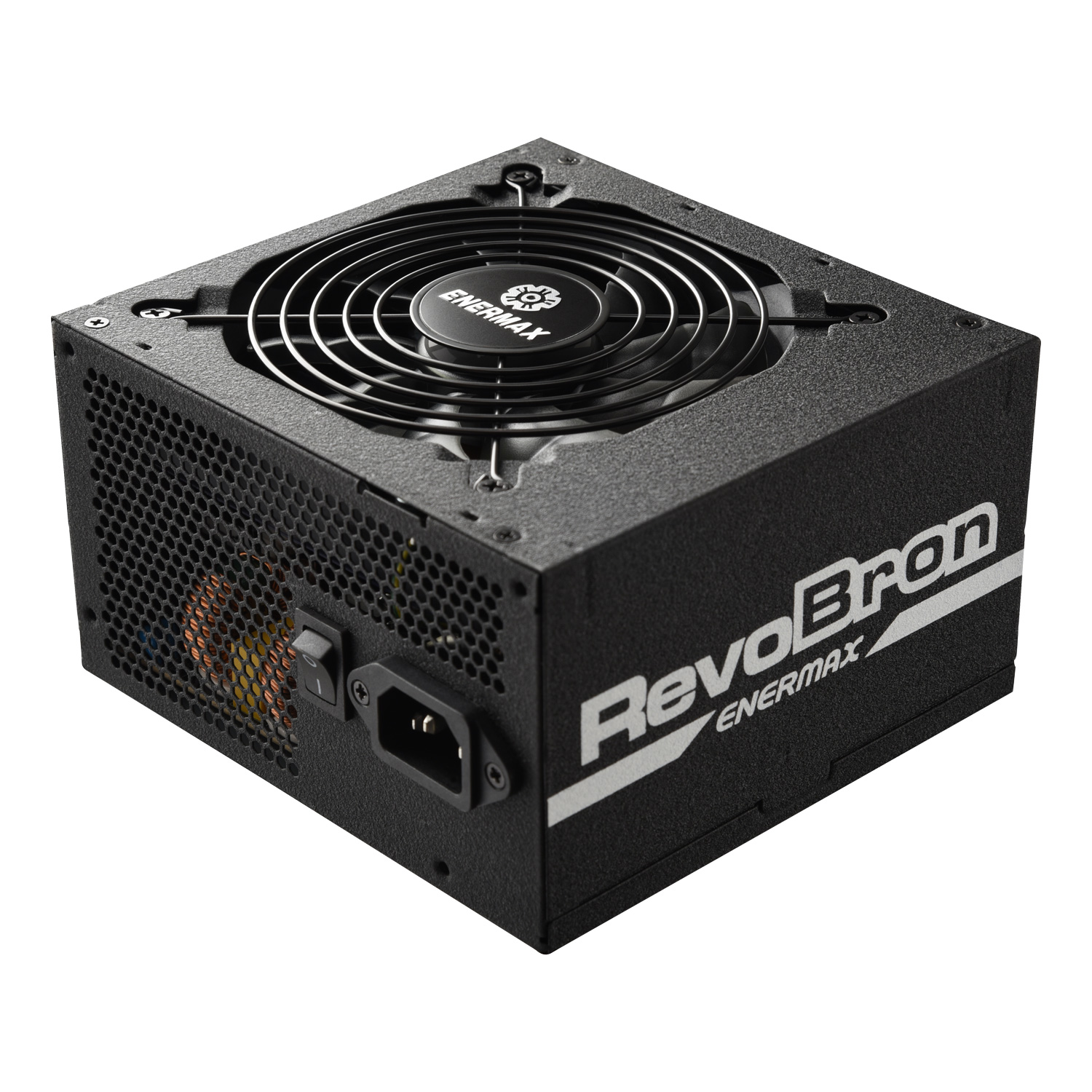

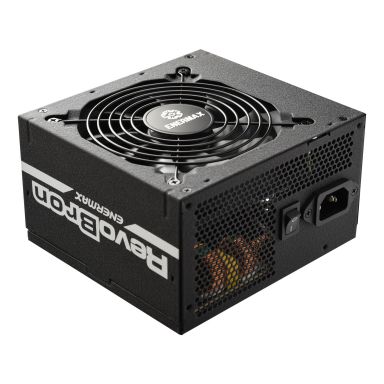

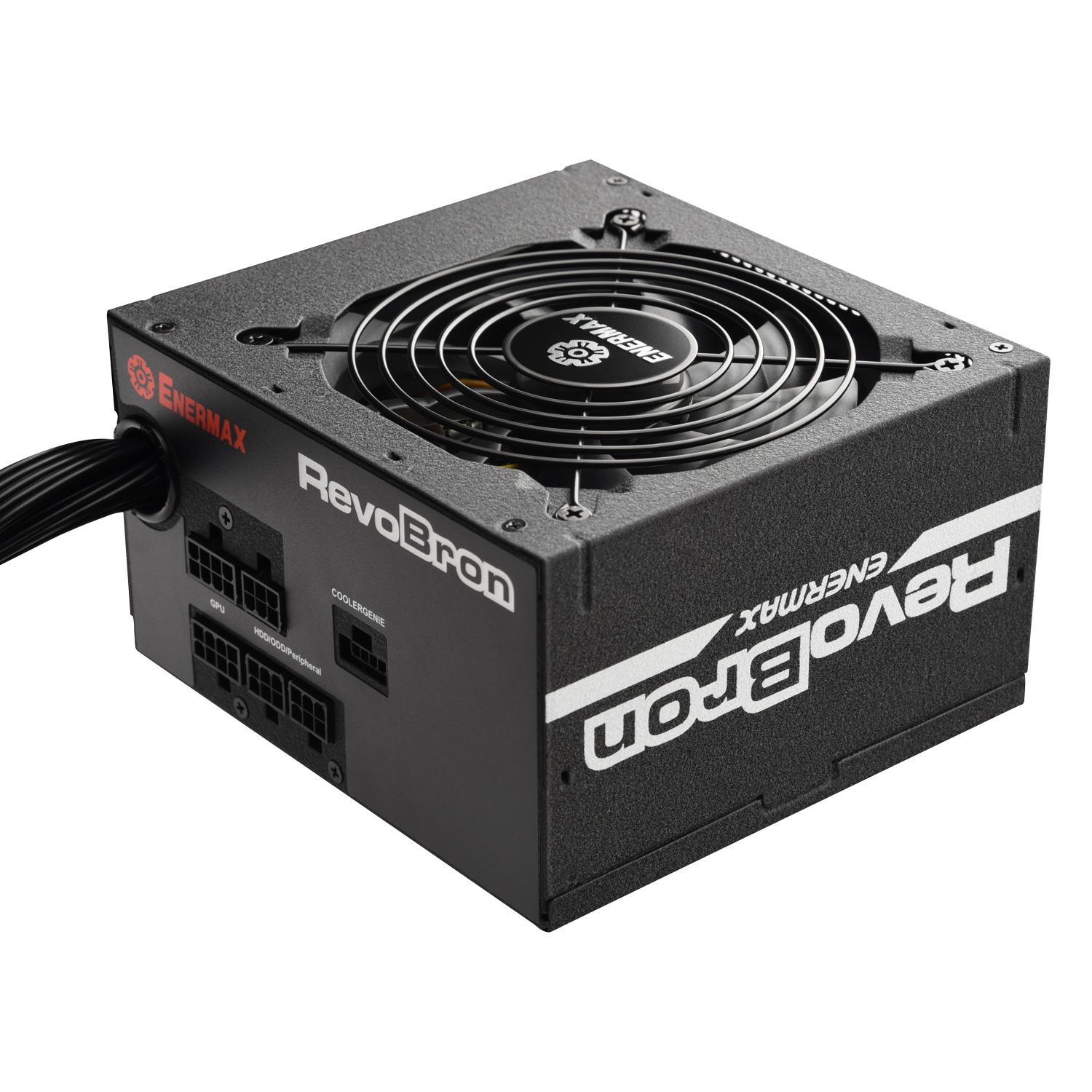

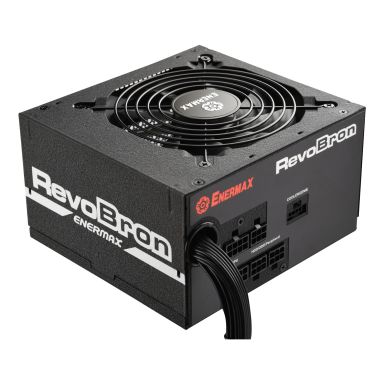

RevoBron 700W

‧ Patented Dust Free Rotation (DFRTM) technology for
the PSU fan
‧ DC-DC circuit for stable voltage output and higher
efficiency
‧ COOLERGENIE included

80 PLUS® Bronze certified

Meet 80 PLUS® Bronze standard with up to 90% superb efficiency @ 230VAC 50% load




Dust Free Rotation Tech. (patented)

Dust Free Rotation technology enables the fan to instantly blow away the dust to prolong the lifespan

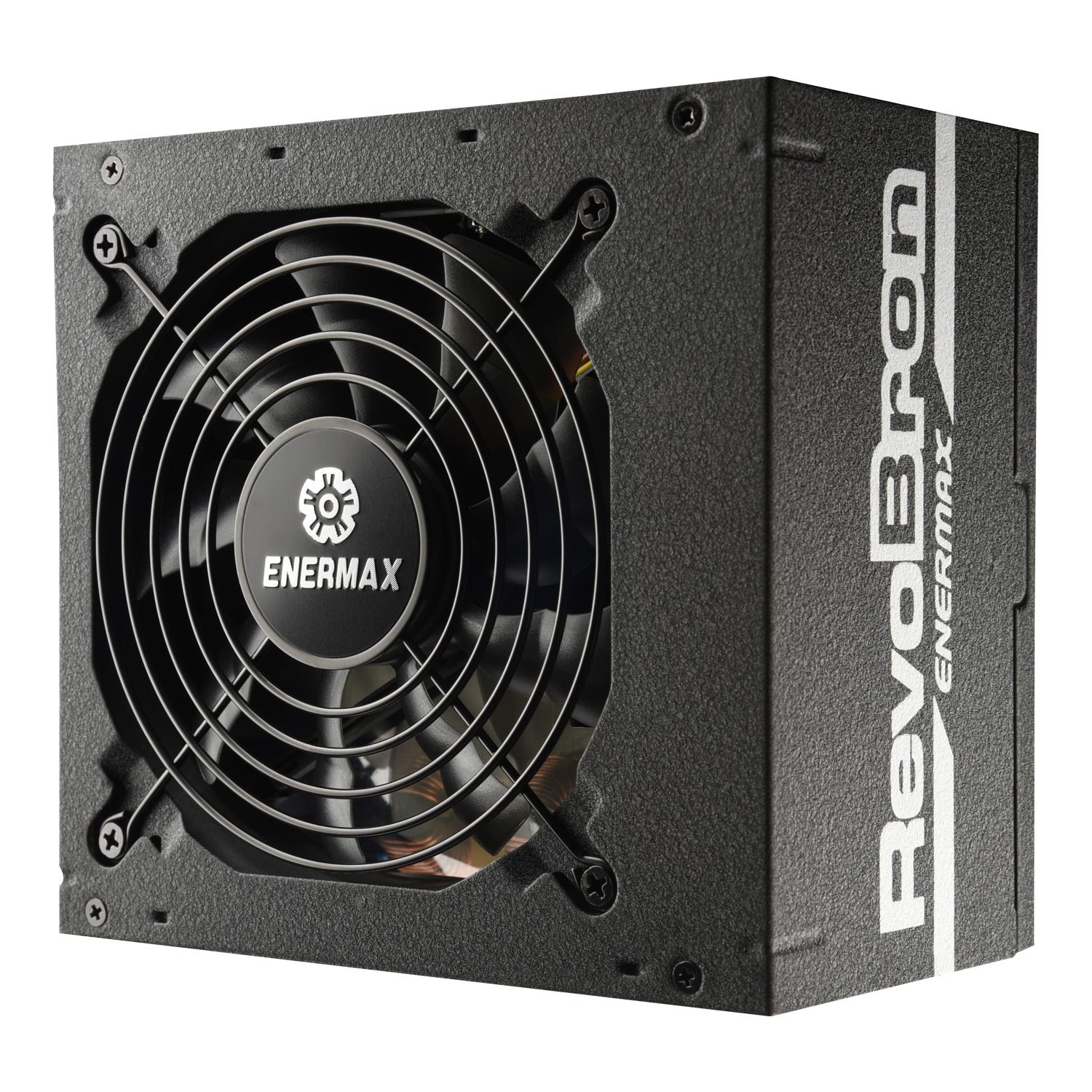

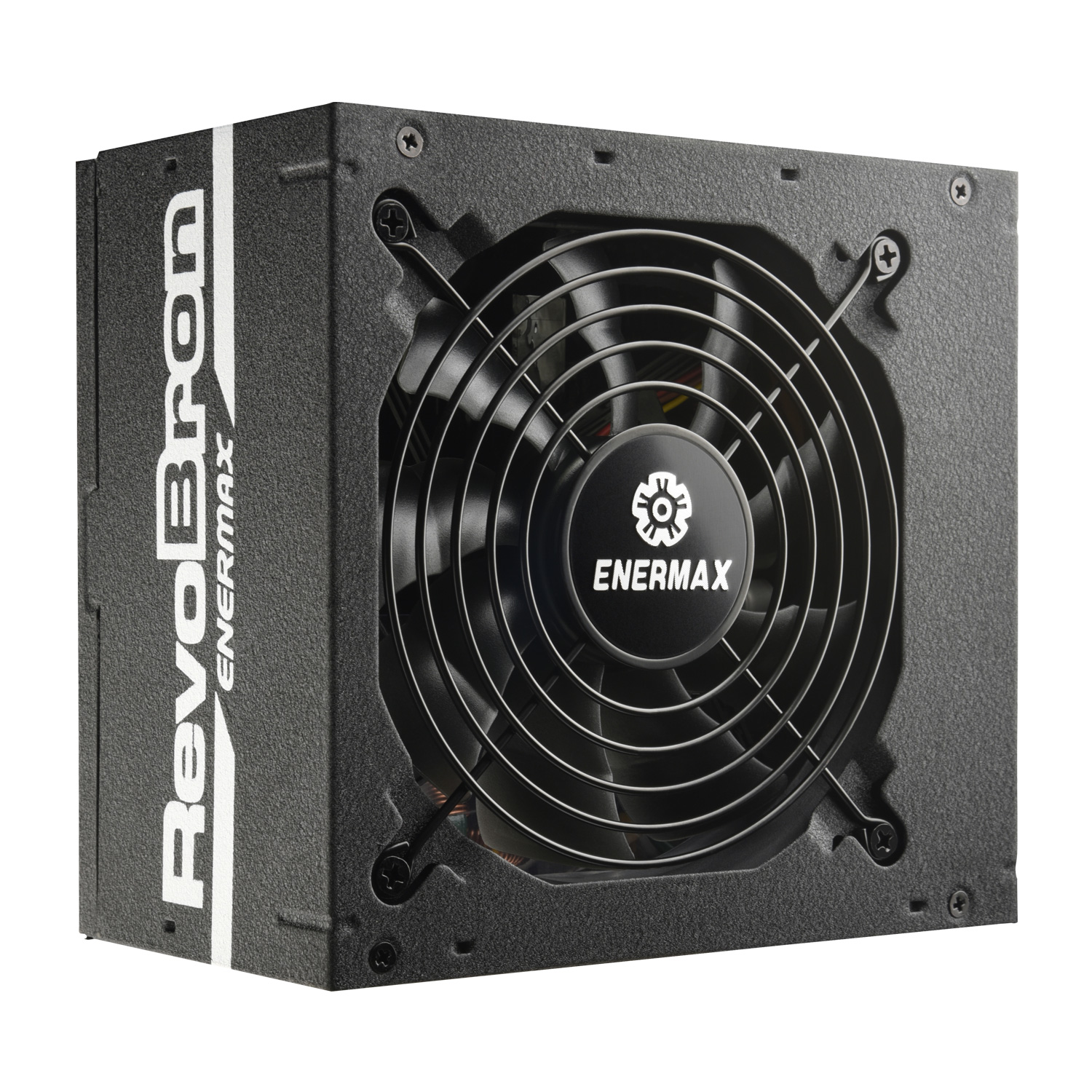

Twister Bearing fan (patented)

12cm fan with patented Twister Bearing Technology ensures ultra silent cooling and long lifetime of fan (160,000 hours MTBF)




100% 105°C Japanese electrolytic capacitors

Highest component standards for maximum durability and stability




Zero load design

DC to DC converter circuit ensures stable output voltage and delivers higher efficiency




SafeGuard

Multiple protection circuitry of OCP, OVP, UVP, OPP, SCP & SIP protects your system




World ready!

100-240VAC auto-adjustment input for universal use. Active PFC with PF value up to 0.99, reducing the reactive power loss to the minimum




2014 & 2013 ErP ready!

<0.5W power consumption at standby mode (with 2013 ErP Lot 6 enabled motherboard). Compliant with 2013 ErP Lot 6 & 2014 ErP Lot 3 standards

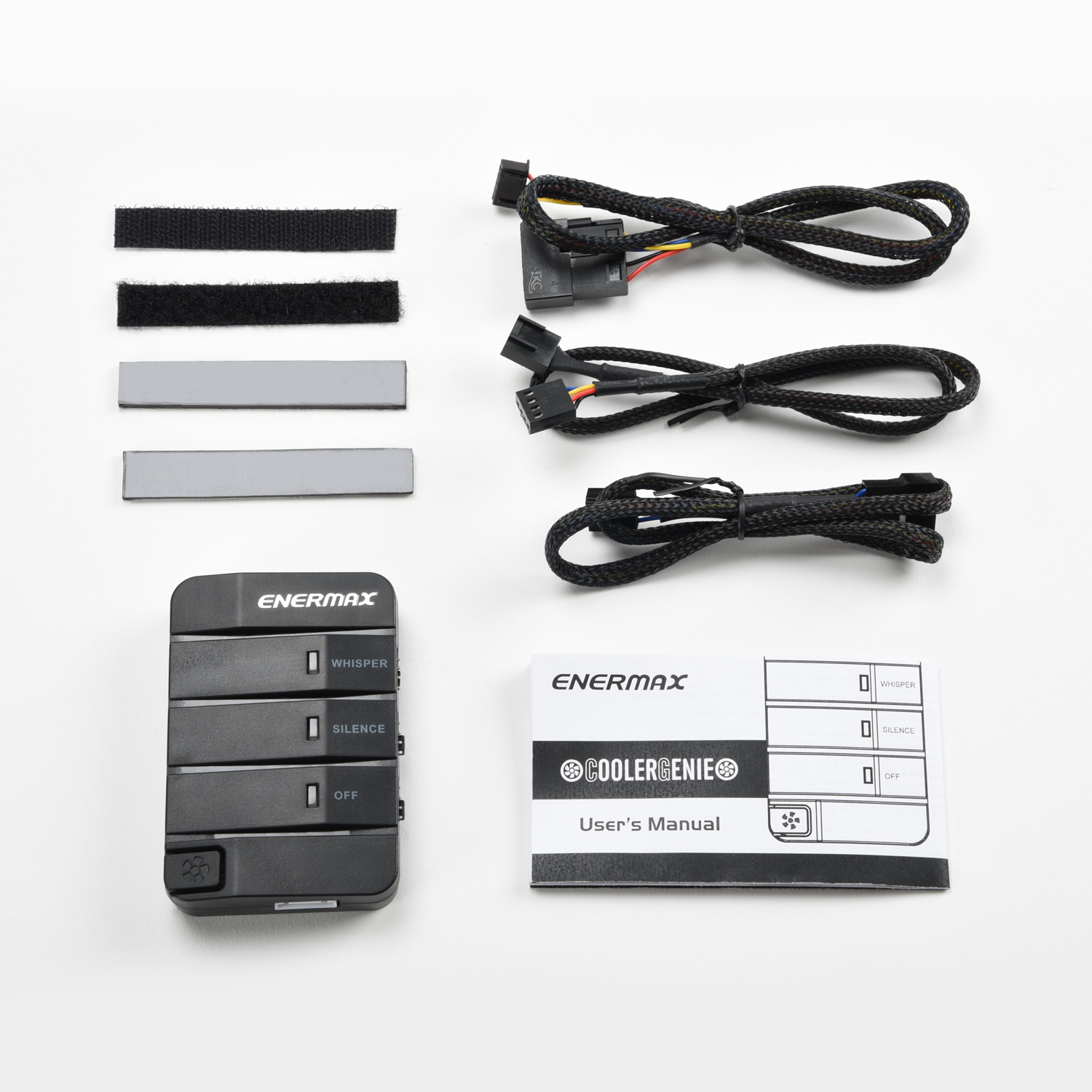

COOLERGENIE (included)

Fan-delay Tech. keeps your case cool after shutdown to prolong the system lifetime by dissipating the remaining heat

3 Semi Fanless modes for case fans offer a great balance between optimal cooling and silent performance of a system




Product Introduction



COOLERGENIE Installation Demo

ERB700AWT
Mainboard 24 Pin 1
[ 1x 60cm ]
CPU 4+4 Pin 1
[ 1x 70cm ]
PCI-E 6+2 Pin (8 Pin) 4
[ 2x 50/ 15cm ]
SATA 8
[ 2x 45/ 15/ 15/ 15cm ]
4 Pin Molex 4
[ 1x 45/ 15/ 15/ 15cm ]
FDD 1
[ 1x 10cm ]

Notice:
Your Enermax power supply is designed for enthusiast and high demand graphic professional that is looking at working with a system that requires multiple GPU. However, configuring a multi-GPU system requires proper planning to make sure you are not driving all currents through the same cable source that might overload both your motherboard and your power supply. Driving your GPUs on separate 12V rail is a good practice that most tech-savvy users already aware of. Do you realize that your motherboard might be pulling too much current from your 24Pin power source and cause system damage?

For those elite users that is looking to put in 2 or more high end, power demanding GPU card, please choose the motherboard that comes with extra 4P Molex/ 4P FDD / 6P PCI-E power socket on board and connect them with your Enermax power supply. This will prevent motherboard overloading and possibly cause damage to your system including your Enermax power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under Enermax manufacturer¡¦s warranty. Please refer to your motherboard¡¦s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

Model ERB700AWT
Total power (W) 700
Peak Power (W) 770
Input Voltage (V) 100-240
Input Current (A) 10-5
Input Frequency (Hz) 47-63
Protection OCP, OVP, UVP, OPP, SCP, SIP
Dimension (D x W x H), (mm) 140x150x86
+3.3V(A) 22
+5V(A) 18
+12V1(A) 35
+12V2(A) 35
-12V(A) 0.3
+5Vsb(A) 2.5
Combined Wattage 12V (W) 696
Combined Wattage 3.3V + 5V(W) 130
EAN code 4713157722980
UPC code 816163008787
Box dimensions (D x W x H), (mm) 231x217x98.5
Gross Weight / unit (kg) 2.4
