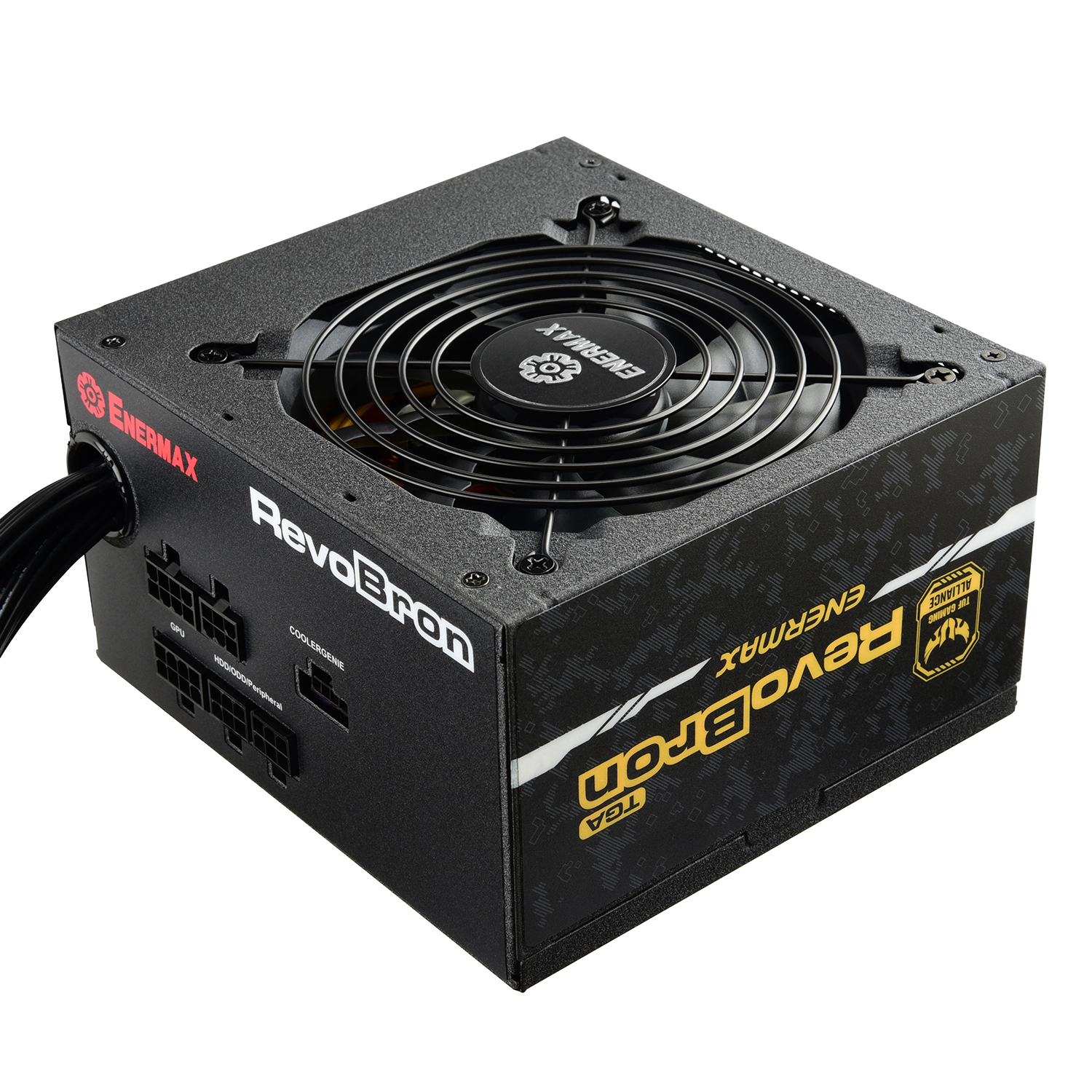

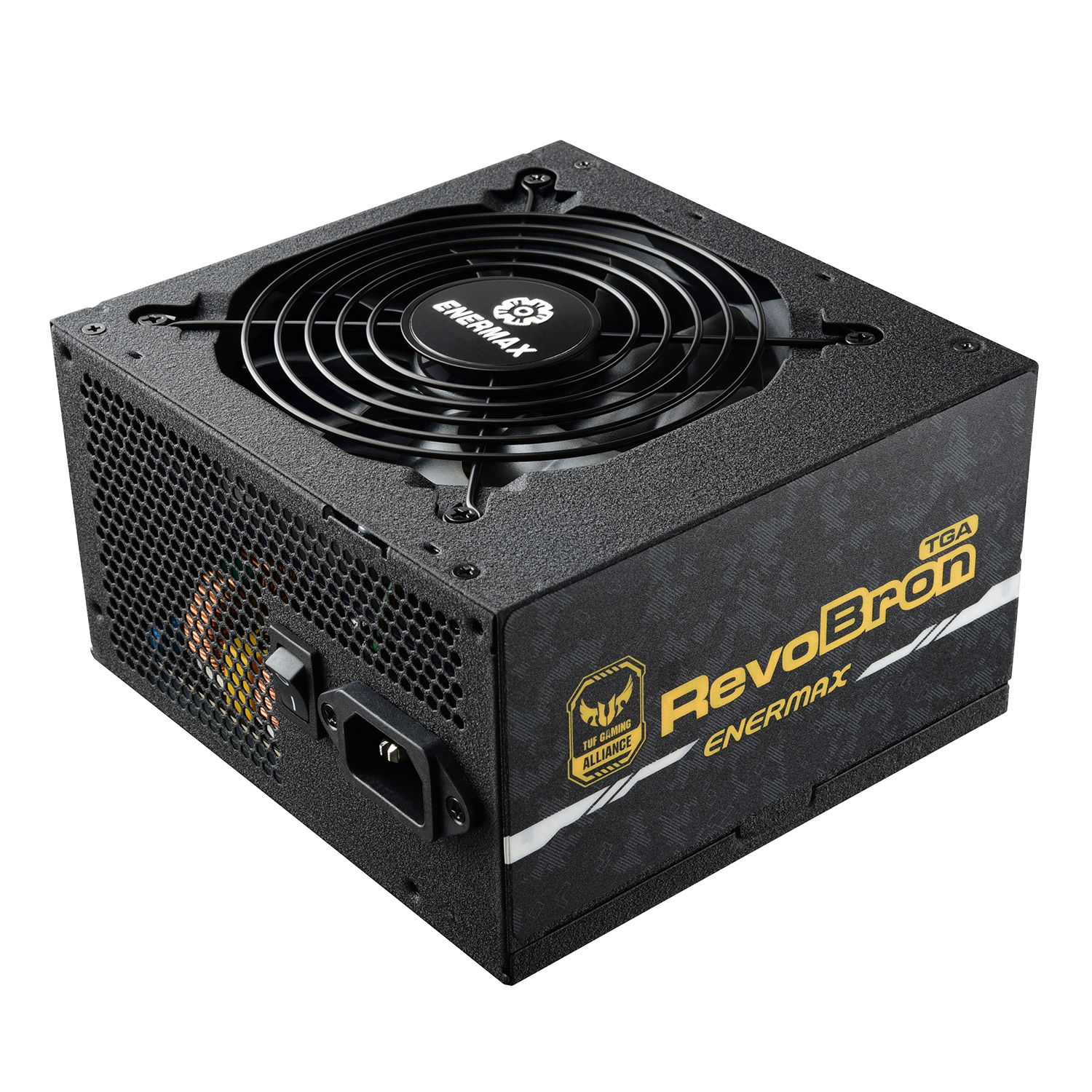

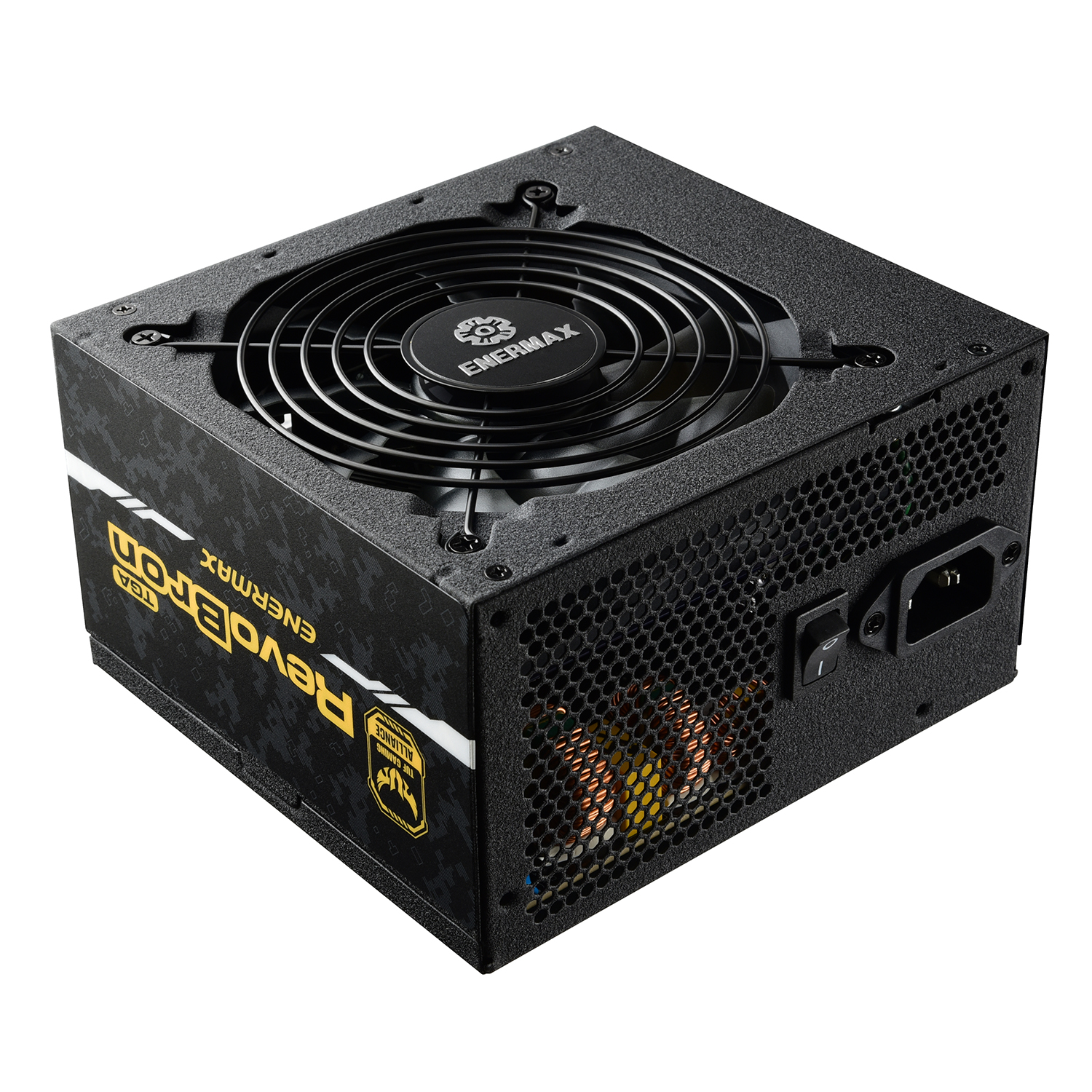

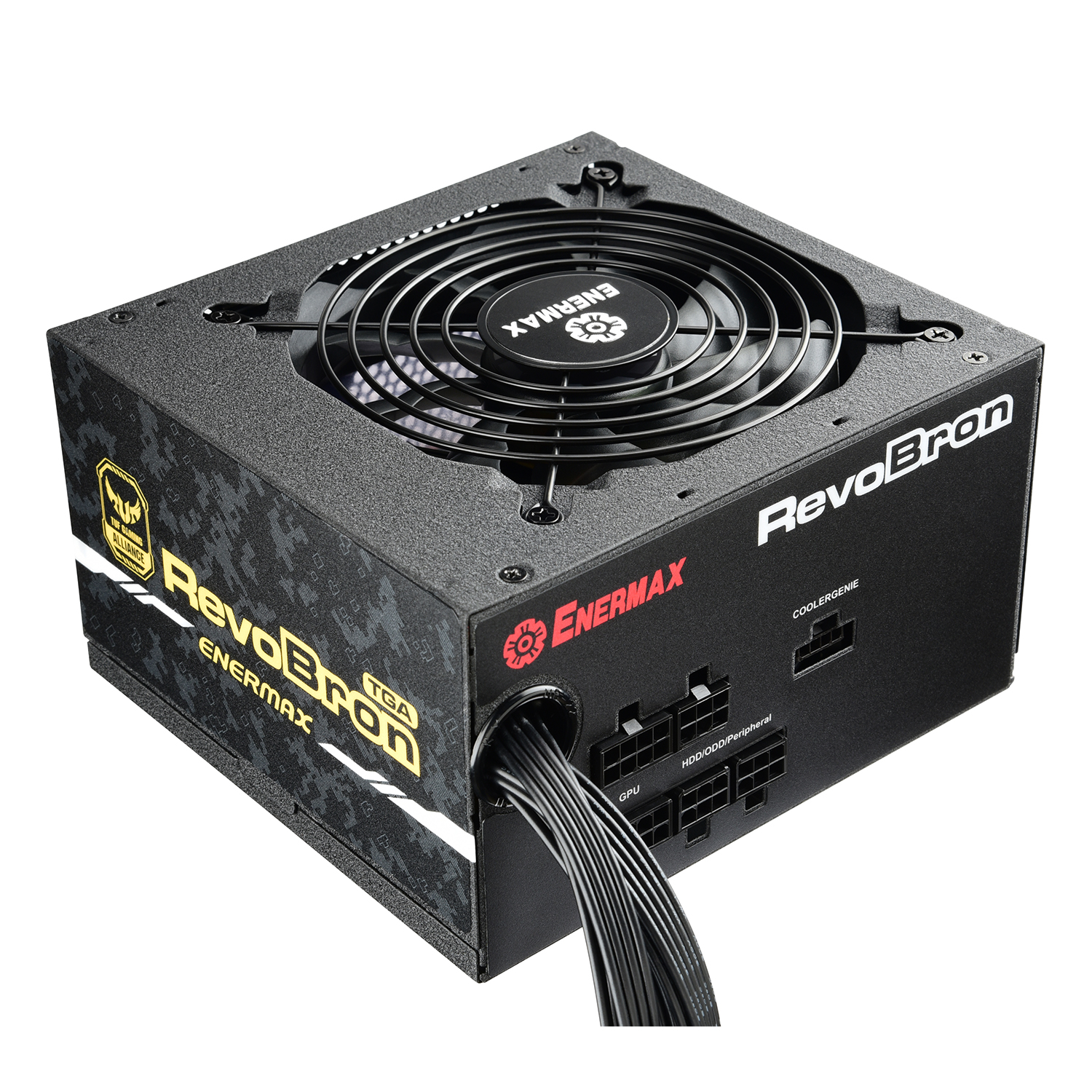

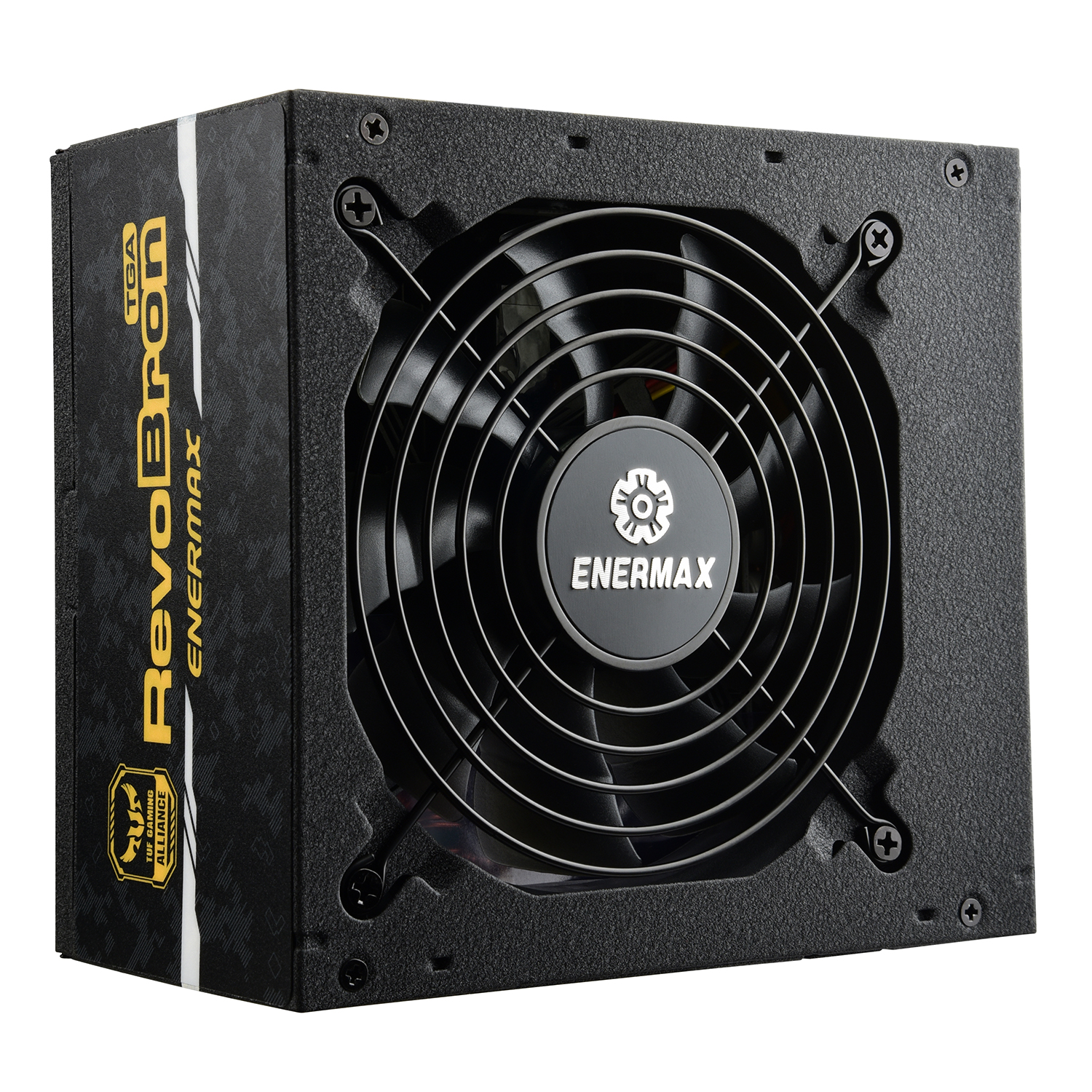

RevoBron TGA 700W

‧ Patented Dust Free Rotation (DFRTM) technology for the PSU fan
‧ DC-DC circuit for stable voltage output and higher efficiency
‧ COOLERGENIE & T.B. RGB Fan x 3 included




80 PLUS® Bronze certified

Meet 80 PLUS® Bronze standard with up to 90% superb efficiency @ 230VAC 50% load

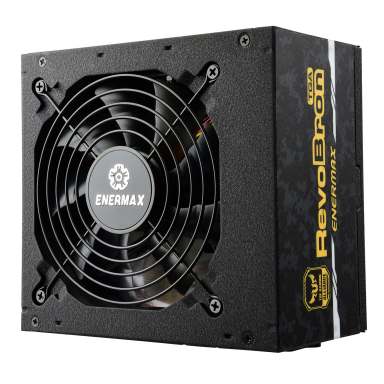

Dust Free Rotation Tech. (patented)

Dust Free Rotation technology enables the fan to instantly blow away the dust to prolong the lifespan




100% 105°C Japanese electrolytic capacitors

Highest component standards for maximum durability and stability




Zero load design

DC to DC converter circuit ensures stable output voltage and delivers higher efficiency

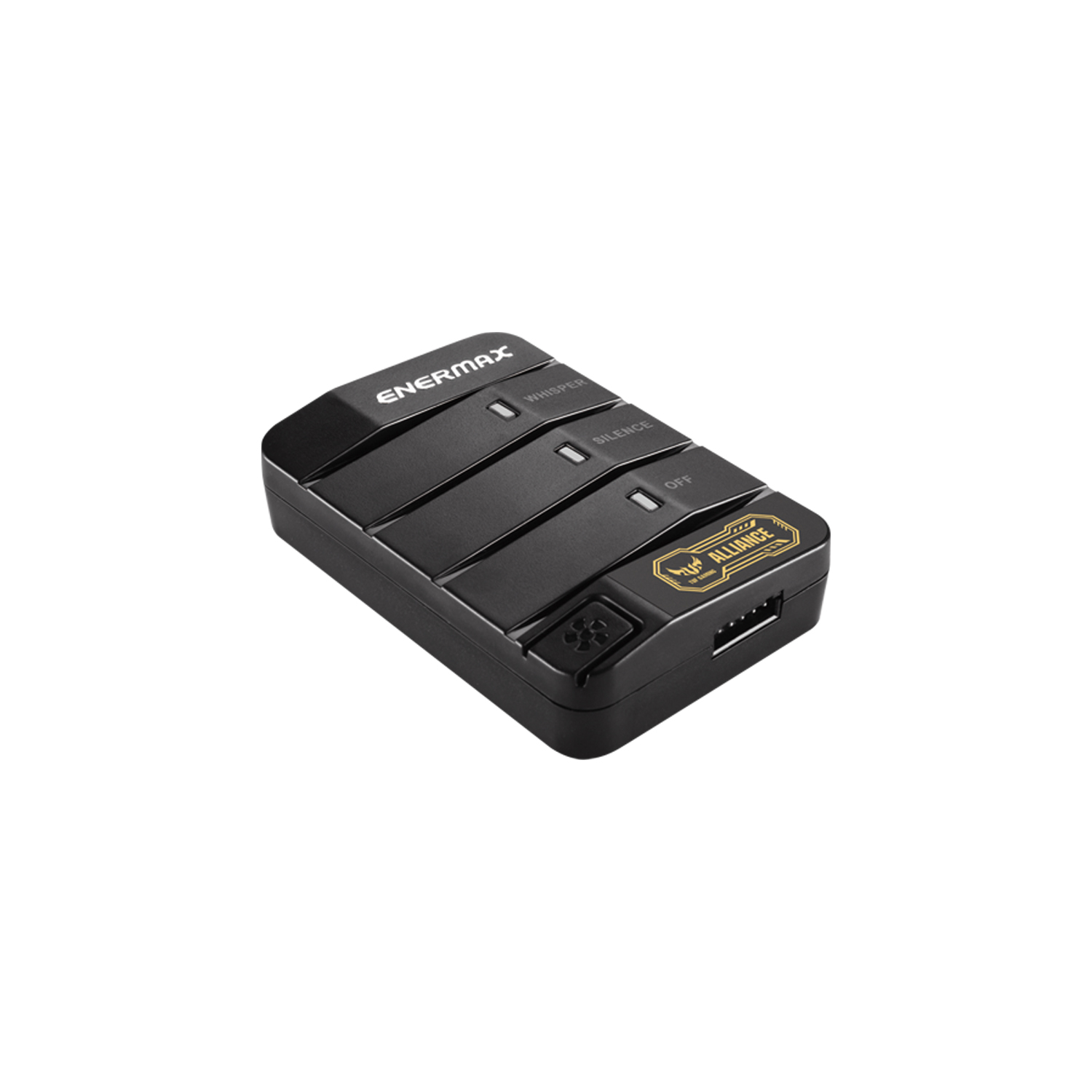

  Extra Gadget - COOLERGENIE

Intelligent 2-in-1 Case Fan Controller

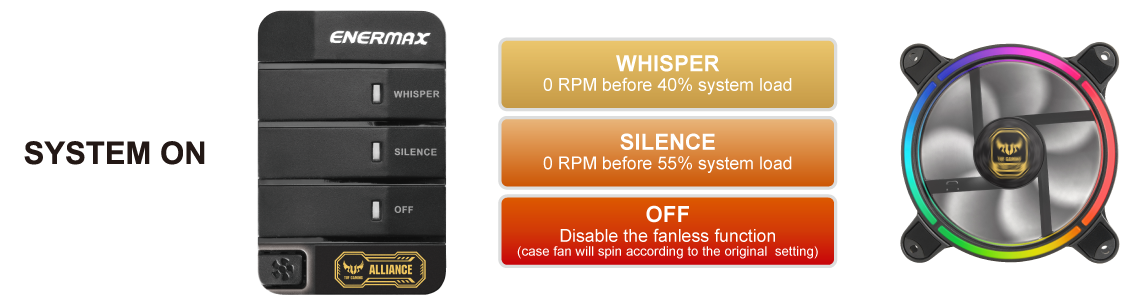

3 Semi-fanless Modes

For case fans,COOLERGENIE offers a great balance between optimal cooling and silent performance of a system

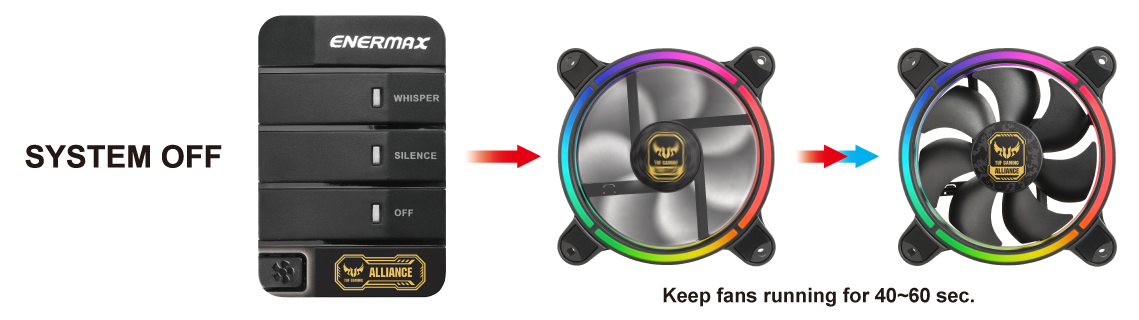

Fan-delay Technology

keeps your case cool after shutdown to prolong the system lifetime by dissipating the remaining heat

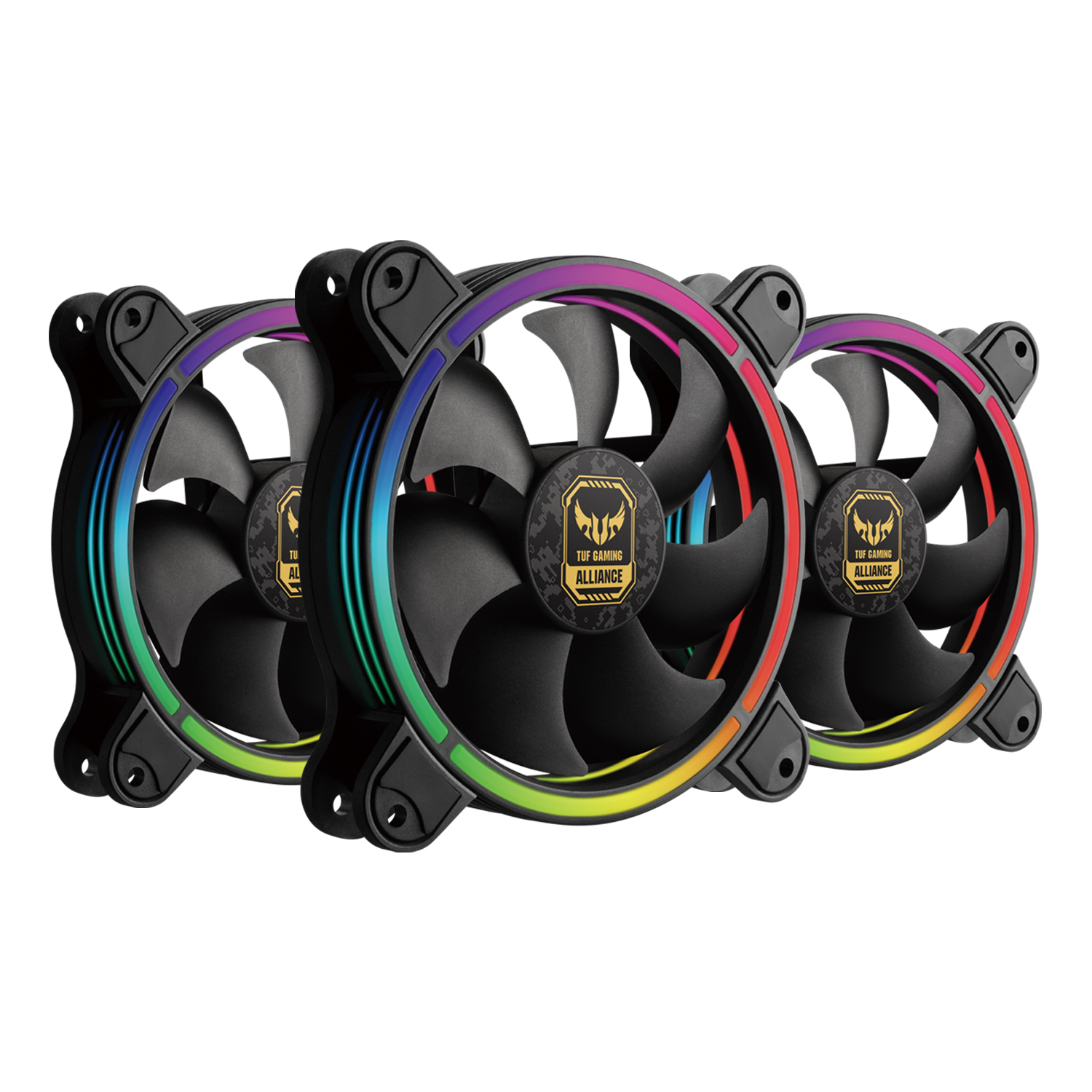

  Extra RGB case fan - T.B.RGB x 3

Stunning RGB Lighting Effect




Unique halo arc-shaped frame shows gorgeous and vivid visual effect




ENERMAX LED LIGHTING Technology provides consistent and uniform luminance

T.B. RGB (UCTBRGB12-TUF)

Incredibly bright and even lighting with no visible spots

Others

Uneven lighting with visible spots




Product Introduction

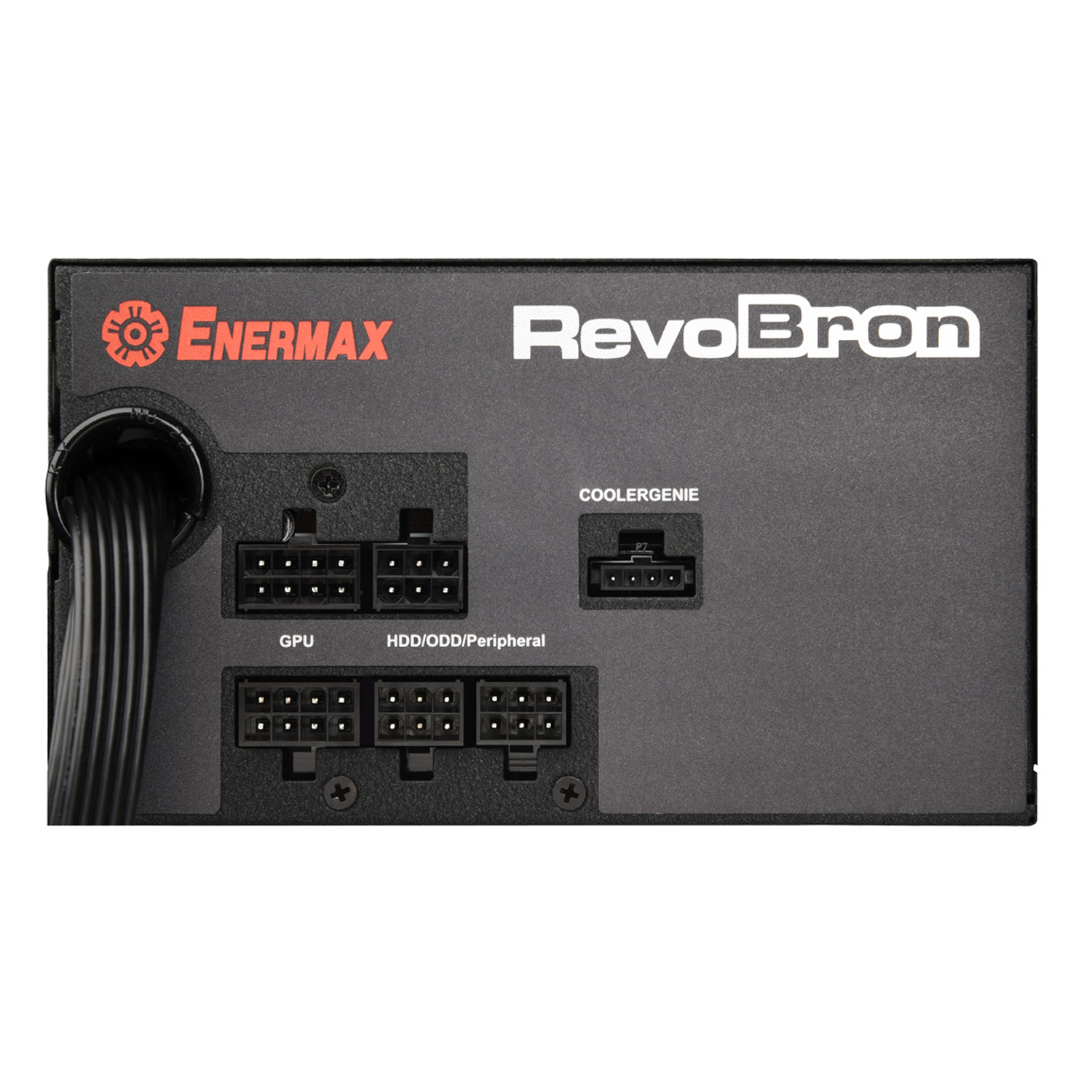

ERB700AWT TR
Mainboard 24 Pin 1x
[ 60cm ]
CPU 4+4 Pin 1x
[ 70cm ]
PCI-E 6+2 Pin (8 Pin) 4x
[ 50/ 15cm ]
SATA 8x
[ 45/ 15/ 15/ 15cm ]
4 Pin Molex 4x
[ 45/ 15/ 15/ 15cm ]
FDD 1x
[ 10cm ]

Notice:
Your Enermax power supply is designed for enthusiast and high demand graphic professional that is looking at working with system that requires multiple GPU. However, configuring multi-GPU system requires proper planning to make sure you are not driving all currents through the same cable source that might overload both your motherboard and your power supply. Driving your GPUs on separate 12V rail is a good practice that most tech savvy user already aware of. Do you realize that your motherboard might be pulling too much current from your 24Pin power source and cause system damage?

For those elite user that is looking to put in 2 or more high end, power demanding GPU card, please choose the motherboard that comes with extra 4P Molex/ 4P FDD / 6P PCI-E power socket on board and connect them with your Enermax power supply. This will prevent motherboard overloading and possibly cause damage to your system including your Enermax power supply. Once this occur, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under Enermax manufacturer¡¦s warranty. Please refer to your motherboard¡¦s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply.

Info for DC connector’s rated current:The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

Model UCTBRGB12-TUF
Total power(W) 700W
Peak Power(W) 770W
Input Voltage (V) 100-240VAC
Input Current (A) 10A-5A
Input Frequency (Hz) 47-63Hz
Dimension (D x W x H), (mm) 140(D) x 150(W) x 86(H) mm
+3.3V(A) 22A
+5V(A) 18A
+12V1(A) 35A
+12V2(A) 35A
-12V(A) 0.3A
+5Vsb(A) 2.5A
Combined Wattage 12V (W) 696W (58A)
Combined Wattage 3.3V + 5V(W) 130W
EAN code 4713157723574
UPC code 819315023570
Box dimensions (D x W x H), (mm) 330 (D) x 217 (W) x 98.5 (H) mm
Gross Weight / unit (kg) 3.0 kg
