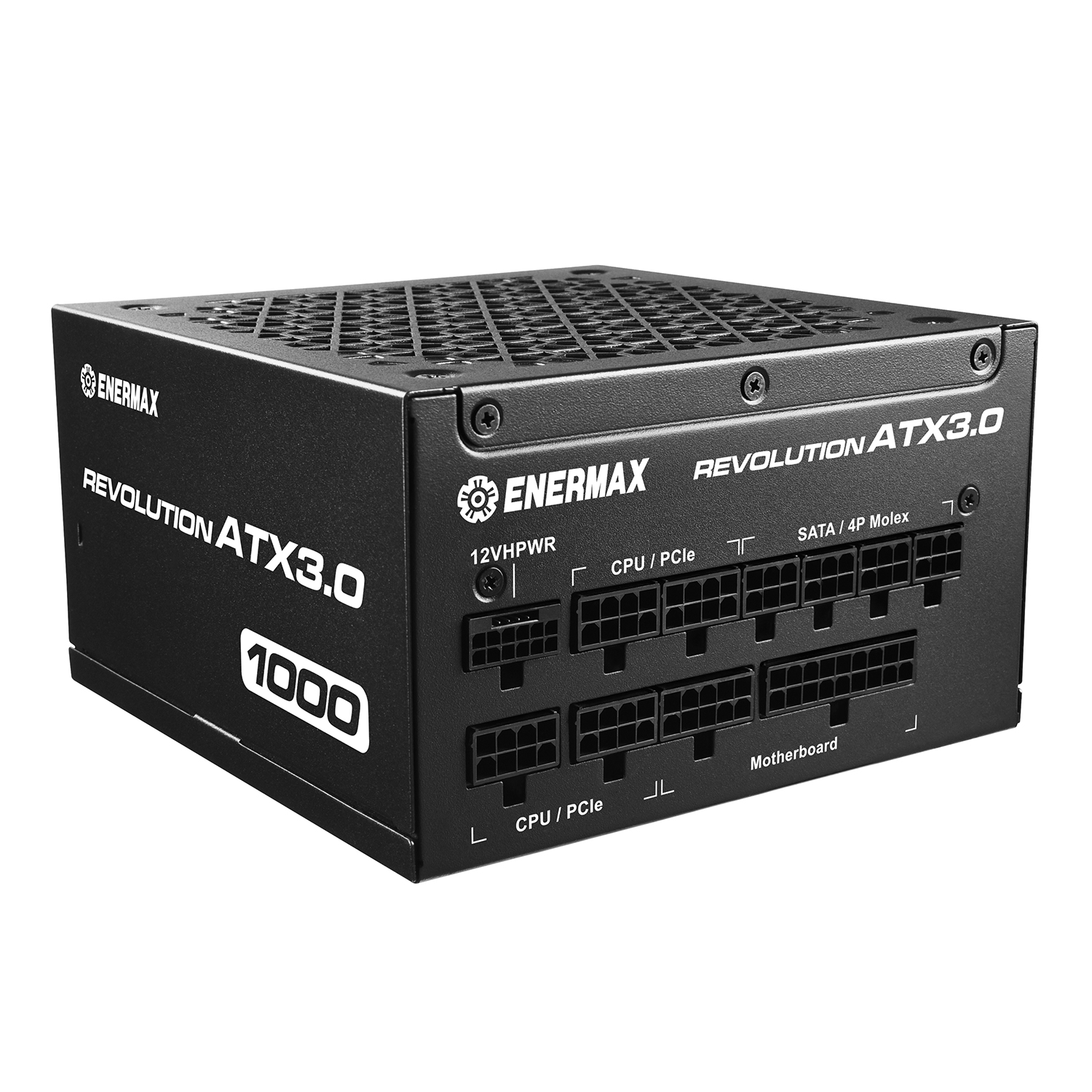

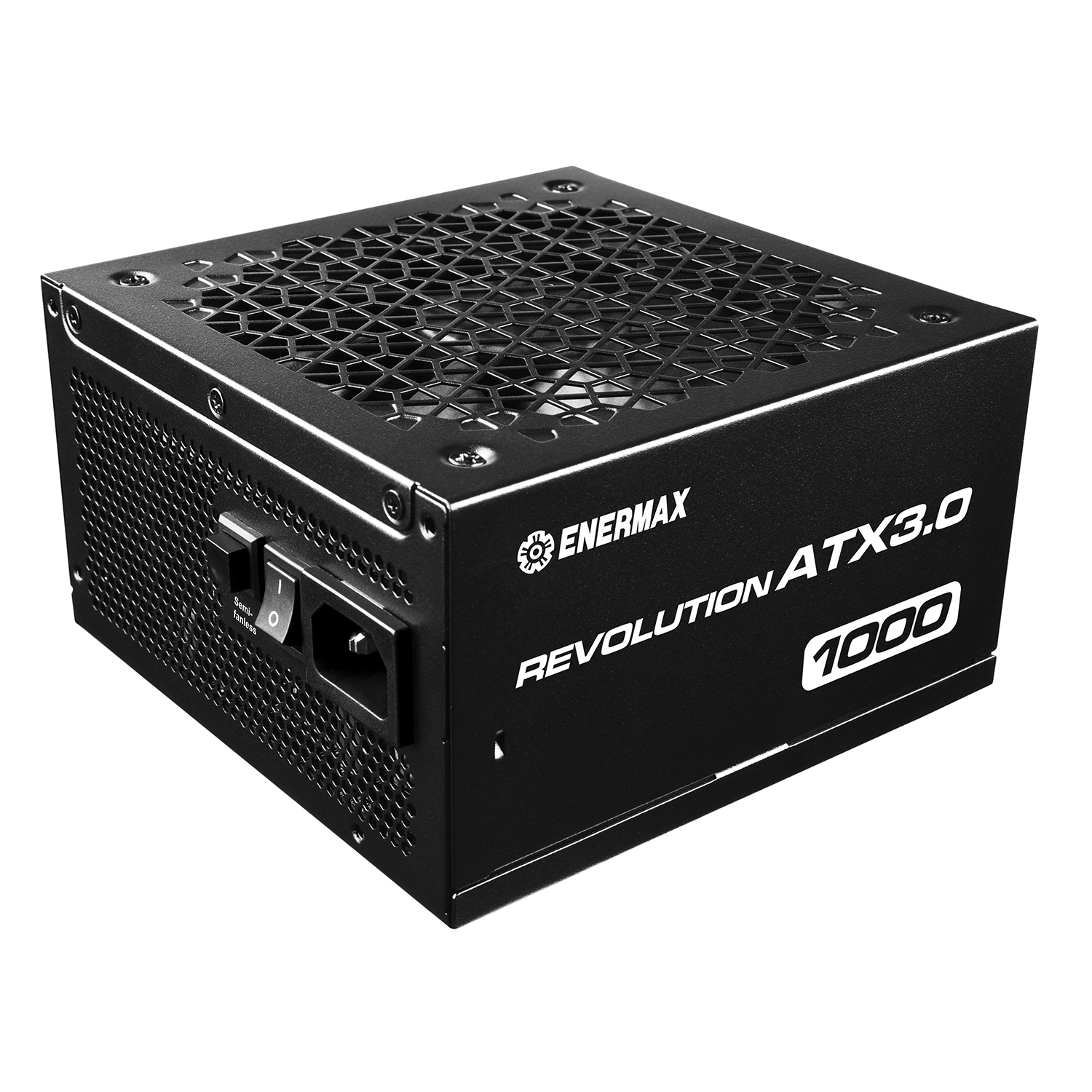

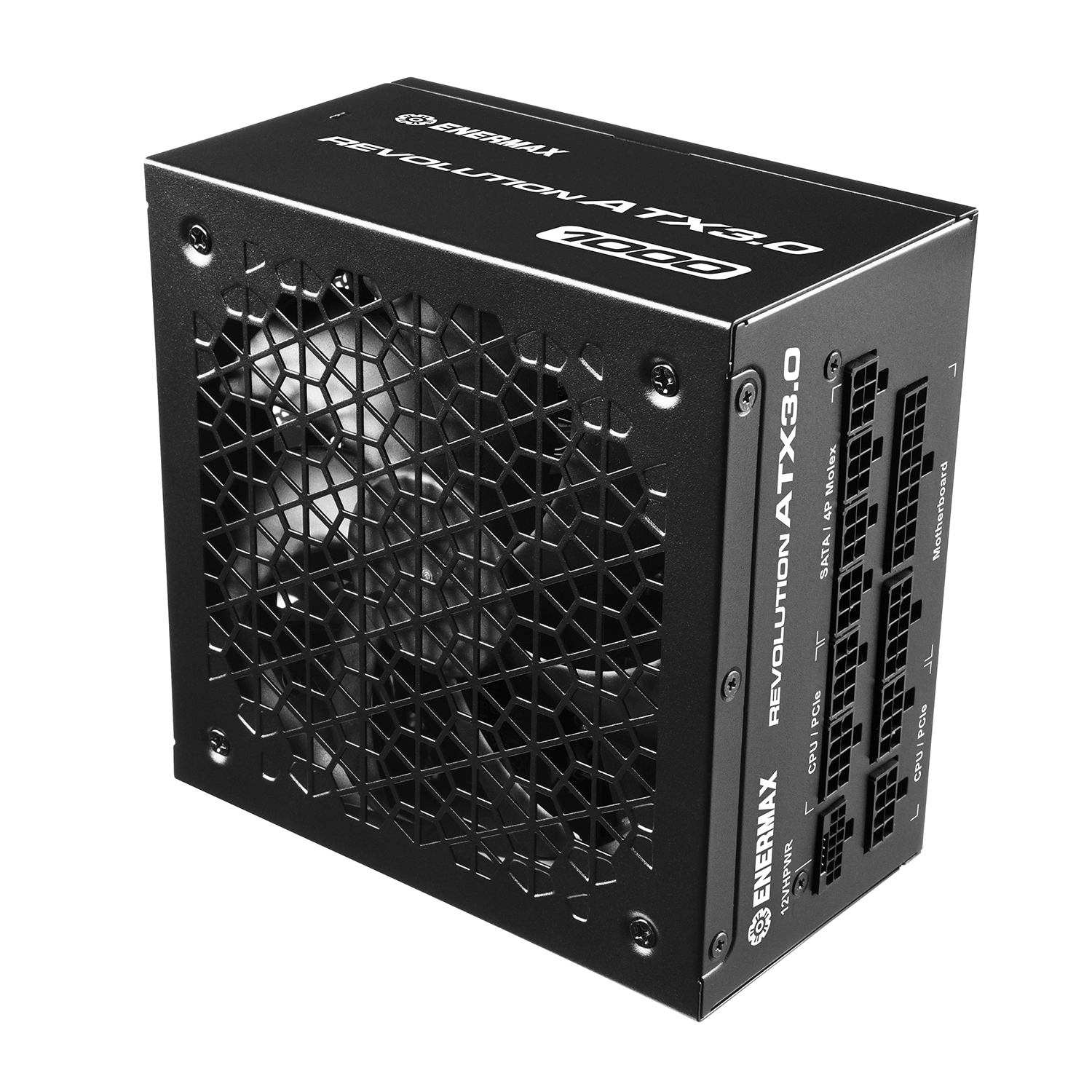

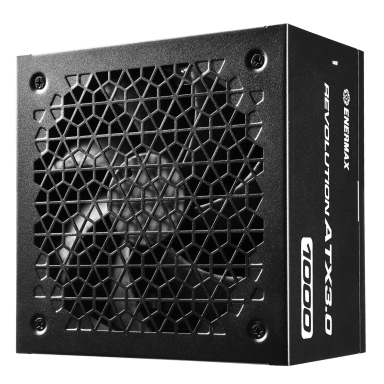

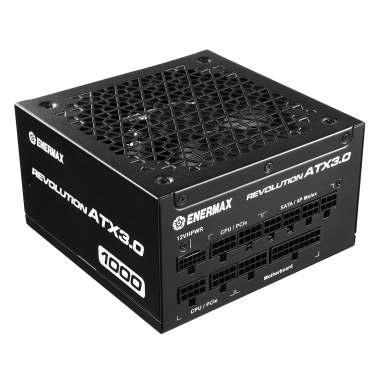

REVOLUTION ATX 3.0 1000 Watt 80 PLUS Gold Fully Modular Power Supply

‧ Fully Compatible with Intel ATX 3.0 Specifications
‧ Fully Modular 80 PLUS® Gold Certified
‧ Native 600W PCIe 5.0 / Gen 5 12+4 Pin 12VHPWR Cable
‧ Extra dual PCIe 8 Pin to 12+4 Pin 12VHPWR Cable
‧ Up to 200% Power Excursion and Shorter Power-on Time
‧ Semi-Fanless Tech. for Absolute Silence Under 30% Load

REVOLUTION ATX 3.0

FULLY MODULAR ATX POWER SUPPLIES

REVOLUTION ATX3.0 power supply comes with a native 12+4 pin (12VHPWER) cable
REVOLUTION ATX 3.0 power supply comes with a native 12+4 pin (12VHPWER) cable

FULLY COMPATIBLE WITH INTEL ATX 3.0 SPECIFICATIONS

REVOLUTION ATX 3.0 series is fully compatible with Intel ATX 3.0 specification which will unlock the full power potential of next-generation hardware. Each power will come with a native 12+4 pin (12VHPWER) cable and extra dual 8 pin to12+4 pin (12VHPWER) cable to offer you the most advanced performance.

REVOLUTION ATX 3.0 power supply
REVOLUTION ATX 3.0 power supply

ATX 3.0 WITH POWER EXCURSION TO 200%

The new specifications of ATX 3.0 will have a positive impact for power and performance improvements across all desktop segments. It can sustain up to 200% power load for power excursion, reach 60%-70% efficiency even during low loading and shorter power-on time to make you power up your system faster.

Revolution ATX 3.0 power supply comes with a native 12+4 pin (12VHPWER) cable

FULL POWER POTENTIAL WITH PCIe GEN 5.0 NATIVE CABLE

REVOLUTION ATX 3.0 comes with native 12+4 pin 12VHPWR cable that directly supply up to 600W to the latest NVIDIA graphics cards for gamers and creators to have the most stable and powerful system they will ever have.

REVOLUTION ATX 3.0 power supply can support 2 RTX40 graphic cards
REVOLUTION ATX 3.0 power supply can support 2 RTX40 graphic cards

EXTRA CABLE TO SUPPORT TWO GRAPHICS CARDS

REVOLUTION ATX 3.0 will also come with another dual PCIe 8pin to 12VHPWR cable in the box for you to install up to two high-end graphics cards to get an even better performance and experience.

REVOLUTION ATX3.0 power supply comes with a native 12+4 pin (12VHPWER) cable and extra dual 8 pin to 12+4 pin (12VHPWER) cable

Dual 8 pin to 12+4 pin (12VHPWER) cable

*Please be aware of the total wattage requirement when you connect more than 1 GPU.

HOW TO PROPERLY PLUG THE 12+4 PIN 12VHPWR CABLE TO PREVENT DAMAGE

Use your fingers to hold both sides of the cable and insert the cable into the port straight in line with the port. Make sure to insert the cable firmly and evenly straight in without any gaps or bending.

How to properly plug the 12VHPWR cable
How to properly plug the 12VHPWR cable
How to properly plug the 12VHPWR cable
How to properly plug the 12VHPWR cable

BUILD FOR ALL GRAPHICS CARDS

With the need of extra power for graphics cards, the REVOLUTION ATX 3.0 is designed to support all of the AMD, Intel and NVIDIA graphics cards according to their different types of power connectors.

REVOLUTION ATX 3.0 is built for all graphics cards

1 GPU Power Connector

REVOLUTION ATX 3.0 is built for all graphics cards

2 GPU Power Connector

REVOLUTION ATX 3.0 is built for all graphics cards

3 GPU Power Connector

REVOLUTION ATX 3.0 is built for all graphics cards

12+4pin GPU Power Connector
(Extra Cable for Another GPU)

Revolution ATX 3.0 power supply is made of Japanese electrolytic capacitors
REVOLUTION ATX 3.0 power supply is made of Japanese electrolytic capacitors

SUPERIOR EFFICIENCY AND THE BEST QUALITY

With up to 92% efficiency and the best quality Japanese electrolytic capacitors to reduce unnecessary power consumption, save energy and create lower temperature.

REVOLUTION ATX 3.0 power supply comes with a native 12+4 pin (12VHPWER) cable

PUSH FOR ABSOLUTE SILENCE

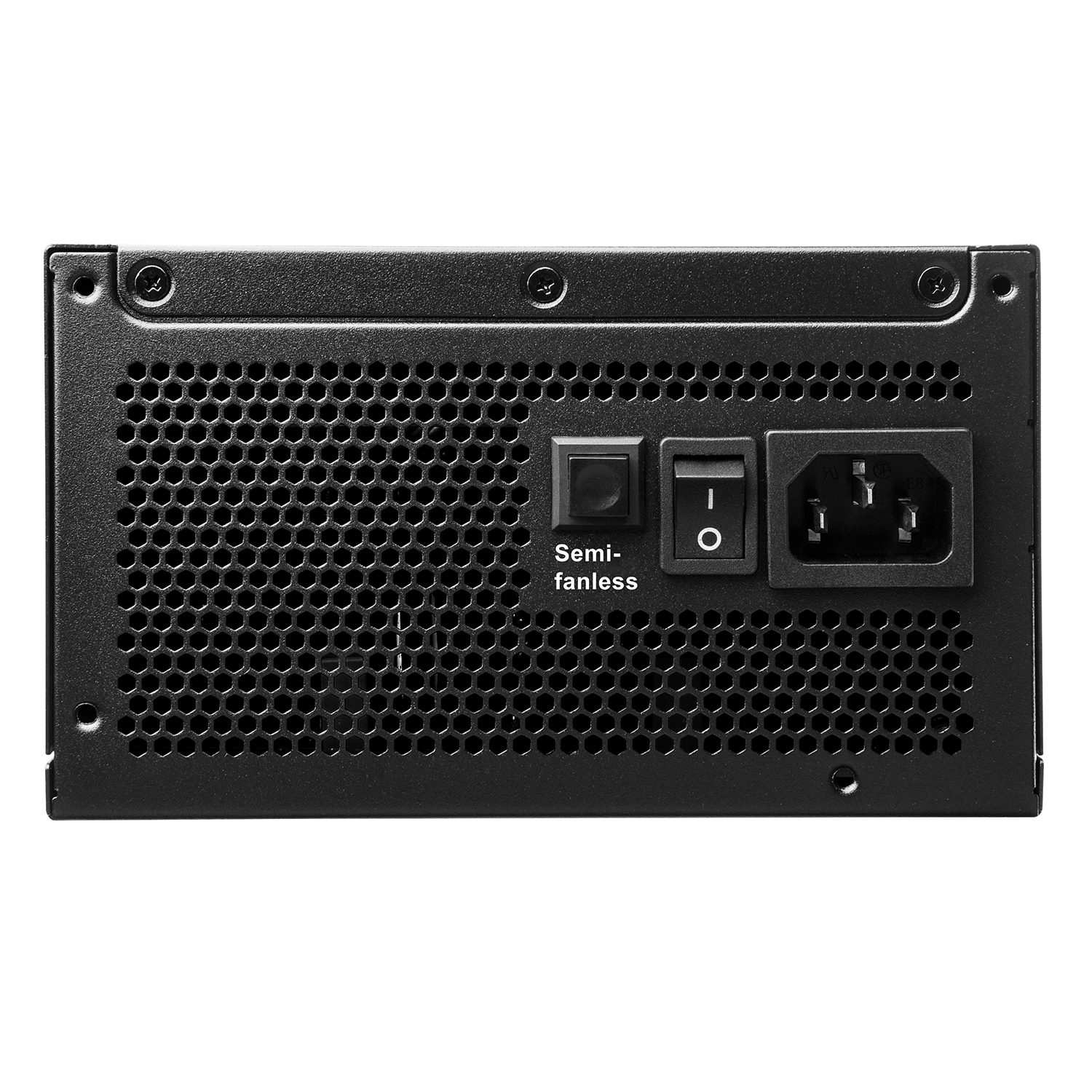

Designed with ENERMAX Semi-Fanless Tech, fan will be completely off until the load exceeds 30% for you to enjoy absolute silence of 0 dB(A) during minimum load. The fan control button next to the power switch allows you to turn off the function as you need and ensure active cooling for all time.

REVOLUTION ATX 3.0 power supply has semi-fanless technology for absolute silence under 30% system load
REVOLUTION ATX3.0 power supply can support RTX40 graphic cards
Revolution ATX 3.0 power supply can support RTX40 graphic cards

RELIABLE AND SAFE FOR YOUR SYSTEM

REVOLUTION ATX 3.0 applied advanced LLC and Synchronous Rectifier (SR) design which provides uncompromised power output. DC-to-DC conversion optimizing the stability for better voltage regulation. These ensure reliable operation for high-end processors and graphics cards.

REVOLUTION ATX 3.0 power supply cables
REVOLUTION ATX3.0 power supply cables

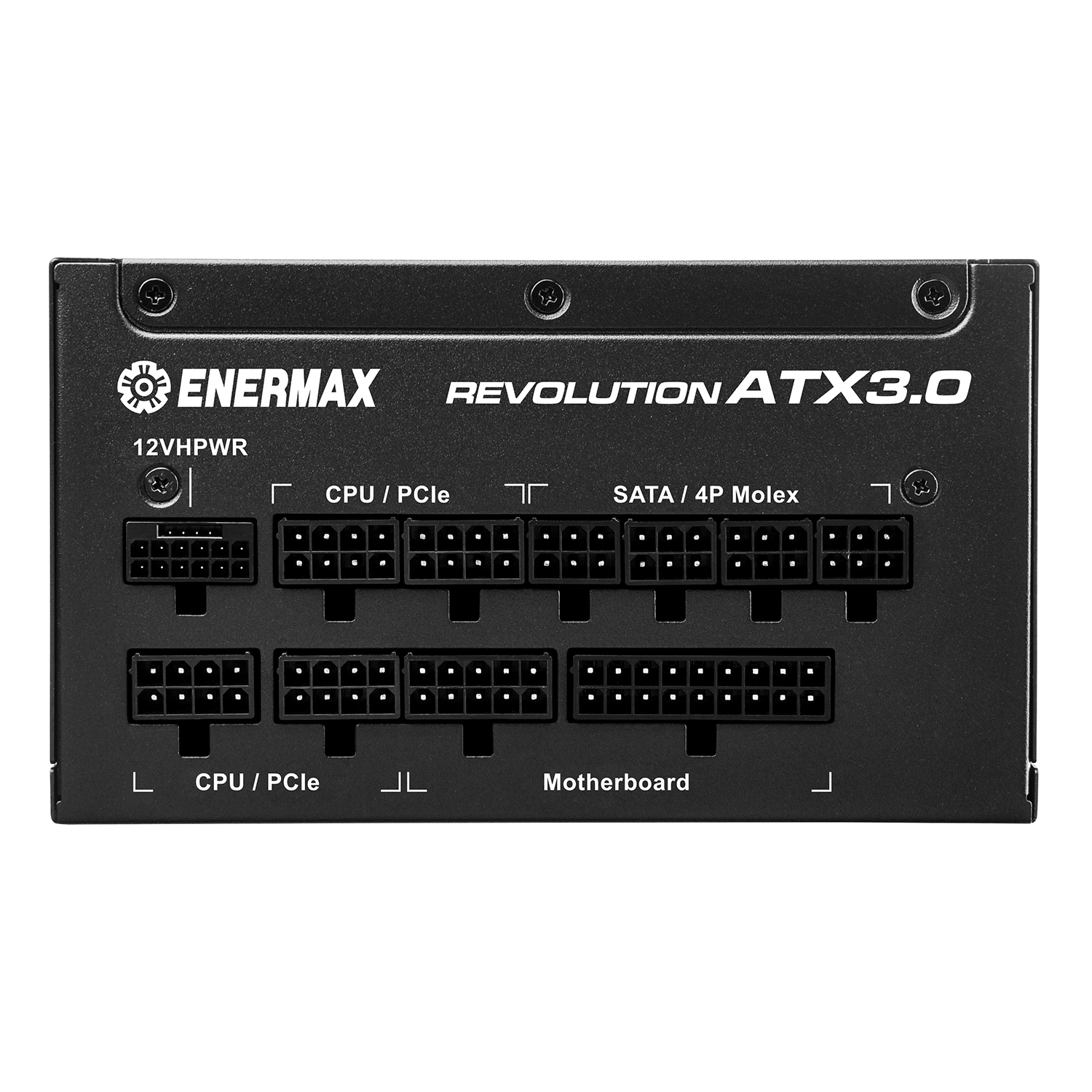

CABLE AND POWER AS YOU NEED

Only connect the cable you need with full modular design. REVOLUTION ATX 3.0 will also deliver the power you need for the best compatibility and avoid overloading with single rail +12V design.

REVOLUTION ATX 3.0 power supply, ATX 3.0 & PCIe 5.0 ready
Revolution ATX 3.0 power supply, ATX 3.0 & PCIe 5.0 ready

REVOLUTION ATX 3.0
POWER SUPPLY

BUILD FOR NEXT GENERATION

ERA1000EWT
Motherboard 24 (20+4) pin 1
[ 1x 60cm ]
CPU 4+4 Pin 2
[ 2 x 70cm ]
12VHPWR 12+4 pin
(600W)
1
[ 1x 60cm ]
2xPCIe 8pin-12VHPWR
Splitter Cable
1
[ 1x 60cm ]
PCIe 6+2pin 4
[ 2 x 60/15cm ]
SATA 12
[ 3 x 50/15/15/15cm ]
4P Molex + FDD 4 + 1
[ 1 x 50/15/15/15/15cm ]

Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCIe connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

North America
Europe
Taiwan
Worldwide
80 PLUS Efficiency GOLD
Modular Full-modular
Cable type Black flat
Total power (W) 1000
Input Voltage (V) 100-240
Input Current (A) 13
Input Frequency (Hz) 50-60
Fan size (mm) 135
Operating temperature (°C) 50
MTBF (hours) >100K
Protection OCP,OVP, UVP, OPP, OTP, SCP
Dimension (D x W x H), (mm) 150 x 150 x 86
+3.3V(A) 22
+5V(A) 22
+12V1(A) 83.33
-12V(A) 0.3
+5Vsb(A) 3
Combined Wattage 12V (W) 1000
Combined Wattage 3.3V + 5V(W) 120
EAN code 4713157727275
UPC code 819315027271
Box dimensions (D x W x H), (mm) 337 x 227 x 117 mm
