REVOLUTION ATX 3.1 1200 Watt

REVOLUTION ATX 3.1 1200 Watt 80 PLUS Gold Fully Modular ATX 3.1 Power Supply

．Intel ATX 3.1 & PCIe 5.1 Ready
．Semi-fanless Technology Ensures Absolute Silence under 20% Load
．High-efficienct Design for Superior Output Efficiency and Stable Voltage Regulation
．A Compact 140mm Chassis Depth with High Wattage Output for Easier Installation
．Fully Modular 80 PLUS® Gold Certified

COMPARE Compare List (0)
REVOLUTION ATX3.1
REVOLUTION ATX3.1


REVOLUTION ATX 3.1 1200 Watt 80 PLUS Gold Fully Modular
ATX 3.1 Power Supply

Designed for next-generation performance, the REVOLUTION​ ATX 3.1 1200W power supply is fully compliant
with Intel ATX 3.1 and PCIe 5.1 standards, outstanding stability and compatibility for the most demanding systems.
Despite its compact footprint, it features fully modular cabling and boasts 80 PLUS®  GOLD certification for superior energy efficiency.


80 PLUS® GOLD CERTIFIED

80 PLUS® GOLD CERTIFIED

REVOLUTION ATX 3.1 1200W power supply is 80 PLUS®  Gold certified with efficiency up to 93.5% on standard loading.

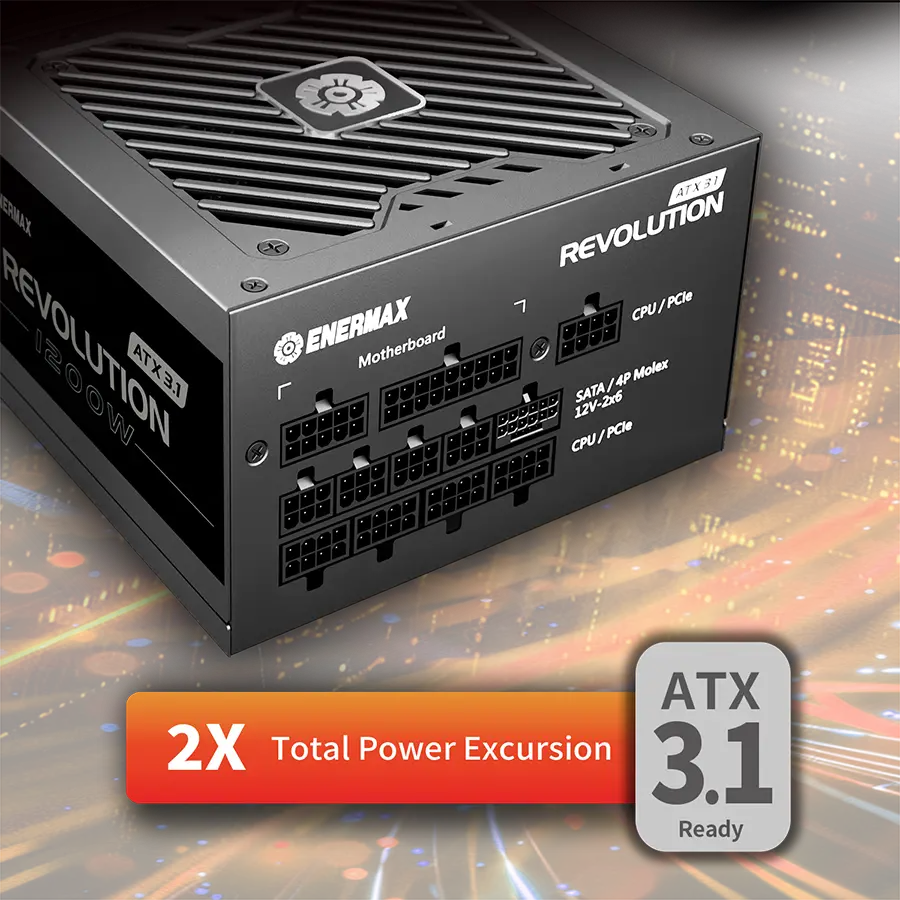

ATX 3.1 Certified —
Built for High-Performance Systems

Engineered to handle up to 200% power excursion and near-instant power-on response, this PSU is built to support the latest high-performance GPUs. Included is a native 600W 12V-2X6 cable, providing seamless readiness for next-gen graphics cards.

ATX 3.1 & PCIe 5.1 Ready
ATX 3.1 & PCIe 5.1 Ready

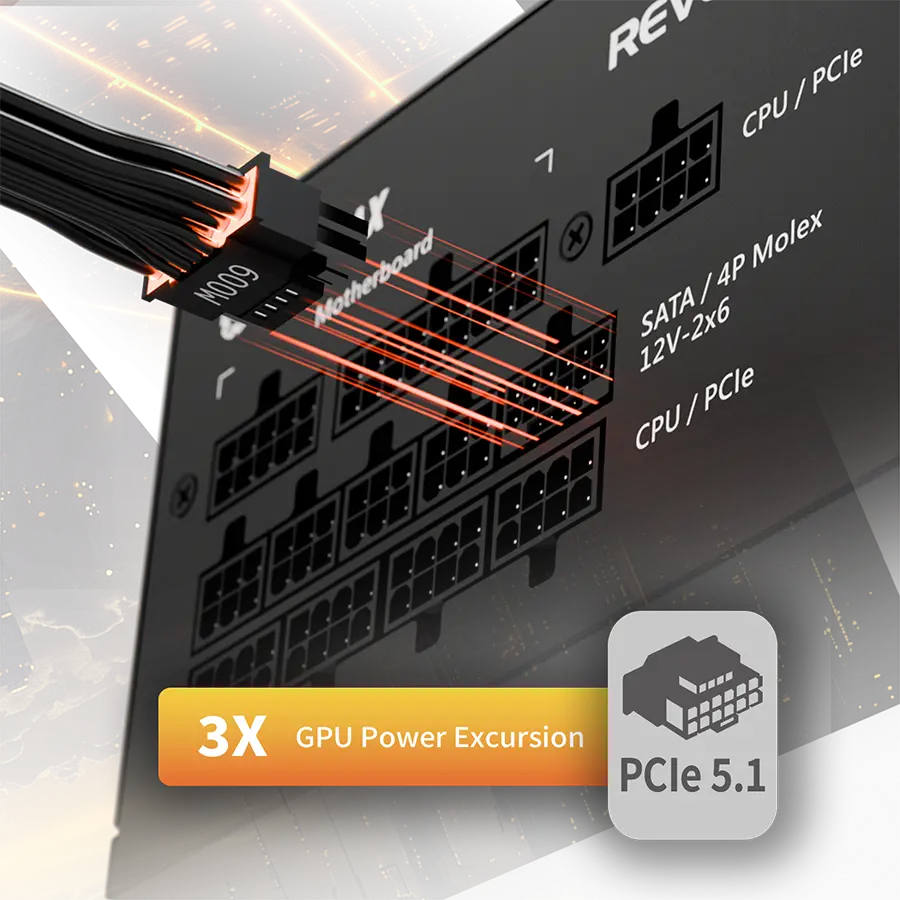

Native PCIe 5.1 —
Supports 12V-2x6 Standard Interface

Features the latest PCIe 5.1 compliant 12V-2x6 connector, fully compatible with NVIDIA RTX 50 series and future high-end GPUs. Delivers up to 600W of power output, enhanced for durability and safety to prevent connector overheating and unstable power delivery.

Semi -Fanless Technology

The built-in Semi-Fanless Technology ensures absolute silence under 20% load for a quieter computing experience

Semi -Fanless Technology
Efficiency & Security

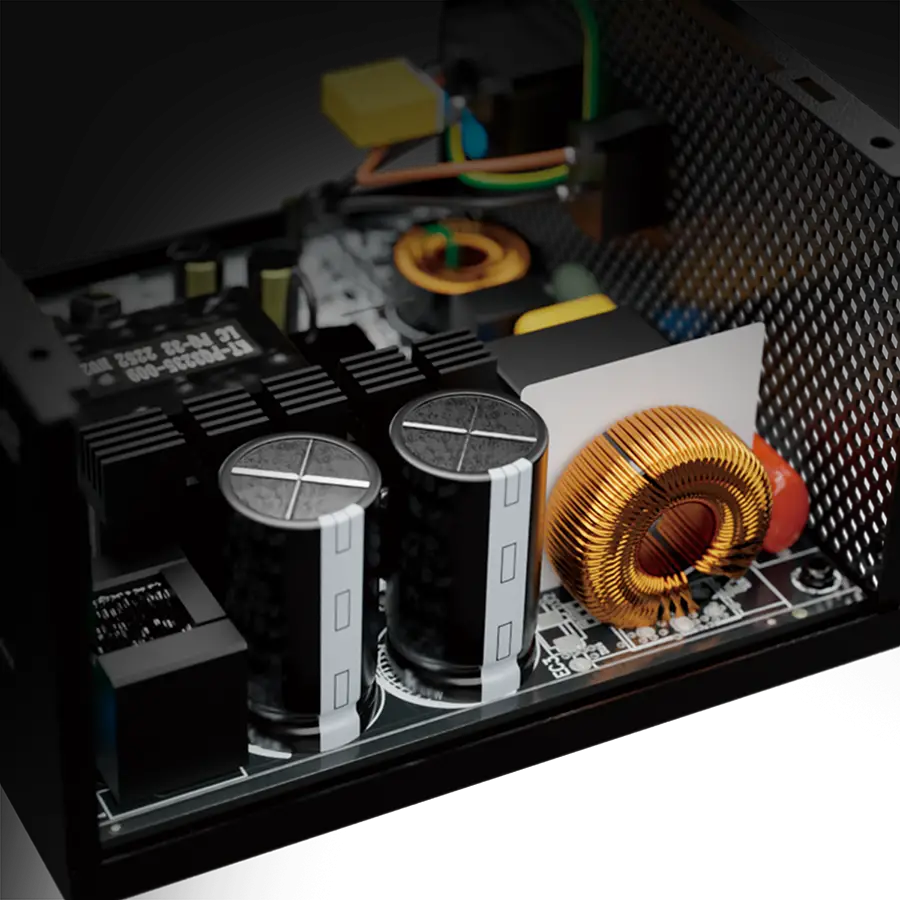

Half Bridge LLC Resonant Converter & DC to DC Circuit Design

This power supply features a high-efficiency Half-bridge LLC resonant converter combined with a DC-to-DC circuit design, delivering superior output efficiency and stable voltage regulation. Its single +12V rail supports higher current loads, reducing the risk of shutdowns during heavy usage.

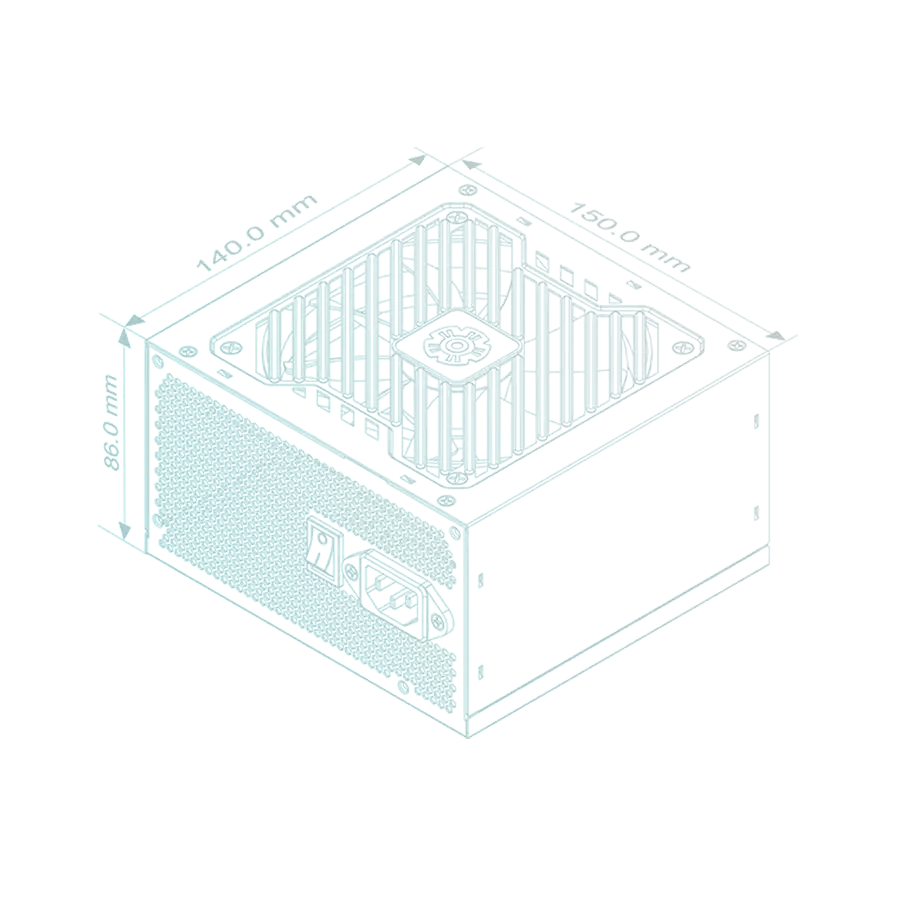

Compact Size

With a compact 140mm chassis depth, it offers improved compatibility and easier installation in most mainstream PC cases.

Compact Size

Multiple Protection Circuitries

It also includes — OCP (Over Current Protection), OVP (Over Voltage Protection),
UVP (Under Voltage Protection),OPP (Over Power Protection), OTP (Over Temperature Protection),
and SCP (Short Circuit Protection) — ensuring a safe and reliable user experience.

  • REVOLUTION III power supply with protection mechanism icon-1
  • REVOLUTION III power supply with protection mechanism icon-2
  • REVOLUTION III power supply with protection mechanism icon-3
  • REVOLUTION III power supply with protection mechanism icon-3
  • REVOLUTION III power supply with protection mechanism icon-4
  • REVOLUTION III power supply with protection mechanism icon-5

Cable & Connectors

Cable & Connectors
ERS1200EWT -V2
Motherboard 24 (20+4) pin 1
[ 1x 60cm ]
CPU 4+4 Pin 2
[ 2 x 65cm ]
PCIe 6+2 pin 3
[ 3 x 60cm ]
12V-2x6 12+4 pin 1
[ 1 x 60cm ]
SATA 8
[ 2 x 45/15//15/15cm ]
4P Molex 3
[ 1 x 50/15/15cm ]

Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P / 12V-2X6 12+4P PCIe connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

North America
Europe
Taiwan
Worldwide
80 PLUS Efficiency GOLD
Modular Fully modular
Cable type Black flat
Total power (W) 1200
Input Voltage (V) 100-240
Input Current (A) 15-7
Input Frequency (Hz) 47-63
Fan size (mm) 120
Operating temperature (°C) 40
MTBF (hours) >100K
Protection OCP,OVP, UVP, OPP, OTP, SCP
Dimension (D x W x H), (mm) 140 x 150 x 86
+3.3V(A) 20
+5V(A) 20
+12V1(A) 100
-12V(A) 0.3
+5Vsb(A) 3
Combined Wattage 12V (W) 1200
Combined Wattage 3.3V + 5V(W) 130
EAN code 4713157729422
UPC code 819315029428
Box dimensions (D x W x H), (mm) 290 x 210 x 111
Gross Weight / unit (kg) 2.7
