REVOLUTION D.F. 850 Watt 80 PLUS Gold Fully Modular Power Supply

‧ 80 PLUS® Gold certification
‧ D.F. switch for users to activate DFRTM function anytime
during operation
‧ Smart Airflow Control (SAC) design ensures an almost
inaudible operation
‧ Full modular design with 100% flat cables

80 PLUS® Gold certified

87-92% high efficiency performance @ 20-100% load




Dust Free Rotation Tech. (patented)

Dust Free Rotation technology enables the fan to instantly blow away the dust to prolong the lifespan




D.F. switch

D.F. switch design allows users to activate DFR self-cleaning function at anytime during operation




Smart Airflow Control (SAC) design

SAC design keeps PSU fan spinning at almost inaudible 400rpm within 70% system load to provide the optimal silent experience




Twister Bearing fan (patented)

Twister Bearing Technology ensures ultra silent cooling and long lifetime of fan (160,000 hours MTBF)




100% 105°C Japanese electrolytic capacitors

Highest component standards for maximum durability and stability




Full modular design

Full modular cable design facilitates system installation and cable management




Zero load ready!

DC to DC converter circuit ensures stable output voltage and delivers higher efficiency




2013 ErP Lot 6 ready

Help system meet 2013 ErP Lot 6 (< 0.5W at standby mode) with high efficiency +5Vsb circuitry. (With 2013 ErP Lot 6 enabled motherboard)




World ready!

100-240VAC auto-adjustment input for universal use. Active PFC with PF value up to 0.99, reducing thereactive power loss to the minimum




SafeGuard

Multiple protection circuitry of OCP, OVP, UVP, OPP, OTP, SCP and SIP protects your system

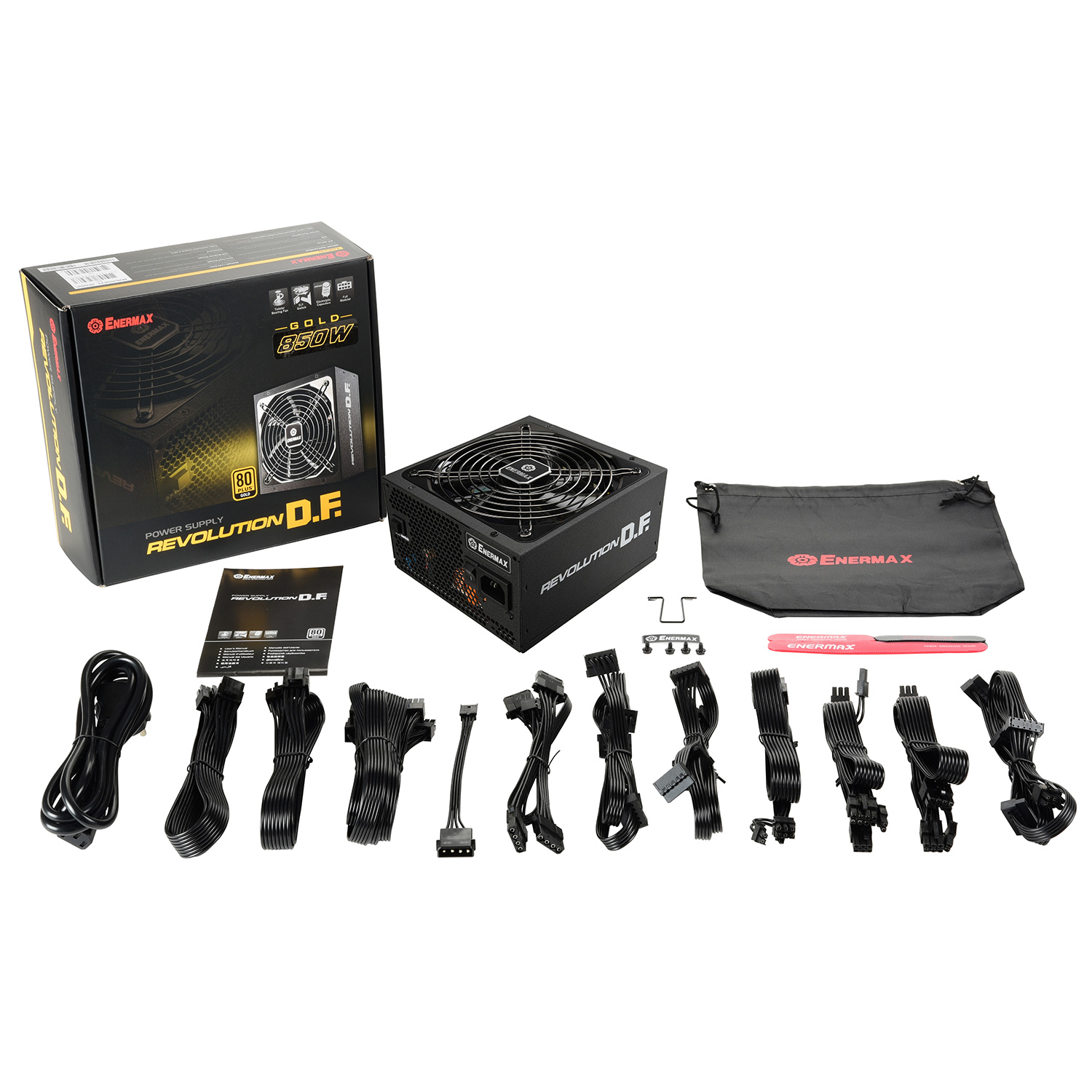

Product Introduction

ERF850EWT
Mainboard 24 Pin 1
[ 1 x 60cm ]
CPU 4+4 Pin 2
[ 2 x 70cm ]
PCI-E 6+2 Pin (8 Pin) 6
[ 3 x 50/15cm ]
SATA 12
[ 3 x 45/15/15/15cm ]
4 Pin Molex 4
[ 1 x 45/15/15/15cm ]
FDD 1
[ 1 x 10cm ]

Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCI-E connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

80 PLUS Efficiency GOLD
Modular Full modular
Cable type Black flat
Total power (W) 850
Input Voltage (V) 100-240
Input Current (A) 12/6
Input Frequency (Hz) 47-63
Fan size (mm) 135
Operating temperature (°C) 50
MTBF (hours) >100K
Protection OCP, OVP, UVP, OPP, OTP, SCP, SIP
Dimension (D x W x H), (mm) 160 x 150 x 86
+3.3V(A) 22
+5V(A) 22
+12V1(A) 25
+12V2(A) 25
+12V3(A) 40
+12V4(A) 40
-12V(A) 0.3
+5Vsb(A) 2.5
Combined Wattage 12V (W) 850
Combined Wattage 3.3V + 5V(W) 120
EAN code 4713157723963
UPC code 819315023969
Box dimensions (D x W x H), (mm) 248 x 233 x 96.5
Gross Weight / unit (kg) 3
