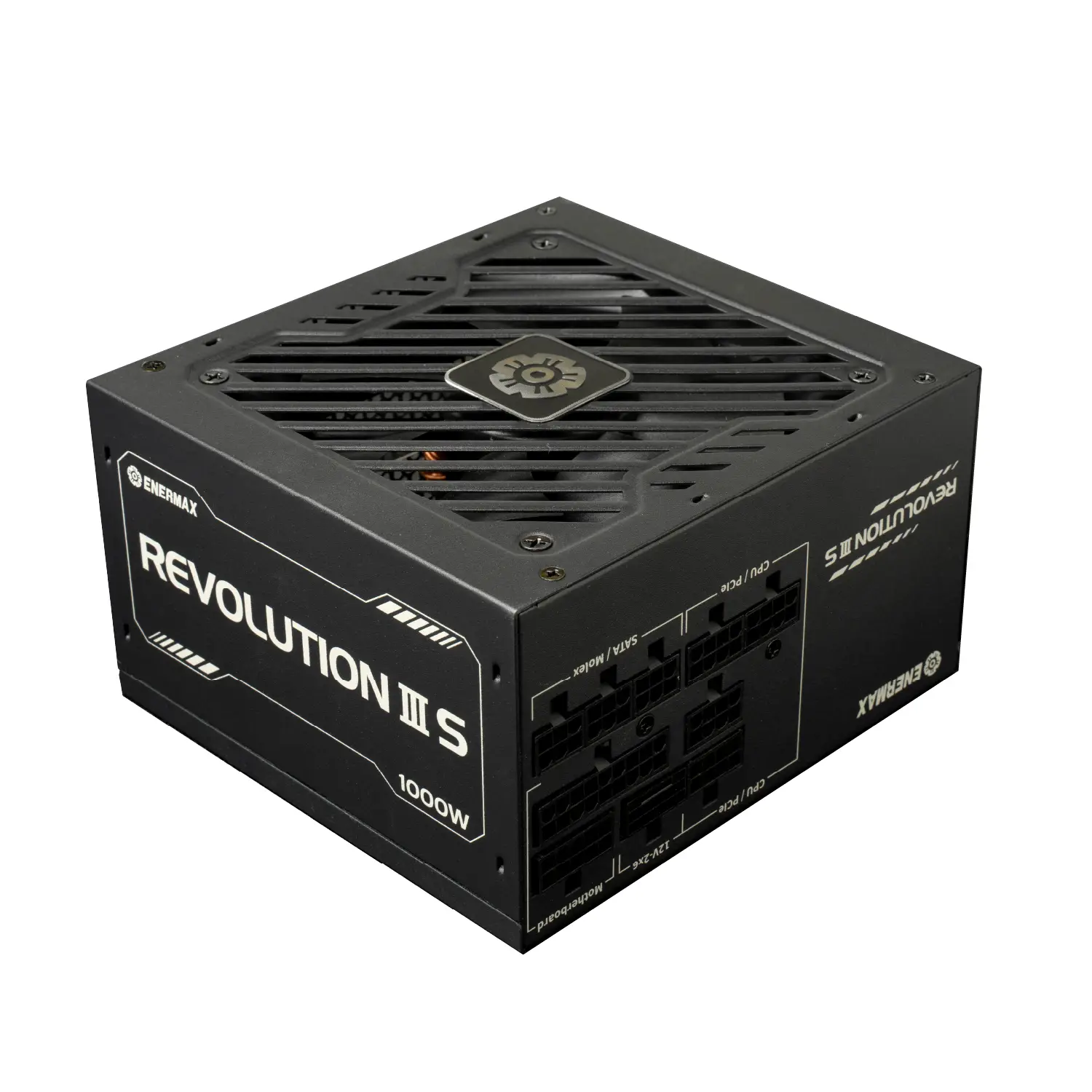

REVOLUTION III S 1000W ATX 3.1 Power Supply
THE LEGEND OF POWER SUPPLY
The REVOLUTION III S 1000W fully modular PSU, available in both black and white, is certified with 80 PLUS and PPLP Platinum. It is also compatible with ATX 3.1 standards and features a native PCIe 5.1 12V-2x6 cable, capable of delivering up to 600W of power to next-generation hardware.
PLATINUM CERTIFIED
Built with premium components, the REVOLUTION III S 1000W boasts 80 PLUS and PPLP Platinum certifications, delivering exceptional power efficiency. High PSU efficiency minimizes energy waste, reduces heat generation, and ensures stable, reliable power delivery, enhancing overall system performance and extending component lifespan.

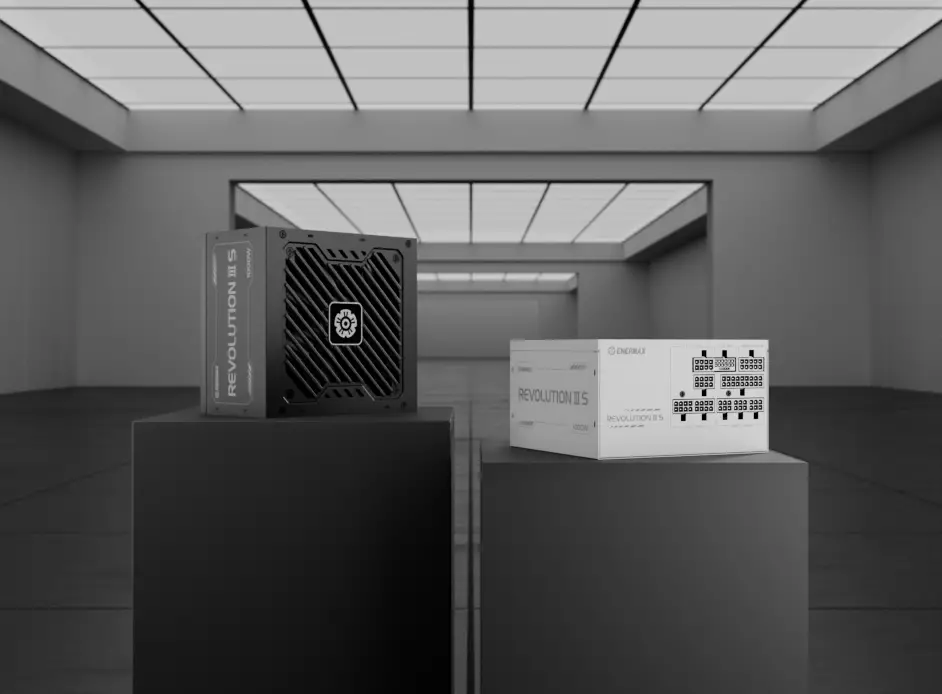

ATX 3.1 CERTIFIED
REVOLUTION III S 1000W complies with Intel ATX 3.1 standards and can sustain up to 200% of its rated power during power excursions, ensuring top-notch performance for power-hungry graphics cards.
PCIE 5.1 READY
REVOLUTION III S 1000W comes with a native 12V-2x6 connector, and the included PCIe 5.1 cable supports up to 600W for next-gen hardware.
100% JAPANESE CAPACITORS
REVOLUTION III S 1000W power supply incorporates 100% industrial-grade Japanese capacitors with high-quality materials and manufacturing processes, ensuring stable and consistent performance.
WHISPER COOL, POWERFULLY QUIET

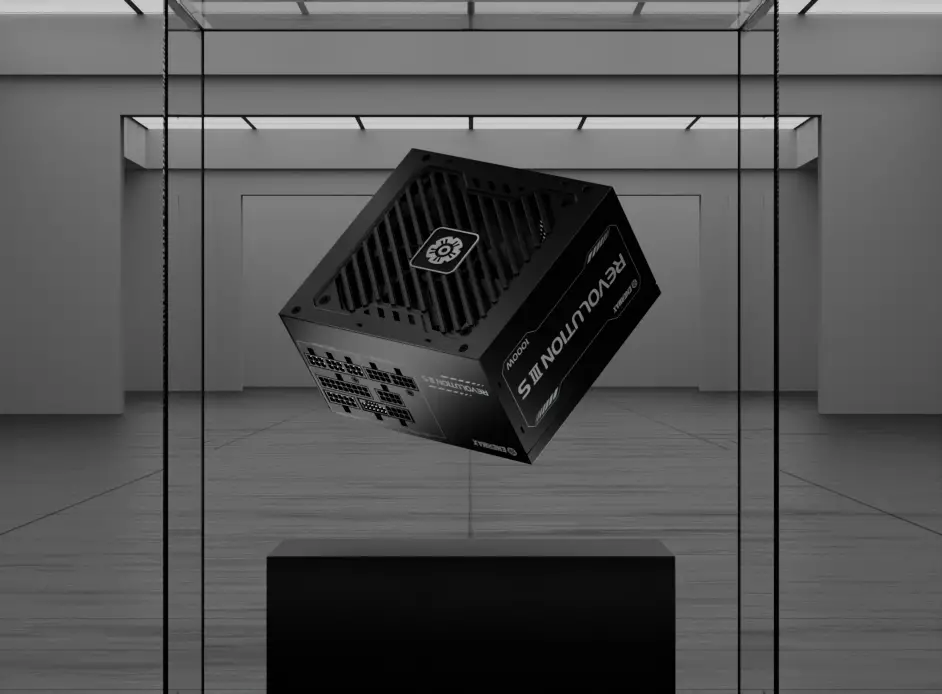

The series is built with an F.D.B. (Fluid Dynamic Bearing) fan that delivers quiet operation while maintaining strong cooling performance. The built-in Semi-Fanless Technology ensures absolute silence under 60% load* or over-temperature, providing a quieter computing experience.
*Tested in a lab environment
RELIABLE OPERATION FOR HIGH-END SYSTEM
REVOLUTION III S 1000W applied advanced LLC design which provides uncompromised power output. DC-to-DC conversion optimizing the stability for better voltage regulation. These ensure reliable operation for high-end processors and graphics cards.
PREMIUM EMBOSSED CABLES
The REVOLUTION III 1000W S features upgraded embossed cables for a cleaner and more organized build. The modular sockets, inclined to one side, offer effortless cable routing and management.
10-YEAR WARRANTY
Engineered with top-tier components, the REVOLUTION III S 1000W delivers exceptional reliability and performance. We stand behind its quality with full confidence, backing it with a 10-year warranty for complete peace of mind.
Multiple Protection Circuitries
It also includes — OCP (Over Current Protection), OVP (Over Voltage Protection),
UVP (Under Voltage Protection),OPP (Over Power Protection), OTP (Over Temperature Protection),
and SCP (Short Circuit Protection) — ensuring a safe and reliable user experience.
| Connect Type | Connector Quantity | Cable Quantity | Cable Length | |
| Motherboard 24 (20+4)pin |
1 |  |
1 | 55cm |
| CPU(4+4)Pin + (4+4)Pin |
2 |  |
1 | 60+15cm |
| PCIe (6+2) pin + (6+2) pin |
4 |  |
2 | 50+15cm |
| 3 x SATA + 4P Molex |
SATA: 6 4P Molex: 2 |
SATA  Molex  |
2 | 40+15+15+15cm |
| 12V-2x6 (12+4)Pin | 1 |  |
1 | 60cm |
DIMENSIONS
Unit: mm
Cable & Connectors
