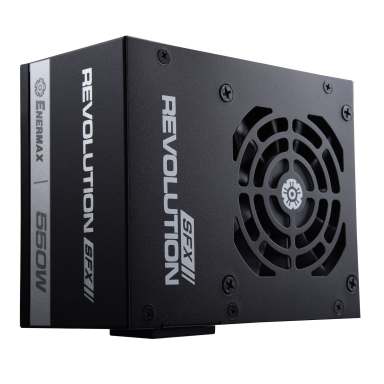

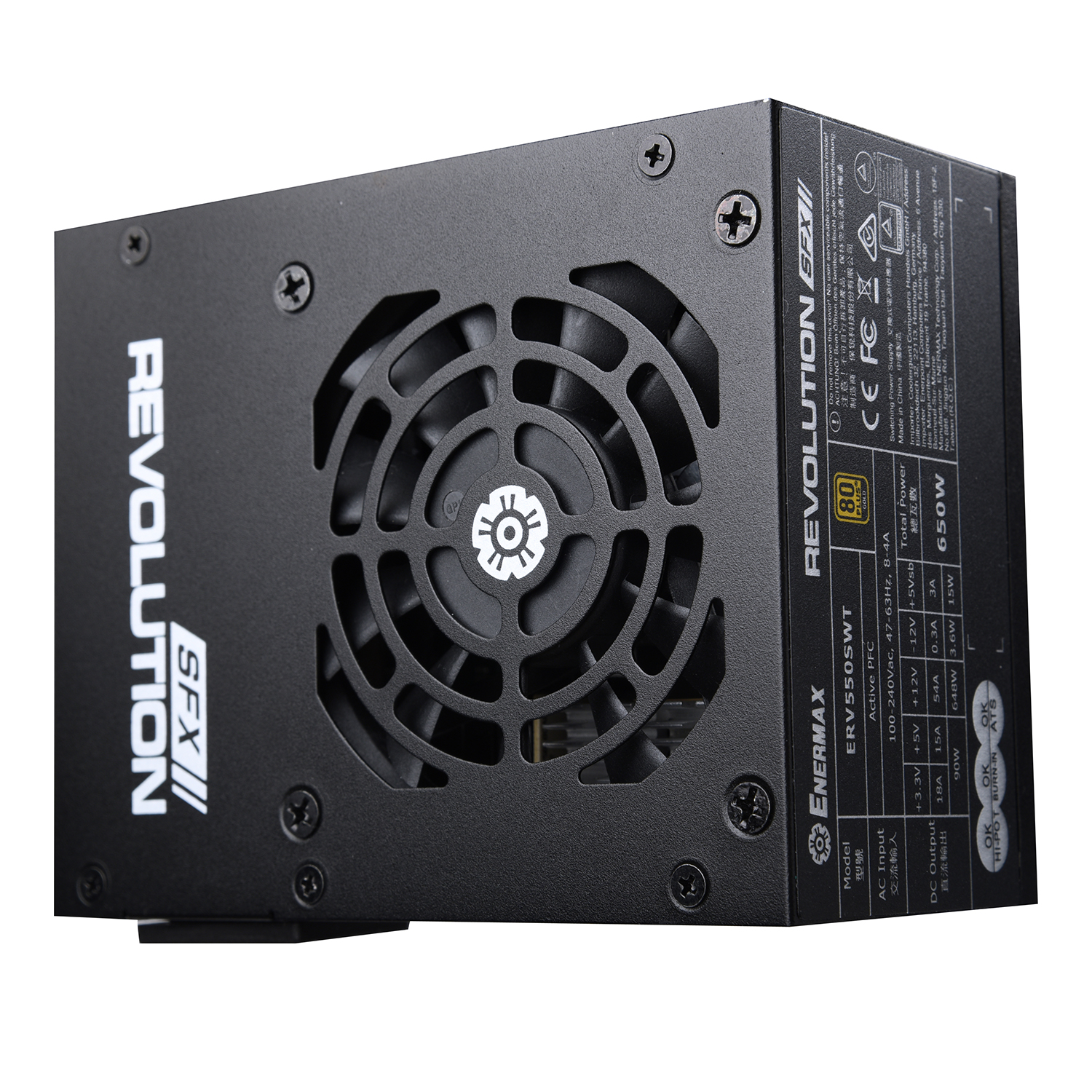

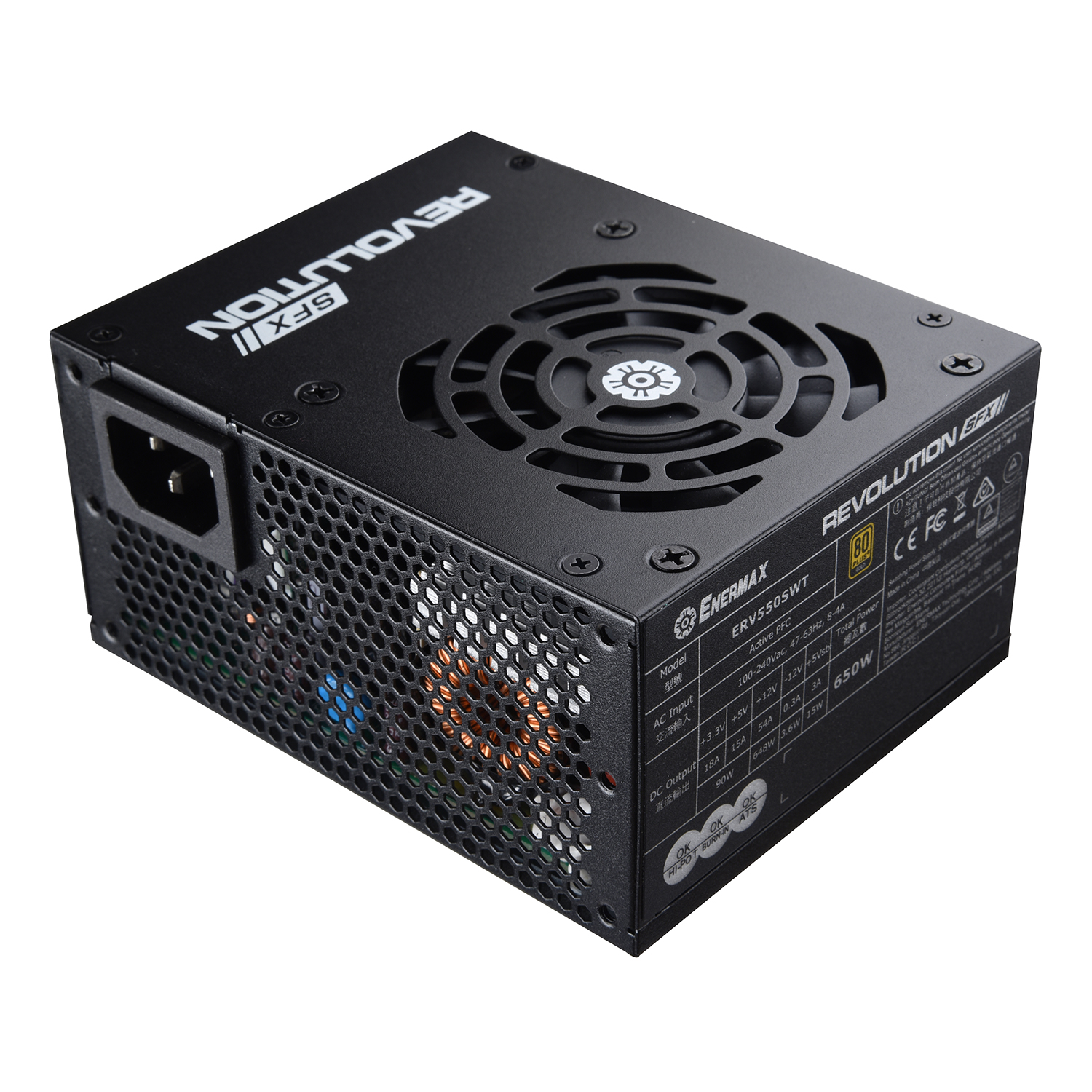

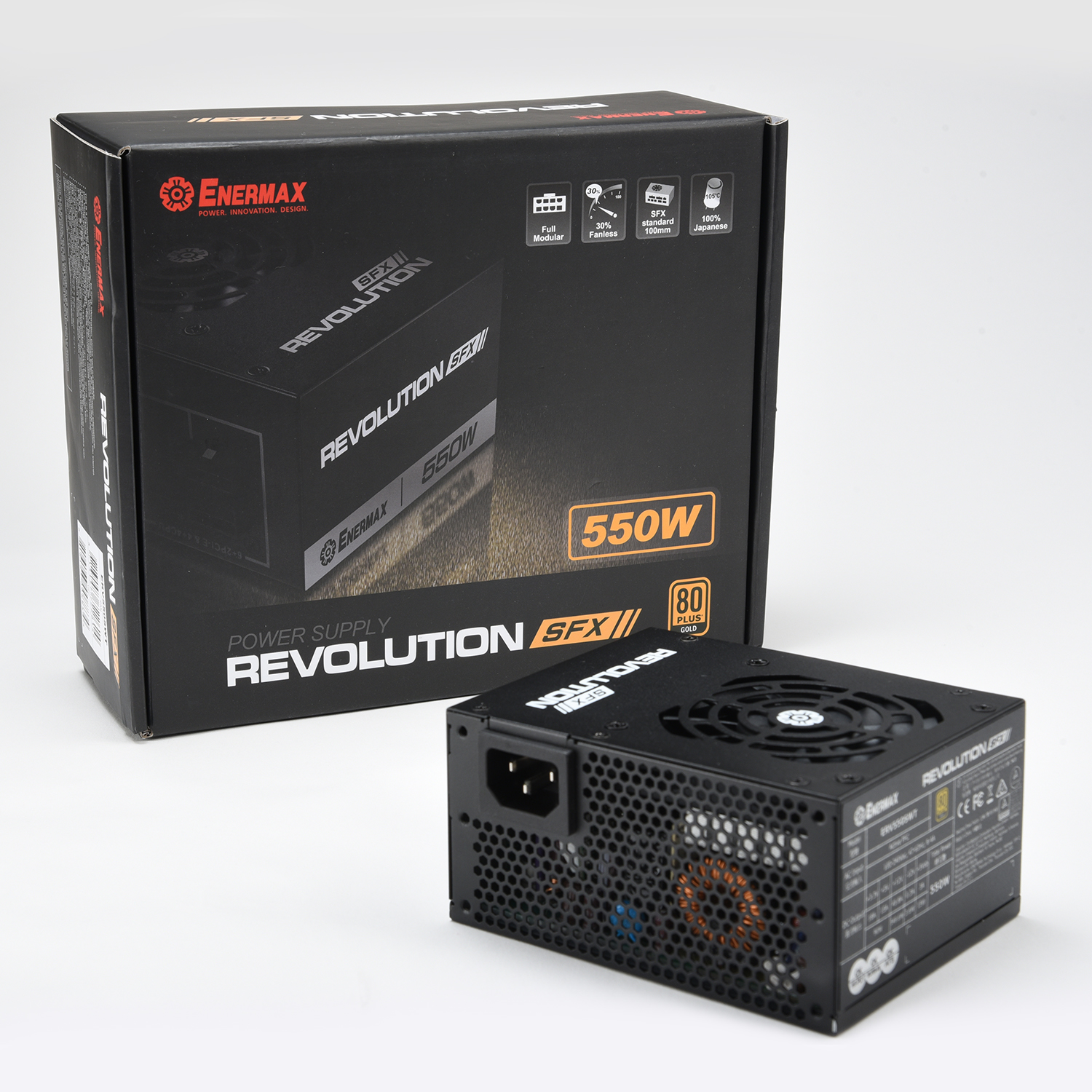

REVOLUTION SFX 550W

‧ Compact & powerful SFX form factor for small but high-performance system
‧ Smart semi-fanless control - fanless under 30% load
‧ 100% 105°C Japanese electrolytic capacitors

80 PLUS® Gold certified

Up to 92% efficiency, compliant with 80 PLUS® Gold efficiency requirement




Compact & powerful SFX form factor

High density PCB design with standard SFX 100mm depth makes it a perfect power supply for compact and high-performance system




100% 105°C Japanese electrolytic capacitors

Highest component standards for maximum durability and stability




Smart semi-fanless control

Fanless mode before 30% of system load for silent operation. Once surpassing the pre-defined limit, the 80mm fan starts to spin and the fan RPM is automatically regulated according to the system load




SFX-to-ATX compatible installation

Handy SFX-to-ATX PSU adapter bracket is included for installation in ATX or Micro-ATX chassis*

*It is recommended to check if the length of cable is sufficient for your PC cases before purchase / installation

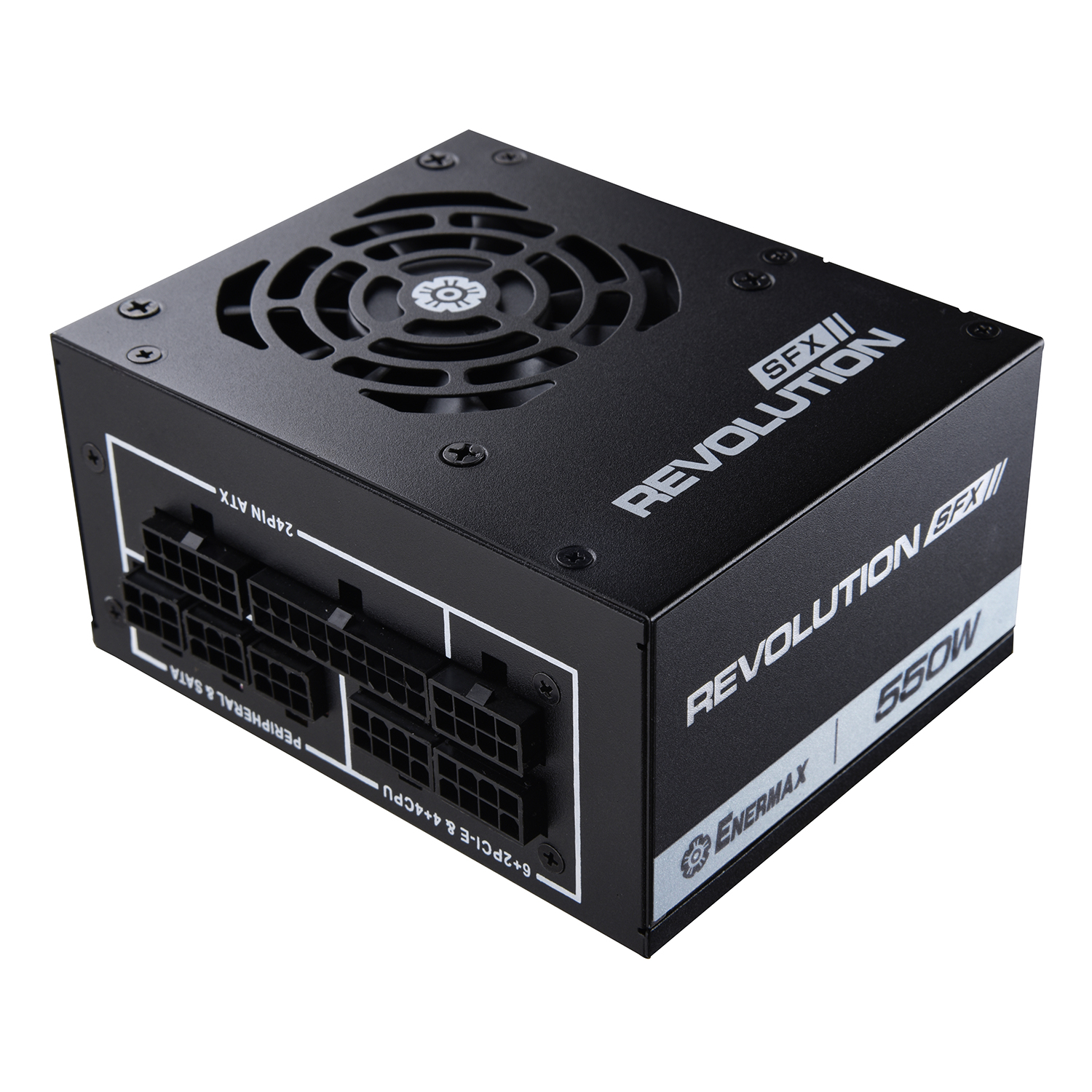

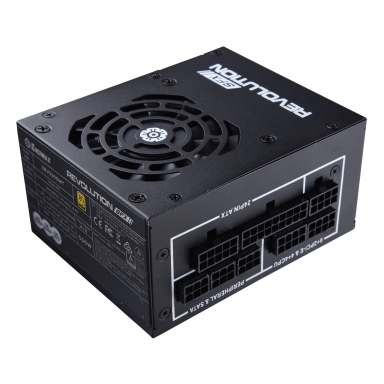

Full modular & 100% flexible flat cables

Full modular with flat cable design facilitates system installation and cable management




2013 ErP Lot 6 ready

Help system meet 2013 ErP Lot 6 (< 0.5W at standby mode) with high efficiency +5Vsb circuitry. (when used with a 2013 ErP Lot 6-enabled motherboard)




Zero load ready!

DC to DC converter circuit provides stable output voltage and higher efficiency

SafeGuard

Multiple protection circuitry of OCP, OVP, UVP, OPP, OTP, SCP, and SIP ensures your system safety




Product Introduction

ERV550SWT
Mainboard 24 Pin 1
[ 1 x 30cm ]
CPU 4+4 Pin 1
[ 1 x 40cm ]
PCI-E 6+2 Pin (8 Pin) 2
[ 2 x 40cm ]
SATA 6
[ 2 x 20/15/15cm ]
4 Pin Molex 4
[ 1 x 20/15/15/15cm ]

Notice:
Your Enermax power supply is designed for enthusiast and high demand graphic professional that is looking at working with a system that requires multiple GPU. However, configuring a multi-GPU system requires proper planning to make sure you are not driving all currents through the same cable source that might overload both your motherboard and your power supply. Driving your GPUs on separate 12V rail is a good practice that most tech-savvy users already aware of. Do you realize that your motherboard might be pulling too much current from your 24Pin power source and cause system damage?

For those elite users that is looking to put in 2 or more high end, power demanding GPU card, please choose the motherboard that comes with extra 4P Molex/ 4P FDD / 6P PCI-E power socket on board and connect them with your Enermax power supply. This will prevent motherboard overloading and possibly cause damage to your system including your Enermax power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under Enermax manufacturer¡¦s warranty. Please refer to your motherboard¡¦s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

Model ERV550SWT
Efficiency GOLD
Modular Full modular
Cable type Black flat
Total power (W) 550
Input Voltage (V) 100-240
Input Current (A) 6
Input Frequency (Hz) 47-63
Fan size (mm) 80
Operating temperature (°C) 40
MTBF (hours) > 100k
Protection OCP, OVP, UVP, OPP, OTP, SCP, SIP
Dimension (D x W x H), (mm) 100 x 125 x 63.5
+3.3V(A) 18
+5V(A) 15
+12V1(A) 45.8
-12V(A) 0.3
+5Vsb(A) 3
Combined Wattage 12V (W) 549.6
Combined Wattage 3.3V + 5V(W) 90
EAN code 4713157722614
UPC code 816163008834
Box dimensions (D x W x H), (mm) 240 x 200 x 90
Gross Weight / unit (kg) 1.0
