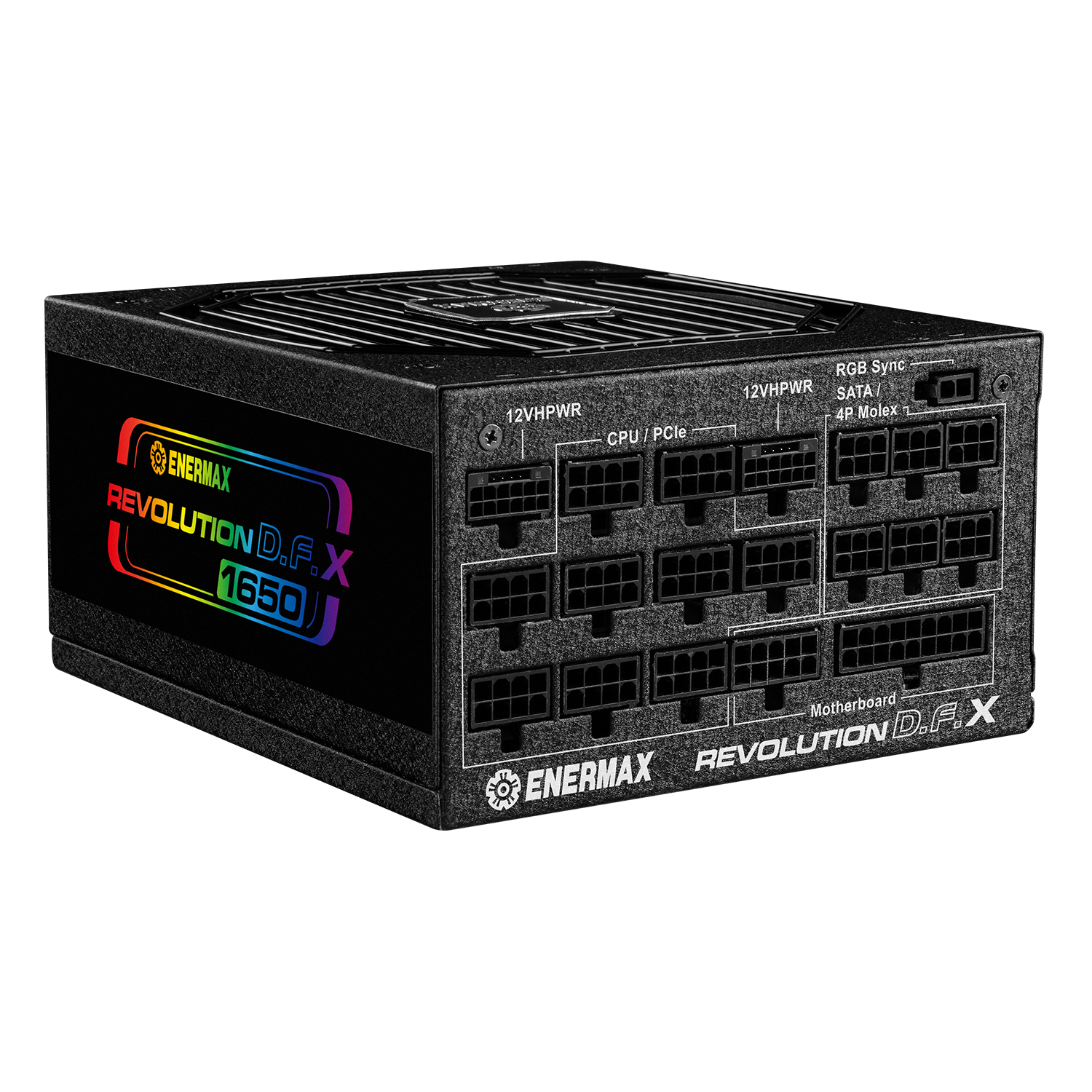

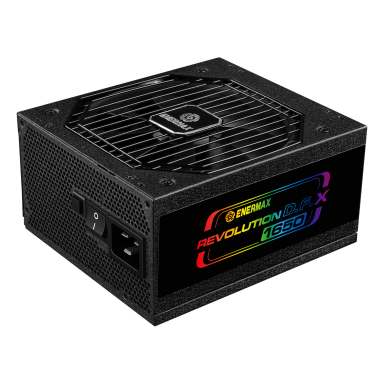

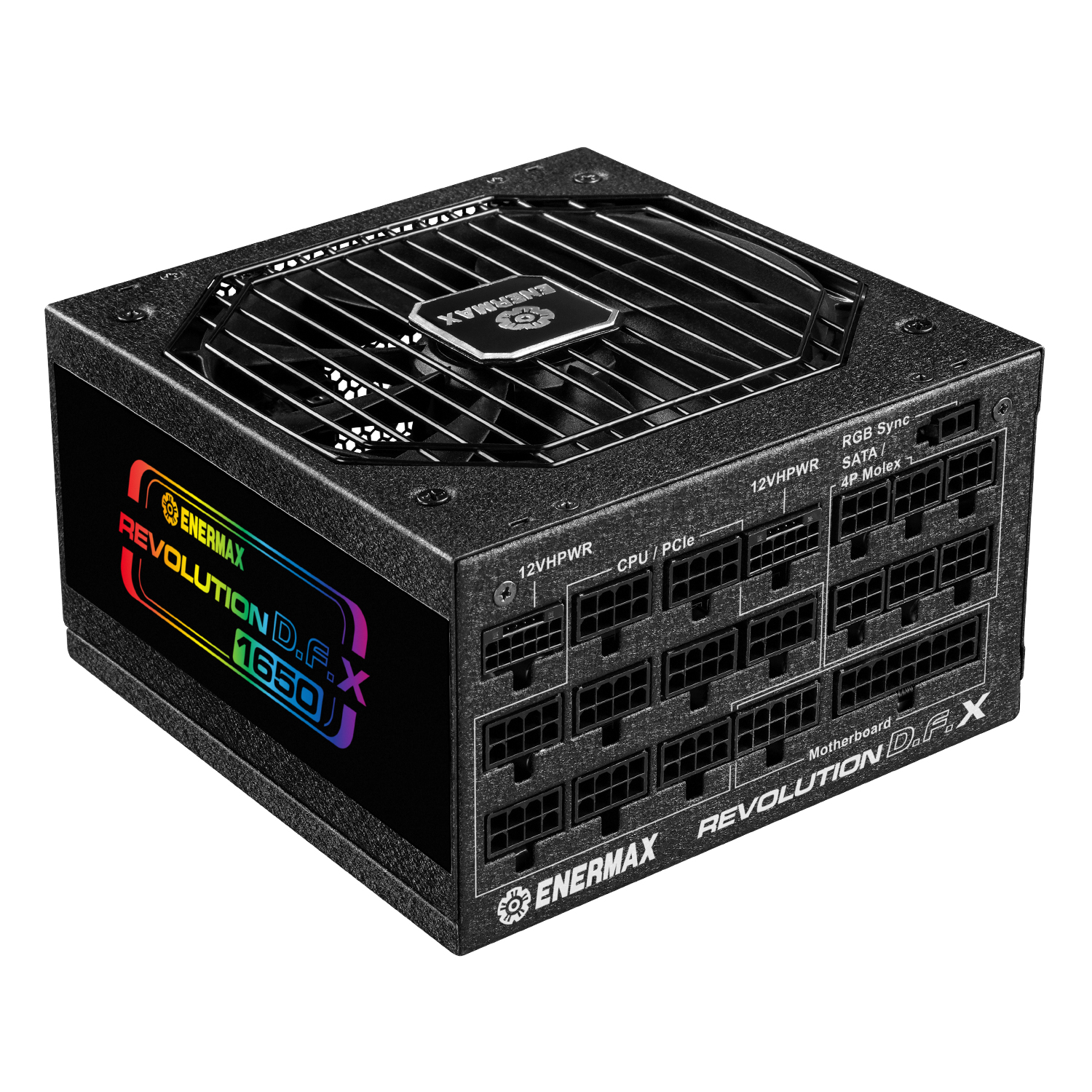

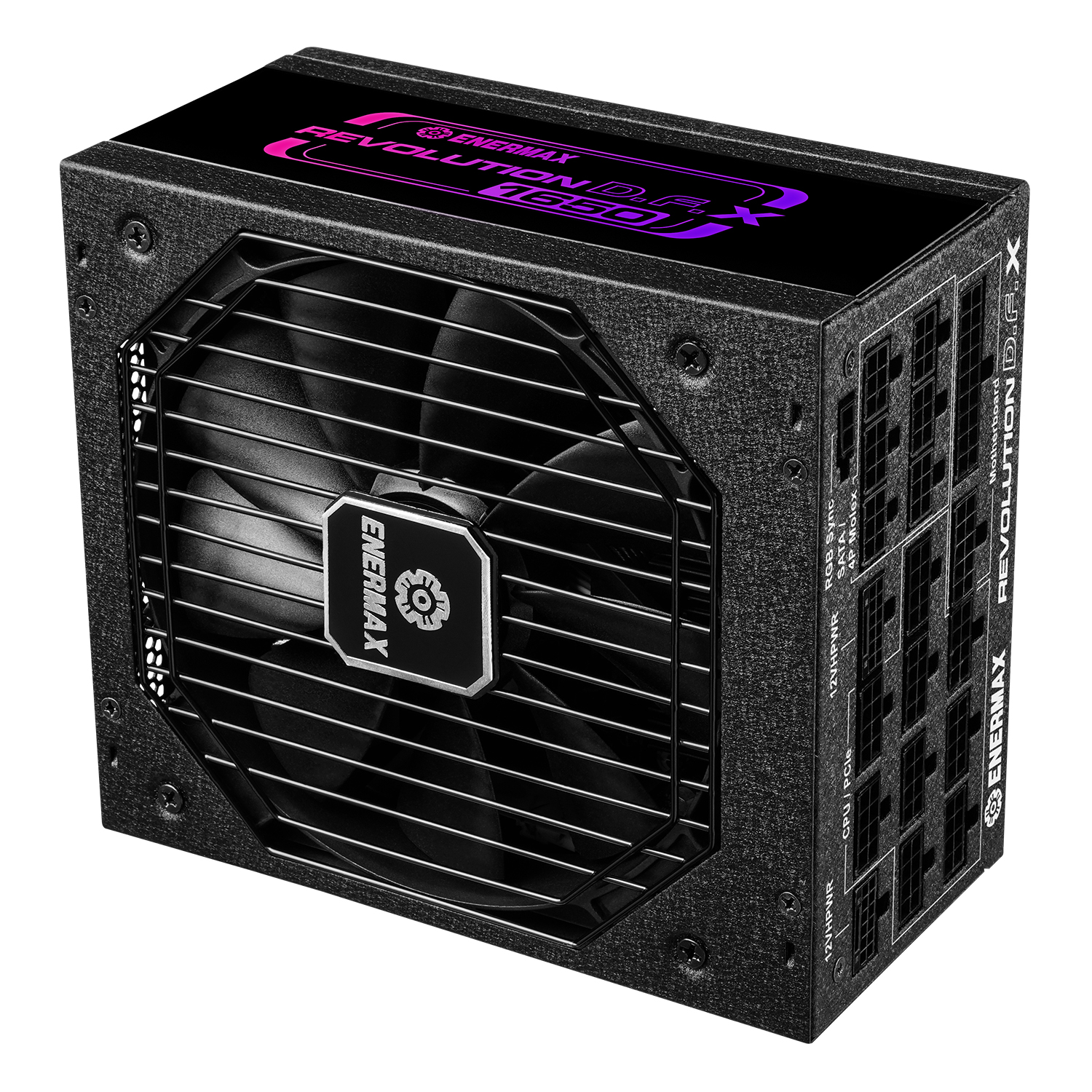

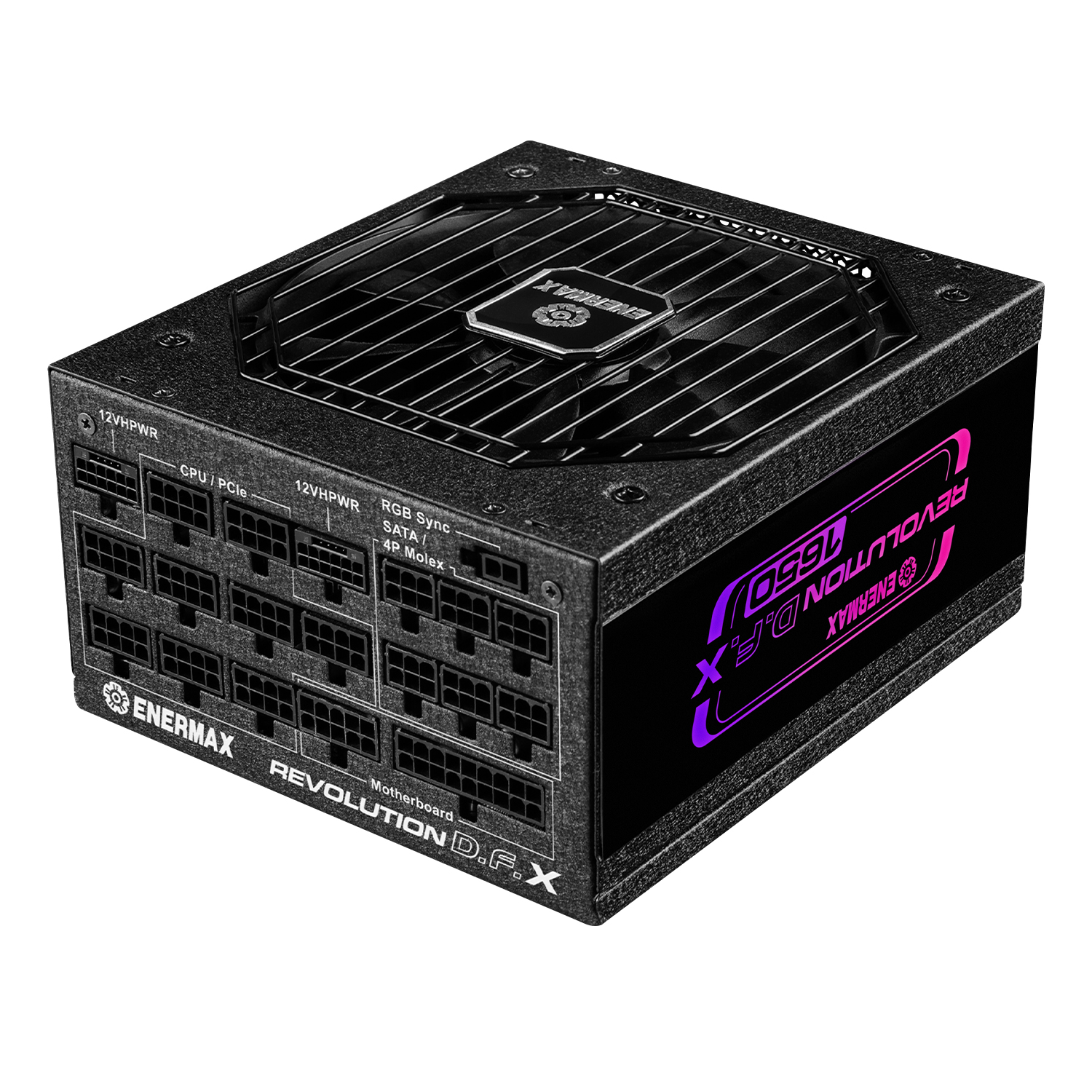

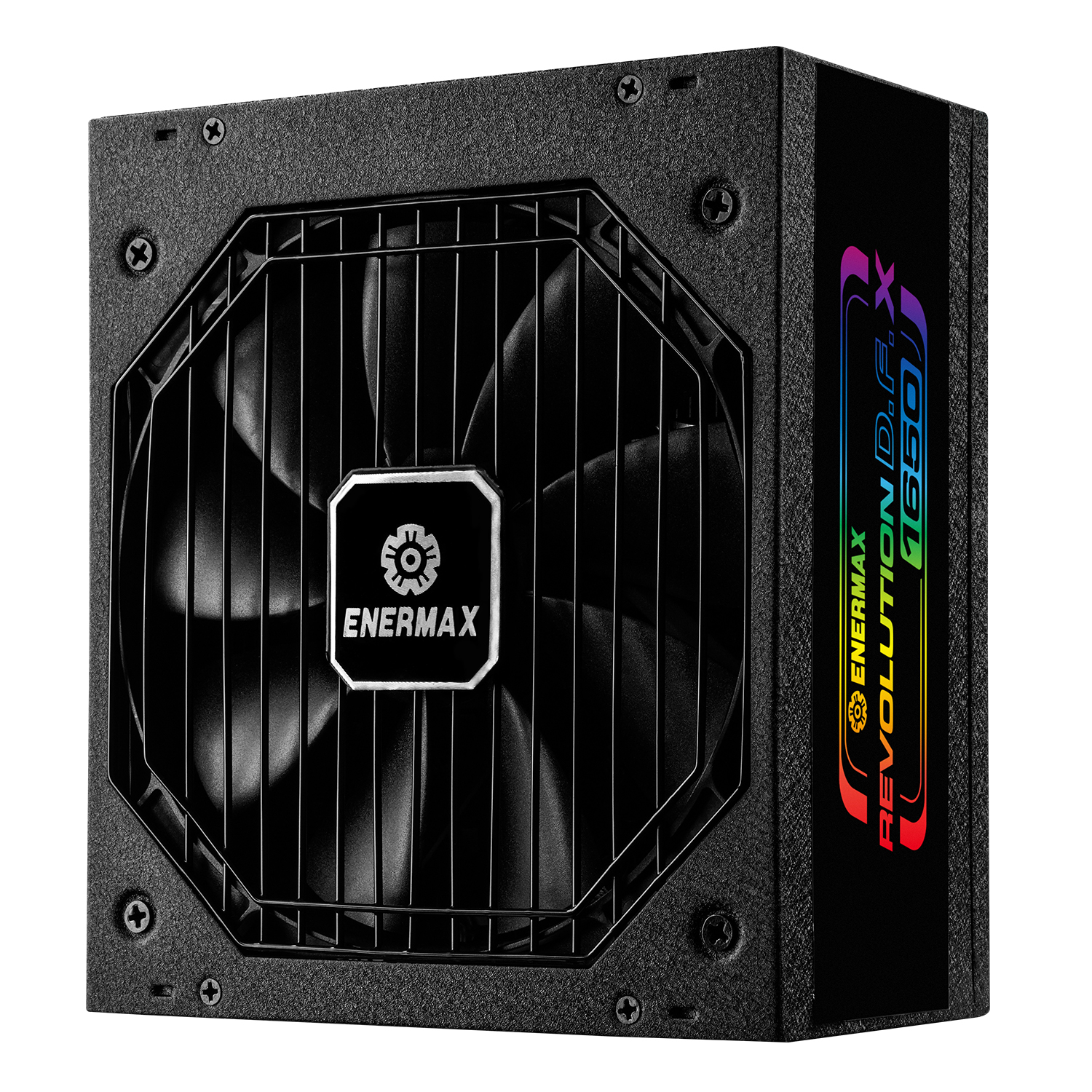

REVOLUTION D.F. X 1650 Watt 80 PLUS Gold Fully Modular ATX 3.0 Power Supply

‧Intel ATX 3.0 & PCIe 5.0 Ready
‧Fully Modular 80 PLUS® Gold Certified
‧2x Native 600W PCIe 5.0 / Gen 5 12+4 Pin 12VHPWR Cables
‧Extra Dual PCIe 8 Pin to 12+4 Pin 12VHPWR Cable
‧Up to 200% Power Excursion and Instant Power-on Time
‧6-pole Motor Fan Inside
‧RGB Control Button for ON/OFF and 14 lighting Modes
‧Dust-Free Rotation Tech. for Ultra Cleanness
‧Semi-Fanless Tech. for Absolute Silence Under 40% Load

COMPARE Compare List (0)
REVOLUTION D.F. X FULLY MODULAR ATX POWER SUPPLIES

INTEL ATX 3.0 & PCIe 5.0 READY!

The REVOLUTION D.F. X series meets the Intel ATX 3.0 specification with two native PCIe 5.0 600W 12VHPWR cables providing stable and reliable power to your next generation graphics cards including NVIDIA® GeForce RTX™ 40 Series.

REVOLUTION D.F. X power supply specification highlight

THE MOST ADVANCED PERFORMANCE

The REVOLUTION D.F. X meets all the Intel ATX 3.0 standard including up to 200% power excursion which ensures consistent and reliable power delivery to your graphics cards during intensive gaming or overclocking sessions, and 70 % efficiency in 2% loading as well as less than 200ms power-on time.

200%

Power Excursion

< 200ms

Power-on Time

REVOLUTION D.F. X power supply support high-end GPU

POWER UP WITH 600W 12VHPWR CABLE

With the arrival of PCIe 5.0, the native 600mm 12VHPWR cables included can deliver up to 600W of power from the 12VHPWR connector to the latest graphics cards and avoid overloading with single rail +12V design.

EXTRA CABLE FOR MULTIPLE USAGE

The REVOLUTION D.F. X helps you get ready for the future with another 600mm adaptor cable with dual 8-pin PCIe connectors for PSU side and 12VHPWR connector for GPU side, it allows you to build with flexibility.

REVOLUTION D.F. X power supply provides extra adaptor for more flexibility
Dual 8 pin to 12+4 pin
(12VHPWER) cable
* Please be aware of the total wattage requirement when you connect more than 1 GPU.
REVOLUTION D.F. X power supply ARGB side panel

FLEXIBLE MESH SLEEVED CABLES

REVOLUTION D.F. X 1350/1650W equipped with flexible triple-layer mesh sleeved cables to bring a better cable routing with its soft and bendable points when installing.
The meticulous sleeved cables provide better durability and stylish aesthetics that allowing you to build your PC with professional look.

HOW TO PROPERLY PLUG THE 12+4 PIN 12VHPWR CABLE TO PREVENT DAMAGE

Use your fingers to hold both sides of the cable and insert the cable into the port straight in line with the port. Make sure to insert the cable firmly and evenly straight in without any gaps or bending under 40mm from the plug downwards.

REVOLUTION D.F. X power supply installation guide-1 REVOLUTION D.F. X power supply installation guide-2 REVOLUTION D.F. X power supply installation guide-3 REVOLUTION D.F. X power supply installation guide-4
REVOLUTION D.F. X power supply ARGB side panel

LIGHT IT UP WITH ARGB SIDE PANEL

To stand out from all the ATX 3.0 power supplies, the REVOLUTION D.F. X comes with a ARGB side panel with built-in 14 lighting modes. It supports synchronization with supported motherboard’s software.

REVOLUTION D.F. X power supply RGB sync with motherboard software

RGB ON/OFF WITH RGB CONTROL BUTTON

The RGB control button next to the power switch allows you to turn it off at night with one push. You can also switch directly between the built-in 14 lighting modes via the RGB control button.

REVOLUTION D.F. X power supply 14 lighting modes

A FAN WITH VERSATILITY

DUST-FREE ROTATION TECHNOLOGY ENSURES A STABLE POWER DELIVERY

With ENERMAX’s patented Dust-free Rotation technology, which is an innovative self-cleaning solution that enables the fan to blow away dust upon powering on, it ensures the REVOLUTION D.F. X remains clean, prevents any future disruption, and ensures a stable power delivery for years.

HIGH-PRESSURE BLADE DESIGN

With the high-pressure blade design, the fan blades centralize dispersed airflow to the center of the fan and create extremely high air pressure and high airflow while maintaining outstanding quietness.

SEMI-FANLESS TECHNOLOGY FOR ABSOLUTE SERENITY

The semi-fanless technology allows the fan to be completely off until the load exceeds 40% or over-temperature to create a 0 dB(A) environment and ensure a quiet operation during minimum load.

REVOLUTION D.F. X c applied 6-pole motor fan

6-POLE MOTOR FAN INSIDE FOR MINIMAL VIBRATION

The REVOLUTION D.F. X has been optimized with a 6-pole motor with 3-phase fan to provide minimal vibration, low power consumption, and an exceptionally smooth operation.

REVOLUTION D.F. X DUAL-BALL BEARING

INDUSTRIAL-GRADE DUAL-BALL BEARING

The REVOLUTION D.F. X is equipped with a high-performance fan featuring industrial-grade dual-ball bearings, which effectively reduces unnecessary friction to optimize its performance. By incorporating these high-quality dual-ball bearings, the REVOLUTION D.F. X achieves enhanced stability and exceptional quality. This design not only extends the lifespan of the unit but also maximizes the performance of your system for your most demanding needs.

OUTSTANDING PERFORMANCE

REVOLUTION D.F. X power supply efficiency chart

SUPERIOR EFFICIENCY EXTEND YOUR PC’S LIFESPAN

As the efficiency becomes more and more crucial for the environment, the REVOLUTION D.F. X is 80 PLUS® Gold certified with efficiency over 90% on standard loading, which reduce unnecessary power consumption during operation and effectively save energy.

REVOLUTION D.F. X power supply is made of 100% Japanese capacitors

INDUSTRIAL-GRADE 100% JAPANESE CAPACITORS

Offering the best of the best to our customer, the REVOLUTION D.F. X is using the industrial-grade 100% Japanese capacitors to ensure power output is extremely stable and reliable for years.

REVOLUTION D.F. X power supply applied advanced LLC and Synchronous Rectifier (SR) design

TECHNOLOGIES FOR BETTER REGULATION

The REVOLUTION D.F. X applied advanced LLC and Synchronous Rectifier (SR) design which result in better regulation, low noise and low output ripple and improve efficiency and thermal management.

HEAVY-DUTY INDUSTRIAL-GRADE PROTECTIONS

  • REVOLUTION D.F. X power supply with protection mechanism icon-1

    Over Current
    Protection

  • REVOLUTION D.F. X power supply with protection mechanism icon-2

    Over Voltage
    Protection

  • REVOLUTION D.F. X power supply with protection mechanism icon-3

    Under Voltage
    Protection

  • REVOLUTION D.F. X power supply with protection mechanism icon-3

    Over Power
    Protection

  • REVOLUTION D.F. X power supply with protection mechanism icon-4

    Over Temperature
    Protection

  • REVOLUTION D.F. X power supply with protection mechanism icon-5

    Short Circuit
    Protection

COMPACT 170MM FOR FRIENDLY INSTALLATION

REVOLUTION D.F. X 1350W and 1650W are among the smallest 1300W+ power supplies with a compact 170mm-depth size, providing more flexibility and better airflow for high-end workstation systems.

REVOLUTION D.F. X power supply with compact size in 17mm depth

ENERMAX UNIQUE AIR GUARD FOR BETTER AIRFLOW

The ENERMAX air guard will benefit the cooling performance while decreasing the fan noise with the wider space of air inlet.

REVOLUTION D.F. X power supply with unique air guard design
REVOLUTION D.F. X power supply with unique air guard design

CABLE AND POWER AS YOU NEED

Only connect the cable you need with full modular design.

REVOLUTION D.F. X
Model name ERT1350EWT ERT1650EWT
Wattage 1350W 1650W
REVOLUTION D.F. X power supply cables icon-1
Motherboard 24 (20+4)pin
1
[ 1 x 65cm ]
1
[ 1 x 65cm ]
REVOLUTION D.F. X power supply cables icon-2
CPU 4+4 Pin
2
[ 1 x 60cm ]
[ 1 x 70cm ]
2
[ 1 x 60cm ]
[ 1 x 70cm ]
REVOLUTION D.F. X power supply cables icon-3
12VHPWR 12+4 pin
1
[ 1 x 60cm ]
2
[ 1 x 60cm ]
REVOLUTION D.F. X power supply cables icon-4
PCIe 6+2 pin
7
[3 x 65/15cm]
[1 x 55cm]
7
[3 x 65/15cm]
[1 x 55cm]
REVOLUTION D.F. X power supply cables icon-5
2xPCIe 8pin-12VHPWR
Splitter Cable
1
[ 1 x 60cm ]
1
[ 1 x 60cm ]
REVOLUTION D.F. X power supply cables icon-6
SATA
12
[ 3 x 45/15/15/15cm ]
12
[ 3 x 45/15/15/15cm ]
REVOLUTION D.F. X power supply cables icon-7
4P Molex
6
[ 2 x 50/15/15cm ]
6
[ 2 x 50/15/15cm ]
2 x SATA + 4p Molex - 2 + 1
[1 x 45/15/15cm]
REVOLUTION D.F. X power supply cables icon-8
FDD
1
[ 1 x 10cm ]
1
[ 1 x 10cm ]
ERT1650EWT
Motherboard 24 (20+4) pin 1
[ 1x 65cm ]
CPU 4+4 Pin 2
[ 1 x 60cm ]
[ 1 x 70cm ]
12VHPWR 12+4 pin 2
[ 1x 60cm ]
PCIe 6+2pin 7
[ 3 x 65/15cm ]
[ 1 x 55cm ]
2xPCIe 8pin-12VHPWR
Splitter Cable
1
[ 1x 60cm ]
SATA 12
[ 3 x 45/15/15/15cm ]
4P Molex 6
[ 2 x 50/15/15cm ]
2 x SATA + 4p Molex 2 + 1
[1 x 45/15/15cm]
FDD 1
[ 1 x 10cm ]

Notice:
For users that are looking to put in high end, power demanding GPU card, please connect 6 / 6+2P PCIe connector(s) from your ENERMAX power supply to them correctly. This will prevent motherboard overloading and possibly cause damage to your system including your ENERMAX power supply. Once this occurs, it will be treated as improper system configuration and any damage on the power supply as a result of it, will not be covered under ENERMAX manufacturer’s warranty. Please refer to your motherboard & GPU card’s user manual to configure your system properly to prevent motherboard overloading damage to your system and your power supply.

Either sleeved or flat type modular cables in the box are all compatible with your newly purchased power supply. Please only use the modular cables provided in your ENERMAX power supply package. Do NOT use other modular cables to prevent pin configuration damage to your system and your power supply.

Info for DC connector’s rated current: The safety current is 6A per single DC wire. Please be noted that overloading could cause the connector or wire meltdown and could void the warranty.

North America
Europe
Taiwan
Worldwide
80 PLUS Efficiency Gold
Modular Fully Modular
Cable type Mesh Sleeved Cable
Total power (W) 1650
Input Voltage (V) 115-240
Input Current (A) 15-8
Input Frequency (Hz) 50-60
Fan size (mm) 140
Operating temperature (°C) 40
MTBF (hours) >100K
Protection OCP, OVP, UVP, OPP, OTP, SCP
Dimension (D x W x H), (mm) 170 x 150 x 86
+3.3V(A) 25
+5V(A) 25
+12V1(A) 137.5
-12V(A) 0.3
+5Vsb(A) 3
Combined Wattage 12V (W) 1650
Combined Wattage 3.3V + 5V(W) 150
EAN code 4713157727633
UPC code 819315027639
Box dimensions (D x W x H), (mm) 360 x 210 x 115
Gross Weight / unit (kg) 4.43
