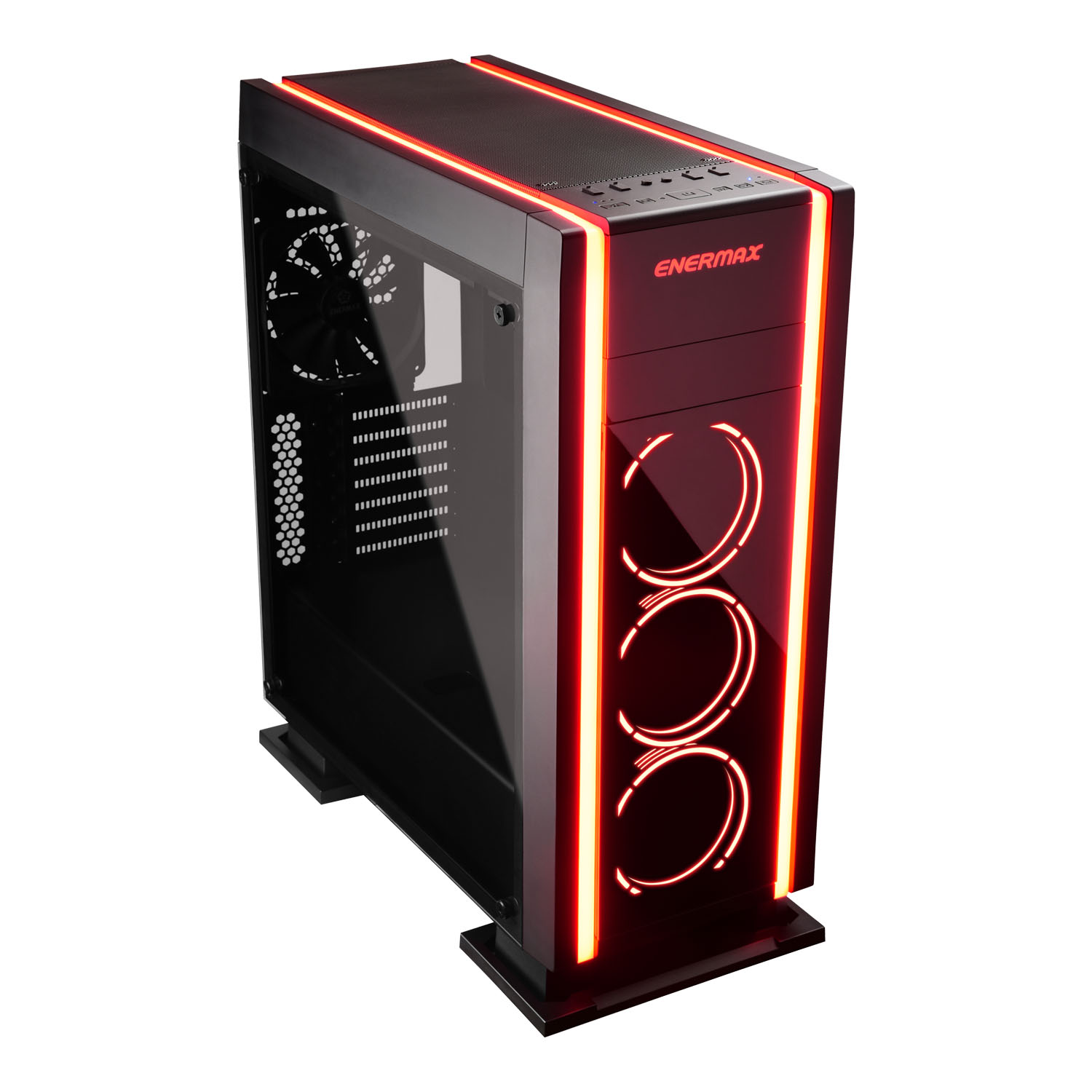

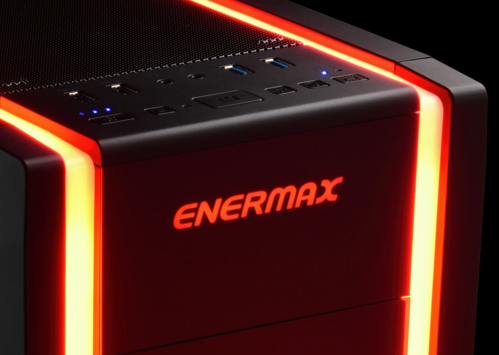

ENERMAX LED LIGHTING Technology + Innovative Nano Diffusant provide consistent and uniform luminance

Incredibly bright and even lighting

Uneven lighting with visible spots

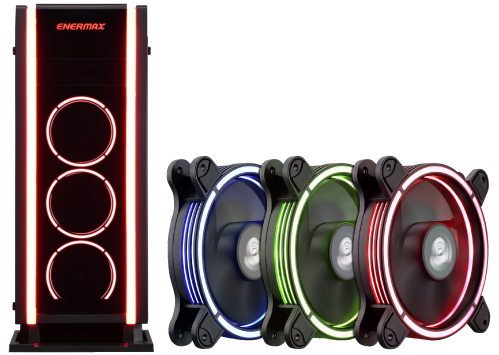

3x pre-installed ENERMAX T.B. RGB fans with Patented Twister Bearing technology

With the patented Twister Bearing technology, the T.B. RGB fan provides beautiful lighting effects and offers superior silent performance

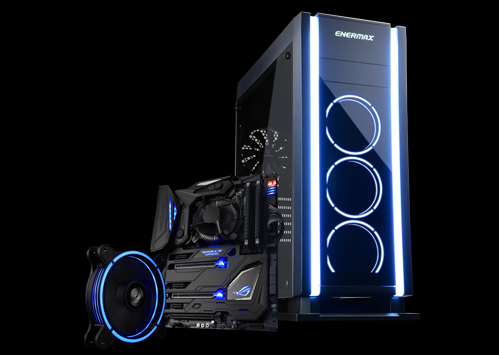

Support RGB-sync with motherboards

Certified by ASRock, ASUS, GIGABYTE and MSI for RGB synchronization

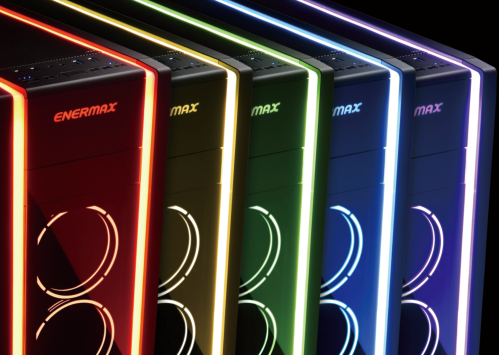

Amazing 1280x lighting effects

Saberay provides users with 5x modes and 256x colors to create the preferred lighting effects via the built-in controller

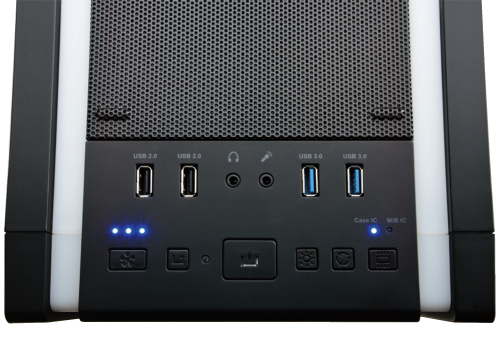

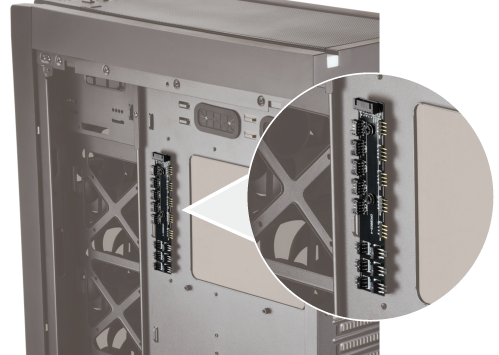

Integrated control hub

For those who do not use the RGB-sync motherboards, the integrated control hub allows users to keep 5x RGB devices’ lighting in sync; furthermore, the hub can also control the speed of the 6x fans together

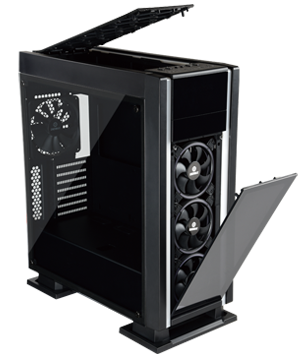

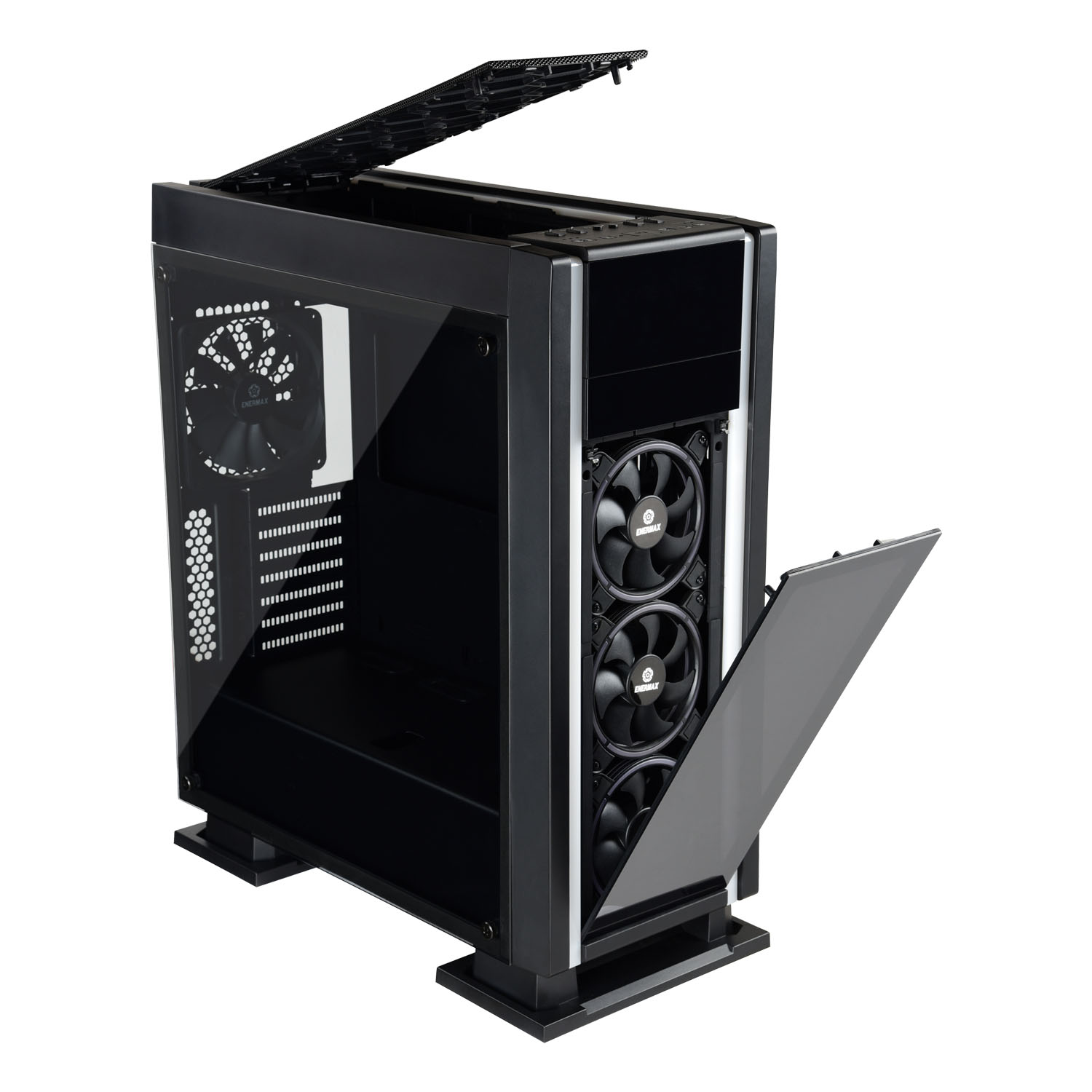

Unique quick-release design

The tool-less panels facilitate the system installation and maintenance


Designed with both aesthetics and ventilation in mind

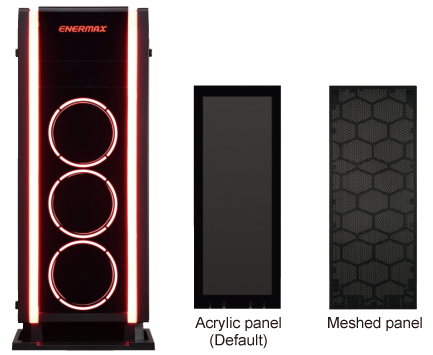

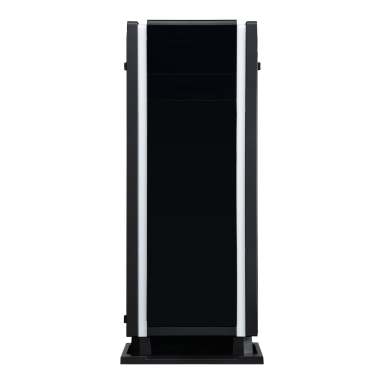

Two premium tool-less front panels included

  • Glossy, full-view acrylic panel displays vivid lighting effects
  • Meshed panel provides better ventilation

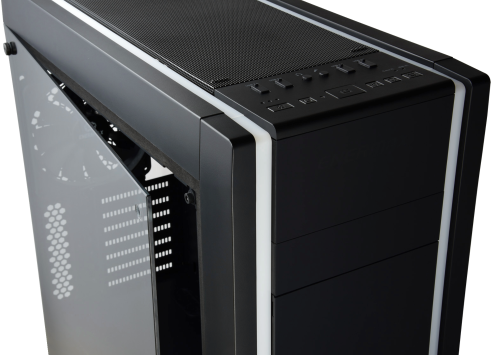

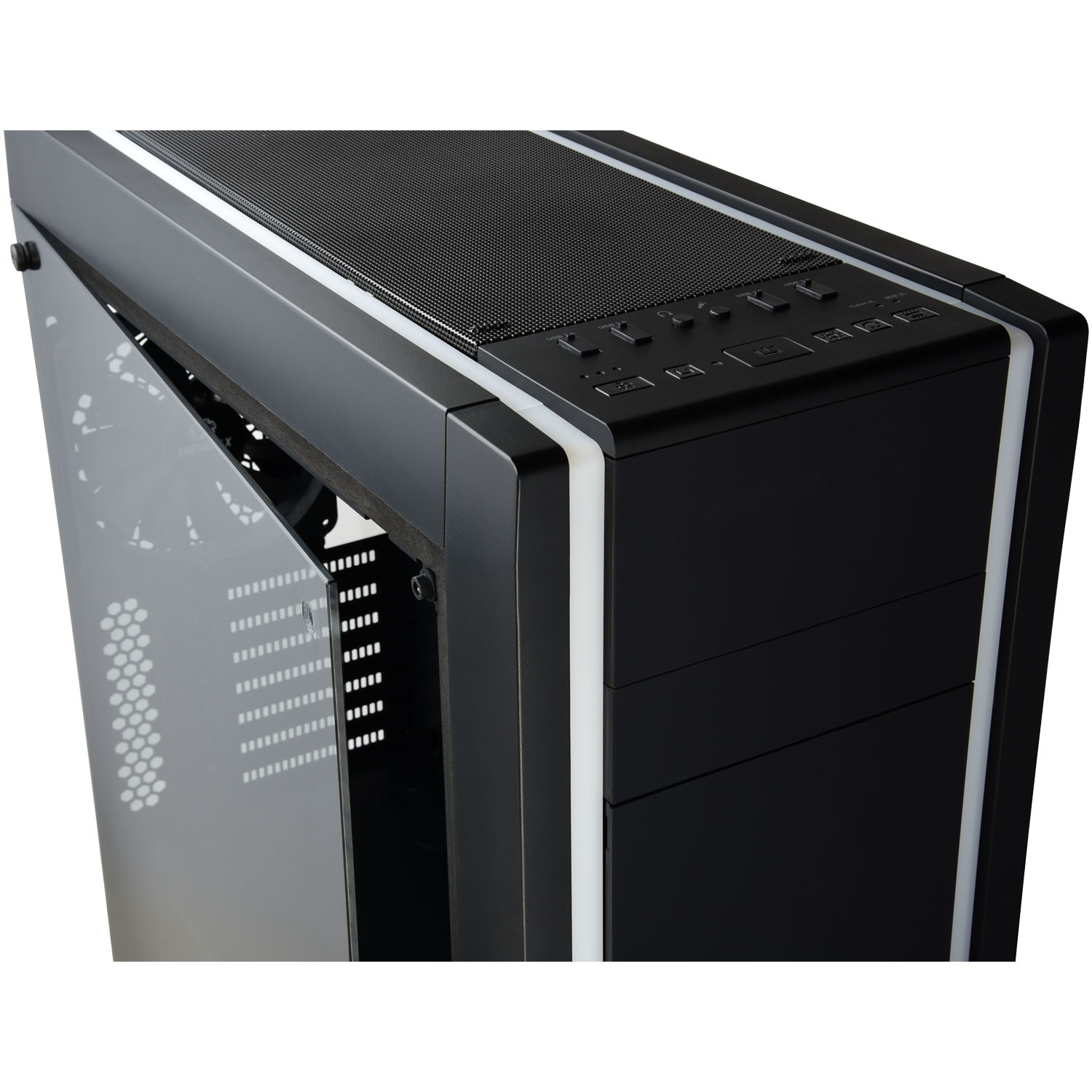

4mm panoramic tempered glass window

The 4mm panoramic tempered glass window allows you to show off your rigs


Anti-dust rubber plugs

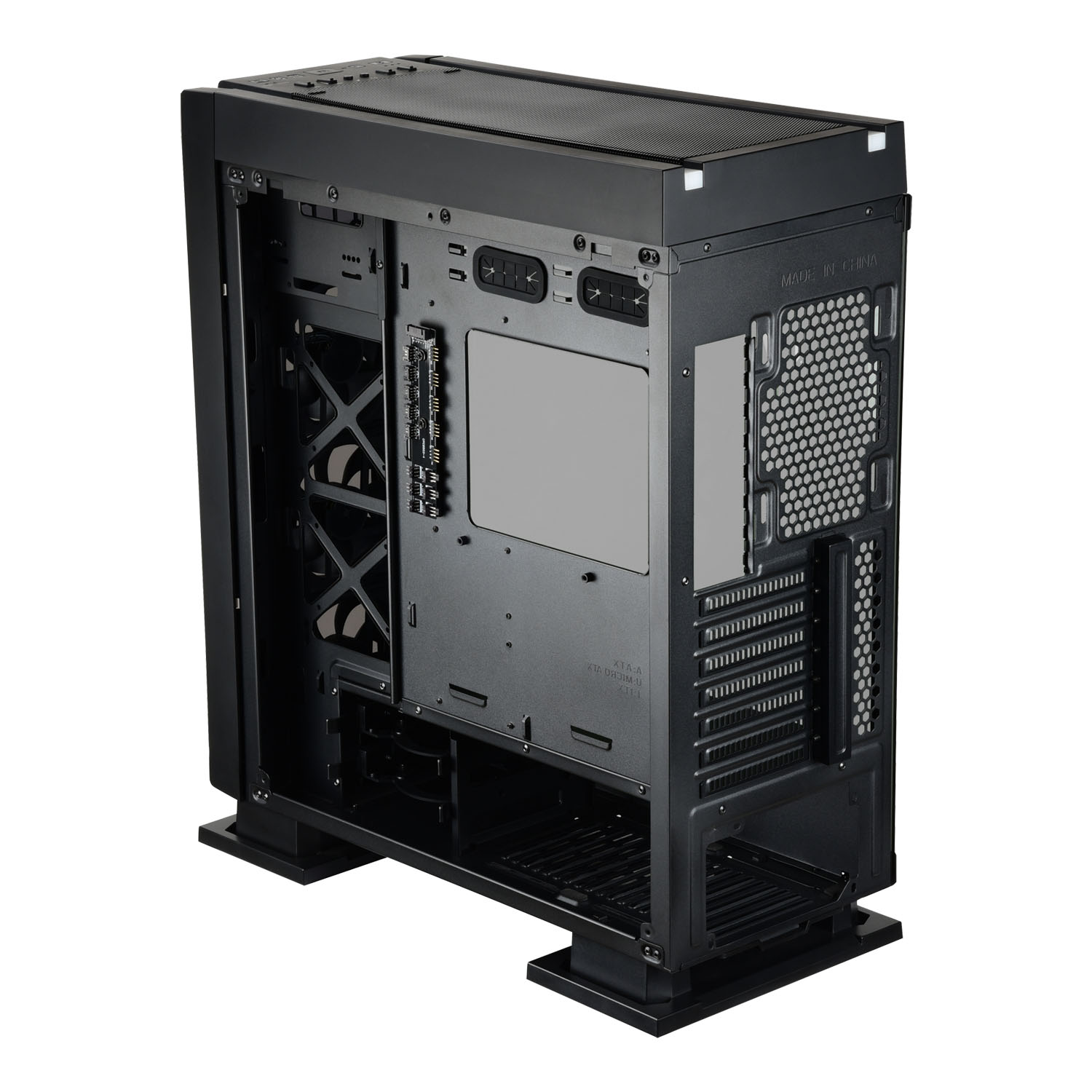

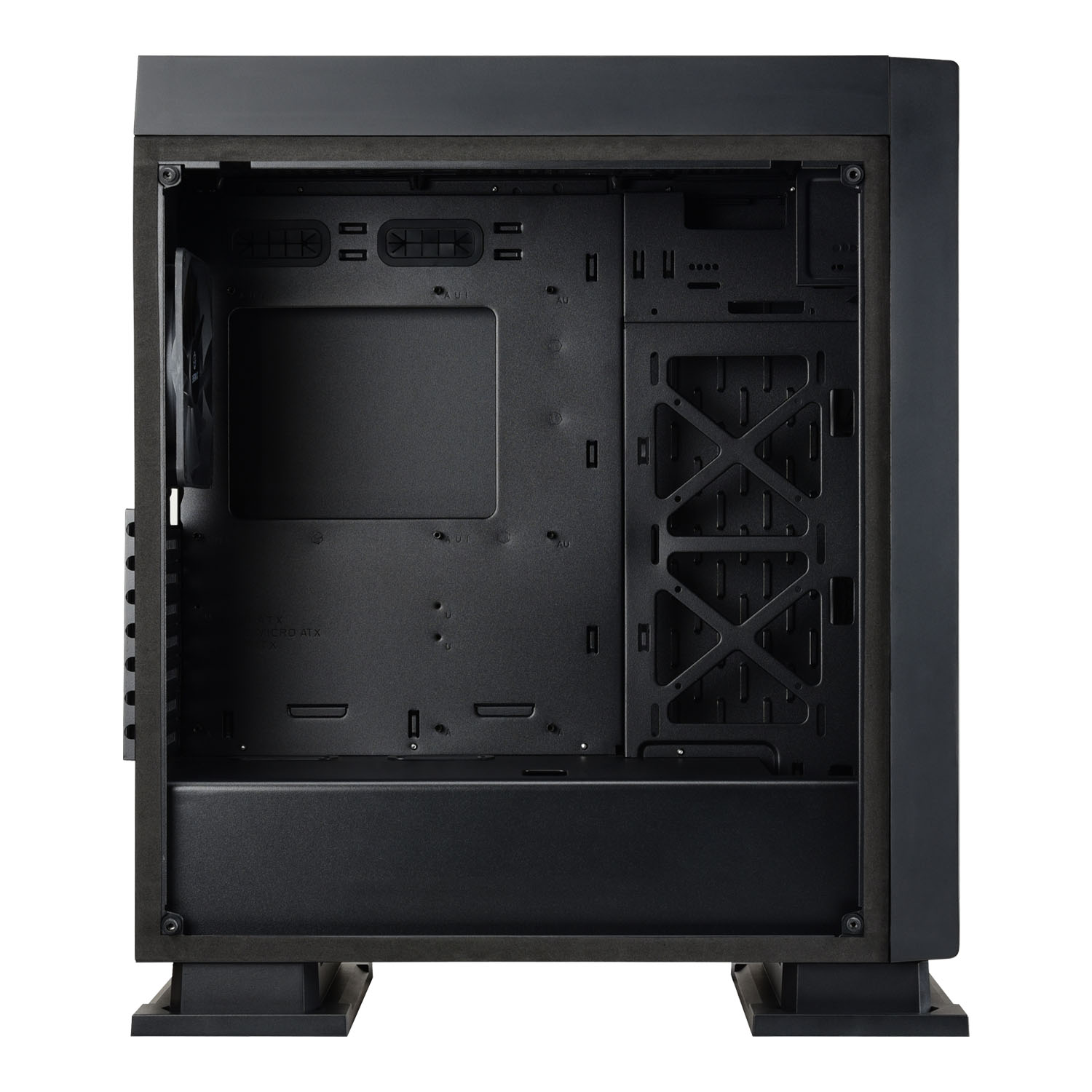

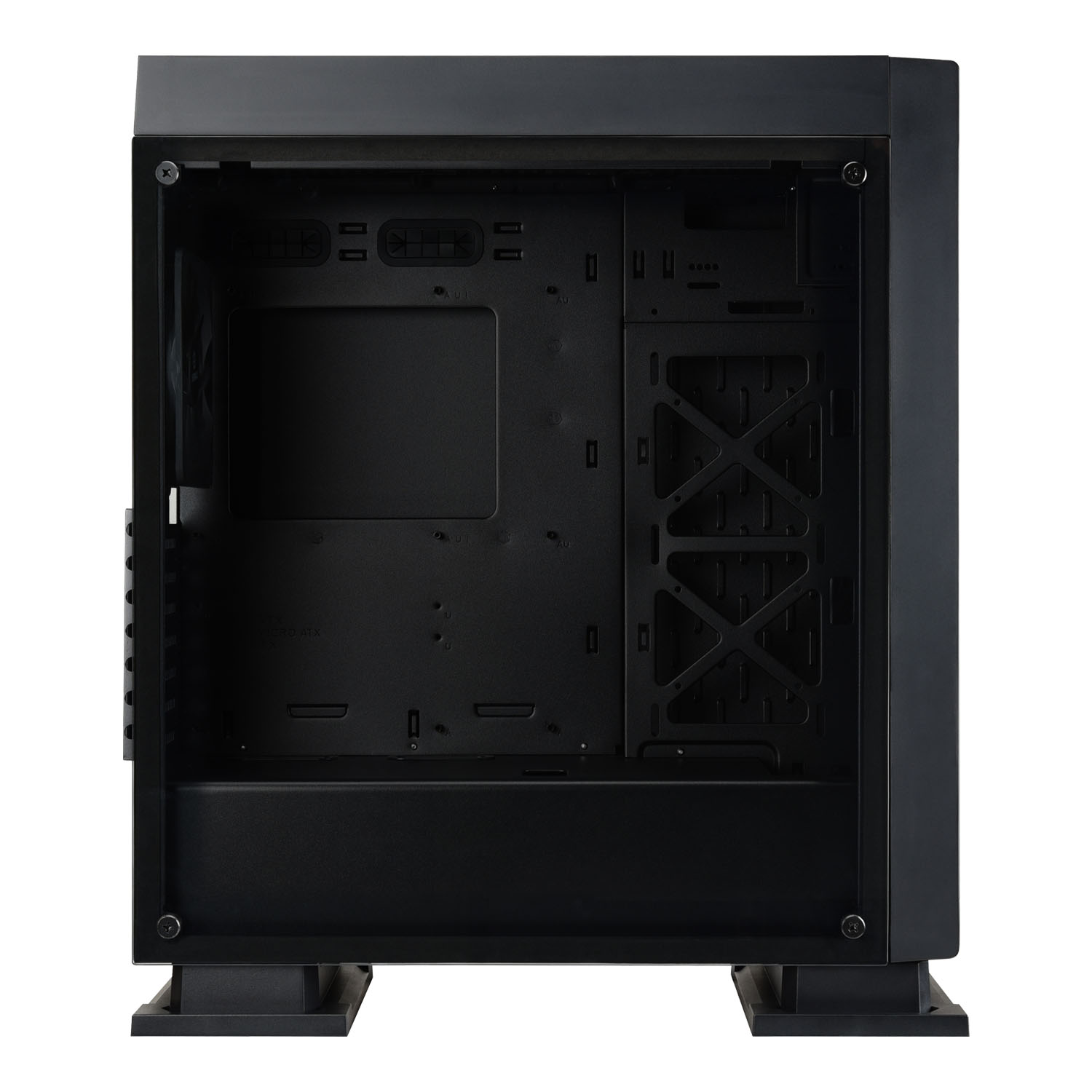

Solid structure with ample space

Constructed of 0.8 mm sturdy steel, SABERAY offers spacious interior design for large, high-end components

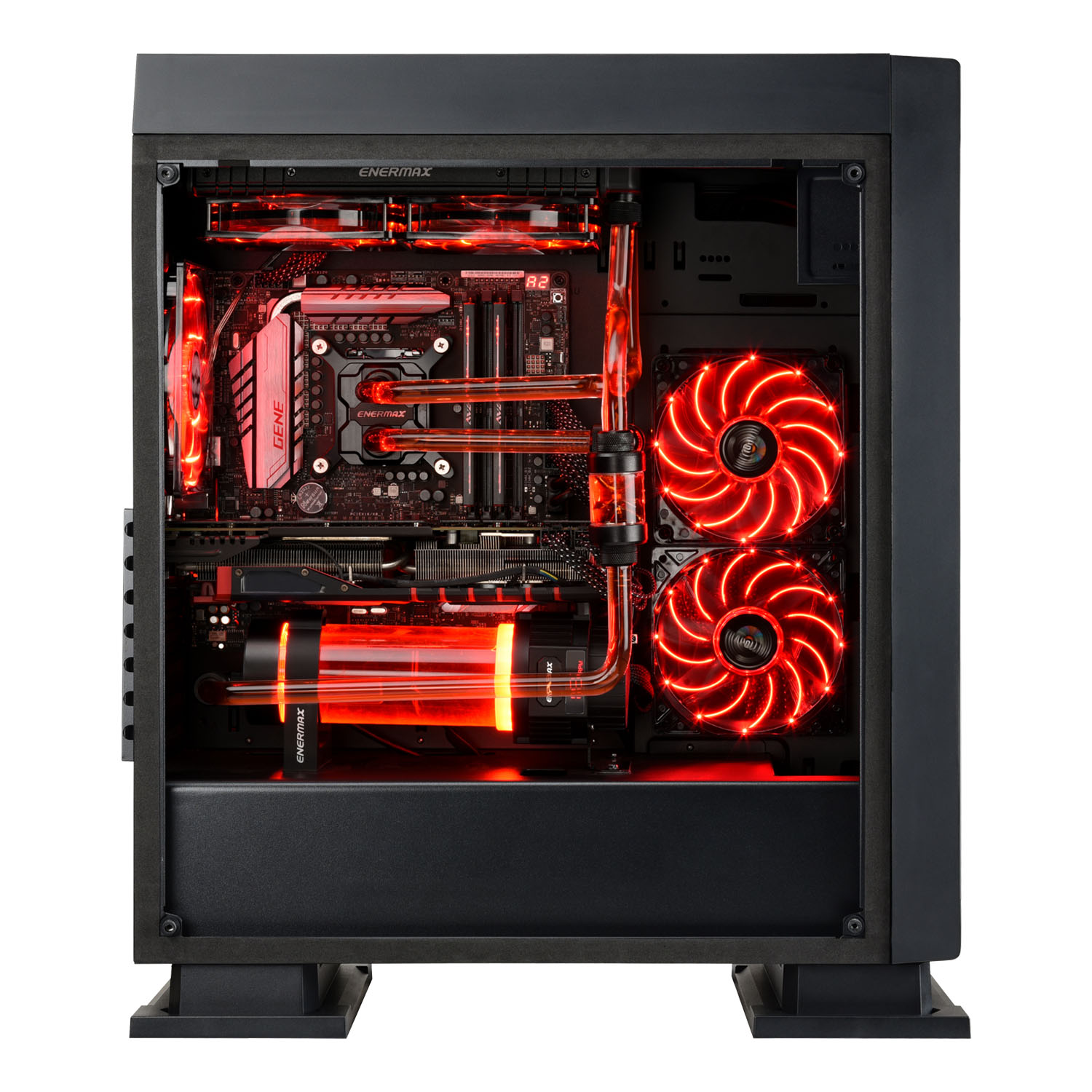

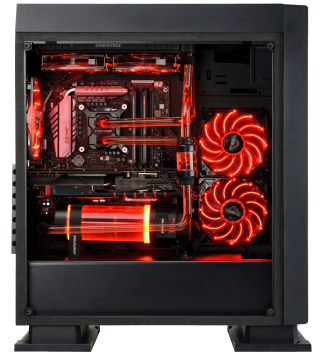

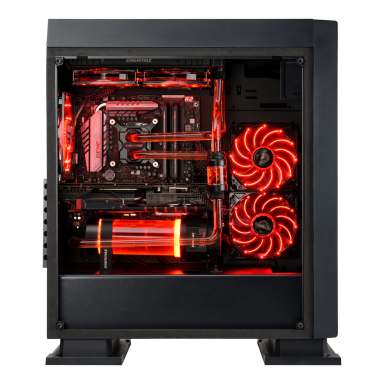

Extensive cooling potential

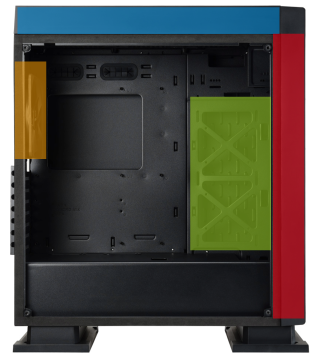

Flexible cooling system configuration supports 4x designated locations for liquid cooler installation

Liquid Cooler Compatibility Chart
Radiator size (mm) 360 280 240 140 120

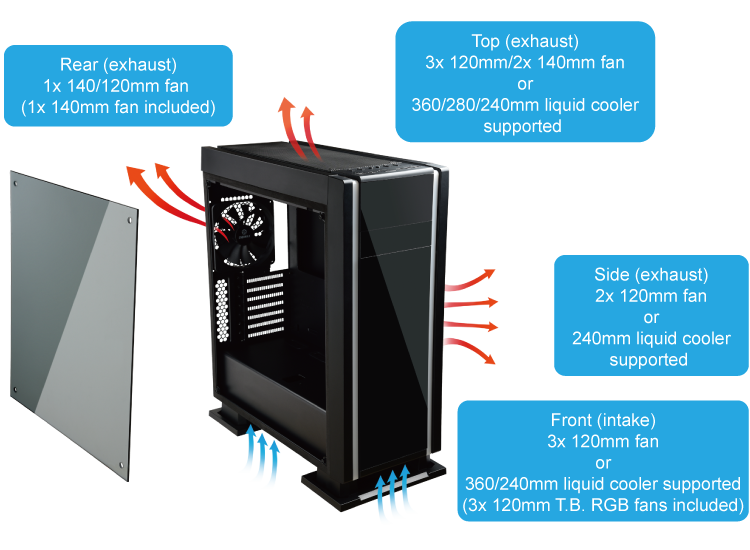

Advanced ventilation system to support a maximum of up to 9x fans


Flexible system configuration

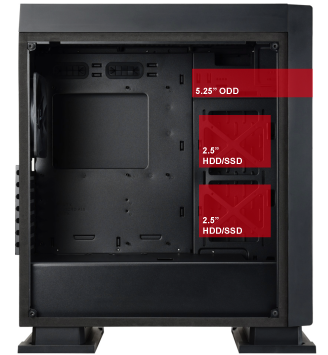

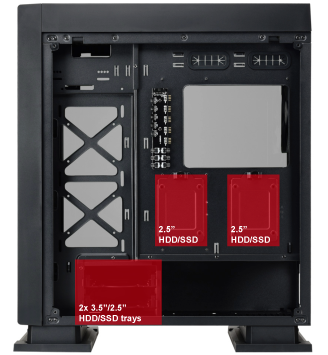

Supports up to 1x 5.25’’ ODD, 2x 3.5” HDD, and 6x 2.5 SSD/HDD (2x Converted from 3.5” tray) to satisfy your storage needs

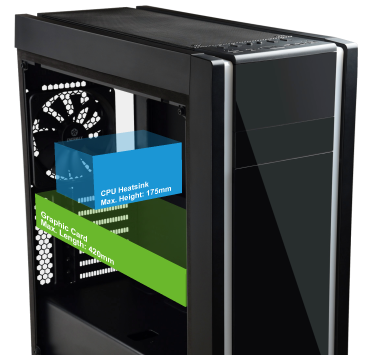

Support long VGA cards and tall CPU cooler

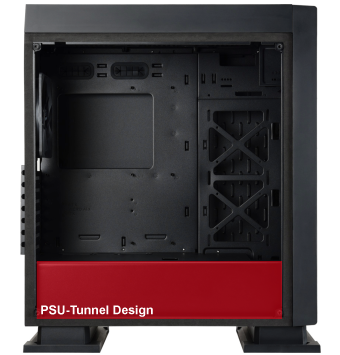

PSU-Tunnel design (aka PSU shroud)

The design minimizes the cable clutter, which makes the system clean and neat, and helps improve the air circulation





Product Introduction

Model Name ECA3500BA-RGB
Dimensions (D x W x H) 478 x 223 x 566 mm
Material 0.8mm SPCC
M/B Type ATX, Micro ATX, Mini ITX

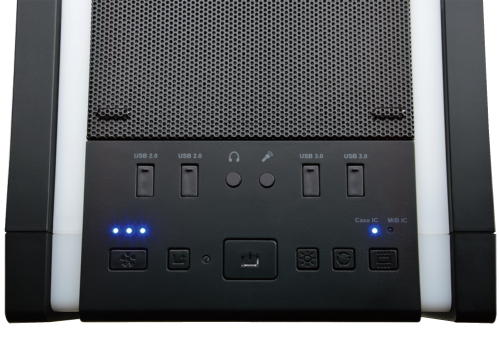

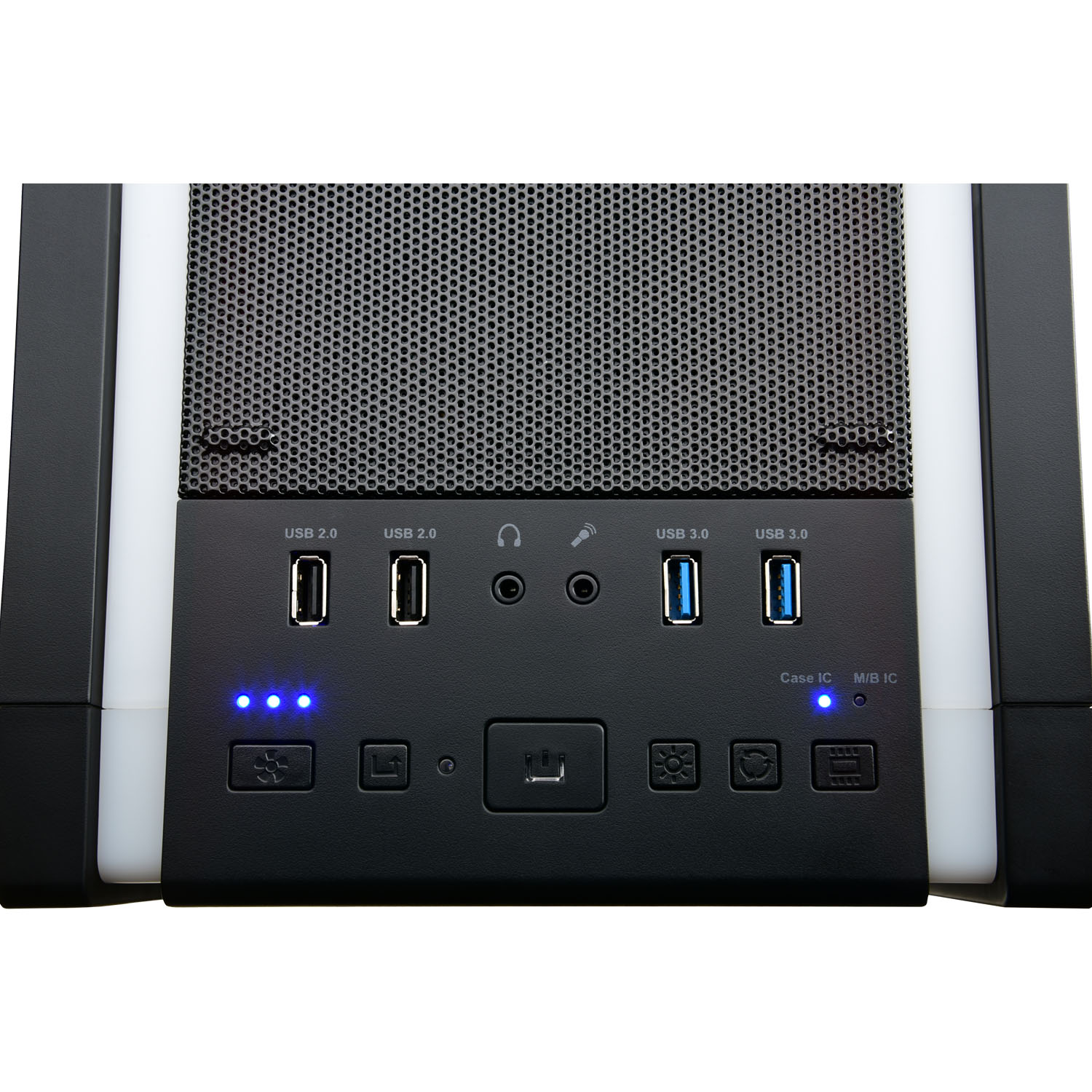

I/O USB3.0 x 2, USB2.0 x 2, HD Audio, Fan speed control,
LED mode control, LED color control, Lumi switch
5.25'' Drive Bays 1
3.5'' Drive Bays 2
2.5'' Drive Bays 6 ( 2 x Converted from 3.5” trays )

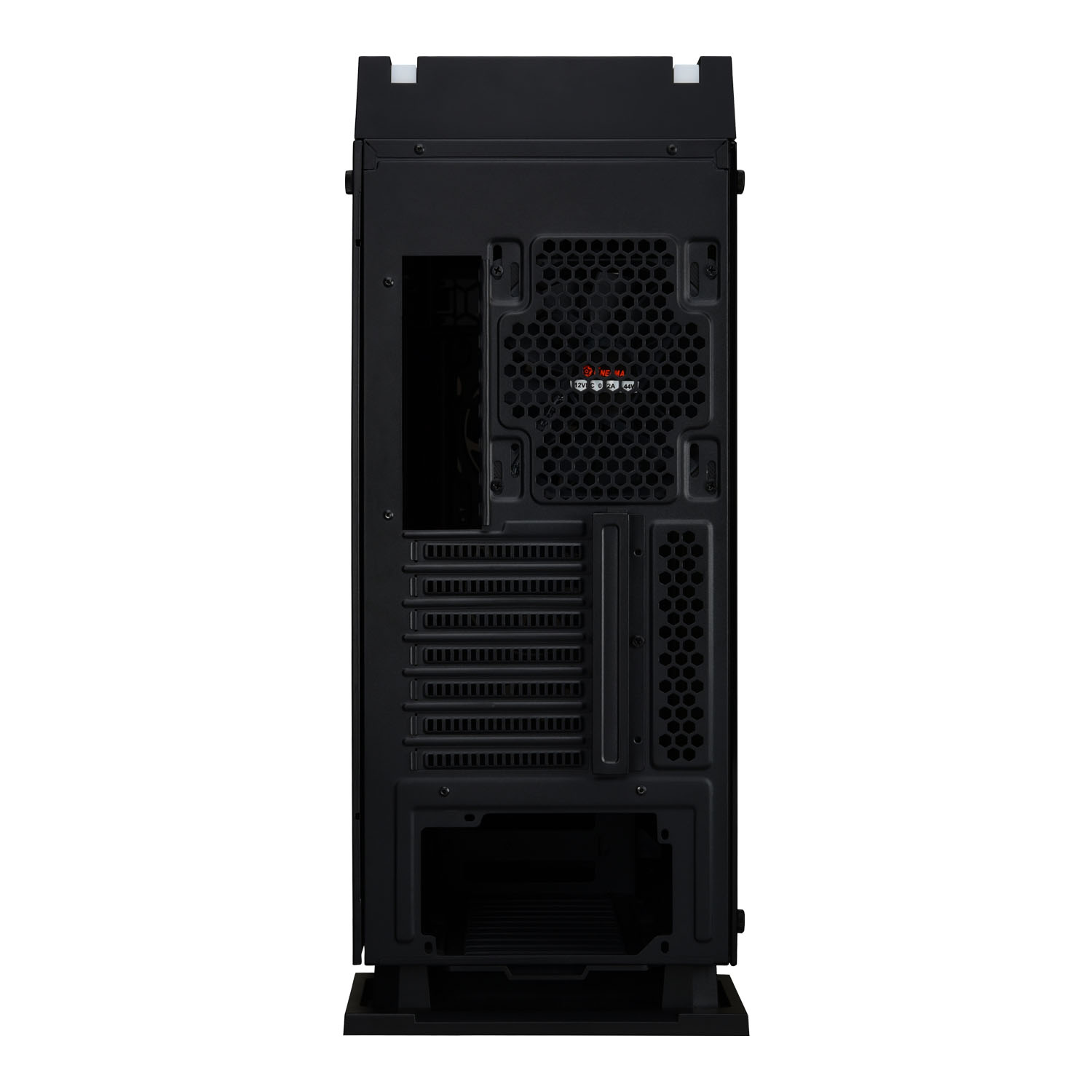

Expansion Slots 7
Fan Slots - Front 3 x 120mm ( 3 x 120mm T.B. RGB fans pre-installed )
Fan Slots - Top 2 x 140 or 3 x 120mm
Fan Slots - Rear 1 x 140 or 1 x 120mm ( 1 x 140mm fan pre-installed )
Fan Slots - Side 2 x 120mm
Radiator Support - Front 360 / 240mm ( 62mm clearance )
Radiator Support - Top 360 / 280 / 240mm ( 63mm clearance )
Radiator Support - Rear 140 / 120mm
Radiator Support - Side 240mm
PSU Support Standard ATX Type
Clearance - VGA card 420mm ( 280mm with side radiator )
Clearance - CPU Cooler 175mm
EAN code 4713157723437
UPC code 819315023433
Carton dimensions (D x W x H), (mm) D625 x W318 x H573mm
Gross Weight (kg) 11.8kgs
Net Weight (kg) 10kgs
