Limited white edition

SABERAY White is a limited edition design for lovers of white cases. In addition to the color, the White Edition offers some additional features


Addressable RGB lighting

SABERAY White is equipped with addressable LED strips and SquA RGB fans that can create colorful rainbow lighting effects


Integrated RGB controller

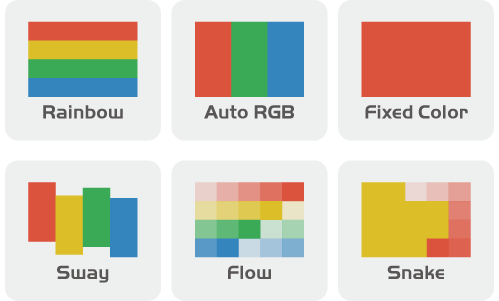

SABERAY White features its own RGB controller that offers 6 lighting modes: Rainbow, Auto RGB, Fixed Colors, Sway, Flow, and Snake. Users can easily select modes from the I/O panel


Addressable RGB lighting synchronization

SABERAY White supports synchronizable RGB lighting via the addressable RGB headers of motherboards (3 pin assignment is 5V/D/G). Users can program preferred lighting effects via the motherboard RGB software


Integrated control hub

For those who do not use the RGB-sync motherboards, the integrated control hub allows users to keep 5x RGB devices’lighting in sync; furthermore, the hub can also control the speed of the 6x fans together


Unique quick-release design

The tool-less panels facilitate the system installation and maintenance


Designed with both aesthetics and ventilation in mind; two premium tool-less front panels are included

Two premium tool-less front panels included.

  • Glossy, full-view acrylic panel displays vivid lighting effects
  • Meshed panel provides better ventilation

4mm panoramic tempered glass window

The 4mm panoramic tempered glass window allows you to show off your rigs


Anti-dust rubber plugs


Solid structure with ample space

Constructed of 0.8 mm sturdy steel, SABERAY White offers spacious interior design for large, high-end components


Extensive cooling potential

Flexible cooling system configuration supports 4x designated locations for liquid cooler installation

Liquid Cooler Compatibility Chart
Radiator size (mm) 360 280 240 140 120

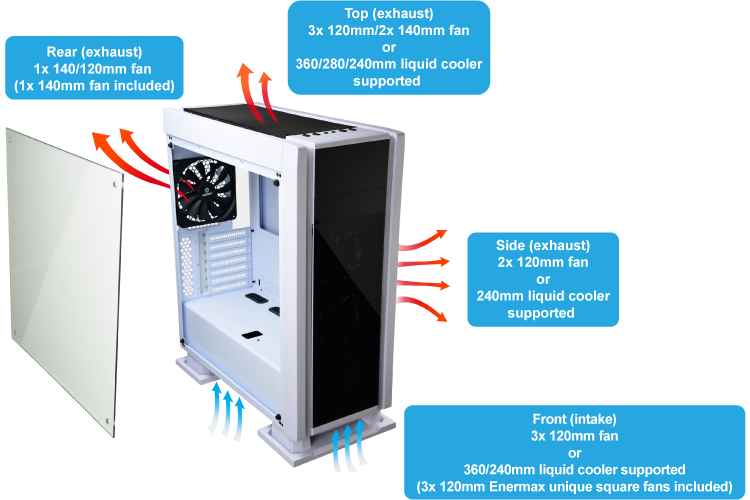

Advanced ventilation system to support a maximum of up to 9x fans


Flexible system configuration

Supports up to 1x 5.25’’ ODD, 2x 3.5” HDD, and 6x 2.5 SSD/HDD (2x Converted from 3.5” tray) to satisfy your storage needs

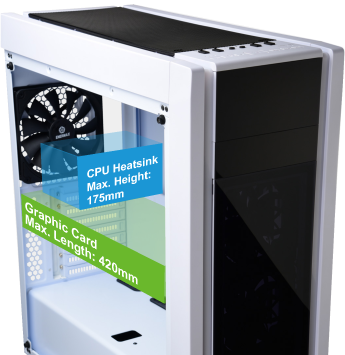

Support long VGA cards and tall CPU cooler

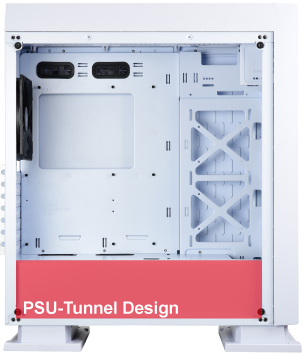

PSU-Tunnel design (aka PSU shroud)

The design minimizes the cable clutter, which makes the system clean and neat, and helps improve the air circulation.





Product Introduction

Model Name ECA3500WA-RGB
Dimensions (D x W x H) 478 x 223 x 566 mm
Material 0.8mm SPCC
M/B Type ATX, Micro ATX, Mini ITX
I/O 2x USB3.0, 2x USB2.0, HD Audio, Fan speed control,
LED brightness control, LED mode control, Lumi switch
5.25'' Drive Bays 1
3.5'' Drive Bays 2
2.5'' Drive Bays 6 ( 2x Converted from 3.5” trays )
Expansion Slots 7
Fan Slots - Front 3x 120mm ( 3 x 120mm Enermax unique square fans pre-installed )
Fan Slots - Top 2x 140 or 3x 120mm
Fan Slots - Rear 1x 140 or 1x 120mm ( 1 x 140mm fan pre-installed )
Fan Slots - Side 2x 120mm
Radiator Support - Front 360 / 240mm ( 62mm clearance )
Radiator Support - Top 360 / 280 / 240mm ( 63mm clearance )
Radiator Support - Rear 140 / 120mm
Radiator Support - Side 240mm
PSU Support Standard ATX Type
Clearance - VGA card 420mm ( 280mm with side radiator )
Clearance - CPU Cooler 175mm
EAN code 4713157723673
UPC code 819315023679
Carton dimensions (D x W x H), (mm) D642 x W325 x H670mm
Gross Weight (kg) 14.8kgs
Net Weight (kg) 10kgs
  • Ginjfo - SABERAY White
