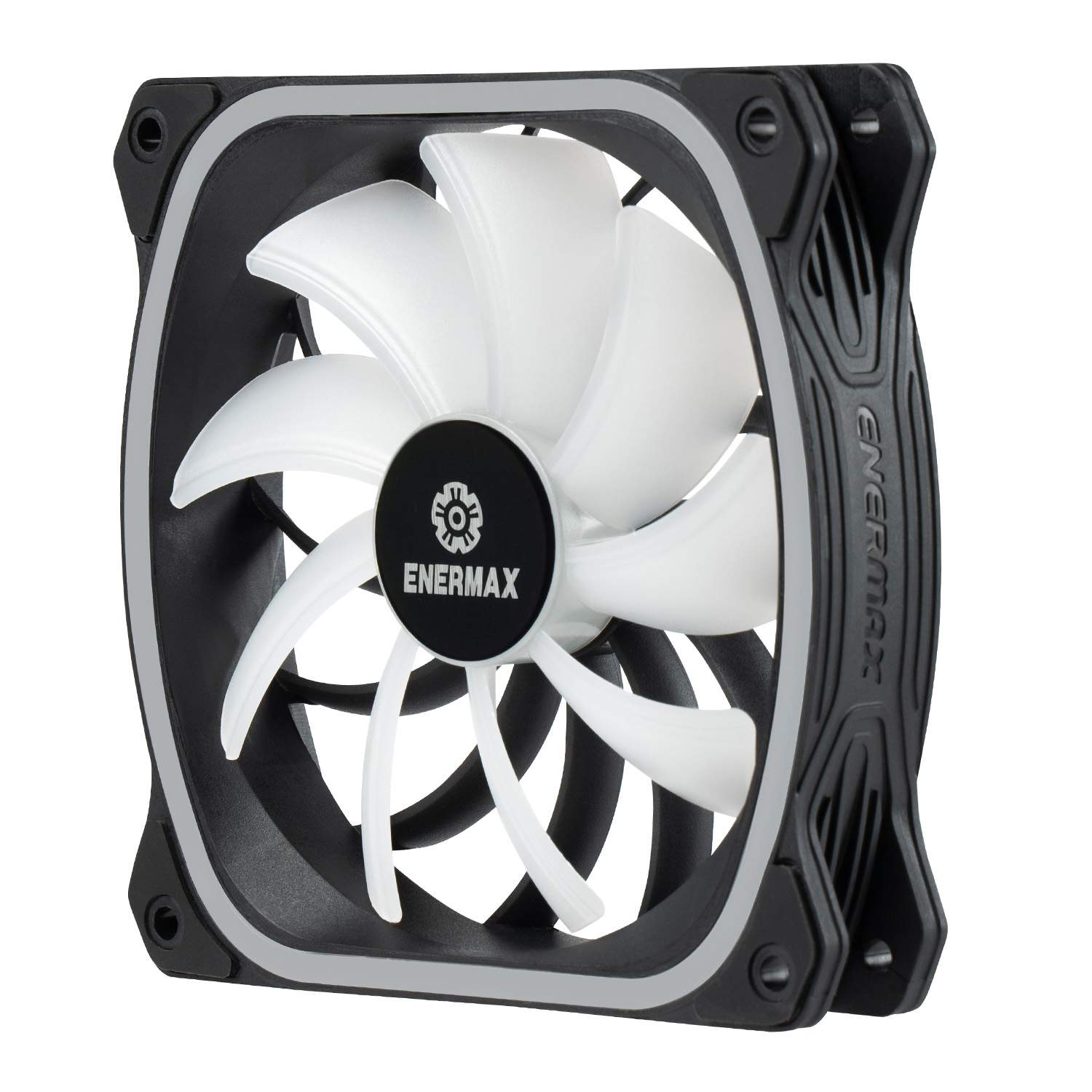

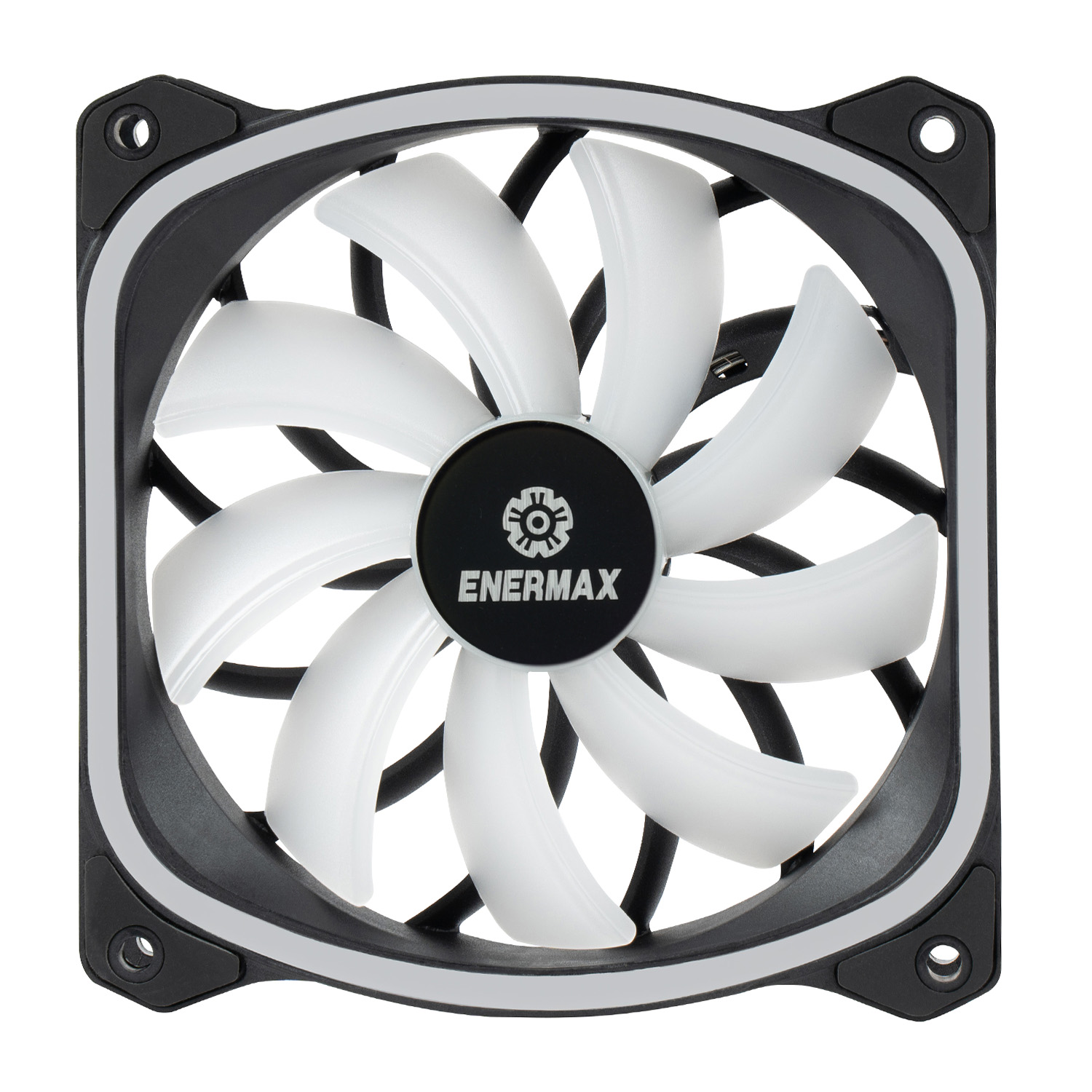

SquA RGB ADV 120mm ARGB PWM PC Case Fan

‧ Lighten up with festinated RGB lighting on both hub and frame
‧ Unique square-shaped RGB frame at the front
‧ Dazzling diamond bright design in the back
‧ Supports addressable RGB motherboard sync
‧ Enlarged fan blade surface increases airflow by 40%



Product Introduction

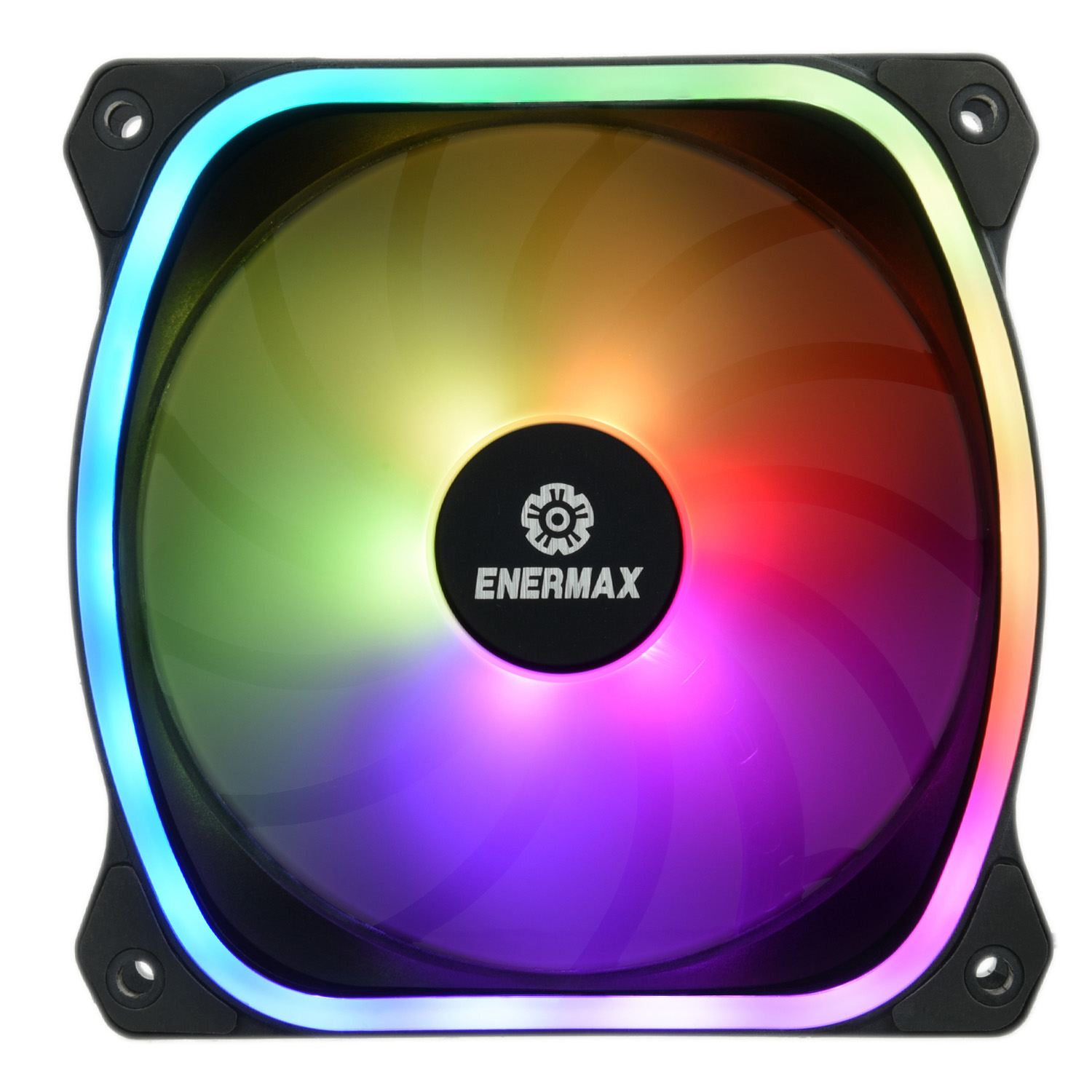

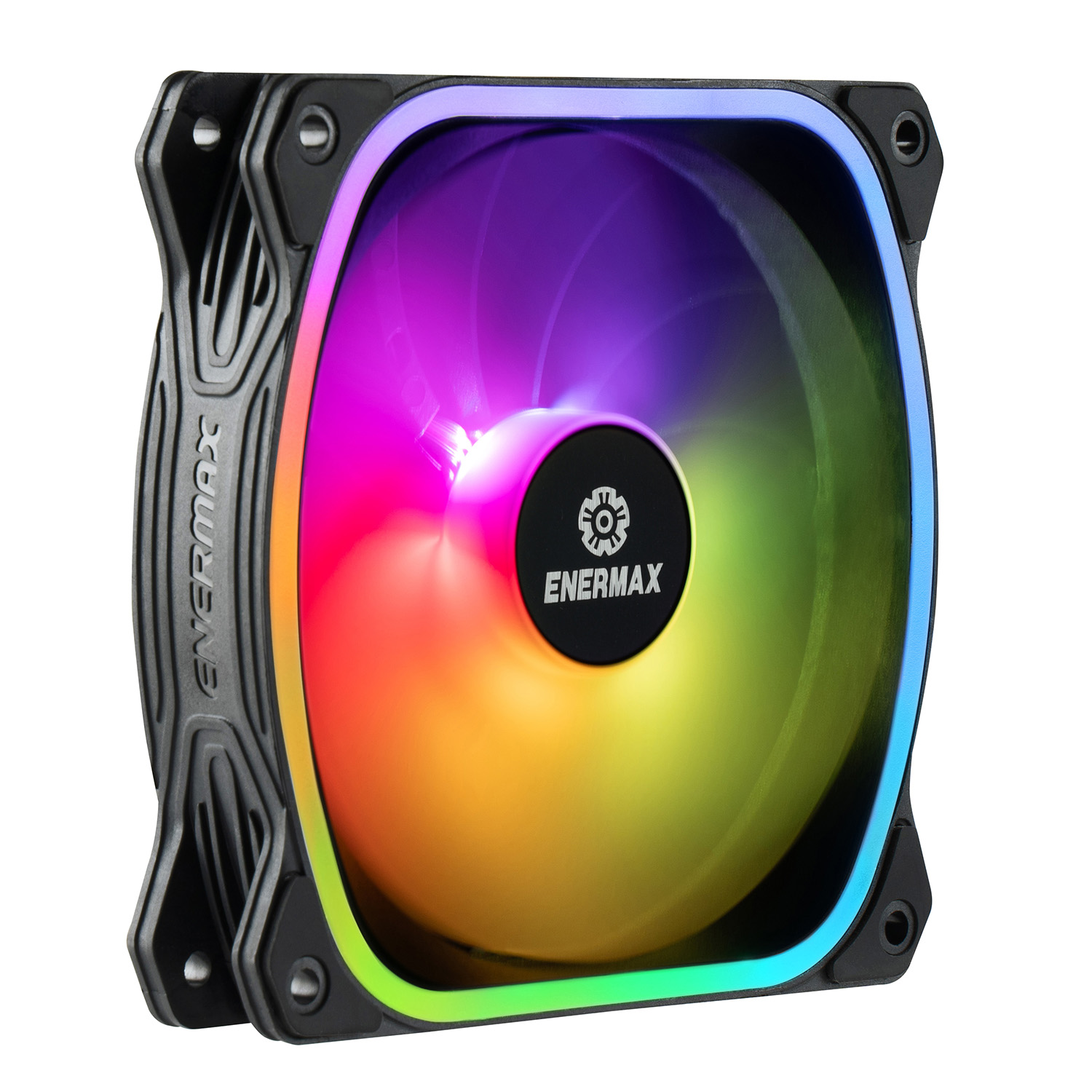

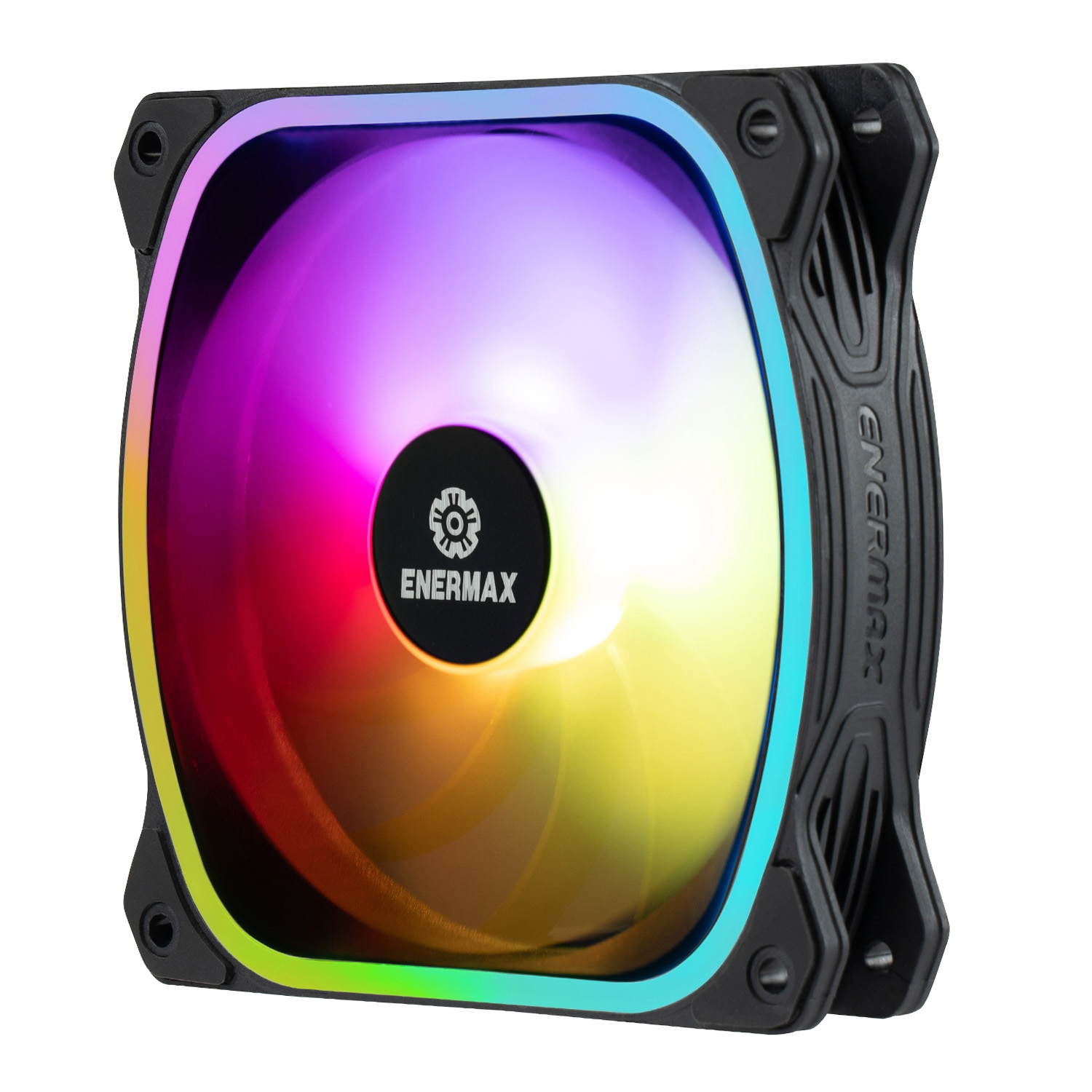

Unique Square-Shaped Lighting

SquA RGB ADV features square-shaped lighting and also supports addressable RGB lighting sync with 16.8 million color options




Festinated Hub RGB Lighting

Designed for the unparalleled PC build, SquA RGB ADV is optimized with RGB lighting effects on both frame and hub

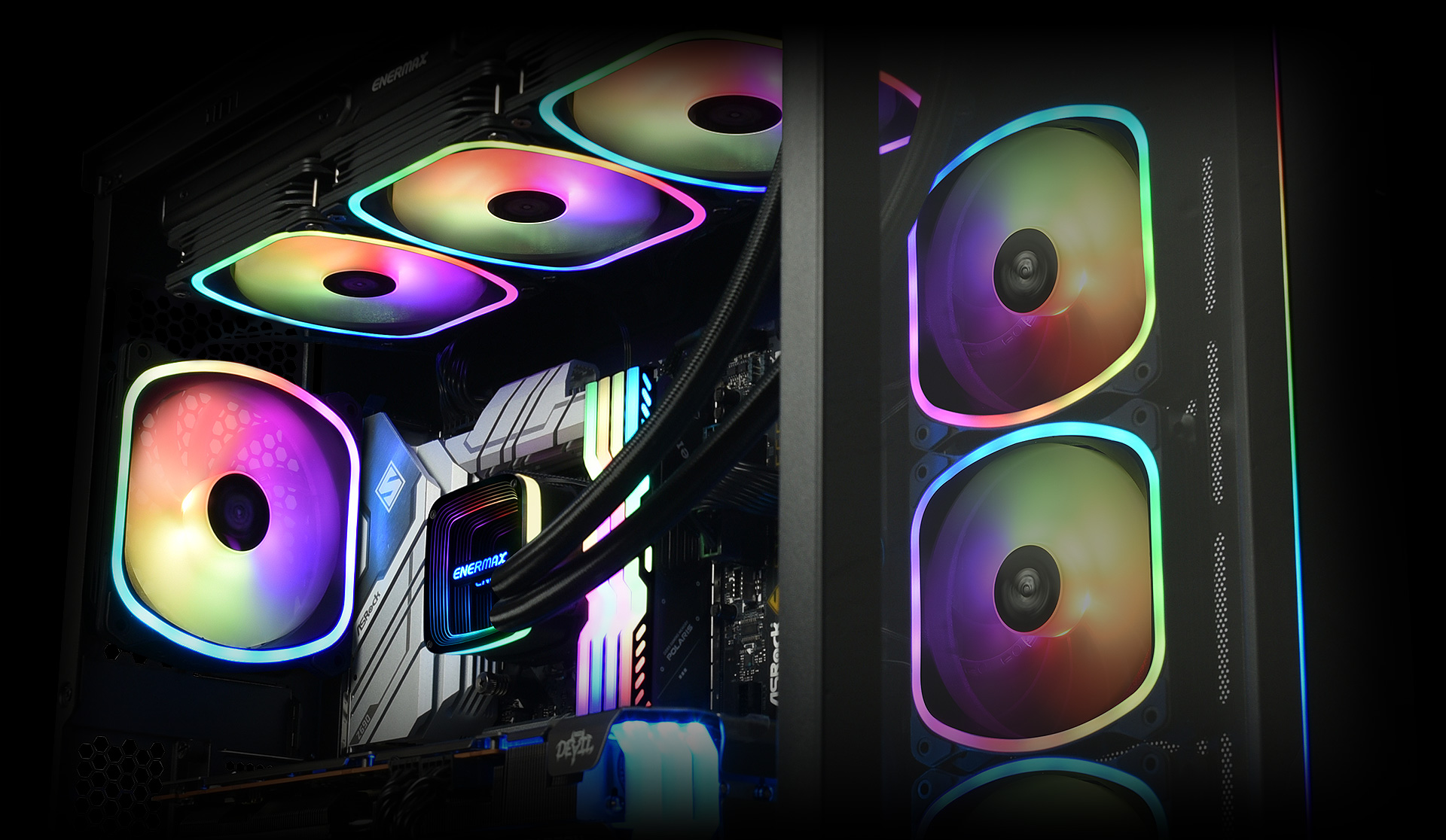

Case Moddings and Builds with Square-Shaped Lighting Fan

SquA RGB ADV provides users with 2 types of lighting patterns to make the perfect match with different system configuration

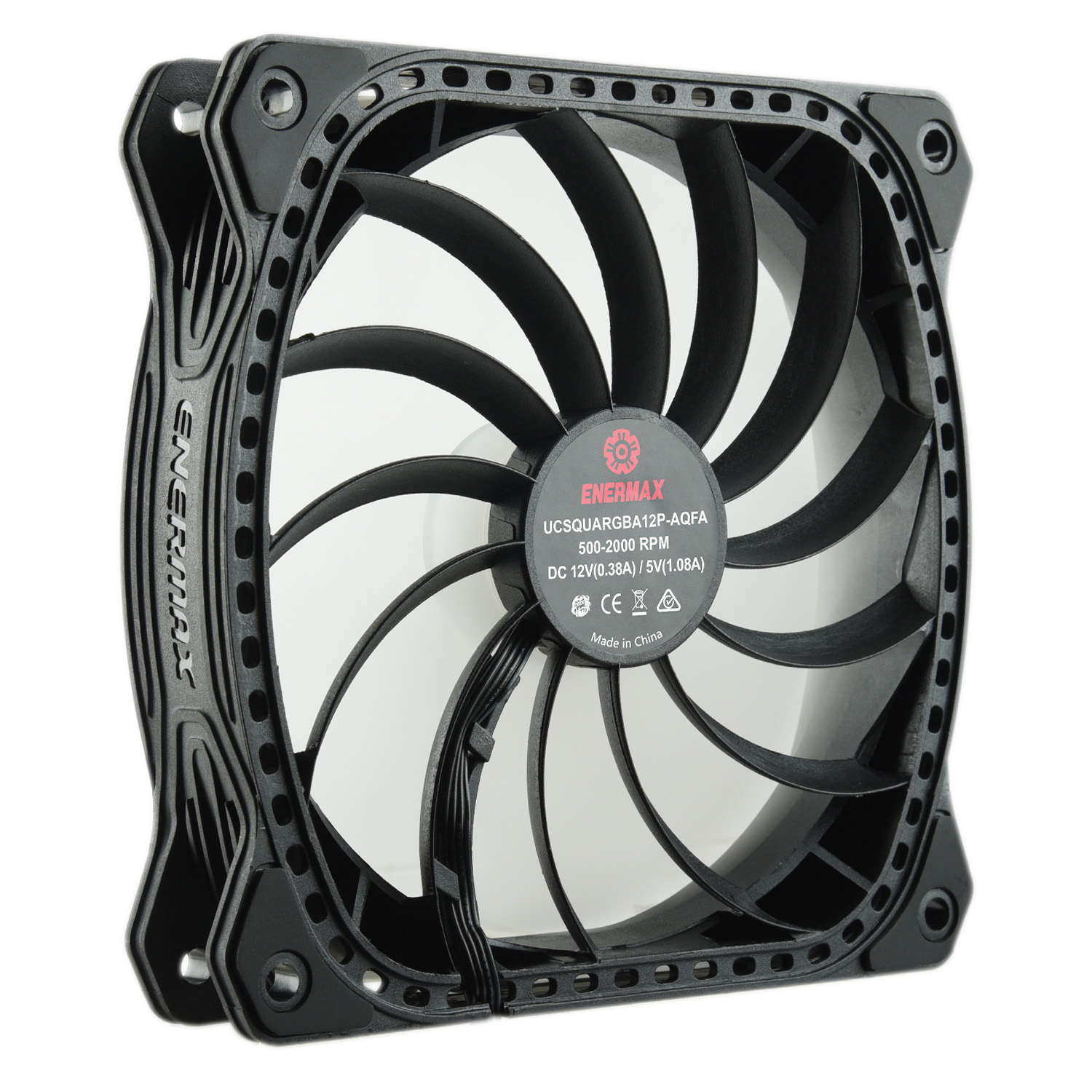

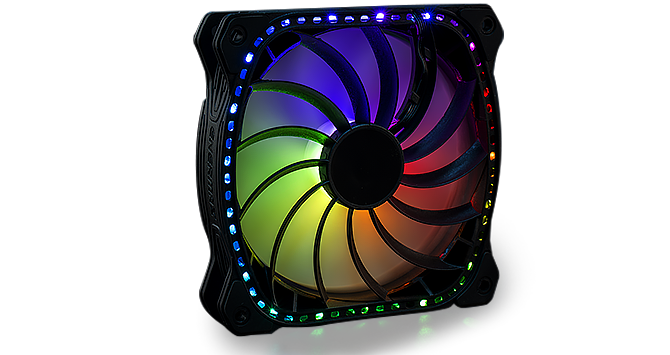

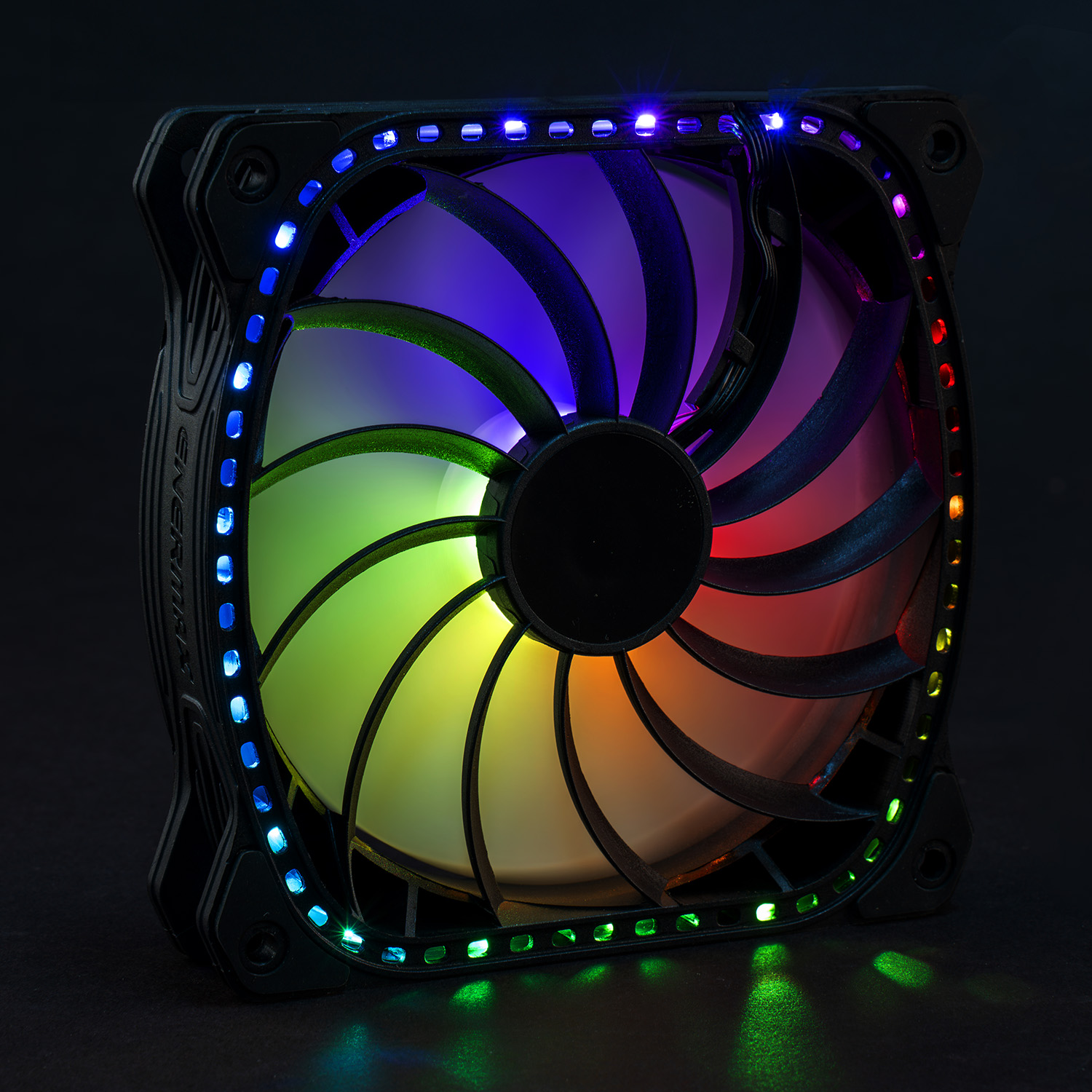

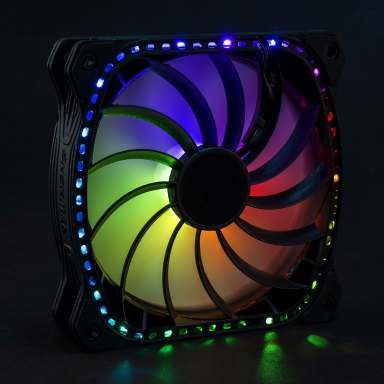

Diamond Bright Behind SquA RGB ADV

A gleam through the holes around the back of the frame delivers the incredible visual experience of diamonds shining in the darkness




Addressable RGB Lighting Synchronization

Synchronizable RGB lighting via addressable RGB header of motherboards (3-pin assignment is 5V/D/G)




Up to 40% Stronger Airflow

The enlarged blade surface can create up to 40% stronger airflow than other RGB fans

SquA RGB ADV

Other

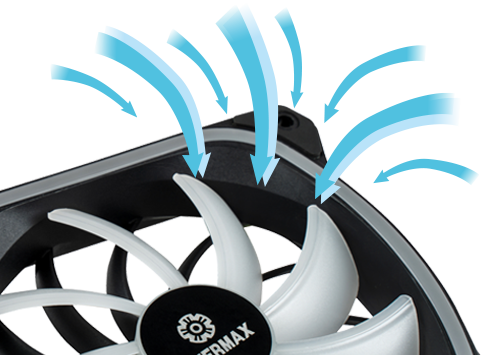

ENERMAX’s Air-Inlet Design

ENERMAX’s Air-Inlet design brings more air in and also facilitates airflow efficiency

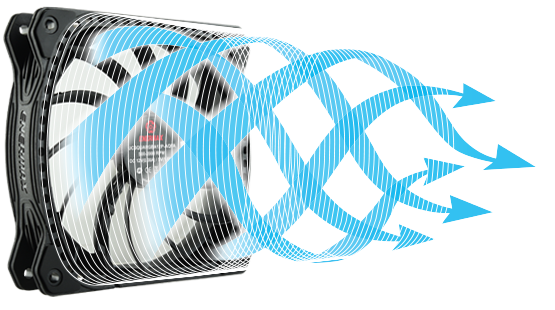

Vortex Frame Design

Vortex frame design can generate concentrated airflow, especially perfect for CPU cooler






Vibration-damping Rubber Pads

Vibration-damping rubber pads absorb the excessive vibration and noise

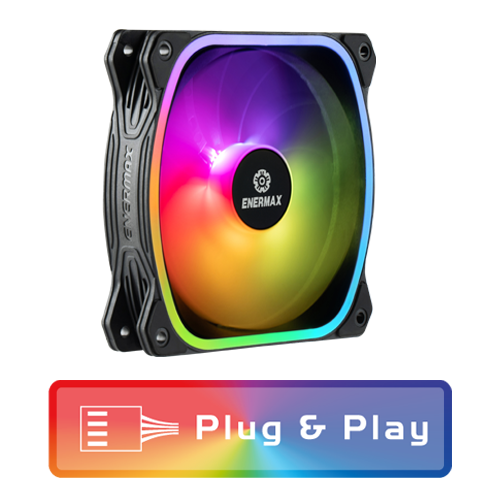

Plug & Play to Display Rainbow RGB Lighting Effects

  • For non-RGB motherboard users

    Users can use the PWM power cable to connect the fan to create constant rainbow RGB lighting effects

  • For addressable RGB motherboard users

    Users can sync the RGB lighting with motherboards featuring an addressable RGB header (3-pin assignment is 5V/D/G)





Model UCSQUARGBA12P-AQFA
Fans/Model 1
Dimension (mm) 120(W) x 120(H) x 26(D) mm
Speed (RPM) 500 ~ 2000 (±10%) rpm
Air Flow (CFM) 39 ~ 79.8 CFM
Static Pressure (mm-H2O) 0.67 ~ 3.6 mm-H2O
Fan Maximum Noise (dBA) 15 ~ 32.6 dBA
Rated Voltage Fan (V) 12V
Rated Current Fan (A) 0.38A
Rated Voltage RGB LED (V) 5V (or 12V when connecting to the PWM header only)
Rated Current RGB LED (A) 1.08A (5V)
MTTF (hours) ≧100,000 @ 25°C
Connector 1 x 4-pin PWM connector
1 x 3-pin ARGB connector (5V/D/G)
