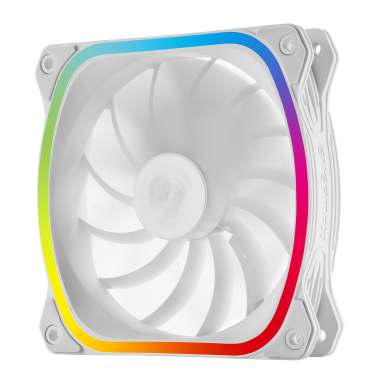

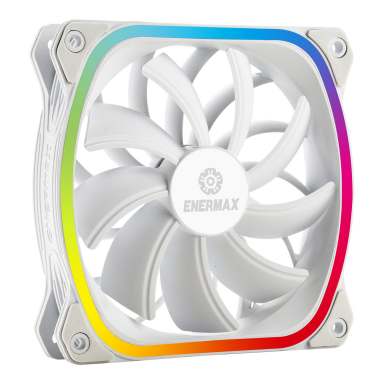

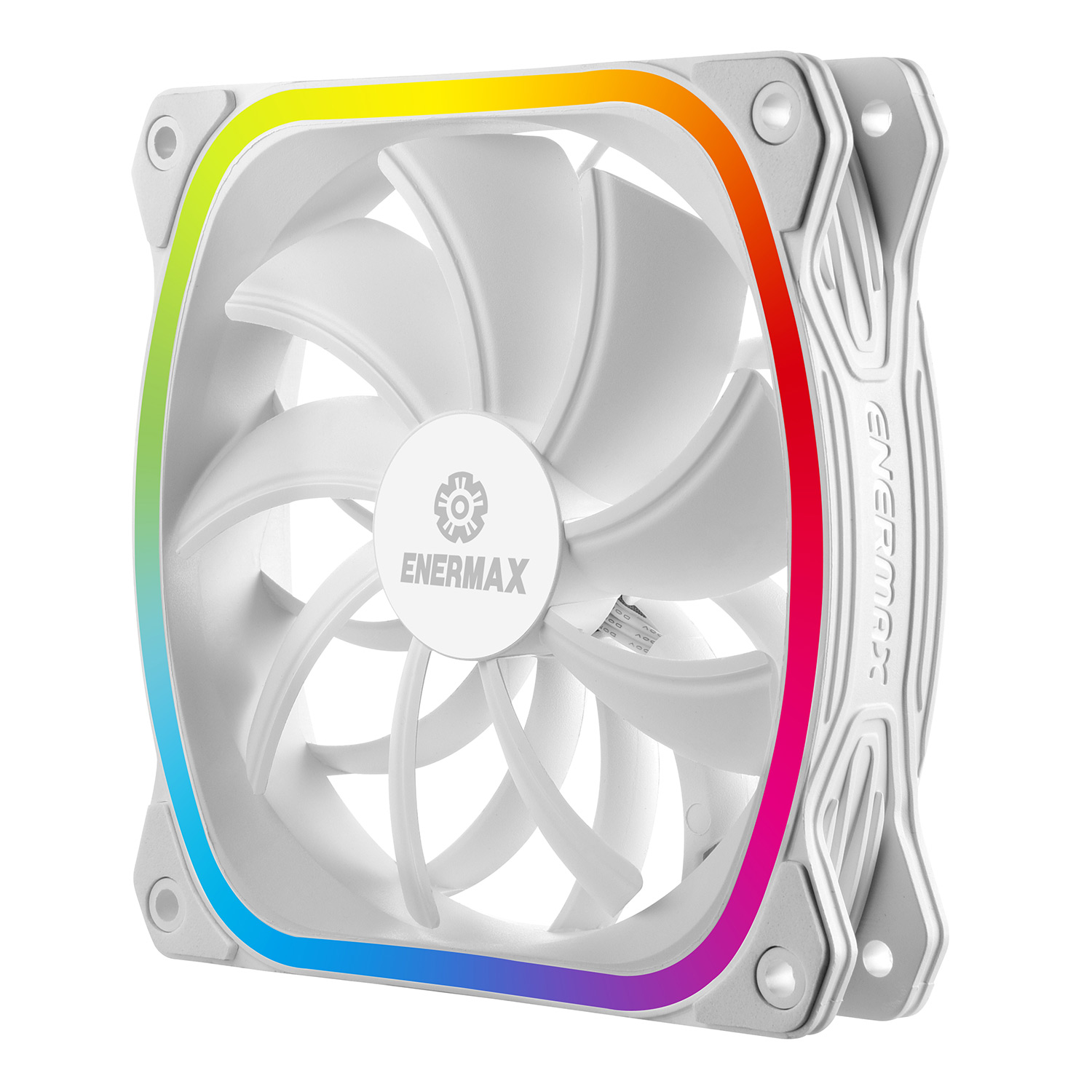

SquA RGB White-SG

‧ Unique square-shaped RGB frame at the front and diamond bright at the back
‧ Support addressable RGB motherboard sync
‧ Enlarged blade surface increases more airflow by 40%
‧ Optimized low 300RPM

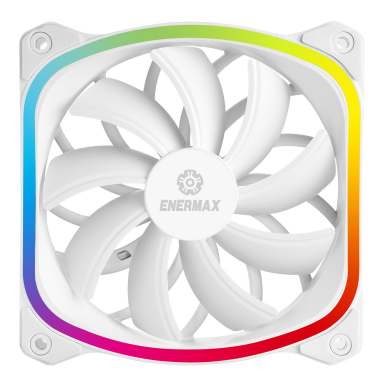

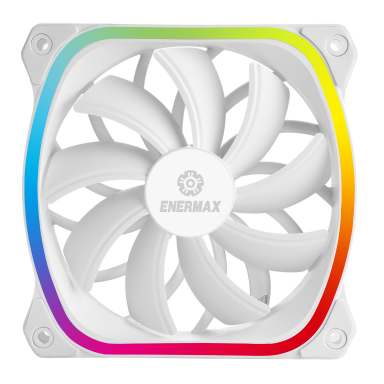

Unique Square-shaped Lighting

SquA RGB features square-shaped lighting and also supports addressable RGB lighting sync with 16.8 million color options

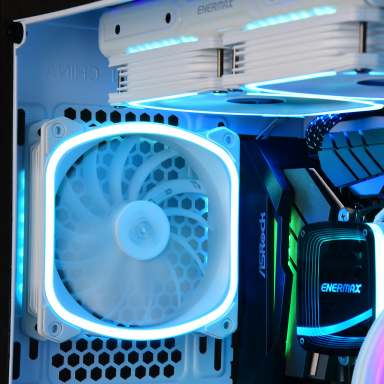

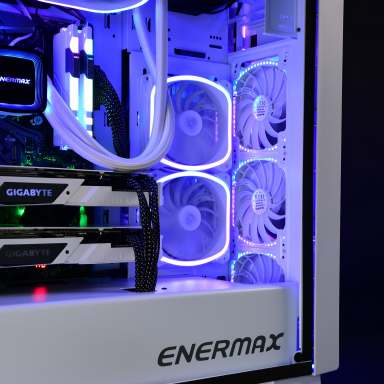

Case Moddings and Builds with Square-shaped Lighting Fan

SquA RGB provides users with 2 types of lighting patterns to make the perfect match with system configuration

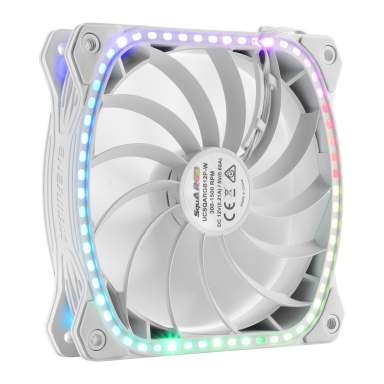

Diamond Bright Behind SquA RGB

A gleam through the holes around the back of the frame delivers the incredible visual experience as diamonds shining in the dark




Addressable RGB Lighting Synchronization

Synchronizable RGB lighting via addressable RGB header of motherboards (3 pin assignment is 5V/D/G)




Up to 40% Stronger Airflow

The enlarged blade surface can create up to 40% stronger airflow than other RGB fans

SquA RGB

Other




ENERMAX’s Air Inlet Design

ENERMAX’s Air Inlet Design brings more air in and also facilitates the airflow efficiency




Vortex Frame Design

Vortex frame design can generate concentrated airflow, especially perfect for CPU cooler




Optimized low 300RPM starting speed

The smart PWM speed control provides 300RPM starting speed for superior silent experience




Vibration-damping Rubber Pads

Vibration-damping rubber pads absorb the excessive vibration and noise

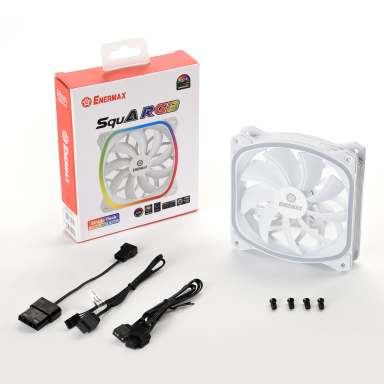

Fan Package




Plug & Play to Display Rainbow RGB Lighting Effects

  • For non-RGB motherboard users

    Users can use the PWM power cable to connect the fan to create constant rainbow RGB lighting effects

  • For addressable RGB motherboard users

    Users can sync the RGB lighting with motherboards featuring Addressable RGB header (3 pin assignment is 5V/D/G)




Product Introduction

Model UCSQARGB12P-W-SG
Fans/Model 1
Dimension (mm) 120(W) x 120(H) x 26(D) mm
Speed (RPM) 300- 1500 (±10%) rpm
Air Flow (CFM) 24.53 ~ 68.27 CFM
Air Flow (m³/h) 41.67 ~ 115.99 m3/h
Static Pressure (mm-H2O) 0.17 ~ 1.898 mm-H2O
Fan Maximum Noise (dBA) 12 ~ 23 dBA
Rated Voltage Fan (V) 12V
Rated Current Fan (A) 0.21A
Rated Voltage RGB LED (V) 5V (or 12V when connecting to the PWM header only)
Rated Current RGB LED (A) 0.68A (or 0.28A when connecting to the PWM header only)
MTTF (hours) ≧100,000 @ 25°C
Connector 1 x 4-pin PWM connector / 1 x 3-pin ARGB connector (5V/D/G)
Accessory 1 x ARGB Y cable (5V/D/G)
1 x GIGABYTE ARGB adapter
1 x Molex adapter
4 x Screw
EAN 4713157724304
UPC 819315024300
Box Dimension 133 x 160 x 32 mm
Gross Weight / unit 0.25 kg
Carton Dimension 490 x 340 x 270 mm
Q'ty / carton 60 PCS
Gross Weight / Carton 15.2 kg
