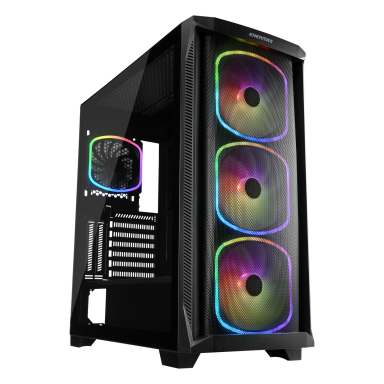

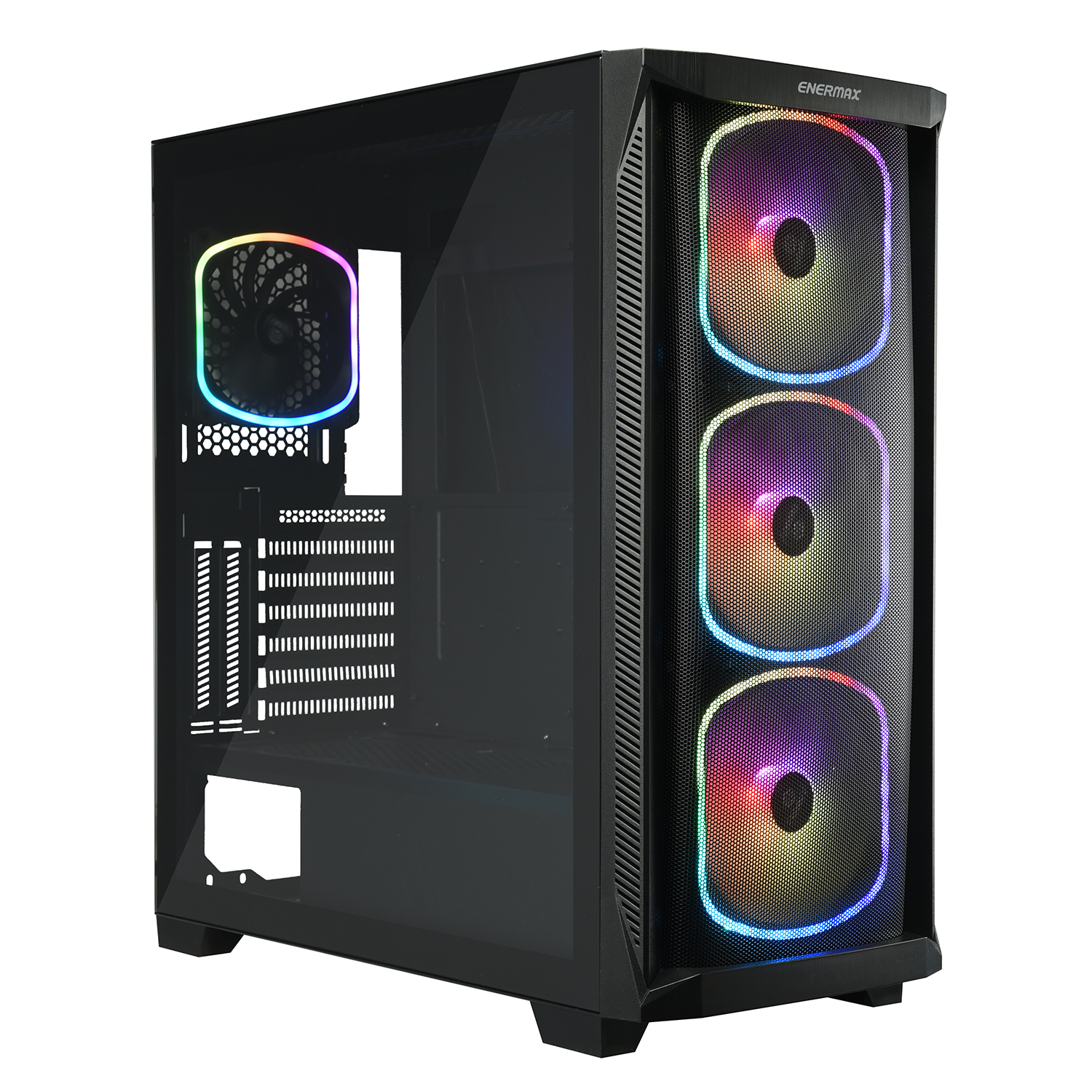

StarryKnight SK30 RGB Tempered Glass Mid-Tower ATX PC Case

▪ Pre-installed 3*140mm SquA in front and 1* 120mm SquA in rear
▪ TWO-vertically expansion slots to support vertical GPU installation
▪ Tool-less GPU holder to protect system component from sagging
▪ Curved mesh surface design provides outstanding ventilation
▪ Removable HDD cage creates extra room for a longer PSU (max. 20cm in depth)



Dazzling
RGB

Lighting

✮ Supports addressable RGB lighting synchronization

✮ Show your system with unique RGB lighting effects

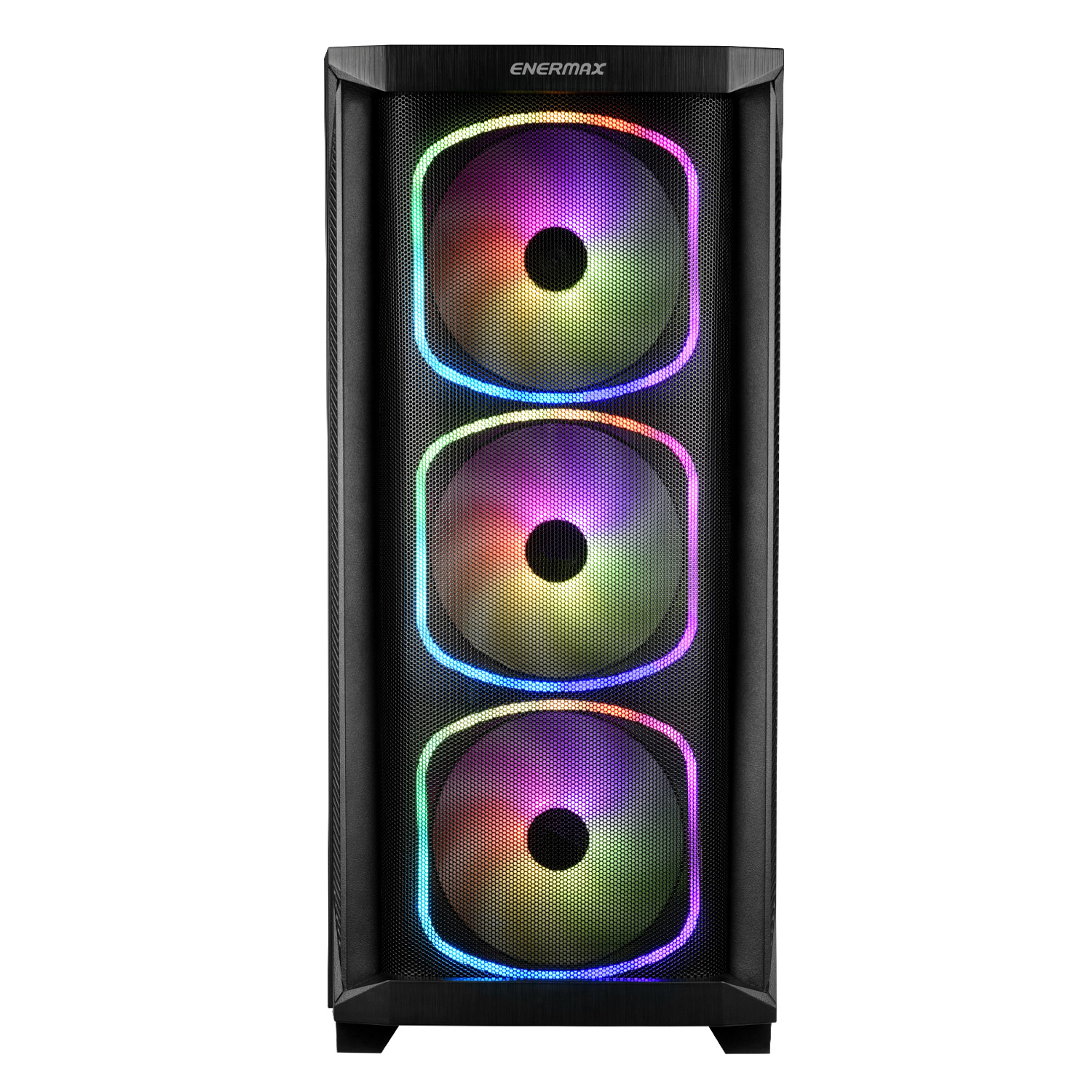

140mm SquA Fan lighting with both ring and hub

2 ways to control addressable RGB lighting effects

Through Motherboard Software

Users can sync the RGB lighting with motherboards featuringaddressable RGB headers (3 pin assignment is 5V/D/G)

Through Computer Case

Users can use the *lighting control button to adjust preferred light effects in 13 pre-set lighting selections

* Long press the lighting control button for 2~3 seconds to switch the RGB sync controlled by M/B or case
* The reset button located on the front I/O panel is replaced by the lighting control button

Excellent Cooling Performance

Stable System with Stronger Cooling Potential

The front and the top panel support up to 360 radiator, and rear support to 120 radiator

* Maximum total NINE fans installation

Liquid Cooler Compatibility Chart
Radiator size (mm) 360 280 240 140 120
Front
Top
Rear


Stable System with Stronger Cooling Potential

Curved mesh surface design provides outstanding ventilation

Different System Options and Excellent Expandability

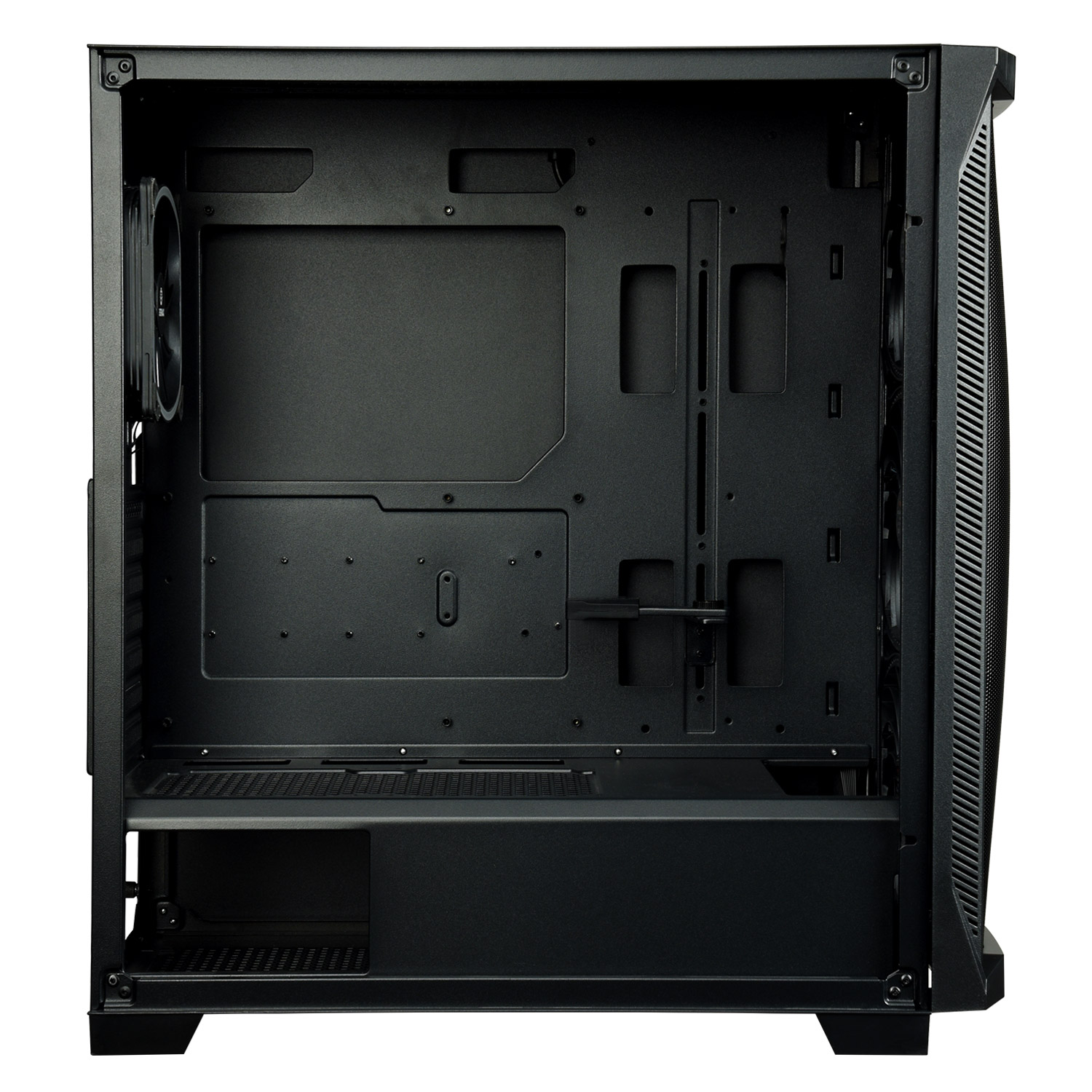

Roomy interior support up to E-ATX motherboard

Removable HDD cage support up to 200mm PSU

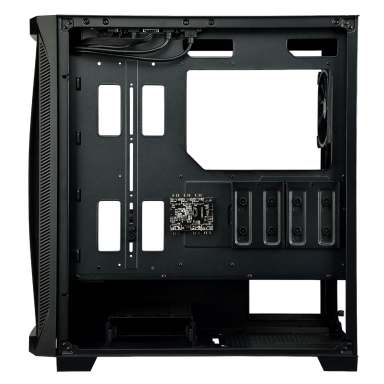

Support up to 4 x 2.5" SSD or 2 x 3.5" HDD

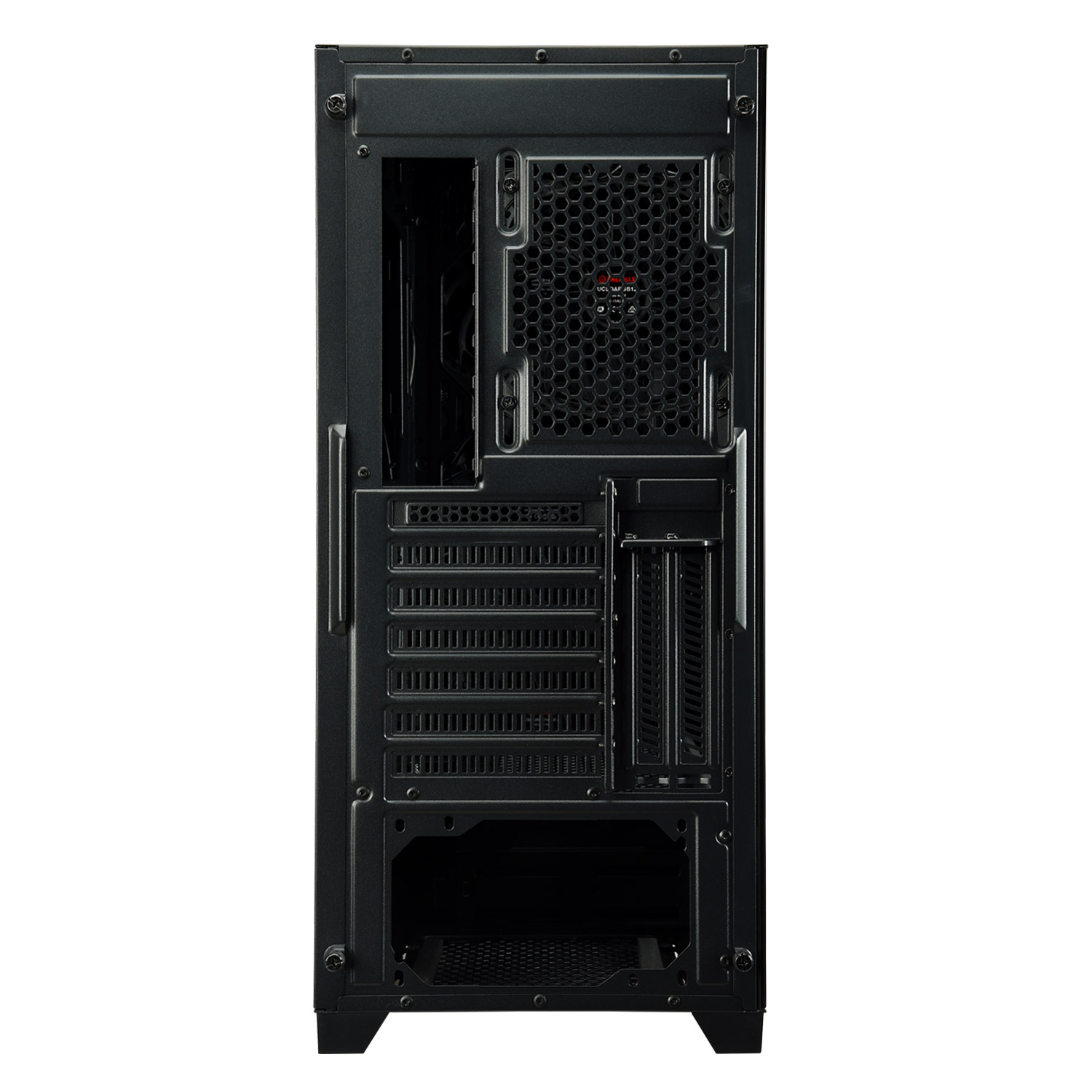

TWO-vertically expansion slots to support users by vertical GPU installation needs
(Include tool-less GPU holder)

User-friendly

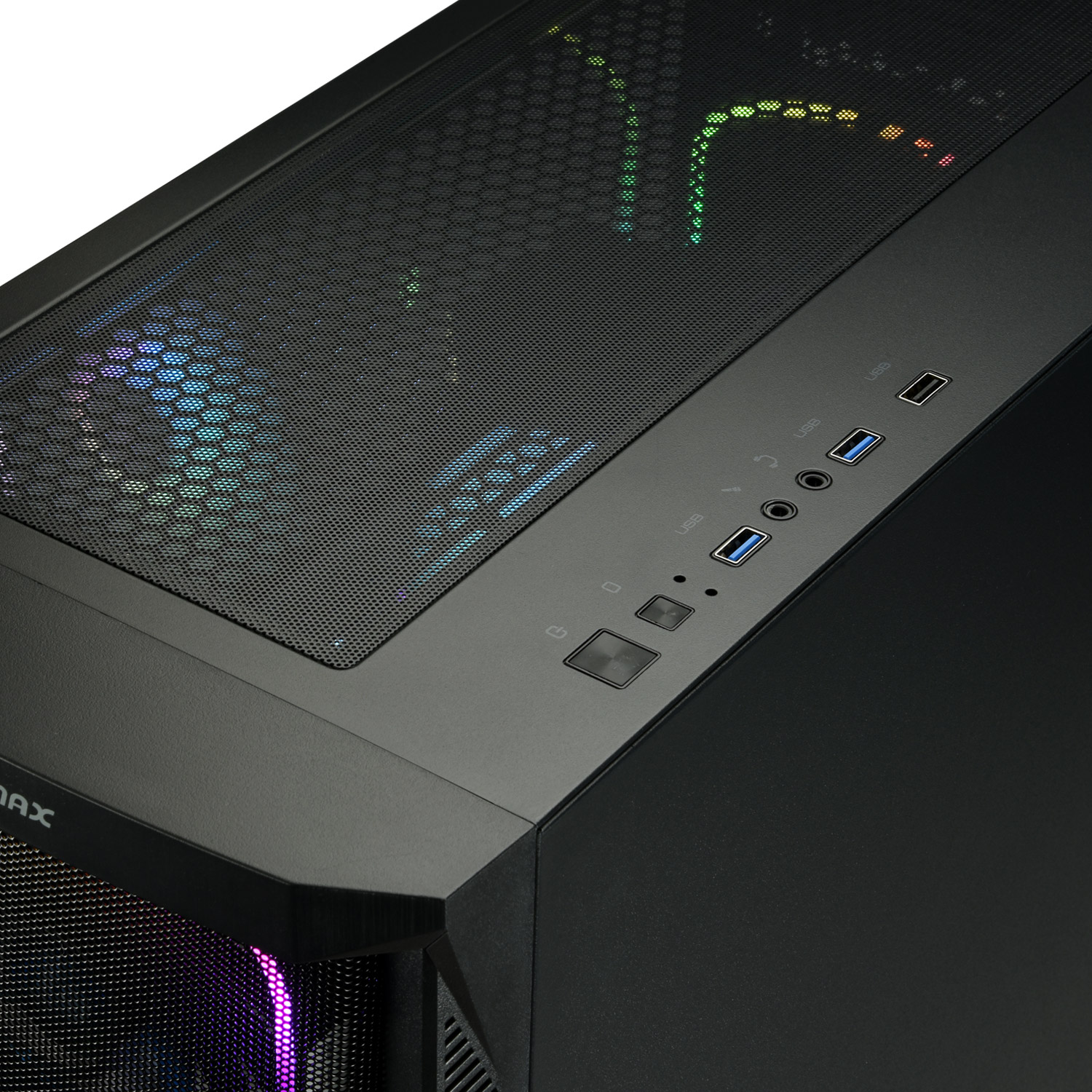

I/O ports at side panel design unaffected for user to rebuild front panel parts

Product Introduction

Model Name ECA-SK30-BB-ARGB-01
Dimensions (D x W x H) 465 x 220 x 486 mm
Material Tempered Glass, SPCC
M/B Type E-ATX, ATX, Micro-ATX, Mini-ITX
I/O USB3.2 Gen 1 x 2 , USB2.0 x 1 , HD Audio x 1
3.5'' Drive Bays 2
2.5'' Drive Bays 4 (2x converted from 3.5" HDD Cage)
Expansion Slots 7 + 2 Vertical
Fan Slots - Front 3 x 140mm / 3 x 120mm
(Pre-installed 3 x 140mm SquA RGB HUB ARGB)
Fan Slots - Top 2 x 140mm / 3 x 120mm
Fan Slots - Rear 1 x 120mm (Pre-installed 120mm SquA RGB)
Fan Slots - Tunnel 2 x 120mm
Radiator Support - Front 360 / 280 / 240mm
Radiator Support - Top 360 / 280 / 240mm
Radiator Support - Rear 120mm
PSU Support Stand ATX Type
Clearance - VGA card 405mm (Excluded radiator)
Clearance - CPU Cooler 170mm
Cable Routing Space 25mm
EAN code 4713157726469
UPC code 819315026465
Carton dimensions (D x W x H), (mm) D526 x W282 x H521mm
Gross Weight (kg) 8.6 kg
Net Weight (kg) 7.5 kg
